USER MANUAL ETM1004 Ferm

Blue FERM electric shaver with visible branding and handle (no text or symbols on body)

ETM1004

EN Original instructions 03
DE Übersetzung der Originalbetriebsanleitung 06
NL Vertaling van de oorspronkelijke gebruiksaanwijzing 10
FR Traduction de la notice originale 13
ES Traducción del manual original 17
PT Tradução do manual original 21
IT Traduzione delle istruzioni originali 24
SV Översättning av bruksanvisning i original 28
FI Alkuperäisten ohjeiden käännös 31
NO Oversatt fra orginal veiledning 35
DA Oversættelse af den originale brugsanvisning 38
HU Eredeti használati utasítás fordítása 41

CS Překlad původního návodu k používání 45
SK Prevod izvirnih navodil 48
SL Preklad pôvodného návodu na použitie 51
PL Tłumaczenie instrukcji oryginalnej 55
LT Originalios instrukcijos vertimas 58
LV Instrukciju tulkojums no originālvalodas 62
ET Algupärase kasutusjuhendi tõlge 65
SR Prevod originalnog uputstva 69
BS Prevod originalnog uputstva 69
AR تعليمات للاستخدام 72
МК Превод на оригиналните упатства 74

4 3 FERM 5 1 2 Fig. 1

TYPE 55 2.0mm 15-16mm 1.2mm TYPE 48 Fig. 2

Fig. 3

Cross-sectional view of a black electronic device with internal components and mounting holes (no text or symbols visible)

Nails/Nägel/spijkers/clous Fig. 5

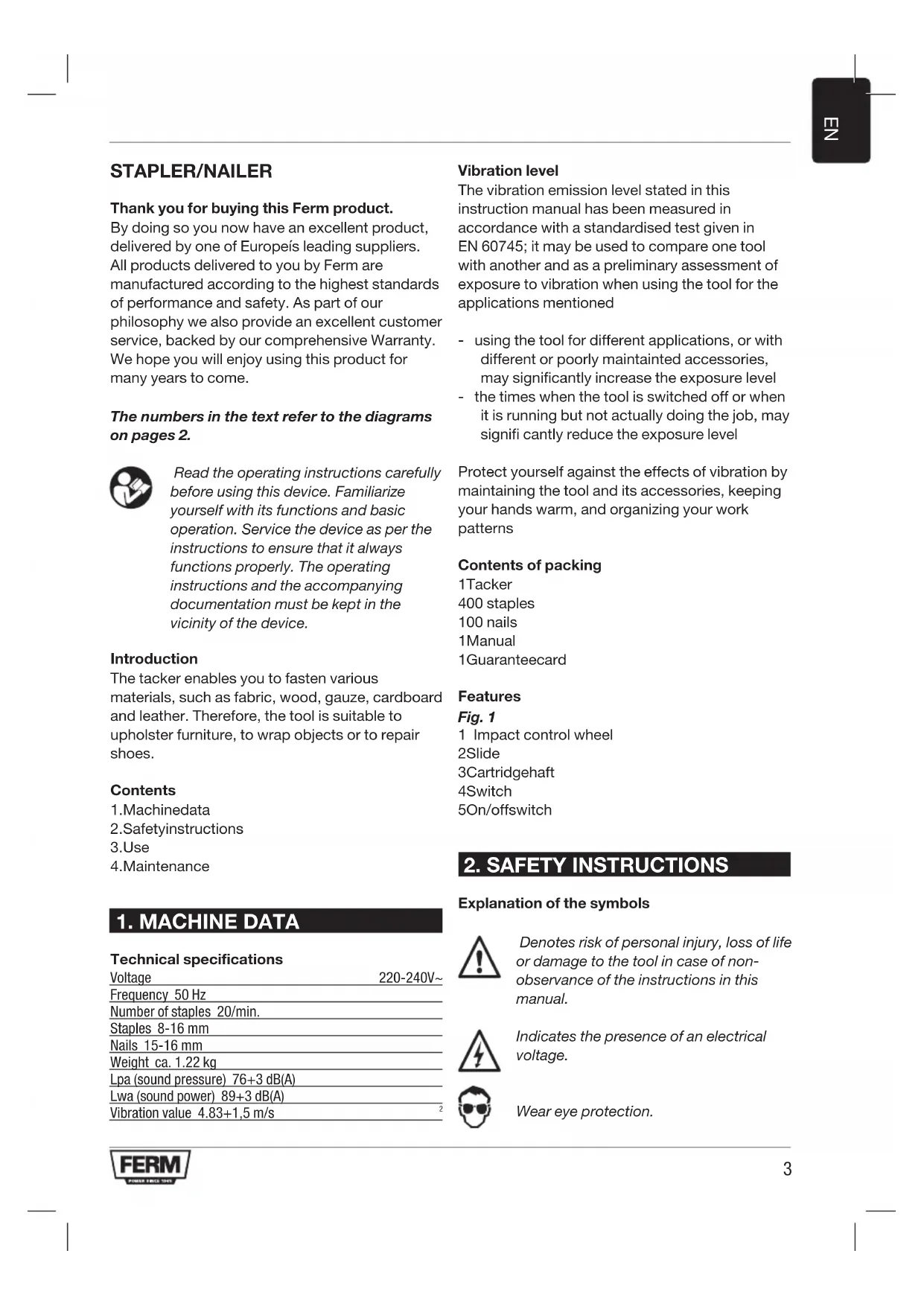

STAPLER/NAILER

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europeis leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive Warranty. We hope you will enjoy using this product for many years to come.

The numbers in the text refer to the diagrams on pages 2.

Read the operating instructions carefully before using this device. Familiarize yourself with its functions and basic operation. Service the device as per the instructions to ensure that it always functions properly. The operating instructions and the accompanying documentation must be kept in the vicinity of the device.

Introduction

The tacker enables you to fasten various materials, such as fabric, wood, gauze, cardboard and leather. Therefore, the tool is suitable to upholster furniture, to wrap objects or to repair shoes.

Contents

1. Machinedata
2. Safetyinstructions
3. Use
4. Maintenance

1. MACHINE DATA

Technical specifications

Voltage	220-240V~
Frequency 50 Hz
Number of staples 20/min.
Staples 8-16 mm
Nails 15-16 mm
Weight ca. 1.22 kg
Lpa (sound pressure) 76+3 dB(A)
Lwa (sound power) 89+3 dB(A)
Vibration value 4.83+1,5 m/s	^2

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

Contents of packing

1Tacker

400 staples

100 nails

1 Manual

1Guaranteecard

Features

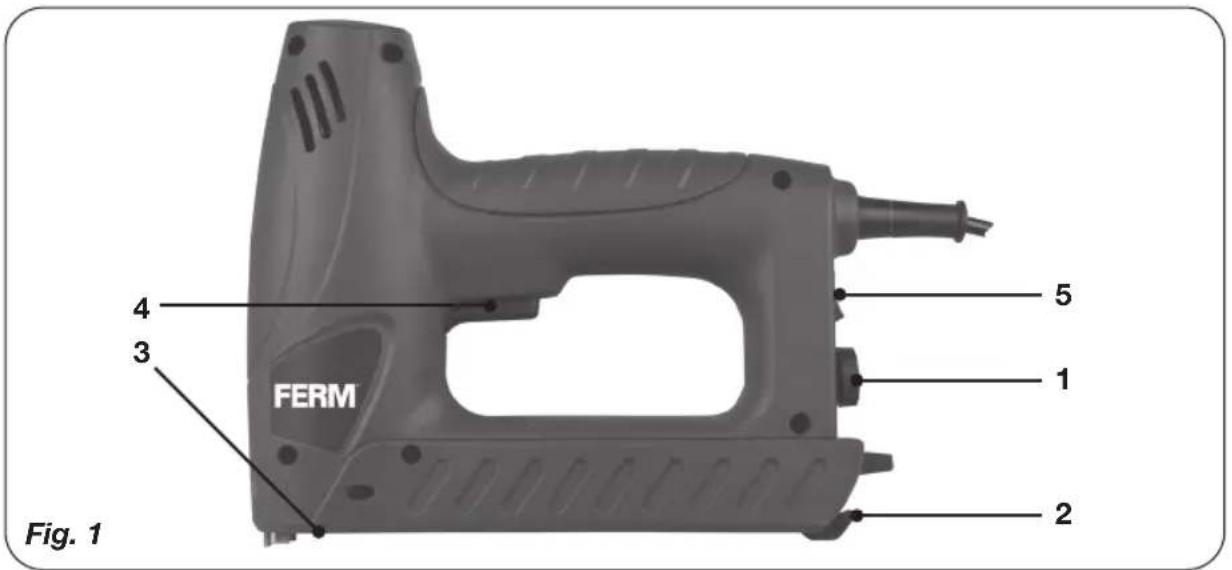

Fig. 1

1 Impact control wheel

2Slide

3Cartridgehaft

4Switch

5On/offswitch

2. SAFETY INSTRUCTIONS

Explanation of the symbols

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Indicates the presence of an electrical voltage.

Wear eye protection.

Specific safety instructions

• Always assume that the tool contains fasteners. Careless handling of the tacker can result in unexpected firing of fasteners and personal injury.
• Do not point the tool towards yourself or anyone nearby. Unexpected triggering could discharge the fastener causing an injury.
• Do not actuate the tool unless the tool is placed firmly against the workpiece. If the tool is not in contact with the workpiece, the fastener may be deflected away from your target.
• Disconnect the tool from the power source when the fastener jams in the tool. While removing a jammed fastener, the tacker may be accidentally activated if it is plugged in.
• Do not use this tacker for fastening electrical cables. It is not designed for electric cable installation and may damage the insulation of electric cables thereby causing electric shock or fire hazards.

Before using the tacker

• Check the following points:
• Do the voltage of the engine and the engine safe-guard, if any, correspond to the mains voltage (appliances for a mains voltage of 220-240 V);
• Are the mains lead and the mains plug in a good condition: solid, without any loose ends or damage.
• Always wear eye protection when using the tool.
• Maintain the tool with care.
• Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tools operation. If damaged, have the tool serviced before using.
• Check if the slide cartridge has been fastened properly.
• Do not use the tool in a humid environment.
• Do not use the tool on materials containing asbestos.

Using the tool

• Do not use the tool if the switch does not turn it "ON" or "OFF".
• Always hold the tool with two hands while starting.
  • Always keep the cord away from the moving

parts of the machine.

• Keep your hands away from the work piece.
• In the case of jamming by a nail or staple, switch the machine off immediately and remove the plug from the mains.
• Never aim the tool at people or animals.
• Use only staples or nails fit for this tool.
• Make sure not to damage any leads when using the tool.

Electrical safety

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions.

Always check that the power supply corresponds to the voltage on the rating plate.

Class II machine. Your machine is double insulated; therefore no earthwire is required.

Replacing cables or plugs

Immediately throw away old cables or plugs when they have been replaced by new ones. It is dangerous to insert the plug of a loose cable in the wall outlet.

Using extension cables

Only use an approved extension cable suitable for the power input of the machine. The minimum conductor size is 1.5 mm^2 . When using a cable reel always unwind the reel completely.

Remove all staples/nails from the magazine after each use

3. USE

Application

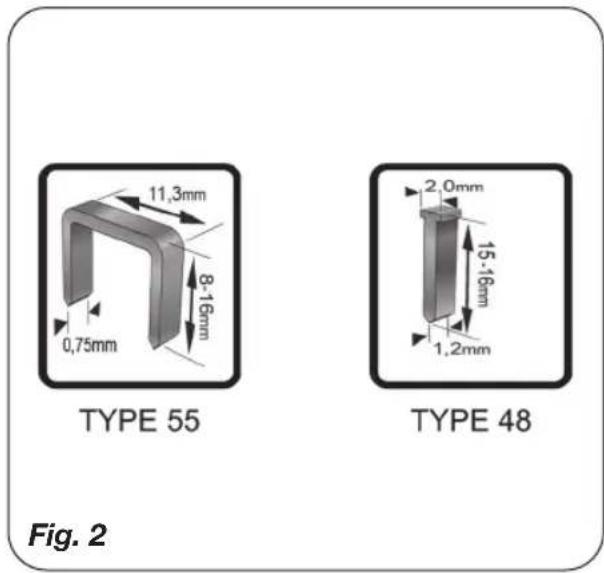

Fig. 2

For this tool, use one of the following types staples or nails:

• U Type 55: 8, 9, 10, 12, 13 14, 15, 16 mm
• T Type 48: 15-16 mm

Loading the tacker

Before opening the tool, make sure the tool is disconnected.

To load the tacker

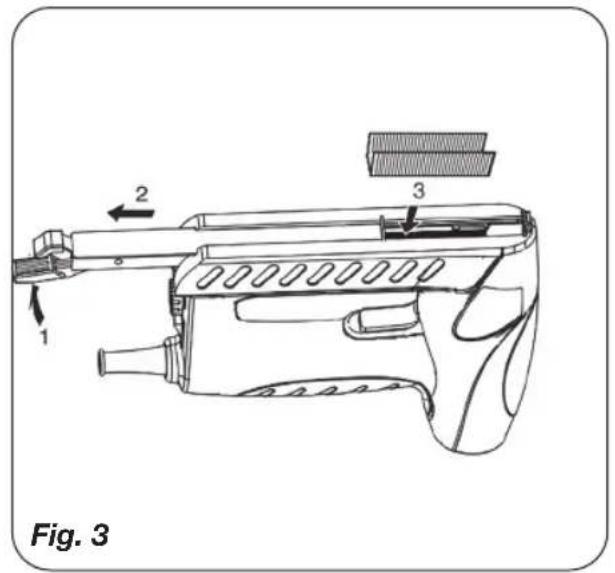

Fig. 3 - 5

Unlocking slide

- Press the slide unlock (2) to unlock the slide.

Placing staples/nails

• Pull the slide out of the machine

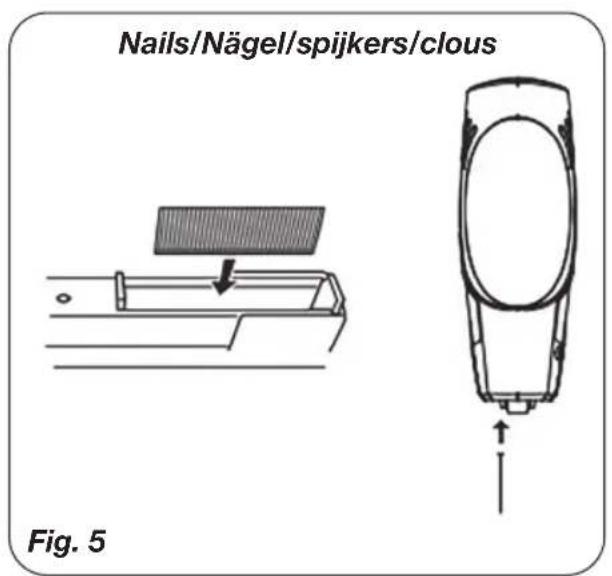

• Place the staples (fig. 4) or nails (fig. 5) in the cartridge
• Push the slide back in the machine.
• Lock the slide by sliding the slide forward until it locks into place.

Using the tacker

• Press the On/Off switch (5) to switch the machine on
• Press the On/Off switch (5) to switch the machine off.
• Turn impact control wheel to control impact power.

Placing the tool

• Place the tool on workpiece at the spot where the staple or nail should be located.
• Press the tool down firmly.

Stapling

- Press the switch (4).

The tool will cause a re bound because of the force it operates with. Keep this in mind.

4. MAINTENANCE

Make sure that the machine is not live when carrying out maintenance work on the motor.

This machine has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning.

Malfunction

Should the machine fail to function correctly, a number of possible causes and the appropriate solutions are given below:

• In case a staple or nail is jammed in the tool, follow the procedure below
• Disconnect the tool.
• Carefully remove the staple or nail from the tool with a thin object (for example a knife).

Repairs and servicing should only be carried out by a qualified technician or service firm.

Cleaning

Regularly clean the device's casing with a soft cloth, preferably after each use. Keep the fan slits free of dust and dirt. Remove tough dirt using a soft cloth, dampened with soapy water. Do not use solvents such as benzene, alcohol, ammonia, etc., which might damage the plastic parts.

Defects

If a defect appears due to a part wearing out, please contact the service center on the warranty card. At the end of these instructions there is an exploded view of the parts that can be ordered.

ENVIRONMENT

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging.

Damaged and/or disposed of electrical or electronic devices must be dropped off at recycling stations intended for that purpose.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

Read the warranty conditions on the separately supplied warranty card.

Our company policy is aimed at the constant improvement of our products and we reserve the right to change the product specification without prior notification.

ELEKTRO TACKER

• U: 8, 9, 10, 12, 13 14, 15, 16 mm
T: 15-16 mm

Den Tacker laden

• U: 8, 9, 10, 12, 13 14, 15, 16 mm
T: 15-16 mm

De machine laden

• U: 8, 9, 10, 12, 13 14, 15, 16 mm
T: 15-16 mm

• U: 8, 9, 10, 12, 13 14, 15, 16 mm
T: 15-16 mm

• U: 8, 9, 10, 12, 13 14, 15, 16 mm
T: 15-16 mm

Carregara máquina de pregar/agrafar

• U: 8, 9, 10, 12, 13 14, 15, 16 mm
T: 15-16 mm

• U: 8, 9, 10, 12, 13 14, 15, 16 mm
T: 15-16 mm

• U: 8, 9, 10, 12, 13 14, 15, 16 mm
T: 15-16 mm

For this tool, use one of the following types staples or nails:

• U: 8, 9, 10, 12, 13 14, 15, 16 mm
T: 15-16 mm

Fylle stiftemaskinen

Sette inn stifter/spikere

• U: 8, 9, 10, 12, 13 14, 15, 16 mm
T: 15-16 mm

• U: 8, 9, 10, 12, 13 14, 15, 16 mm
T: 15-16 mm

• U: 8, 9, 10, 12, 13 14, 15, 16 mm

T: 15-16 mm

• U: 8, 9, 10, 12, 13 14, 15, 16 mm
T: 15-16 mm

• U: 8, 9, 10, 12, 13 14, 15, 16 mm

T: 15-16 mm

Polnjenje pribijača

• U: 8, 9, 10, 12, 13 14, 15, 16 mm
T: 15-16 mm

• U Tip 55: 8, 9, 10, 12, 13 14, 15, 16 mm
• T Tip 48: 15-16 mm

Punjenje spajalice

Pre otvaranja, proverite da li je alat isključen.

Kako se puni spajalica

Sl. 3 - 5

Odbravljivanje klizača

- Pritisnite dugme (2) za odbravljivanje klizača.

Stavljanje spajalica/eksera

• Izvucite klizač iz mašine.
• Stavite spajalice (sl. 4) ili eksere (sl. 5) u kasetu
  • Gurnite klizač u mašinu.
• Zabravite klizač, klizanjem napred, dok ne zabravi na mesto.

Korišćenje spajalice

• Pritisnite On/Off prekidač (5) za uključivanje mašine.
• Pritisnite On/Off prekidač (5) za isključivanje mašine.
• Okrećite točkić za kontrolu udarca, da bi izabrali udarnu snagu.

Postavljanje alata

• Postavite alat na radni komad, na mesto na koje treba da se ispuca spajalica ili ekser.
• Pritisnite alat snažno.

Spajanje

• Pritisnite prekidač (4).

Alat proizvodi povratni udarac, zbog sile delovanja. Imajte to na umu.

4. ODRŽAVANJE

Exploded view diagram of a device with numbered parts for identification

Spare parts list

Position no. Description Article no.
8 Spring 101234
9 Coil assembly 101235
12 Main switch 101236
20 PCB 101237
22 Power on/off switch 101238
30 Firing pin 101239
36 Guide rail 101240
