USER MANUAL SPB 10000 A1 SILVERCREST

POWERBANK - 10.000 mAh / 10,000mAh POWER BANK / BATTERIE EXTERNE POWERBANK - 10 000 mAh SPBL 10000 C3

DE AT CH

POWERBANK - 10.000 mAh

Operation and Safety Notes

FR BE

BATTERIE EXTERNE POWERBANK - 10 000 mAh

Power supply not included.

37 Wh (Lithium-Polymer)

Warnings and symbols used.. Page 21

Introduction... Page 23

Intended use.. 23

Trademark notice.. 23

Scope of delivery.. 24

Parts description.. 24

Technical specifications 25

Safetynotices... Page 26

Before use.. Page 28

Operation and use 28

Charging the power bank.. 28

Checking the battery status.. 29

Charging mobile devices with he power bank.. 29

Troubleshooting Page 30

Cleaning and care.. Page 31

Storage during non-use Page 32

Disposal Page 32

Warranty 33

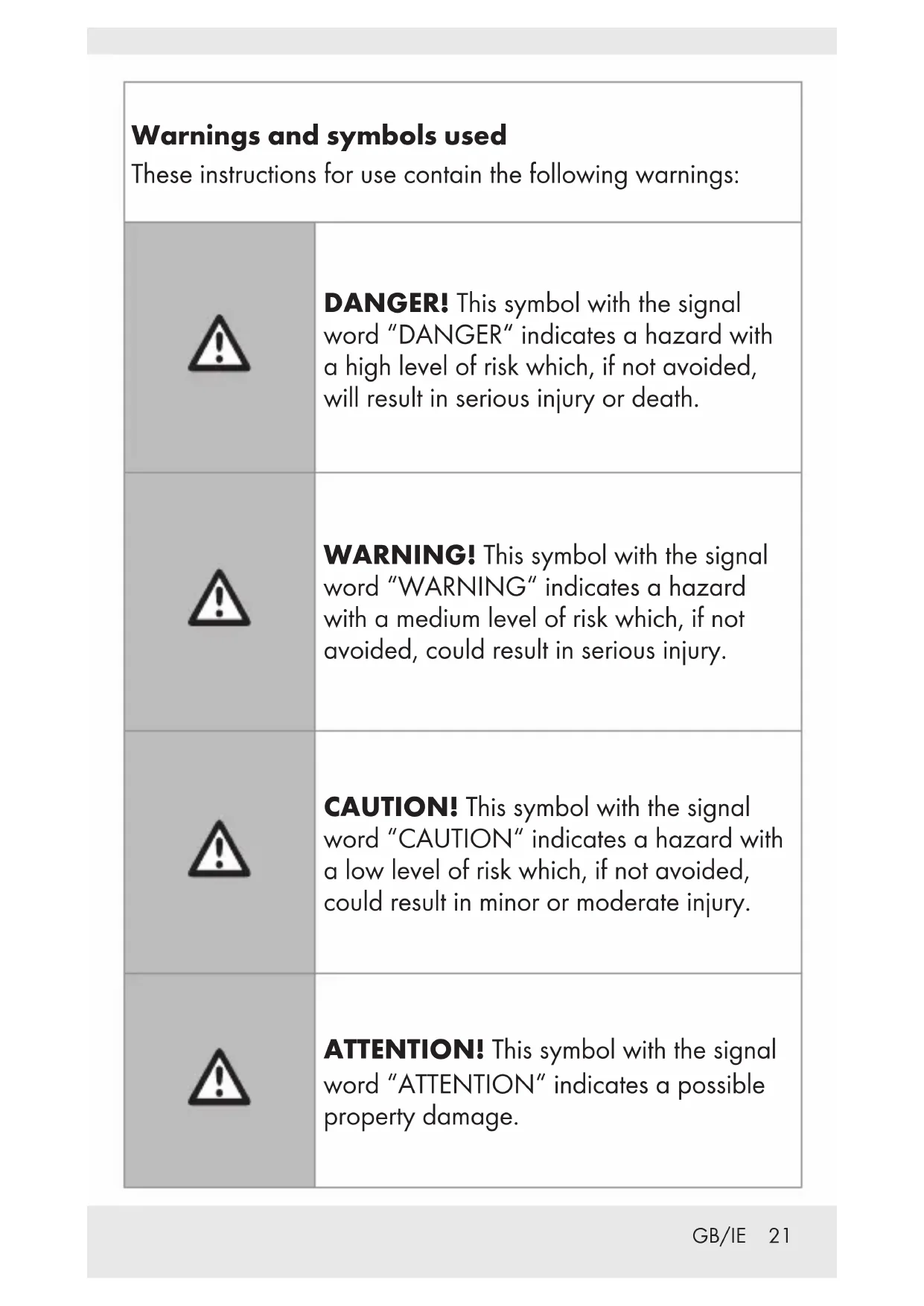

Warnings and symbols used These instructions for use contain the following warnings:
!	DANGER! This symbol with the signal word “DANGER” indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.
!	WARNING! This symbol with the signal word “WARNING” indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury.
!	CAUTION! This symbol with the signal word “CAUTION” indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.
!	ATTENTION! This symbol with the signal word “ATTENTION” indicates a possible property damage.
i	NOTE: This symbol with the signal word “NOTE” provides additional useful information.
	This action sign indicates to wear suitable protective gloves! Follow the instructions to avoid hands striking or being struck by objects or being in contact with thermal or chemical materials!
	This symbol means that the operating instructions must be observed when using the product.
---	Direct current
Smart Fast Charge	Technology to optimize charging time.
3	Qualcomm quick charge 3.0 The equipment complies Quick Charge 3.0 specifications and agreements issued by Qualcomm Technologies, Inc.

10,000mAh POWER BANK

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

This POWER BANK (hereinafter referred to as "product") is an Information Technology device which is solely intended to be used to charge mobile devices which are normally charged through a USB port. This product is not intended for commercial use. Manufacturer is not liable for damages, which result from non-intended use.

Trademarknotice

• USB is a registered trademark of USB Implementers Forum, Inc.
• The SilverCrest trademark and trade name is the property of their respective owners.
• The Smart Fast Charge trademark and trade name is the property of their respective owners.

• Any other names and products may be trademarks or registered trademarks of their respective owners.

• Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. Qualcomm Quick Charge is a trademark of Qualcomm Incorporated. All Qualcomm Incorporated trademarks are used under license.

- Scope of delivery

1 Power bank
1 USB Type A to USB Type C cable
1 Instructions for use

- Partsdescription

Please refer to the fold out page.

1 USB Type C input and output port with PD 3.0
2 USB Type A output 1 with QC3.0

(with the orange-coloured marking)

3 USB Type A output 2 (with the grey-coloured marking)
4 Display
5 ON/OFF button
6 Power bank
7 USB Type A to USB Type C cable
8 Instructions for use
9 Input and output status indicator
10 USB output 1 QC3.0 (includes 5V = 3A/ 9V = - - ,2A / 12V = 1,5A)
11 USB output 2 (5 V = -2.1 A)
12 Battery capacity in percentage indicator

-Technicalspecifications

Built-in rechargeable battery:	3.7 V——, 10,000 mAh, 37 Wh (Lithium polymer)
USB Type C input voltage / current:	5 V——, 3 A / 9 V——, 2 A
USB Type C output with PD 3.0 voltage / current:	5 V——, 3 A / 9 V——, 2 A / 12 V——, 1.5 A
USB Type A output 1 with QC3.0 voltage / current:	5 V——, 3 A / 9 V——, 2 A / 12 V——, 1.5 A
USB Type A output 2 voltage / current:	5 V——, 2.1 A
Maximum output power: 18 W*
Maximal output current: 3 A*
Minimal output current: approx. 60 mA	mA
Operating temperature: 5 - 35 °C
Storage temperature: 0 - 45 °C
Humidity (no condensation): 10 - 70 %	%
Dimensions:	approx. 145 x 72 x 18 mm
Weight: approx. 230 g

• If all outputs are used at the same time, the sum of the output current may not exceed 3 A.

Safetynotices

Please familiarise yourself with all instructions for use and Safety notices before using the product for the first time. When passing this product on to third parties, please be sure to include all documentation.

• Check the product for visible external damage before use. Do not use the product if damaged or dropped.
  This product may be used by children age 8 years and up, as well as by persons with physical, sensory or mental impairments or lacking experience and/or knowledge, provided they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Never allow children to clean or maintain this product unsupervised.
  DANGER! Packaging materials are not a toy. Keep all packaging materials out of the reach of children. Suffocation hazard!
  Always use the product on flat and smooth surface. The product could be damaged if it falls.
• Do not expose the product to direct sunlight or high temperatures. It may otherwise overheat and be damaged beyond repair.
• Do not operate the product near heat sources such as radiators or other devices producing heat.
  Do not operate the product near open flames.
  The product is not designed for use in rooms with high temperatures or humidity (i.e bathrooms) or those in which a great amount of dust is generated.
• Do not expose the product to extremely high temperatures. This applies in particular if you are thinking about storing the product in your car. Over a prolonged period of time, the car and the glove compartment could become

extremely hot. Remove electric and electronic devices from the car.

• Do not use the product immediately after it has brought from a cold room to a warm room. Allow the product to acclimatise before you switch it on.
  WARNING! Never open the product casing. This product has no internal parts requiring maintenance.
• Do not independently convert or modify the product.
  Repairs to the product must be performed by authorised specialised companies or customer service. Improper repairs may place the user in considerable danger. They will also void the warranty.
• Do not expose the product to dripping water or splashing water and do not place containers filled with liquids such as vases or open drinks on top of or beside the product.
• Immediately switch the product off and remove the charging cable from the product if you smell burning or see smoke. Have the product examined by a qualified technician before using it again.
  If you use a USB power supply, the socket used must always be easily accessible so that the USB power supply can be quickly removed from the socket in the case of emergency. Please also refer to the manufacturer's instruction manual.
  WARNING! Improper handling of lithium polymer batteries can result in fire, explosions, hazardous substances leaking, or other dangerous situations! Do not throw the product into the fire, as this could lead to the built-in battery exploding.
• Observe the usage restrictions and prohibitions of use for battery-operated products in situations which may be hazardous such as at petrol stations, airports, hospitals, etc.
  WARNING! During charging process, please be noticed that the product must not be covered. Otherwise the product can be heated.

The product should never be charged at a PC or notebook, because due to the high power consumption, the PC or notebook could be damaged.

- Beforeuse

iNOTE: Remove all packaging materials from the product.
Please also check the content of delivery inside the packaging to see if there are any damages. If you notice any damage or missing parts, please contact the dealer who sold this product.

Operation and use

• Charging the power bank

The built-in rechargeable battery must be fully charged before using the product.

To charge the power bank 6 only use power supplies with an output voltage of 5V and an output current of at least 3 A.
ATTENTION! The power bank should not be charged from a PC or notebook.
Connect the USB Type A to USB Type C cable with the USB Type C input port of the power bank.
- Connect the other end of the USB Type A to USB Type C cable [7] (USB Type A) to a USB power supply (not included in the scope of delivery) (see fig. A).

Thedisplay 4 shows you the approximate charge level of the internal battery in percent. After approx. 10 seconds the display goes out, you can display the value again by pressing the ON / OFF button 5.

WARNING! Do not connect any device to be charged to power bank as long as the power bank is charging. Remove the charging cable from the power bank when it is fully charged.

- Checking the battery status

You can check the battery status on the display 4 of the power bank 6 at anytime.

- Charging mobile devices with the power bank

• Briefly press the ON/OFF button 5. The display 4 shows the approximate charge status of the internal battery in percent for approx. 10 seconds.

You can charge up to three devices at the same time using the power bank 6. If all outputs are used at the same time, the sum of the output current may not exceed 3 A.

• Connect the USB Type A to USB Type C cable 7 or the original charging cable of the device to be charged to one of the three USB outputs: USB Type C output 1, USB Type A output 1 2, or USB Type A output 2 3.
  Then connect the USB-C port of the USB Type A to USB Type C cable to the USB-C input of the device to be charged. The charging process will start automatically.
  If your mobile device has a USB Type C input, you can use a Type C to Type C connection cable (not included) to connect your device's Type C input to this power bank's USB Type C output. The charging process will start automatically.
  In case if the charging process does not begin immediately, press the ON/OFF button 5 briefly to begin the

charging process. The current battery status of the power bank 6 is displayed during the charging process by the display 4 . The display will switch off after approx. 10 seconds.

To end the charging process, disconnect the USB charging cable from the mobile device and the power bank 6. The power bank will switch OFF and the display 4 will switch off after approx. 10 seconds.
Or simply double click with ON/OFF button 5. The power bank and the display 4 will switch off.

i NOTE:

1. If you use all the USB ports, a voltage of 5V will output at the outputs. The maximum output current must not exceed 3.0 A for all outputs. If all USB outputs are used, fast charge is not possible.
2. If USB Type A output 12 is in quick charge mode, and another USB port is connected to another device for charging, the fast charge to USB Type A output 12 will be terminated and switched to normal charge. All devices will now output at 5V each.

Troubleshooting

= Problem
Cause
= Solution

The power bank is not being charged.

It may be that the power bank is not connected properly.

Check that it is connected.
In order to charge the power bank, a power supply with 5 V and at least 3 A has to be used.
A connected device is not being charged.
The battery is drained.
Charge the battery.
The device is not connected.
The device is not connected. Check that it is connected. Briefly press the ON/OFF button 5 to begin the charging process.
The current consumption of the connected device might be too low.
Check with your connected device manual and see if your connected device current consumption comply with this product. The minimal output current of the power bank is approx. 60mA .
The power bank does not react when the button is pressed or when a device is connected, even though the battery is charged.
The power consumption of the connected devices is too high. Therefore, the internal overcurrent protection device was activated.
Reduce the number of devices connected and press the ON/OFF button 5.

Cleaning and care

This product has no internal parts requiring maintenance. Moisture entering the product may result in damage.

Ensure no moisture enters the product during cleaning to prevent damaging the product beyond repair.
Do not use abrasive, solvent-based or aggressive cleaners. These can damage the surface of the product.
Only clean the product with a slightly damp cloth and mild washing-up liquid.

Storage during non-use

Store the product in a dry dust-free location, protected from direct sunlight.
If the product is not used for a long time, the built-in battery should be fully charged to prolong its operating life. Regularly charge the built-in battery if you do not use the product for a long period of time. This is necessary to preserve the battery.

Disposal

Packaging:

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Product:

Contact your municipality for information on how to dispose of your worn-out product.

The adjacent symbol of a crossed out dustbin on wheels indicates this product is subject to Directive 2012/19/EU. This directive states at the end of the life this product must not be disposed of through

regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.

This disposal is free of charge to you.

Protect the environment and dispose of properly.

The product is recyclable, subject to extended manufacturer responsibility, and collected separately.

The built-in rechargeable battery cannot be removed for disposal. Return the product completely to a collection site for used electronics.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
