USER MANUAL WX317 WORX

Line drawing of a WORX electric drill with power cord and plug, showing external wiring (no text or symbols)

E 1 2

Diagram of a mechanical device with a central gear and two rabbits, showing directional arrows (no text or symbols)

Technical diagram of a mechanical device showing internal components and directional arrow (no text or symbols)

Technical diagram of a vehicle interior with labeled parts and directional arrows indicating movement or assembly.

1. KEYLESS CHUCK
2. DEPTH GAUGE
3. DRILL/ HAMMER DRILL FUNCTION SELECTOR
4. SWITCH LOCK ON BUTTON
5. ON/OFF SWITCH
6. VARIABLE SPEED CONTROL
7. FORWARD AND REVERSE ROTATION CONTROL LEVER
8. AUXILIARY HANDLE

Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

Type WX317 WX318 (300-329-designation of machinery, representative of Impact Drill)

		WX317 WX318
Voltage 230-240V~50Hz
Power input 600W 810W
No load speed 0-3000/min
Impact rate 0-48000/min
Chuck capacity 13mm
Drilling capacity	Masonry 13mm	16 mm
	Wood	25mm	32 mm
	Steel	13mm	13 mm
Protection class		☐/II
Machine weight		2.1kg	2.42kg

NOISE/VIBRATION INFORMATION

	WX317	WX318
A weighted sound pressure	L_pA : 99dB(A)	L_pA : 93,5dB(A)
A weighted sound power	L_wA : 110dB(A)	L_wA : 104,5dB(A)
K_pA & K_wA	3.0dB(A)
Wear ear protection when sound pressure is over		80dB(A)

VIBRATION INFORMATION

		WX317 WX318
Vibration total values (triax vector sum) determined according to EN 60745:
Impact drilling into concrete	Vibration emission value a	_h ID=6.435m/s^2	a_h ID=9,217m/s^2
	Uncertainty K=1.5m/s2
Drilling into metal	Vibration emission value a	_h D=4,046m/s^2	a_h D=7,288m/s^2
	Uncertainty K=1.5m/s2

The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained.

The use the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimise your vibration exposure risk.

ALWAYS use sharp chisels, drills and blades

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate)

If the tool is to be used regularly then invest in anti vibration accessories.

Avoid using tools in temperatures of 10^ C or less

Plan your work schedule to spread any high vibration tool use across a number of days.

ACCESSORIES

	WX317 WX318
Auxiliary handle 1 1
Depth gauge 1 1
HSS drill bit	/	3 (5mm, 6mm, 8mm)
Masonry drill bit	/	3 (6mm, 8mm, 10mm)

We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

HAND DRILL SAFETY INSTRUCTIONS

1. Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
2. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
3. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

SYMBOLS

	To reduce the risk of injury, user must read instruction manual
	Double insulation
	Wear ear protection
	Wear eye protection
	Wear dust mask
	Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice

	Before any work on the machine itself, pull the mains plug from the socket outlet.
	Wear protective gloves
	Hammer drilling
	Drilling
	Wood
	Metal
	Plastic
	Concrete
	Masonry
	High speed
	Low speed

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

INTENDED USE

The machine is intended for impact drilling in brick, concrete and stone as well as for drilling in wood, metal and plastic.

ASSEMBLY AND OPERATION

ACTION FIGURE
Clamping and loosening the Auxiliary HandleWARNING! Always check and rotate the handle tightly before using to avoid any accident.	See Fig. A1, A2
Installing the Depth Gauge See	Fig. B
Inserting Bits into Chuck See Fig. C1, C2
Plugging in the power See Fig. D

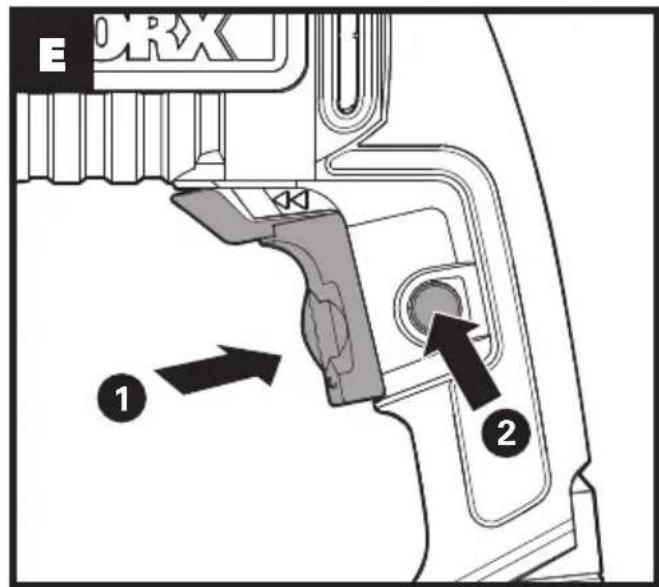

On/Off Switch and Lock-on Button	See Fig. E

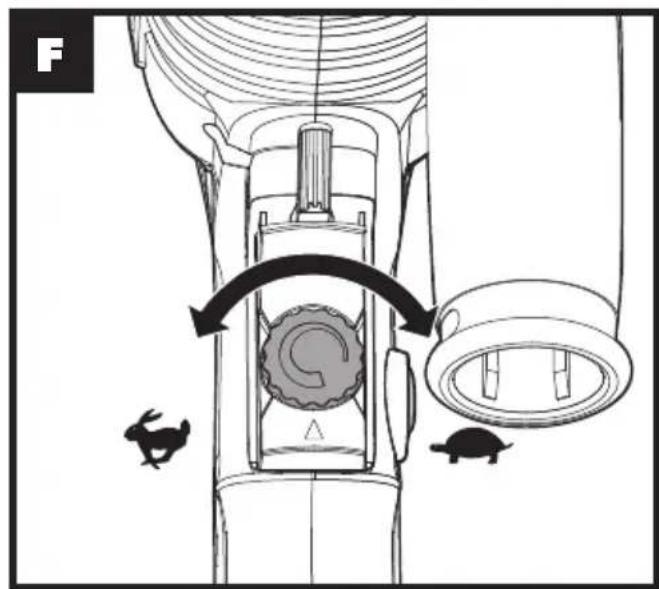

Variable Speed Control See Fig. F

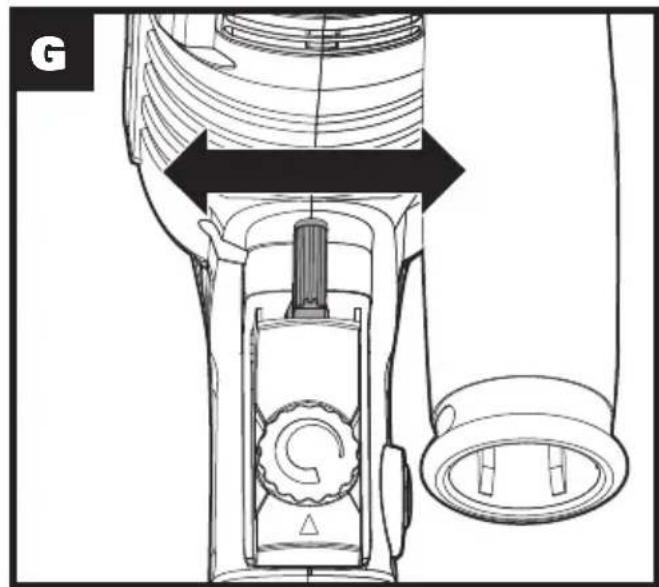

Forward and Reverse Rotation ControlNOTE: Never move the forward/reverse switch whilst the drill in operation or the on/off switch is locked as this will damage the drill.	See Fig. G

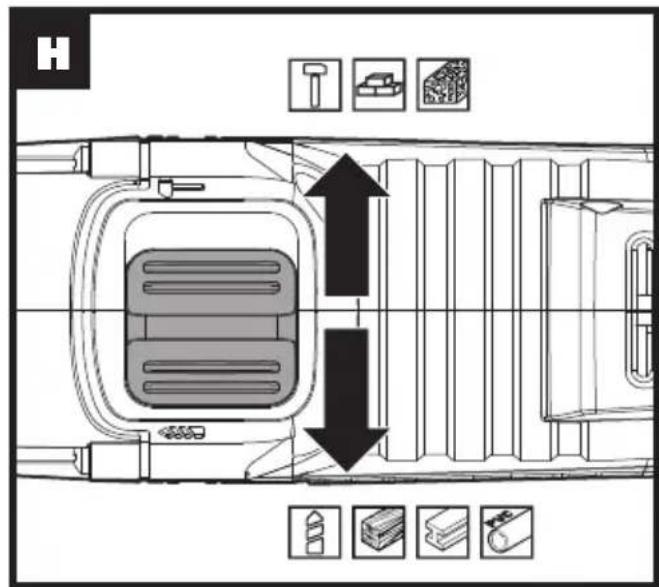

Hammer or Drilling Control See Fig. H

WORKING HINTS FOR YOUR DRILL

1. Drilling masonry and concrete

Select the drill/impact action selector switch to the “hammer symbol” position. Tungsten carbide drill bits should always be used for drilling masonry, concrete etc with a high speed.

2. Drilling steel

Select the drill/impact action selector switch to the "drill symbol" position. HSS drill bits should always be used for drilling steel with a lower speed.

3. Pilot holes

When drilling a large hole in tough material (i.e. steel), we recommend drilling a small pilot hole first before using a large drill bit.

4. Drilling tiles

Select the drill/impact action selector switch to the "drill symbol" position to drill the tile. When tile has been penetrated, switch over to "hammer symbol" position.

5. Cool the motor

If your power tool becomes too hot, set the speed to maximum and run no load for 2-3 minutes to cool the motor.

MAINTENANCE

Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.

Your power tool requires no additional lubrication or maintenance.

There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard.

TROUBLESHOOTING

1. If your power tool does not start, check the plug on the power supply first.

2. If the drill doesn't work properly, check the drill bit for sharpness, replace drill bit if worn. Check that the drill is set to forward rotation for normal use.

3. If a fault can not be rectified, return the tool to an authorized dealer for repair

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist.

Check with your local authorities or retailer for recycling advice.

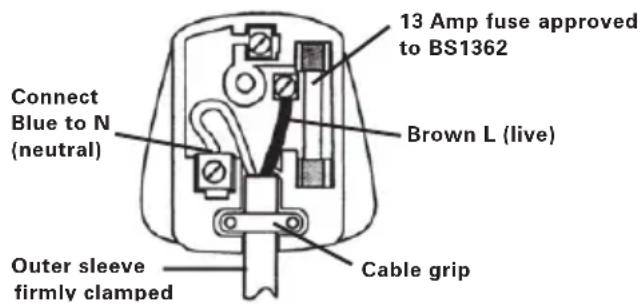

PLUG REPLACEMENT (UK & IRELAND ONLY)

If you need to replace the fitted plug then follow the instructions below.

IMPORTANT

The wires in the mains lead are colored in accordance with the following code:

Blue = Neutral

Brown = Live

As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows. The wire which is colored blue must be connected to the terminal which is marked with N. The wire which is colored brown must be connected to the terminal which is marked with L.

WARNING: Never connect live or neutral wires to the earth terminal of the Only fit an approved 13ABS1363/A plug the correct rated fuse.

NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket.

13 Amp fuse approved to BS1362 Brown L (live) Connect Blue to N (neutral) Cable grip Outer sleeve firmly clamped

DECLARATION OF CONFORMITY

We,

POSITEC Germany GmbH

Declare that the product,

Description WORX Impact Drill

Type WX317 WX318 (300-329-designation of machinery, representative of Impact Drill)

Function Boring holes in various materials

Complies with the following Directives,

2006/42/EC

2004/108/EC

2011/65/EU

Standards conform to

EN 60745-1

EN 60745-2-1

EN 55014-1

EN 55014-2

EN 61000-3-2

EN 61000-3-3

The person authorized to compile the technical file,

Name Russell Nicholson

Address Positec Power Tools (Europe)

Ltd, PO Box 152, Leeds, LS10 9DS, UK

M C E

Suzhou 2015/07/01

Allen Ding

Deputy Chief Engineer, Testing & Certification
