STUFA A PELLET, a marchio commerciale EDILKAMIN, denominata LOU

Congratulations and thank you for choosing our product.

Please read this document carefully before you use this product in order to obtain the best performance in complete safety. For further details or assistance, please contact the DEALER where you purchased the product or visit our website www.edilkamin.com and click on DEALERS.

NOTE

• After having unpacked the stove, ensure that its contents are complete and intact (remote control, "cold-hand" handle to open the inner door, guarantee booklet, glove, CD/technical data sheet, spatula, dehumidifying salt).

In case of anomalies please contact the dealer where you purchased the product immediately.

You will need to present a copy of the warranty booklet and valid proof of purchase.

- Commissioning/ testing

Commissioning and testing must be performed by the DEALER. Failure to do so will void the warranty.

Commissioning, as specified in standard UNI 10683 consists in a series inspections to be performed with the insert installed in order to ascertain the correct operation of the system and its compliance to applicable regulations

Details of your nearest Service Centre can be obtained from your dealer, from our website at www.edilkamin.com or by ringing the helpline.

• Incorrect installation, incorrect maintenance, or improper use of the product, shall relieve the manufacturer from responsibility for any damage resulting from the use of this product.

- series number, necessary for identification of the stove, is indicated:

• on the top of the package
• in the warranty booklet found inside the fi rebox
• on the ID plate affixed to the back side of the unit;

This documentation must be saved for identification together with the valid proof-of-purchase receipt. The data contained therein must be reported when requesting information and made available should servicing be required;

• All images are for illustration purposes only; actual products may vary.

The undersigned EDILKAMIN S.p.a. with head office headquarters at Via Vincenzo Monti 47 - 20123 Milan - Italy - VAT IT00192220192

Declares under its own responsibility as follows:

The pellet stove illustrated below conforms to Regulation EU 305/2011 (CPR) and to the harmonised European Standard EN 14785:2006

WOOD PELLET STOVES, trademark EDILKAMIN, called LOU

Year of manufacture: Ref. Data nameplate

Declaration of performance (DoP - EK 095): Ref. data tag plate

In addition, it is hereby declared that:

the wood pellet stove LOU is in compliance with the requirements of the European directives:

2006/95/EC - Low voltage directive

2004/108/EC - Electromagnetic compatibility directive

EDILKAMIN S.p.a. will decline all responsibility of malfunctioning or damage to the equipment in case of unauthorized substitution, assembly or modifications of any sort on the said equipment on the part of non-EDILKAMIN personnel.

The LOU stove is completely airtight with respect to the room in which it is installed; this means that the air (for combustion and glass-cleansing) is taken directly from the external environment, thus avoiding even minimum use of the air of the room in which it is installed. It is consequently suitable for use in houses defi ned at "PASSIVE".

To respect this hermetic property of the stove, the pipe for the input of the comburent air must be connected with the external environment using suitable airtight pipes and connections.

The stove produces hot air using wood pellets as fuel, with electronically controlled combustion. Hereunder is the explanation of its functions (the letters refer to figure 1).

The fuel (pellets) is provided by the storage hopper (A) and, to the combustion chamber (D) by means of a feed screw (B), which is driven by a gear motor (C).

The pellets are ignited by the air that is heated by an electrical resistance (E) and drawn into the combustion chamber by a smoke extractor (F).

The fumes produced by the combustion are extracted from the combustion chamber by the same extractor fan (F) and expelled from the vent (G) located in the lower rear of the stove.

The combustion chamber (made in material called Vermiculite) is closed at the front by two overlapping doors:

• an outer door in ceramic glass (to be opened with the glove provided)

• in inner door in ceramic glass in contact with the fire (to be opened with the special "cold-hand" handle).

Fuel quantity, smoke extraction and combustion air supply are all controlled by an electronic control board, which is equipped with Leonardo software to achieve high combustion efficiency and low emissions.

All phases of operation can be managed via radio remote control.

The stove is equipped with a serial port to connect an optional cable (code 640560) to be connected to devices that allow remote ignition (e.g. remote telephone, local thermostat, ect.).

I

A

D

B

E

C

G

F

fi g. 1

SAFETY INFORMATION

The stove is designed to heat, through automatic pellet combustion in the hearth, the room where it is installed, both by radiation and the air that comes out of the front grille (I).

• The appliance is not designed to be used by people, including children, with reduced physical, sensorial or mental abilities. Children must be supervised to ensure they do not play with the appliance.

• The main risks that may derive from using the stove pertain to non-compliance with installation instructions, direct contact with live electrical parts (internal), contact with the fire or hot parts (glass, pipes, hot air output), when extraneous substances or non-recommended fuel are introduced, or due to incorrect maintenance or by repeatedly pressing the ignition button without having emptied the crucible.

• Only use certifi ed, high quality, 6mm diameter wooden pellets for fuel.

• Should components fail, the stoves are equipped with safety devices that guarantee automatic shutdown. These are activated without any intervention required.

• In order to function correctly, the stove must be installed in accordance with the instructions given herein and the door must not be opened during operation: combustion is fully automatic and requires no intervention.

• Under no circumstances should any foreign substances be entered into the hearth or hopper.

• Do not use flammable products to clean the smoke channel (the flue section connecting the stove smoke outlet to the chimney flue).

• The hearth and hopper parts must only be cleaned when COLD.

• The glass can be cleaned when COLD with a suitable product (e.g. GlassKamin Edilkamin) and a cloth.

• Avoid opening the door of the combustion chamber when the stove is hot; wait until it has cooled down naturally.

• The stove must not function if the door is open, if the glass is broken or if the pellet-loading port is open.

• It must not be used as a step ladder or a base on which to rest any object.

• Do not lay laundry directly on the stove to dry. Any clothes horse or similar must be placed at a safe distance from the stove (danger of fire).

• Make sure the stove is installed and ignited the first time by Edilkamin-qualified CAT personnel (technical assistance centre) in accordance with the instructions provided here within; this is an essential requirement for the validation of the guarantee.

• When the stove is in operation, the exhaust pipes and door become very hot (do not touch without wearing the thermal glove).

• Do not place anything, which is not heat resistant near the stove.

• NEVER use liquid fuel to ignite the stove or rekindle the embers.

• Do not obstruct the ventilation apertures in the room where the stove is installed, nor the air inlets of the stove itself.

• Do not wet the stove and do not go near electrical parts with wet hands.

• Do not use reducers on the smoke exhaust pipes.

• The stove must be installed in a room that is suitable for fire prevention and equipped with all that is required (power and air supply and outlets) for the stove to function correctly and safely.

• SHOULD IGNITION FAIL, DO NOT RE-IGNITE UNTIL YOU HAVE EMPTIED THE COMBUSTION CHAMBER.

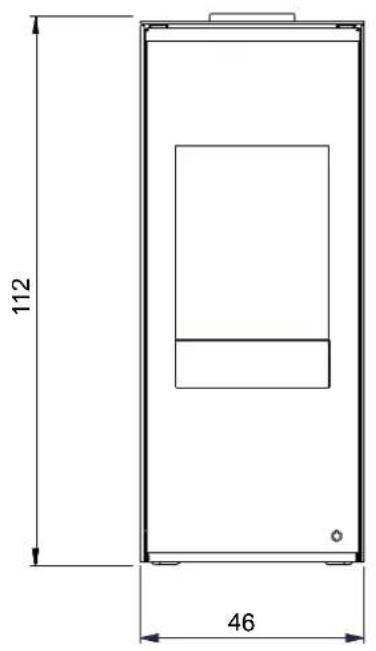

FRONT

BACK

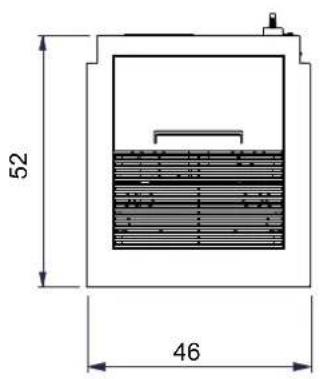

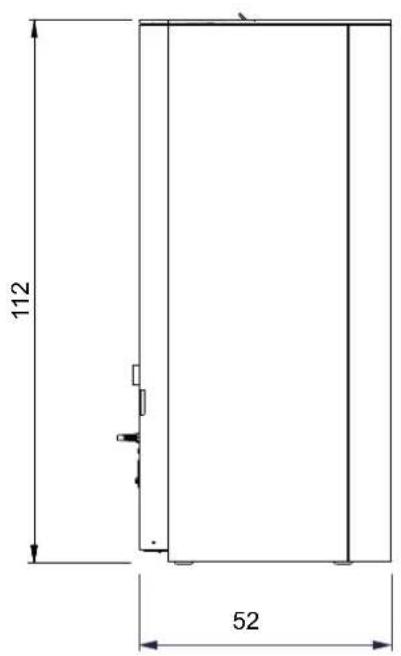

SIDE

SYSTEM

CHARACTERISTICS

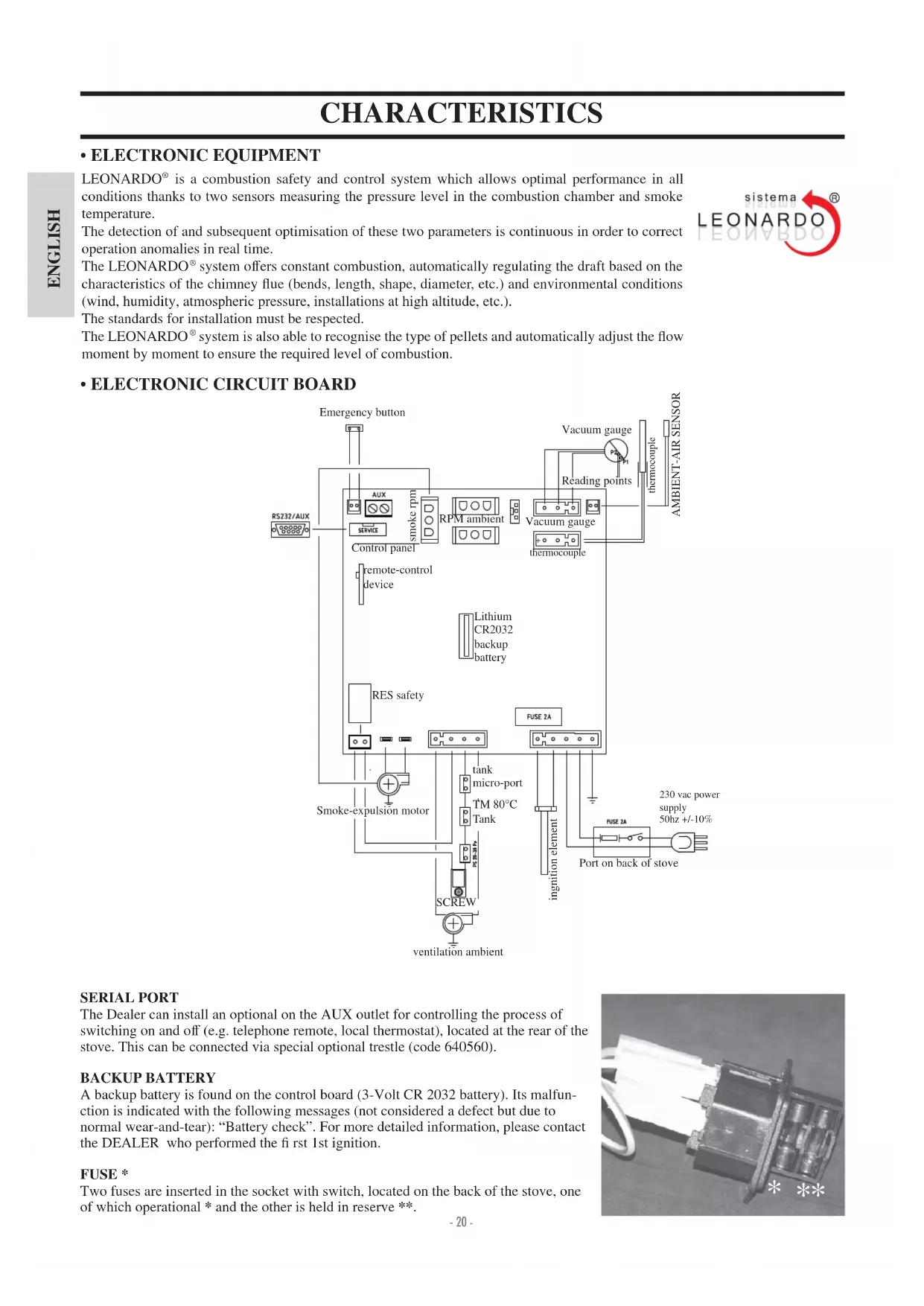

ELECTRONIC EQUIPMENT

LEONARDO® is a combustion safety and control system which allows optimal performance in all conditions thanks to two sensors measuring the pressure level in the combustion chamber and smoke temperature.

The detection of and subsequent optimisation of these two parameters is continuous in order to correct operation anomalies in real time.

The LEONARDO® system offers constant combustion, automatically regulating the draft based on the characteristics of the chimney flue (bends, length, shape, diameter, etc.) and environmental conditions (wind, humidity, atmospheric pressure, installations at high altitude, etc.).

The standards for installation must be respected.

The LEONARDO® system is also able to recognise the type of pellets and automatically adjust the flow moment by moment to ensure the required level of combustion.

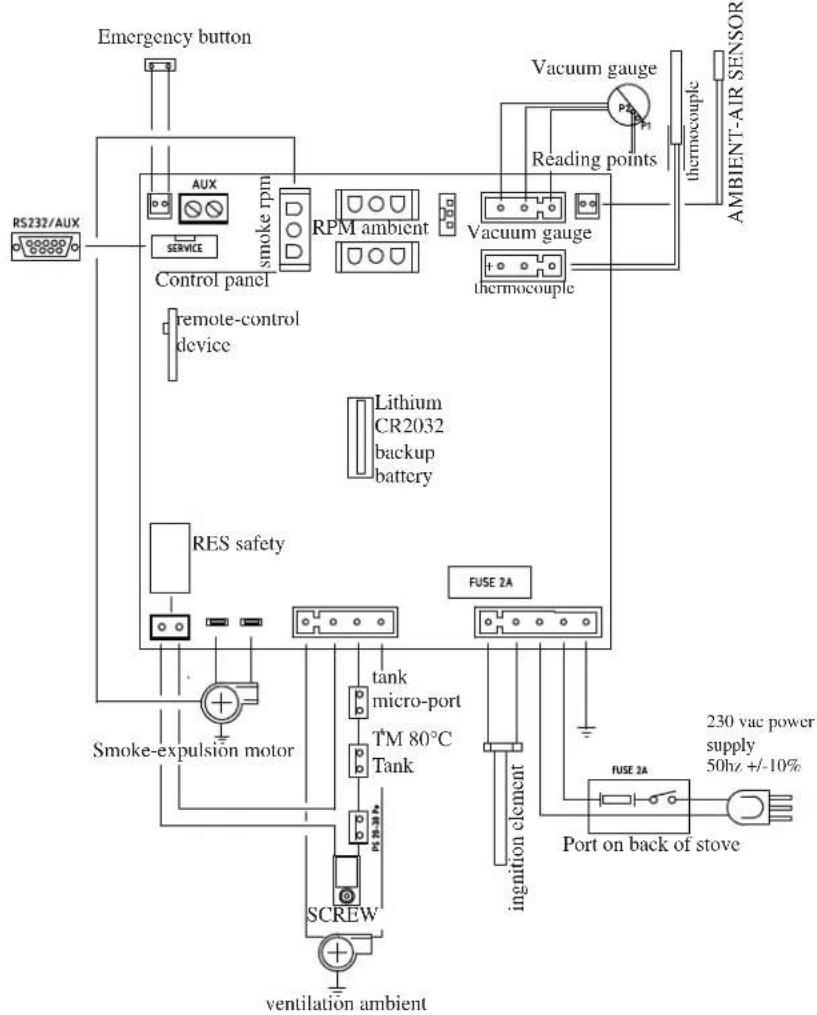

ELECTRONIC CIRCUIT BOARD

SERIAL PORT

The Dealer can install an optional on the AUX outlet for controlling the process of switching on and off (e.g. telephone remote, local thermostat), located at the rear of the stove. This can be connected via special optional trestle (code 640560).

BACKUP BATTERY

A backup battery is found on the control board (3-Volt CR 2032 battery). Its malfunction is indicated with the following messages (not considered a defect but due to normal wear-and-tear): "Battery check". For more detailed information, please contact the DEALER who performed the first 1st ignition.

FUSE*

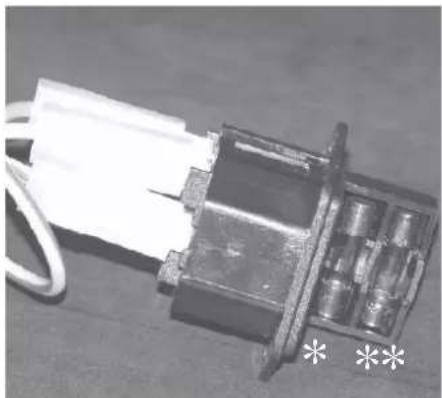

Two fuses are inserted in the socket with switch, located on the back of the stove, one of which operational * and the other is held in reserve **.

CHARACTERISTICS

THERMO TECHNICAL CHARACTERISTICS according to EN 14785
	Nominal power Reduced power
Heat output 8 2,4 kW
Yield / Efficiency	93	95,1	%
Emissions CO 13% O2	0,013	0,059	%
Fume temperature	129	63	°C
Fuel consumption	1,8	0,5	kg/h
Draught	12 - 5	10 - 3	Pa
Hopper capacity	24		kg
Autonomy	12	42	hours
Heatable volume *	210		m³
Smoke outlet pipe diameter (male)	80		mm
Air intake pipe diameter (male)	40		mm
Weight including packaging	204		kg

TECHNICAL DATA FOR THE DIMENSIONING OF THE FLUE
	Nominal power Reduced power
Heat output 8 2,4 kW
Temperature of fumes on exit from the discharge pipe	155	76	°C
Minimum draught	0 - 5		Pa
Fume flow capacity	5,8	3,2	g/s
Classification of combustion chamber according to DIBt	FB 22 FC52x		-

• The heatable room dimensions are calculated on the basis of home insulation in compliance with Italian law 10/91, and subsequent changes together with an expected heat output of 33Kcal/m^3 per hour.

ELECTRICAL CHARACTERISTICS
Power supply 230 Vac +/- 10% 50 Hz
On/off switch Yes
Average power consumption 100 W
Power consumption during ignition 400 W
Remote control frequency Radio waves 2,4 GHz
Protection on mains power supply* (see page 20) T2A,	250 Vac, 5x20 Fuse
Protection on electronic circuit board T2A, 250 Vac, 5x20 Fuse

N.B.

1) keep in mind that external devices can cause interference to the operation of the circuit board.
2) warning: activity on live components, maintenance and/or checks must be carried out by qualified personnel. (before carrying out any maintenance, disconnect the appliance from the mains electricity)

The above data are indicative and are those resulting during certification on the part of the notified body.

EDILKAMIN s.p.a. reserves the right to change the products at its discretion without notice.

SAFETY DEVICES

- THERMOCOUPLE:

Placed at the smoke outlet to detect the temperature.

Turns the stove on and off and controls its operation based on defined parameters.

VACUUM GAUGE:

Positioned on the smoke extractor, which detects the vacuum value (compared to the installation environment) in the combustion chamber.

SAFETY THERMOSTAT:

Trips when the temperature inside the stove is too high. It stops pellet loading, causing the stove to go out.

SAFETY PRESSURE SWITCH:

This is activated if the vacuum inside the combustion chamber is insufficient for it to function correctly.

INSTALLATION

All local and national laws and European standards must be met when installing and using the appliance. In Italy, refer to the UNI 10683 standard, as well as any regional or local health-authority regulations.

It is necessary to refer to regulations in force in each country. If installing in an apartment building, check with the management company first.

VERIFY COMPATIBILITY WITH OTHER DEVICES

In Italy the stove MUST NOT be installed in the same space as type B gas heating equipment (e.g. gas boilers, stoves, and equipment served by an extraction hood) as the stove may cause a vacuum in the space which may compromise or influence how these units work. Pursuant to standard UNI 10683, the stove can also be installed in a bedroom.

VERIFYTHE POWER SUPPLY CONNECTION (the plug must be accessible)

The stove is supplied with a power cable that is to be connected to a 230V50Hz socket, preferably fitted with a magnetothermic switch. Voltage variations exceeding 10% can damage the stove (unless already installed, an appropriate differential switch must be fitted). The electrical system must comply with the law; particularly verify the efficiency of the earthing system. The power line must have a suitable cross-section for the stove's power. An inadequate earthing system can cause anomalies for which Edilkamin cannot be held liable.

POSITIONING

The stove must be level for it to function correctly. Verify the bearing capacity of the floor.

FIRE PREVENTION SAFETY DISTANCES

The stove must be installed in compliance with the following safety conditions:

• minimum distance from flammable materials around the sides and back of the stove: 20cm

• flammable materials must not be placed less than 80~cm from the front of the stove.

If it is not possible to comply with the above-mentioned distances, technical and construction-related provisions must be taken to prevent fire hazards.

If connected to wooden walls or other flammable materials, the smoke exhaust pipe must be insulated.

AIR INTAKE

The stove is also suitable for installation in houses defined as "passive". In this case, the air for combustion must be taken by connecting (hermetically) the input vent at the back of the stove with the external environment by means of a 4 cm pipe. Make sure that the external air intake is positioned so that it cannot be obstructed.

In all other types of houses, the stove can be installed in the traditional manner and therefore also using the air of the environment in which it is placed (in any case, the technical standards of reference must always be respected).

The pipe must be less than 1 metre long and have no bends. It must end with a section at 90^ facing downwards or be fitted with a wind guard. In any case the air-intake duct must be a free section of at least 12cm^2 . The external terminal of the air inlet channel must be protected with an anti-insect netting that does not reduce the 12cm^2 through passage.

SMOKE OUTLET

The stove must have its own smoke outlet (the smoke cannot be discharged into a smoke flue used by other devices).

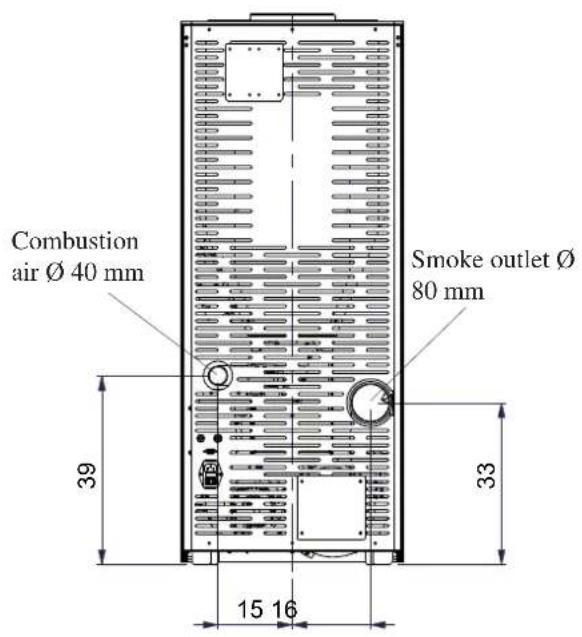

The smoke is discharged through the 8cm diameter outlet at the back of the stove. The smoke outlet must be connected to outside by means of suitable steel pipes EN 1856 certifi ed.

The pipe must be hermetically sealed.

The material used to seal and if necessary insulate the pipes, must be resistant to high temperatures (high temperature silicone or mastic). The only horizontal section allowed may be up to 2m long up to three 90^ bends (in relation to the vertical).

A vertical section of at least 1.5m and an anti-wind terminal is necessary (if the discharge outlet is not in a chimney flue-reference UNI 10683).

The vertical duct can be internal or external. If the smoke channel is outside, it must be appropriately insulated. If the smoke channel is fitted inside a chimney flue, the latter must be suitable for solid fuel. If it is wider than 150mm in diameter it must be improved by entering a pipe that has a suitable cross-section and is made of suitable material (e.g. 80~mm diameter steel).

All sections of the smoke duct must be accessible for inspection. The chimney pots and smoke ducts connected to the solid fuel appliances must be cleaned once a year (verify whether a specific legislation exists in your country).

Failure to regularly inspect and clean the stove increases the probability of a fire occurring in the chimney pot. In that case, proceed as follows: Do not use water to extinguish the fire; Empty the pellet hopper; Contact specialist personnel before reigning the stove.

The stove is designed to work under any weather conditions. In case of particular conditions, such as strong wind, the safety system may be activated, which results in the stove being extinguished. If this happens, do not operate the stove with the safety devices disabled. If the problem persists, contact our Technical Service Department.

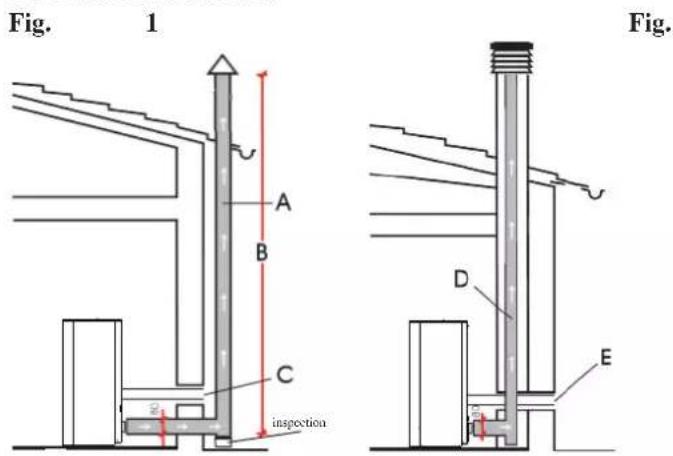

TYPICAL EXAMPLES

A: insulated steel flue
B: minimum height of 1.5m and in any case above the height of the roof gutter
C-E: air intake from inside room (minimum internal section: 80~cm^2
D: steel flue, inside existing brick-built chimney.

CHIMNEY POT

The main characteristics are:
- an internal cross-section at the base, which is the same as that of the chimney flue
- an outlet cross-section which is no smaller than twice that of the chimney flue
- its position must be high enough to catch the wind and avoid downdraft areas in turbulent wind, it must be high enough to catch the wind and avoid downdraft areas in turbulent wind.

CAST-IRON COMBUSTION CHAMBER ASSEMBLY - OPTIONAL

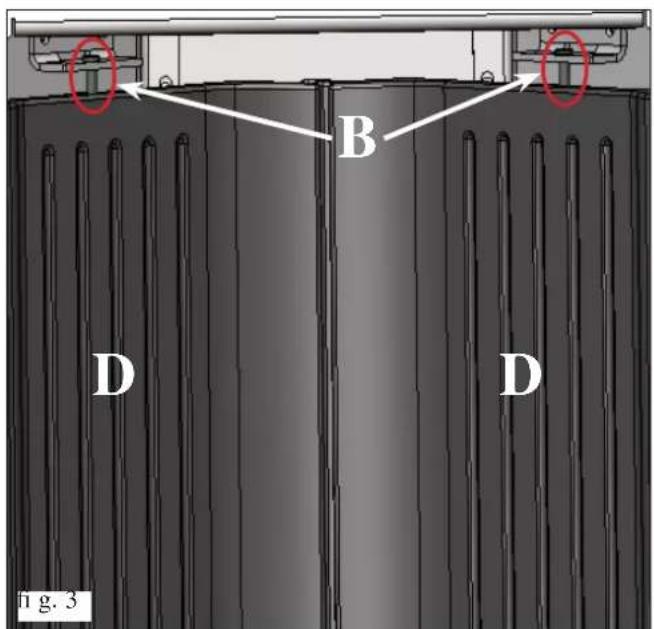

Fig. 3

The kit for replacing the Vermiculite combustion chamber with a cast-iron combustion chamber is supplied in cardboard packaging, and consists of 2 cast-iron side elements, right/left (D - fig. 3)

Tofi t proceed as follows:

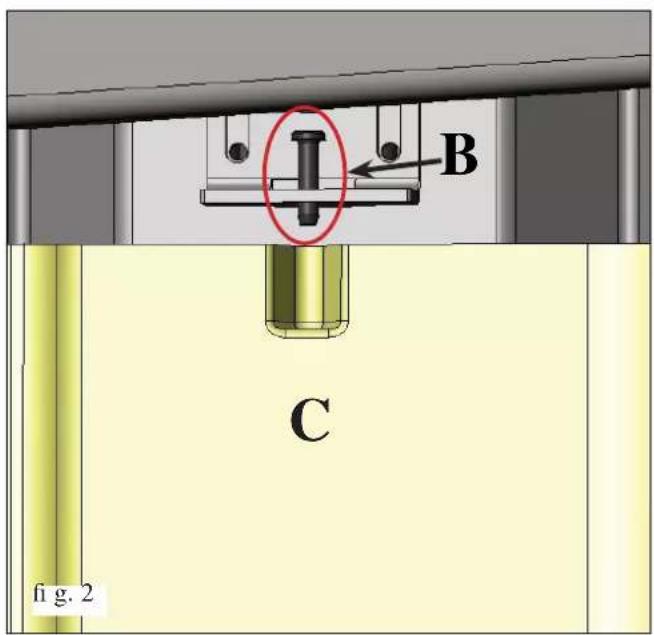

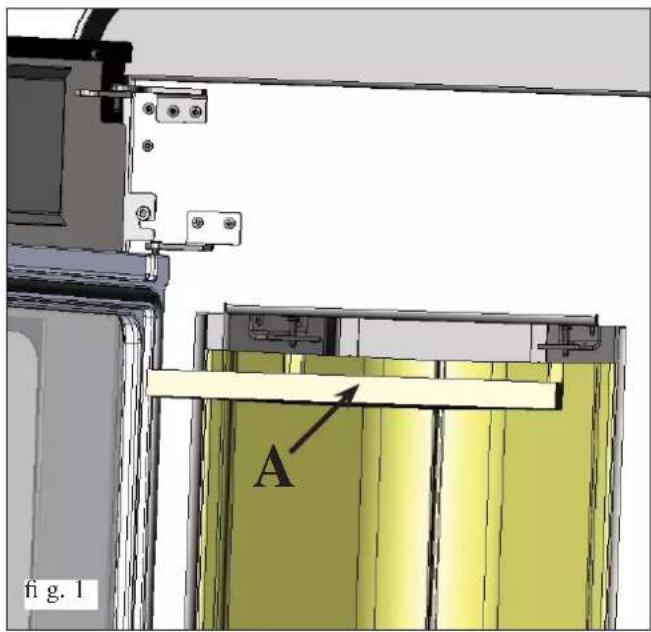

Fig. 1-2

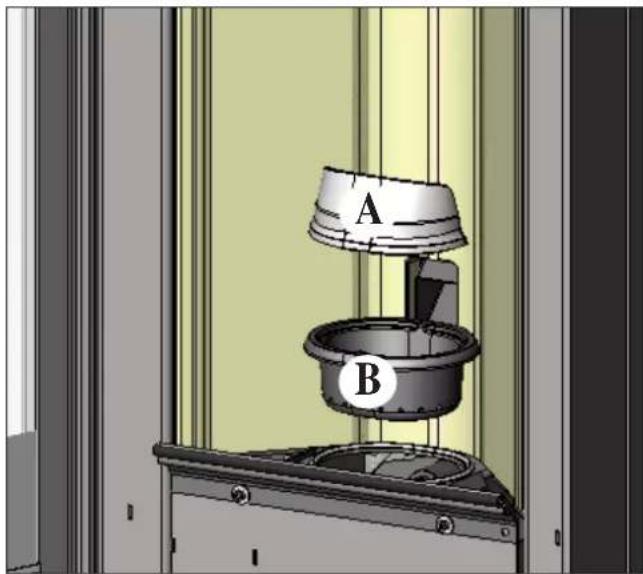

Open the door, take out the crucible, remove the Vermiculite ceiling (A) and slide out the fix xing pins (B) from the Vermiculite side elements (C).

Replace the Vermiculite side elements (A) with the cast-iron side elements (B).

To fix, use the fixing pins (B) previously removed.

Reposition the Vermiculite ceiling (A) and the crucible previously removed.

INSTRUCTIONS FOR USE

Commissioning must be done by a Technical Service Centre authorised by Edilkamin (CAT) prior to ignition and testing according to the UNI 10683 standard.

This standard indicates the control operations to be carried out, aimed at ascertaining correct system function.

The CAT will also provide for calibrating the stove on the basis of the type of pellets and the installation conditions, thus allowing for the effectiveness of the guarantee.

If the first ignition is not carried out by a C.A.T. authorised by Edilkamin, the guarantee shall not be effective.

For information, consult the website www.edilkamin.com

There may be a slight smell of paint the first few times it is ignited, however, this will disappear quickly.

Before igniting you must check:

• that installation is correct
  the power supply
• that the door closes properly to a perfect seal
• that the combustion chamber is clean
• that the display is on standby (the date, power or temperature flashes).

FILLING THE PELLET HOPPER

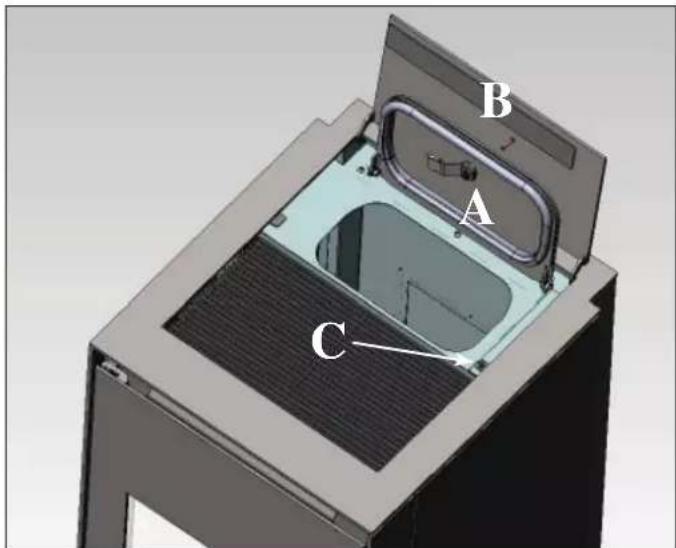

To gain access to the reservoir, open the two doors at the rear part of the top (A and B - fi g. 1).

N.B.

1) During this operation, the bag of pellets MUST NEVER be placed on the upper grill, otherwise the plastic bag, coming into contact with the heat, could ruin the paintwork on the top.
2) Use the special glove provided if you load the stove while it is functioning and therefore hot.
3) You are recommended to load the pellets into the reservoir within 40 second of opening the reservoir.

f i g. 1

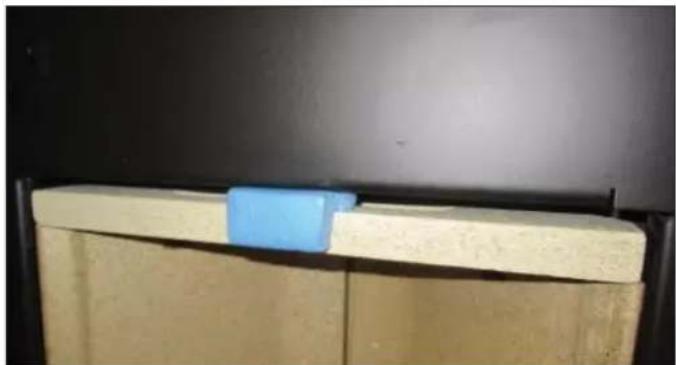

PELLET HOPPER MICRO-SWITCH

A micro-switch (C - fi g.1) placed on the external door B of the pellet hopper will shut down the stove in case the doors A and B are not totally closed

PLEASE NOTE: PRIOR TO SWITCHING THE STOVE ON, REMOVE THE CEILING PANEL PROTECTION USED FOR THE TRANSPORT PHASE.

NOTE regarding the fuel.

LOU is designed and programmed to burn wood pellets with 6 mm diameter.

Pellets are a type of fuel in the form of little cylinders, made from compacted sawdust, compressed under high pressure with no adhesives or foreign materials.

They are sold in bags of 15kg

For the stove to function properly, you MUST NOT burn anything else in it. Using other materials (including wood) will render the warranty null and void. Such use is detected by laboratory analyses. Edilkamin has designed, tested and programmed their stoves to guarantee the best performance when pellets with the following characteristics are used:

diameter: 6 millimetres

maximum length: 40mm

maximum moisture content: 8%

calorific value: at least 4300 kcal/kg.

If pellets with different characteristics are used, the stoves must be recalibrated using a similar procedure to that carried out by the DEALER when the stove is ignited the first time. Using unsuitable pellets may: decrease efficiency; cause malfunctions; stop the stove from functioning due to clogging, dirt on the glass, unburnt fuel, etc.

A simple, visual analysis of the pellets may be carried out: Good quality: smooth, uniform length, not very dusty.

Poor quality: with longitudinal and transverse cracks, very dusty, various lengths and mixed with foreign matter.

INSTRUCTIONS FOR USE

REMOTE CONTROL

This controls all the functions.

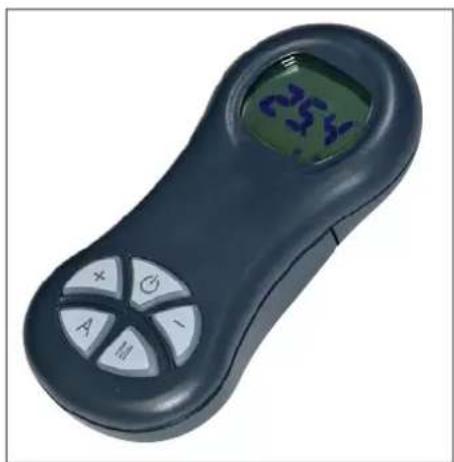

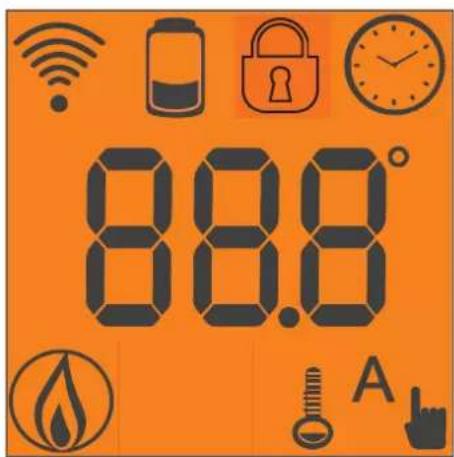

Key to buttons and display:

: to turn off and on (to go from "remote control on standby" to "remote control on")
+/- : to increase/decrease the various regulations
A : to select Automatic function
M : to select Manual function and access the control and programming menus

• icon flashing: remote control searching for network
• icon fixed: remote control with connection enabled

Keypad locked (press "A" and "M" in parallel for a few seconds to lock or unlock the keypad)

fl at battery (3 mini alkaline batteries type AAA)

programming enabled

alphanumeric display consisting of 16 fi gures arranged in two lines of 8 fi gures

• icon flashing: stove turning on
• icon fixed: stove working

manual adjustment function (display shows working power)

automatic function (display shows temperature)

The display also shows other useful information in addition to the icons described above.

• Stand-by position:

shows SET temperature (20^) kg of pellets (15kg) remaining in tank and current time (15:33)

• Manual work phase:

shows power set (Power 1), kg of pellets and autonomy remaining (15 kg 21 hrs)

• Automatic work phase:

shows temperature set (Set 22^ ), kg of pellets and autonomy remaining (15 kg 21 hrs).

DO NOT PRESS THE BUTTON MORE THAN ONCE

Note: If the radio control is not used for a few seconds, the display will go dark as it has moved into the power-saving function. The display can be reactivated by pressing any button.

Fan de-activation

To de-active/re-activate the fan of the stove, proceed as follows: press the button M for 2", press the button + twice; the wording "COMFORT AIR" will appear on the display; confirm this with the button M; you will thus gain access to the fan selection menu. With the +/- buttons, the display will move alternatively from COMFORT AIR (ventilation on) to "AIR OFF" (ventilation off); press the button to memorise the setting.

INSTRUCTIONS FOR USE

Filling the cochlea.

The first time you use the product, or should the tank be completely emptied of pellets, to fill the coclea press both keys "+" and " - on the remote control at the same time, holding for a few seconds. As you release the keys, the display should show the wording "LOAD". This should be carried out before ignition if the stove has stopped due to having run out of pellets, at the end of operation to empty the combustion pot before turning.

It is quite normal for some pellets to remain, that the cochlea cannot suction.

Automatic igniting.

With the stove on stand-by, press and hold the key on the remote control for 2 seconds. This will start-up the ignition procedure, showing the wording "START". At the same time, a countdown in seconds begins (from 1020 to 0). Ignition is not at a preset time, however: its duration is automatically shortened if the board reports that certain tests have been passed. The fl ame appears after about 5 minutes.

Manual igniting.

Temperatures of below 3^ will not allow the electrical resistance to heat suffi cientsly. In this case, or should the resistance be temporarily out of action, Diavolina type fi restarters can be used.

Insert a piece of lit Diavolina into the combustion chamber, close the door and press remote control.

POWER REGULATION

- Remote control manual operation

With the stove working, press the key "M" on the remote control once. The display will show the word "POWER P". (specifying the power at which the insert is working). Press the keys "+" or - to increase or decrease the insert's working power (from "POWER P1" to "POWER P3").

- Remote control automatic operation

Press key "A" to switch to automatic operation, adjusting the temperature desired for the room (use the "+" and "-" keys to set the temperature from 5^ to 35^ , and the stove will regulate working power required to reach the temperature set. If a temperature below that of the room is set, the insert will stay on "POWER P1".

Turning off

With the stove running, press and hold the key in the remote control for 2 seconds. The turn-off procedure will begin, showing a countdown on the display from 9 to 0 (for a total of 10 minutes).

The turn-off phase involves:

• Interruption of pellet supply
  Maximum ventilation
  Smoke expulsion motor

Never pull the plug out whilst the device is still in the process of turning off.

OPERATIONS THAT CAN ONLY BE CARRIED OUT BY REMOTE CONTROL

Clock regulation

Press and hold the key "M" for 2 seconds to access the "Clock" menu. This allows you to set the internal electronic board clock. By then pressing the key "M", the following data appears in sequence and can be regulated:

day, month, year, hour, minutes, day of the week.

The wording "SAVE??" will appear for confirmation with "M". This will allow you to check that the operations performed are correct, prior to completion (the wording "SAVE" will then be shown on the display).

Operations for switching on, switching off and regulating power can be carried out by means of the red emergency button placed on the back of the stove (see page 27).

Weekly timer

Press and hold the "M" key on the remote control for 2 seconds. This turns on the clock regulation and by pressing the +^ key, the weekly timer function is accessed, with the display showing the description "PROGRAMM ON/OFF".

This function allows you to select the type of programming, which allows a maximum of three ignitions to be set.

As you confirm the display with the key "M", one of the following options will appear:

NO PROG. (no programme set)

DAILY PROGRAM (single programme for every day of the week)

WEEKLY PROGRAM. (specific programme for each day individually)

Use the "+" and "-" keys to switch between programmes.

Confirming by pressing the "M" key "DAILY PROGRAM." and pressing the "+" key, the choice of the number of programmes (ignition/extinguishing) per day can be made.

Use the "DAILY PROGRAM" to set identical programme/s for every day of the week.

By then pressing the +^ key, the following can be seen: -Prog.no.

• 1st prog. (one turn on and one turn off per day), 2nd prog. (identical), 3rd prog. (identical)

Use the “-” key to show in reverse order.

If the 1st programme is selected, the turn on time is shown.

The display shows: 1 "ON" at 10 Use the "+" and "-" key to change the hour. Confirm with the "M" key (All 1 On/Hour 10).

The display shows: 1 "ON" at 30 Use the "+" and "-" key to change the minutes. Confirm with the "M" key (1 Off min).

The same applies for the turn-off time to be set and for subsequent turning on and off.

Confirm by pressing "M" and the wording "SAVE??" will appear on the display.y.

When confirming "WEEKLY PROGRAM", you will need to choose the day to which the programming is to apply:

7 Sat; Progr.1; 1 Mon; 2 Tues; 3 Wed; 4 Thurs; 5 Fri; 6 Sa; Once the day is set, use the keys "+" and "+" and confirm by pushing the "M" key to choose 1 to 3 ignitions, to programme in the same way as for the "DAILY PROGRAM", choosing whether or not to enable a programme for each day of the week, and if so choose the number of interventions and at what times.

Should you make an error during programming, you can leave the programme without saving. As you press a key, he display will show the word "no SAVE".

INSTRUCTIONS FOR USE

Changing pellet loading (with self-regulation deactivated) When the "M' key on the radio control is held down for two seconds and the display is scrolled using the "+" and "-" keys, you come across the "User's Menu". When this is confirmed the display reads "ADJ-PELLET; ADJ-DRAUGHT and RADIO MENU" (CAT). The pellet drop can be adjusted manually by changing the capacity in percentage terms (+/- 30%). By confirming this function with the menu key, you can access the function to adjust pellet loading. By decreasing the value set, pellet loading is decreased. By increasing the value set, pellet loading increases. This function is useful if changing the pellet type for which the stove has been calibrated and loading therefore needs correcting.

Should this correction not suffice, contact the Edilkamin-authorised Dealer, to establish the new operating axis.

Notes on flame variability

Flame status may vary depending on the type of pellet used, in addition to normal solid fuel flame variability and regular combustion chamber cleaning carried out automatically by the boiler.

(N.B.: which does NOT replace necessary cold suction by the user prior to ignition).

RESERVE WARNING

The stove is fitted with an electronic function that detects the residual quantity of pellets in the tank.

The detection system is integrated into the electronic board, allowing you to see how many hours and kg are left until pellet exhaustion, at all times. For correct system function, it is important that the following procedure is followed during the first ignition (by the Dealer).

This provides a reference indicator. Greater precision is obtained by regularly zeroing the system before filling it again. Edilkamin does not accept any responsibility for differences from what is indicated (which may be due to external factors).

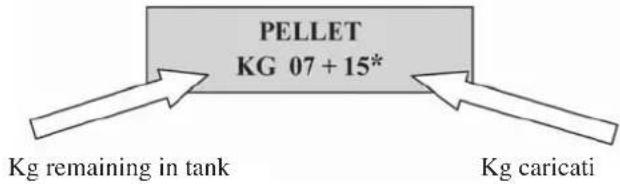

Pellet reserve system

Before enabling the system, you need to load a sack of pellets into the tank and use the stove until the loaded

fuel has run out. This allows for a short system road test.

After this, the tank can be filled completely and the stove started up.

When running, at the time at which a whole 15kg sack of pellets can be loaded, the display will show the word "Reserve" fl ashing.

At this point, after having poured in a sack of pellets, you need to 'inform' the memory that you have loaded 15kg

To do so, proceed as follows:

1. press the "M" key (for approximately 3-4 seconds) until the word "Clock" appears.
2. press the "+" key until the word "Reserve" appears.
3. press the "M" key until the following screen appears,

then use the "+" key to take the figure (^*) to the value equal to the Kg of pellets loaded (15 kg in the above example).

1. press the "M" key to confirm
2. press the key exit.

After having completed the above procedure, after having consumed the 15kg the wording "Reserve" will appear fl ashing at intervals. After which the operation must be repeated, from point 1 to point 5.

EMERGENCY BUTTON

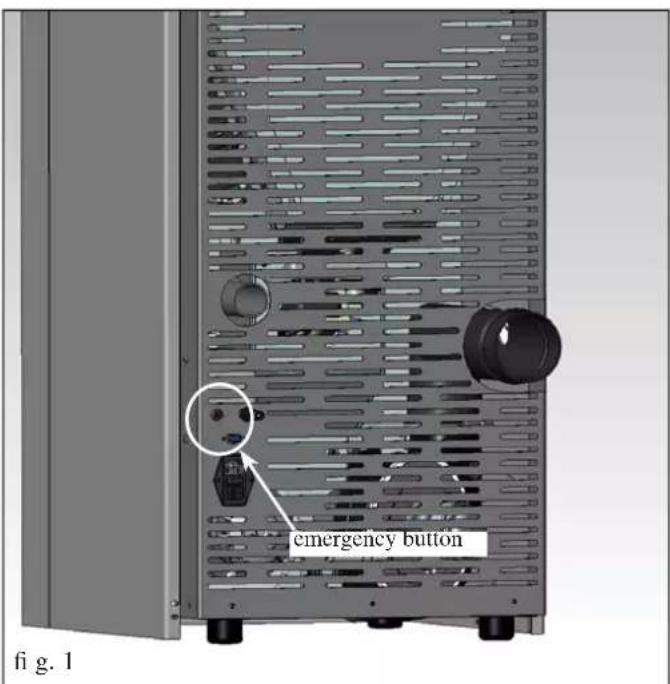

If the remote control device does not work, you can carry out the basic functions by means of a red emergency button placed on the back of the stove (see fi g. 1).

Push this button once or more times to activate the required function:

1. STOVE OFF
   by pressing the red button for 2 seconds this turns on.
2. STOVE ON
   by pressing the red button for 2 seconds this turns off.
3. STOVE ON
   manual mode, by pressing the red button, you go from P1 to P3.
4. STOVE ON
   automatic mode, by pressing the red button, you go from 5^ to 30^ .

MAINTENANCE

Before performing any maintenance, disconnect the appliance from the mains.

Regular maintenance is required for the stove to function correctly.

Any problems resulting from lack of maintenance will immediately void the warranty.

DAILY MAINTENANCE

Operations must be performed when the stove is off, cold and unplugged from the power supply

• Cleaning must be carried out with a vacuum cleaner. (see optional extras page 32).

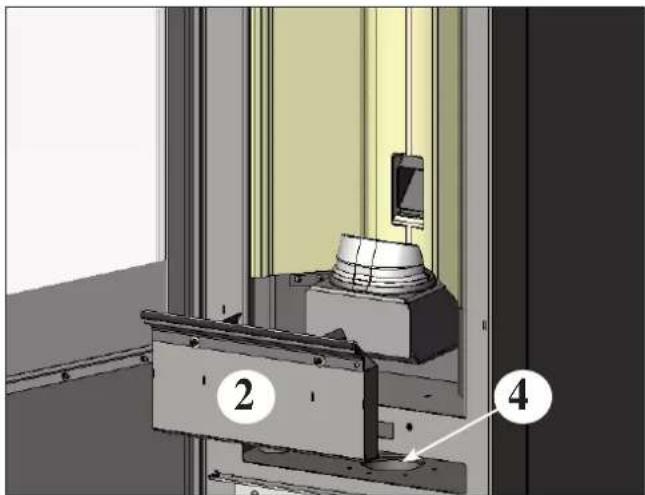

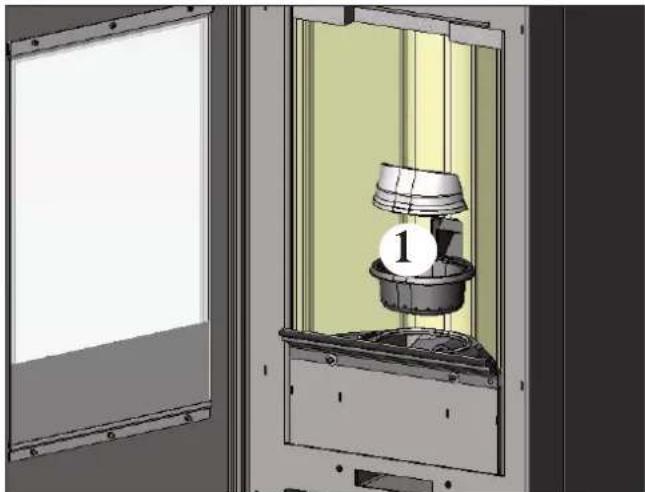

• Open the door, extract the fire box (1 - fig. A) and tip the residue into the ash drawer (2 - fig. B).
  DO NOT EMPTY THE RESIDUE OUT INTO THE PELLET HOPPER.
• Pull the ash drawer (2 - fi g. b) out and empty it into a nonflammable container (the ash may still have some parts that are hot and/or embers).
• Vacuum out the inside of the fire box, fire grate, and space around the fire box, into which the ash falls.
• Remove the fire box (1 - fig. A) and remove any encrustation using the brush provided, clearing any clogging in the holes.
• Vacuum the fire box, clean the contact edges between the fire box and its seating.
• Clean the glass, if necessary (when cold).

Never vacuum hot ash, it can make the vacuum cleaner breakdown and represents a fire risk.

WEEKLY MAINTENANCE

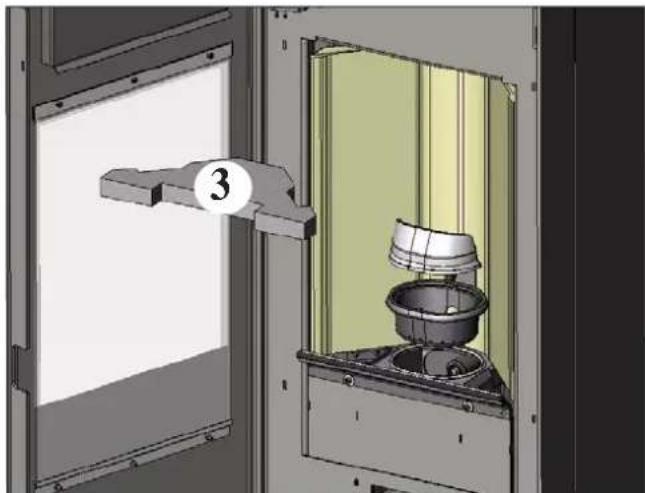

• Remove the ceiling (3 - fi g. C) and tip the residue into the ash drawer (2 - fi g. B). The ceiling is a component subject to wear and Edilkamin does not accept responsibility for it, especially if any breaks are due to extracting or putting it back in its seating.
• Clean the combustion chamber and the smoke-extraction fan compartment (4 - fi g. B).

fi g.A

f i g. B

f g.C

MAINTENANCE

(implemented by the DEALER)

Consists of:

Clean the stove internally and externally
Thorough cleaning of the heat exchange piping inside the hot air outlet grille located in the upper part of the front of the stove
- Carefully clean and remove dirt from the combustion chamber and the relative compartment
- Clean fans, verify mechanical and clamp loosening
- Clean smoke channel (replace seals on smoke exhaust pipe)
- Clean smoke duct especially if
- Clean/check the Synoptic Panel
- Visual check of power cables, connections and power cord.
- Clean the pellet hopper and check loosening of the feed screw - gear motor assembly
- Check the small pressure-switch pipe, and replace when necessary
- Replace the door seal
- Functionality test: load the feed screw, ignite, let it run for 10 minutes and shutdown

If the stove is used very frequently, it is advisable to clean the smoke channel and the fume duct every 3 months.

ATTENTION !!!

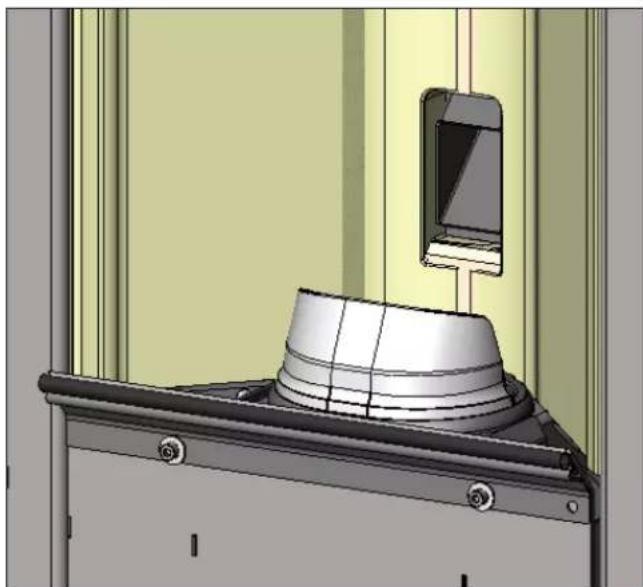

After implementing a normal cleaning procedure, INCORRECT coupling of the upper (A) (fi gura D) and lower B) (fi gura D) combustion chambers can compromise the stove's performance.

Before igniting the stove, make sure the combustion chambers are correctly paired as indicated in (fi g. E) without ash or unburnt material present on the support perimeter.

We remind you that using the stove without cleaning the melting pot, may cause a sudden ignition gas inside the combustion chamber with the consequent breaking of the glass

N.B.

• Any unauthorised modification is forbidden
• Use spare parts recommended by the manufacturer
• The use of counterfeit parts results in the guarantee becoming null and void

fi g. D

f i g. E

POSSIBLE TROUBLESHOOTING

In the event of problems the stove stops automatically and runs the shutdown process and the display shows text regarding the motivation of the shutdown (see the various alarms below).

Never pull the plug during shutdown on account of malfunction.

Should it block, to restart the stove you will need to allow the turn-off procedure to take place (600 seconds with audible signal), and then press the button.

Do not turn the stove on again before checking the cause of the malfunction and CLEANING/ EMPTYING the crucible.

INDICATION OF POSSIBLE CAUSES OF MALFUNCTION INSTRUCTIONS AND SOLUTIONS:

1) Scignalazione: Signalling: Verific./extract.: (this trips if the smoke extraction speed sensor detects a fault) Problem: Shutdown for smoke extraction speed fault detection

Actions: Check smoke extractor function (revolution sensor connection) and board (DEALER).

• Check smoke channel for dirt

• Verify the electrical system and earthing system.

• Check electronic circuit board (DEALER).

2) Signalling: Stop/Flame: (this trips if the thermocouple detects a smoke temperature lower than the value set, which it interprets as the absence of fl ames)

Problem: Turns off due to drop in smoke temperature

Flame may fail for any of the following reasons:

• lack of pellets
• too many pellets have suffocated the flame, check pellet quality (DEALER)
• the maximum thermostat has intervened (rare, this only intervenes in the event of excessive smoke temperature) (DEALER)
• The safety pressure switch comes on because of clogging/blockage of the smoke discharge pipe or the flue (have it checked by a qualified technician - chimney sweep)
• Activation of the safety thermostat of the tank. Check that around the stove there aren't any objects blocking the ventilation or whether the fans are broken or off, in which case call the DEALER.

3) Signalling: Block_FI/NO Start: (intervenes if a flame fails to appear within a maximum of 15 minutes, or if ignition temperature is not reached).

• Check correct functioning of the pressure switch (CAT)

Problem: Turns off due to incorrect smoke temperature during ignition

Distinguish either of the following cases:

Flame does NOT appear

Actions: Check: - combustion chamber position and cleanliness;

• Check that there are pellets in the tank and the fire box

• arrival of combustion air in the combustion chamber;

• if the heating element is working (DEALER);
• room temperature (if lower than 3^ use a firefighter) and dampness.

Try to light with a firelighter (see page 26).

Flames appear, but AF appears on the display after Ar

Actions: Check: (only by the Dealer)

• if the thermocouple is working (DEALER);
• start-up temperature setting in the parameters (DEALER).

4) Signalling: Black Out: (not a defect of the stove).

Problem: Turns off due to lack of electricity

Actions: Check electricity connection and drops in voltage.

5) Signalling: Fault/RC: (intervenes if the thermo coupling has failed or is disconnected).

Problem: Turns off due to thermo coupling failed or disconnected

Actions: Check connection of thermo coupling to board: check function in cold test (DEALER).

POSSIBLE TROUBLESHOOTING

6) Signalling: smoke ^ C /high.

Problem: turns off due to exceeding maximum smoke temperature.

Actions: Check the pellet type

• Check for anomalies with the smoke-extraction motor
• Check to see if there are any obstructions in the smoke channel
• Check correct installation

Gear motor faulty (CAT)

7) Signalling: Check button (signals an anomaly on the emergency button)

Actions: check maintenance status of the button and its board connection cable (DEALER).

8) Signalling: "Battery check"

Problem: The insert does not stop but the error appears on the display.

Actions: The buffer battery of the control board needs changing (DEALER).

Remember that this component is subject to regular wear and so it is not covered by the guarantee.

9) Signalling: ALARM - HIGH CURRENT: Activated when anomalous, excessive current absorption is detected on the gear motor..

Actions: Check functioning (CAT): gear motor - Electrical connections and electronic board.

10) Signalling: ALARM - LOW CURRENT: Activated when anomalous, insufficient current absorption is detected on the gear motor.

Actions: Check functioning (CAT): gear motor - pressure switch - tank thermostat - electrical connections and electronic board

11) Problem: Remote control not working

Actions: Move closer to the stove

• check the battery and if necessary, replace it.
• Synchronisation with automatic search on activation: when you put the batteries into the radio control a radio channel search phase will start up automatically, and it will subsequently connect to the product detected. So that this occurs correctly, make sure to switch the product on before inserting the batteries in the radio control, and stay in the vicinity of the antenna in order to achieve radio coverage with certainty.
• Synchronisation with automatic search and manual activation - it is possible to launch an automatic search for a product manually, simply carry out the following operations after having already put the batteries into the radio control:
• Go close to the product's antenna and make sure it is connected to the electricity supply.
• With the display switched off (standby) hold the 0/1 key down for 10^ .
• After 10" a "NETWORK SEARCH" message appears on the display, then release the o/I key, as this means that the automatic search has been activated.
• Automatic tuning of the radio channel will occur within a few seconds.

12) Problem: During ignition, the differential switch trips (DEALER):

Actions: Check the condition of the ignition coil, the electrical system, and the electrical components.

13) Problem: Outgoing air not hot:

Actions: Check that the fan is working.

NOTE 1

All signals/warnings remain shown until you intervene on the remote control, by pressing the button. Do not use the insert before having eliminated the problem.

NOTE 2

Once 1000kg of pellets have been consumed or some other value set by the CAT during the first ignition, the display flashes a message that reads "maintenance".

The stove works, but you must call the Dealer out to perform extraordinary maintenance.

NOTE 3

solid-fue due to the quality of pellets or particularly critical installation, the stove becomes clogged earlier, the message "CALL SERVICE" will appear. Proceed as per "Mainten." instructions.

N.B.:

The combustion chambers and smoke ducts connected to the solid-fuel appliances must be cleaned once a year (check if your country has specific c legislation covering this).

Failure to regularly check and clean increases the likelihood of a fire in the chimney pot.

IMPORTANT!!!

In the case of a fire in the stove, in the flue or in the chimney, proceed as follows:

• Disconnect the power supply

• Use a carbon dioxide (CO_2) extinguisher

• Call the fire brigade

DO NOT ATTEMPT TO PUT THE FIRE OUT WITH WATER!

After the event, have the appliance checked by an authorised Service Centre and have an authorised technician check the flue.

CHECK LIST

To be integrated with a complete reading of the technical specifications

Positioning and installing

First ignition performed by authorised CAT who released the guarantee certificate
Air vent in the room
Only the stove outlet passes through the smoke channel/chimney flue
Features of the smoke channel (stretch of duct connecting the stove to the flue/chimney):
a maximum of 3 curves, a maximum
- Chimney pot that is high enough to avoid downdraft areas
- The discharge pipes are made of a suitable material (stainless steel is recommended)
- When using any flammable materials (e.g. wood), all precautions have been taken to prevent a fire hazard

Use

Good quality, dry pellets are used
- The chimney pot and ash compartment are clean and well positioned
The door is closed properly
- The combustion chamber is inserted properly into the relevant compartment

REMEMBER TO VACUUM THE COMBUSTION CHAMBER BEFORE EACH IGNITION Should ignition fail, DO NOT re-ignite until you have emptied the combustion chamber.

OPTIONAL

TELEPHONE DIALLER FOR REMOTE IGNITION (code 281900)

The stove can be ignited remotely by asking the DEALER to connect the telephone combiner to the serial port behind the stove via the optional cable (code 640560).

CLEANING ACCESSORIES

GlassKamin (code 155240)

Used for cleaning the ceramic glass

Ash vacuum cleaner without motor (code 275400)

User for cleaning the hearth

(to be use together with a domestic vacuum cleaner)

INFORMATION FOR USERS

In accordance with Art. 13 of the Legislative Decree No. 151, dated 25 July 2005, "Implementation of Directives: 2002/95/EC, 2002/96/EC and 2003/108/EC, pertaining to the reduction of hazardous substances used in electrical and electronic equipment, as well as disposal of waste". The crossed-out wheeled bin symbol shown on the equipment or on the packaging indicates that the product must be disposed of separately at the end of its useful life. Therefore, at the end of the equipment's useful life, the user must hand in the equipment to suitable collection facilities for electrical and electronic waste, or return it to the retailer when a new, equivalent appliance is purchased in a ratio of one to one.

Madame, Monsieur,

2006/95/CE - Directive Basse Tension

positioned on the smoke extractor, which detects the vacuum value (compared to the installation environment) in the combustion chamber.

- THERMOSTAT DE SECURITE:

EVACUATION DES FUMEES

INSTALLATION LUFTEINCLASS

BESCHERMINGSINSTALLATIONS

- THERMOKOPPEL:

DRUK DE TOETS NOOIT MEERDERE KEREN IN

Systeem pelletreserve

Ugelig time programming

Pellet reservesystem
