Brave 4 Pro - Video camera Akaso - Free user manual and instructions

Product type	Action camera
Brand	AKASO
Model	Brave 4 Pro
Maximum video resolution	4K at 30 fps
Maximum photo resolution	20 MP
Field of view	Super wide, Wide, Medium, Narrow
Screens	Rear touch screen + front screen
Image stabilization	Yes (can be turned off)
Diving mode	Yes (underwater color compensation)
Loop record mode	Yes (2, 3 or 5 min)
Burst mode	Up to 10 photos/s
Video time lapse mode	Intervals from 0.5 s to 60 s
Self-timer mode	Self-timer from 3 s to 60 s
Built-in Wi-Fi	Yes
Power supply	Rechargeable battery (2 included) + charger
Memory card type	microSD U3 up to 64 GB (FAT32)
Connectors	Micro USB, Micro HDMI
Waterproof	With included waterproof housing
Remote control	Included (with CR2032 battery)
Box contents	Camera, waterproof housing, charger, 2 batteries, USB cable, remote control, wrist strap, mounts, cloth, etc.
Maintenance	Clean the lens with a soft cloth; avoid extreme temperatures
Safety instructions	Do not disassemble the battery; avoid contact with metal objects; do not expose to excessive heat
Repairability	Spare parts not listed; contact customer service

Frequently Asked Questions - Brave 4 Pro Akaso

How to format the memory card in the Brave 4 Pro?

To format, go to the camera settings (press the Down button or the settings icon), select 'Format', then confirm. Be careful, this erases all data. It is recommended to format regularly.

How to connect the camera to the AKASO GO app?

Turn on the camera's Wi-Fi (long press the Down button), connect your phone to the camera's Wi-Fi network (named AKASO-Brave 4 Pro-...), password: 1234567890. Open the AKASO GO app, add the device and select Brave 4 Pro. Confirm the operation to access the live preview.

What is the maximum video resolution?

The maximum video resolution is 4K at 30 fps. Other options include 2.7K at 30 fps, 1080p up to 120 fps, 720p up to 240 fps.

How to use diving mode?

Diving mode compensates for the lack of yellow light underwater. Activate it in the video settings. It is optimized for a depth of 10 to 80 feet (about 3 to 24 meters).

How to adjust the zoom?

Digital zoom up to 5x is available in Video, Burst and Photo Timer modes. To use it, press the ⊕ symbol on the screen to adjust the zoom level.

What type of memory card to use?

Use a microSD card of class U3, with a maximum capacity of 64 GB, formatted in FAT32. For best performance, format it in the camera before first use.

How to transfer files to a computer?

Remove the memory card from the camera and insert it into a card reader connected to the computer. You can then copy the files. For 4K/2.7K videos on iPhone, use a card reader as the app does not download them.

How to replace the remote control battery?

Use a 1.8 mm Phillips screwdriver to remove the 4 screws on the back of the remote control. Then remove the 4 screws on the PCB board, lift the board and replace the CR2032 battery respecting polarity. Reassemble everything.

How to activate loop record?

In the video settings, set 'Video Mode' to 'Loop Record', then choose a duration (2, 3 or 5 min). The camera continuously records and only keeps the last selected minutes when stopped.

What to do if the app does not detect the camera?

Check that the camera's Wi-Fi is on and your phone is connected to the camera's Wi-Fi network. Make sure the password entered is correct (1234567890). Restart the app and camera if necessary.

USER MANUAL Brave 4 Pro Akaso

USER MANUAL

V1.3

English >>
Deutsch >>
Español >>
Français >>
Italiano >>
日本語
Polski >>

CONTENTS

What's in the Box 02

Your Brave 4 Pro 03

Getting Started----05

Overview of Modes----06

Video & Photo Setting 08

Camera Setting 12

Connecting to the AKASO GO App 14

Playing Back Your Data 14

Deleting Videos and Photos on Your Brave 4 Pro ----14

Transferring Your Data 15

Maintaining Your Camera----16

Maximizing Battery Life----16

Adjusting the Zoom Level----16

Reformatting Your Memory Card 17

Battery Storage and Operation 17

Remote 18

Mounting Your Camera----21

Contact Us 22

WHAT'S IN THE BOX

AKASO Brave 4 Pro x 1

Waterproof Housing x 1

Battery Charger x 1

Battery x 2

USB Cable x 1

Remote Control x 1

Remote Control Strap x 1

Protective Backdoor x 1

Clip x 1

Clip 2 x 1

Mount 1 x 1

Mount 2 x 1

Mount 3 x 1

Mount 4 x 1

Mount 5 x 1

Mount 6 x 1

Mount 7 x 1

Handle Bar / Pole Mount x 1

Helmet Mounts x 2

Spanner x 1

Bandages x 4

Tethers x 5

Lens Cloth x 1

Double Sided Tape x 2

Quick Start Guide x 1

1 OK/Shutter/Power Button
2 Front Screen
3 Micro USB Port
4 Memory Card Slot
5 Micro HDMI Port
6 Lens

7 Touch Screen
8 Mode/Up Button
9 Speaker

10 Down Button
11 Battery Cover

Note: The camera will not record sound when it is in the waterproof case.

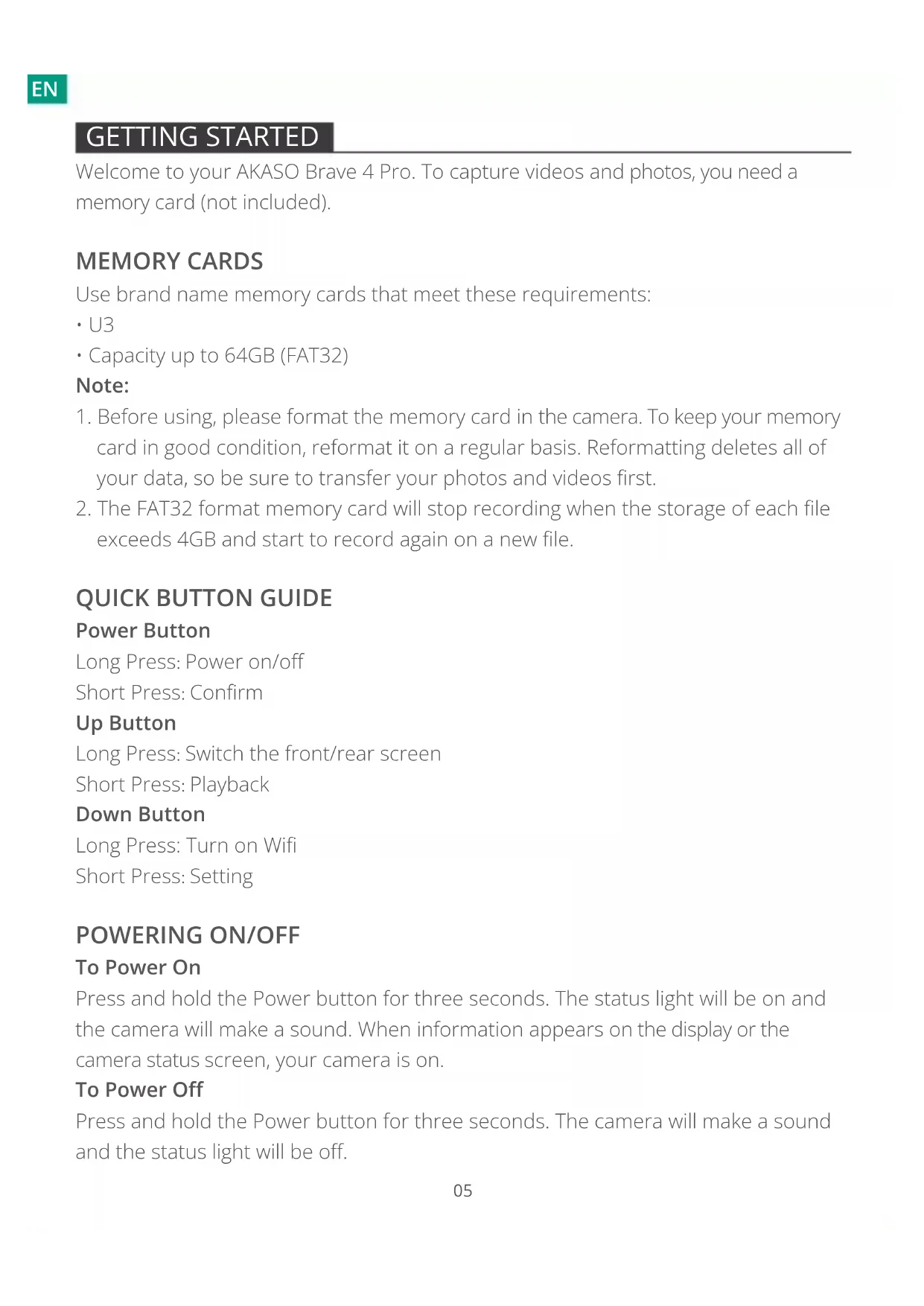

GETTING STARTED

Welcome to your AKASO Brave 4 Pro. To capture videos and photos, you need a memory card (not included).

MEMORY CARDS

Use brand name memory cards that meet these requirements:

• U3

• Capacity up to 64GB (FAT32)

Note:

1. Before using, please format the memory card in the camera. To keep your memory card in good condition, reformat it on a regular basis. Reformatting deletes all of your data, so be sure to transfer your photos and videos first.
2. The FAT32 format memory card will stop recording when the storage of each file exceeds 4GB and start to record again on a new file.

QUICK BUTTON GUIDE

Power Button

Long Press: Power on/off

Short Press: Confirm

Up Button

Long Press: Switch the front/rear screen

Short Press: Playback

Down Button

Long Press: Turn on Wifi

Short Press: Setting

POWERING ON/OFF

To Power On

Press and hold the Power button for three seconds. The status light will be on and the camera will make a sound. When information appears on the display or the camera status screen, your camera is on.

To Power Off

Press and hold the Power button for three seconds. The camera will make a sound and the status light will be off.

SWITCHING MODE

To Switch Mode

Turn on camera, swipe up to switch mode, or tap "Video" on the screen to select modes.

To Exit Mode

Press the Mode button or click the "X" to exit Mode.

TURNING ON/OFF Wifi

To turn on Wifi

Turn on camera, long press the Down button to turn on Wifi. You can also swipe up to the mode menu to turn on Wifi.

To turn off Wifi

Press the OK button to turn off Wifi.

OVERVIEW OF MODES

There are 6 modes: Video, Photo, Burst Photo, Time Lapse Video, Timer Photo and Wifi. When the camera is on, tap the current mode at the bottom of the camera screen or swipe up to to enter the mode menu.

Video Mode

Video Mode is the default mode when you turn on the camera.

In Video Mode, press Shutter button, the camera starts recording video. Press Shutter button again to stop recording. Click the ⊕ to adjust the zoom level.

06

Photo Mode

Swipe right to switch to Photo Mode after you turn on camera.

In Photo Mode, press Shutter button, the camera takes a photo. Click the 🔒 to adjust the zoom level.

Person diving into the ocean with blue fins, captured in a photo editing interface (no text or symbols on the image itself)

Burst Photo Mode

Swipe up to "Select Mode" or click "Video" to enter Burst Photo Mode.

In Burst Photo Mode, press the Shutter button, the camera will take 3/5/10 photos per second.

Time Lapse Video Mode

Swipe up to "Select Mode" or click "Video" to enter Time Lapse Video Mode.

In Time Lapse Video Mode, press the Shutter button to take a serial of Videos at 0.5s/1s/2s/5s/10s/30s/60s intervals.

Timer Photo Mode

Swipe up to "Select Mode" or click "Video" to enter Timer Photo Mode.

In Timer Photo Mode, press the Shutter button to take photos at 3s/5s/10s/20s/30s/60s timer.

Person diving into the ocean with blue fins, captured in a photo editing interface (no text or symbols on the image itself)

Wifi Mode

When the camera is on, press and hold the Down button or enter the mode menu to turn on Wifi.

VIDEO & PHOTO SETTING

1. Video Resolution: 4K30FPS, 2.7K30FPS, 1080P120FPS, 1080P60FPS, 1080P30FPS, 720P240FPS, 720P120FPS, 720P60FPS, 720P30FPS
   Default setting is 4K30FPS.

Note: When capturing video at high resolutions or high frame rates in warm ambient

1. Video Mode: Video, SlowMotion, Loop Record

Default setting is Video.

This setting is to select video, slow motion, loop record mode.

1. Image Stabilization: Off/On

Default setting is Off.

This setting adjusts the footage to offset for motion during capture. The result is smoother footage, especially in activities with relatively small but fast motion including cycling, motorcycling, and handheld uses.

4. Angle: Super Wide, Wide, Middle, Narrow

Default setting is Super Wide.

The angle refers to how much of the scene (measured in degrees) can be captured through the camera lens. Super wide angle captures the largest amount of the scene, while narrow angle captures the least. This function is not available while image stabilization is on.

5. Diving mode: Off/On

Default setting is Off.

Diving Mode can compensate for the lack of yellow light in underwater environments. Diving Mode is designed to be used in tropical and blue water, optimized for use between 10 and 80 feet.

6. Video Length: 2 Min/3 Min/5 Min

Default setting is 2 Min.

Using Loop Recording, you can continuously record but only save the moments you want to keep. For example, if you select a 5-minute interval, only the previous 5 minutes are saved when you press the Shutter button to stop recording. If you record for 5 minutes and do not press the Shutter button to stop recording and save, the camera will record a new 5-minute interval by recording over your previous 5 minutes of footage. When the memory card is full, the new files will cover the old one if loop recording is on.

7. Exposure: -3, -2, -1, 0, 1, 2, 3

Default setting is 0.

By default, your camera uses the entire image to determine the appropriate exposure level. However, Exposure lets you select an area that you want the camera to prioritize when determining exposure. This setting is particularly useful in shots where an important region might otherwise be over- or underexposed.

When you change this setting, the display immediately shows you the effect on your image. If you change modes, the camera returns to using the entire scene to determine the correct level of exposure.

8. WDR: Off/On

Default setting is Off.

Wide Dynamic Range (WDR) retains a greater level of detail in the dark and bright areas of an image. The result is a photo that is properly exposed for both of these extremes. This setting is especially useful for scenes that are backlist or that have large bright regions and a dark foreground. WDR is available in Video mode only.

9. Metering: Average/Center/Spot

Default setting is average.

Choose the way your camera measures the light of the scene.

10. Sharpness: High/Middle/Low

Default setting is High.

Sharpness controls the quality of details captured in your video footage or photos.

When you change this setting, the touch display immediately shows you the effect on your image.

11. Video Quality: High/Middle/Low

Default setting is Middle.

12. ISO: Auto/100/200/400/800/1600/3200/6400

Default setting is Auto.

ISO determines the camera's sensitivity to light, and creates a trade-off between brightness and resulting image noise. Image noise refers to the degree of graininess in the image. In low light, higher ISO values result in brighter images, but with greater image noise. Lower values result in lower image noise, but darker images. When you change this setting, the display immediately shows you the effect on your image.

13. Date Stamp: Off/On

Default setting is On.

Turn on Date Stamp, this camera will add a date stamp to your videos and photos.

14. Motion Detection: Off/On

Default setting is Off.

Motion detection is the process of detecting a change in the position of an object relative to its surroundings or a change in the surroundings relative to an object.

Turn on Motion Detection and camera, the camera records video automatically when it detects a change in the position of an object relative to its surroundings.

15. Photo Resolution: 20MP, 16MP, 13MP, 8MP

Default setting is 20M.

16. Anti-shake: Off/On

Default setting is Off.

This setting adjusts the footage to offset for motion during capture. The result is smoother footage, especially in activities with relatively small but fast motion including cycling, motorcycling, and handheld uses.

17. Burst Photo: 3P/s, 5P/s, 10P/s

Default setting is 3P/s.

Burst captures up to 10 photos in 1 second, so it is perfect for capturing fast-moving activities.

18. Time Lapse Interval: 0.5Sec/1Sec/2Sec/5Sec/10Sec/30Sec/60Sec

Default setting is 0.5Sec.

Time Lapse Video creates video from frames captured at specific intervals. This option lets you capture a time lapse event and immediately view or share it as a video.

Note: Time Lapse Video is captured without audio.

19. Photo Interval: 3Sec/10Sec/20Sec/30Sec/60Sec

Default setting is 3Sec.

Turn off the Self Timer, go back and you can see Time Lapse icon. Click it and enter the setting, you will find Photo Interval. This camera continuously takes pictures at the set time interval until it stops manually.

20. Self-Timer: Off/On

Default setting is On.

A Self Timer gives a delay between pressing the shutter release and the shutter's firing. It is most commonly used to let photographers to take a photo of themselves (often with family).

CAMERA SETTING

1. Special Effects: Normal/Black and White/Negative/Retro/Red/Green/Blue Default setting is Normal.

2. Power Frequency: Auto/50 Hz/60 Hz Default setting is Auto.

3. Language: English/Français/Deutsch/Espanol/Italiano/日本語/한국어/简体中文 Default setting is English.

4. Date & Time: YY/MM/DD

When the camera is connected to the AKASO GO App, its date and time will be synchronized with that of your phone.

Note: If the battery is removed from the camera, the date and time will be reset automatically.

5. Sounds:

Shutter: Off/On Beep: Off/On

Volume: 0/30/70/100 Boot: Off/On

Default setting is on.

You can turn on or off the shutter, boot, beep sounds.

This option sets the volume of your Brave 4 Pro's alerts.

6. Drive Mode: Off/On

Default setting is Off.

7. Upside Down: Off/On

Default setting is Off.

This setting determines the orientation of your videos or photos to help you prevent upside down footage.

Note: The user interface will be upside down when the Upside Down option is enabled.

8. Microphone: Built-in/External

Default setting is Built-in.

9. Screen Saver: Unlimited/30S/1Min/2Min

Default setting is 1 Minute.

Turn off the display after a period of inactivity to save battery life. To turn on the display again, press any button on the camera.

10. Auto Power Off: Unlimited/3 Min/5 Min/10 Min

Default setting is 3 Min.

Power off your Brave 4 Pro after a period of inactivity to save battery life.

11. Format

To keep your memory card in good condition, reformat it on a regular basis.

Reformatting erases all of your content, so be sure to offload your photos and videos first. To reformat your card, press the Down button to enter camera settings, then find and tap on the Format option to complete formatting.

12. Reset: Confirm/Cancel

This option resets all settings to their default values.

13. Device Info:

Brave 4 Pro Version: FX9307I-V1.0 4-20-2021

You can check the model, version and updated time of your Brave 4 Pro.

CONNECTING TO THE AKASO GO APP

Please download AKASO GO app to your mobile device from the Apple App Store or Google Play first.

The AKASO GO app lets you control your camera remotely using a smartphone or tablet. Features include full camera control, live preview, playback, download, sharing of content and setting camera.

1. Turn on the camera, then long press the down button to turn on Wifi. You can also swipe up to the mode menu to turn on Wifi.
2. Turn on your phone's Wifi to enter the Wifi settings, find the camera Wifi AKASO-Brave 4 Pro-B1-XXXX in the list and tap on it, then enter the password 1234567890 to connect.
3. Open the AKASO GO app, tap "Device" → "Add device", choose "Brave 4 Pro".
4. Tick "The above operation has been confirmed", and click "Live Preview", your camera will connect with the AKASO GO app.

You can play back your content on the camera's display, your computer, TV, or smartphone/tablet.

You can also play back content by inserting the memory card directly into a device, such as a computer or compatible TV. With this method, playback resolution depends on the resolution of the device and its ability to play back that resolution.

VIEWING VIDEOS AND PHOTOS ON YOUR BRAVE 4 PRO

1. Turn on camera.
2. Tap video playback icon ▶ at the left corner of the screen to enter playback mode.
3. Tap file icon □.
4. Tap Forward or Backward icon to playback videos or photo files.
5. Tap video playback icon ▶ to playback videos in full-screen view.
6. To exit the videos or photo files, tap return icon ➡.

Note: If your memory card contains a lot of content, it might take a minute to load.

DELETING VIDEOS AND PHOTOS ON YOUR BRAVE 4 PRO

1. Enter playback mode.
2. Tap video playback icon ▶ or file icon ■.
3. Tap Forward or Backward icon to locate the video or photo file you want to delete.
4. Tap 📂. The screen shows "Delete this file? Yes/No".
5. Tap"Yes", the selected file will be deleted.

TRANSFERRING YOUR DATA

TRANSFERRING YOUR DATA TO A COMPUTER

To play back your video and photos on a computer, you must first transfer these files to a computer. Transferring also frees up space on your memory card for new content. To offload files to a computer using a card reader (not included) and your computer's file explorer, connect the card reader to the computer, then insert the memory card. You can then transfer files to your computer or delete selected files on your card. Note that you must use a card reader to offload photos or video files.

TRANSFERRING YOUR DATA TO SMARTPHONE OR TABLET

1. Open the AKASO GO App. Connect the camera with the App.
2. Tap the playback icon in the bottom left corner to see all the videos and photos.
3. Tap the 🔒 icon and select the photo or video you want to download and then tap the Download icon at the bottom right corner.

Note:

1. If you cannot offload videos or photos to your iPhone, please enter Settings → Privacy → Photos, find "AKASO GO" and select "All Photos".
2. iPhone does not allow you to download 4K or 2.7K videos via the app. Please offload 4K or 2.7K videos via card reader.

MAINTAINING YOUR CAMERA

Follow these guidelines to get the best performance from your camera:

1. For best audio performance, shake the camera or blow on the mic to remove debris from the microphone holes.
2. To clean the lens, wipe it with a soft, lint-free cloth. Do not insert foreign objects around the lens.
3. Don't touch the lens with fingers.
4. Keep the camera away from drops and bumps, which may cause damage to the parts inside.
5. Keep the camera away from high temperature and strong sunshine to avoid being damaged.

MAXIMIZING BATTERY LIFE

If the battery reaches 0% while recording, the camera saves the file and powers off.

To maximize battery life, follow these guidelines when possible:

• Turn off Wireless Connections
  • Capture video at lower frame rates and resolutions
• Use Screen Saver settings.

The Zoom function lets you adjust how close or far away the subject appears in your photo. The default is no zoom. Zoom function is available in Video, Burst Photo and Timer Photo modes. Brave 4 Pro can zoom up to 5X.

1. Turn on Brave 4 Pro.
2. Enter Video or Burst Photo, Timer Photo Mode.
3. Click the ⊕ to adjust the zoom level.

REFORMATTING YOUR MEMORY CARD

To keep your memory card in a good condition, reformat it on a regular basis. Reformatting erases all of your content, so be sure to offload your photos and videos first.

1. Press and hold the Power button to turn on your Brave 4 Pro.
2. Press the Down button or tap the settings icon on the screen to enter Camera Settings.
3. Find the Format option in the settings, then tap on it.
4. The screen shows "Storage Space: xxG/xxG and Format/Cancel."
5. Press the OK button or tap "Format", the screen shows "Formatting..." and "Format successfully". Then you format your memory card successfully.

The camera contains sensitive components, including the battery. Avoid exposing your camera to very cold or very hot temperatures. Low or high temperature conditions may temporarily shorten the battery life or cause the camera to temporarily stop working properly. Avoid dramatic changes in temperature or humidity when using the camera, as condensation may form on or within the camera.

• Do not dry the camera or battery with an external heat source such as a microwave oven or hair dryer. Damage to the camera or battery which caused by liquid inside the body is excluded from the warranty.
• Do not store the battery with metal objects such as coins, keys or necklaces. If the battery terminals come close to metal objects, fire may be caused.
• Do not make any unauthorized alterations to the camera as this may compromise safety, regulatory compliance or performance, and may void the warranty.

WARNING: Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate or paint the camera or battery. Do not insert foreign objects into the battery opening of the camera. Do not use the camera or the battery if it has been damaged - for example, if cracked, punctured or damaged by water. Disassembling or puncturing the battery can cause an explosion or fire.

Splashproof only, not waterproof

VIDEO

To record video, put the camera in Video Mode.

To start recording:

Press the Grey Video Button. The camera will emit one beep and the camera light will flash while recording.

To stop recording:

Press the Grey Video Button again. The camera will emit one beep, the camera light will stop flashing and the camera will stop recording.


To capture a photo, put the camera is in Photo Mode.

To take a photo:

Press the Red Photo Button. The camera will emit a camera shutter sound.

CR2032 BATTERY REPLACEMENT FOR BRAVE 4 PRO REMOTE

1. Use a 1.8mm Phillips tip screwdriver to remove the 4 screws on the back cover of the remote, allowing you to open it.

Three black electronic devices: a digital display, a black plastic case with screw holes, and a tool (no visible text or symbols)

1. Remove the other four screws in the PCB board.

Interior view of an electronic device showing a green circuit board with two circular components and red connectors (no text or symbols visible)

1. Lift the PCB board and slide out the battery, as shown in the picture.

Note: Do NOT rotate the PCB board to avoid reversing the camera and video button functions.

Close-up of a green printed circuit board with exposed internal components and a red arrow pointing to a component (no text or symbols visible)

EN

1. Install the new battery, keeping the "+" pole facing up.

2. Install all 4 screws back into the PCB board.

Interior view of a black plastic electronic device showing internal circuit board and connector (no text or symbols visible)

1. Install all 4 screws back into the cover.

MOUNTING YOUR CAMERA

You can attach your camera to helmets, handlebars and equipment, as follows:

Three different types of camera modules shown: a flat-screen, a video camera with lens, and a mounted optical device (no text or symbols visible)

Four black mechanical components with mounting holes and brackets, shown in a 2x2 grid (no text or symbols visible)

CONTACT US

For any inquiries about AKASO products, please feel free to contact us. We will respond within 24 hours.

Tel: [phone] (US)

Email: [e-mail]

Web: www.akasotech.com

BRAVE 4 PRO

AKTION KAMERA

BENUTZERHANDBUCH

INHALTE

WAS IST IN DER BOX 02

IHRE BRAVE 4 PRO----03

ERSTE SCHRITTE 05

Schraubenschlüssel x 1

Binden x 4

Anbindungen x 5

Linsentuch x 1

Person diving into the ocean with blue fins, captured in a photo editing interface (no text or symbols on the image itself)

06

Fotomodus

Person floating in turquoise water with blue fins, captured via camera interface (no text or symbols on the image itself)

Serienbildmodus

Person diving into the ocean with blue fins, captured in a photo editing interface (no text or symbols on the image itself)

Wifi-Modus

Version: FX9307I-V1.0 4-20-2021

Smartphone screenshot displaying a snowy mountain scene with skiers and snowboarders under a clear blue sky (no text or symbols visible)

Hinweis:

Three black electronic devices: a digital display, a black rectangular device with red buttons, and a small tool (no visible text or symbols)

Interior view of a black electronic device showing green circuit board and two circular components (no text or symbols visible)

DE

Close-up of a green electronic circuit board with exposed components and a red triangle pointing to a component (no text or symbols visible)

Close-up of a green printed circuit board with exposed components and a red rectangular annotation (no readable text or symbols)

Four black mechanical components with mounting holes and connectors, shown in a row (no text or symbols visible)

KONTAKTIEREN SIE UNS

MANUAL DE USUARIO

V1.3

CONTENIDOS

QUÉ HAY EN LA CAJA 02

SU BRAVE 4 PRO----03

GUÍA DE INICIO 05

Person diving into the ocean with blue fins, captured in a photo editing interface (no text or symbols on the image itself)

Modo de Foto

Person diving into the ocean with blue fins, captured in a photo editing interface (no text or symbols on the image itself)

Person diving into the ocean with two blue fins, captured in a photo editing interface (no text or symbols on the image itself)

Modo Wifi

Smartphone screenshot displaying a snowy mountain scene with skiers and snow-capped peaks, no visible text or symbols on the main image area.

Nota:

Three black electronic devices: a digital display, a black rectangular casing with red mounting holes, and a small tool (no visible text or symbols)

Interior view of an electronic device showing green circuit board and two black plastic components (no text or symbols visible)
