USER MANUAL WHMDF06D3E51 PANASONIC

F568658 Model No. Mono bloc Unit

(WH-MDF06D3E5-1) (WH-MDF09D3E5-1) © Panasonic Appliances Air-Conditioning Malaysia Sdn. Bhd. 2012. Unauthorized copying and distribution is a violation of law. ENGLISH ENGLISH Before operating the unit, read these operating instructions thoroughly and keep them for future reference. Before operating the unit, make sure the installation has been carried out correctly by authorized dealer correctly and precisely following the installation instructions given. 2 ~ 92 ~ 9

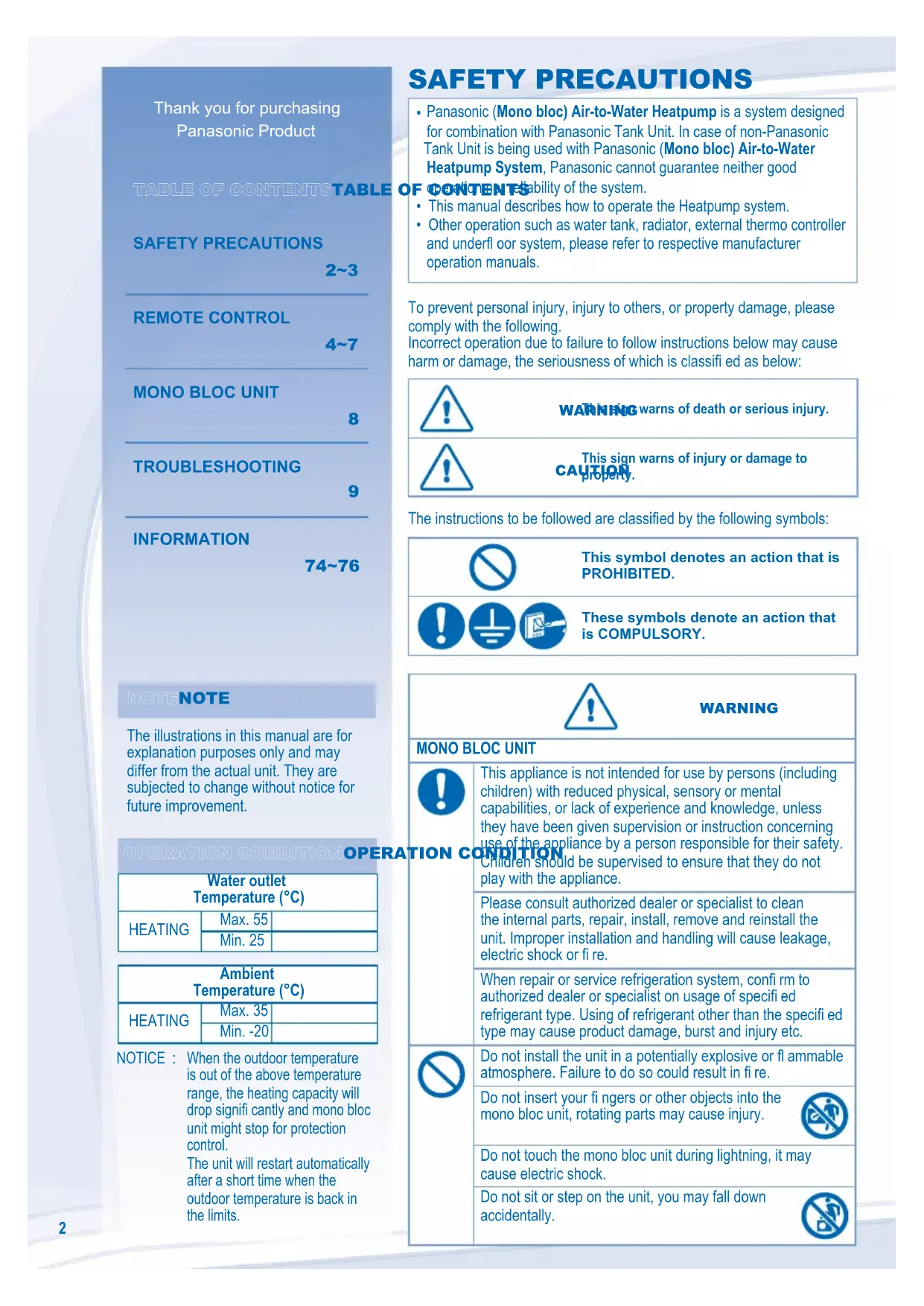

Panasonic (Mono bloc) Air-to-Water Heatpump is a system designed for combination with Panasonic Tank Unit. In case of non-Panasonic Tank Unit is being used with Panasonic (Mono bloc) Air-to-Water Heatpump System, Panasonic cannot guarantee neither good operation nor reliability of the system.

• This manual describes how to operate the Heatpump system.

• Other operation such as water tank, radiator, external thermo controller and underfl oor system, please refer to respective manufacturer operation manuals. SAFETY PRECAUTIONS Thank you for purchasing Panasonic Product

INFORMATION 74~76 NOTENOTE The illustrations in this manual are for explanation purposes only and may differ from the actual unit. They are subjected to change without notice for future improvement.

OPERATION CONDITIONOPERATION CONDITION

Water outlet Temperature (°C) HEATING Max. 55 Min. 25 Ambient Temperature (°C) HEATING Max. 35 Min. -20 NOTICE : When the outdoor temperature is out of the above temperature range, the heating capacity will drop signifi cantly and mono bloc unit might stop for protection control. The unit will restart automatically after a short time when the outdoor temperature is back in the limits. To prevent personal injury, injury to others, or property damage, please comply with the following. Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classifi ed as below: WARNINGWARNING This sign warns of death or serious injury. CAUTIONCAUTION This sign warns of injury or damage to property. The instructions to be followed are classifi ed by the following symbols: This symbol denotes an action that is PROHIBITED. These symbols denote an action that is COMPULSORY. WARNINGWARNING

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Please consult authorized dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fi re. When repair or service refrigeration system, confi rm to authorized dealer or specialist on usage of specifi ed refrigerant type. Using of refrigerant other than the specifi ed type may cause product damage, burst and injury etc. Do not install the unit in a potentially explosive or fl ammable atmosphere. Failure to do so could result in fi re. Do not insert your fi ngers or other objects into the mono bloc unit, rotating parts may cause injury. Do not touch the mono bloc unit during lightning, it may cause electric shock. Do not sit or step on the unit, you may fall down accidentally. F568658_YS0112-0.indb 2F568658_YS0112-0.indb 2 5/9/2012 1:54:45 PM5/9/2012 1:54:45 PM Process CyanProcess CyanProcess MagentaProcess MagentaProcess YellowProcess YellowProcess BlackProcess BlackPANTONE 293 CPANTONE 293 CENGLISH

Do not install the unit close to any combustible equipment or at bathroom. Otherwise, it may cause electric shock or fi re. Do not touch the water discharge pipe during operation. Do not place anything on top or beneath of the unit. Do not touch the sharp aluminium fi n, sharp parts may cause injury. Do not use the system during sterilization to prevent scalding or overheat during shower. Ensure drainage pipe is connected properly. Otherwise, leakage may occur. After a long period of use, make sure the installation rack does not deteriorate to prevent the unit from falling down. The sterilization function fi eld settings must be confi gured by the authorized dealer according to local laws and regulation. REMOTE CONTROL Do not let the remote control get wet. Otherwise, it may cause malfunction. Do not press the buttons on the remote control with hard, pointed objects. Otherwise, it may damage the unit. Do not wash the remote control with water, benzene, thinner or scouring powder.

not inspect or service the remote control by not inspect or service the remote control by yourself. Please consult authorized dealer.yourself. Please consult authorized dealer. Otherwise, it can damage or malfunction. WARNINGWARNING POWER SUPPLY Do not use a modifi ed cord, joint cord, extension cord or unspecifi ed cord to prevent overheating and fi re. To prevent overheating, fi re or electric shock:

• Do not share the same power outlet with other equipment.

• Do not operate with wet hands.

Do not over bend the power supply cord. If the supply cord is damage, it must be replaced by the manufacturer, its service agent or similarly qualifi ed persons in order to avoid a hazard. This unit is equipped with Residue Current Circuit Breaker (RCCB). It is strongly recommended to check the operation of the RCCB after installation and periodically after servicing or maintenance by authorized dealer to ensure it is in good working order. Otherwise, it may cause electrical shock or fi re in case of malfunction. It is strongly recommended to install Residual Current Device (RCD) on-site to prevent electric shock or fi re. Stop using the product if any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/fi re/electric shock) Examples of abnormality/failure

• The RCCB switches off by itself.

• Burning smell, abnormal noise or vibration sound is observed when the unit is in use.

• Hot water keeps on coming off the unit. Contact your local dealer immediately for maintenance/repair. It is recommended to wear gloves during servicing or maintenance in order to avoid hazard. This equipment must be earthed to prevent electrical shock or fi re. Prevent electric shock by switching off the power supply when: - Before cleaning or servicing. This appliance is for multiple uses. All power supply circuits must be turn off before access to any of the terminals in the unit, to avoid electrical shock, burn or fatal injury.

• Some functions describe in this manual may not be applicable to your unit.

• Consult your nearest authorized dealer for further information.

• For normal operation, the ERRORRESET FORCE and SERVICE buttons are not in use.

Heat Mode OFF/ON Indicator

System Defrost Operation OFF/ON Indicator

Operation Mode Button

Quiet Operation Button

Backup Heater Enabling Button

MON TUEWEDTHU FRI SAT SUN

• The current day and time need to be set when: - The power is turned on for the fi rst time. - After a long time has elapsed since the power was last turned on.

• The current time that has been set will be the standard time for all the Timer operations.

or to set current day.

4. Repeat steps 2 and 3 to set the current time.

• After initial installation, you can manually adjust the settings. The initial setting remains active until the user changes it.

• The remote control can be used for multiple installations. Some functions may not be applicable to your unit.

• Ensure the operation LED is in OFF condition before setting. SET SELECTCANCEL SETTING STATUS CHECK

SET and CHECK simultaneously for 5 seconds to enter special setting mode. “SETTING” and “STATUS” indicator is ON.

or to browse functions.

SELECT to enter function.

SET to confi rm. Set Remote Control’s Display Description

HEATER Backup Heater Capacity Selection (3kW / 6kW / 9kW) To reduce the heater power whenever unnecessary. Options vary depending on model.

Water System Freeze Prevention Function (YES / NO) To activate or deactivate water system freeze prevention function when unit is OFF.

TANK Tank Connection (YES / NO) To set tank connection. Note: If select “Tank connection” is “NO”, Set 5 ~ 14 are skipped.

SOLAR Solar Priority (YES / NO) To choose the solar use for water tank heat up.

HEAT Heating Priority (YES / NO) To choose the room heating as priority during HEAT + TANK mode. Note: If select “Heating priority” is “YES”, Set 7 ~ 8 are skipped.

HEAT Heating operation Interval Set To set timer for Heat mode during HEAT + TANK mode (0.5hour ~ 10 hours).

TANK Tank Heat-up Interval Set To set timer for Tank during HEAT + TANK mode (5minutes ~ 1hour 35minutes).

BOOSTER Booster Heater Function (YES/NO) To activate or deactivate tank booster heater function. Note: If select “Booster heater function” is “NO”, Set 10 is skipped.

BOOSTER Booster Heater Delay Timer Set To set delay timer for booster heater to ON if water tank temperature is not reached (20minutes ~ 1hour 35minutes).

• Do not use the system during sterilization to prevent scalding or overheat during shower.

• The sterilization function fi eld settings must be confi gured by the authorized dealer according to local laws and regulation.

Sterilization (YES/NO) To set sterilization, if required. Note: If select “Sterilization” is “NO”, set 12 ~ 14 are skipped.

Sterilization Day & Time Set To set timer for sterilization (only once a week, will operate even in standby condition).

• When unit is ON, operation LED is lit and the actual temperature for water outlet and outdoor ambient are shown on the remote control display. MODE

• HEAT MODE - To turn ON or OFF the panel/fl oor heating operation. - In this mode, the mono bloc unit will provide heating capacity to the system.

• HEAT + TANK MODE - In this mode, the mono bloc unit will provide heating capacity to the sanitary tank and the system. - This operation is not used when the sanitary water tank is not installed.

• TANK MODE - To turn ON or OFF the sanitary tank operation. - In this mode, the mono bloc unit will provide heating capacity to the sanitary tank. QUIET

TO ENJOY QUIET ENVIRONMENT

• This operation reduces mono bloc unit noise. In this condition, it may cause decrease in heating capacity. HEATER

• The backup heater provides extra heating capacity during cold outdoor temperature and only can operated at heat mode operation when he was enabled by pushing this button.

• The backup heater will automatically turn ON when the setting conditions is fulfi lled.

• To disabled the Heater operation manually, press the respective button again. STATUSSEARCHCHECK

CHECK for 5 seconds to enter STATUS mode.

2. Press or to check the Water Inlet

Temperature, Tank Temperature, Compressor Running Frequency or Error History.

to exit STATUS mode.

• Once STATUS mode is entered, “STATUS” indicator is ON.

• STATUS mode cannot be activated when the “SETTING” indicator is ON.

It is strongly recommended to contact the nearest authorized dealer to change the water temperature range.

• Using the remote control could set the temperature range for water outlet temperature and outdoor ambient temperature.

SET for 5 seconds to enter “SETTING” mode. “SETTING” indicator is ON.

or to set the desired temperature.

SET again to confi rm the setting.

WATER TEMPERATURE THERMO SHIFT SETTING

SET within 5 seconds.

or wait 30 seconds to exit “SETTING” mode.

• The setting temperature will be stored in the system once confi rm.

Press or to select your desired day.

Press SELECT to confi rm.

“1” will be blinking, press SELECT to set program 1.

Press or to select your desired time. You can set MODE

HEATER and desired shift temperature with timer.

Press SET to confi rm program 1. The selected day will be highlighted with ▼.

• After 2 seconds, the display will move to the next program.

Repeat steps 4 to 7 to set programs 2 to 6.

• During timer setup, if no button is pressed within 30 seconds, or if the SET button is pressed the setting at that moment is confi rmed and timer setup is ended. Add/Modify timer Repeat the steps above. Disable timer Press TIMER , then press CANCEL

2. Press or until your desired day is shown, press

SELECT to confi rm your selection.

3. Press or to check the set programs.

2. Press or until your desired day is shown, press

SELECT to confi rm your selection.

SELECT to enter program setting.

or until your desired program is shown.

CANCEL to cancel the program.

• You can set the Timer for each day of the week (Monday to Sunday) with 6 programs per day.

• When the unit is switched on by the ON TIMER, it will use the previously set temperature to control the water outlet temperature.

• Same timer program cannot be set in the same day.

• You may also select collective days with same timer setting.

In case of a power supply failure or pump operating failure, drain the system (as suggested in the fi gure below).

When water is idle inside the system, freezing up is very likely to happen which could damage the system.

• Do not obstruct the air inlet and air outlet vents, it may cause low performance or breakdown. Please remove obstacles to assure the ventilation.

• During winter, please clean and remove the snow near mono bloc unit so that the snow does not cover the air inlet and air outlet vents. EXTERNAL FILTER

• Please clean the external fi lter at least once a year. Fail to do so might cause fi lter clogged, consequent system breakdown. Please consult authorized dealer. INSPECTION

• In order to ensure optimal performance of the unit, seasonal inspections on the unit, external fi lter and fi eld wiring have to be carried out at regular intervals. This maintenance should be carried out by authorized dealer.

• Clear any obstruction at the air inlet and air outlet vents of mono bloc unit.

FOR EXTENDED NON-USE

• Do not switch off the power supply. Switching off the power supply will stop the automatic water pump operation and cause the water pump jammed.

NON SERVICEABLE CRITERIASNON SERVICEABLE CRITERIAS

TURN OFF POWER SUPPLY then please consult authorized dealer under the following conditions:

• Abnormal noise during operation.

• Water/foreign particles have entered the remote control.

• Circuit breaker switches off frequently.

TROUBLESHOOTING The following symptoms do not indicate malfunction.The following symptoms do not indicate malfunction. SYMPTOMSYMPTOM CAUSECAUSE Flowing sound during operation. ► • Refrigerant fl ow inside the unit. Operation is delayed a few minutes after restarting. ► • The delay is a protection to the unit’s compressor. Mono bloc unit emits water/steam. ► • Condensation or evaporation occurs on pipes. Mono bloc unit emits steam during heating mode. ► • This is due to defrost operation happens at the heat exchanger. Mono bloc unit does not operate. ► • When the outdoor temperature is out of the operation condition range, the heatpump system enter protection control. (Mono bloc) Air-to-water Heatpump system operation will turn off.

The heatpump system enter protection control. Compressor stops by water inlet temperature lower than 18°C; and backup heater power turn on by water inlet temperature lower than 23°C. System diffi cult to heat-up. ► • When heating is operated together with fl oor heating or panel heater simultaneously, there may be case where warm water temperature is getting lower and cause fl oor heating or panel heater heat-up is weaken.

• When outdoor air temperature is low, it may be diffi cult to get warm.

• Is the snow pile blocking the discharge outlet or intake inlet of mono bloc unit.

• When water outlet set temperature is low, it may be diffi cult to get warm. System cannot get warm instantly. ► • Due to the nature of the heatpump system, it may take some time to heat-up the water if the unit is operated from cold-start. Backup heater turn ON automatically when it is not enabled. ► • The turn ON of backup heater is a protection to the indoor unit’s heat exchanger. Operation starts automatically even without ON Timer. ► • The sterilization timer has been set. Check the following before calling for servicing.Check the following before calling for servicing. SYMPTOMSYMPTOM CHECKCHECK Heating operation is not working effi ciently. ► • Set the temperature correctly.

• Is the panel heater valve closed.

• Clear any obstruction at the air inlet and air outlet vents of mono bloc unit. Noisy during operation. ► • Check if the unit has been installed at an incline or the cover is not closed properly. The unit does not work. ► • Check if the circuit breaker is tripped. Operation LED is no lit or remote control display is blank. ► • Is the power supply off or power failure. The operation LED blinks and error code appear on remote control display.The operation LED blinks and error code appear on remote control display. TIMER TIMER

• Turn the unit off and reveal the error code to authorized dealer.

• Timer operation cancel when error code occur. Force Heater Mode ButtonForce Heater Mode Button FORCE
• In case of a failure of the (Mono bloc) Air-to-Water Heatpump system, the backup heater can be used to heat up the heating water. Press FORCE to switch on the backup heater.

to stop the force heater operation.

MON TUEWEDTHU FRI SAT SUN

MON TUEWEDTHU FRI SAT SUN

MON TUEWEDTHU FRI SAT SUN

MON TUEWEDTHU FRI SAT SUN

MON TUEWEDTHU FRI SAT SUN

MON TUEWEDTHU FRI SAT SUN

MON TUEWEDTHU FRI SAT SUN

MON TUEWEDTHU FRI SAT SUN

ČINNOST ZÁLOŽNÍHO TOPENÍ

REŽIM PROVĚRKY STAVU

• Během režimu nuceného topení nejsou žádné jiné operace povoleny. F568658_YS0112-0.indb 73F568658_YS0112-0.indb 73 5/9/2012 1:56:28 PM5/9/2012 1:56:28 PM Process CyanProcess CyanProcess MagentaProcess MagentaProcess YellowProcess YellowProcess BlackProcess BlackPANTONE 293 CPANTONE 293 C74 Information for Users on Collection and Disposal of Old Equipment These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. [Information on Disposal in other Countries outside the European Union] These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.
