Product Type	Mixer / Blender
Brand	Russell Hobbs
Model	2352056
Dimensions (approx.)	20 x 20 x 40 cm
Weight (approx.)	1.5 kg
Power Supply	Standard mains outlet (230 V)
Power	Not specified, powerful motor
Bowl Capacity	Small bowl (2x) and large bowl (3x), max capacity indicated
Blades Included	6-point mixing blade, serrated grinding blade
Lids Included	Portable lid with spout (2x), solid lid (2x), sprinkler lid
Additional Accessories	Edge ring (2x)
Main Functions	Blend, grind, chop, prepare smoothies, soups, sauces, purees, spices
Operation	Clockwise rotation to start, counterclockwise to stop
Maximum Operating Time	1 minute continuous, then rest 1 minute
Care and Cleaning	Motor base wiped with damp cloth; bowls, blades, and lids dishwasher safe
Safety	Stop and unplug before cleaning; do not use with hot liquids; keep out of reach of children
Spare Parts and Repairability	Blades and bowls replaceable; cable replaceable by professional
Usage	Household use only
Recycling	Do not discard with household waste; take to recycling center

Frequently Asked Questions - 2352056 RUSSELL HOBBS

How to use the Russell Hobbs 2352056 mixer ?

Add ingredients to the bowl without exceeding the max mark, screw on the chosen blade, turn the bowl over and align the three tabs with the slots on the motor base, then turn the bowl base clockwise to start.

What types of blades are included ?

The mixer comes with a 6-point mixing blade for smoothies, soups and sauces, and a serrated grinding blade for hard ingredients like coffee, nuts or chocolate.

Can I blend hot liquids ?

No, do not use the mixer with hot or boiling liquids. Let them cool down first to avoid the risk of burns or damage.

How to clean the mixer ?

Unplug the appliance. Wipe the motor base with a damp cloth. Bowls, blades and lids can be hand washed in warm soapy water or in the dishwasher.

What is the maximum continuous operating time ?

Do not run the motor for more than 1 minute continuously. After that, let it rest for at least 1 minute to avoid overheating.

Are the parts dishwasher safe ?

Yes, the bowl, blades, lids and edge ring are dishwasher safe. However, washing may alter the appearance but not the performance.

How to chop chocolate or nuts ?

Use the serrated grinding blade. For best results, ingredients should be very cold. Coarsely chop them before processing with short pulses.

What to do if ingredients clump ?

Remove the bowl from the motor base, shake it vigorously, then reassemble and continue processing.

Can I use other accessories than those provided ?

No, only use the accessories supplied with the appliance. Do not adapt any unintended accessories to avoid any risk.

How to contact after-sales service ?

For any questions or repairs, contact the manufacturer or an authorized technician. The damaged cable must be replaced by a professional.

USER MANUAL 2352056 RUSSELL HOBBS

Black and white photo of a Russell Hobbs blender kit with open covers and kitchen utensils (no text or symbols visible)

Line drawing of a cylindrical appliance with lid and side ports (no text or symbols)

Line drawing of a cylindrical bucket with a side label showing '2' and a small inset image of a textured surface (no text or symbols on the bucket itself)

Line drawing of a cylindrical container with a lid and side connectors, labeled with number 3 (no text or symbols on the diagram itself)

4 5

6 7 8 9

Technical line drawing of a mechanical component with a cylindrical housing and a bucket (no text or symbols)

Line drawing of a blender with a lid and base, showing internal components and a downward arrow indicating process (no text or symbols)

Line drawing of a blender with an arrow indicating rotation (no text or symbols)

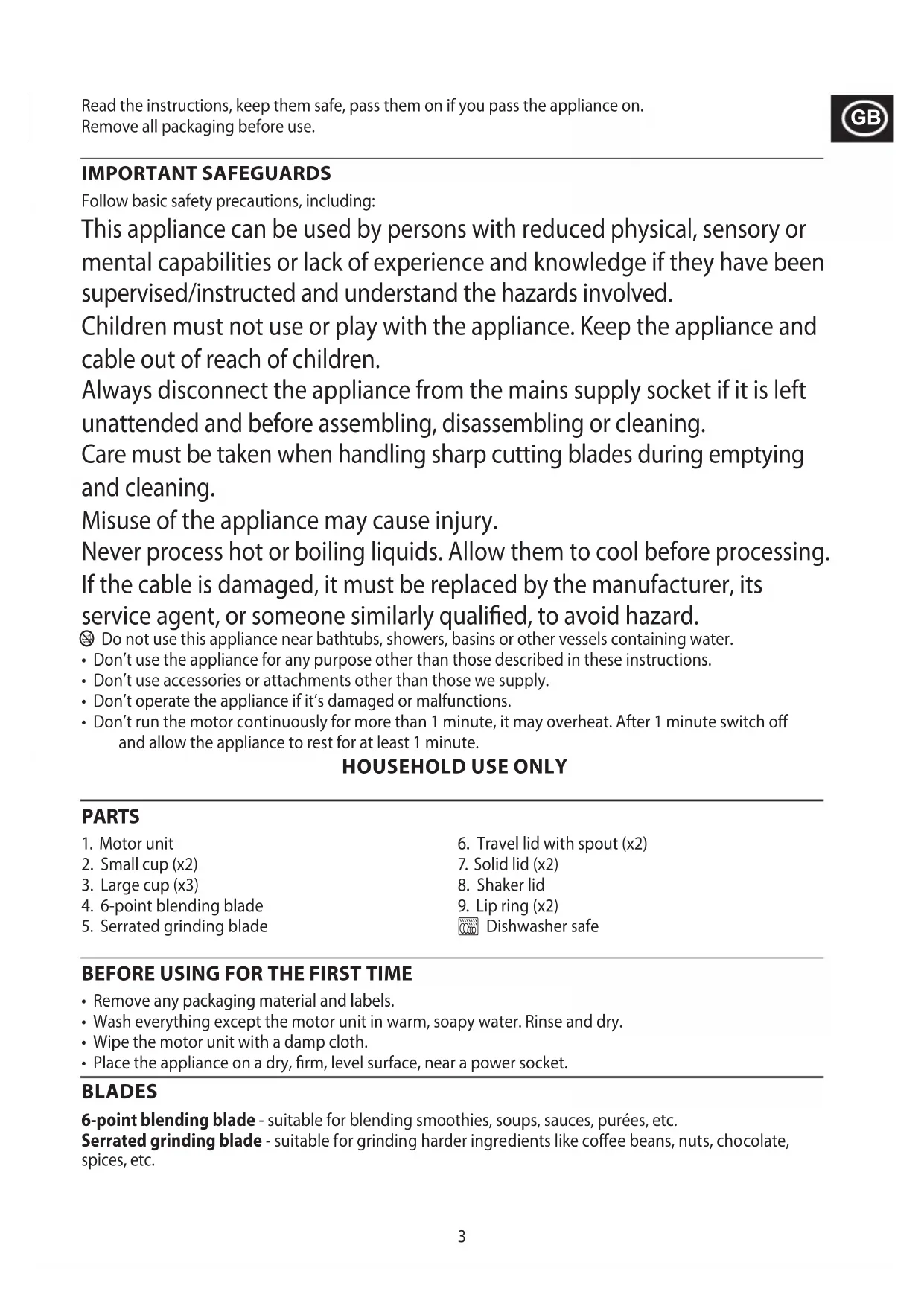

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved.

Children must not use or play with the appliance. Keep the appliance and cable out of reach of children.

Always disconnect the appliance from the mains supply socket if it is left unattended and before assembling, disassembling or cleaning.

Care must be taken when handling sharp cutting blades during emptying and cleaning.

Misuse of the appliance may cause injury.

Never process hot or boiling liquids. Allow them to cool before processing. If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• Don't use the appliance for any purpose other than those described in these instructions.
• Don't use accessories or attachments other than those we supply.
• Don't operate the appliance if it's damaged or malfunctions.
• Don't run the motor continuously for more than 1 minute, it may overheat. After 1 minute switch off and allow the appliance to rest for at least 1 minute.

HOUSEHOLD USE ONLY

PARTS

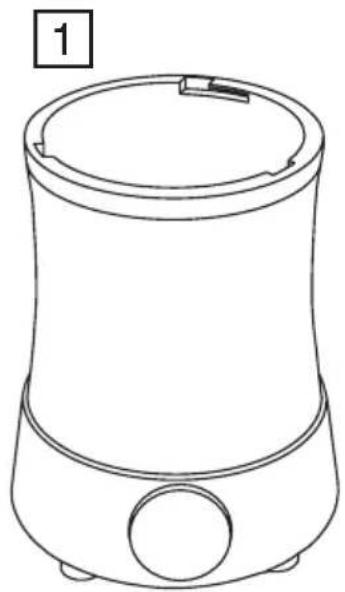

1. Motor unit

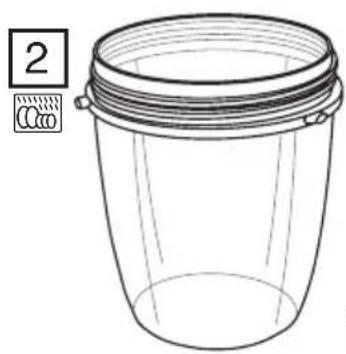

2. Small cup (x2)

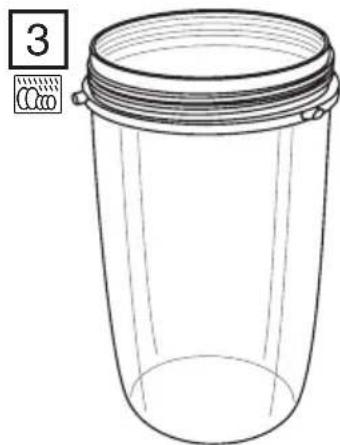

3. Large cup (x3)

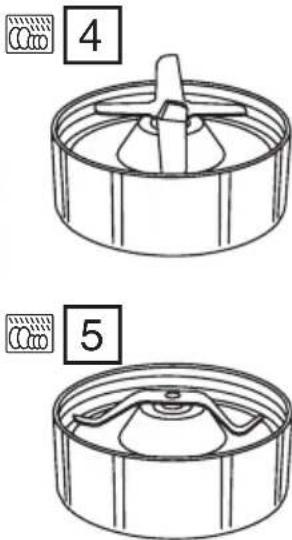

4. 6-point blending blade

5. Serrated grinding blade

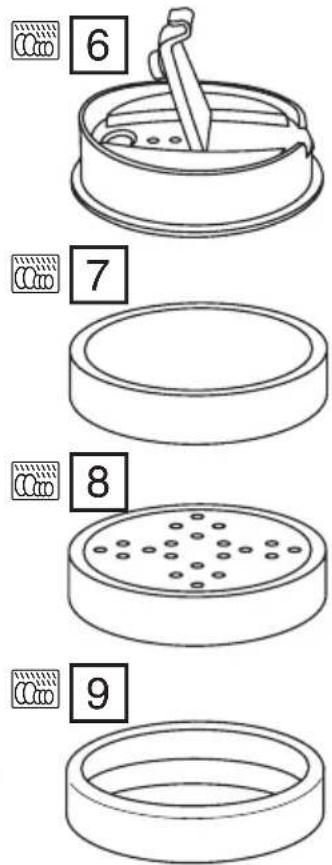

6. Travel lid with spout (x2)

7. Solid lid (x2)
8. Shaker lid
9. Lip ring (x2)
   Dishwasher safe

BEFORE USING FOR THE FIRST TIME

• Remove any packaging material and labels.
• Wash everything except the motor unit in warm, soapy water. Rinse and dry.
• Wipe the motor unit with a damp cloth.
• Place the appliance on a dry, firm, level surface, near a power socket.

BLADES

6-point blending blade - suitable for blending smoothies, soups, sauces, purées, etc.

Serrated grinding blade - suitable for grinding harder ingredients like coffee beans, nuts, chocolate, spices, etc.

LIDS

Travel lid with spout - screw-on lid with opening spout suitable for drinks on-the-go or storage.

Solid lid - screw-on lid suitable for storing processed ingredients.

Shaker lid - screw-on lid with holes suitable for serving grated cheese, chocolate, spices, etc.

Lip ring - push-on ring which can be fitted to the large or small cups to cover the screw thread for comfort.

USING

1. Add the ingredients to the small or large cup. Don't exceed the max mark.

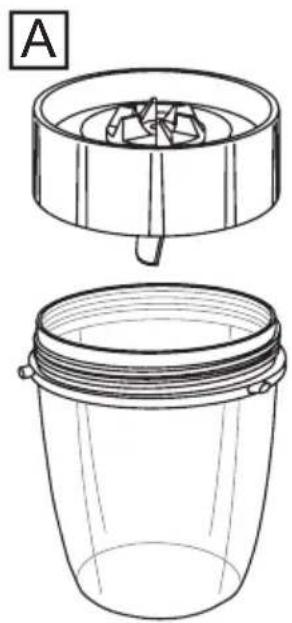

2. Screw the desired blade onto the cup and tighten firmly (FIG A).

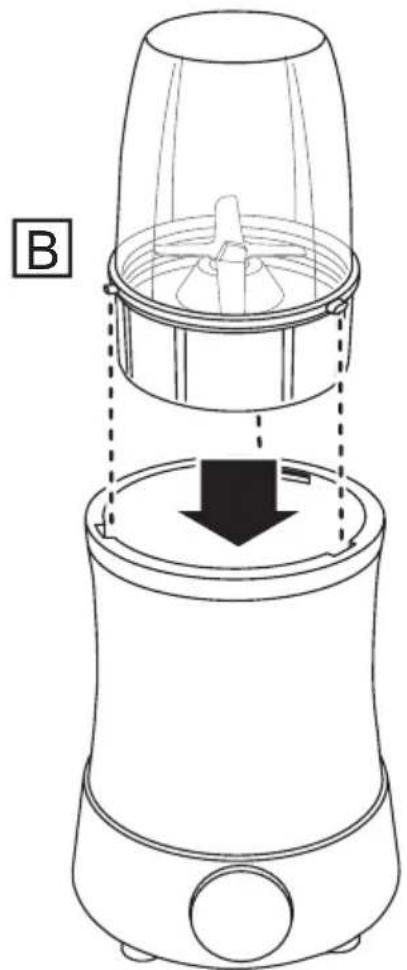

3. Invert the cup and align the three tabs with the slots in the motor unit (FIG B). Lower the cup assembly into the motor unit.

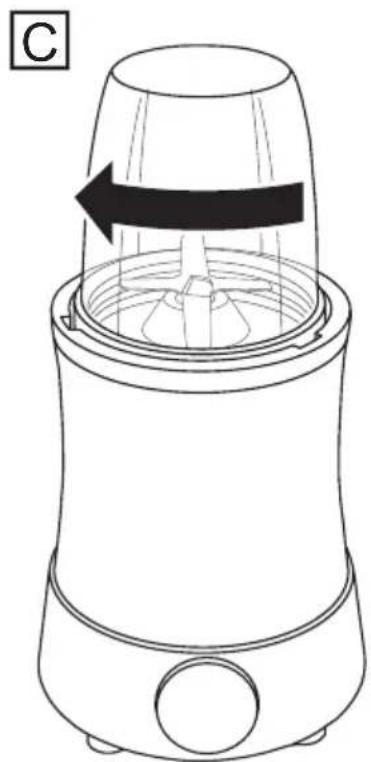

4. Turn the cup assembly clockwise to start the motor (FIG C).
5. Turn the cup assembly anti-clockwise to stop the motor.

TIPS

• The motor is powerful and operates quickly. Use short controlled bursts so that ingredients aren't over processed.
• Sometimes during processing, the ingredients clump together. If this happens, remove the cup from the motor unit and shake it. Refit the cup to the motor unit and carry on processing.
• Cut your ingredients into small pieces before processing.
• Chocolate, nuts, and cheese will chop/grind better if thoroughly chilled first.

CLEANING

1. Unplug the appliance.
2. Dissassemble the appliance.
3. Wipe the outside of the motor unit with a clean damp cloth.
4. Wash the removable parts in warm soapy water, rinse well, drain, and air dry.
   You may wash these parts in a dishwasher.
   If you use a dishwasher, the harsh environment inside the dishwasher will affect the surface finishes.
   Damage should be cosmetic only, and should not affect the operation of the appliance.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.

A FEW RECIPES TO GET YOU STARTED

LEEK AND POTATO SOUP

• 75g leeks
• 75g potatoes
• 1 stock cube
• 400ml water
• salt and pepper

Process the leeks and potatoes for 2 seconds. Transfer to a large pan. Add the water and stock cubes. Bring to the boil, stirring. Reduce the heat. Cover the pan. Simmer for 20 minutes. Remove from the heat. Cool for 30 minutes. Process till smooth. Bring to serving temperature (don't let it boil). Adjust the seasoning. Serve with bread. For Vichyssoise, add a couple of chives to the leeks and potatoes, add a knob of butter to the pan before heating, cool the soup instead of re-heating it, and whisk in 75ml of cream before serving it cold.

SPICY PUMPKIN SOUP

• 450g pumpkin
• 15ml vegetable oil
  • 1 leek
• 1 garlic clove
  • 450ml chicken/vegetable stock

• 2.5g ground ginger
• 15ml single cream/crème fraiche
• 2.5g ground coriander
• 1 bunch coriander leaves
- salt and pepper

Peel, deseed, and cut the pumpkin into chunks. Heat the oil in a pan. Add the leeks, garlic and spices. Stir for 3 minutes. Add the stock and pumpkin. Bring to the boil, stirring. Reduce the heat. Cover the pan.

Simmer for 20-30 minutes. Remove from the heat. Stir in the coriander and cream. Cool for 30 minutes.

Process till smooth (if required, process in batches). Bring to serving temperature (don't let it boil). Adjust the seasoning. Serve with bread.

CORIANDER PESTO

• 2 handfuls coriander leaves
- 2 cloves garlic
- 60g pine nuts

• 125ml olive oil
• 60g Parmesan, grated

Process the coriander, garlic, pine nuts and half the oil till smooth. Transfer to a large bowl. Stir in the Parmesan. Add oil to adjust the consistency: For a dip: thick. For a topping: medium. For pasta sauce: thin.

FRUITY SMOOTHIES

Process everything till smooth.

• 60ml yogurt
• 200ml milk

• 30g oatmeal

• 1 banana

• 30ml honey

• 2 apples, cored

• 600ml apple juice

• 1 mango, stone

removed

• 170g chocolate ice cream
• 150g hazelnut yogurt
- 1 banana
• 300ml chocolate milk • 2 pears, cored
- 400ml milk
- 1 banana
- 20ml honey
• 10ml vanilla extract
- 300ml orange juice
• 300ml cranberry juice
- 1 banana
- 360ml lemonade
- 125g vanilla ice
• 4 halves of tinned apricot
• 80ml apricot juice (from tin)
- 2 peaches, stone

• 300ml apple juice
• 90g raspberries
• 400ml apple juice
• 1 kiwi fruit, peeled

• 350ml lemonade
  • 125ml chocolate ice cream

• 12 strawberries

• 150g melon
  • 100ml cherries, stones removed

150g hazelnootyoghurt

1 banaan

1 banaan

12 aardbeien

200ml melk

400ml melk

1 banaan

20ml honing

10ml vanille-extract

360ml limonade

125g vanille-ijs

70g Bosbessen

300ml sinaasappelsap

300ml cranberrysap

1 banaan
