USER MANUAL AirVital Pro CASO

13.3 Panel, as well as remote control .............................................. 38

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your air humidifier will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

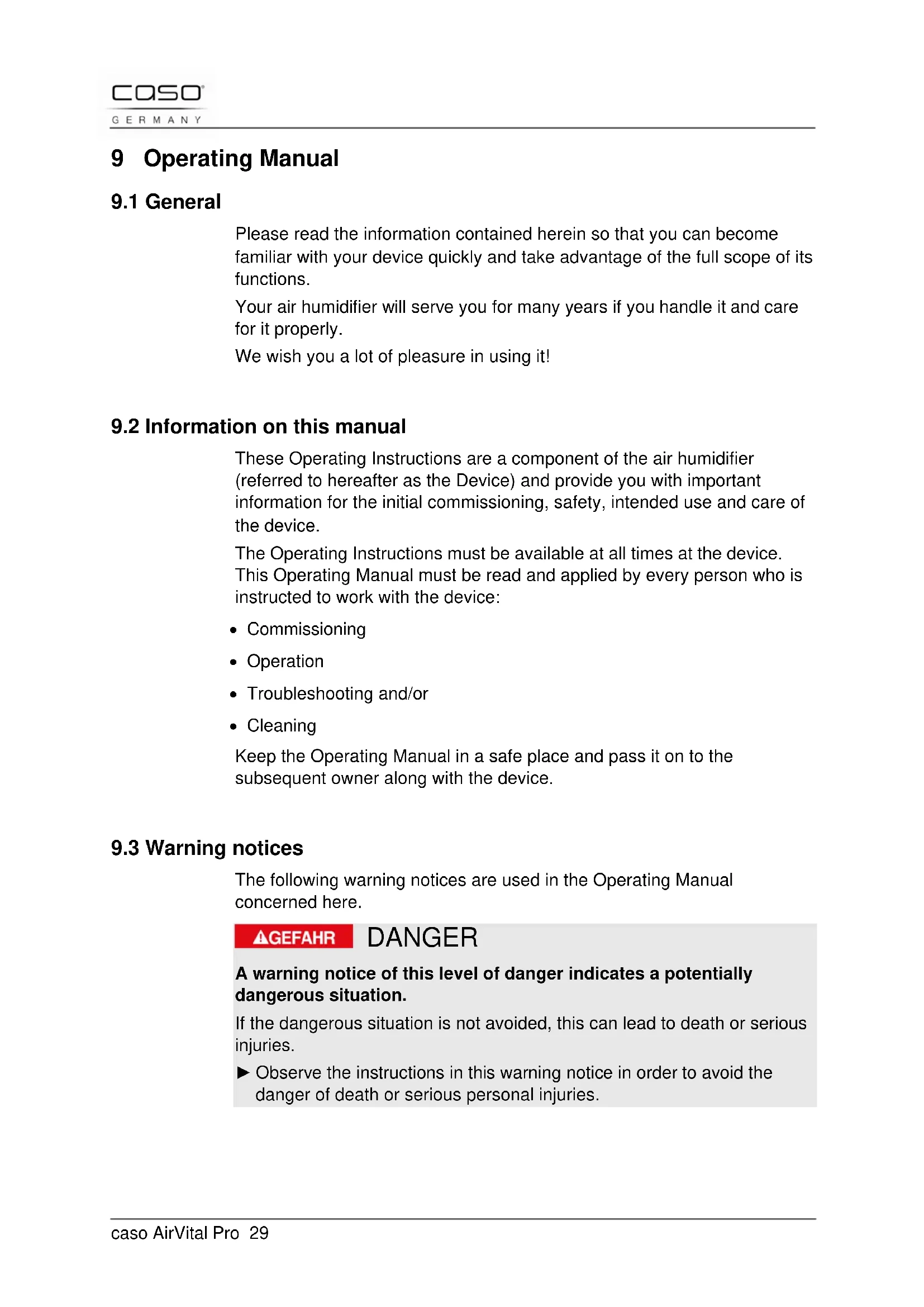

9.2 Information on this manual

These Operating Instructions are a component of the air humidifier (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Troubleshooting and/or

• Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

The following warning notices are used in the Operating Manual concerned here. DANGER A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. ► Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.caso AirVital Pro 30 WARNING A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. ATTENTION A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. PLEASE NOTE A notice of this kind indicates additional information, which will simplify the handling of the machine.

9.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual

• Uses for non-intended purposes

• Technical alterations

• Use of unauthorized spare parts All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.caso AirVital Pro 31

9.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes. 10 Safety This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

This device is only intended for use in households in enclosed spaces for creating steam. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use. Warning Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.caso AirVital Pro 32

10.2 General Safety information

Please note Please observe the following general safety notices with regard to the safe handling of the device. ► Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user. ► Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled. ► If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard ► This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. ► Children should be supervised to ensure that they do not play with the appliance. ► Care should be taken when using the appliance due to the emission of hot water vapour.

Warning The surface of the device can become very hot. Please observe the following safety notices in order not to burn or scald yourself or others. ► Never open the lid of the water tank while steaming is underway. ► The water tank is extremely hot. Do not take it out! ► Let some time pass before refilling the water in the water tank.caso AirVital Pro 33

10.3 Sources of danger

10.3.1 Dangers due to electrical power

Danger Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard ► Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers. ► Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur. 11 Commissioning This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

11.1 Safety information

Warning Personal and property damages can occur during commissioning of the device! Observe the following safety notices to avoid such dangers: ► Packaging materials may not be used for playing. There is a danger of suffocation.caso AirVital Pro 34

11.2 Delivery scope and transport inspection

As a rule, the humidifier is delivered with the following components:

• 4 sponges for aromabox

• Operating Instructions Please note ► Examine the shipment for its completeness and for any visible damages. ► Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

11.3 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The device must be set up on a firm, flat, horizontal and water-resistant surface with sufficient load-bearing capacity for the air humidifier and content.

• Choose the setup location in such a way that children cannot reach the device.

• The device is not intended to be installed in a wall or a built-in cupboard.

• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

• The device requires an adequate flow of air in order to operate correctly. Leave a clearance of 15 cm on all sides.

• Do not cover up any openings on the device and do not block these off.

• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.

• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.caso AirVital Pro 35

Remove the device out of the carton, remove the packaging material, shovel and measuring container.

11.5 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal. Please note ► If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re- packaged properly in the event of a guarantee claim.

11.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.

• The electrical outlet must be protected by a 16A safety cut-out switch.

• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of

1.5 mm². The use of multiple plugs or gangs is prohibited because of

the danger of fire that is involved with this.

• Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.

• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.caso AirVital Pro 36 12 Design and Function This chapter provides you with important safety notices on the design and function of the device. The AirVital PRO generates ultra fine mist due to the new hybrid evaporation technology

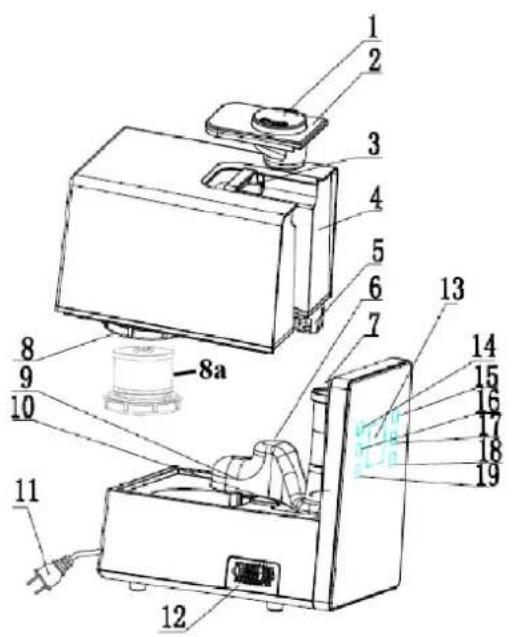

8. Water tank cover (and 8a waterfilter)

12.2 Safety equipment

If the tank is empty, the unit stops automatically. Please note ► Turn off the device using the switch on / off, disconnect the plug from the outlet, wait about 60 min. To let the unit cool down and than fill with fresh water.

The rating plate with the connection and performance data can be founded beneath the device.caso AirVital Pro 37 13 Operation and Handing This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

13.1 Filling the water tank

Take the nozzle (1) and handle cap (2) (linked from). Remove the tank (4) from the chassis. Remove lid (8) and fill the water tank of tap water or filtered water is. They seal the tank by screw the lid carefully. Place the water on the housing. Put on the nozzle (1) and handle cap (2) and plug the power cord. Note ► Do not add water directly to water sink, always add water into water tank. ► Before using the humidifier for the first time, all parts should be cleaned with tap water. ► Fill in any water that is hotter than 40 ° C, no flavor additives or chemical additives. ► Make sure that the tank is sealed and no water escapes. ► The outlets for water vapor can be rotated 360 ° in different directions. ► If the water is used up, the display flashes "on water" and the unit switches off automatically. ► Turn off the device using the switch on / off, disconnect the plug from the outlet and fill for water. Please let the unit cool down 60 min. Before you take of the water tank and refill with water. Attention: The device is hot!

13.2 Remote control usage

13.2.1 Battery installing:

Please pull out the battery holder at the end of the remote control. Then put the coin cell with marking upwards into the holder and push back the holder into the remote control.caso AirVital Pro 38

13.2.2 Battery replace:

Please pull out the battery holder at the end of the remote control. Then take out the old battery and put a new coin cell with marking upwards into the holder. Push back the holder into the remote control.

13.2.3 Type of Battery:

Li-Mn02 coin cell CR2025

13.3 Panel, as well as remote control

On/off: Plug in the power, there is a beep sound, and the machine comes to the standby mode. Once press this button, the machine start to work with LED display on. Press this button again, the machine stops working and come to the standby mode. Timer: Timer or no-timer function for your choose by pressing this key, Timer can be from 1-12 hours AUTO: Press this button, the machine enter an automatic control mode. the device will choose suitable humidifying level as per environmental humidity and maintains the humidify between 55% - 65%. Mist Volume: Cool mist steam volume can be changed amount 1 estate, 2 estate, 3 estate by pressing this key . Smallest steam for 1 estate, biggest steam for 3 estate Set Humidity: Humidity can be increased from 40% to 80% at every 5% . Machine will check around humidity automatically when turn on Constant humidity: The machine will be control humidity automatically when set a humidity, For example, Just like set a humidity 50%, The machine will check around humidity to see if it has reached 50%, Less than 50%, machine keep working, Equal to 50% or above, Machine stop working, Ensure the humidity keep at a stable situation. When turn on the device, the machine will start to work for 1 minutes no matter if the around humidity reaches the set humidity or not. Warm Mist: This is button is used to adjust the estate of warm mist, there are 4 estates, max, med, min and off . When the warm mist function is off, the machine only works with cool mist . Please note ► The device shall automatically after switch the humidity in the room. ► In a neighborhood with 45% to 60% humidity people feel at ease. ► Make a humidity of 50%, for example, the device checks the ambient humidity. It works until a humidity of 50% is achieved and maintains this value stable.caso AirVital Pro 39

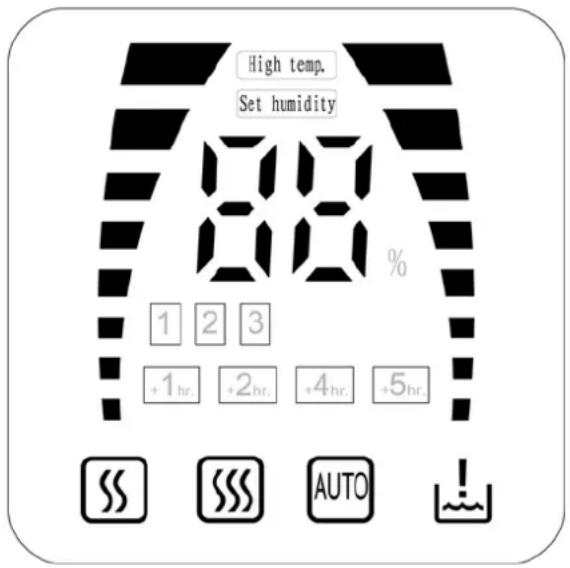

13.4 Display on the Device

Timer icon Cool mist humidifying level icon : Humidity icon : Waterless icon : Auto function icon : Low warm mist level icon : Medium warm mist level icon High warm mist level icon High temperature warning icon When the device is broken down or is improper used, the PTC heating element or the atomizer may be overheated, the device will stop working automatically with the high temp. icon shining. Set Humidity status icon Attention ► Please let the unit cool down 60 min. Before you take of the water tank and refill with water. Attention: The device is hot!caso AirVital Pro 40

Follow below steps to use aroma function: Take out aroma box. Use water-soluble aroma oil to drop into the sponge. Put the aroma box back into the machine, the aroma function will be on automatically when turn on the machine. To stop the aroma function or when the machine is not in use for a long time, take out the sponge in the aroma box and clear it, put it back to the machine.

In the water filter of your device you will find resin (yellow particles in the filter) for ion-exchange. During the exchange, this resin acts as an acid. This reduces the risk of decalcification of your device.

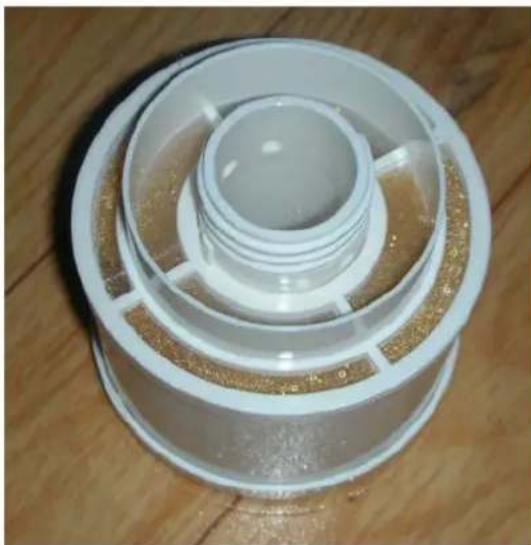

The water filter in your device is black , however - to increase the visibility of the ion-exchange resin - here a white filter.

Working principle of the water filter The ion-exchange resin in the water filter reacts with the Mg2+ and Ca2+ dissolved in the water and can therefore reduce the built-up of calcium or magnesium carbonate deposits. Lifetime of the water filter The actiontime of the filter is depending on the water hardness of the used water and the frequency of use of your device up to approx. one year.caso AirVital Pro 41 Maintenance of the water filter However, the filter may require servicing once a month depending upon the water hardness of the used water and the frequency of use of your device. We recommend to put the water filter into saturated salt water. Instructions: Fill a bowl which is capacious enough for the filter with water. Put ordinary table salt into the water until the salt will no longer be dissolved, i. e. the water will be saturated with salt. Put the filter now for one day in salted water, then the ion resin can renew itself and continue to fulfil its function.

Descaling pad The water quality in some locations is very hard so that the transducer surface, the heating element surface, and descaling pad will have scale formation. The users need to clean transducer, heating element surface with a cleaning agent and to clean the descaling pad with clear water. For cleaning the descaling pad please proceed as follows: Remove the air flue as described below: Remove the mist tube by screwing it counterclockwise (picture 1) Hold the tail of the air flue and pull it up (picture 2) Clear the water sink, take out the descaling pad and wash it with clear water (picture 3) Assemble the mist tube and air flue back into the machine after cleaning.caso AirVital Pro 42 14 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

14.1 Safety information

Attention Please observe the following safety notices, before you commence with cleaning the device: ► The water tank and the water intake must be cleaned regularly. If the device is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria. ► Switch the device off prior to cleaning it and unplug the plug from the wall power outlet. ► Clean the device directly after use. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances. ► Do not use any aggressive or abrasive cleaning agents or solvents. ► Do not scrape off stubborn dirt with hard items.

Warning Unplug the appliance during filling and cleaning ► If you do not follow the cleaning instruction, it may cause hygiene danger! ► Before and after a long-time storage, you must clean your appliance according to the cleaning instruction sensor / water level indicator The water is so hard in some places, so that the sensor / Wassertandsanzeiger readily forms of lime. The equipment must be cleaned with cleaning agents. Give a little mild detergent into the water intake and fill it with water. Place the water with sensors on the housing. Let the probe soak for 2-5 minutes in water. Clean him disappear with the brush until the lime deposits. Rinse them under twice with water.caso AirVital Pro 43 Inside the water tank and water inlet

• Replace water with fresh water every day and clean your appliance once per three days during using.

• Use to clean limescale and dirt on the inside of the shell with a soft cloth. Housing and exterior of water tank Wipe the cabinet with a soft cloth and mild detergent off. Stowing Let the remaining water from the water tank and the water intake, dry clean all parts and all parts well before storing the unit in a dry place. 15 Troubleshooting This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

15.1 Causes and rectification of faults

The following table assists in localizing and rectifying minor faults. Problems Reasons Solutions It creates no steam Check the plug / connector plug the connector Check the On / Off switch Turn the power on The water tank is empty Fill water into the tank The water tank is too little water Fill water into the tank until it is enough steam smells unpleasantly dirty The water in the tank is too old Clean the water tank, add new, fresh water Old water residues Take off the lid of the water tank Keep the water tank on a cold and dry place for 12 hours Loud noises The water tank is not used properly Please ensure that the device is properly connected Too little water in the tank enter enough water in the tank The device is not in a horizontal position place the unit on a flat surfacecaso AirVital Pro 44 Steam comes out of the opening between the steam outlet and water tank Pick up the steam outlet, clean it in water and then used it again.

Attention ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment. ► Improperly performed repairs can cause considerable dangers for the user and damages to the device. 16 Disposal of the Old Device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances. The battery used for the remote control contains substances which are hazardous to the environment. Before disposal of the remote control please remove the battery, collect it separately and dispose safely.

Please note ► Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. ► Ensure that your old device is stored safely away from children until it is taken away.caso AirVital Pro 45 Mode d´emploi Humidificateur d'air Air Vital Pro N°. d'article 5410caso AirVital Pro 46 17 Mode d´emploi
