USER MANUAL Power New Tech LANAFORM

Vibrating equipment

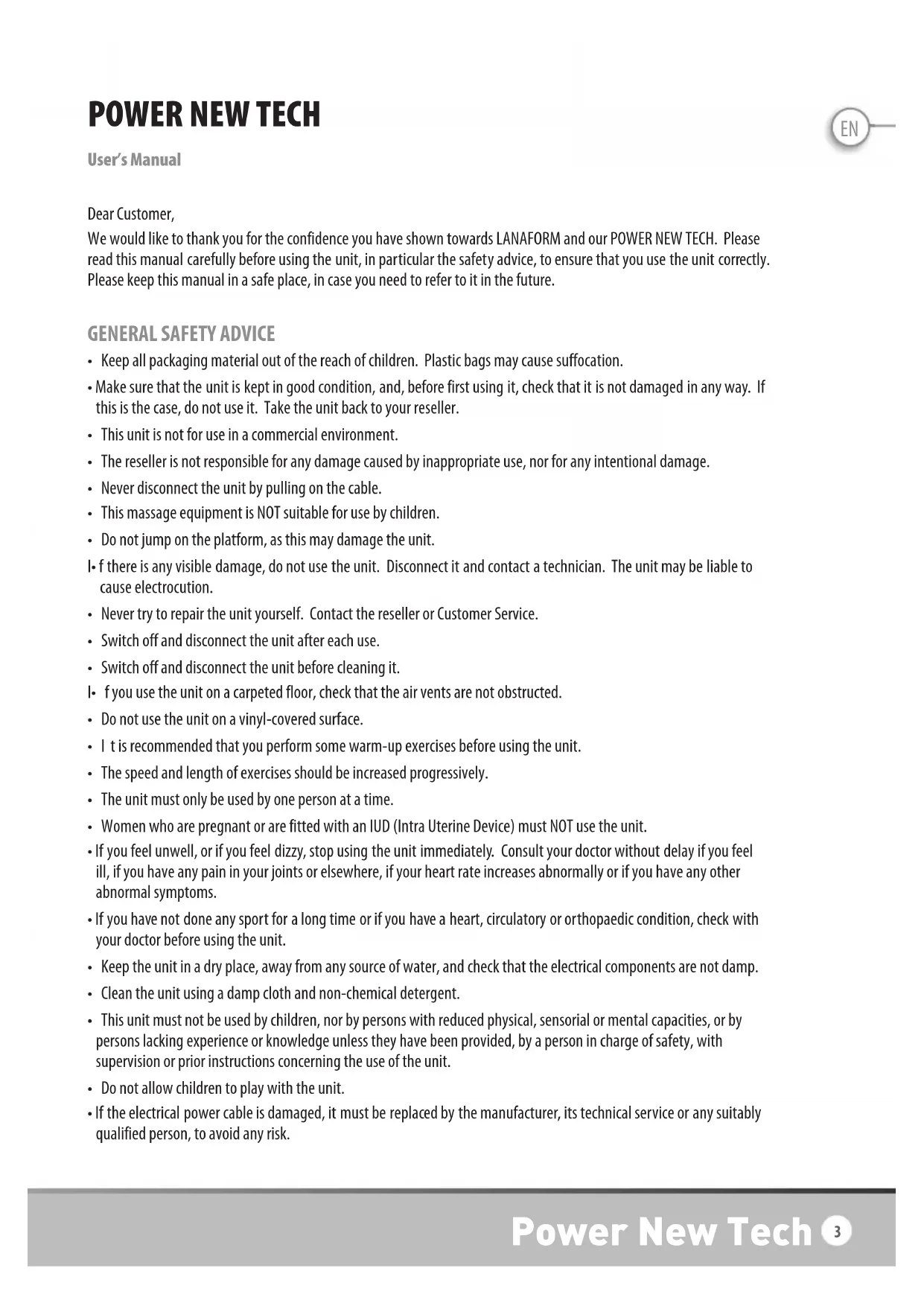

User's Manual

Dear Customer,

We would like to thank you for the confidence you have shown towards LANAFORM and our POWER NEW TECH. Please read this manual carefully before using the unit, in particular the safety advice, to ensure that you use the unit correctly. Please keep this manual in a safe place, in case you need to refer to it in the future.

GENERAL SAFETY ADVICE

• Keep all packaging material out of the reach of children. Plastic bags may cause suffocation.
• Make sure that the unit is kept in good condition, and, before first using it, check that it is not damaged in any way. If this is the case, do not use it. Take the unit back to your reseller.
• This unit is not for use in a commercial environment.
• The reseller is not responsible for any damage caused by inappropriate use, nor for any intentional damage.
• Never disconnect the unit by pulling on the cable.
• This massage equipment is NOT suitable for use by children.
• Do not jump on the platform, as this may damage the unit.
  I• f there is any visible damage, do not use the unit. Disconnect it and contact a technician. The unit may be liable to cause electrocution.
• Never try to repair the unit yourself. Contact the reseller or Customer Service.
• Switch off and disconnect the unit after each use.
• Switch off and disconnect the unit before cleaning it.
  I• f you use the unit on a carpeted floor, check that the air vents are not obstructed.
• Do not use the unit on a vinyl-covered surface.
• I t is recommended that you perform some warm-up exercises before using the unit.
• The speed and length of exercises should be increased progressively.
• The unit must only be used by one person at a time.
• Women who are pregnant or are fitted with an IUD (Intra Uterine Device) must NOT use the unit.
• If you feel unwell, or if you feel dizzy, stop using the unit immediately. Consult your doctor without delay if you feel ill, if you have any pain in your joints or elsewhere, if your heart rate increases abnormally or if you have any other abnormal symptoms.
• If you have not done any sport for a long time or if you have a heart, circulatory or orthopaedic condition, check with your doctor before using the unit.
• Keep the unit in a dry place, away from any source of water, and check that the electrical components are not damp.
• Clean the unit using a damp cloth and non-chemical detergent.
• This unit must not be used by children, nor by persons with reduced physical, sensorial or mental capacities, or by persons lacking experience or knowledge unless they have been provided, by a person in charge of safety, with supervision or prior instructions concerning the use of the unit.
• Do not allow children to play with the unit.
• If the electrical power cable is damaged, it must be replaced by the manufacturer, its technical service or any suitably qualified person, to avoid any risk.

WARNING!

• It is dangerous to dismantle the unit yourself.
• It is dangerous to put your hand in the gap below the platform.
  • To avoid either damaging the unit or making it noisy, do not move your centre of gravity to the edge of the platform.

RESTRICTIONS ON USE

1) Do not use the unit if you suffer from mental illness.

2) Do not use the unit if you are ill.

3) Children must not use the unit.

4) Women must not use the unit if they are pregnant or menstruating.

VIBRATING PLATE

Vibrations of a certain amplitude and a suitable frequency can induce an extension of the muscle fibres. When positioned on the base plate, the natural reaction of the body is to "contract its muscles". This "vibrating toning reflex" provokes a stretching reflex that causes a contraction of the muscle fibres, leading to a strengthening of the muscles and an increase in strength.

Frequencies lying between 20 and 40 vibrations per second make training more efficient. The whole muscle system is stimulated and the blood flow is improved.

EFFECTS ON THE ORGANISM

• Increase in muscular strength and endurance
• Slimming effects
• Increase in mobility due to muscular decontraction
• Stretching effects
  • Less risk of muscular injury
• Increased blood flow and irrigation
  • Lymphatic drainage
• Improved metabolism

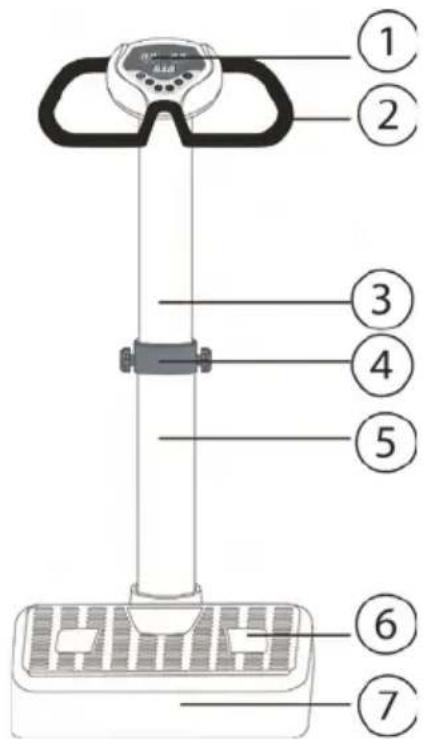

DESCRIPTION OF THE UNIT

1) Controls
2) Support bar
3) Upper column
4) Decorative ring
5) Lower column
6) Platform
7) Base

Diagram of a vertical walk-in device with numbered parts labeled 1 through 7

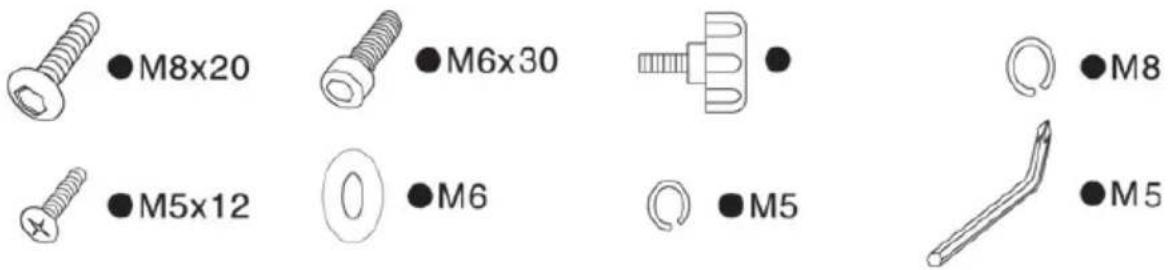

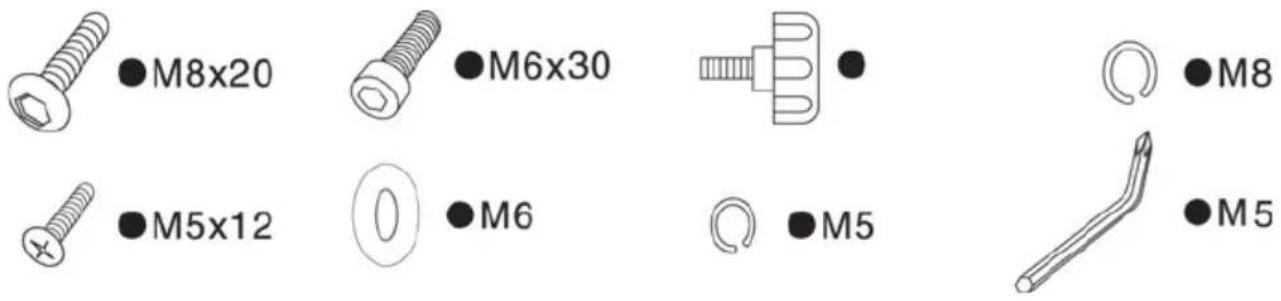

ACCESSORIES

• 2 M8 x 20 bolts
• 2 M5 x 12 bolts
  • 4 M6 x 30 bolts
  • 1 M8 screwdriver
  • 2 Locking knobs
  • 4 M6 washers
  • 2 M5 washers
  • 2 M8 washers

ASSEMBLY INSTRUCTIONS

1) Insert the upper column into the lower column..
2) Lower the decorative ring to cover the connection between the two columns. Carefully align the holes in the ring with the holes in the columns and secure with the two locking knobs.
3) Once the two columns have been assembled, place the support bar in position.
4) Use two M8 x 20 bolts and two M8 washers to attach the support bar to the column.
5) Place the control panel on top of the column and slide the connecting power cable inside the column.
6) Attach the control panel to the support bar using two M5 x 12 bolts and two M5 washers.
7) Connect the electrical power cable as shown in the diagram.
8) Insert the end of the lower column into the base of the unit such that the bolt holes are correctly aligned. Insert the two M6 x 30 bolts with M6 washers into the holes in positions b and c and tighten them down. Insert the two M6 x 30 bolts with M6 washers into positions a and d and tighten them down.

Diagram of a cylindrical mechanical component with a downward arrow indicating force or direction (no text or symbols)

Pure mechanical diagram showing a cylindrical component with two side connectors and directional arrows, no text or symbols present.

Pure mechanical diagram showing a piston-cranked joint with an upward arrow, no text or symbols present

Diagram of a cable clamp or hook assembly with a directional arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with downward force arrows (no text or labels)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Diagram showing mechanical assembly with labeled parts and directional arrow, likely illustrating a cycle or motion process.

8

Your unit is ready for use.

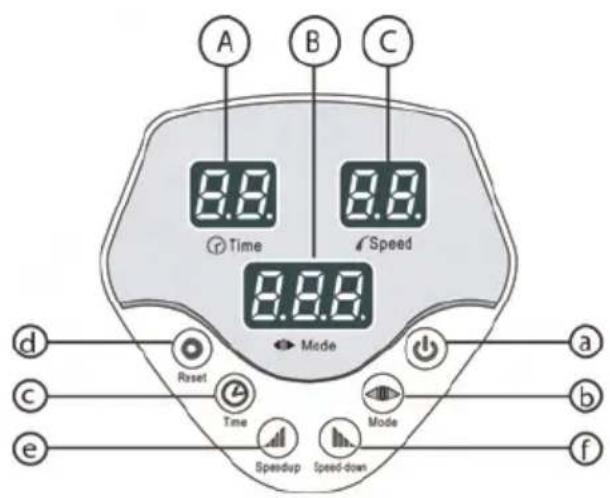

CONTROLS

A. Time display

B. Mode display

C. Speed display

a. On/Off button: Switch on the power supply and press this button; the unit will start to operate. Press the button a second time and the unit will shut down.

b. Mode button: There are four different modes: 888, P1, P2 and P3. 888 is the manual mode. This function allows you to set the speed and the time yourself. P1, P2 and P3 are automatic modes in which the speed and time are pre-programmed. In these modes, the time button and the speed button are deactivated.

c. Time button: Press this button to set the time. Each press adds one minute. The display rolls back to 1 when 10 has been reached.

d. Reset button: This resets all the programmes to their initial status.

e. Fast button: Press this button to increase the speed.

f. Slow button: Press this button to decrease the speed.

A B C Time Speed 8.8.8 Mode Reset Time Mode Spendup Speed-down a b c d e f

OPERATING INSTRUCTIONS

1. Connect the unit to the power supply and press the On/Off button. The unit will start to operate. If you press the button a second time, the unit will return to the standby mode.
2. Please read the "Controls" chapter for full details of the various functions available.
3. If you want to use the unit in the "upright" position, stand on the unit before switching it on.
4. If you prefer another position, it is better to ask another person to help you operate the controls, or to start "upright" and then change position.
5. For both your health and your safety, do not use the unit for more than 20 minutes per séance to avoid overstressing your body.

DISPLAYS

Speed: 1 > 16

Time: from 1 to 10 minutes (initial setting: 10 minutes)

Mode: 888, P1, P2, P3 (Initial mode: 888)

MODES

888 Manual mode

In this mode, you can adjust the speed yourself, settings 1, 2, 3, 4, .....16.

P1 Programme 1

The speed changes cyclically. It starts at level 1 and increases successively by one level until level 16 is reached. Then the level of intensity decreases by one level until level 1 is reached. The cycle then starts all over again.

P2 Programme 2

The speed changes cyclically, (2, 4, 6, 8, 10, 12, 14, 16, 14, 12, 10, 8, ....) at intervals of 5 seconds.

P3 Programme 3

The speed switches between intensity level 2 and intensity level 16 at intervals of 5 seconds.

TECHNICAL DATA

• Model: POWER New Tech
  • Reference: 57705
  • Power supply: 220V☒ 50Hz
  • Maximum permitted load: 140kg

MAINTENANCE

Take care to switch off the unit before performing daily maintenance.

Never use formaldehyde or any other organic cleaner to clean the unit.

Use a soft, dry cloth rather than a damp cloth to clean the electrical switch and the base surround.

The unit may be damaged if any cleaning product seeps inside.

If the power supply cable is damaged, it must be replaced by a special cable or a complete electrical assembly available from the manufacturer or Customer Service.

LANAFORM ^® guarantees that this product is free of all manufacturing and material defects for a period of two years from the date of purchase, except under the following circumstances: the guarantee for this LANAFORM ^® product does not cover damage resulting from incorrect or improper use, accidental damage, the addition of an unapproved accessory, any modification to the product or any other situation outside the control of LANAFORM ^® .

LANAFORM ^® is not liable for any consequential or special damage.

All implicit guarantees covering product suitability are limited to a period of two years from the date of initial purchase. On reception, LANAFORM ^® will, as it deems fit, repair or replace your product. In the event that this unit is repaired by any person other than the LANAFORM ^® Service Centre, the guarantee is null and void.

POWER NEW TECH

Diagram of a vertical pressure relief device with numbered parts labeled 1 through 7

ACCESSOIRES

• 2 vis M8x20
  • 2 vis M5X12
  • 4 vis M6x30
  • 1 tourne-vis M8
  • 2 boutons de serrage
  • 4 rondelles M6
  • 2 rondelles M5
  • 2 rondelles M8

●M8×20

●M6×30

●M8

●M5×12

●M6

●M5

●M5

INSTRUCTIONS DE MONTAGE

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

Pure diagram of a mechanical component with arrows indicating direction, no text or symbols present

Pure mechanical diagram showing a lever mechanism with no text or symbols

Diagram of a cable clamp or connector with a pull rod and rope, no text or symbols present

Mechanical assembly diagram showing a lever and guide mechanism (no text or symbols)

Pure electrical circuit lines without any symbols

Technical diagram showing mechanical assembly with labeled parts a, b, c, d and an arrow indicating direction

8

PRINCIPE EN WERKING:

Diagram of a vertical stand with numbered parts for identification

HULPSTUKKEN

Diagram of a mechanical assembly with a cylindrical component and an arrow indicating direction (no text or symbols)

Pure diagram of a mechanical component with directional arrows, no text or symbols present

Pure mechanical diagram showing a piston-cranked joint with an upward arrow, no text or symbols present

Diagram of a cable clamp or hook assembly with a directional arrow indicating force (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with downward force arrows (no text or symbols)

Pure mechanical diagram showing a lever and connecting rod (no text or symbols)

Diagram showing a mechanical or electrical component with labeled parts and an arrow indicating direction, marked with numbers 7 and c.

Diagram showing a hand operating a mechanical device with labeled parts (a, b, c, d) and directional arrows indicating movement.

Diagram of a device with numbered parts labeled 1 through 7, showing internal components and wiring.

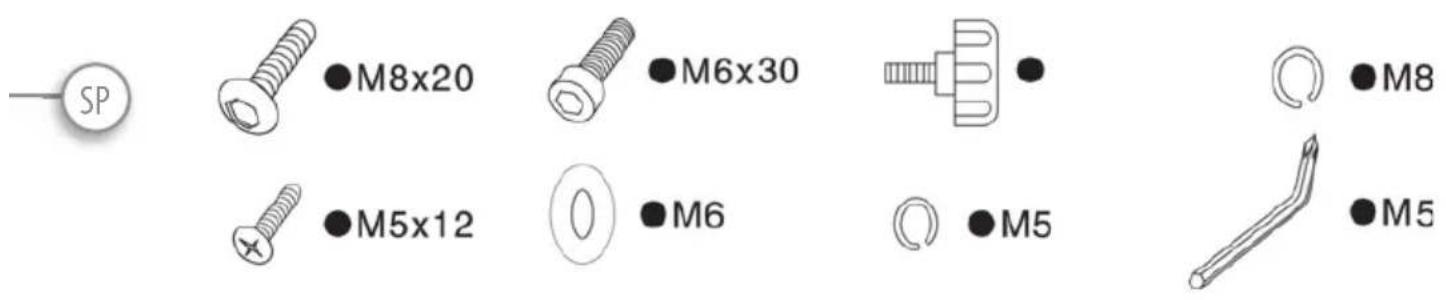

ACCESORIOS

• 2 tornillos M8x20
• 2 tornillos M5x12
• 4 tornillos M6x30
• 1 destornillador M8
• 2 botones de apriete
• 4 arandelas M6
• 2 arandelas M5
• 2 arandelas M8

INSTRUCCIONES DE MONTAJE

Diagram of a mechanical assembly with a downward arrow indicating a process (no text or symbols present)

Pure mechanical diagram showing a cylindrical component with two flanged ends and directional arrows, no text or symbols present.

Pure mechanical diagram showing a lever mechanism with no text or symbols

Diagram of a cable clamp or connector with a pull rod and rope, no text or symbols present

Mechanical assembly diagram showing a lever mechanism with downward force arrows (no text or labels)

Pure mechanical diagram showing a lever mechanism without any text or symbols

Diagram of a mechanical or electrical component with labeled parts and an arrow indicating direction

a b c d 8

Diagram of a standing balance scale with numbered parts for identification

ZUBEHÖRTEILE

Diagram of a cylindrical mechanical component with a downward arrow indicating motion (no text or symbols)

Pure mechanical diagram showing a cylindrical component with two directional arrows, no text or symbols present

Pure mechanical diagram showing a lever mechanism with no text or symbols

Diagram of a cable clamp or connector with a directional arrow and labeled point (no text or symbols present)

Mechanical assembly diagram showing a lever and guide mechanism (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Diagram of a mechanical or electrical component with labeled parts and an arrow indicating direction

8

Diagram of a device with numbered parts labeled 1 through 7, showing internal components and control panel.

ACCESSORI

• 2 viti M8x20
• 2 viti M5X12
• 4 viti M6x30
• 1 cacciavite M8
- 2 manopole di serraggio
• 4 rondelle M6
• 2 rondelle M5
• 2 rondelle M8

Diagram of a mechanical assembly with a cylindrical component and a downward arrow, no text or symbols present

Pure mechanical diagram showing a cylindrical component with directional arrows, no text or symbols present

Pure mechanical diagram showing a piston-cranked joint with an upward arrow, no text or symbols present

Diagram of a cable or electrical connector with a pull rod and cable, no text or symbols present

Mechanical assembly diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Technical diagram showing mechanical assembly with labeled parts and directional arrow

8

Diagram of a device with numbered parts labeled 1 through 7, showing internal components and wiring.

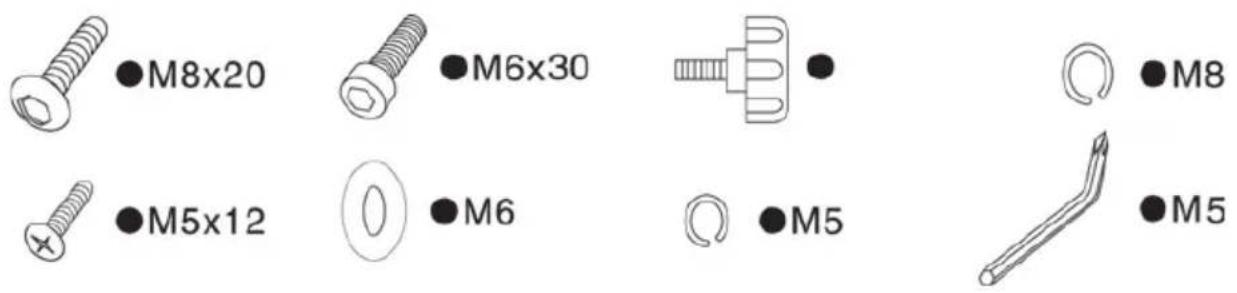

АКСЕССУАРЫ

• 2 шурупа M8x20
• 2 шурупаM5X12
• 2 шурупаM6x25
• 2 шурупаМ6x30
• 1 отвертка M8
• 2 гайки
• 4 шайбы М6
• 2 шайбы M5
• 2 шайбы M8

Diagram of a mechanical assembly with a downward arrow indicating a process (no text or symbols present)

Pure diagram of a mechanical component with directional arrows, no text or symbols present

Pure mechanical diagram showing a lever mechanism with no text or symbols

Diagram of a cable clamp or hook assembly with a directional arrow indicating force (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with downward force arrows (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Diagram of a mechanical or electrical component with labeled parts and directional arrows indicating movement or force.

a b c d 8

Before you use this machine, we propose that you do warm-up exercises first, this procedure will prevent in jury and maximize performance.

The following steps are proposed for warm-up exercise.

Exercices

Illustration of a digital balance scale with a blue control knob and black base, against a blue gradient background (no text or symbols)

2101banG

Side profile of a woman performing a stretching exercise (no text or symbols visible)

EN - QUADRICEPS STRETCH

Stand close to a wall, chair or other solid object. Use one hand to assist your balance. Bend the opposite knee and lift your heel towards your buttocks. Reach back and grasp the top of your foot with the same side hand. Keeping your inner thighs close together, slowly pull your foot towards your buttocks until you feel a gentle stretch in the front of your thigh. You do not have to touch your buttocks with your heel. Stop pulling when you feel the stretch. Keep your kneecap pointing straight down and keep your knees close together. (Do not let the lifted knee swing outward.) Hold the stretch for 20 to 30 seconds. Repeat for the other leg.

FR - ETIREMENT DU QUADRICEPS

Stand approximately one arms length away from a wall or chair with your feet hip-width apart. Keeping your toes pointed forward, move one leg in close to the chair while extending the other leg behind you. Bending the leg closest to the chair and keeping the other leg straight, place your hands on the chair. Keep the heel of the back leg on the ground and move your hips forward. Slowly lean forward from the ankle, keeping your back leg straight until you feel a stretch in your calf muscles. Hold for 20 to 30 seconds. Repeat for the opposite leg.

FR - ETIREMENT DU MOLLET ET DU TENDON D'ACHILLE

Sit on the floor and bend you legs so that the soles of your feet are together. Place your hands on your ankles. Lean forward from the waist and press down lightly on the inside of your knees. You should feel a stretch in the muscles of your inside thigh.

FR - ETIREMENT DE L'INTÉRIEUR DES CUISSES

Black-and-white photo of a woman in a seated yoga pose, holding a white object (no text or symbols visible)

EN - BUTTOCKS, HIPS AND ABDOMINAL STRETCH

Lay fl at on your back with your hips relaxed against the floor. Bend one leg at the knee. Keeping both shoulders fl at on the floor, gently grasp the bent knee with your hands and pull it over your body and towards the ground. You should feel a stretch in your hips, abdominals and lower back. Hold for 20 to 30 seconds and release. Repeat for the opposite leg.

FR - ETIREMENT DES FESSIERS, DES HANCHES ET DES ABDOMINAUX

Person performing a leg raise exercise on the floor (no text or symbols visible)

EN - STANDING HAMSTRINGS STRETCH

Stand with your legs hip width apart. Extend one leg out in front of you and keep that foot fl at against the ground. With your hands resting lightly on your thighs, bend your back leg and lean forward slightly from your hips until you feel a stretch in the back of your thigh. Be sure to lean forward from the hip joint rather than bending at your waist. Hold for 20 to 30 seconds. Repeat for the opposite leg.

FR - ETIREMENT DE L'ISCHIO-JAMBIER

Black-and-white photo of a woman performing a stretching exercise (no text or symbols visible)

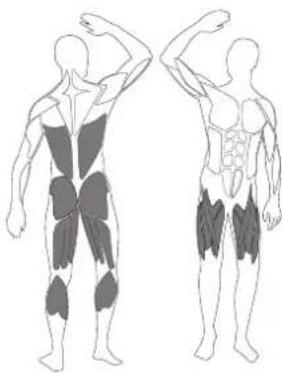

Stand with your feet shoulder width apart and your knees slightly bent. Lift one arm overhead and bend your elbow, reaching down behind your head with your hand toward the opposite shoulder blade. Walk your fingertips down your back as far as you can. Hold this position. Reach up with your opposite hand and grasp your fl exed elbow. Gently assist the stretch by pulling on the elbow. Hold for 20 to 30 seconds. Repeat for the opposite arm.

FR - ETIREMENT DU TRICEPS

Woman standing on a fitness scale using a balance scale (no text or symbols visible)

Illustration of human arm muscles showing different postures (no text or labels)

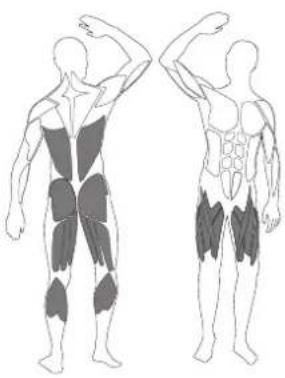

EN - SQUAT

• Stand on the POWER NEW TECH® with your feet slightly apart.
• You should then feel tension in your quadriceps, buttocks and back.

FR - SQUAT

Woman standing on a fitness scale using an exercise machine (no text or symbols visible)

Illustration of two human body musculature diagrams showing different muscle regions (no text or labels)

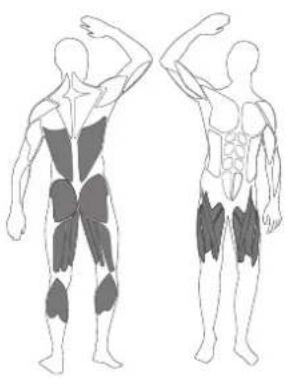

EN - SQUAT 2

• Stand on the POWER NEW TECH ^20 with your feet slightly apart.
• Keep your back straight, knees slightly bent and gently tense your leg muscles.
• You should then feel tension in your quadriceps, buttocks and back.

FR - SQUAT 2

Woman performing a fitness exercise using a stationary balance scale (no text or symbols visible)

Illustration of human musculature showing front and side views (no text or labels)

EN - CALVES

• Stand on tiptoe in the center of the POWER NEW TECH®.
• Keep your back straight, your abdominal muscles tight and you will feel tension in your calf muscles.
  • To vary this exercise, you may also bend your knees to 90 degrees.

FR - MOLLETS

Person performing a leg raise exercise using a resistance stand, accompanied by an anatomical illustration of human musculature (no text or symbols present)

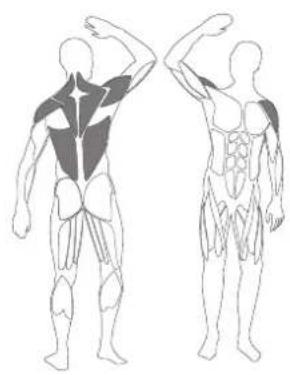

EN - PELVIS BRIDGE

• Lie down with your shoulders on the floor and your feet flat on the POWER NEW TECH®.
• Raise your buttocks with your knees slightly bent.
  • Gently pull your heels towards your upper body by tensing the thigh and buttock muscles.

FR - EXTENSION DU BASSIN

Woman sitting on a fitness exercise machine with a vertical barbell (no text or symbols visible)

Illustration of human musculature showing front and side views (no text or labels)

EN - BACK RELAXER

• Sit in the center of the POWER NEW TECH ^ .
• Allow your upper body to lean forward.
• In this position, the vibrations will help to relax the muscles of your back, hip and thighs.

FR - RELAXATION DU DOS

Woman performing a sit-up exercise using a weightlifting exercise machine, accompanied by a corresponding anatomical illustration of human body muscles (no text or symbols present)

EN - TRICEPS DIP

• Turn your back to the POWER NEW TECH ^® and grip firmly the edge of the platform.
• Bent your arms slightly and bring your hip to the level of the platform, in a way that your shoulder blades come close one to the other.
• You should then feel muscle tension in your upper arms and shoulders.
• You may also perform the same exercise with your legs stretched.

FR - TRICEPS DIP

Woman performing a plank exercise using a fitness barbell, accompanied by an anatomical illustration of human musculature (no text or symbols present)

EN - LOWER ABDOMINALS

• Lean on the POWER NEW TECH® with your lower arms flat on the platform and hold on tightly to the front edge of it.
• With your back straight, lift your buttock slowly as if you wanted to pull the platform towards your feet.
• Your should then feel the tension in your abdominal muscles.
• You may also perform the same exercise in kneeling position.

FR - GAINAGE ABDOMINAL VENTRAL

Person performing a forward bend exercise using a leg presser, accompanied by an anatomical illustration of human musculature (no text or symbols present)

EN - SHOULDER & NECK RELAXATION

• Kneel down in front of the POWER NEW TECH® and place your hands on the platform with your arms outstretched.
• Keep your back and neck straight.
• Swing you upper body backwards while resting your arms on the platform.
• This exercise helps to relax muscles of your neck and shoulders.

FR - RELAXATION DES ÉPAULES ET DE LA NUQUE

Woman performing a plank exercise using a weightlifting exercise machine, accompanied by an anatomical illustration of human body muscles (no text or symbols present)

EN - PUSH UP

• Kneel down in front of the POWER NEW TECH®.
- Place your hands on the platform shoulder-width apart, fingers to fingers.
- With your back straight and abdominal muscles tight, push your chest up from the platform.
- This exercise aims to strengthen your chest, shoulder muscles an triceps.
- You may also perform the same exercise with your legs stretched

FR - POMPAGES POSITION ÉCARTÉE

Woman performing a stretching exercise using a standing exercise machine, accompanied by a separate anatomical sketch of human body muscles (no text or symbols)

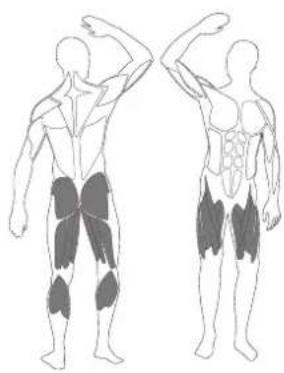

EN - ADDUCTOR STRETCH

• Position yourself sideway on the POWER NEW TECH ^ , one foot on the platform and the other on the floor.
• Legs apart, slightly bent the supporting leg while keeping the other one straight.
• Keep your upper body straight and lower your buttocks towards the floor.
• This exercise helps to stretch the muscles of your inner thighs. Repeat the same exercise by switching the position of the two legs

FR - ETIREMENTS ADDUCTEURS

DU - ADDUCTOR STRETCH

Woman performing a standing exercise using a stationary exercise machine (no text or symbols visible)

Illustration of two human body musculature diagrams showing different muscle regions (no text or labels)

EN - LUNGE

• Step on the POWER NEW TECH ^ with one foot on the middle of the platform and the other on the floor behind.
  • Bend your knees about 90 degrees.
• Keep your back straight, your knees not extending beyond toes and position your body weight on the front leg.
• You should then feel muscle tension in the hamstrings, quadriceps and buttocks.

FR - FENTE AVANT

Person performing a leg exercise using a resistance band machine, accompanied by an anatomical illustration of human musculature (no text or symbols present)

EN - CALF MASSAGE

• Lie down in front of the POWER NEW TECH ^® , your back on the floor.
• Rest your calves on the platform with your toes pointing upwards.
• Simply relax and enjoy an invigorating calf massage.

FR - MASSAGE MOLLETS

IT - MASSAGGIO POLPACCI

Woman performing a leg exercise using a resistance band machine, accompanied by an anatomical illustration of human musculature (no text or symbols present)

EN - QUADRICEPS MASSAGE

• Lie face down on the floor in front of the POWER NEW TECH®, your arms supporting your upper body.
• Rest your upper legs on the platform with your lower legs slight bent.
• While enjoying this relaxing massage, be sure to keep your back straight and tense your abdominal muscles.

FR - MASSAGE QUADRICEPS
