USER MANUAL SF5061 ALPINA

Quality Home Appliances

EN SF-5061 Ultrasonic Cool Mist Humidifier

Instruction for use

DE SF-5061 Ultraschall Cool Mist Luftbefeuchter

Bedienungshinweise

EN: For your own safety read these instructions carefully before using the appliances.

1. Mist Nozzle
2. Handle
3. Water tank
4. Power Knob
5. Water dumping indicator
6. Ultrasonic nebulizer
7. Flume
8. Water inlet
9. Water tank cap

FR Description des composants

Thank you for choosing this ALPINA home appliance. Your Alpina appliance comes with a 2 year warranty and will provide years of service if looked after properly. The ALPINA name brings you Quality, Reliability and Dependability. We hope you will continue to make ALPINA your first choice in home appliances.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should be followed:

1. Read all instructions carefully.
2. Make sure the power supply corresponds to one on the rating label.
3. To avoid electrical shock, do not immerse electrical parts in water or other liquid.
4. Do not allow children to operate or play with the appliance.
5. Unplug from outlet when not in use, or before putting on/taking off parts.
6. Do not use with damaged electrical cord or plug.
7. If damaged or malfunction occurs, refer to an authorized service center only.
8. Do not place on or near hot surfaces.
9. Never pull the appliance by the power cord.
10. Do not use the appliance for other than intended household use.

Read these instructions carefully:

1. Please hold the water tank firmly with both hands when carrying full tank of water.
2. Do not touch the water in the flume when the unit is working.
3. Never operate the unit without water in the tank. Never add any additive to the water.
4. When the water tank is empty, the unit will shut off automatically.
5. Never let your fingers, hands or other parts of your body get too near to the humidifier.
6. Temperature of clean water < 40^ (suggested using of pure water).
7. Fitting work condition: 5 - 40^ relative humidity < 80% RH
8. Humidifier should be unplugged when not in use for a long period of time. Do not use outdoor.

Instructions for Use

Ultrasonic technology is a very mature technology and widely used in various domains. Water is atomized by ultrasonic sound waves and propelled in the air evenly by a small fan. These ultrasonic pulses are silent and produce visible mist.

Filling the water reservoir

1. The filling aperture must not be opened during use. When refilling the reservoir, turn the cleaner off and allow it to cool for five minutes. It is recommended to unplug the cleaner.
2. Drain any water that might be left over from previous uses. This is to help ensure that you do not overfill the reservoir.

a.) Hold the tank handle and lift the water tank from the unit. Figure 1
b.) Turn the water tank up-side down, unscrew the tank cap by turning it anti-clockwise and set aside. Figure 2
c.) Fill the water tank with clean, cool, tap water only. Figure 3
d.) Replace the tank cap by firmly turning clockwise. Figure 4.
e.) Turn the water tank upright; hold the tank handle to place the water tank back to the unit balanced. Figure 5

Place and Operation

1. Always place the humidifier on a firm, clean and flat level surface. Figure 6
2. Place the unit at least 2 meters away from TV, sound box and other home appliances; do not allow the moisture outlet face the wall and home appliances directly. Figure 7

ENGLISH

1. Never place the humidifier near combustible materials such as curtain etc. Figure8

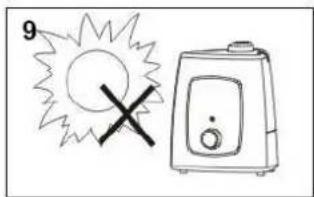

2. Do not place the unit near the stove and other heat sources and do not expose the humidifier under direct sunshine. Figure 9

How to use function key:

Power knob: Plug in, the unit is on stand by position. Turn the power knob clockwise then the green indicator light will turn on. Turning the knob will adjust the quantity of mist from left to right becomes bigger and bigger until it reaches the maximum quantity of mist. It is suggested to choose the maximum quantity of mist when the air in the room is very dry.

Warning:

This appliance is equipped with a grounded, Type G, 3-pin power supply cord. This is a safety feature. Do not attempt to defeat the safety purpose of this plug.

Troubleshooting:

Please check the following item before having it repaired

Problem Reason Solution

1. Power light is off Check if the unit is plugged in

a. The unit is new

1. Unusual Smell b. The water is dirty or kept too long

Plug in the unit and turn the power knob

a. Open the water tank cap and keep it in shady and cool place for 12 hours.

b. Change the water

1. Unusual Noise a. It might be caused by lack of water

a. Fill the water tank

Cleaning & Maintenance

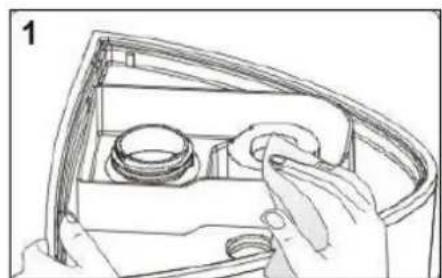

1. Tank Cleaning: take the water tank from the unit and unscrew the tank cap; wipe the scale by the soft cloth then wash it with clean water. Suggested cleaning of the water tank is every two or three weeks. Figure 1

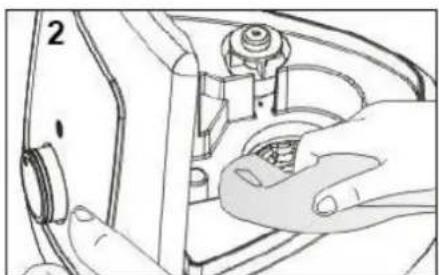

2. Flume Cleaning: If there is scale in the flume, clean it with a soft cloth and wash with clean water. CAUTION: Water must pour out according to the pouring direction. Figure 2

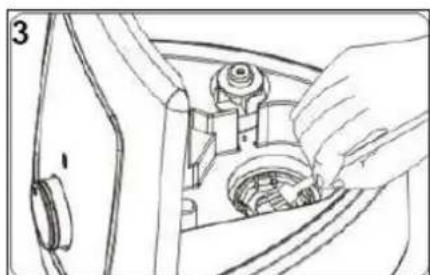

3. Ultrasonic Nebulizer: Put some detergent on the surface of ultrasonic nebulizer, and pour some water to dunk in 5 minutes; then brush and wash it. Never use hard/sharp objects. Figure 3

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchase the product.

Specification

Model No.: SF-5061

Voltage:220-240V\~50Hz

Wattage:22.5watts

GUARANTEE

This product is guaranteed for a period of 2 years from the date of purchase against defects in materials and workmanship. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, provided the product is brought back to the purchase address. This guarantee is only valid if the appliance has been used in accordance with the instructions, and that it has not been modified, repaired or interfered with by any unauthorized person, or damaged through misuse.

This guarantee does not cover wear and tear, or breakables such as ceramic items, etc. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return and bring it to the address of purchase. If within the guarantee period, please also provide the guarantee card and proof of purchase.

BELANGRIJKE VEILIGHEIDSWAARSCHUWINGEN

1. He ropt nHnK aTOp nCTOHNK a nHTAHN.

PpUHa

PpBpe, BkIIOueH IIN P6OpB p3ETky a. P6OpHOBBi.

1. Heo6bIy HbIy 3aIax.

2. Boda 3Ha n HeBex a.

3. Heo6bHbHbIyM.

a.3 TOMOJKeT 6bITbBbI3BaHO HeoCT aTK OM BObl.

noocyhaehna

BkIOuHTe np6OpB p3eKyn NOBepHte
ryTTOp
a.OTKpyTe KpaIshKypeByapa NnomeCTne
eroBTemHOeNpXn aHoe MeToHa 12 YacOB.
6.3amEHNTeBOy

a.3anHHTeBepyepBOIOI

OuK a KOMnoHETOB np6oH yOa 3a Hm

1. OuKra p3epyapa. N3Beknte p3epyapn3 np60a n otKpynte ero KbiWky YdaI NTe Tbebln ocado MAnKO TKaHbIO nnpMOHTe p3epyapnctOn BDOJ. Ouncy p3epya Jck omehdyetc Bblon Hrtb KaKdble DBe-Tn HeDen n. P uc 1

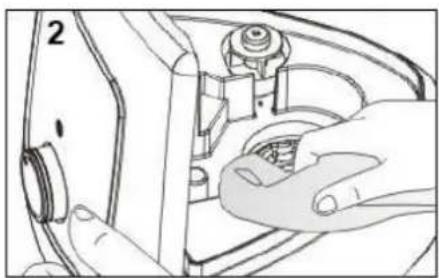

2. OuOka Jeol 6a. EaB KJeI o6e eob TBBeBbIO cAdoK, yan nTe ero MraKO T KaHbO u pMOte YcToB BDOJ. P EynP EKJEHNE. Bodyc edyET bbl NbaTbB HapBn EHn a Nba.P uc 2

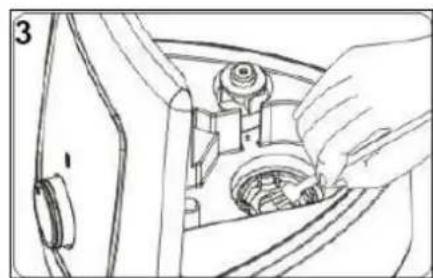

3. YI bTbAByOBO PyblntB. IOn OXnTe HEMHO MOO ero qDCTBa Ha NOBepHocb y bTp3By OBORO pblntEIN 3AMOHTE erO B BOe Ha 5 MNHy; 3aTe MNoHCNTe PaBbI NTen bEtK oN PmOnTeero. HkoIa He NtOa B3yTe n 3ToN PpueDyTBepbIe nn OcPte PdMetb. P uc 3

Yt n3aun Bbl weedero n3 cT poy yct poNCTBa

1. Eun Ha ycpnctBe nmeetc TaKOn 3HaOc CpepeHpytbIM MyopbIM KOHTeHepM, 3TO O3Haayet, TTo daHHbIX npdyT OTbeaet Ebpneon On DnPK TUBE 2002/96/EC.
   2.Boe 3n EK Tpyae Hn EK TpHbIe npdytb Heo6xOIM OyH N3npBaT bOtEIN BHO OTbTOBOr MyoHa 0neuaa bHO pndHa3HaueHHbx dI a 3TOO NykTx oopa, B COOTBetCTBN C npBAMn, PnHr TaBM N BAwe CT PAHe MecT HOCTN.
2. PnBbHna ynnnnaa BblweJwero n3 cTpyytnCTBa NOMOXe TnpDTBpNTb NOTEHuaI bHO HeraTHBHOE BO3deNCTBHe Ha OKPk aoL yO cpDyN 3doPBBe Yel OBeKa.
3. NpO6Hyo HOpAunHO 06 ynnn3aunn BblweuNX n3 cTpy n YcTaeBbux yTpNCTB BB MoKeTe yHaTb, o6patNBuHb B CBOIO ropdoYo npBy CI yK6y ynnn3aunn OTXoOB mN Mara3HN, rpe Bbl npO6pn n 3OT npdy T.

Texhueckex xapakTepcnKn:

ModenbNe :SF-5061

Hannnne :220-240B\~50

MoHocTb :22.5Bt

TAP AHT N

Ha 3OT npdyT npdoctabreTo 2-xyIeTHra rapHTn, HauHna CdaTbIOKynK, KOTOPa aipcTaHReTo Ha depeKtBu MATEpaonOB n KaeeCTBO hroTOBENH. Ito 3To raHTn npn3BODntb o6yTeo npn3BeCTn pMOHT n N 3aMeHy IO6oI detanN, KOTOpA OK axetOr HeuopABHO npyOBoN, yTO npdyT 6yET npdbraEHN OMeCTyNOKyn. DaHHa raptHTn DeHCTBNTBn bHa np yOBn, YTO np6OpHON B3OBaON B COOTBETCBN C ING TzNMAH, He NOBepaON n3MeHeHnM, PM OH TY N BxPTNUO NuaAMn, He IMeHOIM HA TO COOTBETByOINX NOnHOMOCh, n He 6bl NOBpJDeH B p3yIbTaHe npabn bHO 3K cnn yataun.

DHaHHa rapHTnHe pOpcPraHrERHa n3Hoc, eCi n cTb NOBpXDeHn IactNKOBbIX Detan eK Opyca n T.I. Eci n npdyT He a6oTaET n NdoEeKNT Bo3BpAty akKyATHO yaknteero, yaknte CBOe mI, aIecN npuHy BO3BpTa n DoCTABte No MecTyNOKyn. Eci n qx raptHTn He nCtEK, npOnknte TaKke raptHTnHb TAn OH uKc O nok yik e.

Stimate Client,

Vă multumim caata iaes acest aparat electrocasnic ALPINA de inaltacalitate. Aparatul Alpina dispune de o garantie de 2 aniși vava oferi ani intregi de fonctionare in cazul unei intretineri corecte. Marca ALPINA inseamna Calitate, Fiabilitate si Incredere. Speran caALPINA va fi in continuare marca dvs. preferatain materie de electrocasnice.

Instruetiuni de sigurantaimportante

Lautilizarea aparatelorelectrice,se vor respecta urmatoarele matur de sigurantaprincipale:
