USER MANUAL NSG uClean LD1445 Starmix

Operating instructions

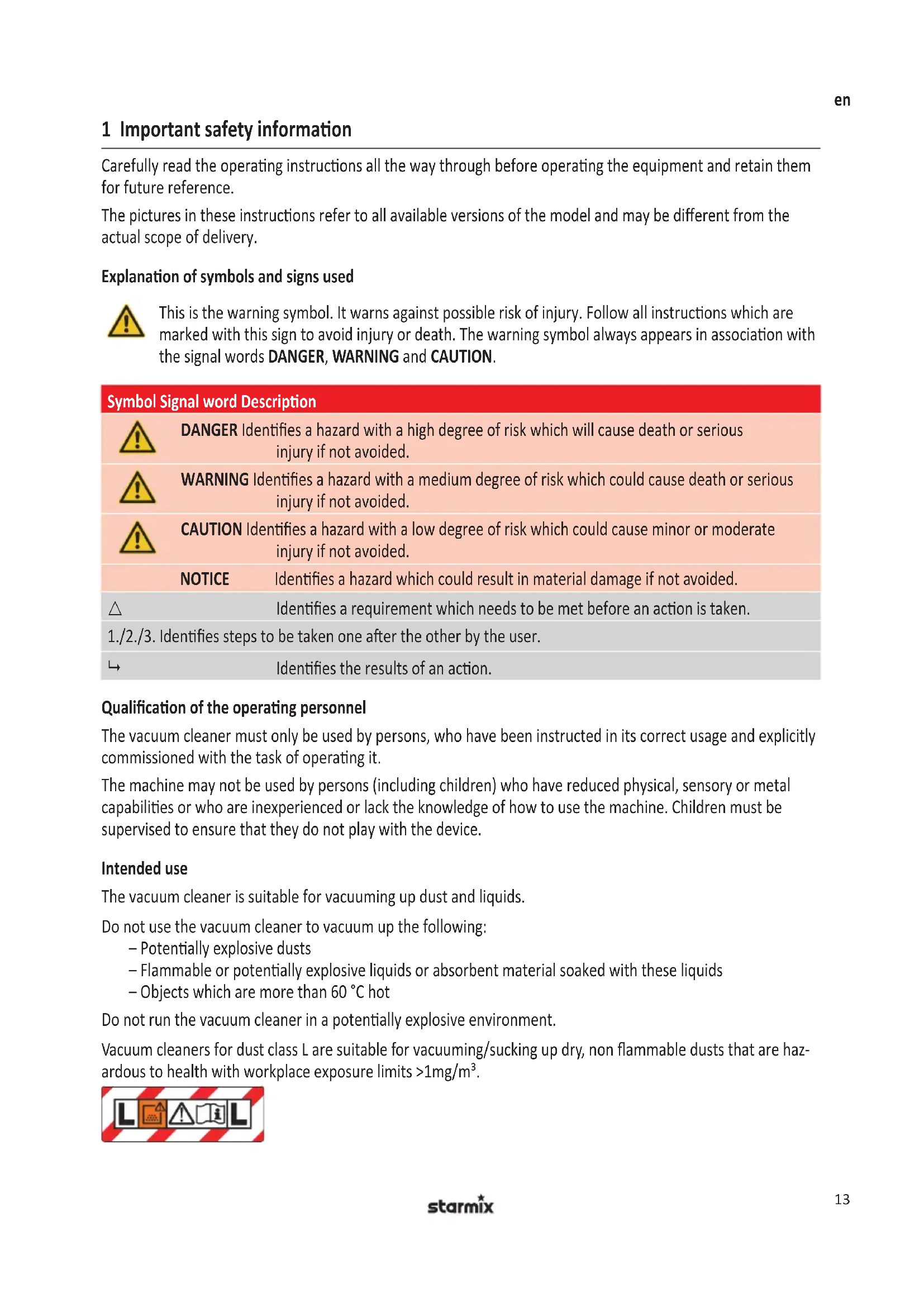

1 Important safety information

Carefully read the operating instructions all the way through before operating the equipment and retain them for future reference.

The pictures in these instructions refer to all available versions of the model and may be different from the actual scope of delivery.

Explanation of symbols and signs used

This is the warning symbol. It warns against possible risk of injury. Follow all instructions which are marked with this sign to avoid injury or death. The warning symbol always appears in association with the signal words DANGER, WARNING and CAUTION.

Symbol Signal word Description

DANGER Identifies a hazard with a high degree of risk which will cause death or serious injury if not avoided.

WARNING Identifies a hazard with a medium degree of risk which could cause death or serious injury if not avoided.

CAUTION Identifies a hazard with a low degree of risk which could cause minor or moderate injury if not avoided.

NOTICE Identifies a hazard which could result in material damage if not avoided.

△

Identifies a requirement which needs to be met before an action is taken.

1./2./3. Identifies steps to be taken one after the other by the user.

L

Identifies the results of an action.

Qualification of the operating personnel

The vacuum cleaner must only be used by persons, who have been instructed in its correct usage and explicitly commissioned with the task of operating it.

The machine may not be used by persons (including children) who have reduced physical, sensory or metal capabilities or who are inexperienced or lack the knowledge of how to use the machine. Children must be supervised to ensure that they do not play with the device.

Intended use

The vacuum cleaner is suitable for vacuuming up dust and liquids.

Do not use the vacuum cleaner to vacuum up the following:

-Potentially explosive dusts
- Flammable or potentially explosive liquids or absorbent material soaked with these liquids
- Objects which are more than 60^ hot

Do not run the vacuum cleaner in a potentially explosive environment.

Vacuum cleaners for dust class L are suitable for vacuuming/sucking up dry, non flammable dusts that are hazardous to health with workplace exposure limits >1mg / m^3

en

Vacuum cleaners which are not identified as being suitable for dust class L are only suitable for vacuuming/ sucking up non-hazardous to health dusts.

Only operate the vacuum cleaner under supervision. Do not climb onto or sit on the vacuum cleaner.

This machine is intended for commercial use, for example, in hotels, schools, hospitals, factories, shops, offices and in the rental business.

The manufacturer does not accept liability for damages caused by misappropriation, inappropriate usage or incorrect repairs.

Avoid danger from electric shocks

The voltage on the rating plate must match the mains voltage. Only connect the vacuum cleaner to a sufficiently protected electric socket.

Do not pull the mains connection cable over sharp edges, do not bend it or clamp it. Only replace a damaged mains connection cable with one meeting the specifications in the Technical Data chapter.

Do not use the vacuum cleaner including accessories in the following cases:

• Mains connection cable or extension cable is defective or showing cracks.
• There is visible damage to the vacuum cleaner, e.g.cracks in the housing.
• If you suspect an invisible defect, e.g. after a fall.

In the following cases, switch the vacuum cleaner off and unplug it from the mains:

• If any foam or liquid is discharged
• In the event of a longer work interruption and after every use
• Before carrying out any maintenance or retooling

When unplugging, only pull on the mains plug and not on the mains connection cable. Never touch the mains plug with wet hands.

Do not open the vacuum cleaner outdoors in the rain or during a thunderstorm. Always keep the inside of the lid dry.

Only use the brushes supplied with the vacuum cleaner or those specified in the operating instructions. Using other brushes can compromise safety. Never allow electrical brushes to come into contact with the mains connection cable.

Avoid any danger during operation

Only for vacuum cleaners in dust class L: Make sure that the air exchange rate is high enough if the exhaust air is being fed back into the room (pay attention to applicable national regulations).

Inform operating personnel about the following points before work starts:

• Handling the vacuum cleaner
  Dangers originating from the material to be sucked up
• Safe disposal of the material sucked up

Do not use the blowing function in closed rooms. Only work with a clean suction hose. Do not stir up any dusts which are hazardous to health. Do not inhale dusts.

When being used in food processing businesses: Immediately clean the vacuum cleaner after use and disinfect it to avoid microbial contamination.

Avoid any danger during maintenance and repair

Only have repairs carried out by experts. Only use original accessories and spare parts.

2 Before the first start-up

Assembly

See Fig. B.

1. When unpacking, make sure everything is complete.
2. Immediately report any transport damage to the retailer.

3 Operation

Before every use, please note

Make sure that the following conditions are met:

Vacuum cleaner, mains cable, suction hose and accessories are not damaged.

All filters have been inserted and are not damaged.

Operating modes

Operating mode (depending on equipment) Description Switch position
Off Wall socket under voltage 0
On Wall socket under voltage, manual operation		I
Minimum suction power Vacuum cleaner operates at low power ECO
Maximum suction power Vacuum cleaner operates at maximum power		MAX
Standby mode for automatic switch-on, infinitely adjustable speed control ECO-MAX	Vacuum cleaner is switched on and off by the electrical tool	A
Standby mode for automatic switch-on, infinitely adjustable speed control ECO-MAX, automatic filter cleaning	If the suction power drops, the filter is cleaned in breaks between work (= switched off electrical tool)	A

Automatic filter cleaning (depending on the equipment variant)

The vacuum cleaner is fitted with an electromagnetic filter cleaning system with which any attached dust is automatically shaken from the filter cartridge.

Suck up dry materials

Tools required	Notes
Main filter (filter cartridge)	Vacuum cleaner, filter and accessories need to be dry. If frequently changing between wet and dry vacuuming, use a separate main filter.
Filter bag for dust-free disposal of fine-grained material to be sucked up	When vacuuming soot, cement, plaster, flour or similar dusts: Insert a filter bag in the dirt container so that the dust does not stick and or cake.
Accessories depending on the area of application

en

1. Set required operating mode on the switch.

Vacuum cleaner is ready for vacuuming.

1. To adjust the suction power, select from the following options (depending on equipment):

2. Move switch to ECO position

3. Set speed on the switch
4. Set auxiliary air slide on the handle tube

Suck up liquids

Volume of liquid Tools required

Small volume of liquid Main filter (filter cartridge)

Water nozzle

Large volume of liquid Main filter (foam)

Water nozzle

1. Remove filter bag from the dirt container before sucking up liquids.
2. Slightly open auxiliary air slide on the handle.
3. Move switch to position I.

Before switching off the vacuum cleaner:

1. Remove suction nozzle from the liquid.

Residual water in the suction hose is sucked into the container and cannot leak out.

If there is a sudden loss of suction power and increased motor speed (changed motor noises), the float valve has interrupted the suction process: The container is full.

1. Switch vacuum cleaner off.
2. Empty dirt container and filter cartridge.

Connect an electrical tool

See Fig. C.

Use socket on vacuum cleaners with automatic switch on/off (switch position A) to connect electrical tools. The vacuum cleaner is switched on and off by the electrical tool. In switch position 0, the socket can be used as an extension cable, e.g. for a light.

Connection value: Vacuum cleaner + electrical tool = max. 16 A (value depends on the country version, pay attention to technical data).

WARNING!

The socket on the vacuum cleaner is always live.

Risk of injury due to electrical tool automatically starting up.

1. Before plugging in: Switch off electrical tool.

Smart Stop

See Fig. D.

1. Apply the brake with your foot.

The vacuum cleaner is prevented from rolling away.

Smart Stop offers further functions:

• Handle to empty the dirt container
  Ramp function to drive over obstacles

Blowing function

See Fig. E.

Only use the blowing function for cleaning, removing dust from and drying machines and appliances.

Flow volume display

See fig. F.

If the container is full or if there is a blockage in the suction hose, the flow volume display lights up.

After work

See Fig. G.

1. Roll up mains connection cable and suction hose.
2. Store the accessories in the accessories holder.

Transport and storage

1. Before transport, close the locks on the upper part of the vacuum cleaner.
2. Pay attention to the weight of the vacuum cleaner, particularly if the dirt container is full.
3. Do not tilt the vacuum cleaner if there is liquid in the dirt container.
4. Store the vacuum cleaner dry and indoors, protected from frost.

4 Troubleshooting and repair

Fault Cause Remedy
Suction power drops Lid not properly closed Close lid
	Filter dirty Clean
	Filter bag full Change
	Container full Empty
	Motor protection filter blocked Clean
	Nozzle, tube or hose blocked Clean
Vacuum cleaner does not start Mains plug not in socket Plug in
	No mains voltage	Check fuse
	Mains connection cable defective	Have it replaced
	Water sensor/floater has switched off	Empty container
	Switch in position A	Move switch to I
Vacuum cleaner does not start when the electrical tool is switched on	Electrical tool not plugged into socket on the vacuum cleaner	Plug mains plug into socket on the vacuum cleaner
	Switch not in position A	Move switch to A

Do not try anything else, contact customer services.

5 Maintenance

See Fig. H-I-J-K.

When maintaining and cleaning the vacuum cleaner, handle it in such a way that there is no danger for maintenance personnel and other people.

Only for vacuum cleaners in dust class L

For maintenance by the user, the vacuum cleaner must be

-dismantled,
cleaned and
maintained,

as far as possible without creating any danger to the maintenance personnel or other.

Suitable precautionary measures include

• Cleaning before dismantling,
• Provide local filtered positive ventilation where the vacuum cleaner is to be dismantled,
• Clean the maintenance area and
• suitable personal protection equipment.

Have a technical inspection carried out at least once a year by specialist personnel, e.g. checking for damage to the filter, air tightness of the vacuum cleaner and that the control equipment is working properly.

Contaminated items

When carrying out maintenance or repair work, all contaminated items which have not been adequately cleaned must be disposed of. Such items must be disposed of in impermeable bags in accordance with the applicable regulations concerning the disposal of such waste.

Emptying the container

Only permitted for dust with workplace exposure limits >1mg / m^3

1. Switch the vacuum cleaner off, pull the mains plug out.
2. Open the latches.
3. Remove the cover and suction hose from the container.
4. Empty the container by pouring out.

Replacing filter cartridge

See Fig. J.

1. Switch the vacuum cleaner off, pull the mains plug out.
2. Open the latches.
3. Remove the cover from the container.
4. Loosen the locking screw.
5. Removing the filter cartridge.
6. Push new filter cartridge in a straight manner over the case, right up to the stop point.
7. Tighten the locking screw.

Dispose of filter cartridges, filter bags or disposal bags

Dispose of the filter cartridge, filter bag or disposal bag in accordance with national regulations.

Cleaning

Do not clean the vacuum cleaner with a high pressure cleaner. Only use a wet cloth and mild cleaning agents to clean it. Acids, acetone and solvents can etch parts of the vacuum cleaner.

Clean the filter cartridge regularly, do not damage the fins while doing so. Only re-insert filter cartridges which you have cleaned using water when they are completely dry. Do not clean or dry filter cartridges using compressed air.

6 Disposal

Old equipment contains valuable materials which are designed for re-processing. The vacuum cleaners must not be thrown away in the normal household waste, but should be disposed of at a suitable proper collection system, e. g. via your communal disposal location.

7 Genuine accessories

Description Order No.	NSG uClean 14.. / LD 14.. / ADL 14..	Order No. NSG uClean ARDL 14..
Filter cartridge FP 3600 411729
Filter cartridge FPP 3600 415109 (540986)
Filter cartridge FPPR 3600 413464 (529776)
Filter cartridge FPPR 7200 413372

8 Technical Data

		NSG uClean 14..		NSG uClean LD 14..	NSG uClean ADL / ARDL 14..
Voltage V 220-240 110 220-240 220-240
Frequency Hz 50/60 50/60 50/60		50/60
Power consumption (max.) W		1400	1400	1400	1400
Protection class		II□		II□	I□
Air flow rate: at the fan m³/h		248,4	174	248,4	248,4
Air flow rate: at the hose m³/h		147	128	147	147
Negative pressure: at the fan kPa		26	21	26	26
Negative pressure: at the hose kPa		20	20	20	20
Filter surface area cm²		2950	2950	2950	2950 / 3400
Noise level dB(A)		85	85	84	85
Power cord: type		H05VV-F 2x1,0	H05VV-F 3G1,5	H05VV-F 2x1,0	H05VV-F 3G1,5
Power cord: length m		8	8	12	8

en

	Tank volume l	Dimensions cm (l x w x h)	Weight kg
NSG 1420 20 41,7 x 39 x 55 8,9
NSG 1432 32 41,7 x 39 x 64 9,3
NSG 1445 45 48,3 x 48,3 x 79 12,4
NSG LD-1422 22 46,1 x 43 x 57 10,3
NSG LD-1420 20 42,5 x 39 x 55 9,2
NSG LD-1432 32 42,5 x 39 x 64 9,5
NSG LD-1435 35 46,1 x 43 x 70,3 11,0
NSG LD-1445 45 48,3 x 48, x 79 12,8
NSG ADL-1420 20 42,5 x 39 x 55 8,9
NSG ADL-1432 32 42,5 x 39 x 64 9,3
NSG ADL-1445 45 48,3 x 48,3 x 79 12,6
NSG ARDL-1420 20 42,5 x 39 x 55 9,8
NSG ARDL-1432 32 42,5 x 39 x 64 10,2
NSG ARDL-1435 35 46,1 x 43 x 70,3 11,8
NSG ARDL-1445 45 48,3 x 48,3 x 79 13,3
NSG ARDL-1455 KFG 55 53 x 51 x 99 20,0

IP24 C

9 Declaration of conformity

Declaration of conformity
We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EC Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.
Product: Vacuum cleaner for wet and dry operation
Type: NSG
The design of the appliance corresponds to the following pertinent regulations:	EC Machinery Directive 2006/42/EUEMC Directive 2014/30/EurRoHS 2011/65/EU
	DIN EN 60335-1(VDE 0700-1):2012-10; EN 60335-1:2012DIN EN 60335-1 Ber.1 (VDE 0700-1 Ber.1):2014-04;EN 60335-1:2012/AC:2014; EN 60335-1:2012/A11:2014DIN EN 60335-1/A13 (VDE 0700-1/A13):2018-07EN 60335-1:2012/A13:2017DIN EN 60335-2-69 (VDE 0700-69):2015-07; EN 60335-2-69:2012DIN EN 62233 (VDE 0700-336)2008-11; EN 62233:2008DIN EN 62233 Ber.1 (VDE 0700-366 Ber.1):2009-04; EN 62233 Ber.1:2008
	DIN EN 55014-1 (VDE 0875-14-1):2018-08; EN 55014-1:2017DIN EN 55014-2 (VDE 0875-14-2):2016-01; EN 55014-2:2015Anforderungen der Kategorie I & II / Requirements of category I & IIDIN EN 61000-3-2 (VDE 0838-2):2015-03; EN 61000-3-2:2014DIN EN 61000-3-3 (VDE 0838-3):2014-03; EN 61000-3-3:2013
Authorized documentation representative:	ELECTROSTAR GmbH, Hans-Zinser-Straße 1-3, 73061 Ebersbach/Fils, Germany
20.08.2019	Caroke freuCarsten GresserHead of Quality Assurance

Symbole Mention Description

skilles ad
rengoresog
- afterses

da

sà védt det er muligt,.uden at dette fremkalder fare for servicepersonalet uller andre personer.

Unngå farer under driften

Pase for haver idriftsetting

Feil Årsak Utbedring
Avtakende sugeeffekt Dekselet er/DD er/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD-DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DDR DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD D DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD HH DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD dd DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD AA
Filter tilsmusset Rengjørne
Filterpose full Skifte
Beholder full Tømme
Motorbeskyttelsesfilter tilstoppet Rengjørne
Dyse, rør eller slange tilstoppet Rengjørne
Sugeren starter/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD-AA

Mny npaymuatoonoeiE aAec eepaocic, aa anevuovtheta tto epic.

5 Uvtnpnon

Béπε εικ. H-I-J-K.

Tn ouvtnpon kai otov kaapioa ovtmuetwniZeTe Tn okoua etoi wote va mny npokaouvta kivduvoia to npooikoc ouvtnponc kal aalaa npoosna.

Móvo yia okounec tnc katnyopiac kóvnC L

Tia n 1eVepyela ouvtnponc ano to xno tn o aappoohnpac npenei

H3cMykBaHe Ha cyxN BeueCTBa

Heobxdommo оборudbane Указань
Галовener Фелър (фелърен патон) Смуноча，在 салухи. При често павлоча ведем мokр и салух Измунвашие Исторistically OTденин Галовener Фелър.
Фелърна_TOPбучка 3a 6e3прашно Изхьрларно на салун засмунван матерпал	За Измунвашие на салун, салун，在 салу, поб畸ни павлоча ведем мokр и салу В розервашие 3a 6amьрсаян，在 салу поедOTрати прилелванeto и Втвряванeto на праха.
Принаджност сорец облacrета на приложения

1. HactpoTe JekalHn peKm Ha pa6Oa c npEbkIIOuBaTeJIa.

CmykaKaTa e B roTOBHOCT 3a pa6Ota.

1. 3a Na CnlaTa Ha 3acMyKBaHe N36peTe OT CneHnTe Bb3MOxHocTn (CnopeD o6OpyDbAHeTo):

2. Noctabete npebklnoubaTeI B noIoKeHne ECO

3. Hactpoite o6opotte c npebkIIOUbaTeJIa
   -HacpoTe nIb3raa 3a donbHnHTeHn Bb3dyx Ha Tpb6ata c dpbxxka

N3CMyKBAHe Ha TeuHOCTN

KoHTaKTbT Ha cMyKaaykata OCTaBA BnHaR NIOd HAnpexKeHne.

OnachocOT HapaHbAne npaAn ABTomauHo pa6oTee JekTponHcTpymeHT.

1. Ппдьвклioчвае на ссела: Иклioчete eleknроинстума.

HHTeJIrRETHO cnIpaHe

BuxΦnD.

1. 3aeneCTbaTe cnpaKaTa C kpaK.

PpaxocMykaKaTa NOBeHe He MoKe Da Ce DnKn.

Cmapt cTOn npednara donbHnTeHn yHKuN:

-Дрьхka 3a ИзпраЗBaHe Na KOHTeиHepa 3a 60KnyK
-Функця paMna 3a npemHaBaHe npe3 npenTCTBn

ФУнкцИЯ n3dYXBaHe

BuxΦnE.

I3noJ3BaIte fynKcIyTa n3dyXbaHe cMo 3a noUHCTBaHe,OTCTpaHЯBaHe Ha npax I NOcCyuBaHe Ha MaunHn HcbOpjxHn.

HdNkATOp 3a Bb3dywnnnotOK

BuxΦur.F.

Pn n bIeH KOHTeHep nn 3aDpBCTBaHHa Ha MapKya 3a BCMyKBaHe CBeTN HdNKaTObT 3a Bb3dyuHnra NOTOK.

Cnepa6ota

BnKΦnG.

1. HabnTe 3axpaHbauNja Ka6eI n CmyKaTeHnMa Mapkyu.
   2.Ппберете ппнадлжнocтiteВOTделенeto3a ппнадлжнocт.

TpaHcnpTnpaHe ncbxpanenHe

1. Ппду Трансортуаре Затборет Клочашиte Н горна заct на смУкчКаТа.
2. 06bpeBnMaHHe Ha terIoto Ha cmykaKata, oO6eNo npn nbIeH pe3epBoap 3a 3ambpcaBaHHa.
3. He naklaHnTe cmykaKATA, KOrato mTa TeuHOCT B pe3epBoapa 3a 3ambpcBaHHa.
   4.ИЗсушete CMykaKaTаиЯ CBxpaHTe BbB bTpewHO NOMeUeHne 3aUnTeHo OT 3ampb3BaHe.

4 OtrtpaHbAHe Ha Hen3npaBHOCTn npemOH

NIIIOCTpaunB daHNO IHCTpyKuIN OTHOCaTc KOBCEM IpeIraeMbIM BapnaHTam MoJeIN MOryT OTNIuYATbcr OT aKTNUeCKO ROMJIeKTA NOCTABKN.

06bAChHeHne IcNoIb3YeMbIX CmMBOJIOB u 3HaKOB

3To npdeynpeintelbHbI cMbOJ. ON npdeynpejdaet o notenuaJIbHOJ onaCHOCTn TpaBMnpOBaHn. C6JIIOaIte BCE INCHtpKznn, 06o3NaueHHbIe daHbIM cMbBOJOM, YTO6bl N36EkaTb TpaBM nIIcMeptelbHoro nCxOJa. PpeynpeintelbHbI cMbBOI Bcerda IcNoIb3yETcB COUeTaHN C CNHaJIbHbIMCLOBaMn ONACHOCTb, PpeynpeXDEHNE N OCTOPOXHO.

CnBcN HbHoe cNoBo OncaHne

ONACHOCTb 06o3Haayet BbICOKn ypoBeHb ONACHOCTN, KOTOPa npNBeTeK CmepTeJIbHOMy IcXoMy nI IN TjKeJIbIM TpaBMam, ecIn He npNHrTb Mepbl No ee npDoTbpaueHIO.

ПЕДУПЕЖДEHNE 603начаET cpeHn ypoBeHb onaCHOCTN, KOtOpa MOnKET npNBecT N CmepTeIbHOMy nCXOy uIN TЯжелIM TpaBMam, ecIn He npNHrTb Мрbl no ee ppeDToBpauSeHIO.

OCTOPOXH0 6o3Haayet Hn3Kn ypoBeHb onaCHOCTn, KOtOpA MoKeT npBecTu K TpaBMam IeKoN nn CpeDHe TAgKeCTn, eCIn He npHrTa Mepbl no ee npedotBpaueHIO.

BHIMAHNE 06o3haaet onachoctb, KOtopa moKeT npBecTu K MaTePnaIbHOMy yuepe6y, ecln He npHraTb Mepbl No ee npedotBpaueHIO.

Obo3Hauaet ycIOBne, obraTeIbHoe Ira co6IoJeHna nepeTtem, KaK 6ydt BblOnHeHO COOTBeTCTByIOUeE DeICTBne.

1./2./3. 06o3Haayet deiCTBna, KOtOpbI dOJIxHbI 6bITb NoopeepnHO BblOnHehbl NOIb3OBaTeIeM.

06o3Haayetpe3yIbTaT DeiCTBna.

Kbannnkaaon 06cnyknbauoero nepcohana

YCTPOIcTBO DOLJXHO NcPONb3OBaTbCra TOnbKO LnCaMn, OByeHHbIMN B erO NcPONb3OBaHmN I npAIMO OTHeceHbI K 3Toi 3aJaue.

NcnoB3OBaHne daHHoro yctpoiCTBa 3anpeueHO Iuam (B TOM uNCle n deTAM) CO CHNXeHHbIMn fns3NueeCKMN, ceHCOPbIMn nn yMCTBeHHbIMn cNo6HoCTMa nn Iuam, He NMeIOUm Onbita erO nCNOlb3OBaHna. 3aDeTbMn Tpe6yETcra HabIoHeNe, UTo6bl Y6eDntbcra, UTo OHn He INrpaOT C yCTPOICTBOM.

PpimHeHne no Ha3HaueHHIO

PbIeoc npEHa3HaueH DnBcAcbBaHnN PbIIN JxNdkOcTe.

He nCnoB3yIte nbIeoc dIJI BCaCbIBaHnCneDyUOxN BeIeCTB:

-B3pbIBOONaCHa NbIb;

-TopoUcHne HINB3pbIBOONaChbIe XnIDKocTN NIM MaTepeNaJIbI, npOnNTaHHbIe DaHHbIMN XnIDKOCTaM;

• MaTePnAJIbI, TempePaTypa KOToPbIX npeBbIaet 60^

He 3KcnpnyatpyuTe nbIeoc Bo B3pbBOOnaChOM OkpyKeHH.

IbilecoBcI Klacca L npedHa3HaueHb Iy BcabBaHna cyxO, Heropoue, onacho Iy 3doobpa nbln C npedeNbHO dOnycTmO KoUeHTpaueH na pa6oem MeTe >1 mr/m3.

NbIeocbI,Ha KOTopbIX He yKa3aH Knacc nbIIIN L, npedHa3HaueHbI TOJIbKO Iy BCacBHaHnre HeonacHO nn.

3KcnpaTupyTe nbIeoc TObko NOHd3OpOM.He cTaHOBnTEcb Hne caNTecb Ha nbIeoc.

DaHnoe yctpoCTBO npedHa3NaueHo IJI KOMMepueckoro nCNoIb3OBAHHa, HApnMpE, B OTeJax, WkoJax, 6oJIb-Hnucx, MaRa3NnHax, Ofncax, Ha npou3BODCTBe, a TaKHe dJIra Cdaun B apeHdy.

Ipon3BODntelb He Hecet OTBeTCTBeHHocTn 3a yuep6, YBIAIOUncra CLeDCTBnEM NcnoB3OBAHnHe nO Ha3Ha-yeHIO, HeNaJIeJkaUero OBClyKINBaHnry IIN HeKOMNeTeHTHO peMOHTa.

PpeDorBpaueHne onachoCTn nopaxeHHN 3JIeKtpueeCKm TOKOM

HanpajkeHne, yka3aHHoe ha anpmeHHo Ta6nueKe, doJxHO coBnaDaTb c HapjkeHem cTe. PndKlouaTe nbIeoc TOlbko K po3etKe, 3aunuHoo npn nOmoos noDxoJero npedoxpaHntela.

He TAHNTe Ka6eIb CeTeBOrO NITaHnNo OCTpbIM KpOMKaM, He 3aIaMbBaIte N He 3aXImaIte ero. IOBpeJDenHbI Ka6eIb CeTeBOrO NITaHn 3aMeHnTe TOJIbKO Ka6eIeM, yka3aHHbIM B rIabe «TexHnueckne xapaKtepnCTNKN».

He BbOdnte B 3KcIpyatauIO nbIleCOC, BKJIouaer npHaIeXHocTn, B cIeDyUoIx Clyuaax:

• Ka6eIb cTeBOrO nITAHnI yDInHnTEIhBiK a6eIb IMeet DeΦeKTbI IIN TpeuHHbl.
  -Пылесoc IMeet RAHbIe NOBpeKdEHHa, HApnMpE, TpeunHb B KOpnyce.
• Ppi noo03peHH Ha haJIyue HeBnDmBix deEeKTOB, HapnpMep, nocne naeHna.

BbIKIOaIte nbIeocn n3BNeKaITe 7TeNceIbHyIO BnKy B CneDyIOx CNyAax:

B Cnyae BbIXOda neHbI nnJxNkOCTn;
B Cnyuae DnnteBbix nepepbboB B pa6Ote nocle KaKdoRIO NcNoB3OBaHnra;
- nepei KaKdbim TexHnueckm o6cnykHBaHne m nn peepo6opyoBaHneM.

N3BLeKa Ka6eIb CeTeBO r NtAHn, TaHnTe TOnbKO 3a WTeNCeIbHyIO BnIKy, HO Hn B Koem Clyuae He 3a cam Ka6eIb. Hn B Koem Clyuae He npKacaiTecb K WTeNCeIbHO BnJIke BnaXHBIM pykAmn.

He otKpbIbAaTe nbIeoc Bo BpeMdoJxra nn rpo3bln oTkpblim He6om. BHyTpehnnaactb KpbIuKn doJHKha 6bITb Bcerda cyXoJ.

IcnoIb3yIte Tolsko 1eTK, noCTabHeHHbIe BMeCTe C nbIEcOCOM Nn yKa3aHHbIe B HhCTpyKcNn PO 3KcNlyatau. IprimeHne Dpyrnx 1eTOK MoKET HeAtNBHO OTPa3ntbcra Ha 6e3onacHocTn. He donyckaTe cOnpNKocHOBeHna 3JeKtpoOeTOK c Ka6elem CeTeBOrO nItaHn.

PpeodTbpaueHne onachOteB Bo Bpem3Kcnnyataun

ToIbKO IyIbIeCocOB KnaCa L: ecn Otpa6oTaHbI BO3dyx OTBODNTc B NOMEueHne, cJeIte 3a DoCTaTOUHOI KpaTHOCTbIO BO3dyXOO6MeHa (co6IIOdaTe DeIcTBYIOUne HaUNOHaIbHbIe NOLOKeHna).

Ipeed hauanom pa6o8tbponHphiOpMpyTe ocbnykBaOuO npepcoHaI O cneyuOeM:

-06paueHnC nIeocom;
- ONaCHOCTN, INCXOJIaIe ON BCaCbIBaEMOro MaTePnIaIa;
-6e30nacHoe n3BLeueHHe BCaCbIbAemOro MaTePnAna.

He nCnoJIb3yIte yHKnIIO npOdyBkn B 3akpbItbIX NOMEueHnX. Pa6oTaIe TOnbKO C YnCTbIM BCacbIBaIOUIM ShaHrom. He noDnHaMaTe onaChyIO dIra 3OpOBBy IbIb. He BdIxaTe nbIb.

Pn nCnoB3OBAHnHa npednpnTnx nIeBOy npomblIeHHocTH: nocJe nCnoB3OBaHnca3y ouNuaTe n De3nHΦuPyTe nbIeococ, yTO6bl npedotBpaTb ero 3arpa3HeHne MnkpoopraHn3MaMn.

PpeDToBpaueHne onaChOteB BO BpeM TeXnUeCKOro 06cLyKuBaHnI ne pemOnTa

Pemont doljxeh BbIOnHraTbcra Tolsko KBaIINphiNcnpoBaHHbIMn CneuaJIncTam. IcnoJIb3yIte Tolsko opuRHaJIbHbIe npHaJdIeXHoCTn 3aIpaCTn.

2пегдпьвIM BBODOMВЗкплуataциIO

C6opka

Cm. pnc. B.

1. Посце сягеля уразковский поеверste komплектоctь.
2. He3aMeIeJIbHo coo6uAte dIInepy O nobpeKdEHNx, Bo3HKnXx BO Bpem TpaHcnpOpTnpOBKn.

3 3Kcnpnyatazaia

Ipea KaKdbIM BBODOMB 3KcnnyatauHIO

Y6eHntecb, YTO BInONHeHbI CneDyUOuNe ycIOBnA:

_b_e_c coc, ka6eIb nIaHn, BCacbIbAooi nn npHaJdEHHCTn He IMeHT NOBpeKdeHn.

BceΦnIbTpblYcTaHOBJIeHbI Ne HMeHT NOBpeJdeHn.

Peknmbi pa6oTbi

L Boda, ocTabwaaerB wlaHre, BCacbBaetcB KOHTeHep H He MOKeT BblTeYb.

PnBHe3aHOM ChnHexHn BCacbIBaIOSeM OoHocN uYBeIuHcHn YactOTbl O6OpOTOB dBVaTeJI (n3MeHne 3Byka pa60tbl DvraTeJI) nonlaKobbl Klanah npepBaI npOceC BCacbIBaHn: EMKOCTb 3aONHeHa.

1. BbIKIIOHTe nbIEcOC.
2. Onopoknhte KOHTeHep dIa Mycopa nΦNbtpyOuyn naTPOH.

IopKIOUOHe 3eKToHcTpymeHa

Cm.pnc.C.

Pozekny Ha nbilecocax c abTomatikon BkIoueHn/ BbIKIOueHn (noJooKHe BbIKIOUaTeA A) nCnoJIb3yIte Dn noKIOUeHn 3JeKtpoHnCTpyMeHToB. Pblncoc BkIOUaETcN B bIKIOUaETc 3JeKtpoHnCTpyMeHToM. Ecln BbIKIOuAtelb HaxOHTcB NIOLOKeHn O, poZeky MoXHo NcNoIb3ObaTb B KaueCTBe ydInHITeJIa, HappIMep, Dn lambl.

ru

Cymmaphoe notpe6enne Toka: nbilecoc + anektponHCTpymEnT = mKc. 16 A (3naehne B 3aBnncmoctn OT BapnaHTa, obpaauTe BnMaHne Ha texHnueckne XapaKTepnCTnKn).

IPEyIpyKJDEHNE!

Po3eTka nbilecoca Bcerda HaxoHITcnoi HanpXeHHeM.

Onachoctb TpaBMnpoBaHnB Cnyae ABToMaTneCKOro 3aNycka 3NeKtponHctpyMeHa.

1. Ipeep noikluoyenm nbilecoca K 3neKtpocTe: BbIKluOHTe 3neKtpoHCTpyMeHT.

Cmapt-cton

Cm.pnc.D.

1. HaxMMTe HOXHOI TOPMO3.

Πbileco6oJIbue He cMOXKeT OKaTIbca.

3IeMeHT Smart Stop nIpynE yHKuN:

Ytnn3aunn 0nBtpyUoNn NaTPOHOB, nIbTpOBAhBnX MeKOB Nn MeKOB nYtnn3aunn

YtInn3npyIte fInbtpuyoUnn natpoH, fInbTpOBAhBn MeWOK nn MeWOK dN yTInn3aun B COOTBeTCTBn C NaunOHalbHbIMN HOpMaTnBaMn.

OuInCTka

He ouhiaTe nbilecoc npn nOmoUe ONUCTIeY BbICOKo RaBJeHra. IJIy ONUCTKn NcIOJb3yIe ToIbKO BnaKHyTO TpAky MmRkoe MOIOSeE cpeCTBO.KncIoTa, aueToH n pactBOpNTb Moryt pa3beCt b Detani Nbilecoca.

Perylaepno ouuaaTe fNbtpyiooenn 3eMeH, He nobpeinte npn 3OM pnaCTHHKn. Ipexde yem ycTaHaBnBaTb fNtbpYIOoenn 3eMeH nocne erO BnaXHO ONUCTKN, daIte emy noJIHOCTbIO BBICOXHyTB. He ouuaaTe Hc cyuHTe fNtbpYIOoenn 3eMeH cKaTbIM BO3dyXOM.

6yttnn3aun

B cTapbIX npn6opax coedepehataI daIarOeHHbIe MaTePnaIbI, npnrOndHbe IJInepepaOTKn. He bblpaCbBaIte nbIeococ BMeCTe C obuHbIM 6bITOBbIM MycOpom. NcnoJb3yIte IJIaTOrO cneuaJIbHbIE MeCTa IJIc6opa anahorunHbIX OTXoDOb.

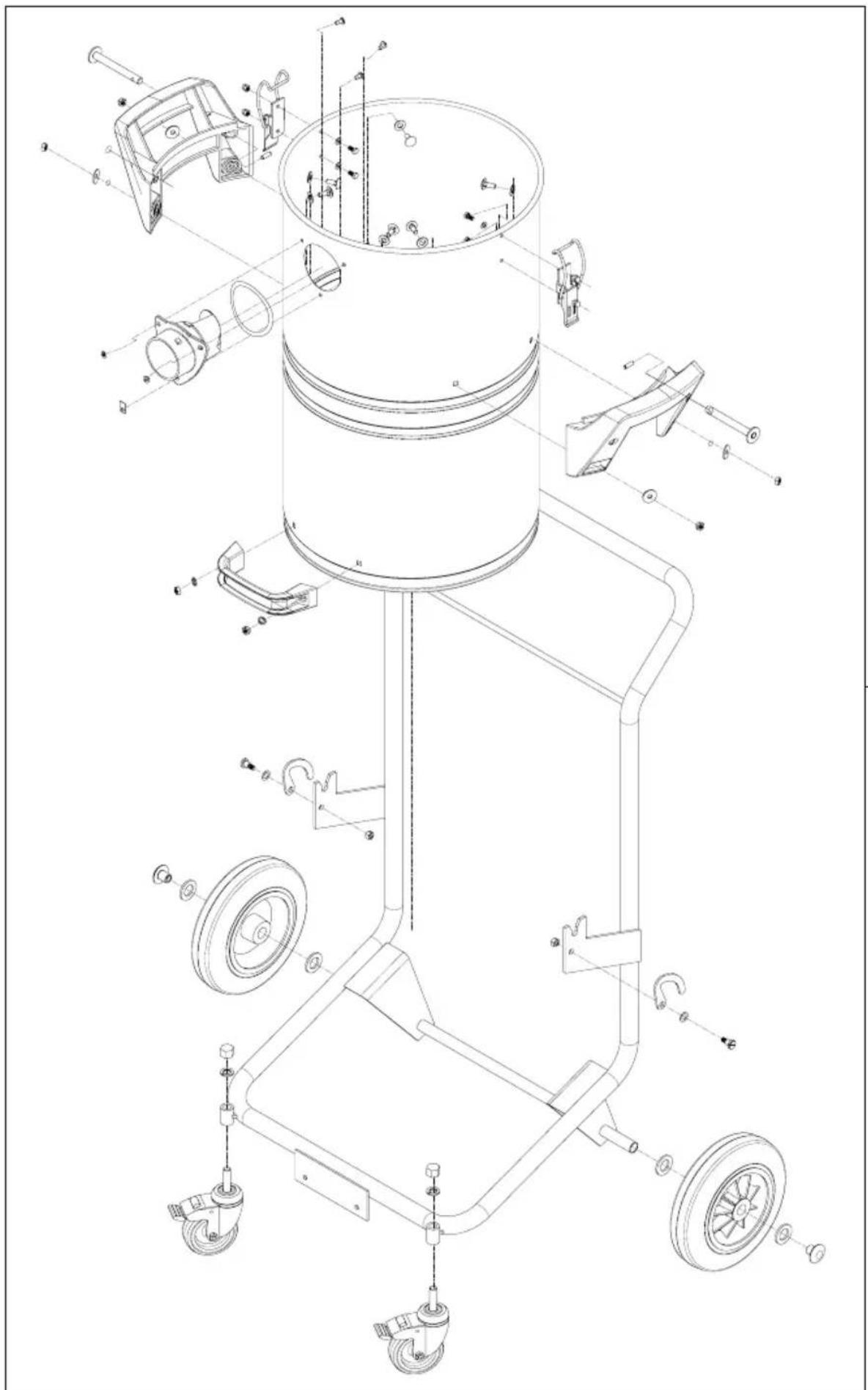

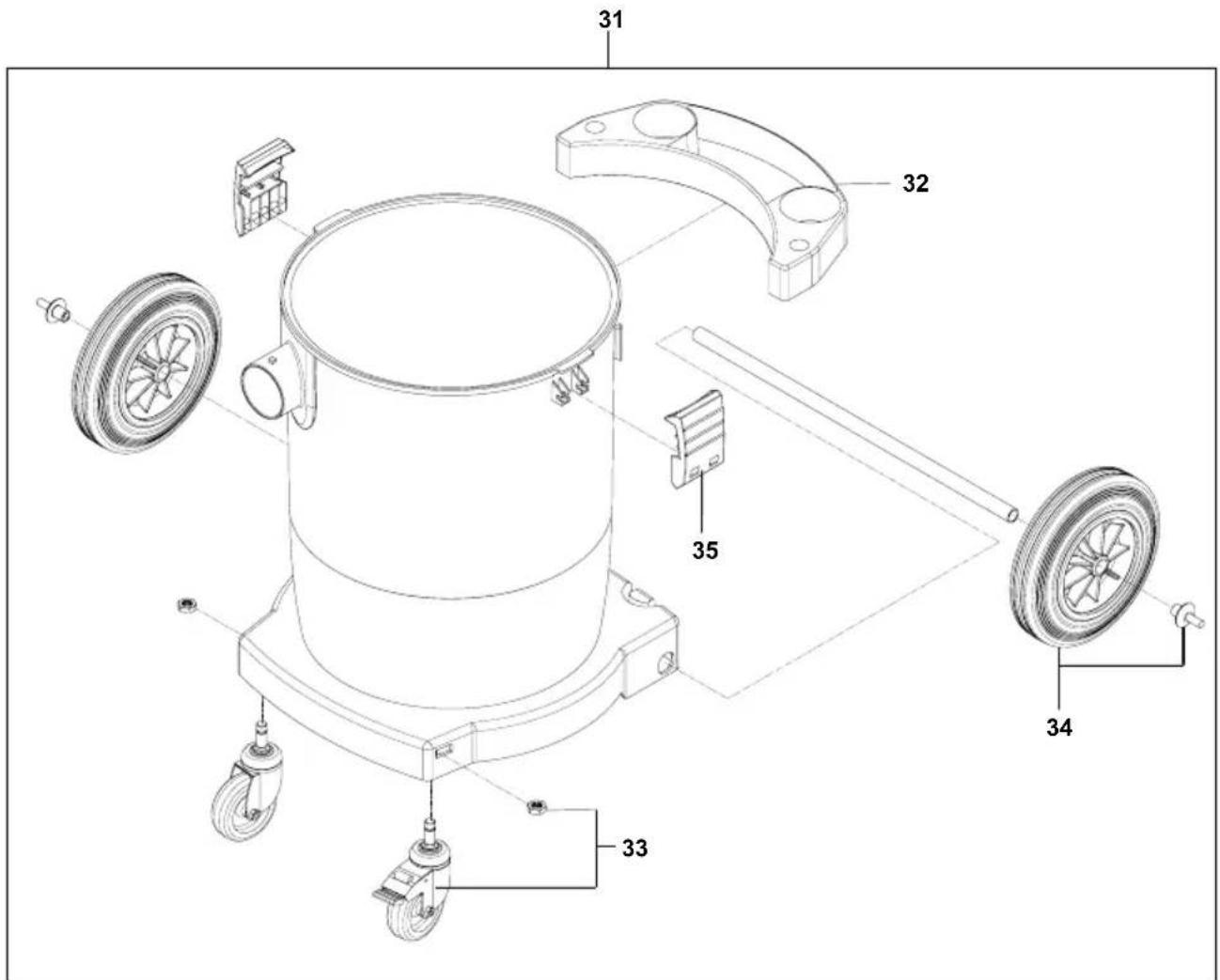

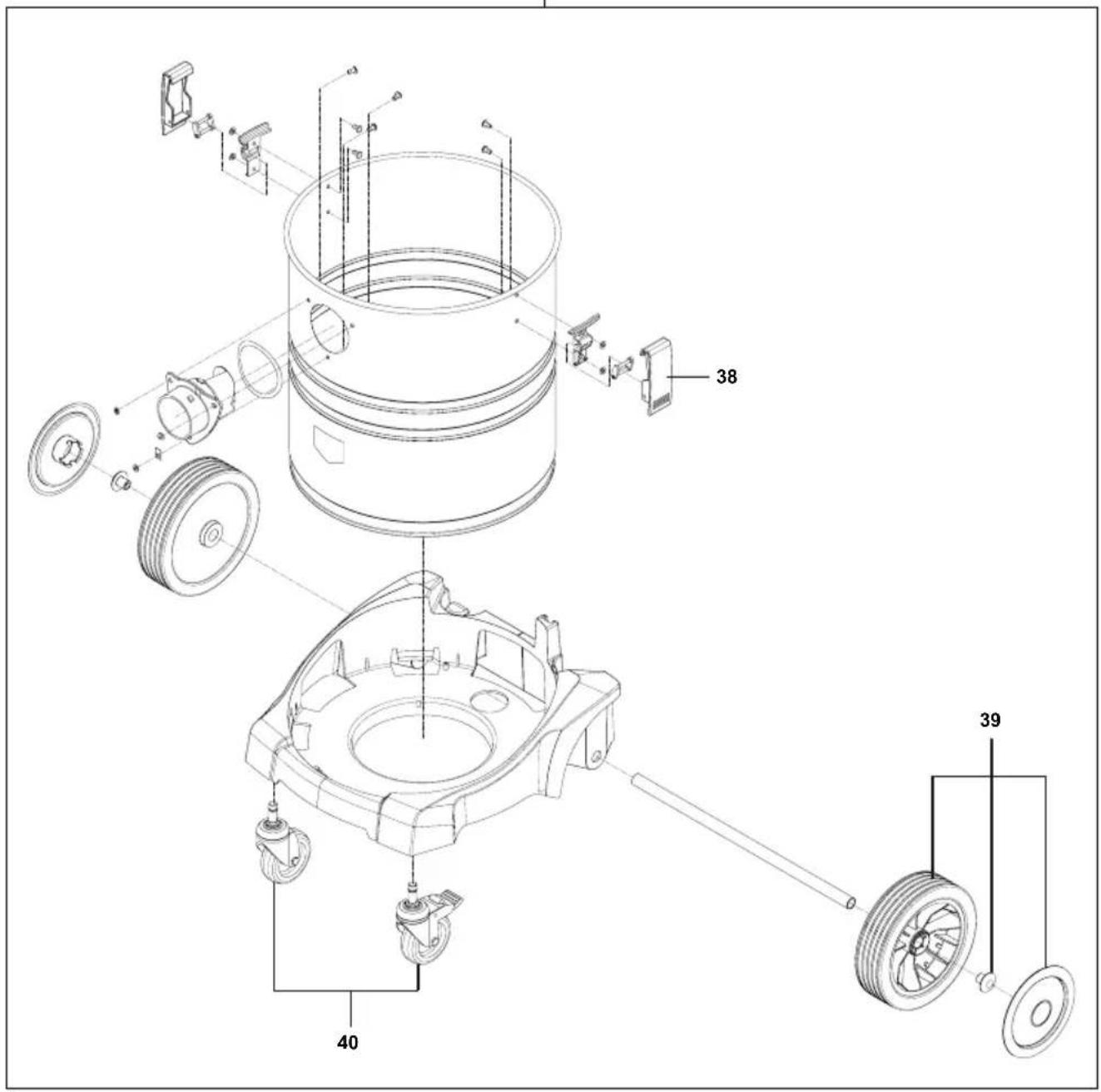

7 OpnHaJIbHbIe 3aIyactn

30-35L
37-22L
42-30L
