ES3116RL - Switch Edimax - Free user manual and instructions

Brand	Edimax
Model	ES3116RL
Product Type	Fast Ethernet Switch
Number of Ports	16 RJ-45 10/100 Mbit/s ports
Network Standards	IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x (Flow Control)
Auto-negotiation	Yes, on all ports (NWay, 10/100 Mbit/s, full/half duplex)
Auto MDI/MDI-X	Yes, on all ports (automatic cable type detection)
MAC Address Table	8,000 entries
Buffer Memory	160 KB
Switching Method	Store-and-forward
Power Supply	Internal, 100-240 V AC, 50-60 Hz, output 3.3 V 4 A
LED Indicators	Power (solid green), Link/Activity per port (solid green/blinking)
Rack Mounting	Yes, 19-inch rack compatible (brackets and screws included)
Installation	Plug-and-play, no software required
Compatibility	All standard network protocols
Environment	Operating temperature: 0°C to 40°C, humidity: 10% to 90% (non-condensing)
Certifications	CE, FCC Class A
Weight	Approximately 1.5 kg (estimate for 16-port model)
Dimensions (W x D x H)	Approximately 44 x 20 x 4.5 cm (estimate 19-inch rack)
Cleaning	Unplug the device before cleaning. Use a soft, dry cloth. Do not use chemical or abrasive products.
Maintenance	Regularly check connections and ventilation. Avoid heat sources.
Safety	Use only the provided adapter. Do not open the case. Keep away from liquids.
Spare Parts and Repairability	Contact Edimax after-sales service for any repair or replacement.

Frequently Asked Questions - ES3116RL Edimax

How to install the Edimax ES3116RL switch?

The switch is plug-and-play. Connect each network device (PC, printer, etc.) to an RJ-45 port using an Ethernet cable, then power on the device. No software is required.

The Link/Act indicator does not light up, what should I do?

Check that the Ethernet cable is properly connected on both ends and is not damaged. Ensure the other device is powered on. If the problem persists, try another port or cable.

Can I connect multiple Edimax ES3116RL switches together?

Yes, thanks to the Auto MDI/MDI-X feature, you can use a straight or crossover cable to connect any port of one switch to another switch or hub.

What is the maximum supported speed?

Each port supports up to 100 Mbit/s in full duplex, for a total throughput of 200 Mbit/s per port (bidirectional).

Is this switch compatible with Cat5 cables?

Yes, for 100 Mbit/s, use Cat5 or higher (Cat5e, Cat6). For 10 Mbit/s, Cat3, 4, or 5 is suitable. The maximum length is 100 meters.

How to mount the switch in a rack?

Use the two brackets and screws provided. Attach the brackets to the sides of the switch, then screw them into the 19-inch rack rails. Refer to the manual for details.

What should I do if the switch overheats?

Ensure the ventilation slots are not blocked. Place the device in a well-ventilated area away from direct sunlight and heat sources.

Does the switch support VLAN?

No, the ES3116RL model is an unmanaged switch (plug-and-play) and does not support advanced features like VLAN. For that, choose a managed switch.

How to clean the switch?

Unplug the device. Use a soft, dry cloth to wipe the case. Never use solvents, alcohol, or abrasive products.

Where to find the user manual?

The manual is available for download on the notice-facile.com website for the Edimax ES3116RL model. It is also included in the packaging as a paper copy.

USER MANUAL ES3116RL Edimax

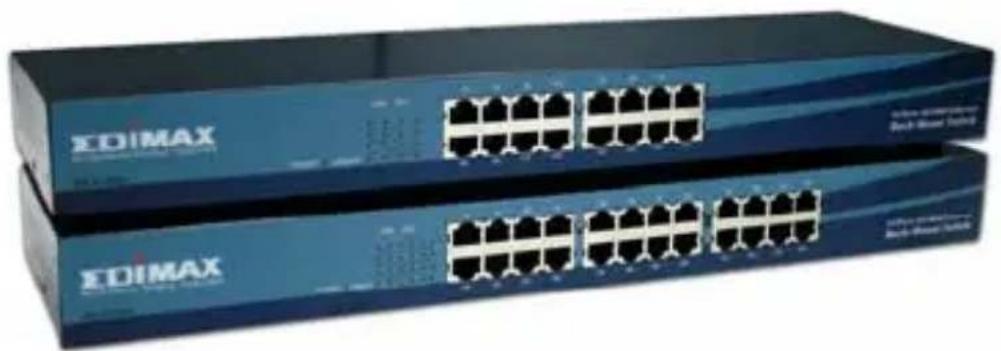

NETWORKING PEOPLE TOGETHER

19” Rackmount Fast Ethernet Switches

Quick Installation Guide

Version 2.0 April, 2006

Content Table

English 3
Český 6
Deutsch 9
Espanol 12
Francais 15
Italiano 18
Magyar 21
Nederlands 24
Polski 27
Portugues 30
Pycckn 33
Türkoge 37

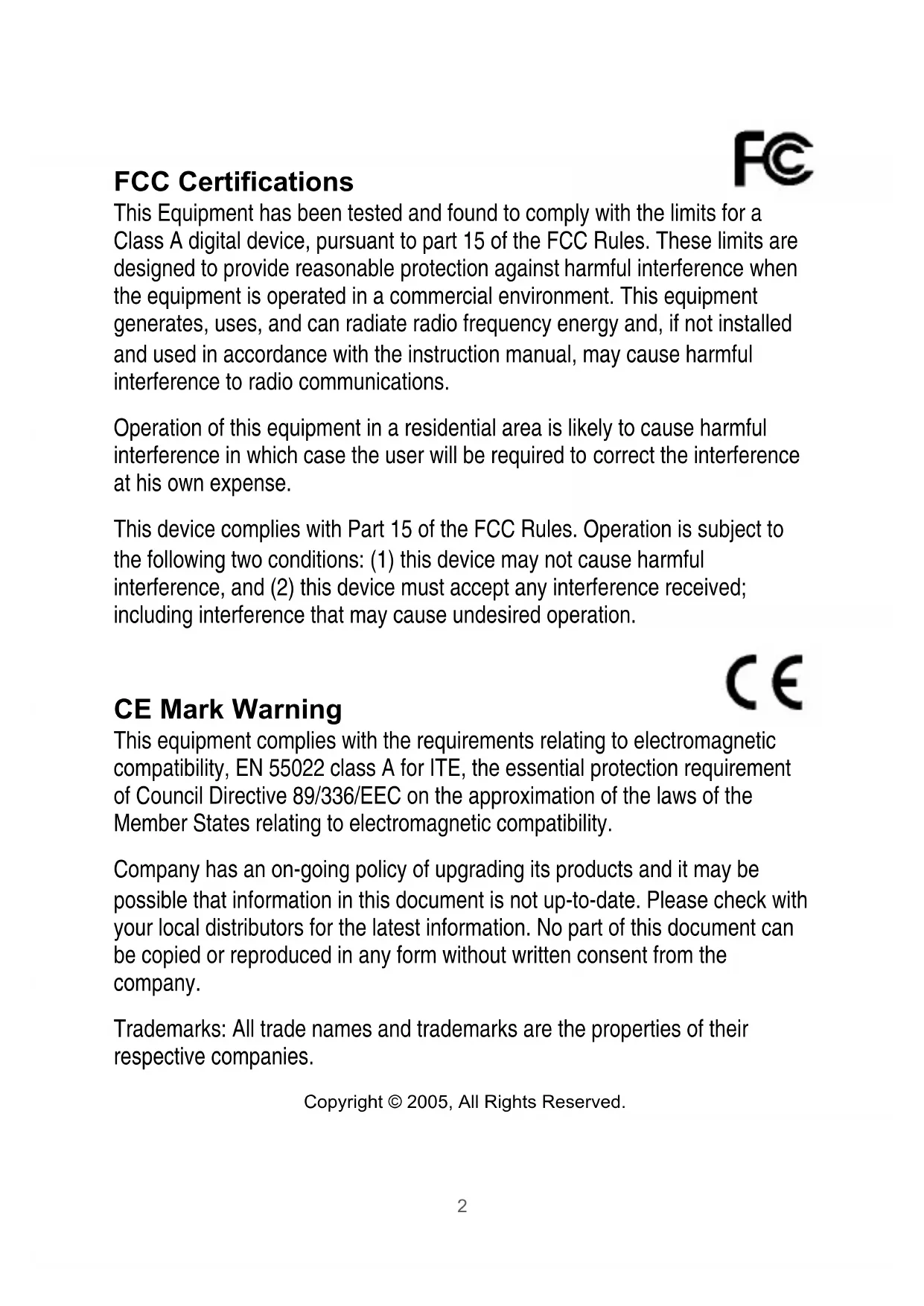

FCC Certifications

This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation.

CE

CE Mark Warning

This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 class A for ITE, the essential protection requirement of Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility.

Company has an on-going policy of upgrading its products and it may be possible that information in this document is not up-to-date. Please check with your local distributors for the latest information. No part of this document can be copied or reproduced in any form without written consent from the company.

Trademarks: All trade names and trademarks are the properties of their respective companies.

Copyright © 2005, All Rights Reserved.

Introduction

This device is a powerful, high-performance Fast Ethernet switch, with all ports capable of 10 or 100Mbps auto-negotiation operation (NWay), which means this switch could automatically negotiate with the connected partners on the network speed and duplex mode. It is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia and imaging applications.

Moreover, the 10/100Mbps auto-sensing ability provides an easy way to migrate 10Mbps to 100Mbps network with no pain. Compared to the shared 10Mbps or 100Mbps networks, the switch delivers a dedicated 10/100Mbps connection to every attached client with no bandwidth congestion issue. This switch also supports auto MDI / MDI-X function; each port could be used to connect to another switch or hub with no crossover RJ-45 cable.

Store-and-forward switching mode promises the low latency plus eliminates all the network errors, including runt and CRC error packets. To work under full-duplex mode, transmission and reception of the frames can occur simultaneously without causing collisions as well as double the network bandwidth.

The switch is plug-n-play without any software to configure and also fully compliant with all kinds of network protocols. Moreover, the rich diagnostic LEDs on the front-panel can provide the operating status of individual port and whole system.

Before you start to install the switch, check the following contents in this package :

One Rackmount Fast Ethernet Switch
- One power cord and one user's manual
- Rack-mount brackets and screws

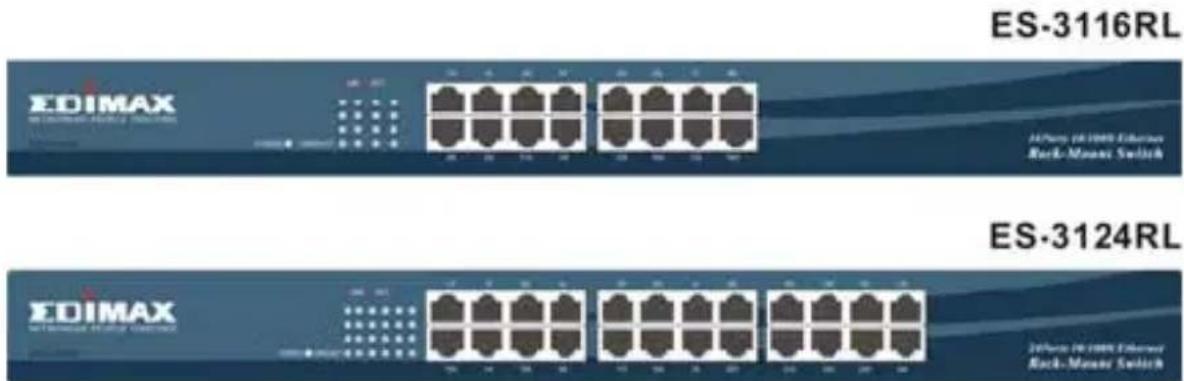

LED Definition

Please refer to the following table for LED definition

LED Status Operation
Power	Steady Green Power is on
	Off Power is off
Link/Act	Steady Green The port is connected
	Blinking Green The port is transmitting/receiving data.
	Off	No connection

Stations Connection

Connect each station to the switch by twisted-pair cable. Plug one RJ-45 connector into a RJ-45 port of the switch, and plug the other RJ-45 connector into the station's network adapter. Power on the switch and then system is ready. For cable selection, refer to the following table.

Switches Connection

In making a switch interconnection, you could use any port to connect another switch with straight or crossover cable. As all the ports support auto MDI / MDI-X function, using a straight cable to make a switch-to-switch connection is allowed.

For cable selection, refer to the following table :

Network Speed	Cable Type	Max. Length
10Mbps Cat.	3, 4, 5 UTP/STP 100 meters
100Mbps Cat.	5 UTP/STP 100 meters

Rack-Mount

The switch may standalone, or may be mounted in a standard 19-inch equipment rack. Rack mounting produces an orderly installation when you have a number of related network devices. The switch is supplied with two optional rack mounting brackets and screws. These are used for rack mounting the unit.

Specification

Standard	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x full duplex operation and flow control
Interface	16/24*10/100Mbps RJ-45 Fast Ethernet Ports
Uplink Auto	MDI/MDI-X(Auto crossover)
Network Speed	10/100Mbps & Full/Half duplex mode auto detection
MAC Addr.Table	8K MAC entries
Memory	160Kbytes
Power Supply	Internal Power supply 3.3V 4A (100-240V/ 50-60Hz)
EMI CE and FCC class A
