USER MANUAL I.Beat p!nk TrekStor

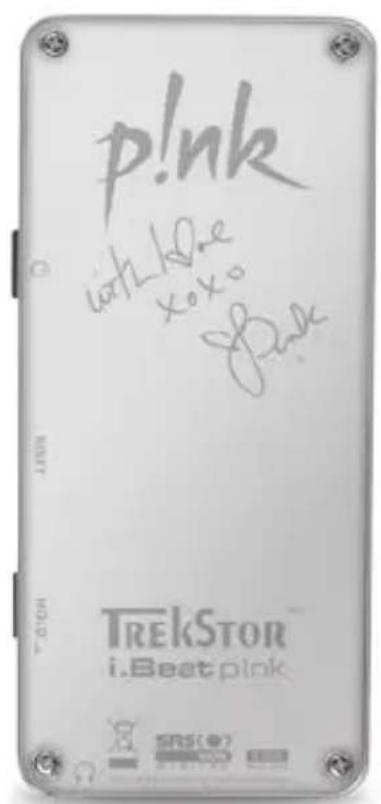

Vertical metallic object with a small hole, no visible text or symbols

p!nk with like x0x0 pink TREKSTOR™ i.Beat pink SRS(●)

i.Beat p!nk

BEDIENUNGSANLEITUNG

TrekStor A B C D E I H G J K L P!nk with like xv.vo p!nk TREKSTOR i.Beat pink Day 41 July 2016

Please note: Please charge the i.Beat p!nk as described in these operating instructions for at least 3 to 4 hours before initial use.

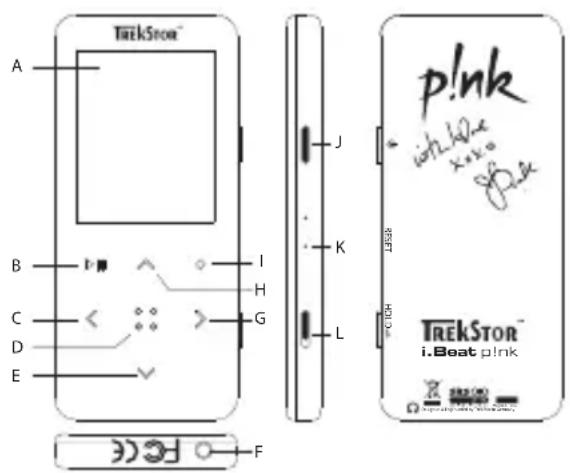

1) Controls for the TrekStor i.Beat p!nk

TrekStor A B C D E I H G J K L P!nk with We x+o 8Pak TREKSTOR™ i.Beat p!nk F

Please note: To reset, carefully press the RESET button with a pointed object (such as an unbent paperclip). The reset button is recessed deeply in the housing.

2) Connect the TrekStor i.Beat p!nk to a PC

Note for users of Windows® 98: First install the driver from the accompanying CD before connecting the i.Beat p!nk to your PC.

Use the included USB cable to connect the i.Beat p!nk to a USB port in your PC. Your operating system will immediately recognize the i.Beat p!nk and will add a "deVice With RemoVable StorAge" under "my Computer".

3) Charging the TrekStor i.Beat p!nk

The i.Beat p!nk starts charging as soon as you connect it to a PC. The battery is charged after a maximum of three to four hours; charging automatically stops to prevent overcharging.

Please note: The maximum battery life is only reached after approximately 10 charging cycles.

4) Exchanging data with the TrekStor i.Beat p!nk

Files that are not copy-protected

a) Select the desired files (such as MP3) with the mouse. Copy these files by clicking them with your right mouse button and then selecting "Copy".
b) Under "my Computer", select the removable storage device "treKStor i.beAt p!nk".
c) Click it with your right mouse button, and select "pAste" to start copying. After copying is over, the data will be available on the i.Beat p!nk.

WMA DRM9-protected files

To copy DRM9-protected files, you need to use the Windows Media ^® Player (reference version: Windows Media ^® Player 9).

a) Connect your MP3 player to your computer, and start the Windows Media® Player.
b) In the task bar on the left, click "copy to cd or device".
c) Drag the desired music files (WMA) to the list "items to Copy" on the left.
d) In the pulldown menu at the top right, select the MP3 player under "items on device".
e) Then click the "copy" button at the top right. The selected music will then be automatically copied to your MP3 player.

5) Logging off the TrekStor i.Beat p!nk and disconnecting from the PC

Windows® 98 (SE): Click on the symbol "SAfely remove hArdWAre" at the bottom right on the task bar. In the "SAfely remove hArdWAre" window, select the i.Beat p!nk and click on the "yes" button. You can now disconnect the i.Beat p!nk from the PC.

Windows® 2000/ME/XP: At the bottom right on the task bar, click the right mouse button on the symbol "SAfely Remove hArdWARE". In the context menu that appears, click the left mouse button on "SAfely Remove mAss Storage device - drive" to select it. You can now disconnect the i.Beat p!nk from the PC.

Please note: Please follow the recommended logoff procedure to prevent damage to the device or data loss.

6) Firmware update for the TrekStor i.Beat p!nk

TrekStor products are always being improved. For example, we are planning to offer the user guide in more languages. You can always download the most current firmware version at http://www.trekstor.de.

Warning: Please read all the instructions and follow the update procedures exactly to keep from damaging the i.Beat p!nk!

a) Connect the i.Beat p!nk to a USB port of your PC.
b) Back up all the important files on your i.Beat p!nk onto your PC.
c) You can now update the i.Beat p!nk with the most current firmware version from the Internet (on the TrekStor homepage at http://www.trekstor.de).
d) Insert the provided CD into your CD / DVD drive. If the startup function of your system is activated, a menu showing all the contents of the CD will open.

Please note: If the startup function of your system is deactivated, you can access the CD/DVD drive via "MY COMPUTER" and start the program "MENU.EXE" in the main directory of the CD.

e) Select "d riVer / tools" and follow instructions. Your internet browser opens, and the TrekStor homepage is downloaded.
f) Download the firmware (*.zip file), and unzip it in a folder of your choice.
g) Start the file "setup.exe" to install the software for the firmware update on your PC. Follow the installation instructions.
h) Select "s tArt" → "progrAms" → "tREKStor i.beAt p!nk" to run the "firmWAre UpdAte". The update program will search for your i.Beat p!nk.

i) Connect the i.Beat p!nk to the USB port of your PC.
j) After your system recognizes the i.Beat p!nk, a dialog window appears. Confirm this with "oK".
k) In the next dialog window, select "s tArt" to run the firmware update for the i.Beat p!nk.

Please note: If you select the option "FORMAT DATA RANGE", the internal memory of the i.Beat p!nk will be deleted. Confirm the warning message that appears by selecting "YES".

I) Please wait until the update is completely finished.
m) After the update is finished, end the update program by clicking the button "dose".
n) Disconnect the i.Beat p!nk from the USB port of your PC.

7) Formatting the TrekStor i.Beat p!nk

a) Connect the i.Beat p!nk to a USB port of your PC.
b) Back up all the important files on your i.Beat p!nk onto your PC.
c) Open "my Computer", and click the right mouse button on "device With remoVable StorAge".
d) Select "f ormAt..." from the context menu.
e) In the dialog window that appears, go to "f ile System" and select the option "fAt32".
f) Click the button "s tArt" to start formatting.

8) Using the TrekStor i.Beat p!nk

Turning the device on and off

Turn on the i.Beat p!nk by holding down the ⏻ button for about one second. To turn the i.Beat p!nk off, hold the ⏻ button for approximately 3 seconds.

Please note: Make sure that the HOLD switch has been moved to the top position, i.e., that the key lock is turned off. If the key lock is activated, the key lock symbol or a corresponding message will appear.

The different modes

The i.Beat p!nk has different modes. To go to a mode, hold the ⋮ button for approximately one second. Press the < or > button to select the desired mode, and confirm by briefly pressing the ⋮ button. Leave the menu by pressing the ● button.

Mode: Music

Switch to the "music" mode.

- Play

Briefly press the ▶ button to play an audio file.

- Pause

Briefly press the ▶ button to stop playback. Repress the ▶ button to continue playback.

- Change track

Briefly press the > button to select the next track. If you press the < button within 5 seconds after a track starts, you switch to the prior track. If you push the < button after a playback starts and after at least 5 seconds, the i.Beat p!nk returns to the beginning of the current track.

- Rewind / fast-forward within a track

You can navigate within the current track by holding down the < or > button. Hold down the > or < button to fast-forward or rewind.

Please note: The longer you hold down the < or > button, the faster you fast-forward or rewind.

• Increase / decrease volume

Briefly press the ∧ or ∨ button to raise or lower the volume.

Please note: If you hold down the ∧ or ∨ button, the volume changes gradually.

Folder Navigation

You get to Folder Navigation in modes of Music, Recordings, Multimedia and Picture by briefly pressing the ⏻ button. Press the ⬇ or ∧ button to select the next or previous file. Select the desired file by pressing the ⏻ button. To play the selected file, press the ▶ button. To change to a subfolder, press the > button if the folder is marked. To return to the main directory, briefly press the < button. To leave Folder Navigation, hold the ⏻ button for approximately one second.

- Deleting a file

Select the file you want to delete in Folder Navigation, and hold down the ● button for approximately 1 second. To confirm that you want to delete the file, switch to "yes" by pressing the < or > button, and then press the :: button.

Please note: If you delete an audio file while a track is playing, the playback of the current track will be interrupted.

Mode: FM radio

Switch to "rAdio" mode.

Please note: Always connect your earphone or headphone to the headphone jack of the i.Beat p!nk since the earphone / headphone cable serves as an antenna for the internal radio.

To open the radio menu, briefly press the ⋮ button. Press the √ or ∧ button to select the desired menu item, and confirm by pressing the ⋮ button. Leave the menu by pressing the ● button.

- Switching between manual station selection and memory mode

In the radio menu, select "ChAnge mode" to switch between manual station selection "ScAn" and memory mode "preset". Press the < or > button to select the desired mode, and confirm by briefly pressing the :: button.

• Automatic memory assignment / automatic station search

To start the automatic station search, switch to "Auto scAn" in the radio menu. The i.Beat p!nk now automatically searches for the radio stations with the strongest reception and saves them in 20 memory locations.

• Switching between saved stations

In memory mode "preset", you can switch between the existing memories by briefly pressing the < or > button.

• Manually change frequency / manual search

In manual station selection mode "ScAn", briefly press the < or > button to change the reception frequency by 0.1 MHz. Hold down the < or > button for the i.Beat p!nk to automatically scan the upper and lower frequencies for stations with strong reception.

• Saving individual stations

Change to manual station selection "ScAn". Choose the desired frequency, and select "SAVE stAtion" from the FM radio menu. Press the ☑ or ⚠ button to select the desired memory, and confirm by briefly pressing the ⋮ button.

• Setting the FM radio region

In the radio menu, select "fm region" to make regional radio settings.

• Recording FM radio

Hold the ● button for approximately 1 second to start recording radio. To pause the current recording, briefly press the ▶ button. To restart the current recording, briefly press the ▶ button again. Briefly press the ● button to stop recording.

Please note: All radio recordings are saved in the "RECORD" folder of the i.Beat p!nk.

Mode: Voice recording

Switch to the "record" mode.

You can record your voice using the integrated microphone. Briefly press the ● button to start voice recording. To pause the current recording, briefly press the ▶ button. To restart the current recording, briefly press the ▶ button. Briefly press the ● button again to stop recording.

Please note: All voice recordings are saved in the "RECORD" folder of the i.Beat p!nk.

Mode: Recordings

Switch to "Voice" mode.

You can play your radio and voice recordings in this mode. The device is operated the same way in "record" mode as it is in "music" mode.

Mode: Multimedia

Switch to "multimedia" mode.

You can watch movie files (*.smv) in "multimedia" mode. To create movie files in SMV format, please use the "trAnscoder" on the accompanying CD. The device is operated the same way in "multimedia" mode as it is in "music" mode.

Please note: The i.Beat p!nk can only show movie files when they are saved in the "MOVIE" folder.

Mode: Pictures

Switch to "picture" mode.

You can view picture files (*.jpg / *.bmp) in "picture" mode.

Please note: All pictures must be in JPG or BMP format. The i.Beat p!nk can only show pictures when they are saved in the "PHOTO" folder. Large pictures are automatically shown smaller which can lengthen the loading time.

- Manual

Select "mAnuAI" and press the > or < button to go to the next or previous picture. To select a specific picture file, open Folder Navigation by briefly pressing the :: button. Press the v or ^ button to select the next or previous file. Select the desired file, and press the :: button to display the picture file.

- Slide show

To start a slide show, select "Slide show". Briefly press the ⏻ button to stop the slide show.

Mode: Settings

Switch to the "Setting" mode.

Here you can set various audio settings under "Audio", display settings under "display", time settings under "timer", play settings under "play mode", recording settings under "record", and general system settings under "system".

Press the < or > button to select the desired setting, and confirm by briefly pressing the :: button. Leave the settings by pressing the ● button.

- Audio

Equalizer: Under the "equAlizer" menu item, you can select one of 8 preset equalizers and a user-defined equalizer.

SRS set: Under the "srs set" menu item, you can create different settings for the 3D surround-sound effects.

Set user EQ: You can configure an equalizer as you wish under the menu item "user eq Set".

Please note: If you select the equalizer "SRS", "TRUBASS" or "WOW", the "USER EQ SET" menu item is deactivated.

Fade In Effect: Under the menu item "fAde in effect", you can turn the fading-in function on or off. If this function is activated, the tracks don't start at full volume; the volume slowly rises at the beginning of each track.

- Display

Contrast: Under the "ContrAst" menu item, you can adjust the contrast of the display.

Brightness: Under the "brightness" menu item, you can adjust the brightness of the display.

Length of display: Under the menu item "bAcklight time", you can set the length of time until the display automatically shuts off.

Play Time: Under the menu item "play time" you can select whether the remaining time or the already run time of the current track is to be displayed.

Scroll speed: Under the menu item "Scroll Speed", you can adjust how fast you scroll through the text.

- Timer

FM schedule: Under the menu item "fm schedule", you can set the time at which the radio will be recorded.

Please note: The recording program must be reconfigured before each use.

Energy-saving mode: Under the menu item "shutdown", you can set how long it takes the i.Beat p!nk to automatically shut down after it has not been used.

Sleep Timer: Under the menu item "Sleep timer", you can set how long it takes the i.Beat p!nk to automatically shut down.

Date/Time: You can set the current date and time under the menu item "dAte/time".

- Play Mode

Normal: Select the menu item "normAI" to play all tracks once.

Repeat one: Select the menu item "repeat one" to have the current track repeat in a loop.

Repeat all: Select the menu item "repeat All" to have all the tracks play in sequence repeatedly.

Shuffle: Select the menu item "Shuffle" to have all the tracks play once in a random sequence.

Shuffle all: Select the menu item "Shuffle All" to have all the tracks repeat infinitely in a random sequence.

- Record

Frequency: You can set the recording quality for the integrated microphone under the menu item "frequency".

Please note: The recording quality for the integrated radio is set at 44.1 kHz.

Amplification: Under the menu item "input gAin", you can adjust the amplification for recordings.

- System

Language: Under the menu item "lAnguAge", you can select the menu language of the i.Beat p!nk.

Default settings: Under the menu item "defAult settings", you can restore the factory settings (settings upon delivery) of the i.Beat p!nk.

Information: Under the menu item "informAtion", you are provided with information about the entire memory and free memory, as well as the firmware version of the i.Beat p!nk.

9) Convert video files

You can use the i.Beat p!nk to run video files in SMV format. Video files in other formats (MPG, AVI, WMV) must first be converted by the program "Transcoder (Video2smv)".

a) Insert the provided CD in your CD / DVD drive. If the startup function of your system is activated, a menu showing all the contents of the CD will open.
Please note: If the startup function of your system is deactivated, you can access the CD/DVD drive via "MY COMPUTER" and start the program "MENU.EXE" in the main directory of the CD.
b) Then select "trAnscoder" and follow instructions.
c) Select "s tArt" "progrAms" "treKStor i.BeAt p!nk" to start the "Transcoder (Video2smv)".
d) Select the file to be converted (MPG, AVI, WMV), and enter the destination folder.
e) Under "q uAlity", select the quality of the image and sound to be achieved by the conversion. The higher the selected value, the more memory the files require on the MP3 player.
f) Start the conversion by clicking the "c onvert" button.
g) Then copy the SMV files to the i.Beat p!nk into the folder "moVie".

Notes:

• This MP3 player is optimized for the provided headphones (32 Ohm impedance). Using other headphones with lower impedance can damage the MP3 player or headphone, especially MP3 players with 2 headphone jacks.
• Exposing the device to an electrostatic discharge, among other things, may interrupt the data transfer between the device and the computer. If this occurs, the device should be unplugged from the USB port and then plugged in again.
• Caution: This device can produce high volumes. To prevent hearing loss, do not listen to high volumes for long periods. If you notice a ringing noise in your ears, lower the volume immediately or stop using the MP3 player. Please keep in mind that using earphones or headphones at loud volumes may result in permanent hearing loss. While you become accustomed to higher volumes over time, so that they may seem normal to you, your sense of hearing can still be impaired. The higher you adjust the volume, the faster your sense of hearing can be damaged.
• Caution: Using earphones while driving a motor vehicle is not recommended and is prohibited in some countries. Always drive carefully and with full concentration. Stop using your MP3 player if you become distracted or interrupted by it when driving a motor vehicle or during other activities that require your full attention.
  • Do not use USB cables longer than 3 meters.

The manufacturer retains the right to continually improve the product. These changes may be made without being directly described in these operating instructions. For this reason, the information provided in these operating instructions may not reflect the current state of the art.

The manufacturer only guarantees suitability for the product's intended purpose. In addition, the manufacturer is not responsible for damages or loss of data and subsequent consequences.

Copyright © 2006 TrekStor GmbH & Co. KG. All rights reserved. Other cited product or company names may be trademarks or brand names of the respective owner.
