Product Type	24-Port Unmanaged Network Switch
Brand	TP-Link
Model	JetStream TLSF1024D
Number of Ports	24 RJ45 10/100/1000 Mbps ports
Dimensions (W x D x H)	440 x 180 x 44 mm
Weight	2.1 kg
Power Supply	External power adapter 100-240 VAC, 50/60 Hz
Power Consumption	9.5 W (max)
Mounting Method	Desktop or 19-inch rack mount (brackets included)
Network Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3x
Switching Capacity	Up to 48 Gbps (non-blocking)
MAC Address Table	8K
Flow Control	IEEE 802.3x (full-duplex) and back-pressure (half-duplex)
Key Features	Auto-negotiation, auto-MDI/MDIX, cable detection
Maintenance and Cleaning	Unplug the device, clean with a dry, non-abrasive cloth
Safety	Do not disassemble, do not expose to water, unplug before cleaning
Spare Parts and Repairability	No consumer spare parts; contact TP-Link support for any repairs
General Information	Limited warranty stated on packaging; use in accordance with TP-Link specifications

Frequently Asked Questions - JetStream TLSF1024D TP-LINK

How to install the TP-Link JetStream TLSF1024D switch?

Place the switch on a flat surface or attach the mounting brackets to install it in a 19-inch rack. Connect Ethernet cables to the RJ45 ports, then plug in the power adapter.

Does the switch require software configuration?

No, the JetStream TLSF1024D is an unmanaged switch. It works immediately after power-on without any configuration.

What cables should I use to connect devices?

Use standard Ethernet cables (CAT5e or higher) with RJ45 connectors. The switch automatically detects the cable type (straight-through or crossover).

What should I do if the LED indicators do not light up?

Check that the power adapter is properly connected to both the switch and a working power outlet. If the problem persists, try a different power cable.

Can I mount the switch in a rack?

Yes, the switch comes with mounting brackets for a 19-inch rack. Attach the brackets to each side using the provided screws, then screw the switch into the rack (rack screws not included).

What is the maximum power consumption?

The maximum power consumption is 9.5 W. The included power adapter is suitable for an input voltage of 100-240 VAC.

Does the switch support Gigabit Ethernet?

Yes, each of the 24 ports supports 10/100/1000 Mbps speeds in Full Duplex, providing a non-blocking switching capacity of 48 Gbps.

How to clean the switch?

First, unplug the power. Clean the casing with a soft, dry cloth. Do not use chemicals or liquids.

Is it possible to connect this switch to another switch?

Yes, you can connect multiple switches via RJ45 ports. The switch automatically detects the connection and adjusts the speed.

What to do in case of a malfunction?

Refer to the full manual or contact TP-Link support. Do not attempt to disassemble or repair the device yourself, as this will void the warranty.

USER MANUAL JetStream TLSF1024D TP-LINK

Unmanaged Rackmount Switch

CONTENTS

Deutsch. 01
English. 04
Espanol. 07
Elambdaviká. 10
Francais. 13
Italiano 16
Portugues. 19
Suomi 22
Nederlands. 25
Svenska. 28
Norsk. 31
Dansk 34
Türkge. 37

Installation

- Tischmontage

- Desktop Installation

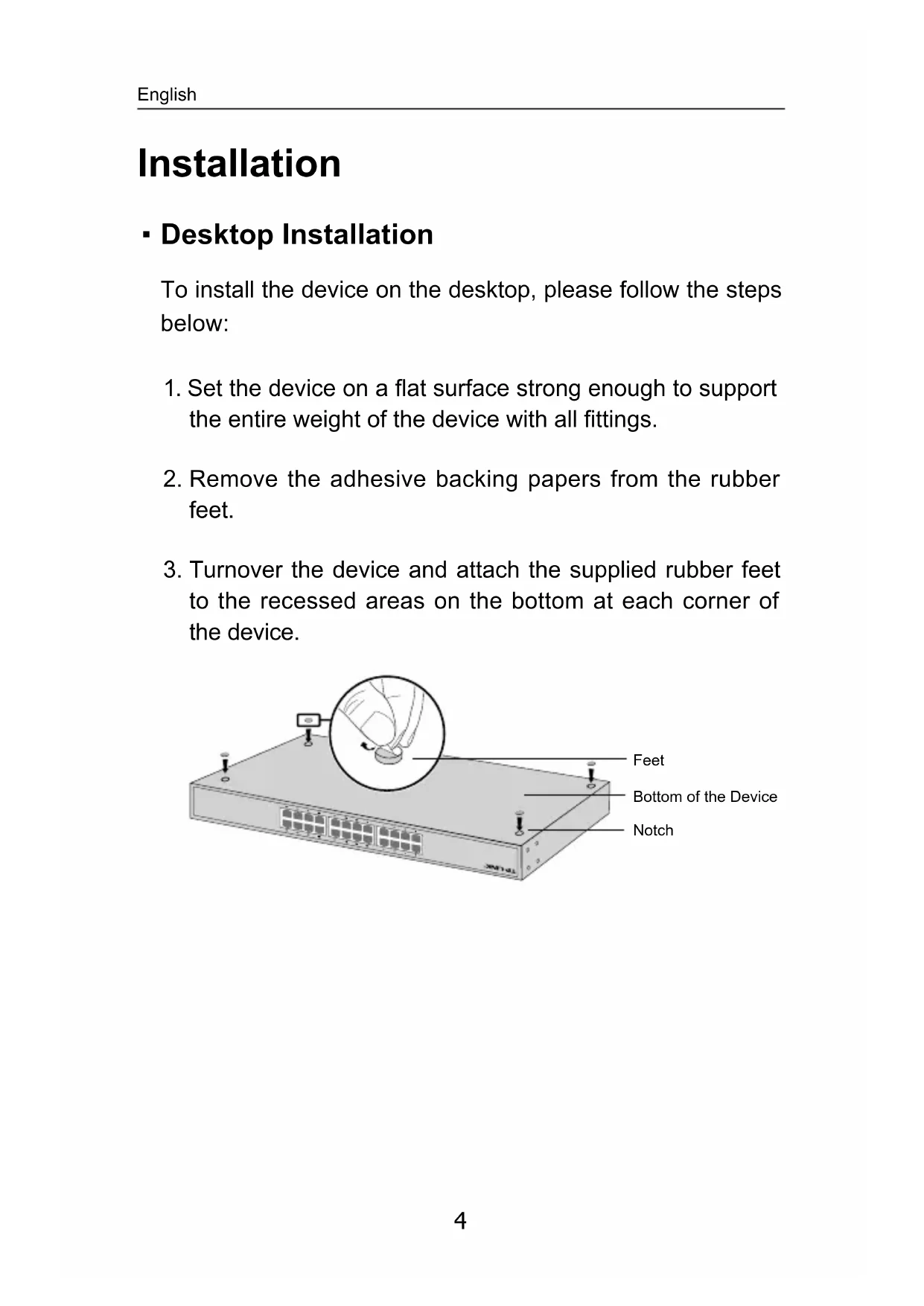

To install the device on the desktop, please follow the steps below:

1. Set the device on a flat surface strong enough to support the entire weight of the device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.
3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device.

- Rack Installation

To install the device in a rack, follow the instructions described below:

1. Check the grounding and stability of the rack.

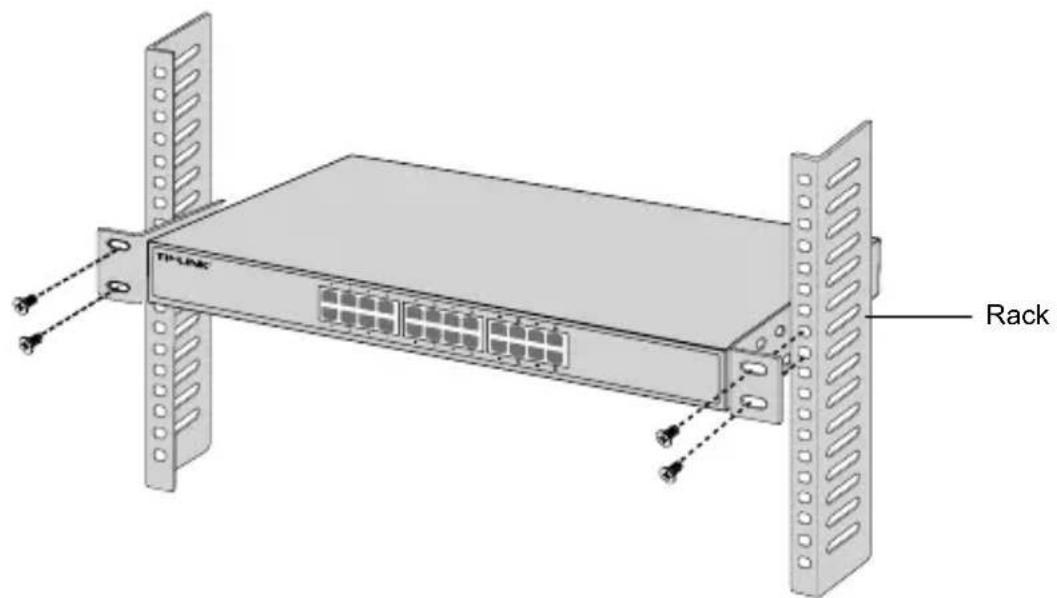

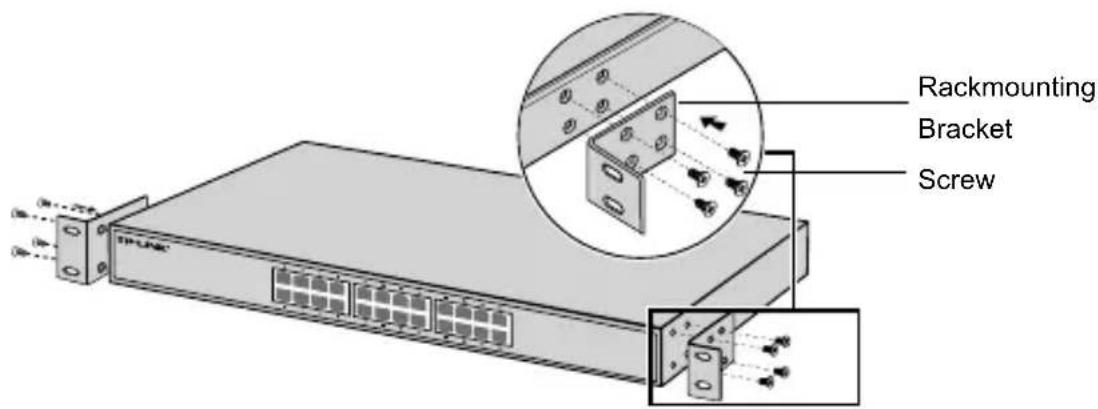

2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws.

1. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack.

Connection

- Ethernet Port

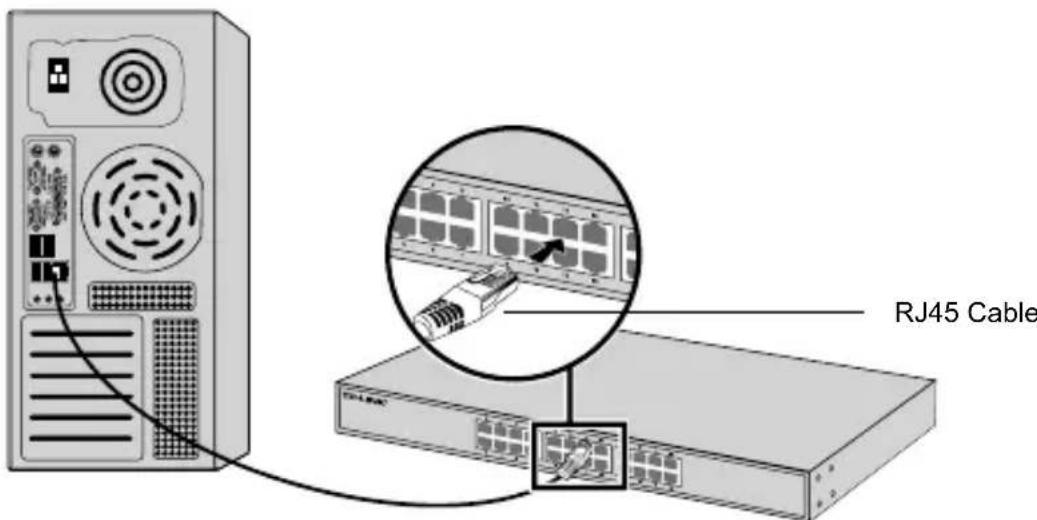

Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shown.

- Power On

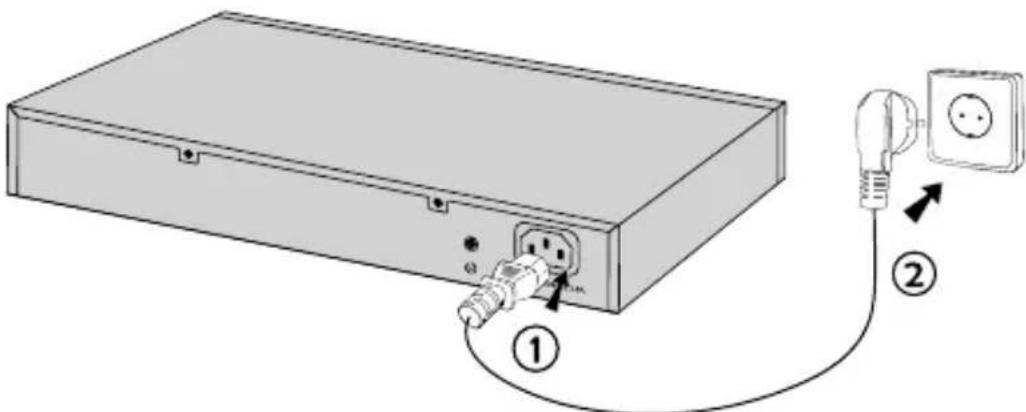

Plug the female connector of the provided power cord into the power socket of the device, and the male connector into a power outlet.

Instalación

- Desktop-installation

Foratt installeraenhetenpàdatorn,folj stegen nedan:

• When a product has a power on/off button, the power on/off button is one way to turn-off the product. For products without the on/off button, the only way to completely turn-off the product is to disconnect the product or the power adapter from the power source. The disconnected device shall remain readily operable.
• Do not open this product or attempt to service it; it may expose you to dangerous high voltage or other risks. Opening a sealed component or sealed product/s will void the warranty. For product servicing, please contact us.
• Do not operate this product near water.

TP-LINK Limited Product Warranty

For TP-LINK Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

• TP-LINK warrants the TP-LINK branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-LINK's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.
