Product Type	Managed network switch (Administrable switch)
Model	JetStream Rackmount TLSF1048
Brand	TP-Link
Number of Ethernet Ports	48 RJ45 10/100/1000 Mbps ports
SFP Slots	4 SFP slots (gigabit)
Console Port	1 RJ45 console port (CLI access)
Power Supply	Mains 100-240 V AC, 50/60 Hz
Mounting	Desktop (rubber feet) or 19-inch rack (brackets included)
Dimensions (W x D x H)	440 x 220 x 44 mm (1U)
Weight	Approximately 3.5 kg
Configuration Methods	Web interface (HTTP), CLI (console), centralized controller, dedicated utility
Default IP Address	192.168.0.1
Default Credentials	Username: admin, Password: admin
Safety	Keep away from water, fire, humidity; do not disassemble; easily accessible power outlet
Maintenance and Cleaning	Clean with a dry cloth; do not use liquid or abrasive products
Spare Parts and Repairability	Not user-serviceable; contact TP-Link support for any repairs
Warranty	Limited manufacturer warranty (see packaging or TP-Link website)
General Information	Compliant with CE directives (2014/30/EU, 2014/35/EU, 2011/65/EU)

Frequently Asked Questions - JetStream Rackmount TLSF1048 TP-LINK

How to install the switch on a desktop?

Place the switch on a flat, stable surface. Remove the protective covers from the adhesive of the supplied rubber feet, flip the switch over and attach the feet to the four corners of the device.

How to mount the switch in a rack?

Verify the rack's grounding and stability. Attach the mounting brackets to each side of the switch using the provided screws, then secure the switch to the rack with appropriate bolts (not included).

What is the default IP address of the switch?

The default IP address is 192.168.0.1. To access it, configure your computer with an IP address in the same subnet (e.g., 192.168.0.x) and a subnet mask of 255.255.255.0.

What are the default credentials to access the web interface?

The default username and password are admin (lowercase). Enter them in the User Name and Password fields after opening http://192.168.0.1 in a browser.

How to configure the switch via the web interface?

Connect your computer to the switch. Open a browser and enter the switch's IP address (default 192.168.0.1). Log in with admin/admin, then you can configure settings from the administration interface.

Can I use the switch with SFP modules?

Yes, the switch has SFP slots for connecting SFP modules (e.g., fiber optic). Simply insert the module into the slot until it clicks into place.

How to reset the switch to factory settings?

The manual does not specify a reset button. Generally, you can do it via the web interface (Reset option) or via CLI. If the switch is locked, contact TP-Link support.

What should I do if I cannot access the web interface?

Verify that your computer is on the same subnet (IP address in 192.168.0.x). Ensure the switch is powered on and the Ethernet cable is properly connected. Try temporarily disabling the firewall.

How to ensure the switch's security?

Place the switch away from water, fire, and humidity. Do not attempt to disassemble it. Use an easily accessible power outlet. Follow the safety instructions provided in the manual.

Is the switch compatible with all racks?

The switch is designed for standard 19-inch rack mounting. Ensure the rack is stable and properly grounded. Use the provided brackets and appropriate bolts (not included).

USER MANUAL JetStream Rackmount TLSF1048 TP-LINK

Desktop Installation

To install the device on the desktop, please follow the steps below:

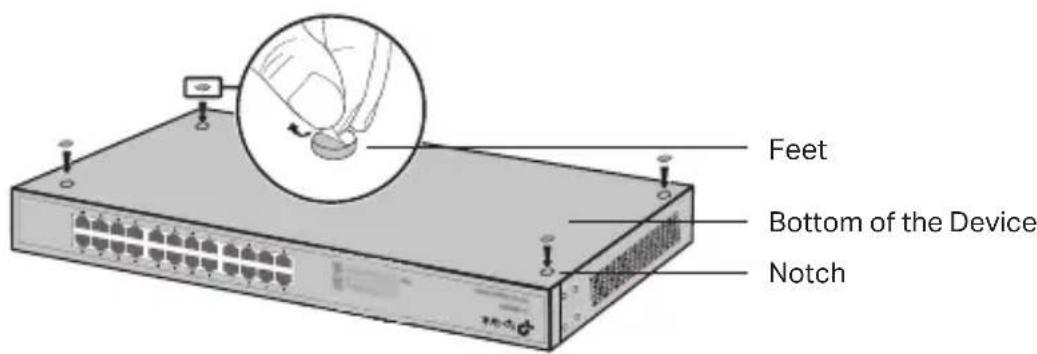

1. Set the device on a flat surface strong enough to support the entire weight of the device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.
3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device.

- Rack Installation

To install the device in a rack, follow the instructions described below:

1. Check the grounding and stability of the rack.

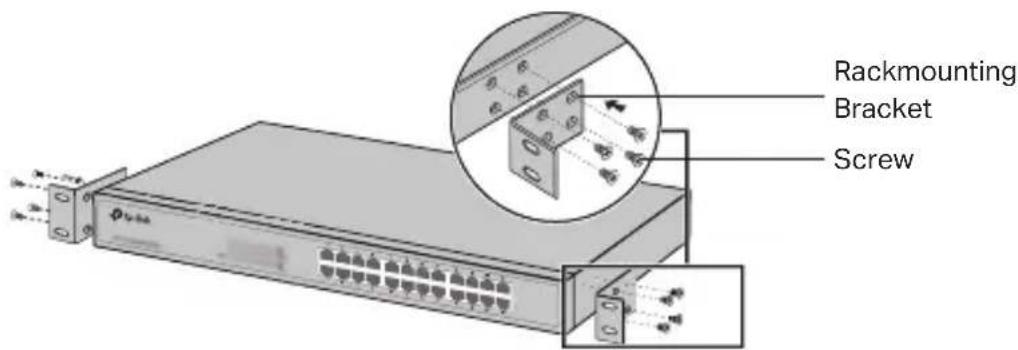

2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws.

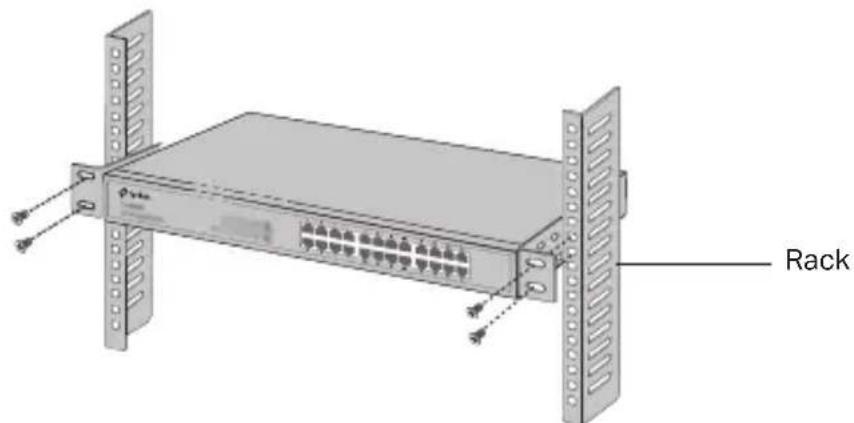

1. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack.

Connection

- Ethernet Port

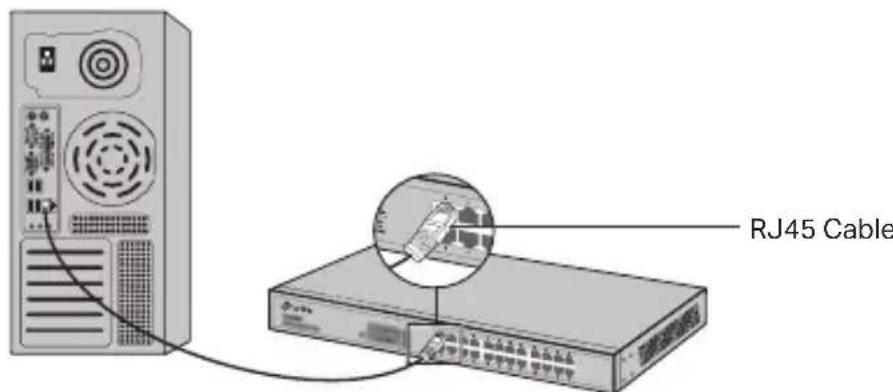

Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shown.

SFP Port

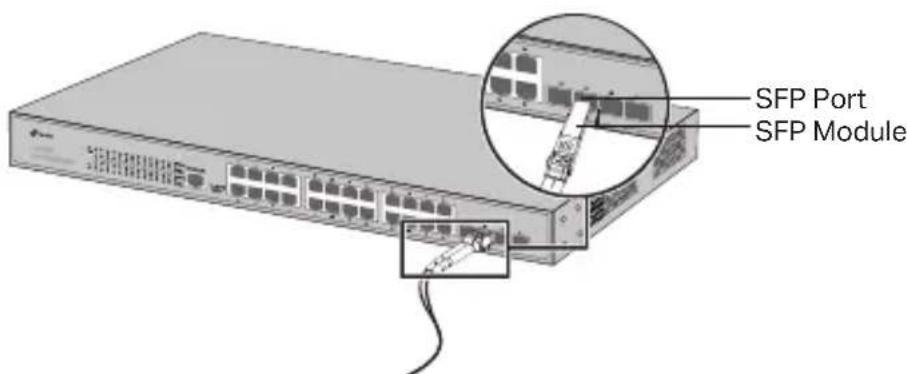

For switches with SFP ports, you can connect a SFP port to a SFP module. If an SFP transceiver is installed in a slot and has a valid link on the port, the associated RJ45 port will be disabled and cannot be used.

- Console Port

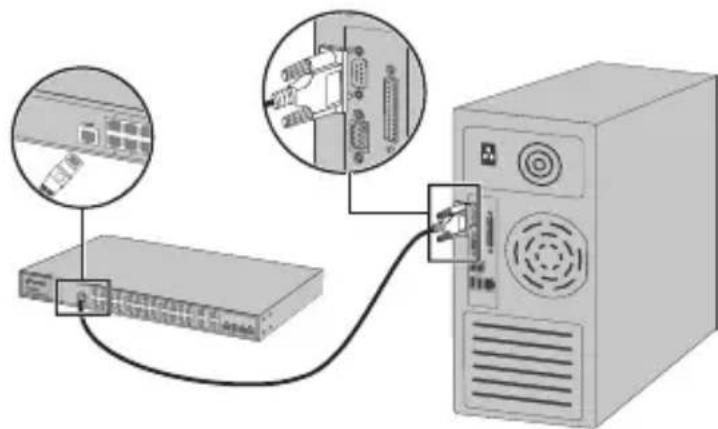

For switches with the console port, you can connect the console port with your computer by the console cable. Then you can load the CLI to manage the switch.

- Power On

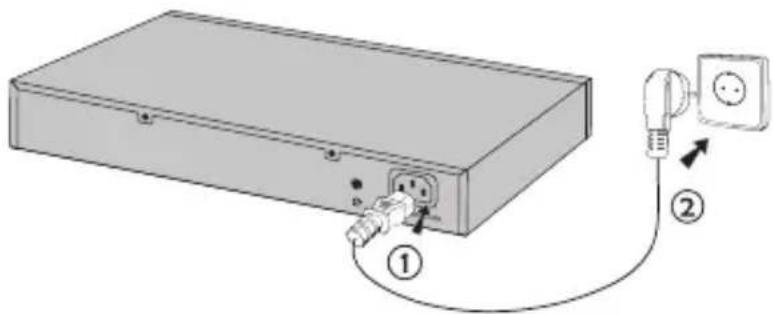

Plug the female connector of the provided power cord into the power socket of the device, and the male connector into a power outlet.

Configuration

(Unavailable for Unmanaged Switches)

- Configure the Switch Using the GUI

1. Set the IP address of your PC in the same subnet of the switch. The IP address is 192.168.0.x ("x" is any number from 2 to 254); the Subnet Mask is 255.255.255.0.

2. Open a web browser and type the default management address http://192.168.0.1 in the address field of the browser, then press the Enter key.

3. Enter admin for the default User Name and Password, both in lower case letters. Then click the Login button or press the Enter key.

4. After a successful login, you can configure the switch on the management page.

- Configure the Switch Using the Controller

(Only for Smart Switches, Easy Managed Switches and Managed Switches)

You can use the Controller to centrally manage the entire network of the switches. For the detailed information as to how to do this, please refer to the product specifications and the Controller User Guide.

- Configure the Switch Using the CLI

(Only for Smart Switches and Managed Switches)

You can log on to the switch and access the CLI to manage the switch. For the detailed instructions as to how to do this, please refer to the CLI Guide.

- Configure the Switch Using the Utility

(Only for Easy Smart Switches)

You can use the Easy Smart Configuration Utility to centrally manage the entire network of the Easy Smart Switches. For the detailed instructions as to how to do this, please refer to the Utility User Guide.

Instalación

(Móvo yα Smart Switches, Easy Managed Switches και Managed Switches)

(Móvo yα Smart Switches και Managed Switches)

(Solo per Switch Smart, Switch Easy Managed e Switch Managed)

(Solo per Switch Smart e Managed)

(Apenas para Smart Switches, Easy Managed Switches e Managed Switches)

Desktop installation

(Endast for Easy Smart Switches)

(Kun for Smart Switches, Easy Managed Switches og Managed Switches)

(Kun for Easy Smart-switches)

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• The plug on the power supply cord is used as the disconnect device, the socket-outlet shall be easily accessible.
• Place the device with its bottom surface downward.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.
