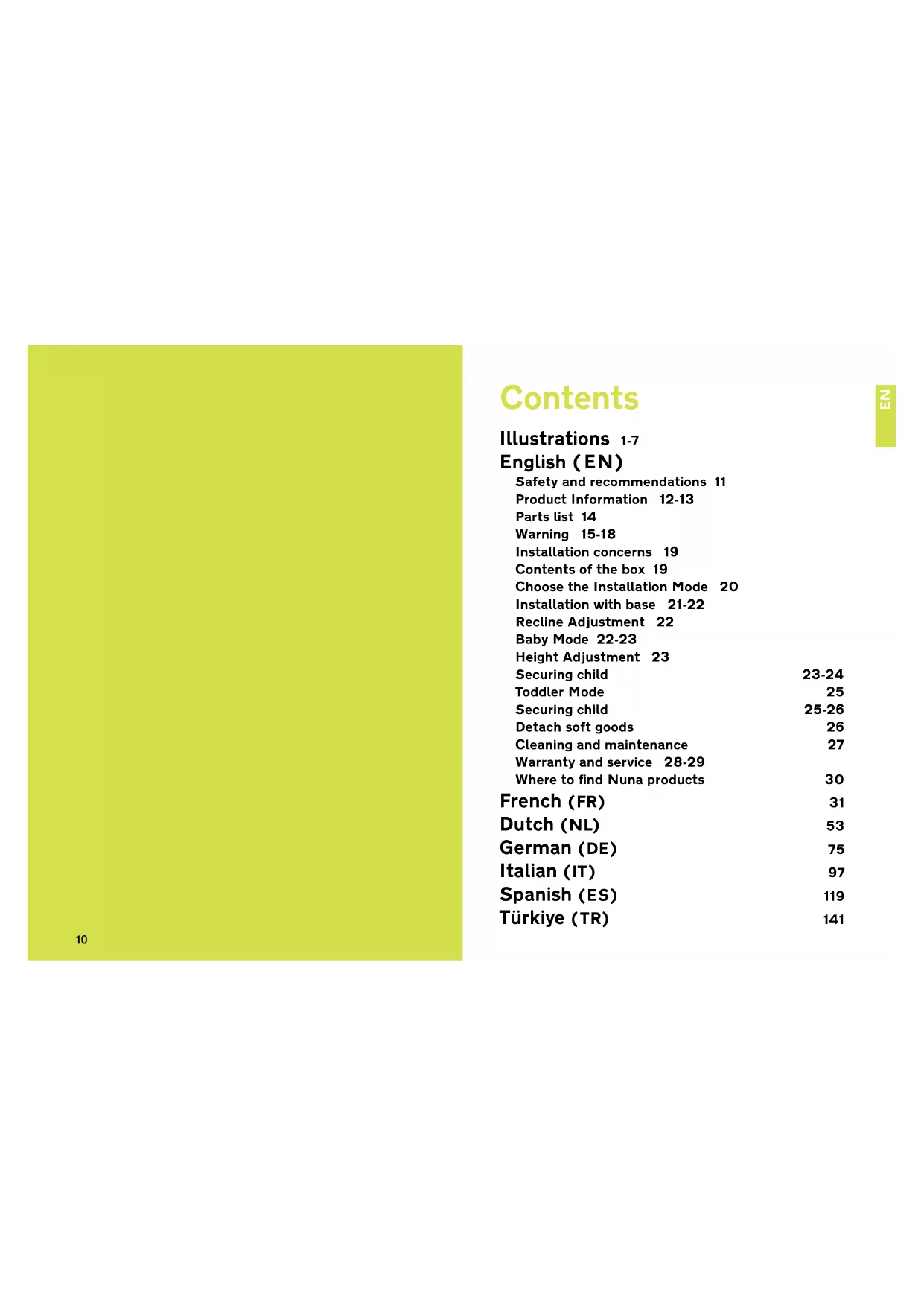

Contents

Illustrations 1-7

English (EN)

Safety and recommendations 11

Product Information 12-13

Parts list 14

Warning 15-18

Installation concerns 19

Contents of the box 19

Choose the Installation Mode 20

Installation with base 21-22

Recline Adjustment 22

Baby Mode 22-23

Height Adjustment 23

Securing child 23-24

Toddler Mode 25

Securing child 25-26

Detach soft goods 26

Cleaning and maintenance 27

Warranty and service 28-29

Where to find Nuna products 30

French (FR) 31

Dutch (NL) 53

German (DE) 75

Italian (IT) 97

Spanish (ES) 119

Türkiye (TR) 141

Safety and Recommendations

Please take note of the following before using the REBL™ i-size child restraint.

To use this child restraint with the i-Size ISOFIX connections according to the ECE R129/00 Regulation, your child must meet the following requirements.

Rearward Facing: Child height 40cm-105cm/ Child weight ≤ 19.5kg

Forward Facing: Child height 80cm-105cm/ Child weight ≤ 19.5kg

If you have any questions or comments regarding the Rebl child restraint, we will be glad to hear them through our website - nuna.eu

Please keep the instruction manual in the storage compartment at the bottom of the child restraint. (35)

IMPORTANT! RETAIN FOR FUTURE REFERENCE. READ CAREFULLY.

Read these instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

Product Information

ECE.R129/00 i-Size UNIVERSAL ISOFIX

Rearward facing 40cm-105cm ≤ 19.5kg

Forward facing 80cm-15cm ≤ 19.5kg

1 According to the ECE R129/00 Regulation, the child restraint with base is a Universal ISOFIX Class B1, D Child Restraint and should be fitted using the ISOFIX connections.
2 This is an "i-Size" Child Restraint System. It is approved to Regulation ECE R129/00, for use in, "i-Size compatible" vehicle seating positions as indicated by vehicle manufacturers in the vehicle users' manual.
3 If in doubt, please consult the child restraint manufacturer or the retailer.

For Installation with i-Size ISOFIX System

This is an i-Size ISOFIX Child Restraint SYSTEM. It is approved to ECE R129/00 series of amendments, not all vehicle manufacture's handbooks list i-Size compatibility yet. This child restraint and base is also approved for use in ISOFIX compatible vehicles. Please refer to the vehicle manufacturer's website or consult your dealer.

It will fit vehicles with positions approved as i-Size ISOFIX positions (as detailed in the vehicle handbook), depending on the category of the child restraint and of the fixture. If in doubt, consult either the child restraint manufacturer or vehicle manufacturer.

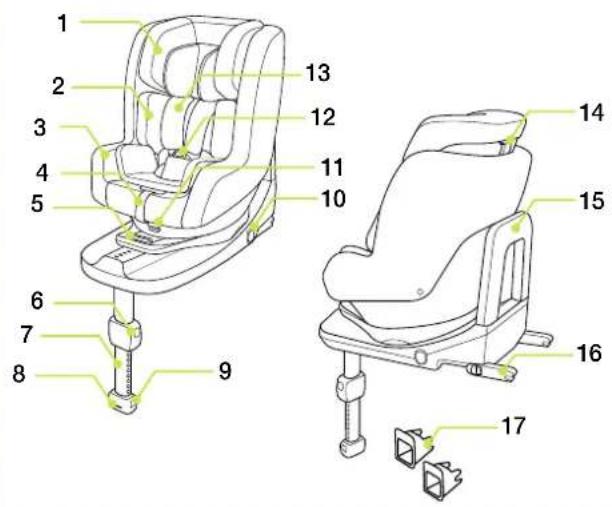

Parts List

1 Head Support
2 Infant Insert
3 Seat Pad
4 Adjustment Webbing
5 Recline Adjustment Button
6 Load Leg Adjustment Button
7 Load Leg
8 Load Leg Indicator

9 Load Leg Adjustment

Button

10 ISOFIX Releasing Button
11 Rotating Button
12 Buckle
13 Shoulder Strap
14 Head Support

Adjustment Lever

15 Rebound Bar
16 ISOFIX Connector
17 ISOFIX Guides

Warning

NO child restraint can guarantee full protection from injury in an accident. However, proper use of this child restraint will reduce the risk of serious injury or death to your child.
To use this child restraint with the ISOFIX connections according to the ECE R129/00 Regulation, your child must meet the following requirements.

Rearward Facing: Child height 40cm-105cm/ Child weight ≤ 19.5kg

Forward Facing: Child height 80cm-105cm/ Child weight ≤ 19.5kg

Any straps of child restraint should be tightened and not twisted.
DO NOT use forward facing before the child's age exceeds 15 months. Keep your child rearward facing as long as possible as rearward facing is the safest position.
DO NOT install this child restraint without following the instructions in this manual or you may put your child at serious risk of injury or death.
NEVER leave your child unattended with this child restraint.
DO NOT make any modification to this child restraint or use it along with component parts from other manufacturers.
DO NOT use this child restraint if it has damaged or missing parts.

DO NOT have your child in large/oversized clothes because this may prevent your child from being properly and securely fastened by the shoulder harness straps and the crotch strap between the legs.
DO NOT leave this child restraint or other items unbelted or unsecured in your vehicle because an unsecured child restraint can be thrown around and may injure occupants in a sharp turn, sudden stop, or collision.
DO NOT place rear-facing child restraint on frontal seat with air bag. Death or serious injury may occur. Please reference vehicle owner's manual for more information.
NEVER use a second-hand child restraint or an child restraint whose history you do not know because they may have structural damage that endangers your child's safety.
NEVER use ropes or any other substitutes to secure child restraint in vehicle or to secure child into child restraint.
DO NOT use this child restraint without the soft goods.
The soft goods should not be replaced with any besides the ones recommended by the manufacturer. The soft goods constitute an integral part of the child restraint performance.
DO NOT put anything other than the recommended inner cushions in this child restraint.

Be sure that the child restraint is installed in such a way that no part of it interferes with movable seats or in the operation of vehicle doors.
DO NOT continue to use this child restraint after it has suffered any type of crash, even a minor one. Replace immediately as there may be invisible, structural damage from the crash.
Remove this child restraint from the vehicle seat when it is not in regular use.
Consult the distributor for issues concerning maintenance, repair and part replacement.
To avoid the risk of falling out, always secure the child using the safety harness when the child is placed in child restraint, even when the child restraint is not in the vehicle.
Before carrying the child restraint by hand, ensure that the child is fastened with the safety harness, and that the handle is correctly locked in a vertical position.
To avoid serious injury or death, NEVER place child restraint on elevated surface seat with child in it.
The parts of this child restraint should not be lubricated in any way.
Always secure child in child restraint, even on short trips, as this is when most accidents occur.
DO NOT use this child restraint for more than 5 years after the purchase date as parts may degrade over time, or from exposure to sunlight, and may not perform adequately in a crash.

Please keep this child restraint away from sunlight, otherwise it may be too hot for child's skin. Always touch the child restraint before placing child in it.
Frequently check the ISOFIX guides for dirt and clean them if necessary. Reliability can be effected by ingress of dirt, dust, food particles etc.
DO NOT place any objects in the load leg area in front of your child restraint.
Correct Installation is only permitted by use of the ISOFIX connectors.
After your child is placed in this child restraint, the child harness must be used correctly, and ensure that any lap strap is worn low down, so that the pelvis is firmly engaged.
DO NOT use any load bearing contact points other than those described in the instructions and marked on the child restraint.
Must use the rebound bar.

Installation Concerns

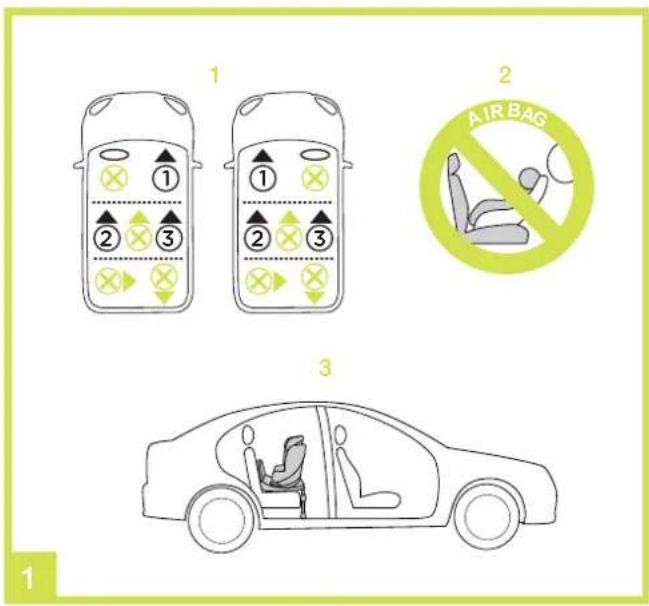

DO NOT install this child restraint on vehicle seats that face sideways (1) or rearward (1) with respect to the moving direction of the vehicle.
DO NOT place rear-facing child restraint on front seat with air bag. Death or serious injury may occur. (1) Please reference vehicle owner's manual for more information.
It is recommended to install this child restraint on the rear vehicle seat. (1)
This child restraint is suitable for vehicle seats with i-Size ISOFIX anchor points. (2)
DO NOT install this child restraint on vehicle seats unstable during installation.

Contents of the Box

Child Restraint

Tools Needed: None

Choose the Installation Mode

	Installation Mode	Installation	Recline Position
Baby mode	Child height 40cm-105cm/ Child weight≤19.5kg		1-7
Toddler mode	Child height 80cm-105cm/ Child weight≤19.5kg		1-7

Installation with Base

Installation with ISOFIX System

1 Unfold the load leg from the storage compartment. (3)
2 Fit the ISOFIX guides into the ISOFIX anchor points. (4) The ISOFIX guides can protect the surface of the vehicle seat from being torn. They will also guide the ISOFIX connectors.
3 Press the ISOFIX release button on either side of the base, then pull out the ISOFIX connectors. (5)

There are 9 adjustable positions for ISOFIX. Press the ISOFIX release button and push the base back against the vehicle seat until tight.

4 Line up the ISOFIX connectors with the ISOFIX guides, and then click both ISOFIX connectors into the ISOFIX anchor points. (6)

Make sure that both ISOFIX connectors are securely attached to their ISOFIX anchor points. There should be two audible clicks and the colors of the indicators on the both ISOFIX connectors should be completely green. (6) -1
Check to make sure the child restraint is securely installed by pulling on the both ISOFIX connectors.

5 After placing the child restraint on the vehicle seat, extend the load leg to floor. (7), The load leg indicator will show green when installed correctly, red means it is installed incorrectly. (7)

The load leg has 24 positions. When the load leg indicator shows red this means the load leg is in the wrong position.
Make sure the load leg is secure by pressing down on the front of the child restraint.
To shorten the load leg, squeeze the load leg release button and pull the load leg upwards.

6 To remove the child restraint, pull the child restraint backwards while squeezing the buttons on the ISOFIX connectors. (8)
7 Press the ISOFIX release button to store the ISOFIX. (9) The completely assembled child restraint is shown as (10)

Recline Adjustment

Squeeze the recline adjustment button (11) -1, to adjust the child restraint to the proper position. The recline angles are shown as (11).
Please recheck the load leg position after reclining.

There are 7 recline angles for baby mode and 7 positions for toddler mode.

Baby Mode (Rearward Facing Mode)

Rearward Facing Child height 40cm-105cm/Child weight ≤ 19.5kg Recline position Position 1-7

1 Press the rotating button to rotate the seat facing the rear of the vehicle. (12)(13)
Please recline the seat to be in the 7^th position for ease of rotation.

2 Rearward facing mode assembled as (13)

The ISOFIX connectors must be attached and locked onto the ISOFIX anchor points. (13)-1
The load leg must be installed correctly with green indicator. (13)-2

Height Adjustment

for Head Support and Shoulder Harnesses

Check that Shoulder Harness Straps are set at the proper height.

Shoulder Harness Straps must be at a height nearest to your child's shoulders (14), but not above the shoulder line. (15)
If the Shoulder Harness Straps are not at the proper height, the child might be ejected the child restraint if there is a crash.

Squeeze the head support adjustment lever (16), while pulling up or down on the head support until it snaps into one of the 7 positions. The head support positions are shown as (17).

Securing Child

After the child is placed into the seat, check whether the Shoulder Harness Straps are at proper height.

1 While pressing the adjustment button located at the front of the child restraint, pull the two Shoulder Harness Straps of the child restraint. (18)

2 Unlock the buckle of the harnesses by pressing the red button. (19)
3 Fix the buckles on the both sides of seat to make placing the baby more convenient. (20)

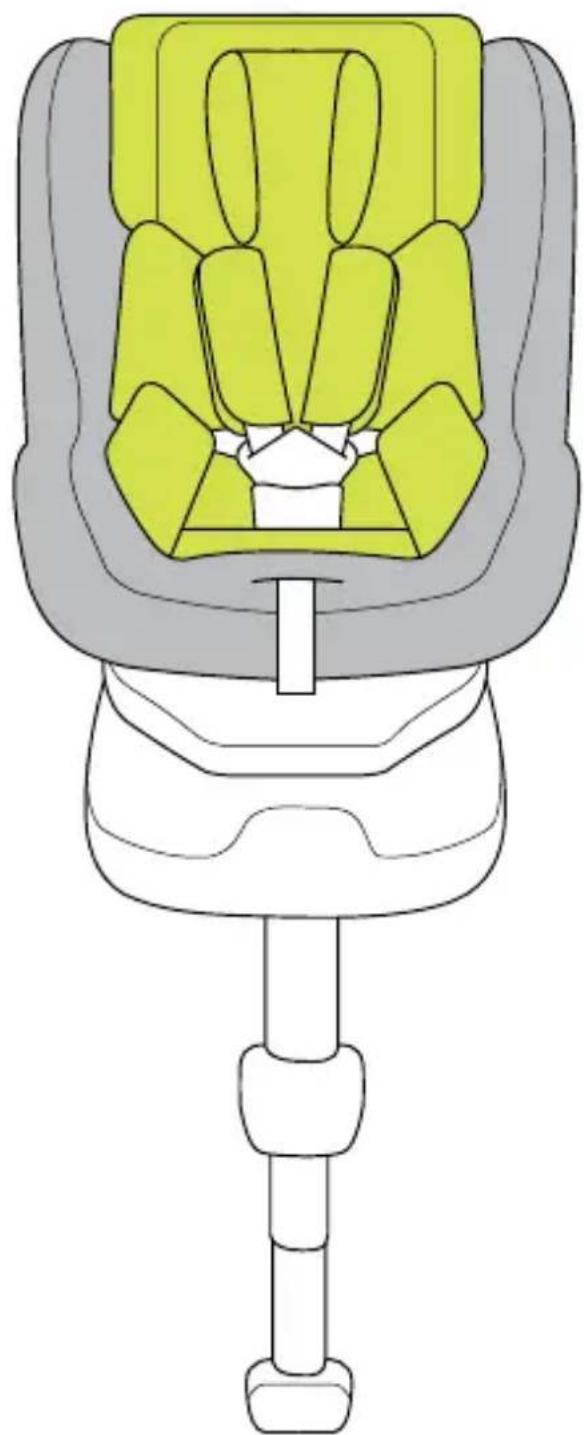

4 Use Infant Insert

Infant insert is for children's protection. (21)

We recommend using the full infant insert while the baby is under 60~cm or until they outgrow the insert. The infant insert increases side impact protection.

Detach the snaps on the head support to remove the head portion of the insert.

Remove the head support portion of the infant insert when the child's head no longer fits comfortably.

Remove the body portion of the infant insert when the infant's shoulders no longer fit comfortably.

Remove the infant insert cushion by detaching the snaps to allow more space when the infant does not fit comfortably.

The cushion can be used separately without being attached to the insert to bolster the infant's back for more comfort.

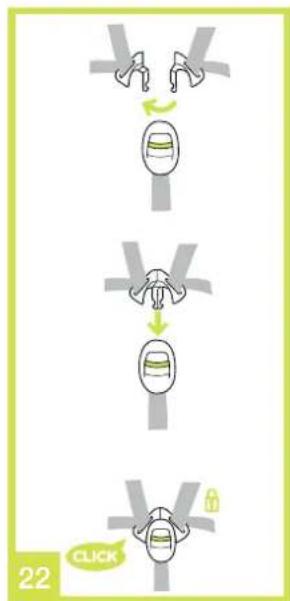

5 Place the child into the child restraint and lock the buckle. Please refer to. (22)
6 Tighten the shoulder harness straps by pulling the adjustment webbing. (23)

Make sure the space between the child and the Shoulder Harness Straps is about the thickness of one hand.

Toddler Mode

(Forward Facing Mode)

Forward Facing Child height 80cm-105cm/Child weight ≤ 19.5kg

Recline position Position 1-7

1 Press the rotating button to rotate the seat facing the vehicle's moving direction. (24)(25)

Please recline the seat to be in the 7^th position for ease of rotation.

2 Forward facing mode assembled as (25)

The ISOFIX connectors must be attached and locked onto the ISOFIX anchor points. (25)-1
The load leg must be installed correctly with green indicator. (25)-2

Securing Child

After the child is placed into the seat, check whether the Shoulder Harness Straps are at the proper height. (26)

1 While pressing the adjustment button located at the front of the child restraint, pull the two Shoulder Harness Straps of the child restraint. (18)
2 Unlock the buckle of the harnesses by pressing the red button. (19)

3 When installing the child restraint in the toddler mode, do not use the infant insert.
4 Fix the buckles on the both sides of seat to make placing the baby more convenient. (20)
5 Place the child into the child restraint and lock the buckle. Please refer to. (22)
6 Tighten the shoulder harness straps by pulling the adjustment webbing. (27)

Make sure the space between the child and the Shoulder Harness Straps is about the thickness of one hand.

Detach Soft Goods

1 Open the buckle, then remove the infant insert.
2 Open the snaps. (28)
3 Push the crotch strap through the crotch strap opening. (29)
4 Move the shoulder belt behind the head support. (30) (31)
5 Detach the hook and loop fasteners to remove the shoulder belt cover. (32)
6 Unfasten the elastic on the bottom of headrest to remove the head support soft goods. (33)
7 Remove the soft goods. (34)

To assemble winter and summer soft goods according to reversed steps above.

Cleaning and Maintenance

After removing the wedge from the insert, please store it somewhere that the child cannot access it.
Please wash the bottom seat pad and the top seat cover with cold water under 30^ .
Do not iron the soft goods.
Do not bleach or dry clean the soft goods.
Do not use undiluted detergents, gasoline or other organic solvents to wash the child restraint. It may cause damage to the product.
Use only mild detergent, water and a soft cloth to clean the child restraint shell, handle and harness straps.
Do not twist the soft goods to dry with great force. It may leave the soft goods with wrinkles.
Please hang dry the soft goods in the shade.
Please remove the child restraint from the vehicle seat if not in use for a long period of time. Put the child restraint in a cool, dry place and somewhere your child can not access it.

Warranty and Service

The Nuna child restraint is covered by a one-year warranty. If this product shows a defect during the warranty period, please contact your retailer. If the retailer is unable to help you, they will make contact with the local Nuna distributor.

Please be aware that the model number and serial number located on the bottom of the child restraint of the product will be required in the event of a warranty claim.

To register your product, please go to our website at nuna.eu

Terms of warranty

The warranty takes effect at the date of purchase of the product and is valid for one year. The warranty provides you with a right of repair but not a product exchange or return. The warranty will not be extended even if some repairs have been made. Nuna has the right to improve the design of the product without any obligation to update the products manufactured previously.

The warranty will not apply in the following circumstances:

• If you can not provide the sales receipt or proof of purchase of the product.
• If the defect results from normal wear.
• If the defect results from an accident.
• If the defect results from a failure to follow the instructions of assembly, use, care, and maintenance provided in the instruction manual.
• If the defect results from overloading (maximum weight = 19.5 kg).
• If repairs have been carried out by a third party.
• If the defect results from the use of accessories others than Nuna.

Where to Find Nuna Products?

If you are looking for Nuna retailers in your area, please consult our website: nuna.eu

Contact

We always look forward to improving our products and developing new ideas, so please feel free to contact us to submit any comments or questions regarding the Nuna products.

nuna.eu

Nuna International BV.

De Beeke 8,5469 DW,ERP

The Netherlands

Thanks for Choosing Nuna!

Avertissements 37-40

Position inclinee Position 1-7

Rearward facing 40cm-105cm ≤ 19.5ka

Forward facing 80cm-105cm

<19.5kg

000005

De Beeke 8,5469 DW,ERP

Nederland

Rearward facing 40cm-105cm ≤ 19.5kg

Forward facing 80cm-105cm

Rearward facing 40cm-105cm ≤ 19.5kg

Forward facing 80cm-105cm ≤ 19.5kg

De Beeke 8,5469 DW,ERP

Paesi Bassi

Rearward facing 40cm-105cm ≤ 19.5kg

Forward facing 80cm-105cm ≤ 19.5kg

De Beeke 8,5469 DW,ERP

Paises Bajos

De Beeke 8,5469 DW,ERP

Hollanda
