USER MANUAL X2 Batavus

OWNER'S MANUAL P. 2-8

BETRIEBSANLEITUNG S.	9-16
MODE D'EMPLOI P. 1	7-24
HANDLEIDING P. 2	5-31
MANUALE D'USO P. 3	2-39
MANUAL DEL USUARIO P. 4	0-47
BRUKSANVISNING S. 4	8-54
KÄYTTÖOHJE S. 55-61

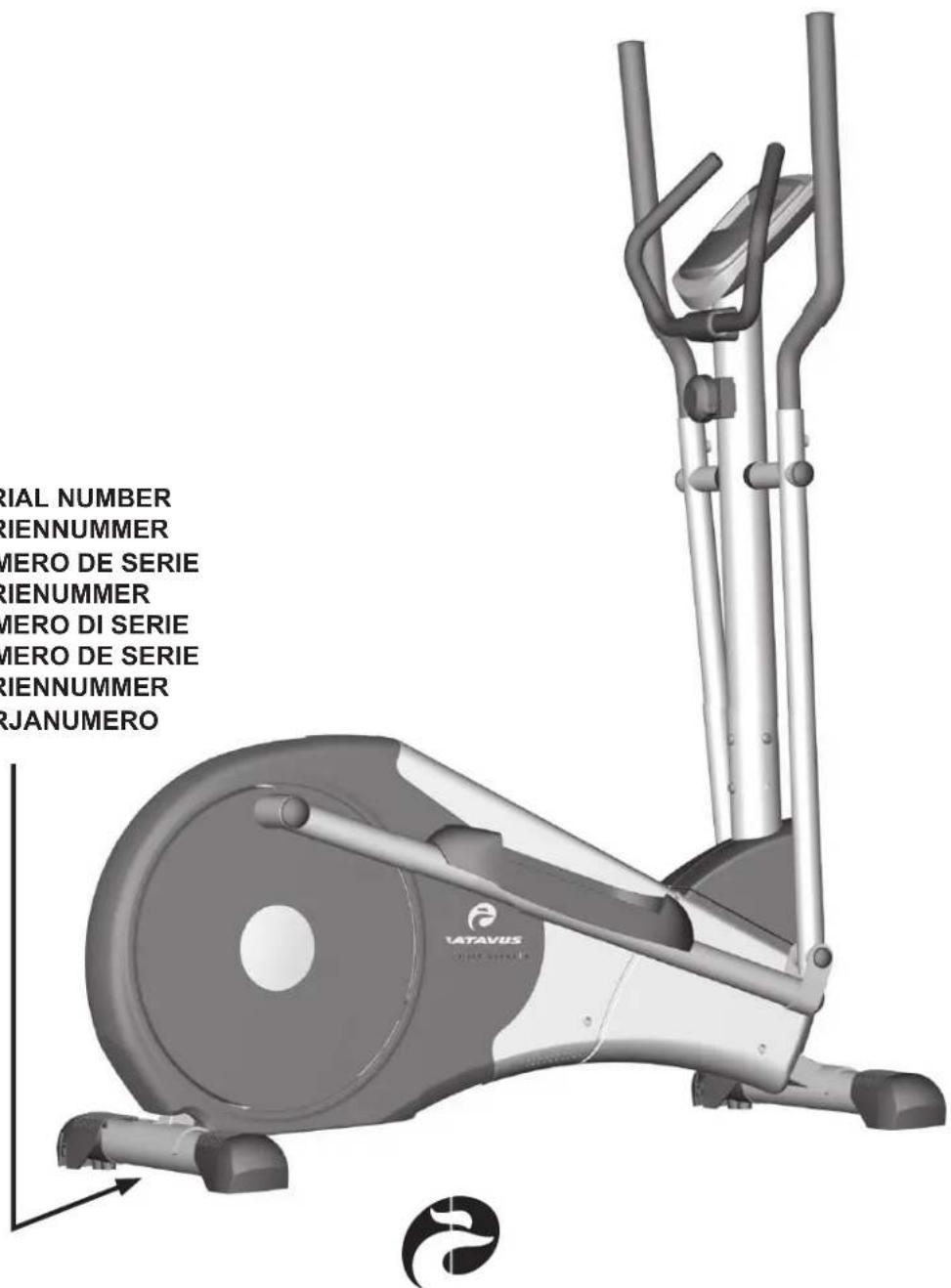

SERIAL NUMBER

SERIENNUMMER

NUMERO DE SERIE

SERIENUMMER

NUMERO DI SERIE

NÚMERO DE SERIE

SERIENNUMMER

SARJANUMERO

RIAL NUMBER RIENNUMMER MERO DE SERIE RIENUMMER MERO DI SERIE MERO DE SERIE RIENUMMER RJANUMERO

BATAVUS

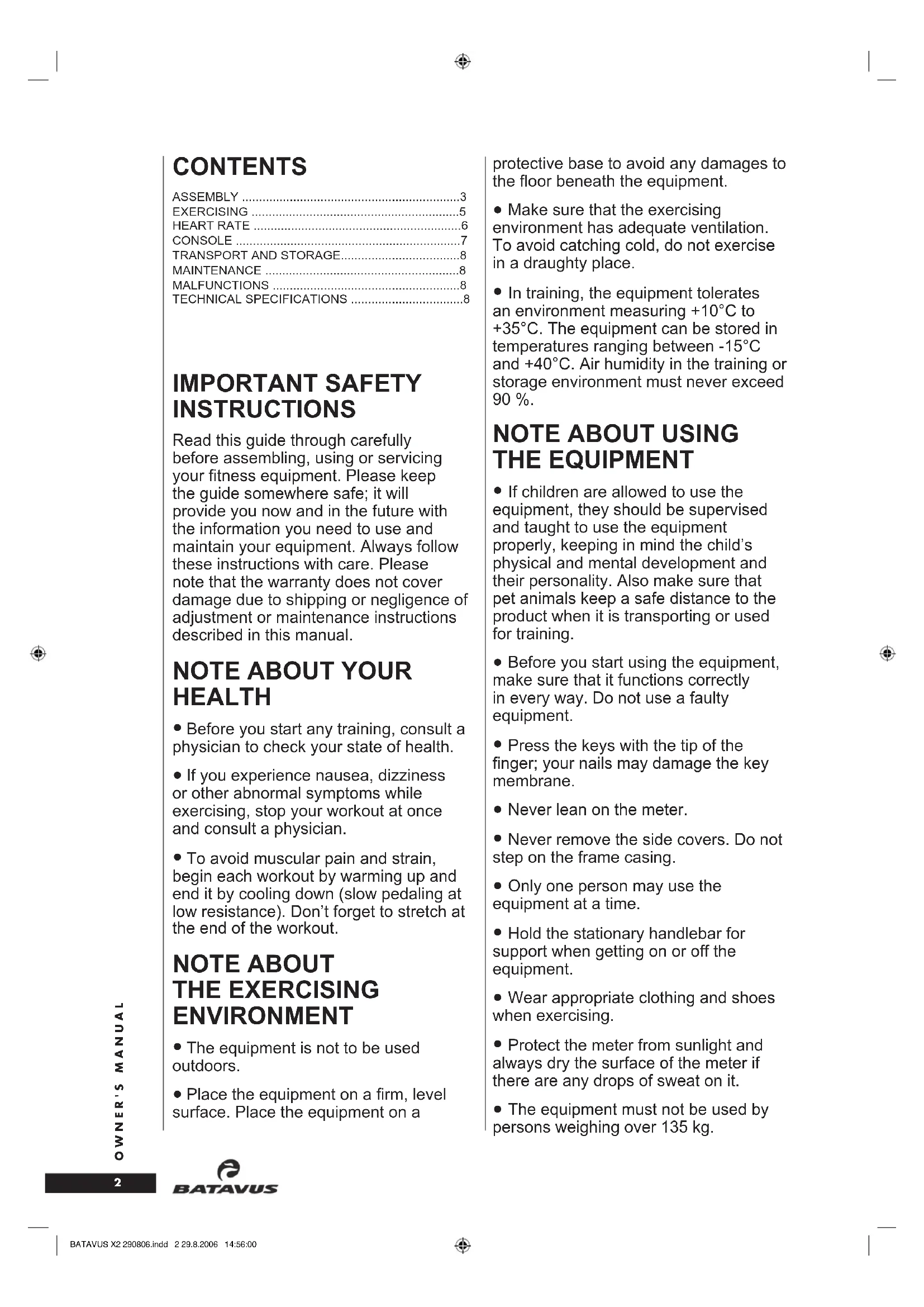

CONTENTS

ASSEMBLY 3

EXERCISING ....5

HEART RATE 6

CONSOLE 7

TRANSPORT AND STORAGE....8

MAINTENANCE 8

MALFUNCTIONS 8

TECHNICAL SPECIFICATIONS 8

IMPORTANT SAFETY INSTRUCTIONS

Read this guide through carefully before assembling, using or servicing your fitness equipment. Please keep the guide somewhere safe; it will provide you now and in the future with the information you need to use and maintain your equipment. Always follow these instructions with care. Please note that the warranty does not cover damage due to shipping or negligence of adjustment or maintenance instructions described in this manual.

NOTE ABOUT YOUR HEALTH

• Before you start any training, consult a physician to check your state of health.
• If you experience nausea, dizziness or other abnormal symptoms while exercising, stop your workout at once and consult a physician.
• To avoid muscular pain and strain, begin each workout by warming up and end it by cooling down (slow pedaling at low resistance). Don't forget to stretch at the end of the workout.

NOTE ABOUT THE EXERCISING ENVIRONMENT

• The equipment is not to be used outdoors.
• Place the equipment on a firm, level surface. Place the equipment on a

protective base to avoid any damages to the floor beneath the equipment.

• Make sure that the exercising environment has adequate ventilation. To avoid catching cold, do not exercise in a draughty place.
• In training, the equipment tolerates an environment measuring +10°C to +35°C. The equipment can be stored in temperatures ranging between -15°C and +40°C. Air humidity in the training or storage environment must never exceed 90%.

NOTE ABOUT USING THE EQUIPMENT

• If children are allowed to use the equipment, they should be supervised and taught to use the equipment properly, keeping in mind the child's physical and mental development and their personality. Also make sure that pet animals keep a safe distance to the product when it is transporting or used for training.
• Before you start using the equipment, make sure that it functions correctly in every way. Do not use a faulty equipment.
• Press the keys with the tip of the finger; your nails may damage the key membrane.
• Never lean on the meter.
• Never remove the side covers. Do not step on the frame casing.
• Only one person may use the equipment at a time.
• Hold the stationary handlebar for support when getting on or off the equipment.
• Wear appropriate clothing and shoes when exercising.
• Protect the meter from sunlight and always dry the surface of the meter if there are any drops of sweat on it.

• The equipment must not be used by persons weighing over 135 kg.

• The equipment has been designed for home use. The Batavus warranty applies only to faults and malfunctions in home use (24 months). Further information on warranty terms can be found in the warranty booklet included with the product.

• Do not attempt any servicing or adjustments other than those described in this guide. Everything else must be left to someone familiar with the maintenance of electromechanical equipments and authorised under the laws of the country in question to carry out maintenance and repair work.
• This product has a speed-dependent braking system.

SAVE THIS INSTRUCTION MANUAL

ASSEMBLY

Start by unpacking the equipment. Two people are needed for the assembly. Check that you have the following parts:

1. Frame
2. Front support
3. Rear support
4. Front frame tube
5. Handles (2)
6. Pedal cranks (2)
7. Footrests (2)
8. Meter
9. Stationary handlebar
10. Resistance adjustment knob
11. Assembly kit (contents marked with * in the spare part list): keep the assembly tools, as you may need them e.g. for adjusting the equipment

If necessary, please contact your dealer with the model, equipment serial no. and spare part no. of the missing part. You'll find a spare part list at the back of this guide. The packaging includes a silicate bag for absorbing moisture during storage and transportation. Please dispose of the bag once you have unpacked the equipment. The directions left, right, front and back are defined as seen from the exercising position. Allow at least 100 cm of clearance around the equipment. We also recommend opening the package and assembling the product on a protective base.

REAR AND FRONT SUPPORT

Simple line drawing of a mechanical assembly with no text or symbols

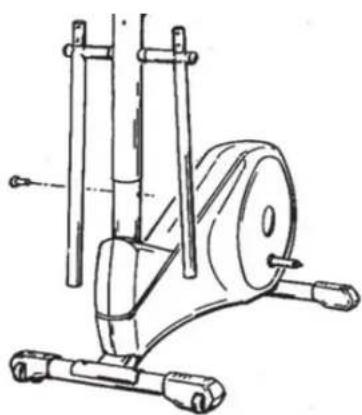

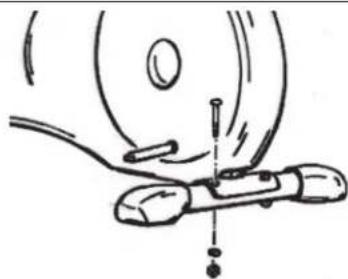

Attach the rear support to the frame with two bolts, washers and locking nuts.

Technical line drawing of a mechanical assembly with two flanged components and a central rod (no text or symbols)

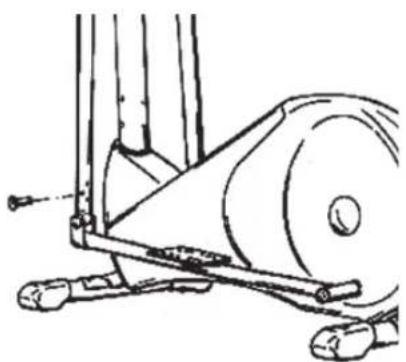

Attach the front support with transportation wheels to the frame with two bolts, washers and locking sleeves.

FRONT TUBE

Simple line drawing of a mechanical device with a cylindrical shaft and attached lever (no text or symbols)

Line drawing of a mechanical exercise machine with legs and wheels (no text or symbols)

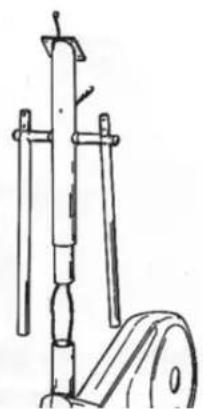

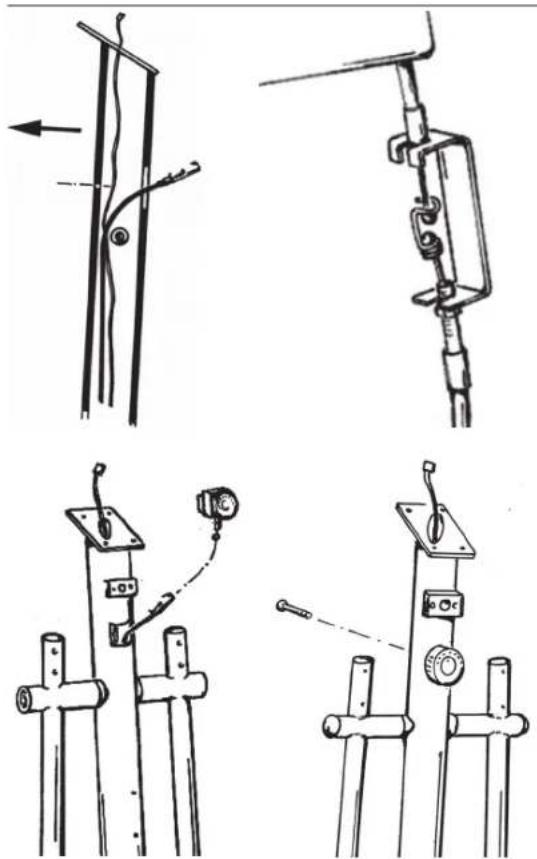

Thread the brake wire and the console cable into the front tube so that both go behind the lateral tube inside front tube. Lead the brake wire out of the opening for the resistance adjustment knob and the console wire from the upper end of the front tube. Push the front tube inside the frame tube: beware not to damage the console cable! Attach the front tube with six screws tight.

RESISTANCE ADJUSTMENT KNOB

Turn the resistance adjustment knob clockwise to the extreme position. Thread the flat cables of the adjustment knob into the front tube and pull them out through the top of the front tube. Place the resistance adjustment knob on its place and attach it to the front tube with a screw from the other side of the front tube.

PEDAL CRANKS

Line drawing of a stationary exercise machine with levers and wheels (no text or symbols)

Line drawing of a mechanical exercise setup with a wheel and lever (no text or symbols)

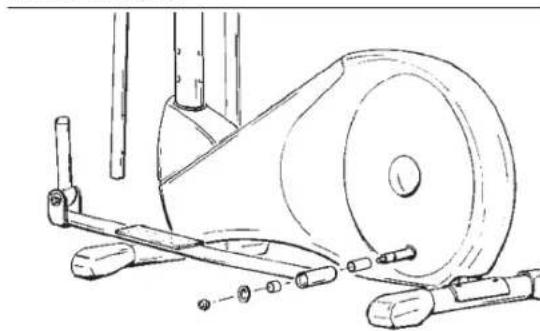

Place the long metal bushing on the left rear shaft, then the rear end of the left pedal crank. Next place the short metal bushing, washer and locking nut on the shaft. Tighten the locking nut only slightly. Push the plastic end cap on the nut. Repeat the procedure on the right side.

Push the front end of the left pedal crank inside the lower end of the left handle. Attach the crank to the handle with four screws fingertight. Repeat the procedure on the right side. Tighten the screws well and push the plastic end caps on the screws.

STATIONARY HANDLEBAR

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

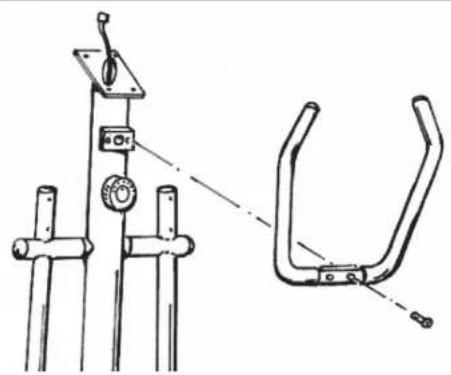

Thread the handgrip pulse cables inside the front tube and pull them out through the top end of the tube. Attach the stationary handlebar with two screws. NOTE! Beware not to damage the cables!

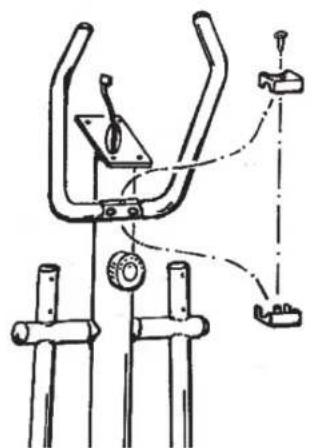

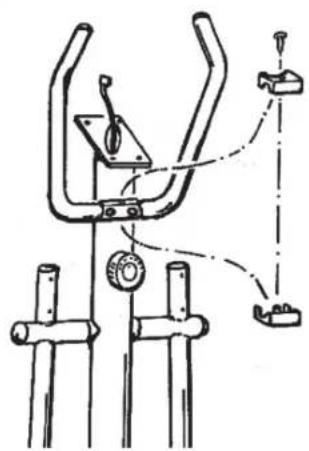

Place the cover parts over the handlebar attachment point and tighten with a screw.

HANDLES

Technical line drawing of a mechanical assembly with multiple pipes and connectors (no text or symbols)

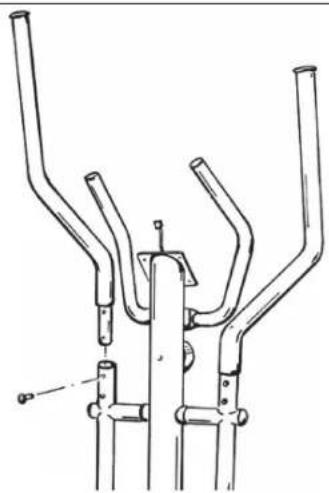

Place the handles on their places and tighten each with two screws. Push the plastic end caps on the screws.

CONSOLE

Technical line drawing of a mechanical exercise machine (no text or symbols)

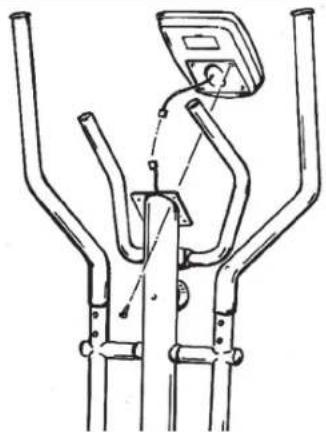

Connect the cables from the front tube and console. Push the connected cables inside the front tube and place the console on top of the front tube. NOTE! Beware not to damage the cables! Attach the console with four screws. Remove the protective films from the console display.

Detach the lid of the battery casing at the back of the meter and place batteries (2 x 1.5 V AA) in the retainer. IMPORTANT! Note the + and - signs! Push the battery casing lid back into place.

FOOT BOARDS

Line drawing of an outdoor exercise machine with a circular wheel and rotating base (no text or symbols)

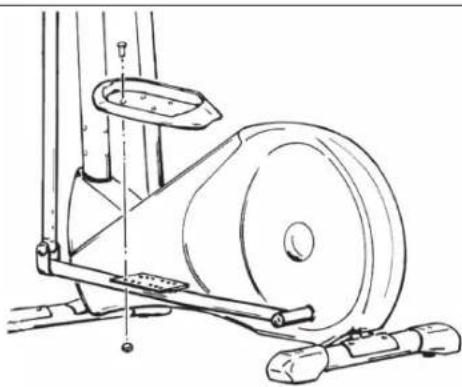

Attach the footboards to the desired place on the pedal cranks with four screws and locking nuts. Tighten the nuts with the tool shown in the picture.

EXERCISING

If the product is not stable, adjust the stabilizing screws under the rear support appropriately. If you feel sideway play in the pedal cranks, tighten the front end shaft nuts until the play disappears.

You can increase or decrease the resistance by turning the adjustment knob in the front tube. Turning clockwise (+ direction) increases, turning anti-clockwise (- direction) decreases the resistance. Console display will show the selected resistance setting (scale 1-16).

EXERCISE LEVEL

Working out using a crosstrainer is excellent aerobic exercise, the principle being that the exercise should be suitably light, but of long duration. Aerobic exercise is based on improving the body's maximum oxygen uptake, which in turn improves endurance and fitness. The ability of the body to burn fat as a fuel is directly dependent on its oxygen uptake capacity. Aerobic exercise should above all be pleasant. You should perspire, but you should not get out of breath during the workout. You must, for example, be able to speak and not just pant while exercising. You should exercise at least three times a week, 30 minutes at a time, to reach a basic fitness level. Maintaining this level requires a few exercise sessions each week. Once the basic condition has been reached, it is easily improved, simply by increasing the number of exercise sessions. Exercise is always rewarding for weight loss, because it is the only way of increasing the energy spent by the body. This is why it is always worthwhile to combine regular exercise with a healthy diet. A dieter should exercise daily - at first 30 minutes or less at a time, gradually increasing the daily workout time to one hour.

Start your workout with slow tempo and low resistance. Gradually increase tempo and resistance according to your own condition. Keep your head up and neck long in order to avoid stress on your neck, shoulders and back. Keep also your back straight. Make sure that your feet are centered on the foot pedals and that your hips, knees, ankles and toes are facing forward. Keep your body weight centered over your lower body regardless of whether you lean forward or stand upright. Stop your workout by gradually decreasing tempo and resistance.

If you wish to strengthen your upper body muscles, lean slightly forward and focus on working with your arms. Grab the handles somewhat higher than normally to enhance the movement, but avoid getting your shoulders sore. For dual training, set the resistance sufficiently high and focus on actively using upper and lower body muscles simultaneously. You should feel the effects of training in whole body.

HEART RATE

No matter what your goal, you'll get the best results by training at the right level of effort, and the best measure is your own heart rate.

First find your maximum heart rate i.e. where the rate doesn't increase with added effort. If you don't know your maximum heart rate, please use the following formula as a guide:

220-AGE

The maximum varies from person to person. The maximum heart-rate diminishes on average by one point per year. If you belong to a risk group, ask a doctor to measure your maximum heart rate for you.

We have defined three different heart-rate zones to help you with targeted training.

BEGINNER ● 50-60 % of maximum heart-rate.

Also suitable for weight-watchers, convalescents and those who haven't exercised for a long time. Three sessions a week of at least a half-hour each is recommended. Regular exercise considerably improves beginners' respiratory and circulatory performance and you will quickly feel your improvement.

TRAINER ● 60-70 % of maximum heart-rate.

Perfect for improving and maintaining fitness. Even reasonable effort develops the heart and lungs effectively, training for a minimum of 30 minutes at least three times a week. To improve your

condition still further, increase either frequency or effort, but not both at the same time!

ACTIVE TRAINER ● 70-80 % of maximum heart-rate.

Exercise at this level suits only the fittest and presupposes long-endurance workouts.

EAR PULSE MEASUREMENT

1. Fit the ear sensor wire plug into the connecting point of the meter.
2. Attach the car sensor to the earlobe.

If the sensor does not immediately start measuring your pulse or if the earlobe is cold, rub the earlobe with the fingers to speed up circulation. Physiological differences between different people may also cause disturbances in pulse measurement. In these cases, try measuring on the inside surface of the ear or on the tip of your finger. If measuring disturbances appear while training, test the functioning of the sensor while stationary. Strong, unintentional swaying while training may also disturb measurement. If pulse values rise above 150 beats/min., earlobe measurement may be affected by the speeding up of circulation. Sometimes a strong light source, e.g. a fluorescent tube, in the immediate vicinity of the user may cause disturbances in pulse measurement. In this case, test the functioning of the sensor by turning the ear sensor the other way round on the earlobe. Pulse reading can also be affected, if the battery power of the meter is too low. Clean the ear sensor after use with a damp cloth.

TELEMETRIC HEART RATE MEASUREMENT

This equipment can be equipped with a pulse receiver, which is compatible with a telemetric Pro Check pulse transmitter.

NOTE! If you are fitted with a pacemaker, please consult a physician before using a wireless heart rate monitor.

If you want to measure your heart rate this way during your workout, moisten the grooved electrodes on the transmitter belt with water. Fasten the transmitter just below the chest with the elastic belt, firmly enough so that the electrodes remain in contact with the skin while training, but not so tight that normal breathing is prevented. If you wear the transmitter and belt over a light shirt, moisten the shirt slightly at the points where the electrodes touch the shirt. The transmitter automatically transmits the heart-rate reading to the meter up to a distance of about 1 meter. The heart-rate value is displayed in the meter. Follow your heart rate during the training.

REMARKS ON TELEMETRIC MEASUREMENT

If the electrode surfaces are not moist, the heart rate reading will not appear on the display. If the electrodes are dry, they must be moistened again. Allow the electrodes to warm up properly to ensure accurate heart-rate measurement. If there are several telemetric heart rate measurement equipments next to each other, the distance between them should be at least 1,5 m. Similarly, if there is only one receiver and several transmitters in use, only one person with a transmitter should be within transmission range. The transmitter is switched to an active state only when it is being used for measurement. Sweat and other moisture can, however, keep the transmitter in an active state and waste battery energy. Therefore it is important to dry the electrodes carefully after use. When selecting training attire, please note that some fibers used in clothes (e.g. polyester, polyamide) create static electricity, which may prevent reliable heart rate measurement.

Please note that a mobile phone, television and other electrical appliances form an electro-magnetic field around them, which will cause problems in heart rate measurement.

CONSOLE

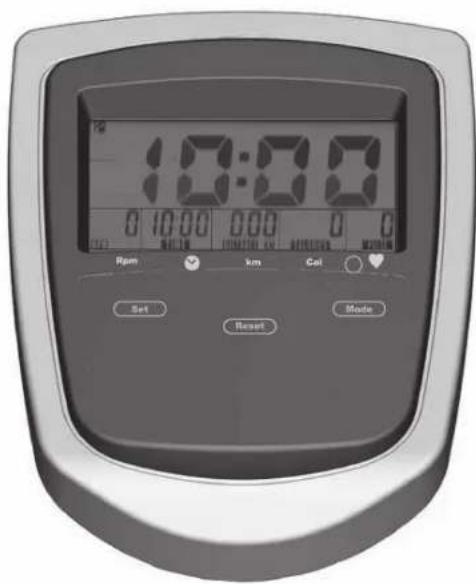

10:00 0 10:00 000 0 0 Rpm km Cal Set Reset Mode

KEY FUNCTIONS:

RESET:

Deletes existing values. If you hold down this key for more than two seconds, you can reset all functions to zero regardless of the mode selected in the display.

SET:

The Set key changes the setting. Press this key to change the setting in increments of one. If you hold down the key for longer than two seconds, the values change more quickly. Press the Set key when the correct value is reached.

MODE:

Press the Mode key to switch the display mode.

TRAINING

The console is turned on by pressing any key. You can start exercising immediately. You can also start exercising by setting goal values.

Press the Mode key to enable the function goal value setting. To set the goal values, use the Set key.

1. Speed

During the workout, the display alternates between revolutions per minute and the speed in km/h.

2. Time (countup)

The display shows the time since the start of the workout. The time separator (:) flashes every second while the time is being measured during the workout.

3. Time (countdown)

The display shows the remaining workout time. Press the Mode key to enable the function goal value setting. To set the goal value, use the Set key. The time can be set up to a maximum of 99 minutes. The time separator (:) flashes every second while the time is being measured during the workout. When the time reaches "00:00", there is an audible signal.

4. Distance (km/countup)

The display shows the distance covered during the workout. Distance of 0 - 99.5 are measured in increments of 500 meters.

5. Distance (km/countdown)

This function displays the remaining distance. Us Press the Mode key twice to enable the function goal value setting. To set the goal value, use the Set key.

6. Calories

The amount of energy you burn during a workout is displayed in kcal. Press the Mode key three times to enable the function goal value setting. To set the goal value, use the Set key. You can use the following formula to convert the values into joules: 1 kcal = 4.187 kJ. This device uses average values to calculate energy consumption. However, each individual has differing capacity for producing energy (known as their efficiency), so the energy consumption displayed can only be an approximation.

7. Heart rate

You can measure your heart rate using the ear sensor or chest strap (optional). The heart symbol flashes in time with the heart rate (30 - 240 heart beats per minute). The display only flashes while the heart rate is being measured. Please note that the heart rate measurement takes about 30 seconds in order to calculate an accurate average. The heart rate function switches off automatically if there is no heart rate signal for more than 16 seconds. The warning signal for maximum heart rate is also disabled.

8. Maximum heart rate

The display shows the specified maximum heart rate. Press the Mode key to enable the function goal value setting. To set the goal value, use the Set key. If you enter a maximum value, and there is an audible signal if the limit is exceeded. You can set a maximum heart rate of 30 to 240 beats per minute.

If the device has not been used for five minutes, it automatically switches itself to sleep mode. The display shows the room temperature.

TRANSPORT AND STORAGE

Please follow these instructions when carrying and moving the equipment about, because lifting it incorrectly may strain your back or risk other accidents:

The device is easy to move by pushing along on the integrated transport wheels. Tilt the device from the front and push along the floor on the wheels at the front support. We recommend that you use a protective base when transporting the equipment.

To prevent the equipment malfunctioning, store in a dry place with as little temperature variation as possible and protected from dust.

MAINTENANCE

The equipment requires very little maintenance. Check, however, from time-to-time that all screws and nuts are tight.

● After exercising, clean the equipment with a soft, absorbent cloth. Do not use solvents. Sweat may cause corrosion: we recommend therefore that you protect all metal surfaces outside the plastic covers with teflon.
- Never remove the equipment's protective casing.
- If the equipment is not used for a period of time, the transmission belt may become temporarily distorted. This can lead to a sensation of slightly uneven pedaling. However, after a few minutes of use the effect disappears as the belt returns to its original form.

CHANGING BATTERIES

If the console display fades or disappears, change the batteries. Detach the lid of the battery casing at the back of the meter and remove the old batteries. Place the new batteries in the holder (2 x 1.5 V AA) and push the battery casing lid back into place.

MALFUNCTIONS

NOTE! Despite continuous quality control, defects and malfunctions caused by individual components may occur in the equipment. In most cases it's unnecessary to take the whole device in for repair, as it's usually sufficient to replace the defective part. Always give the model, serial number of your equipment and in case of malfunctions also conditions of use, nature of malfunction and any error code.

When you encounter unusual behavior from the device, contact your local Batavus dealer for service.

If you require spare parts, always give the model, serial number of your equipment and the spare part number for the part you need. The spare part list is at the back of this manual. Use only spare parts mentioned in the spare part list.

TECHNICAL SPECIFICATIONS

Length 128 cm
Width 57 cm
Height 168 cm
Weight 49 kg

The BATAVUS X2 meets the requirements of the EU's EMC Directives on electromagnetic compatibility (89/336/EEC). This product therefore carries the CE label.

The BATAVUS X2 meets EN precision and safety standards (EN-957).

Due to our continuous policy of product development, Batavus reserves the right to change specifications without notice.

NOTE! The instructions must be followed carefully in the assembly, use and maintenance of your equipment. The warranty does not cover damage due to negligence of the assembly, adjustment and maintenance instructions described herein. Changes or modifications not expressly approved by Batavus will void the user's authority to operate the equipment!

We wish you many enjoyable trainings!

INHALT

MONTAGE 10

BENUTZUNG 13

TRAINIEREN MIT Batavus 13

HERZFREQUENZ 13

COCKPIT 14

Simple line drawing of a mechanical assembly with no text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a mechanical device with no text or symbols

Technical line drawing of a mechanical exercise machine (no text or symbols)

Four technical diagrams showing mechanical or electrical setups with no visible text, numbers, or symbols.

Technical line drawings of two types of stationary exercise equipment, showing front and side views (no text or labels)

Technical line drawing of a mechanical bracket assembly with mounting feet and a separate view showing internal components (no text or symbols)

Technical diagram of a mechanical clamp or lever mechanism with labeled components and motion indicators

Technical line drawing of a mechanical assembly with multiple pipes and connectors (no text or symbols)

Technical line drawing of a stationary exercise machine with no visible text or symbols

Line drawing of an outdoor exercise machine with a wheel and rotating base (no text or symbols)

Simple line drawing of a mechanical assembly with no text or symbols

Technical line drawing of a mechanical assembly with two cylindrical components and a central rod (no text or symbols)

Simple line drawing of a mechanical device with rods and a curved base (no text or symbols)

Technical line drawing of a mechanical exercise setup with pulleys and legs (no text or symbols)

Technical diagram showing four different mechanical or electrical device configurations with labeled components and directional arrows.

Technical line drawings of two types of stationary bikes, showing front and side views (no text or labels)

Technical line drawing of a mechanical bracket assembly with mounting feet and a separate U-shaped component (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with multiple pipes and connectors (no text or symbols)

Technical line drawing of a stationary exercise machine with no visible text or symbols

Line drawing of an outdoor exercise machine with a wheel and rotating base (no text or symbols)

Simple line drawing of a mechanical assembly with no text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

FRAMEBUIS VOOR

Simple line drawing of a mechanical device with no text or symbols

Technical line drawing of a mechanical exercise machine (no text or symbols)

Technical line drawings of two types of stationary exercise equipment, showing front and side views (no text or labels)

Technical line drawings of mechanical clamps and fixtures (no text or symbols)

Technical line drawing of a mechanical assembly with multiple pipes and connectors (no text or symbols)

Technical line drawing of a stationary exercise machine with no visible text or symbols

Line drawing of an outdoor exercise machine with a wheel and rotating base (no text or symbols)

Simple line drawing of a mechanical assembly with no text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with vertical rods and a base (no text or symbols)

Line drawing of a mechanical exercise machine with legs and wheels (no text or symbols)

Technical line drawings of mechanical components and tools, including vertical supports, hanging weights, and adjustment knobs (no text or symbols present)

Technical line drawings of two types of stationary bikes, showing front and side views (no text or labels)

Technical line drawings of mechanical clamping components (no text or symbols)

Technical line drawing of a mechanical assembly with multiple pipes and mounting brackets (no text or symbols)

Technical line drawing of a mechanical exercise machine (no text or symbols)

Line drawing of an outdoor exercise machine with a wheel and rotating base (no text or symbols)

Simple line drawing of a mechanical assembly with no text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with vertical rods and a base (no text or symbols)

Line drawing of a stationary exercise machine with legs and wheels (no text or symbols)

Technical line drawing of a mechanical assembly with multiple pipes and connectors (no text or symbols)

Technical line drawing of a stationary exercise bike with support systems and control components (no text or labels)

Line drawing of an outdoor exercise machine with a circular roller and side-mounted legs (no text or symbols)

TRANSPORT OCH FÖRVARING ....54

UNDERHÅLL 54

STÖRNINGAR VID ANVÄNDNING ....54

TEKNISKA DATA 54

BRUKSANVISNING

Simple line drawing of a mechanical assembly with no text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a mechanical device with rods and a curved base (no text or symbols)

Line drawing of a mechanical exercise machine with pulley and lever (no text or symbols)

Technical line drawing of a mechanical assembly with multiple pipes and supports (no text or symbols)

Technical line drawing of a mechanical exercise setup with no visible text or symbols

Line drawing of an exercise machine with rotating wheel and support legs (no text or symbols)

TRANSPORT OCH FÖRVARING

Simple line drawing of a mechanical assembly with no text or symbols

Technical line drawing of a mechanical assembly with two flanged components and a central rod (no text or symbols)

Simple line drawing of a mechanical device with no text or symbols

Line drawing of a mechanical exercise machine with legs and wheels (no text or symbols)

Technical line drawing of a mechanical assembly with two views: one showing a vertical rod and arrow, the other showing a clamping mechanism (no text or symbols)

Technical line drawing of two mechanical device setups with no visible text or symbols

Technical line drawings of two types of stationary bikes, showing front and side views (no text or labels)

Technical diagram showing mechanical assembly steps with labeled components and dashed lines indicating motion or alignment.

Technical line drawing of a mechanical assembly with multiple pipes and supports (no text or symbols)

Technical line drawing of a stationary exercise machine with no visible text or symbols

Line drawing of an outdoor exercise machine with a circular wheel and side-mounted legs (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and dashed lines indicating assembly paths or connections.

BATAVUS

Accell Fitness Benelux B.V.

Postbus 60001

1320 AA Almere

Nederland

Tel: [phone]

Fax: [phone]

www.Batavus.nl

583 7020 40 B
