Single Stage Snowthrower

Model No. Description

1695886 Single Stage Snowthrower, 8.00 TP / 22 Inch (55,9 cm)

1696211-00 Single Stage Snowthrower, 8.00 TP / 22 Inch (55,9 cm)

3 A FULL ADD

A

5 C B A D

6 G F E production

7 A

8 B C A

9 A B

10 A B

11 A

12 B

13 C FULL ADD E D

14 A B C

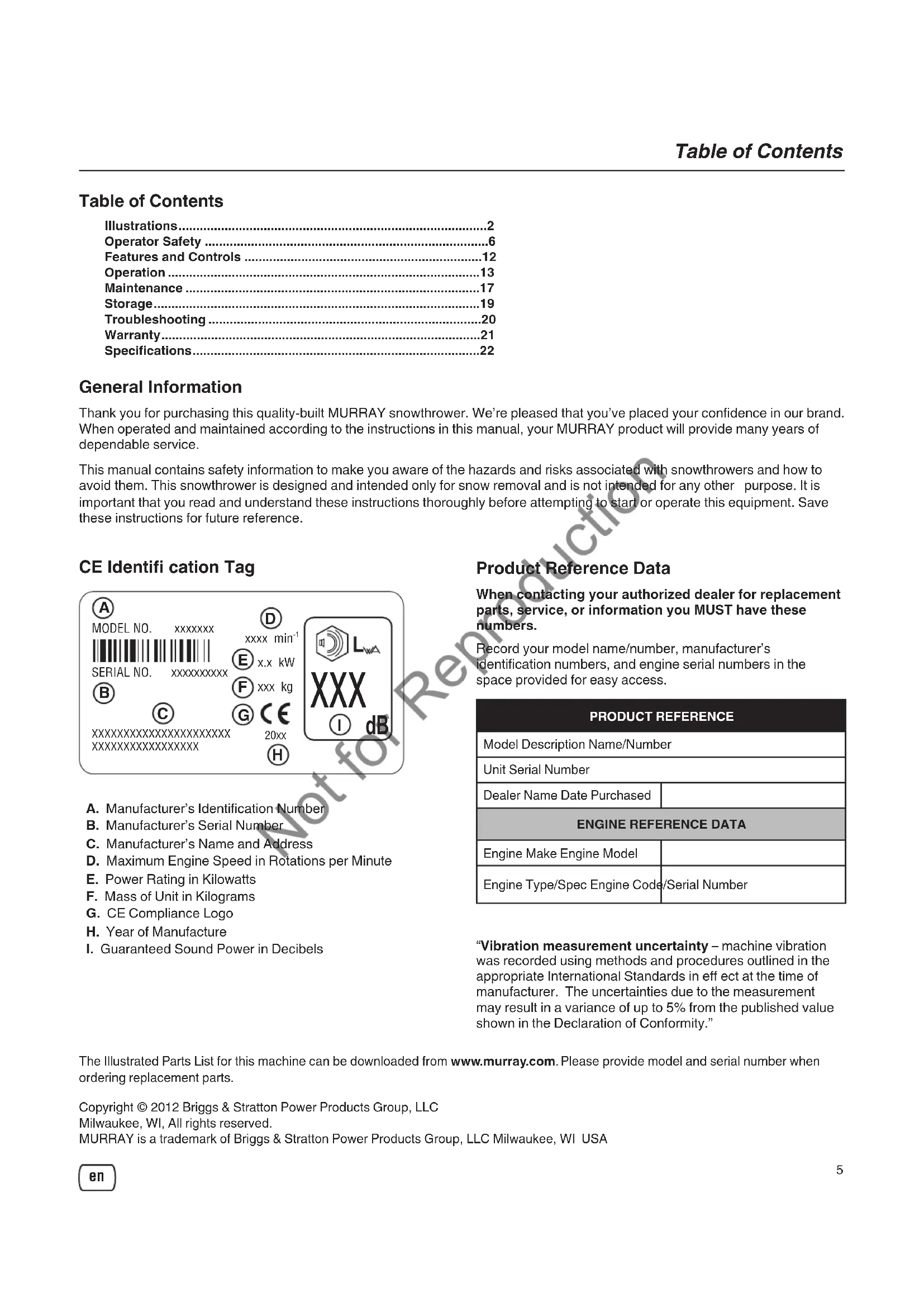

Table of Contents

Illustrations....2

Operator Safety 6

Features and Controls ....12

Operation....13

Maintenance ....17

Storage....19

Troubleshooting ....20

Warranty....21

Specifications....22

General Information

Thank you for purchasing this quality-built MURRAY snowthrower. We're pleased that you've placed your confidence in our brand. When operated and maintained according to the instructions in this manual, your MURRAY product will provide many years of dependable service.

This manual contains safety information to make you aware of the hazards and risks associated with snowthrowers and how to avoid them. This snowthrower is designed and intended only for snow removal and is not intended for any other purpose. It is important that you read and understand these instructions thoroughly before attempting to start or operate this equipment. Save these instructions for future reference.

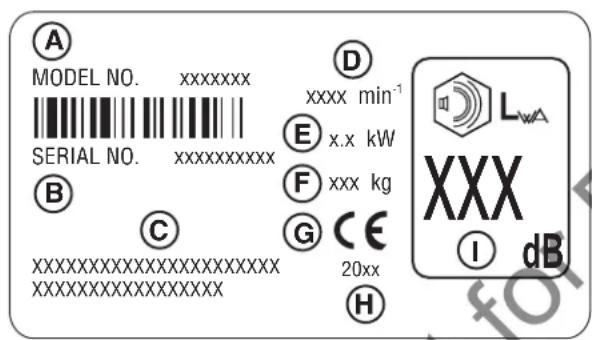

CE Identifi cation Tag

MODEL NO. xxxxxxx SERIAL NO. xxxxxxxxxxxx B C XXXXXXXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXXXX D xxxx min⁻¹ E x.x kW F xxx kg G CE 20xx H LwA XXX I dB

A. Manufacturer's Identification Number
B. Manufacturer's Serial Number
C. Manufacturer's Name and Address
D. Maximum Engine Speed in Rotations per Minute
E. Power Rating in Kilowatts
F. Mass of Unit in Kilograms
G. CE Compliance Logo
H. Year of Manufacture
I. Guaranteed Sound Power in Decibels

Product Reference Data

When contacting your authorized dealer for replacement parts, service, or information you MUST have these numbers.

Record your model name/number, manufacturer's identification numbers, and engine serial numbers in the space provided for easy access.

PRODUCT REFERENCE
Model Description Name/Number
Unit Serial Number
Dealer Name Date Purchased
ENGINE REFERENCE DATA
Engine Make Engine Model
Engine Type/Spec Engine Code/Serial Number

“Vibration measurement uncertainty – machine vibration was recorded using methods and procedures outlined in the appropriate International Standards in effect at the time of manufacturer. The uncertainties due to the measurement may result in a variance of up to 5% from the published value shown in the Declaration of Conformity.”

The Illustrated Parts List for this machine can be downloaded from www.murray.com. Please provide model and serial number when ordering replacement parts.

Copyright © 2012 Briggs & Stratton Power Products Group, LLC

Milwaukee, WI, All rights reserved.

MURRAY is a trademark of Briggs & Stratton Power Products Group, LLC Milwaukee, WI USA

Hazard Symbols and Meanings Control Symbols on Equipment

	Read the Operator's Manual for operating and safety instructions.
	Shutoff engine and remove key before performing maintenance and repair work.
	Thrown Objects Hazard.
	Fire Hazard.
	Amputation Hazard - rotating auger.
	Carbon Monoxide Poisoning Hazard.
	Keep Safe Distance.
	Electric Shock.
	Amputation Hazard - rotating impeller.
	Keep Children Away.
	Amputation Hazard - rotating impeller.
	Amputation Hazard - do not touch moving parts.
	Hot Surface Hazard.

	On / Off Key Switch.
	Turn Choke Closed to Start.
	Turn Choke Open to Run.
	Push Primer 2 Times.
	Plug in Extension Cord.
	Push Button to Start.
		Engage Auger.
	Chute Rotation.
	Cold Engine.
	Hot Engine.

Safety Alert Symbol and Signal Words

The safety alert symbol and signal word (DANGER, WARNING, CAUTION, or NOTICE) is used to indicate the likelihood and potential severity of personal injury and/or damage to the product. In addition, a hazard symbol may be used to represent the type of hazard.

DANGER indicates a hazard which, if not avoided, will result in death or serious injury.

RNING indicates a hazard which, if not avoided, could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided, could result in minor or moderate injury.

NOTICE indicates a situation that could result in damage to the product.

WARNING

Certain components in this product and its related accessories contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Wash hands after handling.

WARNING

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

WARNING

• Hand contact with the rotating impeller inside the discharge chute is the most common cause of injury associated with snowthrowers.
• This snowthrower is capable of amputating hands and feet, and throwing objects. Read and observe all the safety instructions in this manual. Failure to do so could result in death or serious injury.

WARNING
	Read, understand, and follow all the instructions on the snowthrower and in the operator's manual before operating this unit.Failure to observe the safety instructions in this manual could result in death or serious injury.
Be thoroughly familiar with the controls and the proper use of the snowthrower.Make sure you are properly trained before operating the snowthrower.Know how to stop the unit and disengage the controls quickly.Never allow anyone to operate the snowthrower without proper instruction.Always follow the instructions in the operator's manual, if the snowthrower will be stored for an extended period.Maintain or replace safety and instruction labels as necessary.Never attempt to make major repairs on the snowthrower unless you have been properly trained. Improper servicing of the snowthrower can result in hazardous operation, equipment damage, and voiding of the product warranty.

DANGER

Discharge chute contains rotating impeller to throw snow. Never clear or unclog the discharge chute with your hands. Fingers can quickly become caught in the impeller. Always use a clean-out tool.

Failure to observe these safety instructions will result in traumatic amputation or severe laceration.

DANGER
	Keep hands, feet, and clothing away from rotating parts. Rotating parts can contact or entangle hands, feet, hair, clothing, or accessories.Failure to observe these safety instructions will result in traumatic amputation or severe laceration.
· Whenever cleaning, repairing, or inspecting the snowthrower, make sure the engine is OFF, spark plug wire is disconnected, and all moving parts have stopped.· Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.· Never operate the snowthrower without proper guards, and other safety devices in place and working.· Never leave the snowthrower unattended while engine is running. Always disengage the auger and traction controls, stop engine, and remove keys.· Keep all loose clothing away from the front of the snowthrower and auger. Scarves, mittens, dangling drawstrings, loose clothes, and pants can quickly become caught in the rotating device and amputation will occur. Tie up long hair and remove jewelry.· Run the machine a few minutes after discharging snow to prevent freeze-up of the collector/impeller.· Disengage power to the collector/impeller when snowthrower is transported or not in use.

WARNING
	Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the unit and the operating activity. Never assume the children will remain where you last saw them.
Keep children out of the area during operation. Children are often attracted to the equipment. Be mindful of all persons present.Be alert and turn unit off if children enter the area.Never allow children to operate the unit.Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure vision. Children may be present.

WARNING
	Engines give off carbon monoxide, an odor-less, colorless, poison gas. Breathing carbon monoxide can cause nausea, fainting, or death.
Start and run engine outdoors.Do not run the engine in an enclosed area, even if doors or windows are open.

WARNING
	Objects can be picked up by auger and thrown from chute. Never discharge snow toward bystanders or allow anyone in front of the snowthrower. Failure to observe these safety instructions will result in death or serious injury.
·Always wear safety glasses or eye shields during operation, and while performing an adjustment or repair.·Always be aware of the direction the snow is being thrown. Nearby pedestrians, pets, or property may be harmed by objects being thrown.·Be aware of your environment while operating the snowthrower. Don't run over items such as gravel, doormats, newspapers, toys, and rocks hidden under snow, as they can all be thrown from the chute or jam in the auger.·Use extreme caution when operating on or crossing gravel drives, walks, or roads.·Adjust the collector housing height to clear gravel or crushed rock surface.·Never operate the snowthrower near glass enclosures, automobiles, window wells, drop-offs, and the like without proper adjustment of the discharge chute angle.·Familiarize yourself with the area in which you plan to operate the snowthrower. Mark off boundaries of walkways and driveways.
	Fuel and its vapors are extremely fl ammable and explosive. Always handle fuel with extreme care.Failure to observe these safety instructions can cause a fi re or explosion which will result in severe burns or death.
WHEN ADDING FUELTurn off engine and let cool at least 2 minutes before removing the fuel cap and adding fuel.Fill fuel tank outdoors or in a well ventilated area.Do not overfill the fuel tank. To allow for the expansion of gasoline, do not fill above the bottom of the fuel tank neck.Keep fuel away from sparks, open flames, pilot lights, heat, and other ignition sources.Check fuel lines, cap, and fittings frequently for cracks or leaks. Replace if necessary.Use an approved fuel container.If fuel spills, wait until it evaporates before starting engine.WHEN STARTING ENGINEEnsure that spark plug, muffler, fuel cap, and air cleaner (if equipped) are in place and secured.Do not crank the engine with the spark plug removed.If fuel is spilled, do not attempt to start the engine, but move the snowthrower away from the area of the spill, and avoid creating any source of ignition, until the fuel vapors have dissipated.Do not over-prime the engine. Follow the engine starting instructions in this manual.If the engine floods, set choke (if equipped) to OPEN/RUN position, move throttle (if equipped) to FAST position and crank until engine starts.WHEN OPERATING EQUIPMENTDo not tip the snowthrower at an angle which causes the fuel to spill.Do not choke the carburetor to stop the engine.Never run the engine with the air cleaner assembly (if equipped) or the air filter (if equipped) removed.WHEN CHANGING OILIf you drain the oil from the top oil fill tube, the fuel tank must be empty or fuel can leak out and result in a fire or explosion.WHEN TRANSPORTING EQUIPMENTTransport with fuel tank EMPTY, or with fuel shut-off valve OFF.WHEN STORING GASOLINE OR EQUIPMENT WITH FUEL IN TANKStore away from furnaces, stoves, water heaters, or other appliances that have pilot light or other ignition source because they can ignite fuel vapors.

WARNING
	Safe operation of the snowthrower requires the proper care and maintenance of the engine.
• Disengage all clutches and shift into neutral before starting the engine may cause personal injury.• Let the engine adjust to outdoor temperatures before starting to clear snow.• Use a grounded three-wire plug for all snowthrowers equipped with electric drive motors or electric starting motors.

WARNING
	Starting engine creates sparking.Sparking can ignite nearby fl ammable gases.Explosion and fi re could result.
·If there is natural or LP gas leakage in area, do not start engine.·Do not use pressurized starting fluids because vapors are flammable.

WARNING
	Running the engine produces heat. Engine parts, especially muffler, become extremely hot.Failure to observe these safety instructions could result in severe thermal burns on contact.
Never touch a hot engine or muffler. Allow muffler, engine cylinder, and fins to cool before touching.Remove debris from muffler area and cylinder area.Install and maintain in working order a spark arrester before using equipment on forest-covered, grass-covered, or brush-covered unimproved land.It is a violation of California Public Resource Code, Section 4442, to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrester, as defined in Section 4442, maintained in effective working order. Other states or federal jurisdictions may have similar laws. Contact the original equipment manufacturer, retailer, or dealer to obtain a spark arrester designed for the exhaust system installed on this engine.
	This snowthrower must be properly maintained to ensure safe operation and performance.Failure to observe the safety instructions in this manual could result in death or serious injury.
When performing any maintenance or repairs on the snowthrower, shut OFF the engine, disconnect spark plug wire, and keep the wire away from the plug to prevent someone from accidentally starting the engine.Check shear bolts and other hardware at frequent intervals for proper tightness.Keep nuts and bolts tight and keep snowthrower in good condition.Never tamper with safety devices. Check their proper operation regularly and make necessary repairs if they are not functioning properly.Components are subject to wear, damage, and deterioration. Frequently check components and replace with recommended parts, when necessary.Check control operation frequently. Adjust and service as required.Use only factory authorized replacement parts, or like, parts when making repairs.Always comply with factory specifications on all settings and adjustments.Use only factory authorized, or like, attachments and accessories such as wheel weights, counterweights, or cabs.Never attempt to make any adjustments while the engine is running (except when specifically recommended by the factory).

WARNING
	This snowthrower is only as safe as the operator. If it is misused, or not properly maintained, it can be dangerous. Remember you are responsible for your safety and those around you.
Keep the area of operation clear of all persons, particularly small children and pets.Thoroughly inspect the area where the snowthrower will be used and remove all doormats, sleds, boards, wires, and other foreign objects.Do not operate the snowthrower without wearing adequate winter clothing.Wear footwear that will improve footing on slippery surfaces.Use caution to avoid slipping or falling especially when operating the snowthrower in reverse.Never operate the snowthrower without good visibility or light. Always be sure of your footing, and keep a firm hold on the handles.Do not clear snow across the face of slopes. Use extreme caution when changing direction on slopes. Do not attempt to clear steep slopes.Do not overload the machine capacity by attempting to clear snow too quickly.Never operate the snowthrower at high transport speeds on slippery surfaces. Look behind the snowthrower and use care when operating in reverse.Do not use the snowthrower on surfaces above ground level such as roofs of residences, garages, porches, or other such structures or buildings.Operators should evaluate their ability to operate the snowthrower safely enough to protect themselves and others from injury.The snowthrower is intended to remove snow only. Do not use the snowthrower for any other purpose.Do not carry passengers.After striking a foreign object, shut OFF the engine, disconnect the cord on electric motors, thoroughly inspect the snowthrower for any damage, and repair the damage before restarting and operating the snowthrower.If the snowthrower vibrates abnormally, shut OFF the engine. Vibration is generally a warning of trouble. See an authorized dealer if necessary for repairs.For models equipped with electric starting motors, disconnect the power cord after the engine starts.

Technical diagram of a lawn mower with safety warning signs and hazard symbols, including warning labels and safety icons.

Safety Decals

Before operating your snowthrower, read the safety decals installed on your snowthrower. The cautions and warnings are for your safety. To avoid a personal injury or damage to your snowthrower, understand and follow all the safety decals.

If any safety decals become worn or damaged and cannot be read, order replacement decals from your local dealer.

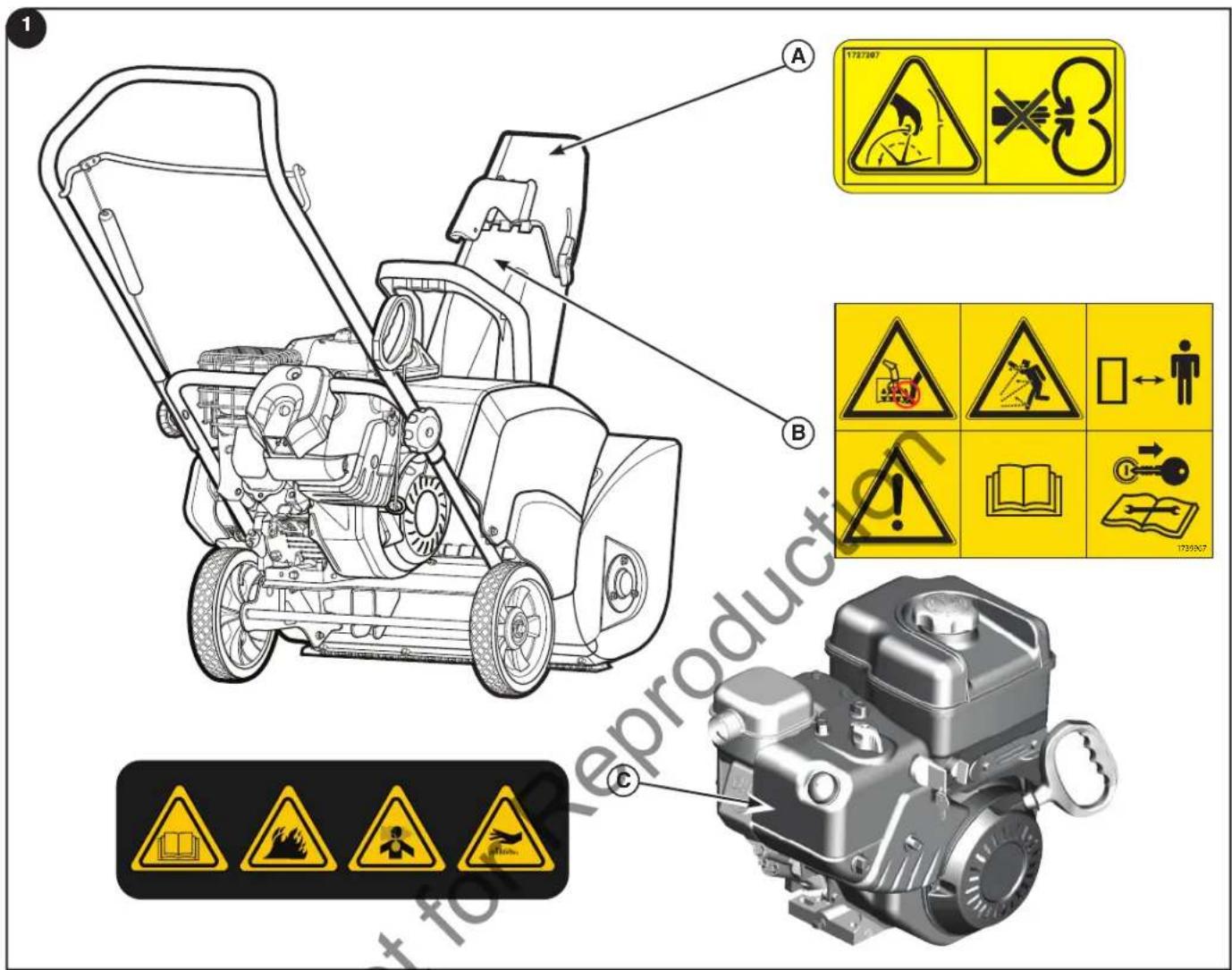

A — Part No. 1727207 Chute Danger Decal
B — Part No. 1739967 Auger Danger Decal
C — Part No. 276925 Engine Warning Decal

A B C D E F G H I J K L M 4 5 2 N 3 2X for Reproduc

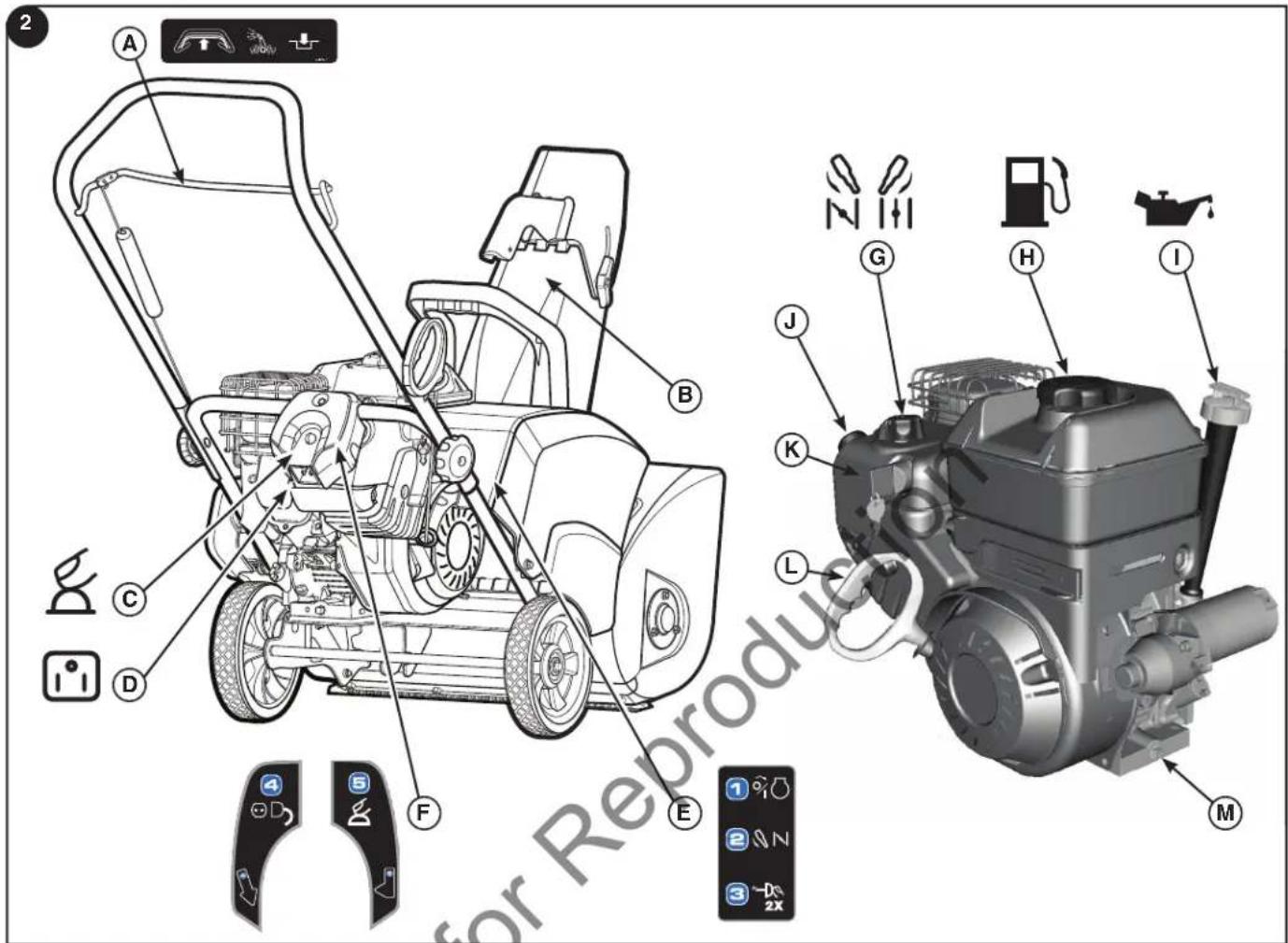

Snowthrower Controls and Operation Decals (Figure 2)

A — Auger Control
B — Deflector Control Lever
C — Electric Start Button
D — Power Cord Receptacle
E — Starting Instructions Decal / Steps 1-3
F — Starting Instructions Decal / Step 4 & 5

Engine Controls

G — Choke Control Knob
H — Fuel Tank and Cap
I — Oil Fill Cap (Extended Dipstick)
J — Primer Button
K — ON/OFF or Push/Pull Key (as equipped)
L — Starter Cord Handle
M—Oil Drain

WARNING

The operation of any snowthrower can result in foreign objects being thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields before beginning snowthrower operation.

Check / Add Oil

NOTICE: The engine was shipped from the factory without oil. Before you start the engine, make sure you add oil according to the instructions in this manual. If you start the engine without oil, it will be damaged beyond repair and will not be covered under the warranty.

1. Make sure the unit is level. Use a high quality detergent oil classified "For Service SG, SH, SJ, SL, or higher". Synthetic 5W30 motor oil is acceptable for all temperatures. DO NOT mix oil with gasoline. See Chart for oil recommendations.

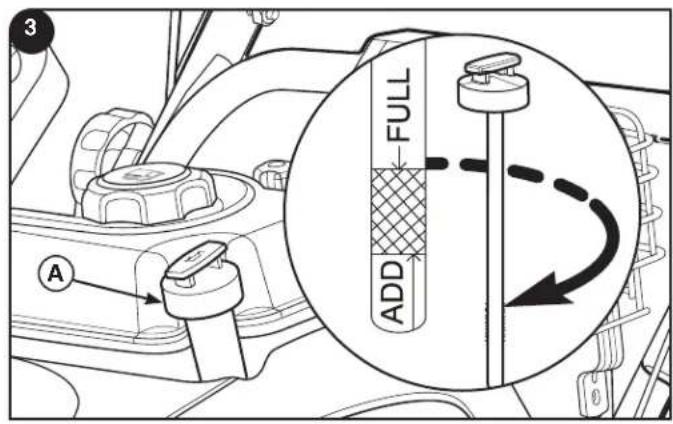

2. Remove the oil fill cap/dipstick (A, Figure 3) and wipe with a clean cloth.
3. Insert the cap/dipstick and turn clockwise to tighten.
4. Remove the oil fill cap/dipstick and check the oil.
5. If necessary, add oil until the level reaches the FULL mark on the oil fill cap/dipstick. Do not overfill.
6. Tighten the cap/dipstick securely.

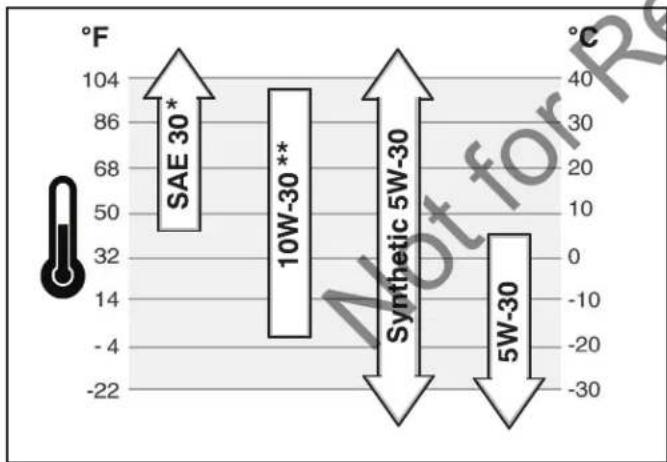

* Below 40°F (4°C) the use of SAE 30 will result in hard starting.

** Above 80°F (27°C) the use of 10W-30 may cause increased oil consumption. Check oil level more frequently.

Fuel Recommendations

Fuel must meet these requirements:

• Clean, fresh, unleaded gasoline.
- A minimum of 87 octane/87 AKI (91 RON). High altitude use, see below.
• Gasoline with up to 10% ethanol (gasohol) or up to 15% MTBE (methyl tertiary butyl ether) is acceptable.

NOTICE: Do not use unapproved gasoline, such as E85. Do not mix oil in gasoline or modify the engine to run on alternate fuels. This will damage the engine components and void the engine warranty.

To protect the fuel system from gum formation, mix a fuel stabilizer into the fuel. All fuel is not the same. If starting or performance problems occur, change fuel providers or change brands. This engine is certified to operate on gasoline. The emissions control system for this engine is EM (Engine Modifications).

High Altitude

At altitudes over 5,000 feet (1524 meters), a minimum 85 octane/85 AKI (89 RON) gasoline is acceptable. To remain emissions compliant, high altitude adjustment is required. Operation without this adjustment will cause decreased performance, increased fuel consumption, and increased emissions. See a Briggs & Stratton Authorized Dealer for high altitude adjustment information.

Operation of the engine at altitudes below 2,500 feet (762 meters) with the high altitude kit is not recommended.

Add Fuel

WARNING
	Fuel and its vapors are extremely fl ammable and explosive.Fire or explosion can cause severe burns or death.
When Adding FuelTurn engine off and let engine cool at least 2 minutes before removing the fuel cap.Fill fuel tank outdoors or in well-ventilated area.Do not overfill fuel tank. To allow for expansion of the fuel, do not fill above the bottom of the fuel tank neck.Keep fuel away from sparks, open flames, pilot lights, heat, and other ignition sources.Check fuel lines, tank, cap, and fittings frequently for cracks or leaks. Replace if necessary.If fuel spills, wait until it evaporates before starting engine.

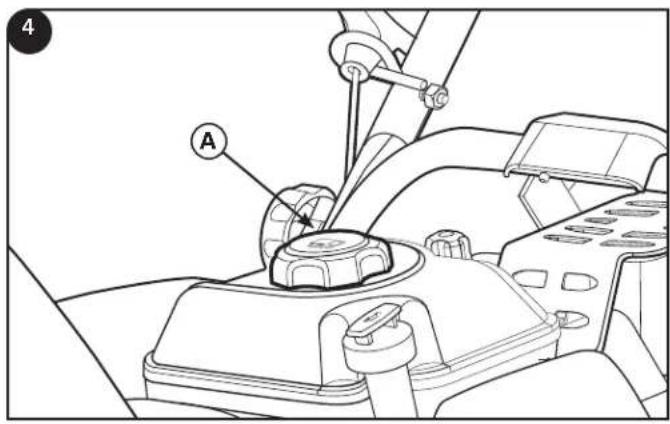

1. Clean the fuel cap area of dirt and debris. Remove the fuel cap (A, Figure 4).
2. Fill the fuel tank with fuel. To allow for expansion of the fuel, do not fill above the bottom of the fuel tank neck.
3. Reinstall the fuel cap.

Start the Engine

WARNING
	The electric starter is equipped with a three-wire power cord and plug designed to operate on AC household current. The power cord must be properly grounded at all times to avoid the possibility of electric shock.
If your house does not have a three-wire grounded system, do not use this electric starter. Contact a licensed electrician for installation of a three-wire grounded system.

WARNING

Always connect the power cord fi rst to the switch box located on the equipment and then plug the other end into a grounded receptacle. After starting, disconnect the power cord from the grounded receptacle fi rst.

Be sure that engine oil is at FULL mark on the oil fill cap/dipstick. The snowthrower engine is equipped with an AC electric starter and recoil starter. Before starting the engine, be certain that you have read the following information.

If engine floods, set the choke to the OPEN/RUN position and crank until the engine starts.

Start the engine as follows:

1. Check the oil level. See the Check/Add Oil section.
2. Make sure auger control is disengaged.

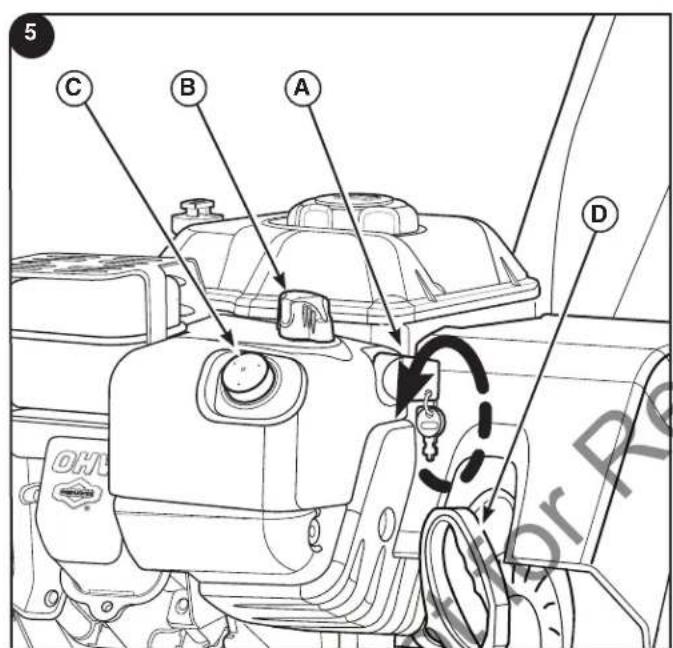

3. Insert the ON/OFF key (A, Figure 5) and turn to the ON position or insert the Push/Pull key, if equipped.

4. Turn the choke knob (B) fully clockwise if engine is cold.
   NOTE: Do not use the choke to start a warm engine.

5. Push the primer button (C) two times.

NOTE: Do not use the primer to start a warm engine.

WARNING
	Rapid retraction of the starter cord (kickback) will pull your hand and arm toward the engine faster than you can let go.
Broken bones, fractures, bruises, or sprains could result.When starting engine, pull the starter cord slowly until resistance is felt and then pull rapidly to avoid kickback.

1. Rewind Start: Firmly hold the starter cord handle (D, Figure 5). Pull the starter cord handle slowly until resistance is felt, then pull rapidly.

NOTE: If the engine does not start after three attempts, see the Troubleshooting section.

WARNING
	If the extension cord is damaged, it must be replaced by the manufacturer (or its service agent) or a similarly qualified person to avoid a hazard.

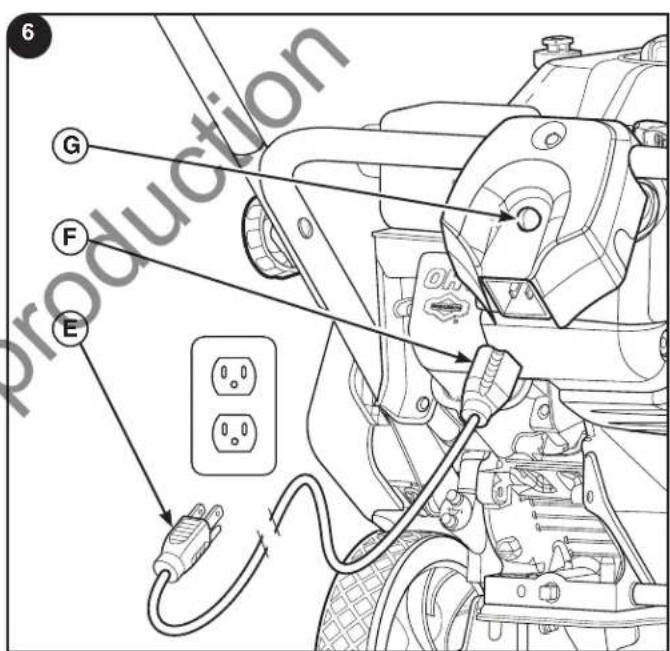

1. Electric Start: First connect the extension cord (E, Figure 6) to the power cord receptacle (F) and then into a wall receptacle. If additional extension cord is required, make sure it is three-wire.

2. Electric Start: Depress the starter push button (G). After you start the engine, first disconnect the extension cord from the wall receptacle and then from the power cord receptacle.

IMPORTANT: To extend the life of the starter, use short starting cycles (five seconds maximum). Wait one minute between starting cycles.

NOTE: If the engine does not start after three attempts, see the Troubleshooting section.

Stop the Engine

WARNING
	Gasoline and vapors are extremely fl ammable and explosive. Fire or explosion can cause severe burns or death. DO NOT choke the carburetor to stop the engine.

Before stopping the engine, allow it to idle for a few minutes to help dry off any moisture.

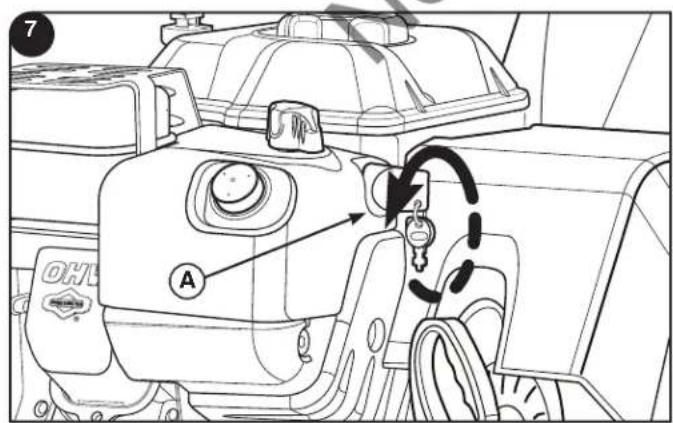

1. Turn the ON/OFF or Push/Pull key (A, Figure 7) to the OFF position and remove or pullout the Push/Pull key if equipped.
2. Keep the ON/OFF or Push/Pull key out of the reach of children. The engine cannot be started without the ON/OFF or Push/Pull key.

Operate the Snowthrower

WARNING
	Before operating, make sure the area in front of the snowthrower is clear of bystanders or obstacles.

DO NOT discharge snow toward a building as hidden objects could be thrown with sufficient force to cause damage.

1. Start the engine. See Start the Engine in this section.

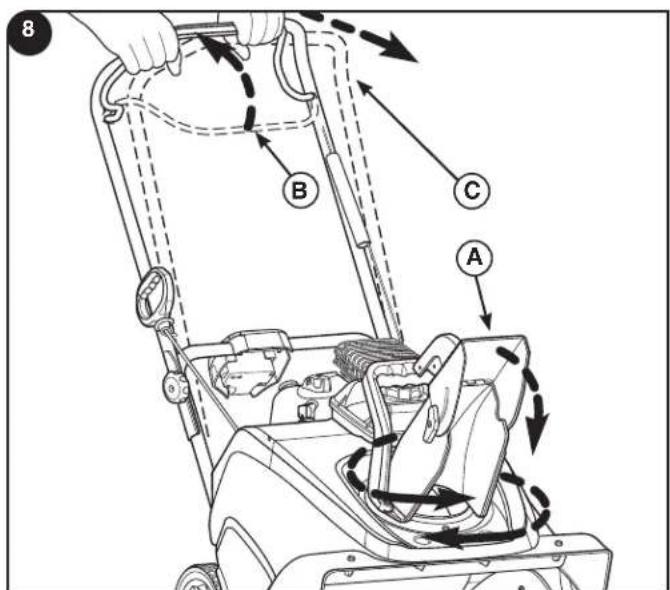

2. Adjust the direction and angle of the discharge chute (A, Figure 8). See Discharge Chute and Deflector in this section.
3. Fully press and hold the auger control (B) to engage the auger rotation. Releasing the auger control lever will disengage the auger.
4. Push the unit into the snow.
   NOTE: When clearing wet, heavy, snow, reduced your speed, maintain full throttle, and clear less than the full width of the unit.
5. Tip the handle bars (C) forward slightly. This will cause the snowthrower to pull itself forward.

WARNING
Read Operator's Manual before operating machine. This machine can be dangerous if used carelessly.Never operate the snowthrower without all guards, covers, and shields in place.Never direct discharge towards windows or allow bystanders near machine while engine is running.Stop the engine whenever leaving the operating position.Disconnect spark plug before unclogging the impeller housing or the discharge chute and before making repairs or adjustments.When leaving the machine, remove the safety key. To reduce the risk of fire, keep the machine clean and free from spilled gas, oil, and debris.Keep hands, feet, hair, and loose clothing away from any moving parts on engine and snowthrower.Temperature of muffler and nearby areas can exceed 150°F (66°C). Avoid these areas.DO NOT allow children to operate or be near snowthrower while it is operating.

WARNING
	Engines give off carbon monoxide, an odor-less, colorless, poison gas. Breathing carbon monoxide can cause nausea, fainting, or death.
Start and run engine outdoors.Do not run the engine in an enclosed area, even if doors or windows are open.

Stop the Snowthrower

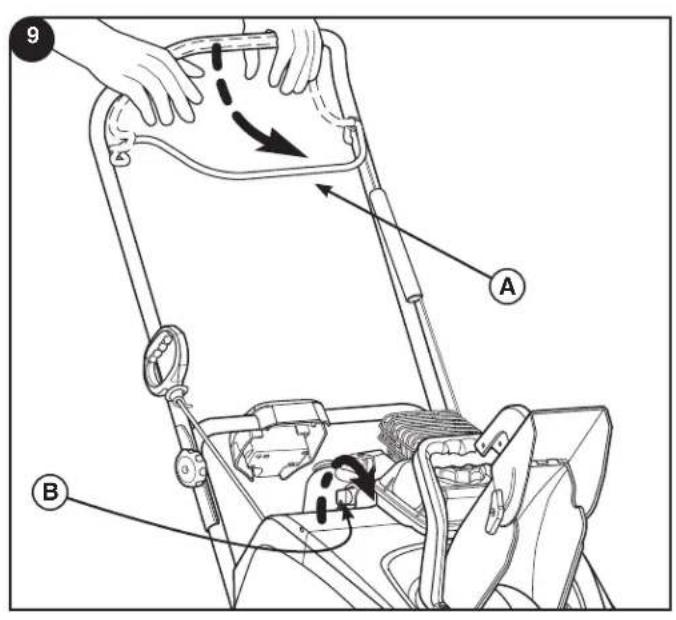

1. Release the auger control (A, Figure 9).
2. Turn the ON/OFF switch (B) to the OFF position and remove or pull out PUSH/PULL key.

Snowthrower Safety Test

[WOKW] DANGER
	The discharge chute contains a rotating auger to throw snow. Never clear or unclog the discharge chute with your hands.
Fingers can quickly become caught and traumatic amputation or severe laceration will result. Always use a clean-out tool to clear or unclog the discharge chute.

DANGER

[ETHY] DANGER
	Hand contact with the rotating auger inside the discharge chute is the most common cause of injury associated with snowthrowers.
This snowthrower is capable of amputating hands and feet, and throwing objects. Read and observe all the safety instructions in this manual. Failure to do so will result in death or serious injury.

DANGER

Test - Auger/Impeller

1. Start unit and engage auger control (A, Figure 9).
2. Release auger control.
3. Auger must stop in 5 seconds or less.

Discharge Chute and Defl ector

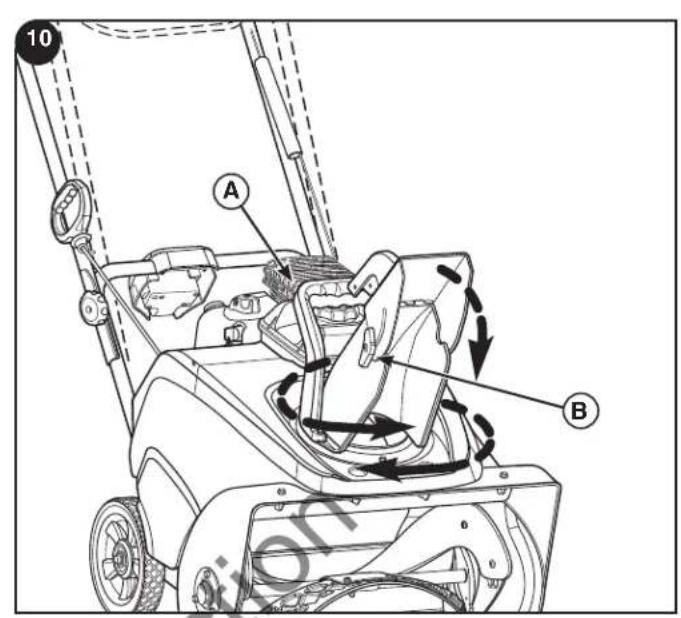

Manual Chute Rotation

Grasp the chute handle (A, Figure 10) on the deflector and rotate the discharge chute to the left, right or forward position. A tension plate holds the chute in the desired position.

NOTE: Do not use the chute handle to lift the unit.

Manual Deflector Adjustment

Loosen the deflector wing knob (B, Figure 10) and adjust the deflector up or down to control the snow discharge height and distance. Tighten the wing knob securely to hold the desired deflector adjustment.

Clear a Clogged Discharge Chute

DANGER
	Hand contact with the rotating impeller inside the discharge chute is the most common cause of injury associated with snowthrowers. Never clear or unclog discharge chute with your hands, or while engine is running.
Fingers can quickly become caught and traumatic amputation or severe laceration can result.

1. SHUT OFF THE ENGINE!

2. Wait 10 seconds to be sure that the impeller blades have stopped rotating.

3. Use a clean-out tool to remove snow from the auger housing.

Operating Tips

1. Most efficient snow removal is accomplished when snow is removed immediately after it falls.
2. For complete snow removal, slightly overlap each swath previously taken.
3. Snow should be discharged downwind whenever possible.
4. On gravel or crushed rock surfaces, push down slightly on the handle bars to avoid ingesting rocks. DO NOT allow rocks and gravel to be picked up and thrown from snowthrower.
5. After the snow removal has been completed, allow the engine to run for a few minutes, to melt accumulated snow and ice.
6. Clean the snowthrower thoroughly after each use.
7. Before starting snowthrower, always inspect auger for ice accumulation and/or debris, which could result in snowthrower damage.
8. Check oil level before every start. Make sure the oil is at the FULL mark on the oil fill cap/dipstick.

Snowthrower

After Each Use

Remove accumulated snow and slush from the unit to prevent freezing of controls.

Every 8 Hours or Daily

Perform impeller safety tests.

Every 25 Hours or Annually

Check snowthrower for loose hardware.

Adjust auger control cable if necessary.

See Dealer Annually to

Ensure rubber auger wear is not aff ecting performance.

Engine

First 5 Hours

Change oil.

Every 8 Hours or Daily

Check engine oil level.

Every 50 Hours or Annually

Change engine oil.

Check muffler and muffler guard.

Annually

Replace spark plug.

Check valve clearance. *

* Not required unless problems are noted with engine performance. See authorized dealer.

Emissions Control Statement

Maintenance, replacement, or repair of the emissions control devices and systems may be performed by any non-road engine repair establishment or individual. However, to obtain “no charge” emissions control service, the work must be performed by a factory authorized dealer.

Change the Oil

Remove Oil

Used oil is a hazardous waste product and must be disposed of properly. Do not discard with household waste. Check with your local authorities, service center, or dealer for safe disposal / recycling facilities.

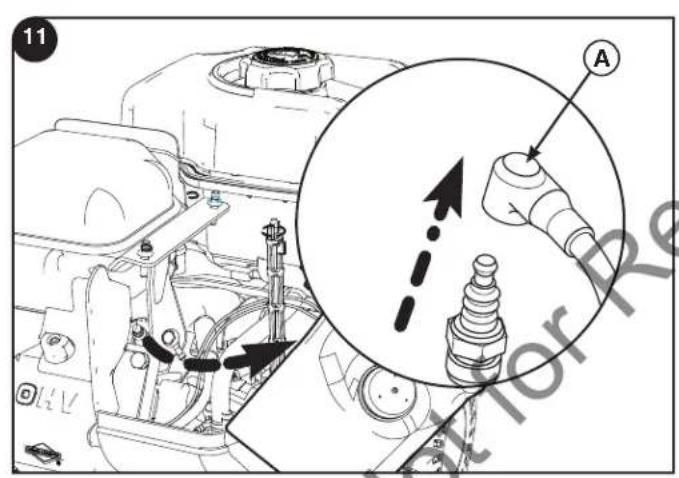

1. With engine off but still warm, disconnect the spark plug wire (A, Figure 11) and keep it away from the spark plug.
   NOTE: To access the spark plug wire, you must first remove the snow hood from the engine. See Replace the Spark Plug in this section.

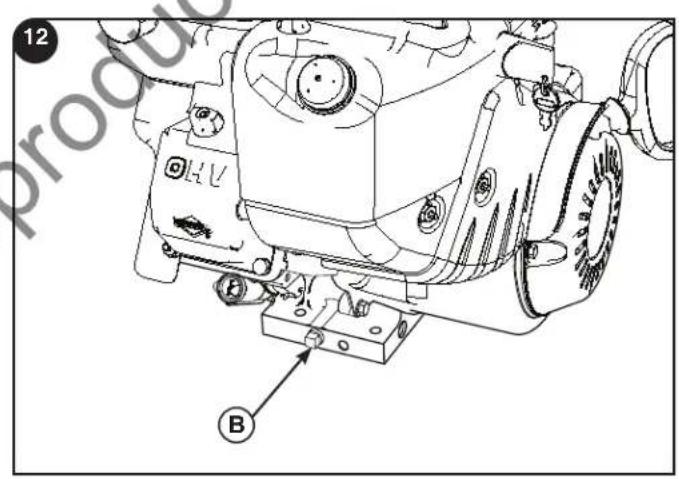

2. Tilt the unit back slightly, then remove the oil drain cap (B, Figure 12). Drain the oil into an approved receptacle.
3. After the oil has drained, install and tighten the oil drain cap.

Add Oil

1. Place engine level.
2. Clean the oil fill area of any debris.
3. See Specifications section for oil capacity.

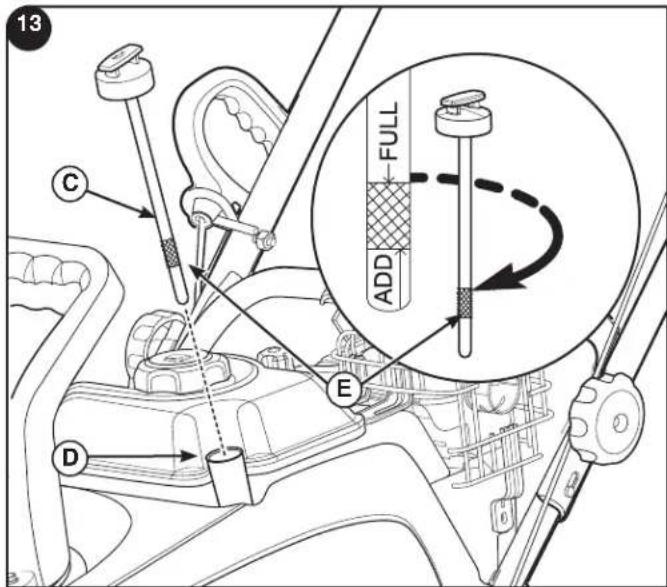

4. Remove the dipstick (C, Figure13) and wipe with clean cloth.
5. Pour the oil slowly into the engine oil fill (D). DO NOT overfill. Wait one minute and recheck the oil level.
6. Install and tighten dipstick.
7. Remove the dipstick and check the oil level. It should be at the top of the full indicator (E) on the dipstick.
8. Install and tighten dipstick.

Auger Cable Adjustment

WARNING

Do not over-tighten, as this may lift the lever and cause the auger drive to be engaged without depressing the auger drive control.

WARNING

The auger must stop within 5 seconds after releasing the control. If it does not, see an authorized dealer.

If the auger no longer turns when the control is engaged, or if the belt slips under load, the auger cable or belt may have stretched. This can be compensated for by adjusting the auger cable. If the belt is too worn or broken, see your authorized dealer for repair.

NOTICE: The auger must not turn unless the auger control is engaged. The auger must disengage within 5 seconds after the auger control is released. If it does not, see your authorized dealer before further use.

Inspection

1. Start the engine.
2. Engage the auger control. The auger should turn.
3. Release the auger control. The auger should stop within 5 seconds.

If the auger does not turn or stop as indicated above, perform the adjustment procedure, or take the unit to your local authorized dealer for repair.

Adjustment

1. Turn off the engine and remove the key. Wait for all moving parts to stop.

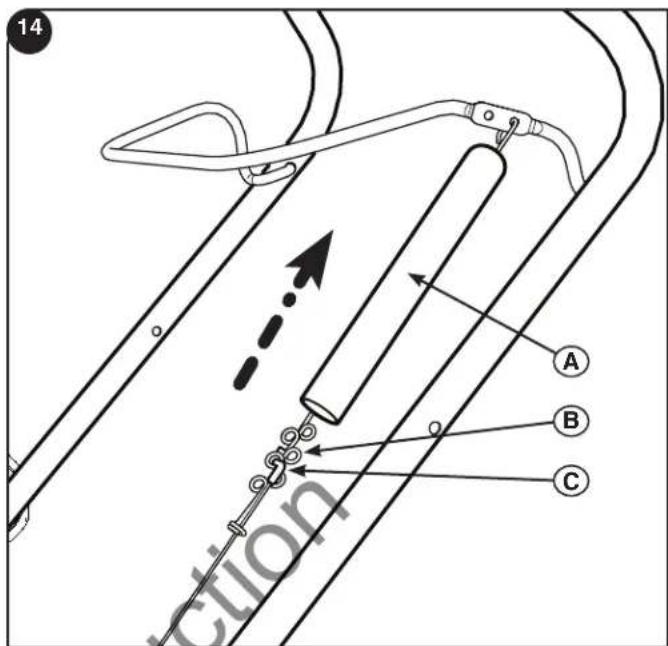

2. Slide the cable cover (A, Figure 14) up to expose the cable adjustment loops (B) and Z-bend (C).
3. Disengage the cable Z-bend from the cable loops, and install it in the next highest loop to increase belt tension. Slide the cable boot back into place.
   NOTE: There must be some slack in the cable when the control is released.
4. Keeping clear of the auger, reinsert the key, start the engine, and perform the Inspection procedure again. If the auger does not turn or stop as indicated, take the unit to your local authorized dealer for repair.

Storage

WARNING
	Fuel and its vapors are extremely flammable and explosive.Fire or explosion can cause severe burns or death.
When Storing Fuel or Equipment with Fuel in Tank• Store away from furnaces, stoves, water heaters or other appliances that have pilot lights or ignition sources because they can ignite fuel vapors.

Fuel System

Fuel can become stale when stored over 30 days. Stale fuel causes acid and gum deposits to form in the fuel system or on essential carburetor parts. To keep fuel fresh, use Briggs & Stratton® Advanced Formula Fuel Treatment & Stabilizer, available wherever Briggs & Stratton genuine service parts are sold.

For engines equipped with a FRESH START® fuel cap, use Briggs & Stratton FRESH START® available in a drip concentrate cartridge.

There is no need to drain gasoline from the engine if a fuel stabilizer is added according to instructions. Run the engine for 2 minutes to circulate the stabilizer throughout the fuel system before storage.

Engine Oil

While the engine is still warm, change the engine oil.

Snowthrower

1. Thoroughly clean the snowthrower.
2. Lubricate all lubrication points (see authorized dealer).
3. Make sure all nuts, bolts, and screws are securely fastened. Inspect all visible moving parts for damage, breakage, and wear. Replace if necessary.
4. Touch up all rusted or chipped paint surfaces.
5. Cover the bare metal parts of the auger and impeller with rust preventative.
6. If possible, store your snowthrower indoors and cover it to protect from dust and dirt.
7. On models with folding handles, loosen the knobs that secure the upper handle. Rotate the upper handle forward.
8. If stored outdoors, place the snowthrower on blocks and ensure the entire machine is off the ground. Cover the snowthrower with a heavy tarpaulin.

Remove from Storage

1. Raise the upper handle to the operating position and tighten the knobs that secure the upper handle.
2. Fill the fuel tank with fresh fuel.
3. Check the spark plug. Make sure the gap is correct. If the spark plug is worn or damaged, replace.
4. Make sure all fasteners are tight.
5. Make sure all guards, shields, and covers are in place.

PROBLEM LOOK FOR REMEDY
Auger does not stop within 5 seconds after control lever is released.	Auger control cable out of adjustment	Adjust auger control cable. Refer to “Cable Adjustment” in the Maintenance section of this manual. If the auger does not stop within 5 seconds, see authorized dealer for repair.
Discharge chute or deflector does not work (remote-manual).	Discharge chute or deflector needs lubrication.	See authorized dealer.
	Discharge chute or deflector is frozen.	Put snowthrower in heated garage or let unit run for a few minutes or clean off any snow and ice from the base of the chute.
Engine does not start. Key is off or not installed. Turn key in to the ON position.

BRIGGS & STRATTON PRODUCTS WARRANTY POLICY April 2012

LIMITED WARRANTY

Briggs & Stratton warrants that, during the warranty period specified below, it will repair or replace, free of charge, any part that is defective in material or workmanship or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. This warranty is effective for and is subject to the time periods and conditions stated below. For warranty service, find the nearest Authorized Service Dealer in our dealer locator map at www.murray.com. The purchaser must contact the Authorized Service Dealer, and then make the product available to the Authorized Service Dealer for inspection and testing.

There is no other express warranty. Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one year from purchase, or to the extent permitted by law. All other implied warranties are excluded. Liability for incidental or consequential damages are excluded to the extent exclusion is permitted by law. Some states or countries do not allow limitations on how long an implied warranty lasts, and some states or countries do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or country to country.**

WARRANTY PERIOD

Item Consumer Use Commercial Use

Equipment 2 years 90 days

Engine* 2 years 90 days

Battery (if equipped) 1 year 1 year

* Applies to Briggs & Stratton engines only. Warranty coverage of non-Briggs & Stratton engines is provided by that engine manufacturer. Emissions-related components are covered by the Emissions Warranty Statement.

** In Australia - Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. For warranty service, find the nearest Authorized Service Dealer in our dealer locator map at BRIGGSandSTRATTON.com, or by calling 1300 274 447, or by emailing or writing to [e-mail], Briggs & Stratton Australia Pty Ltd, 1 Moorebank Avenue, NSW, Australia, 2170.

The warranty period begins on the date of purchase by the first retail consumer or commercial end user, and continues for the period of time stated in the table above. “Consumer use” means personal residential household use by a retail consumer. “Commercial use” means all other uses, including use for commercial, income producing or rental purposes. Once a product has experienced commercial use, it shall thereafter be considered as a commercial use product for purposes of this warranty.

No warranty registration is necessary to obtain warranty on Briggs & Stratton products. Save your proof of purchase receipt. If you do not provide proof of the initial purchase date at the time warranty service is requested, the manufacturing date of the product will be used to determine the warranty period.

ABOUT YOUR WARRANTY

We welcome warranty repair and apologize to you for being inconvenienced. Warranty service is available only through Murray Authorized Service Dealers. Most warranty repairs are handled routinely, but sometimes requests for warranty service may not be appropriate. This warranty only covers defects in materials or workmanship. It does not cover damage caused by improper use or abuse, improper maintenance or repair, normal wear and tear, or stale or unapproved fuel.

Improper Use and Abuse - The proper, intended use of this product is described in the Operator's Manual. Using the product in a way not described in the Operator's Manual or using the product after it has been damaged will void your warranty. Warranty is not allowed if the serial number on the product has been removed or the product has been altered or modified in any way, or if the product has evidence of abuse such as impact damage, or water/chemical corrosion damage.

Improper Maintenance or Repair - This product must be maintained according to the procedures and schedules provided in the Operator's Manual, and serviced or repaired using genuine Briggs & Stratton parts or equivalent. Damage caused by lack of maintenance or use of non-original parts is not covered by warranty.

Normal Wear - Like all mechanical devices, your unit is subject to wear even when properly maintained. This warranty does not cover repairs when normal use has exhausted the life of a part or the equipment. Maintenance and wear items such as filters, belts, cutting blades, and brake pads (except engine brake pads) are not covered by warranty due to wear characteristics alone, unless the cause is due to defects in material or workmanship.

Stale Fuel - In order to function correctly, this product requires fresh fuel that conforms to the criteria specified in the Operator's Manual. Damage caused by stale fuel (carburetor leaks, clogged fuel tubes, sticking valves, etc) is not covered by warranty.

Other Exclusions - This warranty excludes damage due to accident, abuse, modifications, alterations, improper servicing, freezing or chemical deterioration. Attachments or accessories that were not originally packaged with the product are also excluded. There is no warranty coverage on equipment used for primary power in place of utility power or on equipment used in life support applications. This warranty also excludes failures due to acts of God and other force majeure events beyond the manufacturer's control.

ENGINE:

Brand Briggs & Stratton
Model Series	Snow ^TM	Series
Gross Torque 8.00 T.P. @ 3060 rpm
Type	4-Cycle
Displacement 12.48 cu in. (205 cc)
Starting System Recoil Start and Remote 230V Electric Start w/o Cord 1-2-3 Start Package
Alternator	None
Oil Capacity 20 oz (0,59 L)
Engine Oil	Synthetic	5W30
Fuel Tank Volume Nylon 3.0 qts (2.8 liters)
Spark Plug Gap 0.030 in. (0,76 mm)
Spark Plug Torque 180 lb-in (20 Nm)
Ignition System This spark plug ignition system complies with Canadian standard ICES-002.

AUGER/IMPELLER:

Clearing Width 22.0 in. (55.9 cm)
Intake Height	12.6 in. (32.0) cm)
Auger/Impeller Diameter	10.0 in. (25.4 cm)
Number of Impeller Blades	2
CHUTE:
Chute Deflector	Manual
Chute Rotation	Manual Rotation - 200°
DRIVE SYSTEM:
Drive Type	Auger - Propelled
Drive Speeds	N/A
Wheel Size	8.0 x 2.0 in. (20,3 cm x 5,1 cm)

Power Ratings

The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive Engineers) code J1940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and corrected in accordance with SAE J1995 (Revision 2002-05). Torque values are derived at 3060 RPM; horsepower values are derived at 3600 RPM. The gross power curves can be viewed at www.BRIGGSandSTRATTON.com. Net power values are taken with exhaust and air cleaner installed whereas gross power values are collected without these attachments. Actual gross engine power will be higher than net engine power and is affected by, among other things, ambient operating conditions and engine-to-engine variability. Given the wide array of products on which engines are placed, the gas engine may not develop the rated gross power when used in a given piece of power equipment. This difference is due to a variety of factors including, but not limited to, the variety of engine components (air cleaner, exhaust, charging, cooling, carburetor, fuel pump, etc.), application limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this Series engine.

Oshab

llustrace....2

MODEL NO. xxxxxxx SERIAL NO. xxxxxxxxxxxx B C XXXXXXXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXXXX D xxxx min⁻¹ E x.x kW F xxx kg G CE 20xx H LwA XXX I dB

Copyright © 2012 Briggs & Stratton Power Products Group, LLC

Technical diagram of a lawn mower with safety warning signs and hazard symbols, including warning labels and safety icons.

Bezpečnostní štítky

A B C D E F G H I J K L M 4 5 2 N 3 2X for Reproduc

MODEL NO. xxxxxxxx SERIAL NO. xxxxxxxxxxxx B C XXXXXXXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXXXX D xxxx min⁻¹ E x.x kW F xxx kg G CE 20xx H LwA XXX I dB

Copyright © 2012 Briggs & Stratton Power Products Group, LLC Milwaukee, WI, USA

Technical diagram of a lawn mower with safety warning signs and hazard symbols, including warning labels and safety icons.

MODEL NO. xxxxxxxx SERIAL NO. xxxxxxxxxxxx B C XXXXXXXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXXXX D xxxx min⁻¹ E x.x kW F xxx kg G CE 20xx H XXX I dB

Copyright © 2012 Briggs & Stratton Power Products Group, LLC

Technical diagram of a lawn mower with safety warning signs and hazard symbols, including warning labels and safety icons.

Turvallisuustarrat

MODEL NO. xxxxxxxx SERIAL NO. xxxxxxxxxxxx B C XXXXXXXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXXXX D xxxx min⁻¹ E x.x kW F xxx kg G CE 20xx H XXX I dB

Copyright © 2012 Briggs & Stratton Power Products Group, LLC

Technical diagram of a lawn mower with safety warning signs and hazard symbols, including warning labels and safety icons.

Turvallisuustarrat

MODEL NO. xxxxxxxx SERIAL NO. xxxxxxxxxxxx B C XXXXXXXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXXXX D xxxx min⁻¹ E x.x kW F xxx kg G CE 20xx H LwA XXX I dB

Copyright © 2012 Briggs & Stratton Power Products Group, LLC Milwaukee, WI

Technical diagram of a lawn mower with safety warning signs and hazard symbols, including warning labels and safety icons.

A B C D E F G H I J K L M 4 5 2 N 3 2X for Reproduc

Copyright © 2012 Briggs & Stratton Power Products Group, LLC

Minden jog fenntartva.

A Murray a Briggs & Stratton Power Products Group, LLC Milwaukee, WI USA védjegye.

hu

Technical diagram of a lawn mower with safety warning signs and hazard symbols, including warning labels and safety icons.

Biztonsági matricák

A B C D E F G H I J K L M 4 5 2 N 3 2X for Reproduc

MODEL NO. xxxxxxxx SERIAL NO. xxxxxxxxxxxx B C XXXXXXXXXXXXXXXXXX XXXXXXXXXXXXXX D xxxx min⁻¹ E x.x kW F xxx kg G CE 20xx H LwA XXX I dB

Copyright © 2012 Briggs & Stratton Power Products Group, LLC

• Keep children out of the area during operation. Children are often attracted to the equipment. Be mindful of all persons present.
• Be alert and turn unit off if children enter the area.
• Never allow children to operate the unit.
• Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure vision. Children may be present.

Technical diagram of a lawn mower with safety warning signs and hazard symbols, including warning labels and safety icons.

A B C D E F G H I J K L M 4 5 2 N 3 2X for Reproduc

MODEL NO. xxxxxxx SERIAL NO. xxxxxxxxxxxx B C XXXXXXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXXXX D xxxx min⁻¹ E x.x kW F xxx kg G CE 20xx H LwA XXX I dB

Technical diagram of a lawn mower with safety warning signs and hazard symbols, including warning labels and safety icons.

Saugos ženklai

A B C D E F G H I J K L M 4 5 2 N 3 2X for Reproduc

* Below 40°F (4°C) the use of SAE 30 will result in hard starting.

** Above 80°F (27°C) the use of 10W-30 may cause increased oil consumption. Check oil level more frequently.

MODEL NO. xxxxxxx SERIAL NO. xxxxxxxxxxxx B C XXXXXXXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXXXX D xxxx min⁻¹ E x.x kW F xxx kg G CE 20xx H XXX I dB

Copyright © 2012 Briggs & Stratton Power Products Group, LLC

Milwaukee, WI, Alle rettigheter forbeholdt.

Technical diagram of a lawn mower with safety warning signs and hazard symbols, including warning labels and safety icons.

Sikkerhetsmerker

A B C D E F G H I J K L M 4 5 2 N 3 -0.2x for Reprodu

ADVARSEL
	If the extension cord is damaged, it must be replaced by the manufacturer (or its service agent) or a similarly qualified person to avoid a hazard.

Test – transportskrue/rotor

1. Start enheten og aktiver transportskruen (A, figur 9).
2. Slipp transportskruespaken.
3. Transportskruen må stanse på 5 sekunder eller mindre.

Copyright © 2012 Briggs & Stratton Power Products Group, LLC

Technical diagram of a lawn mower with safety warning signs and hazard symbols, including warning labels and safety icons.

A B C D E F G H I J K L M 4 5 2 N 3 2x for Reprodu

MODEL NO. xxxxxxx SERIAL NO. xxxxxxxxxxxx B C XXXXXXXXXXXXXXXXXX XXXXXXXXXXXXXX D xxxx min⁻¹ E x.x kW F xxx kg G CE 20xx H LwA XXX I dB

Avtorske pravice © 2012 Briggs & Stratton Power Products Group, LLC

Vse pravice pridržane.

Technical diagram of a lawn mower with safety warning signs and hazard symbols, including warning labels and safety icons.

Varnostne oznake

A B C D E F G H I J K L M 4 5 2 N 3 2X for Reproduc

Kontrole snežne freze in delovne oznake (slika 2)

A — Nadzor svedra

BRIGGS & STRATTON GARANCIJA ZA MOTOR/OPREMO April 2012

OMEJENA GARANCIJA

MODEL NO. xxxxxxxx SERIAL NO. xxxxxxxxxxxx B C XXXXXXXXXXXXXXXXXX XXXXXXXXXXXXXX D xxxx min⁻¹ E x.x kW F xxx kg G CE 20xx H XXX I dB

Copyright © 2012 Briggs & Stratton Power Products Group, LLC

Technical diagram of a lawn mower with safety warning signs and hazard symbols, including warning labels and safety icons.

Säkerhetsetiketter

Not for Reproduction

Not for Reproduction

Not for Reproduction

Not for Reproduction
