SD7 - Keyboard KETRON - Free user manual and instructions

Brand	Ketron
Model	SD7
Product type	Multimedia keyboard / Workstation
Power supply	DC 15V, 4A power adapter (included)
Display	Color touchscreen
Connectivity	USB Host (3 ports), USB Device, MIDI IN/OUT/THRU, DVI, Audio jacks (L/R outputs, headphone, aux input, XLR/Jack combo microphone, sustain and volume pedals, footswitch)
Main functions	Multimedia player, touch control, built-in effects, MIDI management, internal amplification
Speakers	Built-in, activation/deactivation by switch
Microphone input	XLR/Jack combo with gain adjustment and dedicated output
Headphone output	Stereo jack with automatic speaker cut-off
Compatible pedals	Sustain (standard), Volume (stereo), Footswitch (Ketron FS6/FS13)
Brightness control	Brightness potentiometer
Power on	Up to 30 seconds; switch off by ON/OFF button (approx. 10 seconds)
Maintenance and cleaning	Soft dry cloth; avoid solvents, gasoline, thinners
Safety	Do not expose to humidity; use only the supplied adapter; do not open; have any repairs done by a professional
Electrical compatibility	200-240V (via adapter); do not use abroad without verification
Spare parts and repairability	Specific Ketron power adapter; interventions exclusively in authorized centers
General information	Manual available in several languages; HTML manual on www.ketron.it

Frequently Asked Questions - SD7 KETRON

How to clean the Ketron SD7 keyboard?

Use a soft, dry cloth. Never use gasoline, thinners or solvents as they may damage the surfaces.

Which power adapter should I use with the SD7?

Exclusively the adapter supplied by Ketron, output 15V 4A. An unsuitable adapter may damage the instrument.

What to do in case of radio/TV interference caused by the instrument?

Try reorienting the antenna, move the instrument away from the receiver, plug it into a different outlet. If the problem persists, consult a professional.

How to connect a microphone to the SD7?

Connect a dynamic microphone to the combo (Jack/Xlr) MICRO IN jack. Use the GAIN MICRO potentiometer to adjust the level. The MICRO OUT output allows sending the signal to an external amplifier.

Can I use a sustain or volume pedal?

Yes, plug a sustain pedal (standard Jack) into the SUSTAIN jack, and a stereo volume pedal into the VOLUME jack. A multipolar footswitch (Ketron FS6/FS13) can be connected to FOOTSWITCH for additional functions.

How to turn the SD7 on and off correctly?

Press the ON/OFF button on the back. Powering on may take up to 30 seconds. To turn off, hold the button down until it is completely disabled (about 10 seconds).

Which USB ports are available?

Three USB Host ports on the right for USB keys or hard drives, and one USB Device port on the back for connection to a computer.

Can I use an external display with the SD7?

Yes, via the DVI (Digital Video Interface) connector on the back. You can thus display the interface on an external monitor.

How to connect the SD7 to an amplifier or PA system?

Use the RIGHT (MONO) and LEFT (MONO) outputs in stereo for optimal reproduction. Using only one output in mono will degrade sound quality. Connect via standard mono jacks.

Is the SD7 compliant with environmental standards?

Yes, it complies with directives 2002/95/EC, 2002/96/EC and 2003/108/EC (RoHS and WEEE). At the end of its life, do not dispose of it with household waste: take it to a selective collection point.

USER MANUAL SD7 KETRON

Front view of a KETRON audio workstation keyboard with piano and control panel (no visible text or symbols on main body)

GUIDA PRATICA | QUICK GUIDE | KURZANLEITUNG GUIDE PRATIQUE | GUIA RAPIDA | GUIA RAPIDO

ITALIANO 3

ENGLISH 7

DEUTSCH 11

FRANÇAIS 15

ESPAÑOL 19

PORTUGUÊS 23

TECHNICAL TABLE 27

Benvenuti!

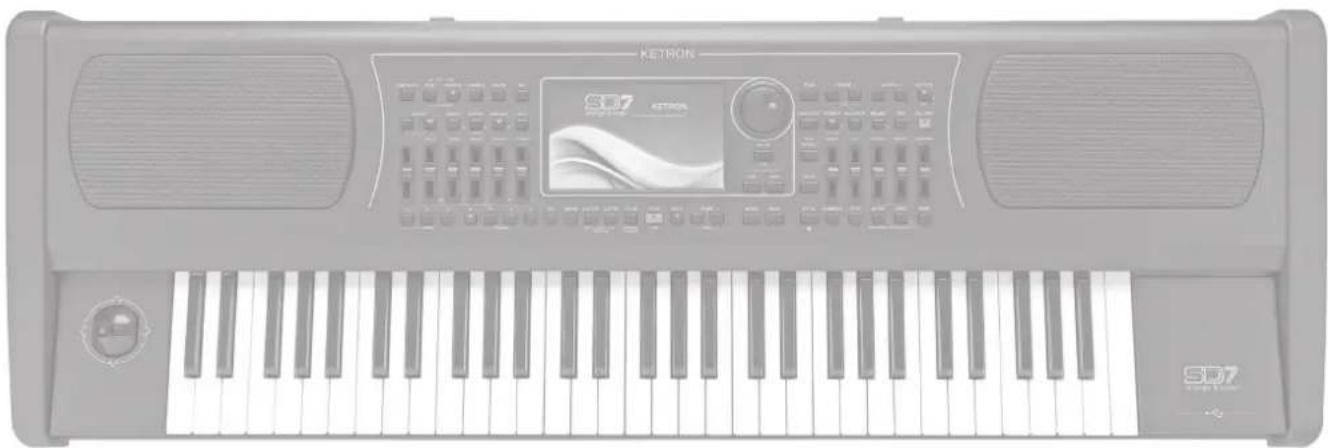

Front view of a KETRON keyboard with visible keys and control panel (no text or symbols on main body)

ISTRUZIONI RIGUARDANTI IL RISCHIO DI INCENDIO, SCOSSE ELETTRICHE O DANNO ALLE PERSONE.

Close-up of a CD7 audio jack with three ports (no visible text or symbols beyond branding)

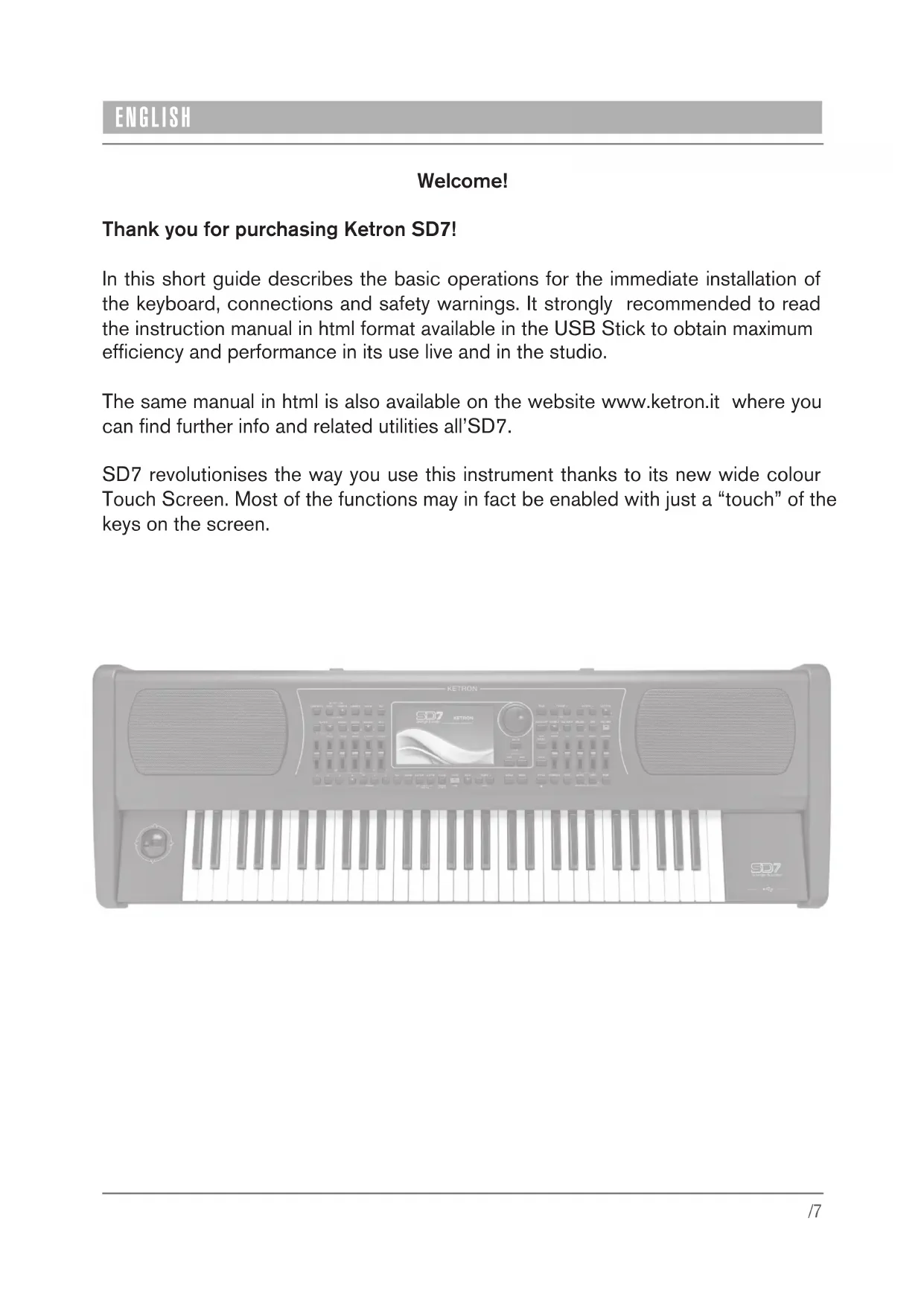

Thank you for purchasing Ketron SD7!

In this short guide describes the basic operations for the immediate installation of the keyboard, connections and safety warnings. It strongly recommended to read the instruction manual in html format available in the USB Stick to obtain maximum efficiency and performance in its use live and in the studio.

The same manual in html is also available on the website www.ketron.it where you can find further info and related utilities all'SD7.

SD7 revolutionises the way you use this instrument thanks to its new wide colour Touch Screen. Most of the functions may in fact be enabled with just a “touch” of the keys on the screen.

Front view of a KETRON keyboard with visible keys and control panel (no text or symbols on main body)

RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS.

Caution: to reduce the risk of fire or electric shock, do not expose the instrument to rain or humidity.

IMPORTANT INSTRUCTIONS FOR SAFETY AND INSTALLATION

CAUTION – When using an electrical product it is important to take a number of precautions such as the following:

- Read the Instruction Manual before using the instrument.

- An adult should always supervise children when they play the instrument.

- Do not use the instrument in areas subject to seepage or water spray, such as next to a sink, a swimming pool, on a damp surfaces etc.; do not place containers with liquids on the instrument to prevent accidental seepage of liquid into the instrument.

- The instrument should be used only on a stand recommended by the manufacturer.

- Do not use the instrument at a very high volume for long periods of time: very high noise levels are dangerous to health.

- Position the instrument in such a way as to ensure appropriate ventilation.

- Keep the instrument away from heat sources such as central heating radiators, stoves etc.

- Connect the instrument to the mains only with the mains adapter. You will find the identification and power supply details under the instrument.

- Disconnect the power supply cable if the instrument is not to be used for a long period of time.

- If necessary, disconnect the instrument using the power supply switch on the back panel. When positioning the instrument, always ensure that this switch is easy to reach.

• Take the instrument to a service centre if:

a. the power supply cable or plug are damaged.

b. objects or liquid have fallen into the instrument.

c. the instrument has been exposed to rain.

d. the instrument is not functioning properly or performance is impaired.

e. the instrument has been dropped or the chassis is damaged.

- Never attempt to repair the instrument on your own; all repairs should be carried out by a qualified technician.

KEEP THIS INSTRUCTION MANUAL IN A SAFE PLACE

PREVENTING RADIO/TV DISTURBANCE

This instrument operates on the radio frequency band. If it is not installed correctly and strictly in compliance with the instructions provided it may disturb the reception of radio-television appliances. Although the instrument you have purchased has been designed in compliance with applicable laws and in such a way as to provide reasonable protection against such disturbances, there is no guarantee that these will not occur. To check whether any disturbance you are experiencing is in fact produced by your instrument, turn it off to see if the disturbance disappears. Turn the instrument on again to see if the disturbance reappears. Once you are certain that your instrument is in fact causing the disturbance, take any of the following measures:

- Adjust the antenna of the radio or TV receiver.

- Place the instrument in a different position with respect to the radio or TV receiver.

- Place the instrument further away from the receiver.

- Connect the plug of the instrument to another socket so that the instrument and the receiver are connected to two different circuits.

- If necessary, call in a servicing technician.

POWER SUPPLY

- When you connect the instrument to other appliances (amplifier, mixer, Midi instruments etc.), ensure that all the units are off.

- Read the recommendations regarding Radio and TV disturbances.

INSTRUMENT CARE

- Clean the surfaces of the instrument with a soft dry cloth. Never use gasoline, diluting agents or solvents of any kind.

OTHER PRECAUTIONS

If you wish to use your instrument in a foreign country and have doubts about the power supply, consult a qualified technician before you leave. The instrument should never be subjected to strong shocks.

CURRENT ADAPTERS

When connecting this instrument to the mains socket, use only the KETRON current adapter supplied with the instrument. The use of different current adapters may damage the power supply circuits of the instrument. It is therefore of fundamental importance to use only an original adapter, requesting the correct model when ordering a new adapter.

"Implementation of Directive 2002/95/CE, 2002/96/CE and 2003/108/CE on reduced use of dangerous substances in electrical and electronic appliances and waste disposal".

The crossed bin symbol shown on the appliance means that at the end of its life the instrument must be disposed of separately from other waste. At the end of its life the user should therefore take the instrument to a separate waste centre for electronic and electrical products, or return the same to the dealer when purchasing a new and similar instrument, whichever is applicable. Disposing of the instrument correctly so that it may be consequently recycled and disposed of in an environmentally compatible manner helps to prevent possible negative effects to the environment and health and ensures that the components of the instrument are recycled. Unauthorised disposal of the product by the user entails the application of administrative penalties.

This symbol indicates that in EU countries, this product must be collected separately from household waste, as defined in each region. Products bearing this symbol must not be discarded together with household waste.

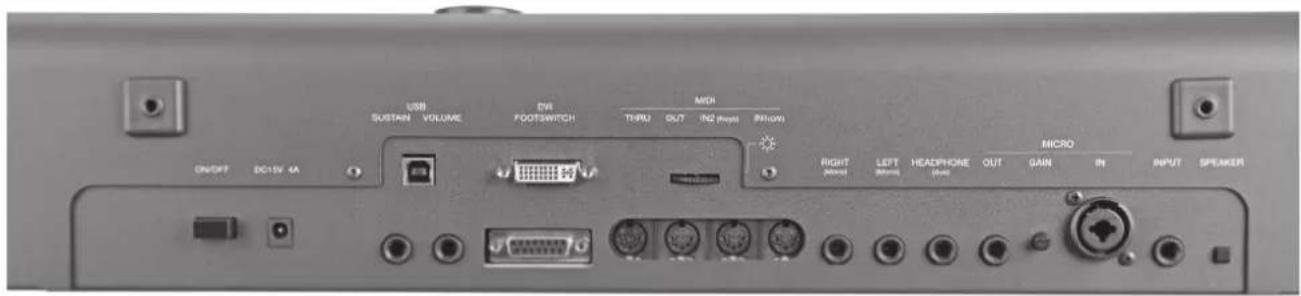

USB SUSTAIN VOLUME DVI FOOTSWITCH MIDI THRU OUT IN2 (RGB) RIN(RN) ON/OFF DC15V 4A RIGHT HEAD LEFT HEAD HEADPHONE OUT GAIN RIN MICRO INPUT SPEAKER

DC 15 V 4A

Mains power supply socket Please use only the power supply supplied with the instrument.

Output: 15 V, 4 A.

ON/OFF

ON/OFF key. This instrument may take up to 30 seconds to start up. To turn off the instrument, press ait for the instrument to turn off. This may take up to 10 seconds.

SUSTAIN

Standard jack to connect a Sustain pedal (optional).

VOLUME

Standard stereo jack to connect a Volume pedal (optional).

DVI

Digital video interface for connection to an external video monitor.

USB

This is used to connect a computer USB device or other devices to manage the SD7 as an external removable unit.

FOOTSWITCH

Standard multi-pin plug for connection of an optional pedal to control a number of internal functions. FS6/FS13.

Compatible with Ketron FS6/FS13.

MIDI

Plugs for MIDI IN1 (GM), MIDI IN 2 (Keyb), MIDI OUT and MIDI THRU connection.

RIGHT (Mono)

Standard mono jack for the main output to connect to a PA STEREO system: left (Left Mono), right (Right Mono). We strongly recommend that you use the stereo connection for best performance of the EFXs. A Mono connection (namely use of only the Left or Right output) will give with respect to quality of the sounds and EFXs of the instrument.

/ LEFT (Mono)

HEADPHONE (Aux)

Standard stereo jack for connection to a headphone. The volume of the headphone is controlled by dphone connected (or jack for other uses) automatically excludes internal speakers

the Master section. Headphone connected (or jack for other uses) automatically excludes internal speakers

MICRO IN

Standard mono combo plug (Jack/Xlr) for connection of a dynamic microphone.

GAIN MICRO

Potentiometer for adjustment of the Micro 1 input signal gain.

MICRO OUT

Standard mono jack dedicated exclusively to the Micro 1 output.

INPUT

Standard mono jack for connection of auxiliary other instrument such Keyboard, Expander, Guitar or

Dynamic Microphone

BRIGHTNESS

Brightness adjustment

SPEAKER ON / OFF

Switch for activating or exclusion of the internal speakers.

Close-up of a CD7 audio jack with three ports (no visible text or symbols beyond branding)

On the right of the instrument you will find 3 USB Hosts for connection to external USB devices such as Pen drives, HD etc.

Front view of a KETRON KETON keyboard with visible control panel and keyboard (no text or symbols on main body)

Close-up of a CD7 audio jack with three ports (no visible text or symbols beyond branding)

Front view of a KETRON keyboard with visible keys and control panel (no text or symbols on main body)

INSTRUCTIONS CONCERNANT LES RISQUES D'INCENDIE, LES DECHARGES ELECTRIQUES OU LES RISQUES D'ACCIDENTS PERSONNELS

SD7 stronger & player

Top-down view of a KETRON keyboard with piano keys and control panel (no visible text or symbols on main body)

INSTRUCCIONES RELATIVAS AL RIESGO DE INCENDIOS, DESCARGAS ELÉCTRICAS O LESIONES PERSONALES.

USB SUSTAIN VOLUME DVD FOOTSWITCH THRU OUT IN2 in.com IN1.com DIN/OFF DC10V 4A MIDI RIGHT (inside) LEFT (inside) HEADPHONE (main) OUT GAIN IN INPUT SPEAKER MICRO

DC 15V 4A

Close-up of a SD7 audio device with three USB ports (no visible text or symbols beyond branding)

Front view of a KETRON audio workstation keyboard with visible keys and control knobs (no text or symbols on the device body)

RISCO OU INCENDIO, CHOQUE ELÉCTRICO OU DANOS A PESSOAS.

Close-up of a CD7 audio jack with three USB ports (no visible text or symbols beyond branding)

• Keyboard : 61 key light weighted. 3 Velocity Curves. Aftertouch. Portamento. Joystick: Pitch. Modulation. Transposer: +/- 24. Octave: +/- 2.
  • Poliphony : 128 note. Multitimbral 48 parts.
  • Display : Lcd color Tft 7". Touch sensitive 800 x 480 dots. Brightness control.
• Player : Double Player. Files recognized: Wav, Midi, Mp3, Mp4, Avi, Mov, Flv, Cdg, Jpg, Txt, Pdf.
• Player Functions : Marker. Sync/Next. Autoplay. Lead Mute. GM part. Lyric Off. Cross fade. File Search. Play List. My Folder. Transposer. Time stretching. Metronome Click. Midi Multimix. Song Drum Restyle.
  • Audio Multitrack Player : 5+1 Audio tracks with separate slider control.
  • DJ : Double Audio and Midi player with Tempo & Pitch stretching, Pfl, Sync, Tap tempo, Cue, Fx Pad, Backspin, Brake.
  • Juke Box : Play List, My Folders, SFX Special Effects.
• Pic& Movie : Jpg & Mp4, Avi, Mov, Flv, Karaoke background, Movie/PDF To RGB, Pic List, Autoshow. Dvi: Video Monitor Out, Karaoke Lyric / Mirror.
• Menu : Disk, Midi, Play Modes, Audio Edit, Language, Footswitch, Preferences, Controls, Video, Reg. Set up, Arabic Mode.
  • Media : Internal Storage: SSD Card 16Gb. External Storage: Removable SATA 2/3 2.5 HD. USB: 3 Host + 1 device.
• Soundboard : 543 GM Sounds. 4 Sound Banks. Voice List. 48 Drum Sets + Stereo Special Kit. Live Drum Modeling.
• Voices : 368 Preset Voices. New Stereo Grand Piano. 368 User Voice. 2nd Voice. V-T one . Double Up / Down. Harmony. EFX Insert. Voice Editing.
• Ram Sounds : 46 Hi-Quality voices including Real T one wheel Organ sounds (instant loading).
• Arranger : 260 Styles full Audio Drum and Groove equipped. User Style section. Midi Drum Mixer & Remap. 4 Arranger ABCD. 4 Fill. 4 Break. 3 Intro. 3 Ending. Drum, Groove, Bass, Chords 1-5 . Lower 1-2. Auto Fill. Fill to Arrange. To End. Reintro. Key Start. Key Stop. Restart. Count In. Drum Boost. 4 Voice Set. Voice to ABCD. Voice & Vari. 5 User Tabs. V-T one .
• Arranger Modes : Pianist (Auto- Standard). Bassist (Easy_Expert). Manual Bass. Bass to Lowest.
• Style Modeling : Interactive Modeling Library with massive Audio Drums, Bass, Latin Groove, Piano, Guitar and Orchestral templates.
• Play Modes : Master keyboard. Accordion Style. Accordion Classic. Organ with Pedalboard. Guitar mode with Efx (thru Input).
• Registrations : 4 Bank x 1024 Regs. Full Panel and function programming.
• DSP : Type: Chorus, Reverb, Flanger, Phaser, Tremolo, Rotary, Echo Delay, Tap Delay, Equalizer, Distorsion, Amp simulator, Compressor, Filter. EFX Insert (54 types). 10 programmable Insert Chains.
• Live FX Control : Decay, Release, Filter and Resonance slider control applied to Player, Drum, Bass & Chords. Low_Hi Eq to Player.
  • Recording : HD Recording: 1 Stereo track. Loop. Audio Edit with Cut, Normalize. Midi Recording . Phrase and Song.
• Micro : XLR Input. Gain control. Volume. Reverb. Micro On/Off Edit. Talk.
  • Voicetron : 3 Voice Vocalizer. 10 Voicetron Presets + 10 User.
  • Instruction Manual : Html on board.
• Midi : In1 (Gm), In 2 (Keyb). Out. Thru. Midi Set up: Standard, Computer & Sequencer, Keyboard Right, Accordion, Player, Style.
  • Out : Left/Right Stereo, Pedal Volume, Sustain Pedal, Micro Out.
  • Input : Guitar (Instrument) / Micro2.
  • Headphone : Stereo Headphone. Aux separate Out Assign (to Drums, Right, Bass, Click).
  • Optional : HD, SSD, Footswitch 6 or 13, Volume pedal, Sustain pedal, Midi pedalboard, Bag, Hard case.
  • Power Supply : External 15 V.
• Amplifier : 2 x 20 watts. 2 x Midrange speakers + 2 x Tweeters. Speaker On /Off.
  • Dimensions : 115 x 39 x 12,5 cm (46 x 15.6 x 5 inches).
  • Weight : 15 Kg (33 lbs).

* All specifications and appearances are subject to change without notice.

SD7

arranger & player
