Product Type	Hydraulic control instantaneous water heater
Brand	AEG
Model	DDLT PinControl 24

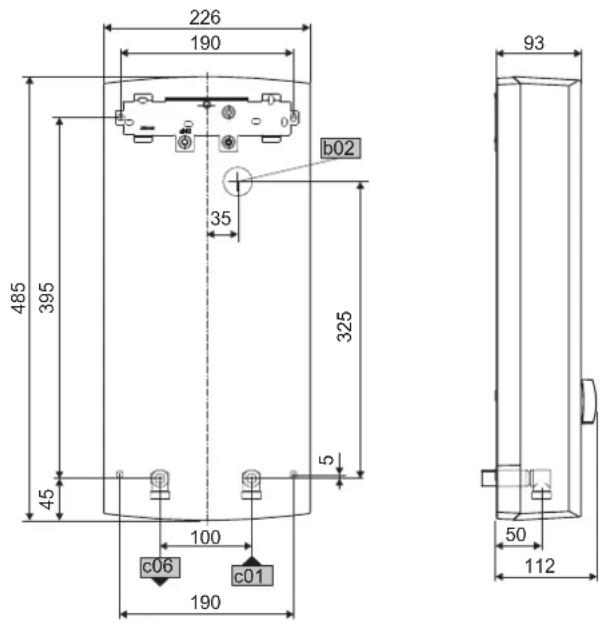

Dimensions (H x W x D)	485 x 226 x 93 mm
Weight	3.6 kg
Electrical supply	400 V three-phase, 50 Hz, 35 A
Rated power	24 kW (2 power levels)
Maximum allowable pressure	1 MPa (10 bar)
Max. inlet temperature	25 °C
Activation flow rate (level 1 / level 2)	4.1 / 6.3 l/min
Hot water capacity (Δθ 26 K)	12.5 l/min
Protection rating	IP25 (IP24 in surface mounting)
Energy efficiency class	A
Annual consumption	483 kWh
Sound level	15 dB(A)
Hydraulic connections	G 1/2 A (male thread)
Heating system	Bare wire under synthetic sheath
Maintenance and cleaning	Clean the cold water inlet filter; descale the taps
Safety	Safety pressure switch; overheating protection; mandatory multi-pole disconnection
Installation instructions	Vertical wall installation, frost-free, by a qualified installer
Warranty	According to local subsidiary conditions

Frequently Asked Questions - DDLT PinControl 24 AEG

How to choose the appropriate power level?

Use the power selector: Partial power position for low flow (washbasin), Full power position for bathtub or shower.

Why is the hot water not hot enough?

If the flow is too high, reduce it at the tap. Check that the selector is on Full power. If necessary, mix with cold water.

What to do after a water outage?

Turn off the appliance via the circuit breaker, open the hot water tap for 1 minute to purge, then restore power.

How to clean the appliance filter?

Close the cold water shut-off valve, disassemble the filter in the inlet connection, clean it, then reassemble.

The appliance does not turn on, what to check?

Check the circuit breakers in the electrical panel. Ensure that the water flow is sufficient (at least 4.1 l/min) and that the hot water tap is fully open.

Can I use preheated water?

No, the appliance is not approved for supplementary heating of preheated water. The inlet temperature must not exceed 25 °C.

How to bleed the appliance after installation or draining?

Open and close all connected taps several times until air is expelled. Perform a leak check.

What is the recommended regular maintenance?

Clean the water inlet filter regularly. Descale shower heads and flow regulators. Check for leaks.

The appliance makes a clicking sound but does not heat: what to do?

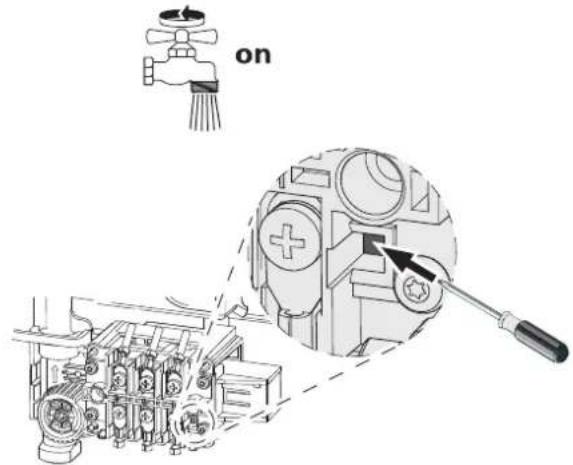

The safety pressure switch may have tripped. Let the hot water run for 1 minute, then press the reset button (under the cover). If the problem persists, measure the resistance of the heating system.

What are the minimum distances to observe for installation?

Refer to the mounting template provided. The appliance must be installed vertically, frost-free, and accessible for maintenance. Respect the distances indicated in the manual.

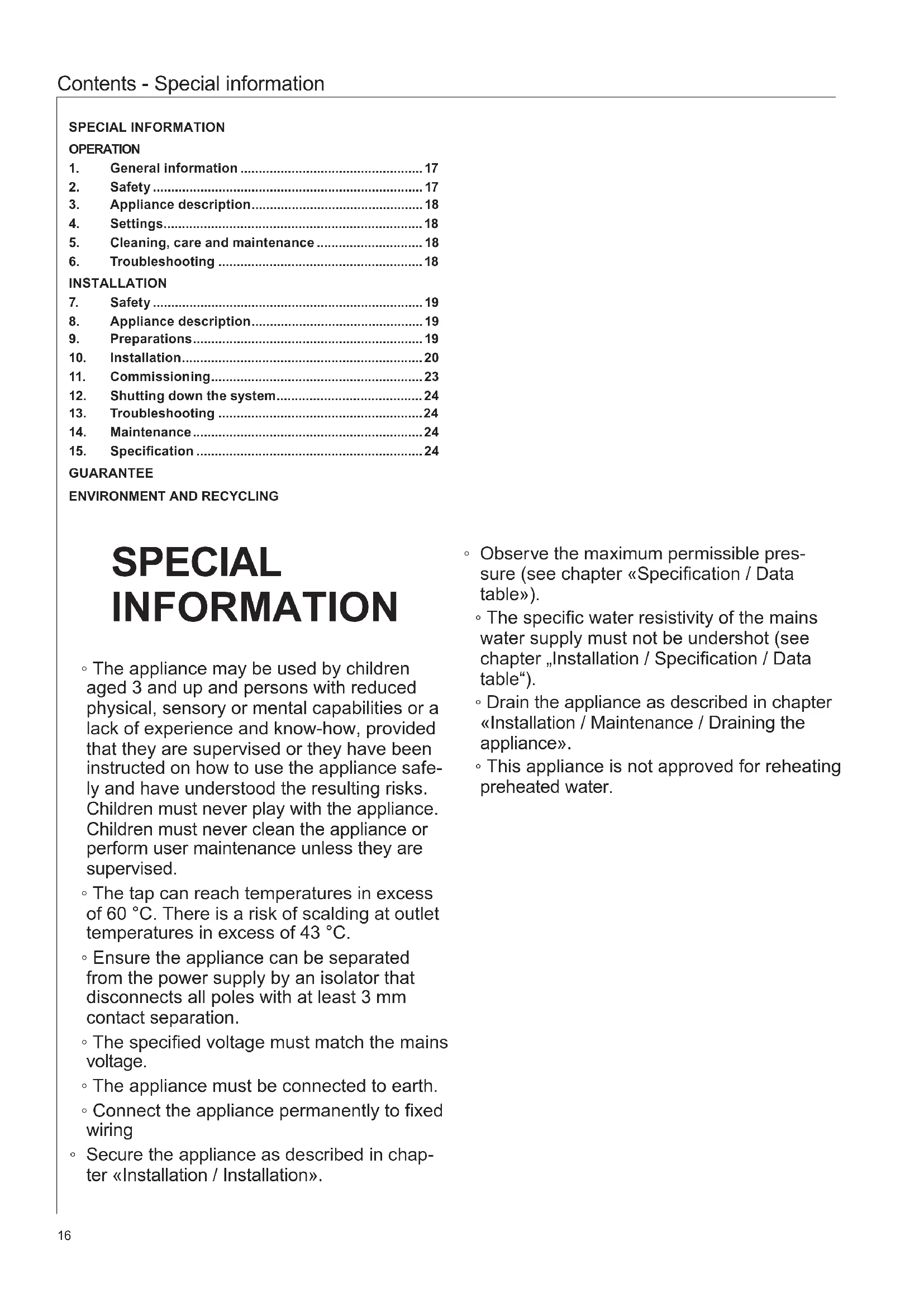

USER MANUAL DDLT PinControl 24 AEG

Hydraulically controlled instantaneous water heater

Operation and Installation 16

1. General information 17
2. Safety 17
3. Appliance description 18
4. Settings 18
5. Cleaning, care and maintenance 18
6. Troubleshooting 18

INSTALLATION

1. Safety 19
2. Appliance description 19
3. Preparations 19
4. Installation 20

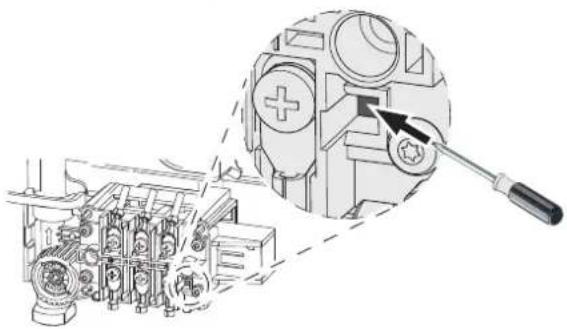

5. Commissioning 23
6. Shutting down the system 24
7. Maintenance 24
8. Specification 24

GUARANTEE

ENVIRONMENT AND RECYCLING

SPECIAL INFORMATION

The appliance may be used by children aged 3 and up and persons with reduced physical, sensory or mental capabilities or a lack of experience and know-how, provided that they are supervised or they have been instructed on how to use the appliance safely and have understood the resulting risks. Children must never play with the appliance. Children must never clean the appliance or perform user maintenance unless they are supervised. The tap can reach temperatures in excess of 60°C. There is a risk of scalding at outlet temperatures in excess of 43°C. - Ensure the appliance can be separated from the power supply by an isolator that disconnects all poles with at least 3mm contact separation. The specified voltage must match the mains voltage. The appliance must be connected to earth. - Connect the appliance permanently to fixed wiring - Secure the appliance as described in chapter «Installation / Installation».

Observe the maximum permissible pressure (see chapter «Specification / Data table»).

The specific water resistivity of the mains water supply must not be undershot (see chapter „Installation / Specification / Data table"). Drain the appliance as described in chapter «Installation / Maintenance / Draining the appliance». This appliance is not approved for reheating preheated water.

OPERATION

1. General information

The chapters «Special Information» and «Operation» are intended for both the user and qualified contractors.

The chapter «Installation» is intended for qualified contractors.

Note Read these instructions carefully before using the appliance and retain them for future reference. Pass on the instructions to a new user if required.

1.1 Safety instructions

1.1.1 Structure of safety instructions

KEYWORD Type of risk Here, possible consequences are listed that may result from failure to observe the safety instructions. Steps to prevent the risk are listed.

1.1.2 Symbols, type of risk

Symbol Type of risk
!	Injury
	Electrocution
	Burns (burns, scalding)

1.1.3 Keywords

KEYWORD Meaning
DANGER	Failure to observe this information will result in seri-ous injury or death.
WARNING	Failure to observe this information may result in seri-ous injury or death.
CAUTION	Failure to observe this information may result in non-serious or minor injury.

1.2 Other symbols in this documentation

Note General information is identified by the symbol shown on the left. Read these texts carefully.

Symbol Meaning
!	Material losses (appliance damage, consequential losses and environ- mental pollution)
	Appliance disposal

This symbol indicates that you have to do something. The action you need to take is described step by step.

1.3 Units of measurement

Note All measurements are given in mm unless stated otherwise.

2. Safety

2.1 Intended use

This appliance is intended for domestic use. It can be used safely by untrained persons. The appliance can also be used in a non-domestic environment, e.g. in a small business, as long as it is used in the same way.

This pressure appliance is designed to heat DHW. The appliance can supply one or more draw-off points.

Any other use beyond that described shall be deemed inappropriate. Observation of these instructions and of instructions for any accessories used is also part of the correct use of this appliance.

Note This appliance is not approved for reheating preheated water.

2.2 General safety instructions

CAUTION Burns During operation, the tap can reach temperatures in excess of 60°C. There is a risk of scalding at outlet temperatures in excess of 43°C.

WARNING Injury The appliance may be used by children aged 3 and up and persons with reduced physical, sensory or mental capabilities or a lack of experience and know-how, provided that they are supervised or they have been instructed on how to use the appliance safely and have understood the resulting risks. Children must never play with the appliance. Children must never clean the appliance or perform user maintenance unless they are supervised.

Material losses Protect the appliance and its tap against frost.

2.3 Test symbols

See type plate on the appliance.

3. Appliance description

The hydraulically controlled instantaneous water heater heats water as it flows through the appliance. When a tap is opened, the heating output starts automatically as soon as the start-up volume is exceeded (see chapter «Specification / Data table»). The water volume and temperature can be adjusted at the tap.

You can choose between 2 output stages. In addition, 2 output stages are hydraulically controlled in relation to the flow rate.

The flow rate controller compensates for pressure fluctuations, thereby ensuring largely stable temperatures. The controller limits the throughput, thereby ensuring an adequate increase in the DHW temperature at all times.

Heating system

The bare wire heating system has a pressure-tested plastic casing. The heating system is suitable for hard and soft water areas and is largely insusceptible to scale build-up. This system ensures rapid and efficient DHW availability.

4. Settings

1 Partial load

At low throughput 1/3 of the heating output is activated; at higher throughput 2/3 of the available heating output is enabled. This setting is suitable for hand washing at a basin, for example.

2 Full load

At a low throughput, 50% of the heating output is applied; at a higher throughput the full heating output is activated. This setting is suitable for washing dishes, for example.

» Click the output selector into the required position.

Recommended settings when using a thermostatic valve

» Set the output selector to full power.

4.1 Recommended tap/valve settings

Note

If the outlet temperature is not sufficiently high at full load and with the draw-off valve fully open, then more water is flowing through the appliance than can be heated by the heating system (appliance is at its output limit).

» Reduce the water volume at the draw-off valve.

Low draw-off rate = high outlet temperature

High draw-off rate = low outlet temperature

Twin lever tap

Output stage Application range
Partial load Washbasin
Full load Bath, shower, sink

» Add cold water if the temperature is too high when the tap is fully open.

Mono lever mixer

Output stage Application range
Full load All

Turn the tap lever to the highest temperature.

Fully open the tap. Increase the outlet temperature by closing the tap slowly. Reduce the outlet temperature by adding cold water or opening the tap further, if possible.

Following an interruption of the water supply

Material losses

Following an interruption of the water supply, the appliance must be recommissioned by carrying out the following steps, in order to prevent the destruction of the bare wire heating system.

Disconnect the appliance from the power supply by removing the fuses/tripping the MCBs.

Open the tap for one minute until the appliance and its upstream cold water inlet line are free of air. Switch the mains power back ON again.

5. Cleaning, care and maintenance

Never use abrasive or corrosive cleaning agents. A damp cloth is sufficient for cleaning the appliance.

Check the taps regularly. Limescale deposits at the spouts can be removed using commercially available descaling agents.

6. Troubleshooting

Problem	Cause	Remedy
The appliance will not start despite the DHW valve being fully open.	There is no power.	Check the fuses/ MCBs in your fuse box/distribution panel.
	The flow rate is too low for switching on the heating output. The aerator in the tap or the shower head is scaled up or contaminated.	Clean and/or descale the aerator or shower head.

If you cannot remedy the fault, notify your qualified contractor. To facilitate and speed up your enquiry, please provide the serial number from the type plate (000000-0000-0000):

0000046164

INSTALLATION

7. Safety

Only a qualified contractor should carry out installation, commissioning, maintenance and repair of the appliance.

7.1 General safety instructions

We guarantee trouble-free function and operational reliability only if original accessories and spare parts intended for the appliance are used.

Material losses

Observe the maximum inlet temperature. Higher temperatures may damage the appliance. You can limit the maximum inlet temperature by installing a central thermostatic valve.

7.2 Instructions, standards and regulations

Note

Observe all applicable national and regional regulations and instructions.

The protection rating IP 25 (hoseproof) can only be ensured with a correctly fitted cable grommet. The specific electrical resistance of the water must not fall below that stated on the type plate. In a linked water network, observe the lowest electrical water resistance (see chapter «Specification / Application areas / Conversion table»). Your water supply utility will advise you of the specific electrical water resistance or conductivity.

8. Appliance description

8.1 Standard delivery

The following are delivered with the appliance:

Wall mounting bracket - Threaded stud for wall mounting Installation template 2 twin connectors (cold water with shut-off valve) Flat gaskets Cable grommet (power cable from above / below) - Screws / rawl plugs for additional securing of the back panel when making water connections on finished walls

9. Preparations

9.1 Installation site

Material losses

Install the appliance in a room free from the risk of frost.

Always install the appliance vertically and near the draw-off point.

The appliance is suitable for undersink and oversink installations.

Undersink installation 26_02_02_1345

Oversink installation 26_02_02_1344

Mount the appliance on the wall. The wall must have a sufficient load-bearing capacity.

9.2 Minimum clearances

D0000060809

Maintain the minimum clearances to enable maintenance work on the appliance.

9.3 Water installation

Never operate with preheated water. A safety valve is not required. Safety valves are not permissible in the DHW pipe.

Flush the water line thoroughly. Ensure that the flow rate for switching on the appliance is achieved (see chapter «Specification / Data table», On). Increase the mains water pressure if the required flow rate is not achieved with the draw-off valve fully opened.

Taps/valves

Use appropriate pressure taps. Open taps are not permitted.

Thermostatic pressure valves must be suitable for hydraulically controlled instantaneous water heaters.

Note

Never use the shut-off valve in the cold water inlet to reduce the flow rate. It is intended for shutting off the appliance.

Permissible water pipe materials

Cold water inlet pipe:

Galvanised steel pipe, stainless steel pipe, copper pipe or plastic pipe

DHW outlet pipe:

Stainless steel pipe, copper pipe or plastic pipe

Material losses

If plastic pipework systems are used, take into account the maximum inlet temperature and the maximum pressure (see chapter "Specification / Data table").

Flexible water connection lines

If the appliance is installed with flexible water connection lines, ensure that the bayonet fittings of the pipe bends do not become twisted inside the appliance.

Secure the back panel at the bottom with two additional screws.

10. Installation

10.1 Standard installation

Electrical connection from above; installation on unfinished walls. Water connection on unfinished walls.

For further installation options, see chapter «Alternative installation options»:

• Electrical connection from below on unfinished walls
• Electrical connection on finished walls
• Connecting a load shedding relay. Water installation on finished walls. Water connection on unfinished walls for appliance replacement.

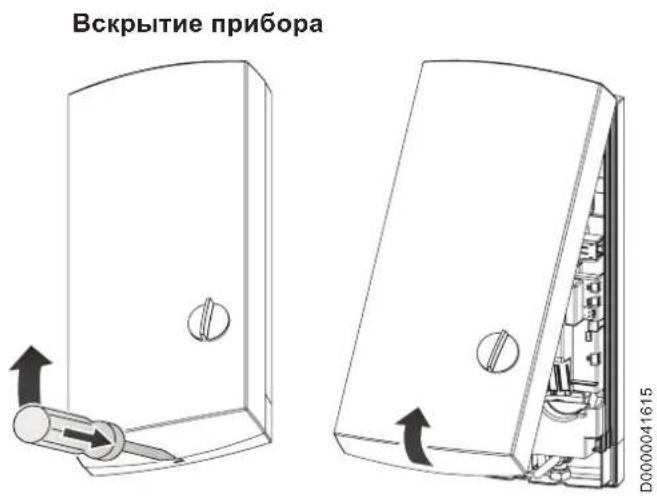

Opening the appliance

» Open the appliance by releasing the snap lock.

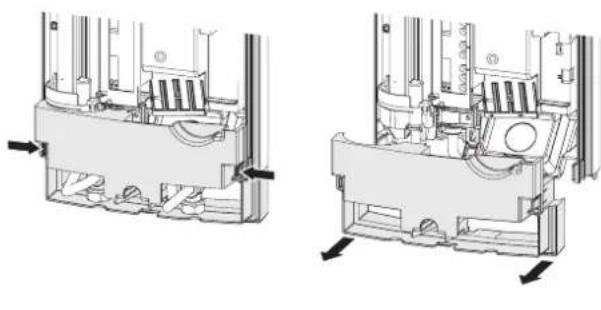

» Remove the back panel by pressing the two locking hooks and pulling the lower part of the back panel forwards.

Preparing the power cable

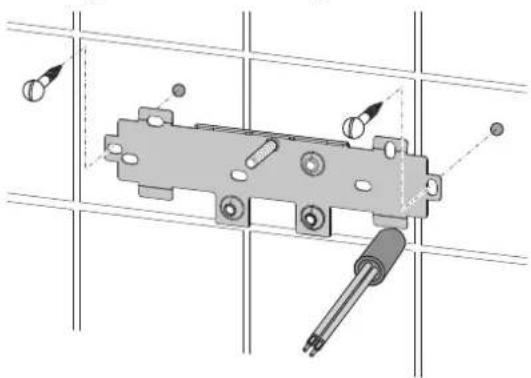

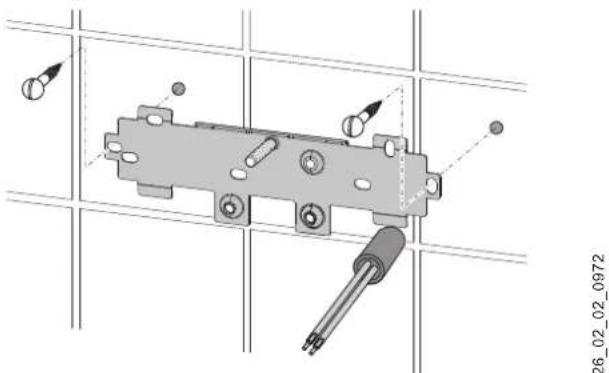

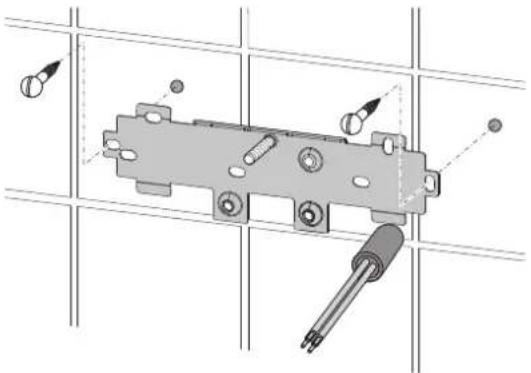

Fitting the wall mounting bracket

» Mark out the holes for drilling with the installation template. If the appliance is to be installed with water connections on finished walls, also mark out the fixing holes in the lower part of the template.

Drill the holes and secure the wall mounting bracket with 2 screws and 2 rawl plugs (screws and rawl plugs are not part of the standard delivery). » Fit the threaded stud provided. » Mount the wall mounting bracket.

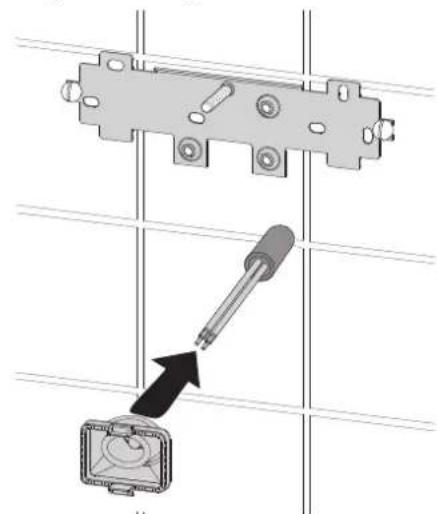

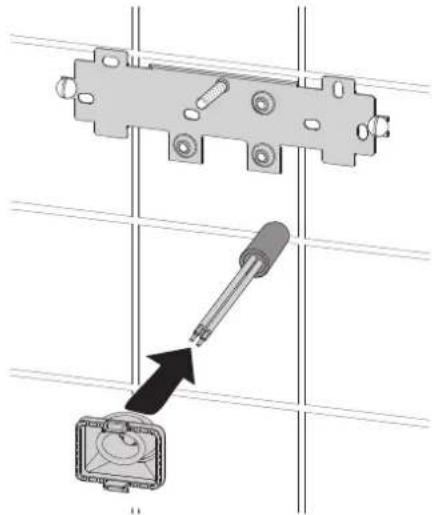

Fitting the cable grommet

Fit the cable grommet. For connecting cables > 6 mm², enlarge the hole in the cable grommet.

Making the water connection

Material losses: Carry out all water connection and installation work in accordance with regulations.

Seal and insert the twin connectors.

Material losses: Never use the shut-off valve in the cold water inlet to reduce the flow rate.

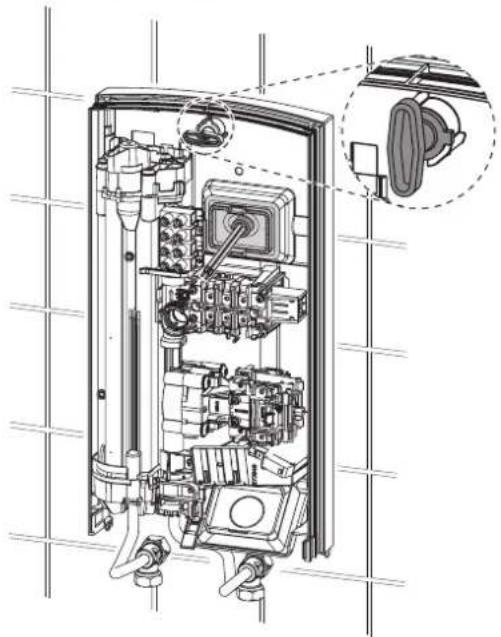

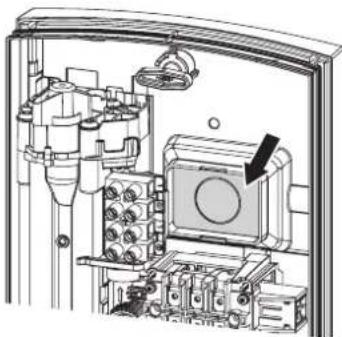

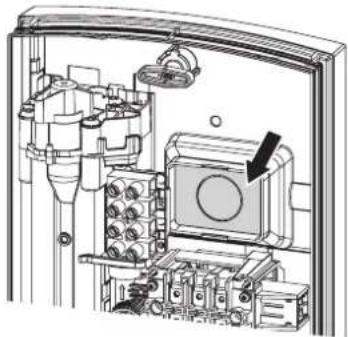

Preparing the back panel

Material losses: If you break out the wrong knock-out by mistake, you should use a new back panel.

Break out the cable grommet knock-out in the back panel. Deburr the sharp edges with a file if necessary.

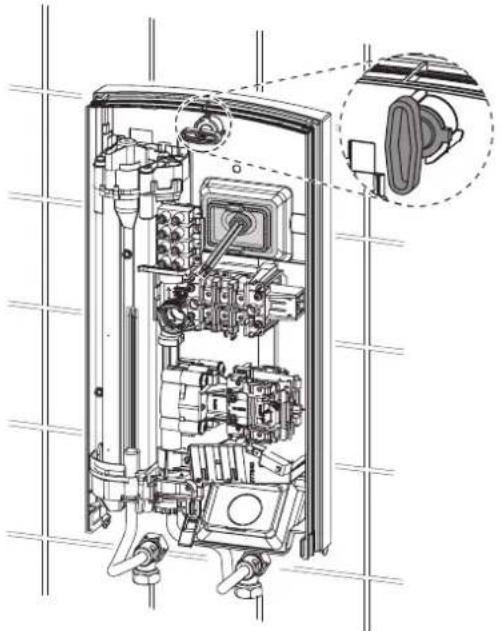

Installing the appliance

Push the back panel over the threaded stud and the cable grommet. Pull the cable grommet by the locking hooks into the back panel using pliers, until both locking hooks audibly click into place. Remove the transport plugs from the water connections. Press the back panel firmly into place and lock the fixing toggle by turning it clockwise through 90°.

Screw the water connection pipes with flat gaskets on to the twin connectors.

Material losses

The strainer must be fitted for the appliance to function.

» When replacing an appliance, check whether the strainer is installed (see chapter "Maintenance").

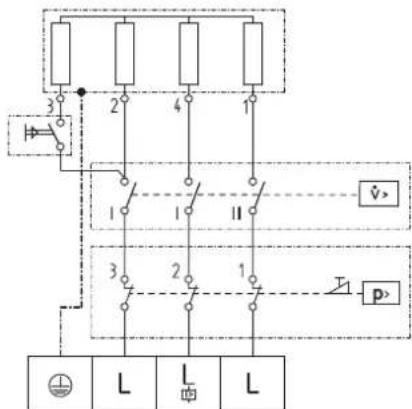

Making the electrical connection

WARNING Electrocution

7 Carry out all electrical connection and installation work in accordance with relevant regulations.

WARNING Electrocution

The connection to the power supply must be in the form of a permanent connection in conjunction with the removable cable grommet. Ensure the appliance can be separated from the power supply by an isolator that disconnects all poles with at least 3mm contact separation.

WARNING Electrocution

Ensure that the appliance is earthed.

Material losses

Observe the type plate. The specified voltage must match the mains voltage.

» Connect the power cable to the mains terminal (see chapter «Specification / Wiring diagram»).

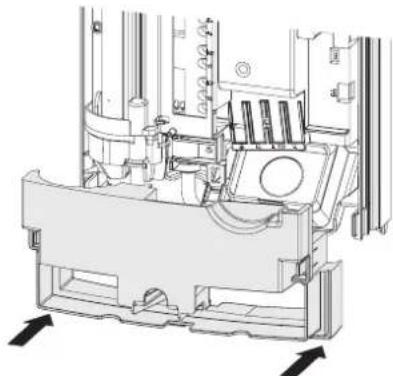

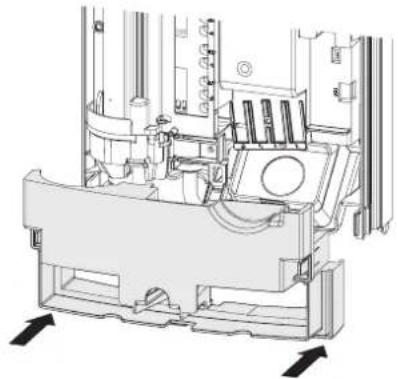

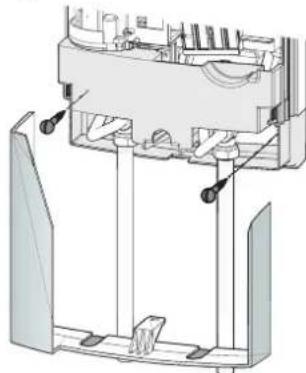

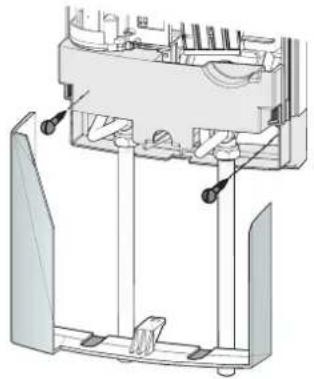

Fitting the lower back panel

26.02-02-1348

Position the lower back panel onto the main back panel and click into place. Align the mounted appliance by loosening the fixing toggle, aligning the power supply and back panel, and then re-tightening the fixing toggle. If the back panel is not flush with the wall, the appliance can be secured at the bottom with two additional screws.

10.2 Alternative installation options

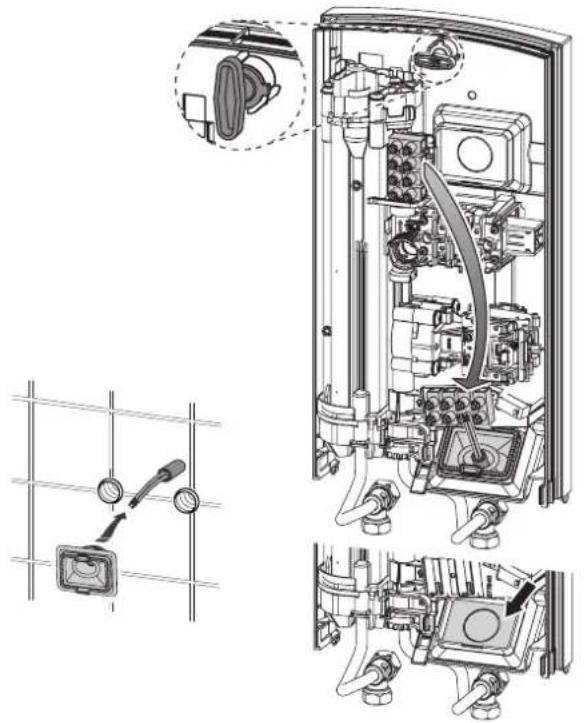

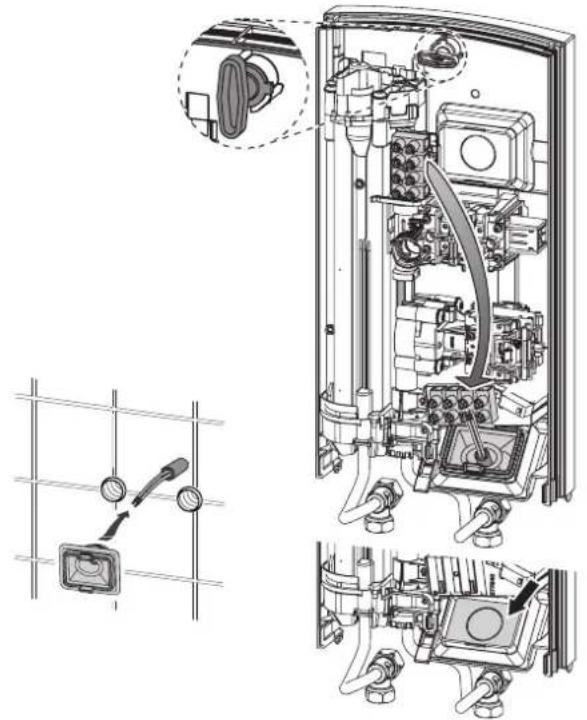

10.2.1 Electrical connection from below on unfinished walls

Fit the cable grommet.

Material losses

If you break out the wrong knock-out by mistake, you should use a new back panel.

Break out the cable grommet knock-out in the back panel. Deburr the sharp edges with a file if necessary. Reposition the mains terminal in the appliance from the top to the bottom. Push the back panel over the threaded stud and the cable grommet. Pull the cable grommet by the locking hooks into the back panel using pliers, until both locking hooks audibly click into place. Press the back panel firmly into place and lock the fixing toggle by turning it clockwise through 90°.

10.2.2 Electrical connection on finished walls

Note

This type of connection changes the protection rating of the appliance.

Change the type plate. Cross out "IP 25" and mark the box "IP 24". Please use a ballpoint pen to do this.

Material losses

If you break out the wrong knock-out by mistake, you should use a new back panel.

Cleanly cut or break out the required cable entries in the back panel (for positions, see chapter «Specification / Dimensions and connections»). Deburr the sharp edges with a file if necessary. Route the power cable through the cable grommet and connect it to the mains terminal.

10.2.3 Connecting a load shedding relay

Install a load shedding relay in the distribution board in conjunction with other electric appliances, e.g., electric storage heaters. The relay responds when the instantaneous water heater starts.

Material losses

Connect the phase that switches the load shedding relay to the indicated terminal of the mains terminal in the appliance (see chapter "Specification / Wiring diagram").

10.2.4 Water installation on finished walls

Note

This type of connection changes the protection rating of the appliance.

» Change the type plate. Cross out "IP 25" and mark the box "IP 24". Please use a ballpoint pen to do this.

Fit water plugs with gaskets to seal the connection on unfinished walls. » Fit a suitable pressure tap.

Click the lower part of the back panel into place in the upper part of the back panel. » Secure the connection pipes to the appliance. » Secure the back panel at the bottom with two additional screws. » Cleanly break out the knock-outs in the appliance cover. Deburr the sharp edges with a file if necessary. » Push the lower back panel under the connection pipes of the tap and click the lower back panel into place. » Secure the connection pipes to the appliance.

10.3 Completing the installation

Open the shut-off valve in the twin connector or the cold water inlet line.

11. Commissioning

WARNING Electrocution Commissioning may only be carried out by a qualified contractor in accordance with safety regulations.

11.1 Initial start-up

Open and close all connected draw-off valves several times, until all air has been vented from the pipework and the appliance. » Carry out a tightness check. » Activate the safety pressure limiter by firmly pressing the reset button (the appliance is delivered with the safety pressure limiter deactivated). » Fit the appliance cover, ensuring it clicks into place. Check that the appliance cover is seated correctly. Switch the mains power ON. » Check the function of the appliance.

Appliance handover

» Explain the appliance function to users and familiarise them with its operation. » Make users aware of potential dangers, especially the risk of scalding. » Hand over these instructions.

11.2 Recommissioning

Vent the appliance and the cold water inlet line (see chapter «Settings»).

See chapter «Commissioning / Initial start-up».

12. Shutting down the system

Isolate all poles of the appliance from the power supply. Drain the appliance (see chapter «Maintenance»).

13. Troubleshooting

Fault Cause Remedy
The flow rate is too low.	The strainer in the appliance is dirty.	Clean the strainer.
Flow meter will not start despite tap being fully opened.	The start-up volume required to start up the heating output has not been reached.	Clean the strainer.
The appliance is not generating hot water despite audible sound of the differential pressure switch starting.	Safety pressure limiter (AP 3) has switched the appliance off for safety reasons.	Remove the cause of the fault (e.g. faulty pressure washer).
		Protect the heating system against overheating by opening a draw-off valve downstream of the appliance for one minute. This depressurises and cools down the heating system.
		Activate the safety pressure limiter at flow pressure by pressing the reset button (see chapter "Commissioning").
	The heating system is faulty.	Check the heating system resistor, and replace it if required.

14. Maintenance

WARNING Electrocution Before any work on the appliance, disconnect all poles from the power supply.

Draining the appliance

The appliance can be drained for maintenance work.

WARNING: Burns. Hot water may escape when draining the appliance.

Close the shut-off valve in the twin connector or the cold water inlet line. Open all draw-off valves. Undo the water connections on the appliance. If dismantled, store the appliance in a room free from the risk of frost, as water residues remaining inside the appliance can freeze and cause damage.

Cleaning the strainer

If dirty, clean the strainer in the threaded cold water fitting. Close the shut-off valve in the cold water inlet line before removing, cleaning and refitting the strainer.

15. Specification

15.1 Dimensions and connections

D0000017757

b02	Entry, electrical cables I
c01	Cold water inlet	Male thread	G 1/2 A
c06	DHW outlet	Male thread	G 1/2 A

Alternative connection options D0000019778

b02	Entry, electrical cables I
b03	Entry, electrical cables II
b04	Entry, electrical cables III

15.2 Wiring diagram

3/PE ~ 400 V

80 0000

Priority control with LR 1-A

88

1 Control cable to the contactor of the 2nd appliance (e.g. electric storage heater). 2 Control contact opens when switching the instantaneous water heater on.

15.3 DHW output

The DHW output is subject to the mains voltage, the appliance's connected load and the cold water inlet temperature. The rated voltage and rated output can be found on the type plate (see chapter «Troubleshooting»).

Connected load in kW 38 °C		DHW output in l/min.
Rated voltage Cold water inlet temperature
400 V	5 °C	10 °C	15 °C	20 °C
13.5	5.8		6.9	8.4	10.7
18.0	7.8		9.2	11.2	14.3
21.0	9.1		10.7	13.0	16.7
24.0	10.4		12.2	14.9	19.0

Connected load in kW		50 °C DHW output in l/min.
Rated voltage		Cold water inlet temperature
400 V		5 °C 10 °C	15 °C	20 °C
13.5		4.3	4.8	5.5	6.4
18.0		5.7		6.4	7.3
21.0		6.7	7.5	8.6	10.0
24.0		7.6		8.6	9.8

15.4 Application areas / conversion table

Specific electrical resistance and specific electrical conductivity (see chapter «Data table»).

Standard specifica- tion at 15 °C			20 °C			25 °C
Re-sist- ance ρ ≥	Conductivity σ ≤		Re-sist- ance ρ ≥	Conductivity σ ≤		Re-sist- ance ρ ≥	Conductivity σ ≤
Ωcm	mS/m	μS/cm	Ωcm	mS/m	μS/cm	Ωcm	mS/m	μS/cm
900	111	1111	800	125	1250	735	136	1361

15.5 Pressure drop

Taps/valves

Pressure drop at taps at flow rate of 10 l/min
Mono lever mixer tap, approx.	MPa	0.04 - 0.08
Thermostatic valve, approx.	MPa	0.03 - 0.05
Hand shower, approx.	MPa	0.03 - 0.15

Sizing the pipework

When calculating the size of the pipework, a pressure drop for the appliance of 0.1MPa is recommended.

15.6 Fault conditions

In the event of faults, loads up to a maximum of 95°C at a pressure of 1.2 MPa can temporarily occur in the installation.

15.7 Details on energy consumption

The product data complies with EU regulations relating to the Directive on the ecological design of energy related products (ErP).

		DDLT PinControl 13	DDLT PinControl 18	DDLT PinControl 21	DDLT PinControl 24
		222384	222385	222386	222387
Manufacturer		AEG Haustechnik	AEG Haustechnik	AEG Haustechnik	AEG Haustechnik
Load profile		XS	S	S	S
Energy efficiency class		A	A	A	A
Annual power consumption	kWh	469	483	483	483
Energy conversion efficiency	%	39	38	38	38
Default temperature setting	°C	-	-	-	-
Sound power level	dB(A)	15	15	15	15
Special information on measuring efficiency		None	None	None	None

15.8 Data table

DDLT PinControl 13 DDLT PinControl 18 DDLT PinControl 21 DDLT PinControl 24
222384 222385 222386 222387
Electrical details
Rated voltage V 400 400 400 400
Rated output 400 V stage I min.	kW	4,6	6,3	7,4	8,3
Rated output 400 V stage I max.	kW	10,6	14,3	16,8	19,0
Rated output 400 V stage II min.	kW	6,8	9,2	10,8	12,2
Rated output 400 V stage II max.	kW	13,5	18,0	21,1	23,8
Rated current	A	19,5	26	31	35
Fuses	A	20	25	32	35
Phases	3/PE 3/PE 3/PE 3/PE
Frequency	Hz	50	50	50	50
Specific resistance ρ15 ≥ (at θcold ≤25 °C)	Ω cm	900	900	900	900
Specific conductivity σ15 ≤ (at θcold ≤25 °C)	μS/cm	1111	1111	1111	1111
Versions
IP-Rating		IP25	IP25	IP25	IP25
Protection class		1	1	1	1
Insulation block		Plastic	Plastic	Plastic	Plastic
Heating system heat generator		Bare wire	Bare wire	Bare wire	Bare wire
Connections
Water connection		G 1/2 A	G 1/2 A	G 1/2 A	G 1/2 A
Application limits
Max. permissible pressure	MPa	1	1	1	1
Values
Max. permissible inlet temperature	°C	25	25	25	25
ON stage I	l/min	2,4	3,0	3,5	4,1
ON stage II	l/min	3,9	4,9	5,6	6,3
Pressure drop at flow rate	MPa	0,09	0,11	0,13	0,15
Flow rate for pressure drop	l/min	3,9	4,5	5,6	6,3
Flow rate limit at	l/min	4,7	5,9	7,0	7,8
DHW delivery	l/min	7,0	9,4	11,1	12,5
Δθ at DHW delivery	K	26	26	26	26
Hydraulic data
Rated capacity	I0,4 0,4 0,4 0,4
Dimensions
Height	mm	485	485	485	485
Width	mm	226 226 226 226
Depth	mm	93	93	93	93
Weights
Weight	kg	3,6 3,6 3,6 3,6

Guarantee

The guarantee conditions of our German companies do not apply to appliances acquired outside of Germany. In countries where our subsidiaries sell our products a guarantee can only be issued by those subsidiaries. Such guarantee is only granted if the subsidiary has issued its own terms of guarantee. No other guarantee will be granted.

We shall not provide any guarantee for appliances acquired in countries where we have no subsidiary to sell our products. This will not affect warranties issued by any importers.

Environment and recycling

We would ask you to help protect the environment. After use, dispose of the various materials in accordance with national regulations.

SPECIAL NOTES

USE

9.3 Hydraulic installation

10.3 Mounting connections

Clean sieve 26_02_02_0949

1.3 Units of measurement

Note

Unless otherwise stated, all dimensions are given in millimeters.

2. Safety technology

2.1 Intended use

The appliance is intended for domestic use. For safe operation, the user does not need to read the instructions. It is possible to use the appliance not only in the household, but also, for example, in small businesses, provided the same operating conditions are observed.

The appliance operates under pressure and is intended for heating tap water. The appliance can supply one or several draw-off points.

The device specified in this manual must not be used for purposes other than its intended use. Intended use implies compliance with the requirements of this manual, as well as the manuals for the accessories used.

Instructions

It is forbidden to use the device for additional heating of already heated objects.

2.2 General safety instructions

Caution: hot surface

During operation, the fitting may heat up to temperatures above 60°C.

At water temperatures above 43°C at the outlet, there is a risk of scalding.

Regulating the fitting

Children over 3 years old, as well as persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, may use the device only under supervision or after receiving appropriate instruction on the safe use of the device and understanding the potential dangers if these rules are not followed. Do not allow children to play with the device. Children may perform cleaning and user maintenance only under adult supervision.

Material damage

The user must protect the supply line and fittings from freezing.

2.3 Technical inspection mark

See the factory plate on the device.

	Евраимскoe COOTBETCTBVE
EAC	Данний прибор COOTBETCTBYET TRe6obAиЯм БeЗопасноctи TEXHnueckoro PermaNeTа TamoxeHnOro coO3a и рpoшen co- OTBETCTBvyuоше поцудруютВерждени COOTBETCTBИ.

3. Description of the device

The instantaneous water heater with hydraulic control heats water as it flows through the device. When the fitting is opened and the flow rate exceeds the minimum required for activation (see section “Technical data / Parameter table”), the device automatically starts heating. The flow rate and temperature of the hot water can be adjusted using the fitting.

You can select one of 2 power levels. In addition, hydraulic control of the power level depending on the flow rate is provided.

The flow rate control compensates for pressure fluctuations, thereby ensuring a practically constant temperature. The flow rate control limits the flow, so the tap water is always heated to a sufficient temperature.

Heating system

The heating system with an open heating element is protected by a sealed plastic housing. The heating system is suitable for both soft and hard water, as it is practically insensitive to scale formation. The heating system ensures fast and efficient supply of hot water.

4. Settings

1 Partial power

At a low flow rate, 1/3 of the heating power is used, at a higher flow rate - 2/3. This setting is suitable, for example, for washing hands.

2 Full power

At a low flow rate, half of the heating power is used, at a higher flow rate - full power. This setting is suitable, for example, for washing dishes.

Fix the power regulator in the lower position.

Recommended setting when using a thermostat on the fitting

Set the power regulator to the full power position.

4.1 Recommended setting for fittings

Note

If the hot water tap is fully open and the heating power is set to maximum, but the water at the outlet still has insufficient temperature, this means that more water is passing through the appliance than the heating element can heat (the appliance's maximum power has been reached).

In this case, it is necessary to reduce the water flow at the distribution valve.

Low flow = high outlet temperature

High flow = low outlet temperature

Fittings with two handles

8.1 Scope of delivery

The appliance's scope of delivery includes:

Wall mounting plate, threaded stud for wall mounting plate, mounting template, 2 union nuts (with flat gasket), sealing washers, cable bushing (for electrical connection from top/bottom), screws/plugs for additional wall fixing when installing exposed piping.

9. Preparatory measures

9.1 Installation location

The appliance may only be installed in a frost-free room.

The appliance should be installed vertically, in the immediate vicinity of the draw-off point. The appliance can be installed under or above the washbasin.

Installation under the washbasin

26-02-1345

1 Cold water inlet connection 2 Hot water outlet connection

MONTAX Ha paKOBHOn

2222

3 Inlet pipe for cold water 4 Outlet pipe for hot water

Instructions

Mount the device on the wall. The wall must have sufficient load-bearing capacity.

9.2 Minimum distances

0000000000000000

It is necessary to observe the minimum distances to ensure uninterrupted operation of the device and for maintenance.

9.3 Water supply work

Preheating the appliance before operation is not allowed. Installation of a safety valve is not required. Installation of safety valves in the hot water piping is not allowed.

Flush the water supply system thoroughly.

It is necessary to increase the volume flow rate (see section "Technical characteristics / Parameter table") sufficient for the device to switch on. If the flow rate is not sufficient for the device to switch on even with the valve fully open, the pressure in the water supply system must be increased.

Valves

Use suitable shut-off valves. The use of valves without shut-off function is prohibited.

The thermostatic pressure valve must be suitable for instantaneous water heaters with hydraulic control.

Instruction

It is forbidden to use the shut-off valve or the hot water supply to reduce the flow! This leads to blockage of the device.

Permitted materials for water pipes

Cold water supply lines: pipe made of galvanized steel, stainless steel, copper or plastic. Hot water supply lines: pipe made of stainless steel, copper or plastic.

Material of the heat exchanger

When using plastic pipes, the maximum temperature and maximum permissible pressure must be taken into account (see chapter "Technical data / Parameter table").

Water supply connections

To prevent the device from rotating when connecting the water supply lines, the pipe connections must be secured against twisting. Secure the rear wall by fixing it from below with two additional screws.

10. Installation

10.1 Standard installation

Electrical connection from above, concealed wiring. Connection to the water supply, concealed installation. Other installation methods see chapter "Alternative installation". Electrical connection from below, concealed wiring. Electrical connection, exposed wiring. - Connection of the pressure relief valve. Exposed water installation work using the exposed installation method. Concealed water installation when replacing the device.

Open the device by releasing the fastener clip 26.02.02.0762

Remove the front panel, for this purpose press both locking hooks and pull the lower part of the panel forward.

Preparation of the mains cable

Installation of the wall mounting plate 20 20

Drill mounting holes in the mounting location using the template. For concealed installation of the device, additionally drill mounting holes in the lower part of the template. Drill the holes and secure the wall mounting plate with 2 screws and 2 dowels (screws and dowels are not included in the delivery).

Install the supplied threaded pin. Install the wall mounting plate.

Installation of the cable bushing 056

Install the cable bushing. If the cable cross-section exceeds 6 mm², the hole in the cable bushing must be enlarged.

Connecting the device to the water supply system

Material damage

All work on connecting the device to water and installing the device must be carried out in accordance with the instructions.

Install the gasket, screw in the union nut.

Material damage

It is forbidden to use a shut-off valve on the cold water supply line to reduce the flow!

Preparing the rear wall

Material damage

If the wrong hole for the cable bushing was drilled, a new rear wall must be used!

Remove the given plug from the hole in the cable bushing on the rear wall. If necessary, treat the sharp edges with a file.

Mounting the device

Put the rear wall on the plug and the cable bushing. Press the cable bushing with the locking tabs onto the retainer on the rear wall so that both retainers snap into the corresponding opening.

Remove the protective caps from the pipes for the water connections. Press the rear panel firmly against the wall, secure the panel with the locking screw by turning it 90° to the right.

Connect the pipes with flat seals to the two connections.

Material damage

For proper operation of the device, installation of a safety filter is required.

Before replacing the device, check the presence of the safety filter (see chapter "Technical Service").

Electrical connection

WARNING: Danger of electric shock

All work on electrical connection and installation must be carried out in accordance with the instructions.

WARNING: Danger of electric shock

The electrical connection is only permitted in a non-detachable design with a fixed cable bushing. The device must be disconnected from the power supply by disconnecting all contacts with a contact opening of at least 3 mm on all poles.

DANGER: Electric shock hazard

Check that the appliance is connected to the protective conductor.

Material damage

The data on the rating plate must be observed. The mains voltage must match the voltage indicated on the plate.

Connect the power cable to the terminal block (see chapter 'Technical data/Electrical diagram').

Installing the lower part of the rear panel

26_02_02_1348

Install the lower part of the rear panel and snap it into the rear panel. Align the installed appliance, tighten the screws, adjust the electrical cable and the rear panel, then retighten the screws. If the rear panel does not fit against the wall, the lower part of the appliance can be secured with two additional screws.

10.2 Installation options

10.2.1 Electrical connection, concealed wiring

D0000041898

Install the cable bushing.

Material damage If the wrong hole was broken out for the cable bushing, a new rear panel must be used!

Break out the hole for the cable bushing at the marked point on the rear panel. Any sharp edges must be smoothed with a file. Move the terminal block to the upper part of the appliance. Fit the rear panel over the pins and the cable bushing. Press the cable bushing against the retainer on the rear panel so that both retainers snap into place with the protruding lug. Then press the rear panel against the wall, secure the panel with the screws by turning them 90° to the right.

10.2.2 Electrical connection, exposed wiring

Instruction

In this way, the degree of protection of the device may change.

Change the data on the factory plate. Cross out the marking «IP 25» and mark the box «IP 24» with a cross. Use a ballpoint pen for this.

Material damage

If the wrong hole for the cable gland was made by mistake, it is necessary to use a new rear wall!

On the rear wall of the device, carefully make the necessary through holes (their location see Chapter (Technical characteristics / Dimensions and connections)). If there are sharp edges, they must be carefully treated with a file.

Pass the electric cable through the cable gland and connect it to the network terminal block.

10.2.3 Routing the load shedding relay

The load shedding relay in the electrical distribution device should be used together with other electrical appliances, for example, with electric storage water heaters. Load shedding is carried out when the flow-through water heater is operating.

Material damage

Connect the wire to which the load shedding relay is installed to the terminal block of the network in the device (see Chapter «Technical characteristics / Electrical diagrams and connections»).

10.2.4 Plumbing work using open installation method

Instruction In this case

Change the data on the factory plate. Cross out the marking «IP 25» and mark the box «IP 24» with a cross. Use a ballpoint pen for this.

2602020765

Install the shut-off valve on the hot water supply pipe. Perform the installation in accordance with the appropriate fittings.

26_02_02_1006

Install the lower part of the rear panel onto the upper part and snap it into place. Connect the pipes to the appliance.

Secure the rear panel by fixing it from below with two additional screws. Carefully break out the pass-through holes in the appliance cover. If the edges are sharp, it is necessary to work carefully with a file. Install the lower part of the rear panel onto the fitting pipes and secure it in the rear panel. Connect the pipes to the appliance.

10.3 Completion of installation

Open the shut-off valves on the double union nuts on the pipe connection under cold water.

11. Commissioning

WARNING Risk of electric shock

Commissioning of the appliance may only be carried out by a specialist, provided that the safety regulations are observed.

11.1 First commissioning

Open and close all connected shut-off valves repeatedly until no more air remains in the supply line and in the appliance. Perform a leak test. Activate the pressure relief valve by pressing the reset button firmly (at the time of delivery, the pressure relief valve function is deactivated).

Install the appliance cover and secure it with the locking screw. Check the position of the appliance cover. Apply the mains voltage. Check the operation of the appliance.

Appliance operation

Explain to the user the operating principle of the appliance and familiarize them with the rules for using the appliance. Point out to the user the possible dangers, especially the danger of scalding. Hand over this manual.

11.2 COMMISSIONING

Remove air from the device and the cold water supply pipelines (see the chapter 'Adjustments').

See the chapter 'First commissioning'.

12. DECOMMISSIONING

Completely disconnect the device by opening all contacts.

Drain the device, see the chapter 'Maintenance'.

13. TROUBLESHOOTING

15.6 Possible malfunctions

In case of malfunctions in the water supply system, short-term maximum loads may occur, accompanied by an increase in temperature up to 95°C and pressure up to 1.2 MPa.

Fax [phone]

Switzerland

STIEBEL ELTRON AG

Industrie West

Gass 8

5242 Lupfig

Tel. [phone]

Fax [phone]
