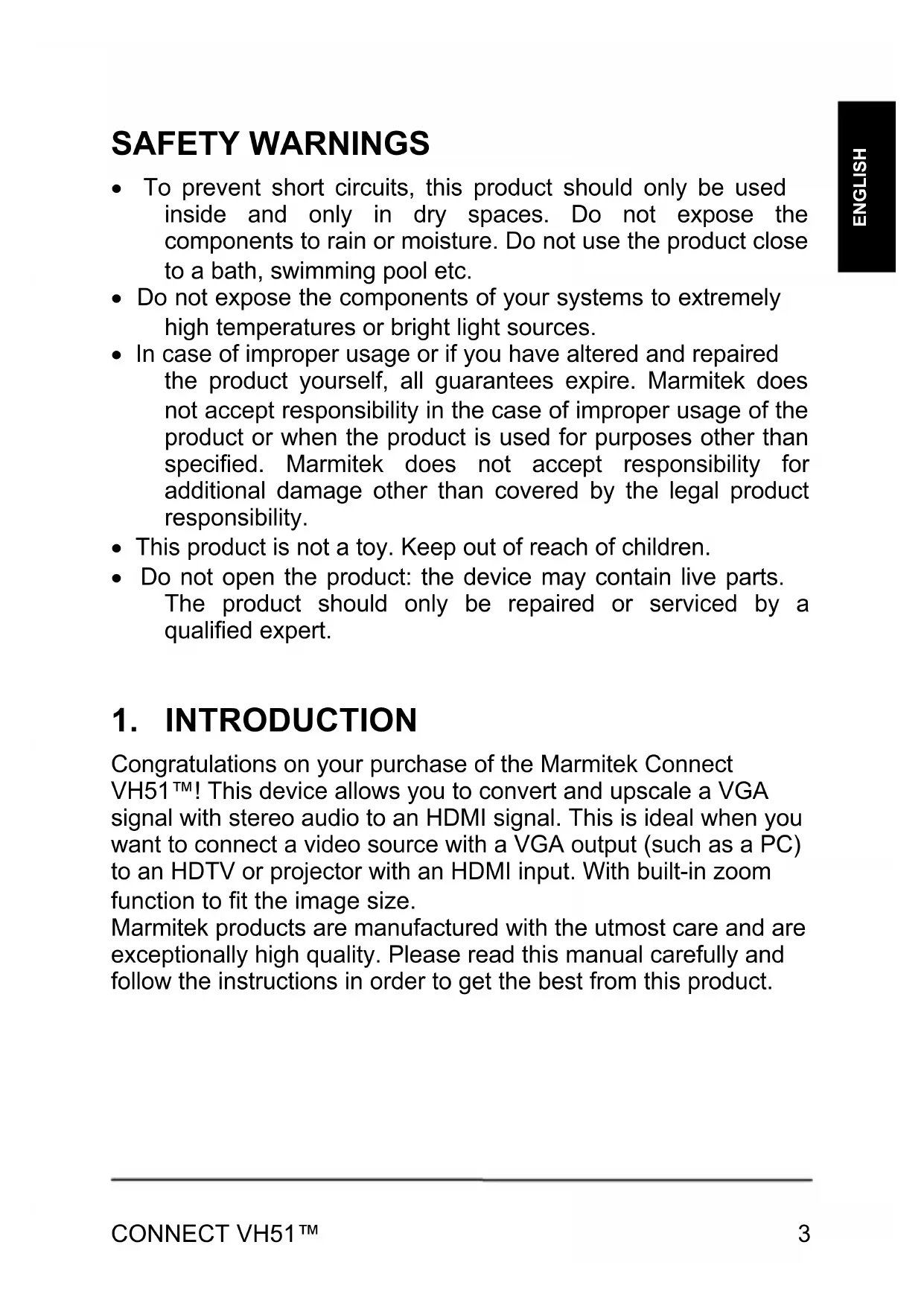

USER MANUAL VH51 MARMITEK

• To prevent short circuits, this product should only be used inside and only in dry spaces. Do not expose the components to rain or moisture. Do not use the product close to a bath, swimming pool etc.
• Do not expose the components of your systems to extremely high temperatures or bright light sources.
• In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than covered by the legal product responsibility.
• This product is not a toy. Keep out of reach of children.
• Do not open the product: the device may contain live parts. The product should only be repaired or serviced by a qualified expert.

1. INTRODUCTION

Congratulations on your purchase of the Marmitek Connect VH51™! This device allows you to convert and upscale a VGA signal with stereo audio to an HDMI signal. This is ideal when you want to connect a video source with a VGA output (such as a PC) to an HDTV or projector with an HDMI input. With built-in zoom function to fit the image size.

Marmitek products are manufactured with the utmost care and are exceptionally high quality. Please read this manual carefully and follow the instructions in order to get the best from this product.

2. SET CONTENT

1 x VGA to HDMI converter
1 x USB power cable
1 x User Manual

3. BENEFITS

• Convert an AV signal (and stereo audio) to an HDMI signal (720p/1080p)
• Ideal in combination with an HDMI Switcher, to connect all your devices to your TV using just a single cable
  Automatic and manual zoom function to fit screen size
• No software installation required, making it quick and easy to use
• With built-in 720p/1080p selector switch

4. INSTALLATION

Before installation:

• Turn off all devices (HDTV and video source) before connecting them to the Connect VH51™. If a device cannot be turned off, please remove the plug from the socket.
• Only use High Speed HDMI® certified cables for the best picture and sound quality. Using too much force to connect or disconnect the HDMI cables may damage them.

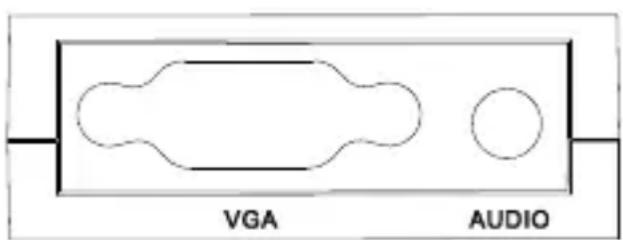

INPUT

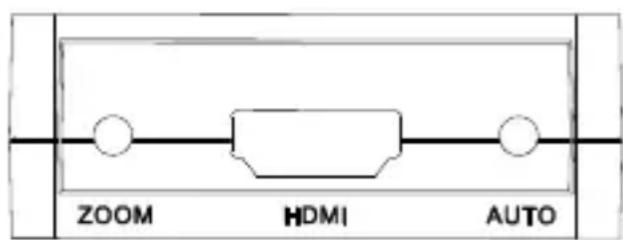

OUTPUT

1. Use a VGA cable to connect the video source (such as a PC) to the VGA input marked "VGA".

2. Use an HDMI cable to connect the HDTV or projector to the HDMI output marked "HDMI".

3. Set the built-in selector switch to the desired output resolution, 720p or 1080p.

4. If necessary, use the built-in zoom function to fit the image size.
5. The Connect VH51™ is energy efficient and is powered by the connected HDMI devices. No power adapter is required.

5. FREQUENTLY ASKED QUESTIONS

No (or poor) image and sound

If you experience a poor picture or no picture after connecting the HDMI converter, please try to identify the problem by connecting the video source directly to a screen (PC monitor or projector). This allows you to determine whether the problem is with the video source, the VGA cable, the HDMI converter or the screen.

• If the connected HDMI device does not provide 5V power via the HDMI cable, you need to power the HDMI converter via the USB cable. Use the supplied USB power cable and plug it into any available USB port on your other devices, or use a standard USB power adapter.
• For the best picture and sound quality, only use High Speed HDMI® certified cables.
• Do not use HDMI cables longer than those specified in the technical data.
• Check the HDMI and VGA cables and/or connectors for damage.

Any questions that are not answered here? Please visit www.marmitek.com

6. TECHNICAL DATA

Connections

VGA input 1x VGA

Audio input 1 x 3.5 mm jack

HDMI output 1 x HDMI (19-pin female)

HDMI cable length max. 15 metres

Video

VGA input resolutions 640 x 480@60Hz,

800 × 600 @ 60Hz

1024 x 768@60Hz,

1280 x 720@60Hz,

1280 x 768@60Hz,

1280 x 800@60Hz,

1280 x 960@60Hz,

1280 x 1024@60Hz,

1360 x 768@60Hz,

1440 x 900@60Hz,

1600 x 1200@60Hz,

1920 x 1080@60Hz

HDMI output resolutions 720p/60Hz and 1080p/60Hz

Audio

Audio input Stereo

Housing

Dimensions (D x W x H) 66 x 55 x 20mm

Weight 40g

Environment

Ambient temperature +0 to +70^ C

Ambient humidity 10% to 85%

Specifications may change without prior notice.

DECLARATION OF CONFORMITY

Hereby, Marmitek BV, declares that this Connect VH51™ is in compliance with the essential requirements and other relevant provisions of the following Directives:

Directive 2004/108/ec of the european parliament and of the council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility

Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits

Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

Commission Regulation (EC) No 278/2009 of 6 April 2009 implementing Directive 2005/32/EC of the European Parliament and of the Council with regard to ecodesign requirements for no-load condition electric power consumption and average active efficiency of external power supplies

MARMITEK BV - P.O. BOX 4257 - 5604 EG EINDHOVEN - THE NETHERLANDS

COPYRIGHTS

Marmitek is a trademark of Pattitude B.V. Connect VH51™ is a trademark of Marmitek B.V. All rights reserved. Every effort has been made to ensure that the information in this manual is accurate. Marmitek is not responsible for printing or clerical errors. Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited. All copyright and other proprietary notices shall be retained on all reproductions. Other company and product names mentioned herein may be trademarks of their respective companies. Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation. Marmitek assumes no responsibility with regard to the performance or use of these products.

Environmental Information for Customers in the European Union

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol

indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.
