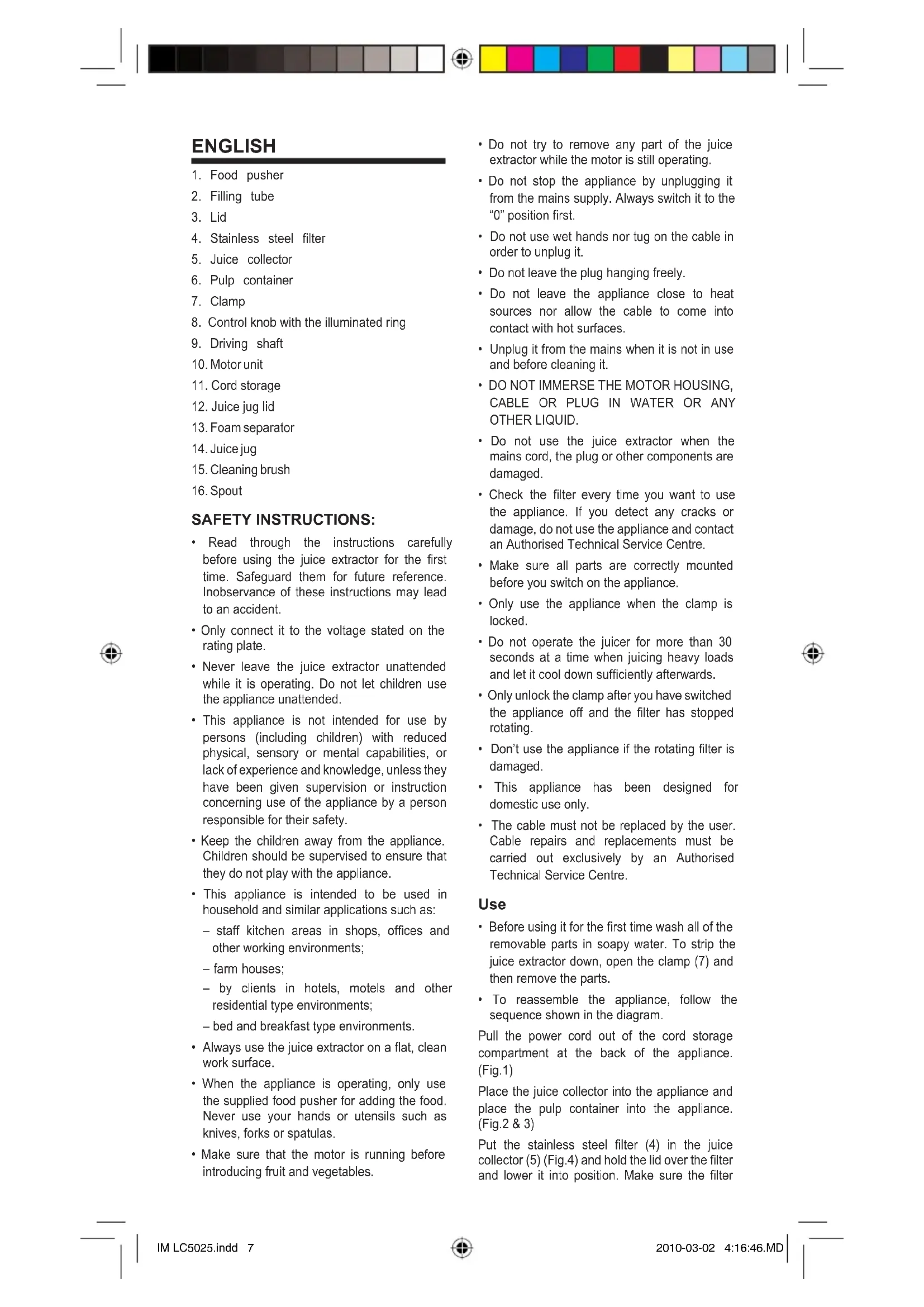

USER MANUAL LC5025 UFESA

4. Stainless steel filter

8. Control knob with the illuminated ring

SAFETY INSTRUCTIONS:

• Read through the instructions carefully before using the juice extractor for the first time. Safeguard them for future reference. Inobservance of these instructions may lead to an accident.

• Only connect it to the voltage stated on the rating plate.

• Never leave the juice extractor unattended while it is operating. Do not let children use the appliance unattended.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Keep the children away from the appliance. Children should be supervised to ensure that they do not play with the appliance.

• This appliance is intended to be used in household and similar applications such as: – staff kitchen areas in shops, offices and other working environments; – farm houses; – by clients in hotels, motels and other residential type environments; – bed and breakfast type environments.

• Always use the juice extractor on a flat, clean work surface.

• When the appliance is operating, only use the supplied food pusher for adding the food. Never use your hands or utensils such as knives, forks or spatulas.

• Make sure that the motor is running before introducing fruit and vegetables.

• Do not try to remove any part of the juice extractor while the motor is still operating.

• Do not stop the appliance by unplugging it from the mains supply. Always switch it to the “0” position first.

• Do not use wet hands nor tug on the cable in order to unplug it.

• Do not leave the plug hanging freely.

• Do not leave the appliance close to heat sources nor allow the cable to come into contact with hot surfaces.

• Unplug it from the mains when it is not in use and before cleaning it.

• DO NOT IMMERSE THE MOTOR HOUSING, CABLE OR PLUG IN WATER OR ANY OTHER LIQUID.

• Do not use the juice extractor when the mains cord, the plug or other components are damaged.

• Check the filter every time you want to use the appliance. If you detect any cracks or damage, do not use the appliance and contact an Authorised Technical Service Centre.

• Make sure all parts are correctly mounted before you switch on the appliance.

• Only use the appliance when the clamp is locked.

• Do not operate the juicer for more than 30 seconds at a time when juicing heavy loads and let it cool down sufficiently afterwards.

• Only unlock the clamp after you have switched the appliance off and the filter has stopped rotating.

• Don’t use the appliance if the rotating filter is damaged.

• This appliance has been designed for domestic use only.

• The cable must not be replaced by the user. Cable repairs and replacements must be carried out exclusively by an Authorised Technical Service Centre. Use

• Before using it for the first time wash all of the removable parts in soapy water. To strip the juice extractor down, open the clamp (7) and then remove the parts.

• To reassemble the appliance, follow the sequence shown in the diagram. Pull the power cord out of the cord storage compartment at the back of the appliance. (Fig.1) Place the juice collector into the appliance and place the pulp container into the appliance. (Fig.2 & 3) Put the stainless steel filter (4) in the juice collector (5) (Fig.4) and hold the lid over the filter and lower it into position. Make sure the filter IM LC5025.indd 7IM LC5025.indd 7 2010-03-02 4:16:46.MD2010-03-02 4:16:46.MDis fitted onto the driving shaft correctly. Always check the filter before use. If you detect any cracks or damage, do not use the appliance and contact the nearest technical service centre. Lock the clamp (7) onto the lid and make sure that the clamp (7) is locked into the right position (Fig.5). Slide the food pusher (1) into the filling tube by aligning the groove in the pusher with the small protrusion on the inside of filling tube (Fig.6). Never insert your filling or an object into the filling tube. Place the juice jug (14) under the spout (Fig.7). Place the lid on the juice jug to avoid splattering or if you want to store the juice in the refrigerator. NOTE: The juice extractor has a safety system that prevents the juice extractor from being switched on if the clamp (7) has not been fitted correctly.

• Place the juice extractor on a flat, stable surface and put the juice jug (14) or a similar container below the pouring spout (16).

• Prepare the fruit or vegetables as described in the section entitled “Preparing the food”. Warnings:

• Never use extremely fibrous fruits or vegetables.

• Juice cannot be extracted from certain fruits such as bananas, avocados, etc.

• Insert the foodstuffs through the filling spout (Fig.4). Press the food down with the food pusher (1). Never use your hands or insert utensils such as knives, forks or spatulas. The control knob of the juicer has 3 positions: 0 – The juicer is off. If it is connected to the mains supply, the control knob will be illuminated in green colour. 1 – Low speed, used mainly for soft fruits and vegetables (melon, grape, tomatoes, strawberry, etc). While working, the control knob will be illuminated in blue colour. 2 – High speed, suitable for hard fruits and vegetables (apples, pears, carrots, oranges, lemons, grapefruits, etc). While working, the control knob will be illuminated in blue colour. Note: If processing fairly large quantities, never use the appliance for longer than 30 seconds. Then switch off the appliance. Leave the appliance to cool down.

• When cleaning the filter, unplug the juice extractor. Wait for the filter to come to a standstill before opening the lid. Open the clamp, take the filter out and remove the pulp. Clean away any pulp that is stuck to the lid. Note: Given that flavours do not mix, after you prepare a certain type of juice you can then go on to use another type of fruit without having to clean the appliance.

• To get the full benefit of the juice it should be consumed as soon as it is prepared. Preparing the food Warning! Process ripe and unfrozen fruit and vegetables only. Unripe fruit and vegetables will block the filter very quickly.

• First, wash the fruit and vegetables.

• Remove stones from fruit. Remove large stalks.

• Chop up large fruit and vegetables so that they fit the filling tube.

• Process only fresh fruit and vegetables because they are juicier.

• Peel fruit beforehand if it has thick and hard peel, e.g. pineapples, melons, oranges, grapefruits and raw beetroot. Remove the white skin from citrus fruits as it has a bitter aftertaste.

• The consistency of apple juice depends on the kind of apple used. The juicier the apple, the thinner the juice. Add a few drops of lemon juice to the apple juice to delay the juice from turning brown.

• Leaves and stems (e.g. stalks from leaf salad) can also be processed in this juicer.

• If possible, drink juice as soon as it has been prepared. Juices lose their flavour and nutritional value if they are exposed to the air for a while.

• Starchy fruits (e. g. bananas, papayas, avocados, figs and mangos) are not suitable for juicing in this appliance. Cleaning & Maintenance The appliance is easier to clean if you do so immediately after use. Check that the appliance is switched off and unplugged from the mains. Dismantle the juice extractor and wash the removable parts in soapy water. Use a soft-bristled brush to remove any pulp that may block the holes in the filter. Dry the pieces thoroughly before refitting them. Wipe down the motor housing with a slightly damp cloth. Never immerse it in water or any other liquid. Do not use abrasive clean agents. All the detachable parts are dishwasher-safe. Place the detachable plastic parts on the top tray of the dishwasher. Make sure they are placed well away from the heating element. The filter (4) will eventually wear with use. Replace it as soon as you notice the first signs of wear. If your juice extractor is used on a daily basis, it will need replacing every five years, approximately. Replacement filters can be obtained from an Authorised Technical Service Centre. To guarantee a long service life of the filter, as well as to prolong its initial appearance, we recommend hand-washing for the filter instead of washing it into the dishwasher. IM LC5025.indd 8IM LC5025.indd 8 2010-03-02 4:16:47.MD2010-03-02 4:16:47.MDADVICE ON DISPOSAL: Our goods come in optimized packaging. This basically consists in using non- contaminating materials which should be handed over to the local waste disposal service as secondary raw materials. Before throwing a used appliance away, you should first make it noticeably inoperable and be certain to dispose of it in accordance with current national laws. Your Retailer, Town Hall or Local Council can give you detailed information about this. This appliance is labeled in accordance with European Directive 2002/96/EC – concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). This product must not be disposed together with the domestic waste. This product has to be disposed at an authorised place for recycling of electrical and electronic appliances. The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your dealer about current means of disposal. IM LC5025.indd 9IM LC5025.indd 9 2010-03-02 4:16:48.MD2010-03-02 4:16:48.MDFRANÇAIS
