LC5000 - Juicer UFESA - Free user manual and instructions

Product Type	Juice Extractor (Centrifugal Juicer)
Brand	Ufesa
Model	LC5000
Power Supply	Alternating current, voltage as per rating plate
Continuous Operation Time	15 minutes
Rest Time Before Reuse	30 minutes
Noise Level	80 dB(A)
Food Contact Materials	Materials approved for food contact
Main Functions	Extraction of juice from fruits and vegetables, waste separation
Safety	Lid locks, thermal protection, automatic shut-off in case of overload
Cleaning of Motor Unit	Damp cloth and dish soap, do not immerse
Cleaning of Removable Parts	Hot water and dish soap; filter hand wash only, do not put in dishwasher
Available Spare Parts	Rotating filter, mixing bowl, lid, pusher
Repairability	Entrust to an authorized repair service
Intended Use	Household use only

Frequently Asked Questions - LC5000 UFESA

How to assemble the LC5000 juicer?

Place the mixing bowl on the motor aligning the chute, then insert the filter onto the drive. Put the lid on and close the locks (fixing loops) until they click.

What to do if the juicer vibrates or makes abnormal noise?

Turn off the appliance and clean the filter of residues. Also check that the waste container is not too full. If the filter is damaged, replace it.

Can I wash the filter in the dishwasher?

No, the filter must not be washed in the dishwasher. Wash it by hand with dish soap and a soft brush.

How to clean the motor unit?

Wipe the motor unit with a damp cloth and a little dish soap. Never immerse the motor in water.

How long can I use the juicer continuously?

The continuous operation time is 15 minutes. After that, let the appliance cool down for at least 30 minutes before using it again.

What to do if the juicer does not start?

Check that the lid is properly locked and that the plug is plugged in. If the problem persists, take the appliance to an authorized repair service.

What fruits and vegetables can be used?

You can extract juice from most fruits and vegetables. Remove seeds from fruits to avoid damaging the appliance. For soft fruits like plums or raspberries, mix them with other foods in small quantities.

How to avoid blockages in the feed chute?

Cut fruits and vegetables into pieces small enough to fit through the feed chute. Always use the pusher, never fingers or another object.

The appliance stopped during use, what to do?

This is probably due to overload. Set the switch to '0', unplug and let cool for about 10 minutes. If it does not restart after that, contact a repair technician.

Can I put fruits with pits?

No, always remove pits (peaches, plums, etc.) as they can damage the filter and motor.

USER MANUAL LC5000 UFESA

White and red product blender with a clear lid, displayed against a red background (no visible text or symbols on the device itself)

manual de instrucciones instructions manual mode d'emploi

White and red electric juice maker with clear lid, shown against a red background (no text or symbols visible)

A

Diagram of kitchen appliance components with numbered labels for each part

5 4 3 2 1 3 ufesa

B

Hand holding a small food item resembling a steamer or blender, with no visible text or symbols.

Close-up of hands operating a small ice cream maker with a lid, showing internal components and arrows indicating motion (no text or symbols)

Person holding a small appliance with arrows indicating motion (no text or symbols visible)

Close-up of hands holding a transparent dome-shaped object with a small container, no visible text or symbols

Person pouring liquid from a pan into a pot, with a downward arrow indicating the process (no text or symbols)

Close-up of hands cleaning a stainless steel coffee maker with a downward arrow indicating the process (no text or symbols)

Person using a portable device with a downward arrow indicating action (no text or symbols visible)

Person using a small electric shaver on a surface, no visible text or symbols

Person using a juice maker in a kitchen, no visible text or symbols

Hand pouring liquid from a small glass into a white appliance (no visible text or symbols)

Close-up of hands using a power plug to install a wall-mounted electrical outlet (no text or symbols visible)

Close-up of hands using a handheld tool to press or install a small object into a container (no visible text or symbols)

Close-up of a hand pressing a small circular object on a surface, with no visible text or symbols

Hand holding a plug with a cable, next to a wall-mounted electrical outlet (no text or symbols visible)

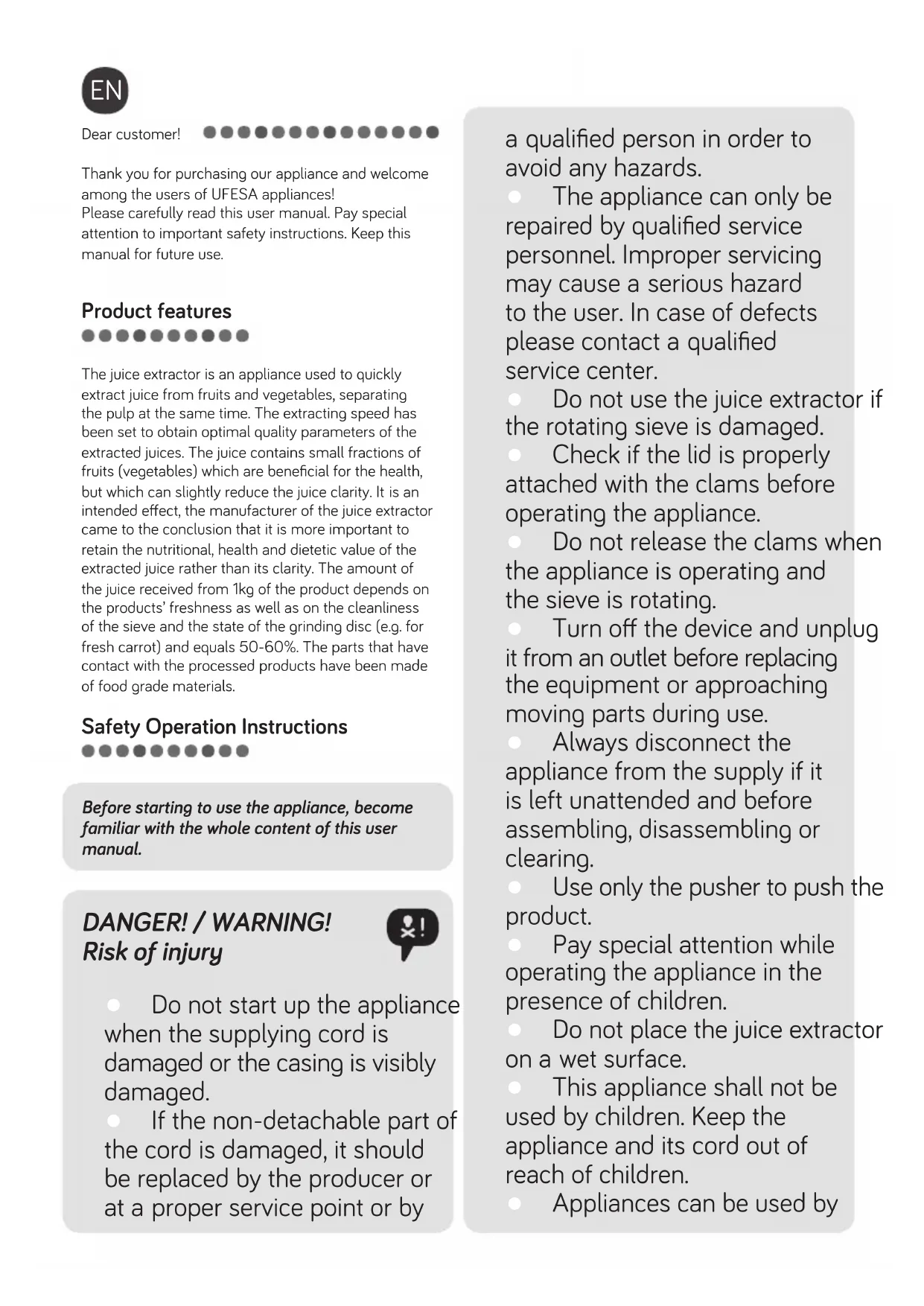

¡Estimado cliente!

Thank you for purchasing our appliance and welcome among the users of UFESA appliances!

Please carefully read this user manual. Pay special attention to important safety instructions. Keep this manual for future use.

Product features

The juice extractor is an appliance used to quickly extract juice from fruits and vegetables, separating the pulp at the same time. The extracting speed has been set to obtain optimal quality parameters of the extracted juices. The juice contains small fractions of fruits (vegetables) which are beneficial for the health, but which can slightly reduce the juice clarity. It is an intended effect, the manufacturer of the juice extractor came to the conclusion that it is more important to retain the nutritional, health and dietetic value of the extracted juice rather than its clarity. The amount of the juice received from 1kg of the product depends on the products' freshness as well as on the cleanliness of the sieve and the state of the grinding disc (e.g. for fresh carrot) and equals 50-60%. The parts that have contact with the processed products have been made of food grade materials.

Safety Operation Instructions

Before starting to use the appliance, become familiar with the whole content of this user manual.

DANGER! / WARNING!

Risk of injury

- Do not start up the appliance when the supplying cord is damaged or the casing is visibly damaged.

- If the non-detachable part of the cord is damaged, it should be replaced by the producer or at a proper service point or by

a qualified person in order to avoid any hazards.

- The appliance can only be repaired by qualified service personnel. Improper servicing may cause a serious hazard to the user. In case of defects please contact a qualified service center.

- Do not use the juice extractor if the rotating sieve is damaged.

- Check if the lid is properly attached with the clams before operating the appliance.

- Do not release the clams when the appliance is operating and the sieve is rotating.

- Turn off the device and unplug it from an outlet before replacing the equipment or approaching moving parts during use.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or clearing.

- Use only the pusher to push the product.

- Pay special attention while operating the appliance in the presence of children.

- Do not place the juice extractor on a wet surface.

- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

• Appliances can be used by

persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

• Children shall not play with the appliance.

• Only use the appliance indoors at room temperature and up to 2000 m above sea level.

WARNING!

Risk of property damage

Do not overload the appliance by applying to much pressure on the products or by allowing the pulp container to overfill. Your juicer is equipped with thermal protection which shuts down the appliance when it overheats. If this happens turn off the juicer using the on/off switch or unplug it and allow it to cool for approximately 10 minutes. You can continue to use the juicer after this time. If the juicer still does not work, have it repaired by a service centre.

Do not disconnect the plug from the socket pulling the cord.

The appliance may only be plugged to an electrical socket (alternating current only) with a voltage in conformity with the one given on the rating plate of the appliance.

Do not overload the appliance with too much product or by pushing it too hard (with the pusher).

Switch off the appliance immediately after noticing strong vibrations or reduced speed. Clean the sieve and its housing.

Stop the operation and unplug the appliance if the product is blocked in the feeding tube or on the grinding disc. Remove the cause of the blockage. Immediately stop operation and unplug the appliance if any liquid has entered into the motor of the juice extractor. Return the juice extractor to a service point for inspection.

Do not expose the juice extractor to temperatures over 60^ C.

Do not leave a plugged in appliance unattended.

Do not immerse the motor into water. Do not wash it under running water.

Do not use abrasive detergents such as emulsions, cream cleaners, polishes, etc. to clean the housing.

They may remove the graphic information symbols such as: scales, marks, warning signs etc.

Place the motor body near a socket on a flat, stable surface so that the vent holes of the appliance are not covered.

HINT

Information on the product and hints on its use

This appliance is intended for domestic use only. In case it is used for food business purposes, the warranty conditions shall change.

Unplug the appliance after operation.

Use a soft brush to wash the metal parts especially the sieve with the sharp grinding disc.

Do not wash metal parts in the dishwasher.

Aggressive detergents used in the dishwasher cause these parts to darken. Wash them manually using traditional dishwashing liquids.

Before the first use, wash thoroughly all elements of the equipment.

Technical data

The technical parameters are quoted on the nameplate of the product.

Admissible time of non-stop operation 15 minutes

An interval between repeated operation 30 minutes

Noise generated by the appliance ( L_WA ) 80 dB/A

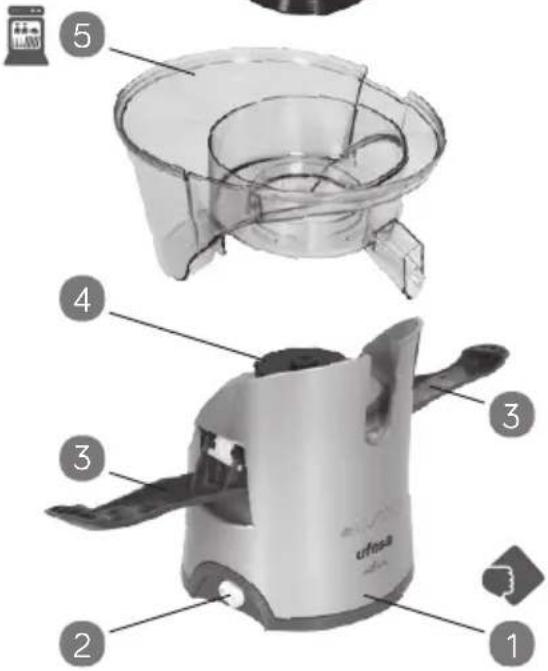

Description

1 Motor base

2 On/Off button

3 Clamps

4 Clutch

5 Juice bowl

6 Strainer basket

7 Cover

8 Food pusher

Before operation

Before the first use, dismantle the juice extractor, wash and dry the parts that have contact with the processed product.

1 Place the motor on a hard, clean and dry surface near the electrical outlet.
2 Grasp the clamps on both sides of the appliance and pull them away from the motor housing.
3 Lift the clamps, release the lid and lower the clamps.
4 Take out the food pusher. Remove the lid and the bowl together with the sieve.

Juice extractor assembly

1 Insert the bowl on the motor so that the groove fits into the slit of the motor housing.
2 Insert the sieve on the driver, press until stop and check if it is correctly inserted and it turns easily.
3 Insert the lid on the bowl.
4 Lift both clamps and insert the fastenings in the openings of the lid.
5 Press the clamps to the housing (you will hear a characteristic click).
6 Place an appropriate utensil under the groove discharge.

Start up and operating the juice extractor

• Check if the switch is in the "0" position.
• Unwind a sufficient length of the cord. The remaining cord can be stored in the housing. Put the remaining cord in the housing through the opening situated at the side of the juicer.

1 Plug in the appliance and switch it on.

2 Place the product to be processed into the feeding tube and gently press with the pusher.

After operation (after extracting the juice)

1 Switch off the appliance.
2 Unplug the appliance.

- Dismantle the parts – as in the case of the initial wash.

Maintenance

● After you have finished clean the juice extractor thoroughly to avoid the residue drying out.
- The motor base housing should be cleaned with a wet cloth and a small addition of a washing-up liquid.
- The other components (juice bowl, cover and food pusher) should be cleaned after finishing the work in a lukewarm water with an addition of a washing-up liquid. Rinse them and dry. These component may be also cleaned in a dishwasher at max. 60°C (except the strainer).
- Use a dish brush to remove dirt from crevices or corners.
• Over time plastic parts may become discoloured. This is not a product defect.
• After washing, dry all elements thoroughly.
• Assemble the unit as described in section.

What to do when:

The juice extractor does not work:

- Return the juice extractor to a service facility.

The juice is extracted in a poor manner, the juice extractor is subject to vibrations:

• Switch the appliance off, clean the strainer from any residue, empty the waste receptacle,
• Replace the strainer in case of mechanical damage.

How to extract juice from fruits and vegetables:

• Remove stones from fruits as they may damage the juice extractor.
• Carefully wash the fruits and vegetables to be processed.
• Wash berries directly before processing, as they quickly lose freshness.
• Extracting juice from plums, blueberries, raspberries and soft pears is troublesome. The pulp of these fruits

blocks the openings of the sieve. You can process these fruits by mixing them in small quantities with other fruits and vegetables. In such a case the sieve has to be cleaned more often.

• While extracting juice from grapes, insert whole fruits into the feeding tube, without the stem.
• Cut bigger fruits and vegetables into pieces before processing.
• Insert the fruits and vegetables into the feeding tube after switching on the appliance.
• The nutritional value of the raw juices is similar to the nutritional value of the fruits and vegetables, except that the juice does not contain fiber which is removed during juice processing.

Juice obtained from some fruits and vegetables has a tendency to concentrate.

This is due to the characteristics of the used products and it is not influenced by the juice extractor. The obtained juice might not be clear, but this kind of juice has the most nutritional value.

Disposal

Dispose of packaging in an environmentally-friendly manner. Our goods come in optimised packaging.

This basically consists in using non-contaminating materials which should be handed over to the local waste disposal service as secondary raw materials.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment

- WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

The manufacturer does not accept any liability for any damages resulting from unintended use or improper handling. The manufacturer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.
