USER MANUAL MC 2.0 WR VDO
In choosing a VDO computer, you have opted for high-quality device with the latest technology. In order to fully benefit from the potential of the computer, we recommend that you carefully read this manual. It contains the full operating instructions and many useful tips.
We hope you enjoy cycling with your VDO bike computer.
Cycle Parts GmbH

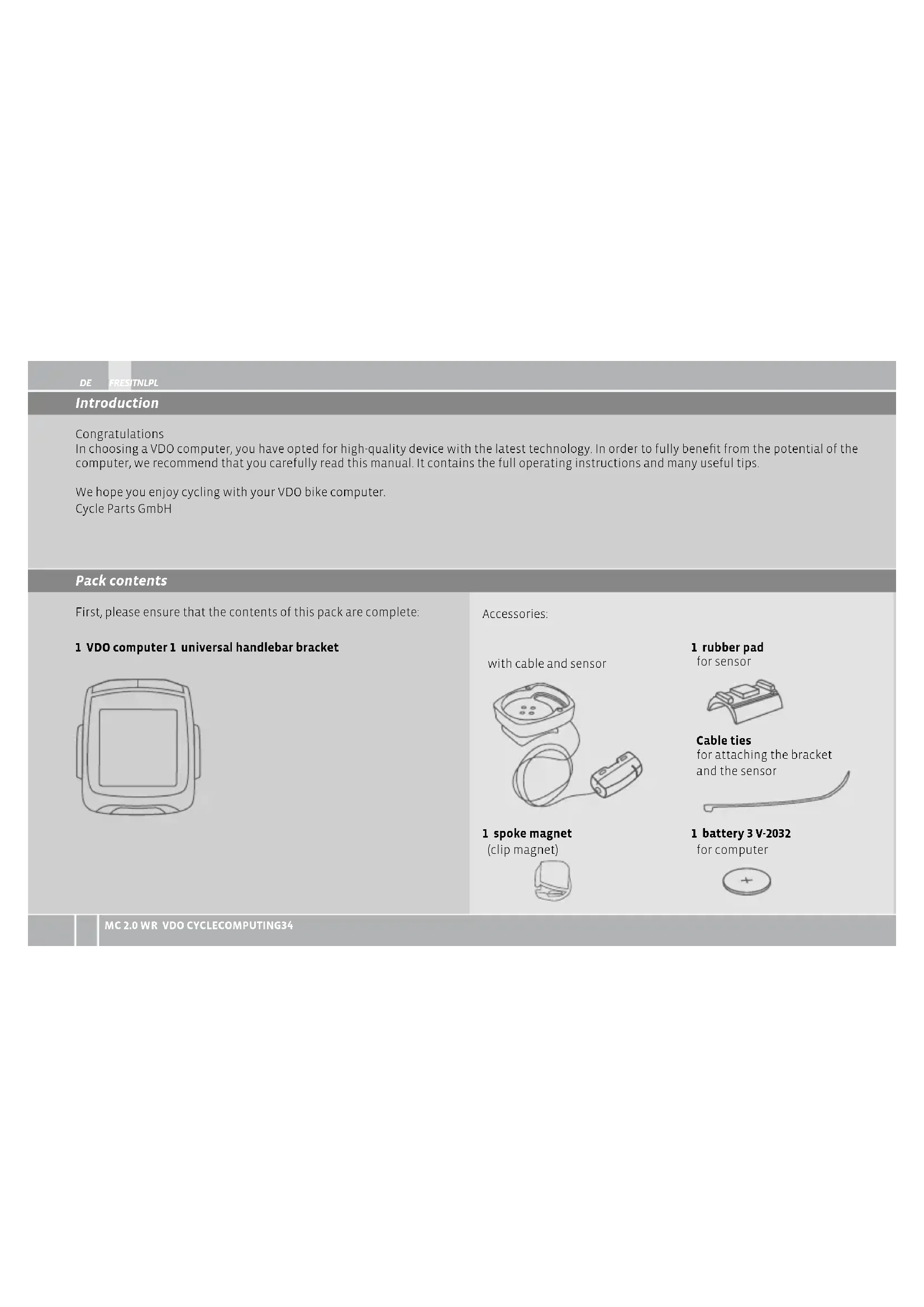

Pack contents
First, please ensure that the contents of this pack are complete:
1 VDO computer 1 universal handlebar bracket
Accessories:
with cable and sensor
1 spoke magnet
(clip magnet)
1 rubber pad
for sensor
Cable ties
for attaching the bracket and the sensor
1 battery 3 V-2032
for computer
Table of contents
- Display 36
-
Operation 38
-
Functions 40
3.1 Information functions, BIKE 40
3.2 Information functions,ALTI 41
3.3 Information on P-button 42
3.4 Selecting Bike 1 or Bike 2 43
3.5 Display backlight 44
3.6 Selecting the start altitude/ recalibrating the current altitude 44
3.7 Auto-start/stop of the computer 45
3.8 Start/stop of the stopwatch 45
- Reset
4.1 Resetting the trip data 46
4.2 Resetting the stopwatch 46
4.3 Resetting the NAVIGATOR 47
4.4 Resetting to factory settings 47
- Installation
5.1 Fitting the sensor, magnet and handlebar bracket 48
5.2 Installing the battery in the computer 49
5.3 Inserting the computer into the handlebar bracket 49
- Basic settings 50
6.1 Selecting the language 50
6.2 Setting the units (kmh/mph, Meter/feet, Celsius/Fahrenheit) 50
6.3 Setting the tyre size (wheel-circumference) 51
6.4 Setting the clock 53
6.5 Setting the odometer 54
6.6 Setting the navigator 55
6.7 Setting the ride time 56
6.8 Setting the start altitude/home altitude 57
6.9 Setting the current altitude/actual altitude 58
6.10 Automatic altitude adjustment during bike transport 59
6.11 Setting the altitude gain uphill 59
6.12 Setting the altitude loss downhill 60
7.Sleep mode 61
8. Terms of guarantee 62
9. Troubleshooting 63
10. Technical specifications 64
P02 references at the start of a section refer to the pictures in the picture book!
DE
FRETINPL
Your VDO computer comes without battery built in. Before you start, please insert battery. See also section 5.2.
1. Display

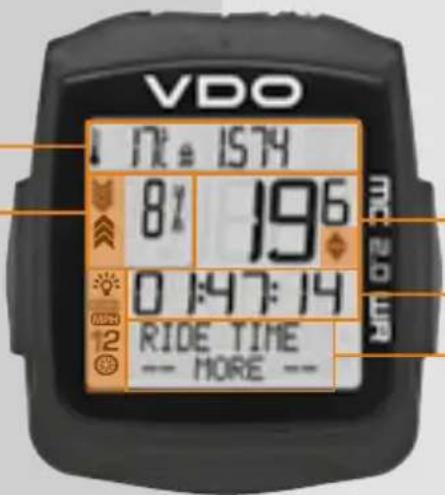

The display can be divided into six areas:
Area1
Temperature, current altitude
Area 2
current uphill/ downhill gradient
Area 6
Indicator elements.
The description of the individual indicators can be found on the right-hand side.
Area 3
Current speed
Area 4
Data for the selected function
Area 5
Top line (info line) shows the name of the selected function. Second line (menu line) displays,
whether there is more information "MORE".
whether there is another selection option "SELECT".
Stopwatch indicator
Shows that the stopwatch is still running whilst other information is provided on the display.
Indicator bike 1/bike 2
The computer can use two different settings for two bikes.
The indicator shows which of the two bikes you have chosen to use. The total distance is measured and stored separately for bike 1 and bike 2.
KMH Measurement unit (KMH or MPH)
The computer can display both KMH and MPH. Distances are correspondingly displayed in kilometers or miles. The indicator shows the selected measurement unit.
Display backlight
The LIGHT ICON indicates if the backlight-mode has been switched on.
Difference indicator - speed (current) to speed (average)
The computer compares the current speed with the average speed. The indicator shows whether the current speed is
- greater than the average speed (+1km / h)
less than the average speed (-1km / h)
or the same as the average speed (tolerance + / - 1km / h
Menu prompt indicator
When a submenu has been accessed, these indicators flash and show that there are other selection options or that the computer is waiting for an entry (setting mode).
Downhill-Indicator, shows declination
Uphill-Indicator, shows inclination
2. Operation

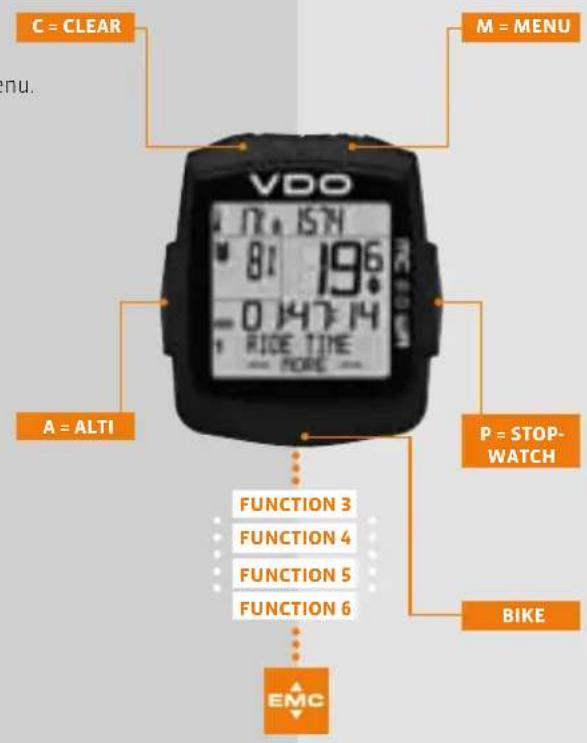

To make your computer easy to use, we have developed the EMC = Easy Menu Control system. The EMC makes your computer easier to operate by means of full-text menu guidance, as is used on most mobile phones.
C = CLEAR
In function mode:
- Jump back a menu level from the submenu.
Press and hold for three seconds:
Reset trip data to zero.
Reset stopwatch to zero.
Reset navigator to zero.
In setting mode:
Press and hold for three seconds:
Exit the settings menu, return to function mode
Correct an entry.
- Jump back a digit
A = ALTI
In function mode:
In setting mode:
Altitude information is displayed.
Scroll backwards in the menu.
Decrease the number to be set.
Menu indicators on the display flash to show that there are other selection options. In function mode, the computer is operated using five buttons. In setting mode, the computer is operated using four buttons.
M=MENU
In function mode:
Access available submenu.
You can recognise a submenu by the flashing menu indicators.
Confirm selection.
Start/stop the stopwatch.
Press and hold for three seconds.
Open the settings menu.
In setting mode:
Select a setting
Confirm a setting
Confirm a selection made
P=STOPWATCH
In function mode:
Display of stopwatch and clock
In setting mode:
Scroll forwards in the menu
Increase the number to be set.
BIKE BIKE
In function mode:
Bike functions
ITNLPLFRES
GDAE
A = ALTI
In function mode:
Altitude information is displayed.
- If the submenu is open
Scroll down in the submenu.
Press and hold ALTI for three seconds.
Opens the menu for recalibrating the current altitude.
In setting mode:
Scroll down within the setting modes.
Decrease a digit.
P=STOPWATCH
In function mode:
Display of stopwatch and clock
In setting mode:
Scroll up within the setting modes.
- Increase a digit.
BIKE BIKE
- Displays the bike functions, e.g. trip distance, average speed etc.
A +P = ALTI+P
Press the buttons ALTI+P to start/stop the stopwatch.
The stopwatch immediately appears on the display and is started or stopped.
BKE+
= BIKE+CLEAR
Press the buttons BIKE+CLEAR to activate the display backlight.
- When the display backlight is activated, the LIGHT icon displayed.
- When the display backlight is activated, the display is lit for a few seconds every time a button is pressed.
ATTENTION: press the buttons BIKE + CLEAR again to switch off the display backlight during the day.
This SAVES BATTERY POWER.
3. Functions
3.1 Information functions, BIKE
CURRENT SPeed
Permanently shown on the display Accuracy:0,2 KMH/MPH
TRIP DISTANCE
Shows the distance of the current trip since the last reset. Maximum value 999.99 km or miles. If the maximum value is exceeded, the odometer starts again at zero.
TRIP DISTANCE/MORE
MORE indicates that there is a submenu for the main menu TRIP DISTANCE. Open the submenu by pressing M
In the submenu you will find (scroll by pressing ALTIA or P)
Total distance BIKE 1 up to max. 99,999 km or miles
Total distance BIKE 2 up to max. 99,999 km or miles
Total distance for bike 1 + bike 2 up to max. 199,999 km or miles Exit the submenu by pressing C.
RIDE TIME
Shows the ride time for the current trip distance since the last reset. Maximum 99:59:59 HH:MM:SS.
If the maximum value is exceeded, the ride time measurement starts again at zero.
RIDE TIME/MORE
MORE indicates that there is a submenu for the main menu RIDE TIME. Open the submenu by pressing
AVG SPeeD
Shows the average speed since the last reset. Accuracy: 2 decimal places.
MAX SPeeD
Shows the maximum speed on the current trip since the last reset. Accuracy: 2 decimal places.
ITNLPLFRES
GDE
NAVIGATOR
The navigator is a second trip distance counter. The NAVIGATOR:
is independent of the trip distance counter.
can bereset to zero as often as you want.
can be set to a starting value.
can count forwards or backwards from this starting value. These special options make it easier to follow instructions from a touring book or road book.
NAVIGATOR/SET
SET indicates that there is a submenu for the main menu NAVIGATOR. Open the submenu by pressing M
You can set a start value here and decide whether the NAVIGATOR counts forwards or backwards from this start value.
3.2 Information functions, ALTI
ALTIUP
Shows the altitude gain uphill on the current trip since the last reset.
ALTI UP--MORE--
MORE indicates that there is a submenu for the main menu ALTI UP. Open the submenu by pressing M
In the submenu, you will find (scroll by pressing ALTIA or P)
Altitude gain uphill for bike 1
Altitude gain uphill for bike 2
Total altitude gain uphill for bikes 1 + 2
Exit the submenu by pressing
ALTIMAX
Shows the maximum altitude (highest point) reached on the current trip.
ALTIMAX--MORE--
MORE indicates that there is a submenu for the main menu ALTI MAX. Open the submenu by pressing
In the submenu, you will find (scroll by pressing ALTIA or P):
ALTI MAX for BIKE 1:
highest point of all previous trips with bike 1
ALTI MAX for BIKE 2:
highest point of all previous trips with bike 2.
DE FRESTNPLP
AVG CLIMB: average uphill gradient (in percent) on the current trip.
MAX CLIMB: maximum uphill gradient (in percent) on the current trip.
ALTI DOWN
Shows the altitude loss downhill on the current trip since the last reset.
ALTIDOWN--MORE--
MORE indicates that there is a submenu for the main menu ALTI DOWN. Open the submenu by pressing M.
In the submenu, you will find (scroll by pressing ALTIP or PULSEP)
Altitude loss downhill for bike 1
Altitude loss downhill for bike 2
Total altitude loss downhill for bikes 1 + 2
Exit the submenu by pressing
AVG DOWN: shows the average downhill gradient of the current trip (in percent).
MAX DOWN: shows the maximum downhill gradient of the current trip (in percent).
3.3 Information on P-button
STOPWATCH
pwatch for measuring times/intervals.
CLOCK
shows the current time. 12 hour AM/PM or 24 hour mode possible
3.4 Selecting Bike 1 or Bike 2 P03
Your VDO Computer can be used on 2 bikes. All data is either stored for Bike 1 or Bike 2. The selected bike is indicated in lower left part of the display. (1)
How to select Bike 1 or Bike 2
Process:
Press and hold for 3 seconds.
SETINGS OPEN? is flashing in the display.
LANGUAGE--SELECT---is shown.
Use to go to SELECT BIKE---SELECT---
Confirm with M. SELECT BIKE--BIKE 1 or BIKE 2 is shown Select with ALTI A or P
Confirm with M. Display will show BIKE 1 (or BIKE2)---SELECT OK?
Confirm with M Display will show SELECT BIKE--SELECT DONE.
Press and hold to get back to Function Menu.
DE FRESITNLPL
3.5 Display backlight
The MC 2.0 has a display backlight.
The display backlight is activated by pressing the buttons BIKEC If the display backlight is activated, the LIGHT icon appears on the display.
If the display backlight is activated and a button is pressed, the backlight illuminates for a few seconds.
ATTENTION: press the buttons BIKE + CLEAR again to switch off the display backlight during the day. This SAVES BATTERY POWER.
3.6 Selecting the start altitude / recalibrating the actual altitude
The MC 2.0 can work with two different start altitudes (example: home altitude and altitude at holiday location). The current altitude can be set by entering the number of METERS/FEET or the AIR PRESSURE. Please also read section 6.10.
Press and hold the ALTI button A for three seconds.
- ALTITUDE SELECT? flashes on the display.
ALTITUDE
ACTUAL ALTI
HOME1
HOME2
is displayed (depending on the previously accessed configuration).
A selection is made by pressing ALTIA or P.
The selection is confirmed by pressing M.
For the start altitudes, the query 300 appears (numerical example).
HOME ALTI 1 (or 2) SELECT OK?
The selection is confirmed by pressing MENU
The MC 2.0 confirms by displaying ALTITUDE DONE.
ACTUAL ALTITUDE can be used to re-calibrate the current altitude. This can be done by entering the (known) altitude in METERS/FEET or the AIR PRESSURE. The sea level pressure can be found online on weather forecast websites.
Press to confirm the ALTITUDE-ACTUAL ALTI setting. ACTUAL ALTI-ALTITUDE or ACTUAL ALTI-AIR PRESSURE is displayed.
A selection is made by pressing the P or ALTI button A.
Confirm the selection by pressing M.
The digit to be set flashes.
Pressing P or ALTIA increases or reduces the digit.
The following query then appears:
ACTUAL ALTI--SELECT OK?
Confirm the selection by pressing M
The MC 2.0 confirms by displaying ACTUAL ALTI - SET DONE.
3.7 Auto-start/stop of the computer
The MC 2.0 WR will automatically wake up form Sleep Mode, when you continue your ride. The computer can also be manually activated after a break by pressing a button.
3.8 Start/stop of the stopwatch
To access the stopwatch directly, simultaneously press ALTI A + P. The stopwatch is shown directly on the display and started.
Pressing ALT1 + P again stops the stopwatch and displays it simultaneously on the display.
When shown on the display, the stopwatch can also be started/ stopped by pressing the M button.
DE FRESITNLPL
4 Reset
4.1 Resetting the trip data
Press and hold the C button for three seconds to reset the trip data to zero before starting the next trip. TOUR DATA-RESET? is shown on the display. If you continue to hold down the C button, the data will be reset.
The following values are reset:
Trip distance
Ride time
Average speed
Max speed
Gain in altitude uphill
Average ascending gradient
- Max ascending grad
Loss in altitude downhill
Average descending gradient
Max descending gradient
4.2 Resetting the stopwatch
The stopwatch can only be reset when shown on the display.
To reset the stopwatch, press and hold the C button for three seconds.
The query STOPWATCH-RESET? appears on the display. The stopwatch is reset to zero.
| ITNPLFRES GDE | |
| 4.3 Resetting the NAVIGATOR | |
| The navigator (2nd trip section odometer) can only be reset when shown on the display. To reset the navigator, press and hold the button for three seconds. | The query NAVIGATOR-RESET? appears on the display. The navigator is reset to zero. |
| 4.4 Resetting to factory settings | |
| The MC 2.0 can be reset to the factory settings. ATTENTION: this process deletes all data and all personal settings. • Press and hold all buttons simultaneously for three seconds. • The query FACTORY-RESET appears on the display. RESET-SURE? | If you are absolutely sure that you want to reset the MC 2.0 to the factory settings, then confirm the query by pressing M. The MC 2.0 confirms by displaying RESET-DONE. |
| www.vdocyclecomputing.com MC 2.0 WR 47 | |
DE FRESITNLPL
5 Installation
5.1 Fitting the sensor, magnet and handlebar bracket >> P01
Start by fitting the sensor and magnet.
Step 1 Place the rubber pad under the sensor. Fit the sensor on the same side of the forks where you later want to fit the computer to the handlebars (right or left) using the cable ties supplied (loosely at first, do not pull tight just yet).
ATTENTION: the sensor mark on the sensor must point to the spokes. Depending on the room available, the sensor can be fitted at the front of the forks, on the inner side (side showing to spokes) of the forks or pointing backwards on the forks. P02
Step 2 Place the spoke magnet around an outer spoke. The silver centre of the magnet points towards the sensor. Align the magnet to the sensor mark on the sensor leaving a gap of about 1 - 5mm .
Step 3 Align the sensor and magnet for good and fasten them in place. pull the cable ties tight and push the magnet in firmly.
Step 4 Decide whether fitting to handlebars or stem and rotate the base of the handlebar holder by 90^ accordingly. To do so, undo the screws in the bracket, take out the foot and rotate it 90^ , insert and tighten the screws again.
ATTENTION: do not overtighten the screws.
Step 5 Guide the cable ties through the slot in the handlebar bracket, place around the handlebars or the stem and pull (do not pull tight just yet).
Step 6 If fitting to handlebars: align the computer angle to achieve optimum readability. Now pull the cable ties tight. Snip off protruding ends with clippers.
| ITNPLFRES GDE | |
| 5.2 Installing the battery in the computer | P04 |
| Your VDO computer comes without battery built in.Before you start, please insert battery.Step1 Place the battery in the computer casing with the +terminal pointing up.Step2 Make sure that the battery does not tilt.Step3 Ensure that the rubber seal lies flat on the battery compartment lid. | Step 4 Insert the battery compartment lid into the opening and use a coin to turn it to the right as far as it will go (approx. ¼ turn).TIP for changing batteries: VDO recommends changing the battery annually.When the battery is changed, all settings and all trip totals are saved. |
| 5.3 Inserting the computer into the handlebar bracket | P05 |
| The VDO twist-click system securely connects the computer to the handlebar bracket.Step1 Place the computer into the bracket in a 10 o'clock position.Step2 Twist the computer to the right until reaching the 12 o'clock position and click it into the bracket system. | Step 3 To remove the computer, twist it to the left (do not push or pull).How to remember: Rigid to the Right, Loose to the Left |
| www.vdocyclecomputing.com MC 2.0 WR 49 | |
DE FRESTINPLP
6 Basic settings
6.1 Setting the language
Press and hold M for three seconds.
When you set the language for the first time, the following appears:
SETTINS--OPEN?, followed by LANGUAGE---SELECT... Confirm the selection by pressing M
LANGUAGE-ENGLISH is shown on the display.
Press ALTiA or P to scroll until your language is shown in display.
Confirm the selection by pressing
ENGLISH (or your selected language)--SELECT OK? appears in the display.
Confirm the selection by pressing M
The MC 2.0 confirms by displaying SELECT-DONE--LANGUAGE.To exit settings mode, press and hold the C button for three seconds.
SETTINS-CLOSE? flashes. The MC 2.0 switches back to function mode.
6.2 Setting the dimensions
This area enables you to set the units for:
Speed and distance (KMH or MPH)
Altitude (meters or feet)
Temperature (Celsius or Fahrenheit)
Process:
Press and hold M for three seconds. SETTINGS-OPEN? flashes.
LANGUAGE--SELECT--appears on the display
Press to scroll to DIMENSION--SET... Confirm the selection by pressing M
MC2.0 WR VDO CYCLECOMPUTING50
SPEED-KMH or MPH appears on the display. Press ALTIA or P to select KMH or MPH. Confirm the selection by pressing M.
ALTITUDE--METER or FEET is shown on the display Press ALTI A or P to select METER or FEET. Confirm the selection by pressing M
TEMPERATURE-CELSIUS or FAHRENHEIT is shown on the display. Press ALTIA or P to select CELSIUS or FAHRENHEIT. Confirm the selection by pressing M.
6.3 Setting the tyre size (wheel-circumference)
P05
This area is used to set the tyre circumference (tyre roll circumference). The tyre circumference can be separately set for bike 1 and bike 2. The tyre circumference can be manually entered in mm or automatically determined from a table with tyre sizes.
Process:
Press and hold for three seconds. SETTINGS-OPEN? flashes. LANGUAGE--SELECT--appears on the display.
Press to scroll to WHEEL SIZE-SET Confirm the selection by pressing
Query, DIMENSION SET OK? Press to confirm the DIMENSION or C to go back and change it. The MC 2.0 confirms by displaying DIMENSION SET DONE.
To exit settings mode, press and hold the C button for three seconds. SETTINGS-CLOSE? flashes. The MC 2.0 switches back to function mode.
DE FRESTNPLP
WHEEL SIZE--BIKE 1 or BIKE 2 is shown on the display.
Press ALTIA or P to select BIKE 1 or BIKE 2.
Confirm the selection by pressing M
WHEEL SIZE-MANUAL SET or TYRE SELECT is shown on the display.
Press ALTIA or to select MANUAL SET or TYRE SELECT list.
Confirm the selection by pressing M
If MANUAL SET is selected:
The tyre size in mm flashes (if MPH is selected, the size is displayed in inches). Press ALTI A to reduce the tyre circumference or P to increase it.
Once you have set the correct tyre circumference, press M to confirm your setting.
BIKE 1 (or BIKE 2) SET OK? is shown on the display.
Press in confirmation or C to make a correction
The MC 2.0 confirms by displaying WHEEL SIZE-SET DONE.
If TYRE SELECT is selected:
Press ALTI A or P to scroll through the tyre list.
Once your tyre type is displayed (e.g. 700 x 23 C) confirm it by pressing M.
700 x 23 C--SELECT OK? is shown on the display. Press M to confirm the selection or C to change it. The MC 2.0 confirms by displaying WHEEL SIZE-SET DONE.
To exit settings mode, press and hold the C button for three seconds. SETTINGS-CLOSE? flashes. The MC 2.0 switches back to function mode.
6.4 Setting the clock P06
This area enables you to set the current time. The time can be set in 24 or 12-hour format.
Process: Press and hold for three seconds. SETTINGS-OPEN? flashes. LANGUAGE--SELECT--appears on the display.
Press to scroll to CLOCK-SET.. Press in confirmation.
CLOCK 24-H-MODE or 12-H-MODE appears on the display. Press ALTI A or P to make a selection. Press Min confirmation.
CLOCK-SET HOURS appears on the display. The hour flashes. Press ALTI A to reduce the value or P to increase it. Once you have set the correct value, press M to confirm your setting.
CLOCK---SET MINUTES appears on the display. Press ALTI A to reduce the value or P to increase it. Once you have set the correct value, press N to confirm your setting.
CLOCK--SET OK? query.
Press in confirmation.
The MC 2.0 confirms by displaying CLOCK--SET DONE.
To exit settings mode, press and hold the button for three seconds. SETTINGS-CLOSE? flashes. The MC 2.0 switches back to function mode.
DE FRESITNLPL
6.5 Setting the total distance
This area enables you to set the total distance cycled. The information is separately provided for bike 1 and bike 2. At the start of the season, you can reset the total distance cycled to zero, for example.
ATTENTION: the total distance is SAVED when the battery is changed. The data is not lost.
Process:
Press and hold M for three seconds. SETTINGS--OPEN? flashes. LANGUAGE--SELECT--appears on the display.
Press to scroll to ODOMETER---SET--- Press Min confirmation.
ODOMETER ODO BIKE 1 or ODO BIKE 2 is shown on the display. Press ALTI A or P to make a selection. Press Min confirmation.
ODO BIKE 1 (or 2)-SET KM or SET MILE is shown on the display.
The first digit flashes.
Press ALTi A to reduce the value or P to increase it. Once you have set the correct value, press M to confirm your setting.
The second digit now flashes.
Press ALTi A to reduce the value or P to increase it. Once you have set the correct value, press M to confirm your setting.
Continue the setting process until all digits have been set.
ODO BIKE 1 (or BIKE 2)--SET OK? Press M to confirm or C to make a correction.
The MC 2.0 confirms by displaying ODO BIKE 1 (or BIKE 2) SET DONE.
To exit settings mode, press and hold the C button for three seconds. SETTINGS-CLOSE? flashes. The MC 2.0 switches back to function mode.
6.6 Setting the navigator
The navigator is directly set from the function menu.
Process:
NAVIGATOR--SET--- is shown on the display. Press in confirmation.
NAVIGATOR--FORWARD or BACKWARD appears on the display. Press ALTIA or P to make a selection. Press in confirmation.
NAVIGATOR-SET DISTANCE appears on the display. The distance in KM or MILES flashes. The first digit flashes. Press ALTIA to reduce the value or P to increase it. Once you have set the correct value, press M to confirm your setting.
The second digit now flashes.
Press ALTI A to reduce the value or P to increase it. Once you have set the correct value, press M to confirm your setting.
Continue the setting process until all digits have been set.
NAVIGATOR--SET OK? query Press in confirmation.
The MC 2.0 confirms by displaying NAVIGATOR--SET DONE. Once the setting is complete, the MC 2.0 automatically switches back to function mode.
DE FRESITNLPL
6.7 Setting the ride time
The total ride time can be separately set for bike 1 and bike 2. Before the start of the season, you can reset the total ride time to zero.
ATTENTION: the total ride time is SAVED when the battery is changed. The data is not lost.
Process:
Press and hold for three seconds. SETTINGS-OPEN? flashes. LANGUAGE--SELECT--appears on the display.
Press to scroll to RIDE TIME SET Press Min confirmation.
RIDE TIME-TIME BIKE 1 or TIME BIKE 2 is shown on the display. Press ALTI A or P to make a selection. Press Min confirmation.
TIME BIKE 1-SET HOURS appears on the display. The hours flash. Press ALTI A to reduce the value or P to increase it. Once you have set the correct value, press M to confirm your setting.
TIME BIKE 1--SET MINUTES appears on the display. The minutes flash.
Press ALTi A to reduce the value or P to increase it. Once you have set the correct value, press M to confirm your setting.
TIME BIKE 1-SET OK? Press in confirmation.
The MC 2.0 confirms by displaying TIME BIKE 1-SET DONE.
To exit settings mode, press and hold the button for three seconds. SETTINGS-CLOSE? flashes. The MC 2.0 switches back to function mode.
6.8 Setting the start altitude/home altitude
You can enter two different start altitudes in the MC 2.0. One start altitude can, for example, be your home start altitude. The second start altitude can, for example, be the start altitude of a holiday location. Before starting each trip, you can use the start altitude to quickly and easily re-calibrate the current air pressure in line with the start altitude set.
Topic: re-calibration
The MC 2.0 measures the altitude using the air pressure. The air pressure changes depending on the weather. The changed air pressure leads to an incorrect altitude reading. Through recalibration, the currently measured air pressure is calculated back to the set start altitude.
Process:
Press and hold for three seconds. SETTINGS-OPEN? flashes. LANGUAGE--SELECT--appears on the display.
Press to scroll to HOME ALTI-SET.. Press in confirmation.
HOME ALTI-HOME ALTI 1 or HOME ALTI 2 appears on the display. Press ALTIA or P to make a selection. Press in confirmation.
HOME ALTI-SET METER or SET FEET appears on the display. The meter or feet number flashes. Press ALTI A to reduce the value or P to increase it. Once you have set the correct value, press M to confirm your setting.
HOME ALTI 1-SET OK? Press in confirmation.
The MC 2.0 confirms by displaying HOME ALTI 1-SET DONE.
To exit settings mode, press and hold the C button for three seconds. SETTINGS-CLOSE? flashes. The MC 2.0 switches back to function mode.
DE FRESITNLPL
6.9 Setting the current altitude/actual altitude
This area enables you to set the current altitude
The current altitude is set if the air pressure has changed due to the weather and the altitude shown on the display no longer corresponds to the actual current altitude (e.g. the altitude details shown at the summit).
There are two ways of setting the current altitude. Enter the current altitude in meters/feet or the sea level pressure. On entering the sea level pressure, the current altitude is calculated.
Details of the sea level pressure can be found on weather-pages in Internet.
Process:
Press and hold M for three seconds. SETTINGS-OPEN? flashes. LANGUAGE---SELECT--- appears on the display.
Press ALTI A to scroll to ACTUAL ALTI--- SET --- Press M in confirmation.
ACTUAL ALTI-ALTITUDE or AIR PRESSURE appears on the display.
Press ALTI A or P to make a selection. Press Min confirmation.
If ALTITUDE is selected:
ACTUAL ALTI-SET METER or FEET appears on the display. The meter or feet number flashes. Press ALTI A to reduce the value or P to increase it. Once you have set the correct value, press M to confirm your setting.
ACTUAL ALTI--SET OK?
Press Min confirmation.
The MC 2.0 confirms by displaying ACTUAL ALTI-SET DONE.
If AIR PRESSURE is selected:
AIR PRESSURE-SET PRESSURE appears on the display. The air pressure number flashes. Press ALTI A to reduce the value or P to increase it. Once you have set the correct value, press M to confirm your setting.
Dimension of Air Pressure is hPa.
6.10 Adjusting the altitude when transporting the bike
The MC 2.0 has a movement sensor. If the bike is transported with MC 2.0 on mount (e.g. by car), the movement sensor will adjust the current altitude if the air pressure changes during transportation.
6.11 Setting the altitude gain uphill
The altitude gain uphill can be separately set for BIKE 1 and BIKE 2.
Before the start of the season, you can reset the total altitude gain to zero.
ATTENTION: the total altitude gain is SAVED when the battery is changed. The data is not lost.
AIR PRESSURE-SET OK? Press in confirmation.
The MC 2.0 confirms by displaying ACTUAL ALTI-SET DONE.
To exit settings mode, press and hold the button for three seconds. SETTINGS CLOSE? flashes. The MC 2.0 switches back to function mode.
To do this, the MC 2.0 WL must be positioned in the handlebar bracket.
Process: Press and hold for three seconds. SETTINGS-OPEN? flashes. LANGUAGE--SELECT--appears on the display.
Press to scroll to ALTI UP---SET--- Press in confirmation.
DE FRESTNPLP
ALTIP-ALTIP1 or 2 is shown on the display. Press ALTIP or P to make a selection. Press in confirmation.
ALTUP1-SETMETERorFEETappears on the display.
The first digit of the altitude reading flashes..
Press ALTIA to reduce the value or P to increase it.
Once you have set the correct value, press M to confirm your setting.
The second digit flashes. Press ALTIA to reduce the value or P to increase it. Once you have set the correct value, press M to confirm your setting. Continue the setting process until all digits have been set.
ALTUP1-SETOK? Pressin confirmation.
The MC 2.0 confirms by displaying ALTI UP 1--SET DONE.
To exit settings mode, press and hold the C button for three seconds.
SETTINGS-CLOSE? flashes. The MC 2.0 switches back to function mode.
6.12 Setting the altitude loss downhill
The altitude loss downhill can be separately set for bike 1 and bike 2. Before the start of the season, you can reset the total altitude loss to zero.
ATTENTION: the total altitude loss is SAVED when the battery is changed. The data is not lost.
Process: Press and hold for three seconds. SETTINGS-OPEN? flashes. LANGUAGE--SELECT appears on the display.
Press to scroll to ALTI DOWN-SET Press in confirmation.
MC 2.0 WR VDO CYCLECOMPUTING60
ALTIDOWN-ALTIDOWN1or2is shown on the display.
Press ALTI A or P to make a selection
Press in confirmation.
ALTI DOWN 1-SET METER or FEET appears on the display.
The first digit of the altitude reading flashes.
Press ALTI A to reduce the value or P to increase it
Once you have set the correct value, press M to confirm your setting.
The second digit flashes
Press ALTI A to reduce the value or P to increase it
Once you have set the correct value, press to confirm your setting.
Continue the setting process until all digits have been set.
7. Sleep mode
The MC 2.0 has a sleep mode to save the battery.
The MC 2.0 goes into sleep mode after five minutes
if no speed signals are received.
SLEEP MODE appears on the display.
ALTIDOWN1-SETOK?
Press in confirmation.
Pressing any button or continue the ride will wake up the MC 2.0 WR.
DE FRESITNLPL
8. Terms of guarantee
VDO Cycle Parts offers a 3-year guarantee on your VDO computer, starting from date of purchase. This guarantee covers material and processing defects on the computer itself, the sensor/transmitter and the handlebar bracket. Cables, batteries and mounting materials are not covered by the guarantee. The guarantee is only valid if the affected components have not been opened (exception: computer's battery compartment), no force has been used and there is no sign of wilful damage.
Please store the purchase receipt in a safe place as it must be submitted in the event of a complaint.
If your complaint is legitimate, you will receive a comparable replacement device. You are not entitled to a replacement of the identical model if the model in question is no longer in production due to a model change. Please contact the dealer from whom you purchased the device for all complaints and guarantee claims. Alternatively, send your complaint directly to:
Cycle Parts GmbH
Le Quartier Hornbach 13
67433 Neustadt/Weinstrasse (Germany)
If you have any technical questions, please do not hesitate to call our hotline during standard office hours on:
+49(0)6321-95827-10
+49(0)6321-95827-18
Additional technical information is available at: www.vdocyclecomputing.com
We reserve the right to make technical changes in the course of further development.
9. Troubleshooting
Error Possible cause Correction
| Half segments on the display (e.g. after a battery change) | Computer software not running correctly after battery change | Take out the battery, wait a few seconds, place battery back again |
No speed displayed Distance from sensor to magnet too great Correct the sensor and magnet positions
| No speed displayed Computer not properly clicked into the handlebar bracket | Place the computer head in the handlebar bracket and twist it until it clicks |
No speed displayed Wheel circumference is not correctly set or Set the wheel circumference is at zero
Display becomes weak Battery dead Check the battery, replace if nec.
Display becomes weak Temperatures under 5^ make the display At normal temperatures the display sluggish will work normally again
Incorrect altitude displayed Air pressure has changed but the current Recalibrate the current altitude (current altitude incorrect) altitude has not been recalibrated in line with the new air pressure
10. Technical specifications
Computer:
Approx. 54 H x 49 W x 15 D mm, weight: approx. 45 g
Handlebar bracket:
Weight: approx. 10 g
Computer battery:
3V, type 2032
Computer battery service life:
400 ride hours, approx. 8,000 km (5000 m)
Display operating temperature:
-10°C to +60°C (14°F to 140°F)
Speed range:
For wheel size 2155 mm,
min. 2.0km / h 1.5 Mph
max.199,8 km/h, 124 Mph
Ride time measurement range:
Up to 99:59:59 HH:MM:SS
Stopwatch measurement range:
Up to 99:59:59 HH:MM:SS
Trip distance odometer measurement range:
Up to value 999.99 km or mi
NAVIGATOR measurement range:
from -999.99 to +999.99 km or mi
Total distance 1 or total distance 2 measurement range:
Up to value 99,999 km or mi
Total distance ODO 1 + ODO 2 measurement range:
Up to value 199,999 km or mi
Altitude measurement range:
-999 m to +4999 m (999 to 16 400 feet)
Wheel circumference setting range:
From 100 mm to 3999 mm (3.9 to 157.4 inches)
GB Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems). This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustain able reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.
ITNLPFRES
DEENG
ESITNLPL
Preface
Merci!
