USER MANUAL 35V EL SABO

English Original Instruction

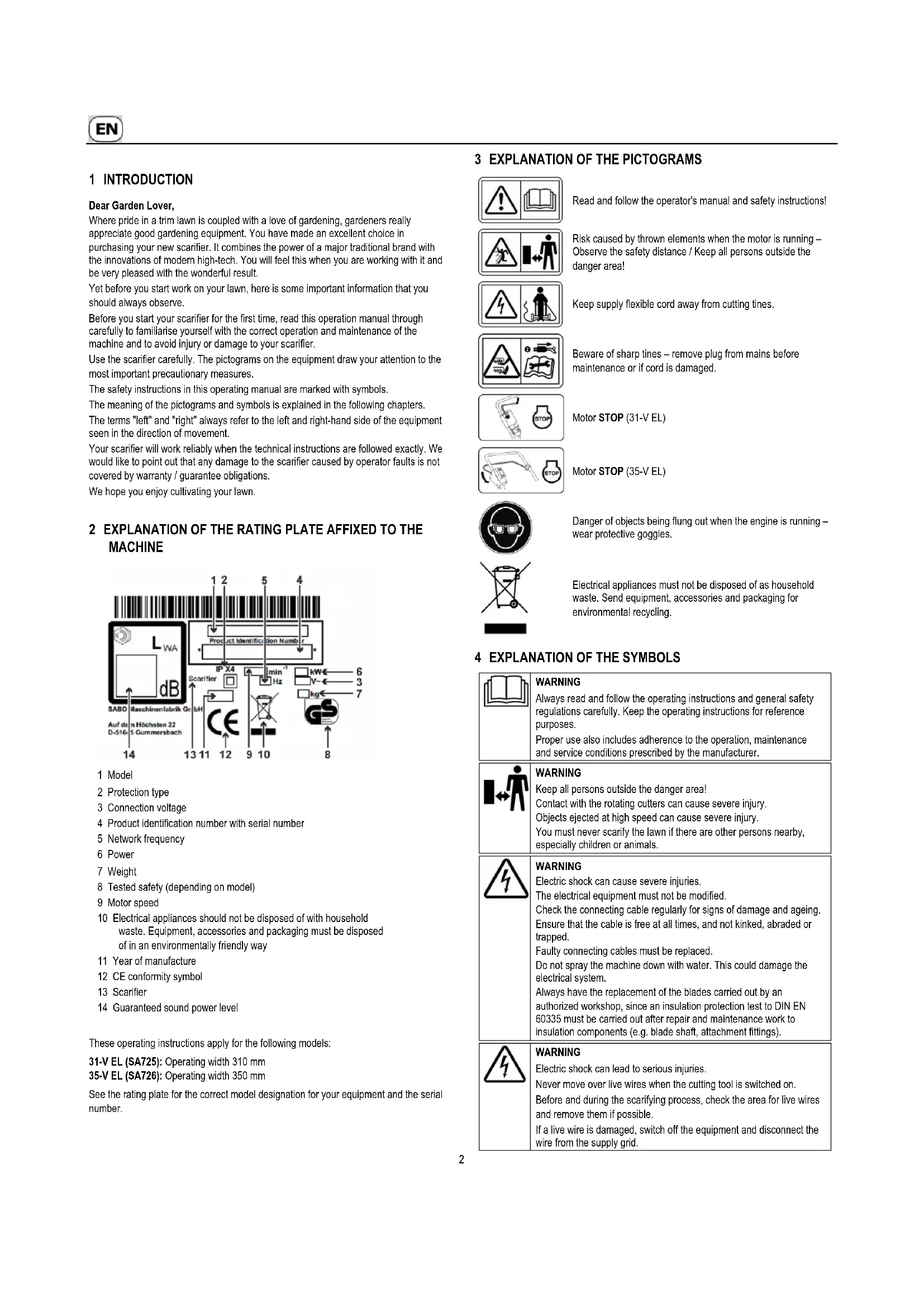

1 INTRODUCTION Dear Garden Lover, Where pride in a trim lawn is coupled with a love of gardening, gardeners really appreciate good gardening equipment. You have made an excellent choice in purchasing your new scarifier. It combines the power of a major traditional brand with the innovations of modern high-tech. You will feel this when you are working with it and be very pleased with the wonderful result. Yet before you start work on your lawn, here is some important information that you should always observe. Before you start your scarifier for the first time, read this operation manual through carefully to familiarise yourself with the correct operation and maintenance of the machine and to avoid injury or damage to your scarifier. Use the scarifier carefully. The pictograms on the equipment draw your attention to the most important precautionary measures. The safety instructions in this operating manual are marked with symbols. The meaning of the pictograms and symbols is explained in the following chapters. The terms "left" and "right" always refer to the left and right-hand side of the equipment seen in the direction of movement. Your scarifier will work reliably when the technical instructions are followed exactly. We would like to point out that any damage to the scarifier caused by operator faults is not covered by warranty / guarantee obligations. We hope you enjoy cultivating your lawn.

1 Model 2 Protection type 3 Connection voltage 4 Product identification number with serial number 5 Network frequency 6 Power 7 Weight 8 Tested safety (depending on model) 9 Motor speed 10 Electrical appliances should not be disposed of with household waste. Equipment, accessories and packaging must be disposed of in an environmentally friendly way 11 Year of manufacture 12 CE conformity symbol 13 Scarifier 14 Guaranteed sound power level

These operating instructions apply for the following models: 31-V EL (SA725): Operating width 310 mm 35-V EL (SA726): Operating width 350 mm See the rating plate for the correct model designation for your equipment and the serial number.

Read and follow the operator's manual and safety instructions!

Risk caused by thrown elements when the motor is running – Observe the safety distance / Keep all persons outside the danger area!

Keep supply flexible cord away from cutting tines.

Beware of sharp tines – remove plug from mains before maintenance or if cord is damaged.

Danger of objects being flung out when the engine is running – wear protective goggles.

Electrical appliances must not be disposed of as household waste. Send equipment, accessories and packaging for environmental recycling.

WARNING Always read and follow the operating instructions and general safety regulations carefully. Keep the operating instructions for reference purposes. Proper use also includes adherence to the operation, maintenance and service conditions prescribed by the manufacturer.

WARNING Keep all persons outside the danger area! Contact with the rotating cutters can cause severe injury. Objects ejected at high speed can cause severe injury. You must never scarify the lawn if there are other persons nearby, especially children or animals.

WARNING Electric shock can cause severe injuries. The electrical equipment must not be modified. Check the connecting cable regularly for signs of damage and ageing. Ensure that the cable is free at all times, and not kinked, abraded or trapped. Faulty connecting cables must be replaced. Do not spray the machine down with water. This could damage the electrical system. Always have the replacement of the blades carried out by an authorized workshop, since an insulation protection test to DIN EN 60335 must be carried out after repair and maintenance work to insulation components (e.g. blade shaft, attachment fittings).

WARNING Electric shock can lead to serious injuries. Never move over live wires when the cutting tool is switched on. Before and during the scarifying process, check the area for live wires and remove them if possible. If a live wire is damaged, switch off the equipment and disconnect the wire from the supply grid.3

WARNING Watch out for sharp blades! Contact with the rotating cutters can cause severe foot injuries. Only start the motor when standing behind the machine. Ensure that your feet do not get under the housing.

WARNING Watch out for sharp blades! Contact with the rotating cutters can cause severe hand and foot injuries. When the motor/blade shaft is running, always observe the safety distance to the machine which is maintained by the handlebar. Ensure that your hands and feet do not get under the housing.

WARNING Objects thrown upwards can cause serious injuries. Before scarifying areas covered in leaves in particular, remove all stones, sticks, wires, toys and other objects from the lawn. Never use the equipment with the protective devices damaged or missing. Missing or damaged safety and protective devices are a safety hazard for both you and other people. Before initial use, check to make sure the cutting tool is fitted tightly, then check the cutter blades for a tight fit, wear and damage every time you do any scarifying work. Have an authorised workshop replace worn or damaged blades. Before starting the engine, check whether the tools have been removed.

WARNING Electric shock can cause serious injuries. Keep the connecting cable away from the cutters. Ensure when starting that the connecting cable is safely away from the housing. Do not run over the connecting cable when operating the machine. In case of damage, switch the machine off, wait until the cutters have come to a standstill and remove the plug from the socket. Faulty connecting cables must be replaced.

CAUTION If the mains plug is not disconnected from the mains during work on the equipment, the motor may start up and this can result in serious injuries. Switch the motor off and disconnect the mains plug before carrying out any maintenance and repair work. When servicing the cutter blades note that they can be moved even when the voltage source is switched off. Consult the operating instructions for respective cleaning or maintenance instructions. Insufficient equipment maintenance will lead to safety-related faults.

WARNING Contact with the rotating cutters can cause serious hand and foot injuries. Objects ejected at high speed can cause severe injury. Switch the motor off, and wait until the cutters come to a standstill: – if the machine has to be lifted or tilted, e.g. in order to transport it; – when moving the machine of the lawn on paths or roads; – if the machine is left unsupervised for any time; – before setting the scarifying depth; – before removing the grass collector.

CAUTION Contact with the sharp edges of the scarifier cutters can cause severe injury. Protective gloves must be worn at all times during maintenance and cleaning work.

WARNING Wear protective goggles! Objects thrown upwards can cause serious injuries. Never do any scarifying without wearing protective goggles.

• The machine is intended solely for scarifying grass and lawn surfaces in the course of normal garden and landscaping care (“Proper use”). Any further form of use constitutes improper use; the manufacturer accepts no liability for any resulting damage; the risk is borne solely by the user. Proper use of the machine also includes the observation of the operating, maintenance and servicing requirements specified by the manufacturer.

• If used in public areas, parks, sports grounds, on roads and in agricultural and forest areas, special care must be taken.

• The scarifier must not be used in particular for the removal of weeds between stones or paving stones, on terraces or paths, as a rotavator or for levelling uneven areas of ground, such as molehills.

• The use of any additional equipment and attachments not approved by the manufacturer is prohibited. If such additional equipment and attachments are used, the CE conformity and guarantee are considered null and void. Unauthorised modifications to this scarifier exclude the manufacturer from liability for any damage resulting from these modifications.

SCARIFIER General safety instructions

For your own safety and in order to ensure that the machine functions correctly, please read this operator's manual carefully. Acquaint yourself with the controls and the correct use of the machine. Keep the operating instructions for reference purposes.

• Please remember that the person operating or using the machine bears full responsibility not only for possible risks to other people or their property, but also for accidents which occur whilst using the machine.

• This operator's manual is part of the scope of supply of the machine and must be handed over to the purchaser of the machine in the event of resale.

• Never allow children or persons under the age of 16 or other persons who are not familiar with the operator's manual to use the machine. Local regulations can determine the minimum age of the person allowed to use the machine.

• Please explain the possible dangers and how to prevent accidents to every person who is supposed to work with this machine. This machine may only be used, maintained or serviced by persons who are familiar with the machine, and who are aware of the possible dangers.

• This equipment is not meant to be used by persons with restricted physical, sensory or mental capabilities or lacking in experience and/or knowledge, unless they are accompanied by a person responsible for their safety and unless they received instructions from the person on how the equipment is to be used. This responsible person must decide in advance, whether the person with restricted physical, sensory or mental capabilities is suitable for this activity.

You must never scarify the lawn if there are other persons nearby, especially children or animals.

• Please keep your machine in a safe place! Machines which are not being used should be kept in a dry, locked room out of reach of children.

• Machine safety and protective devices must not be manipulated or disabled.

• The laying of cables must not be manipulated, e.g. by removing cable clamps or attaching additional cable ties! The cables must lie against the outside of the bar in such a way that they are neither crushed nor overstretched when the bar is folded. A damaged cable may result in a technical defect of the equipment. Preparatory measures

• When scarifying you must always wear a strong, closed, non-slip pair of shoes or safety shoes and long trousers. Avoid wearing loose clothing or clothing with cords or belts hanging down. Do not scarify whilst you are barefooted or wearing sandals. Wear protective goggles to protect your eyes.

• Loud noises can lead to hearing impairments. Wear ear protection.

Before and during scarifying, check the whole area the equipment is being used on and remove all stones, sticks, wires, toys and other objects which can be caught and catapulted out.

Before and during the scarifying process, check the area for live wires and remove them if possible. Never move over live wires when the cutting tool is switched on. Risk of electric shock!4 If a live wire is damaged, switch off the equipment and disconnect the wire from the supply grid.

• If you also use a mowing robot for lawn care, the following safety instructions must be heeded with regard to the working area of the mowing robot: – Before scarifying on these areas, always check the range of the boundary wire. – If the wires are laid in the ground they must be checked, no wires may be visible, with particular attention necessary at the charging station. – If the boundary wires are laid above ground they should be routed tight directly on the ground and not lie loose in the grass. The wires must be sufficiently fixed using boundary staples, see the operating manual. – The boundary staples must not project, if this is the case push them firmly in place. – Remove any residual wires before scarifying. In the cases described above, there is a risk of the wire being pulled in and wound up by the tool; this can lead to serious injury.

• Low-hanging branches and similar obstacles can injure the operator or interfere with the scarifying operation. Before scarifying, identify potential obstacles such as low-hanging branches, and trim back or remove those obstacles.

• In order to guarantee the proper and safe operation of garden equipment, a connection cable of the minimum quality H05 RN-F (alternatively H05 VV-F) in accordance with DIN/VDE 0282/4 with a cross-section of 3 x 1.5 mm² and a connection plug made of or covered with rubber in accordance with DIN/VDE 0620-2-1 are required. Connection must be to a CEE 7/4 socket 230 V AC.

• When a childproof cable is used, care must be taken that the fuse works perfectly (smoothly) as otherwise the device connection plug could become damaged.

• The plug must be fitted with a 16 amp slow fuse.

• We recommend that a residual current operated device with a maximum breaking current of maximum 30 mA or equivalent safety equipment be used.

The electrical equipment must not be modified. The connection cable must be checked for signs of damage and ageing before every new scarifying job and may only be used in a perfect condition.

• If the unit is to be operated via a generator, an authorised specialist workshop should first be consulted with regard to a suitable generator.

• Before using the scarifier and to avoid danger, check the machine for firm seating of screw fittings, correct assembly and the condition of the blade shaft. Worn or damaged blades and attachment screws must be replaced.

• The condition of the pictograms must be checked every time the device is used. Worn or damaged pictograms must be replaced. Handling

• The machine must not be operated in potentially explosive surroundings.

The connecting cable must kept away from the cutters. Whilst you are scarifying the lawn, do not drive over the connecting cable with the machine; when guiding the connecting cable, always make sure that you are keeping a safe distance.

If the connecting cable is damaged, turn off the machine immediately and wait until the cutters have come to a standstill, then remove the plug from the socket. Faulty connecting cables must be replaced. Always ensure that the cable can move freely, make sure it does not get kinked, abraded or trapped.

• Do not scarify in bad weather when lightning could strike.

• Do not wear radio or music headphones. Safe service and operation requires your full attention.

• Only use the scarifier during daylight or if the lighting is good. Always push the machine at walking pace.

• Use care when approaching blind corners, shrubs, trees, or other obstacles that may obscure vision.

• Do not move too closely to holes, trenches and banks. The equipment can suddenly topple over when a wheel suddenly gives way over the edge of a trench or a bank or when an edge suddenly yields.

• Do not operate the equipment when you are sick, tired or under the influence of alcohol, medicine or drugs.

• Avoid using the machine if possible on wet grass, in order to avoid the danger of slipping.

• Always make sure that you are standing securely whilst using the scarifier on slopes. Always work at right angles to the slope, never straight up or down. Please be especially careful when you change direction when using the scarifier on a slope.

• Do not scarify excessively steep slopes! Scarifying slopes always means additional risks. Your scarifier is powerful enough to scarify on slopes with a gradient of up to 46% (25° angle). For safety reasons, however, we urgently recommend you do not exploit this theoretical performance potential. Always make sure you have a firm stance. Manually guided scarifiers should never be used for slopes with a gradient in excess of 26% (15° angle of slope). Stability may be lost.

• Please be especially careful when turning the machine or pulling it towards yourself.

• If you walk backwards whilst using the machine, you can easily stumble so this should be avoided. Avoid unnatural body positions. Ensure that you are standing securely and keep your balance at all times.

• Always observe the safety distance to the machine which is maintained by the handlebar.

• In order to avoid the machine slipping when being carried, always hold the machine by the grip devices provided (carrying handle, housing, handlebar ends or transverse bar of the lower handlebar section). Do not grasp the machine by the ejection flap!

• Note the weight of the machine before lifting or carrying it (see technical data). Lifting heavy weights can lead to health problems.

• Never lift or carry the machine when the engine is running.

• Never use the machine with safety and protective devices damaged or missing. Missing or damaged safety and protective devices are a safety hazard for both you and other people. Safety equipment includes (see chapter Component description):

– Motor stop safety control bar/control lever (13) The scarifier is equipped with a motor stop device. During operation and in the event of a hazard, the electric motor is switched off by releasing the motor stop bar/lever. The electric motor and the cutting tool must come to a standstill (Note! The cutting tool runs on for a while!). If this is not the case, please consult your nearest authorised workshop. After release, the bar/lever must always return to the position shown in the "component description" diagram. If this is not the case, it must be checked immediately by an authorised workshop. The function of the safety control bar/control lever must never be put out of operation. It is important to make sure that the safety control bar/control lever functions correctly. If this is not the case, have it repaired by an authorised specialist workshop.

Protective equipment includes (see chapter Component description):

– Housing, grass collecting bag, ejection flap (8). The protective devices protect the user against objects being ejected at high speed. The machine must not be operated with a damaged housing or without a properly fitted collecting bag or ejection flap on the housing.

– Housing This protection unit protects against injuries through contact with the rotating cutting tool. The equipment must not be operated with a damaged housing. Please make sure that hands and feet are not placed underneath the housing.

– Cover hose at upper part of bar (11), engine hood (6) and engine bracket, covers (4), mounting parts, switch-plug combination with cable (1, 12), connection cable, This protection unit protects against injuries through contact with electrical power carrying parts. The electrical equipment must not be modified. Damaged connection cables must be replaced. Please use a connection cable with a minimum quality of H 07 RN-F in accordance with DIN/VDE 0282/4. In accordance with the existing standard DIN EN 60335, an insulation protection test must be made after repair and maintenance work at insulation parts.

The safety devices must not be modified.

• Start or operate the starter switch with great care and according to the manufacturer’s instructions.5

When you start the machine, make sure that your feet are at a sufficiently safe distance away from the cutting blades.

When the engine is started, the machine must not be tilted on end, if necessary it must be tilted by pressing the guide bar down so that the cutting tool is pointing in the direction away from the user, but only as far as absolutely necessary. As long as the equipment has not been lowered to the ground again, both your hands must be on the top part of the bar.

Never put your hands or feet near or under revolving parts. Always make sure that your hands or feet do not get under the housing.

Stop the engine by releasing the motor stop bar, pull the plug, make sure that all moving parts have come to a complete standstill: – if you intend to leave the machine; – before inspecting the connection cable; – before you inspect, clean or carry out work on the machine; – before unblocking jams or removing blockages in the ejection channel; – if a foreign body has been encountered; – when the machine starts to vibrate strangely.

• If a foreign object has been encountered or if the machine becomes blocked, e.g. by driving onto an obstacle, a specialist dealer must check whether parts of the machine have been damaged or deformed. Any necessary repairs must also be carried out by an authorized specialist workshop.

• If the machine starts to vibrate unusually heavily or to make unusual noises, please have it checked immediately by an authorised workshop. Heavy vibrations on your hands can damage your health. Please contact an authorised workshop immediately if heavy vibrations occur.

• WARNING The noise and vibration levels shown in these operating instructions are the maximum levels for use of the machine. The use of an unbalanced cutting element, the excessive speed of movement, or the absence of maintenance have a significant influence on noise emissions and vibrations. Consequently, it is necessary to take preventive steps to eliminate possible damage due to high levels of noise and stress from vibration. Maintain the machine well, wear ear protection devices, and take breaks while working. Adhere to the maintenance work listed in this operating manual and have the equipment checked and serviced regularly by an authorised workshop.

Switch the engine off by releasing the motor stop bar, make sure that all moving parts have come to a complete standstill, – when you have to lift or tilt the scarifier e.g. for transportation; – when you need to transport the machine to and from the area to be scarified – when driving off the lawn; – if you have to leave the machine for a short time; – if you wish to adjust the scarifying depth; – before you remove the grass collecting bag.

Maintenance and storage

• Insufficient equipment maintenance will lead to safety-related faults.

• Ensure that all screws have been tightened securely and that the machine is in a safe working condition.

The ejection flap must only be opened and the grass collector removed when the motor is turned off.

Before you start scarifying, always check the grass collecting equipment for wear or loss of functionality.

Before you start scarifying, always check the condition and firm attachment of the cutter blade shaft. Worn or damaged blades must always be replaced. Always have a specialist workshop replace the cutter blades or work on the cutter blade shaft. If the cutter blade shaft is assembled incorrectly parts can become loose, which can lead to serious injuries.

Always have the replacement of the blades carried out by an authorized workshop, since an insulation protection test to DIN EN 60335 must be carried out after repair and maintenance work to insulation components (e.g. blade shaft, attachment fittings).

• For reasons of safety, always replace worn or damaged parts.

Protective gloves must be worn at all times during maintenance and cleaning work.

Maintenance and cleaning work may only be carried out with the motor switched off and mains plug disconnected. When servicing the cutter blades note that they can be moved even when the voltage source is switched off. Regular maintenance is essential for safety and top performance.

Do not clean the machine with running water or pressure cleaners. This could damage the electrical system.

• Only store the scarifier with the cutter raised. A lowered cutter may bend over time and compromise the operational safety of the scarifier. For reasons of warranty and safety, only genuine spare parts may be used. Non-equivalent spare parts can damage the machine and are a safety hazard.

• Notes for Switzerland: Electric appliances must only be operated if a residual current operated device with a maximum breaking current of 30 mA is also integrated into the circuit.

• Notes for Austria: The socket coupler of the connecting cable must be splashproof.

1 Cable connection plug 2 Retaining element 3 Lever for lowering/raising the blade shaft 4 Cover 5 Air slots for electric motor 6 Motor hood 7 Carrying handle 8 Ejection flap 9 Strain relief device for electric cable 10 Cable guide 11 Cover hose at upper part of bar 12 Locking button (red) 13 Actuating grip for motor (safety grip) (35-V EL) Actuating lever for motor (safety lever) (31-V EL, not illustrated)

8 PREPARATION The following parts are included in the packaging for assembly of the scarifier:

• Tool bag with the following contents: – Operator's manual with Declaration of Conformity – Warranty conditions (depending on model)6 – Various fixing parts (strain relief fitting, flat-head screws, washers, nuts, cable guides, wing-nuts, cable ties). In the unlikely event of a missing part, please contact your dealer. Assembling the handlebar lower section (Illustration C1 ) Before assembling the handlebar lower section, the strain relief device (1) must first be fitted over the handlebar lower section (2). – Fit the ends of the handlebar over the attachment points on the housing and both sides. Two different handlebar heights can be set. – Insert the flat-headed screws supplied (3) from inside through the housing and handlebar. – Fit washers (4) onto both screws from outside, and secure using the self-locking nuts (5). Assembling the handlebar upper section (Illustration C3 ) – Fit the upper part of the bar on the right and left of the lower part of the bar, so that the attachment bore holes of the two parts of the bar are matching. – Insert the cable guides (1) from the outside to the inside, screw the two parts of the bar together using one washer (2) and one wing nut (3) on the inside. – Insert the cable (4) and throttle cable (5) in the cable guides (1). This prevents the cable or throttle cable being jammed when the handlebar is folded down. – Fix the cable and throttle cable to the lower part of the bar using the cable ties (6) from the tool bag. IMPORTANT Make sure that the cables are not pinched, squeezed, twisted or overstretched when the handlebars are folded apart or collapsed! Always run the cables along the outside of the bar connection. A damaged cable may result in a technical defect of the equipment. IMPORTANT Make sure the throttle cables are not kinked or jammed when lifting the handlebars.

Check all screw connections for a tight fit. Tighten the screws if necessary. Special attention must be paid to the assembly and condition of the cutter blade shaft (refer to the chapter "Cutter blade shaft care"). Always have work on the cutter blade shaft done by an authorised specialist workshop since an insulation protection test always has to be carried out after repairs or maintenance work on insulation parts (e.g. cutter blade shaft, attachment parts) in accordance with the applicable standard DIN EN 60335. The scarifier is equipped with a motor stop device. Before using the equipment for the first time, make sure that the motor stop safety control bar/control lever is working perfectly. When the control bar/control lever is released the motor must switch off and the cutting tool must come to a standstill (Note! The cutting tool runs on for a while!). If this is not the case, please consult your nearest authorised workshop. After release, the bar/lever must always return to the position shown in the "component description" diagram. If this is not the case, it must be checked immediately by an authorised workshop. Machine safety and protective devices must not be manipulated or disabled! Make sure that all protective devices have been attached properly and are not damaged.

IMPORTANT If the unit is to be operated via a generator, an authorised specialist workshop should first be consulted with regard to a suitable generator. Attaching the connecting cable (Illustration C2 ) NOTE In order to guarantee the proper and safe operation of the garden equipment, a connection cable of the minimum quality H05 RN-F (alternatively H05 VV-F) in accordance with DIN/VDE 0282/4 with a cross-section of 3 x 1.5 mm² and a connection plug made of or covered with rubber in accordance with DIN/VDE 0620-2-1 are required. Connection must be to a CEE 7/4 socket 230 V AC, slow- blow 16 A fuse. When a childproof cable is used, care must be taken that the fuse works perfectly (smoothly) as otherwise the device connection plug could become damaged. – Plug the cable into the switch/plug combination on the upper handle. – Only then should the connecting cable be connected to the mains. – When removing the cable always disconnect the cable plug from the mains first. Attaching the connecting cable to the strain relief fitting (Illustration D2 ) ATTENTION The unit may not be used without the cable relief in order to prevent damages to the switch/plug combination and to the cable. The cable must be hung in the cable relief on the unit to ensure that it is fixed safely. This prevents the cable socket from being pulled off the unit. Moreover, the cable aligns itself automatically on the other side when cornering. – Form a semi-circular loop in the cable, keep a distance of approx. 80 cm from the connection cable coupling. – Insert the cable from the bottom into the cable relief and loop it around the fastening post. – Hold the cable by both ends and pull it firmly into the cable relief. Starting the motor (Illustration A2 ) Before starting the engine make sure that the cutter blade shaft is in the surface cutting position Z2 (1). Only start the engine when you are standing behind the scarifier. Always place the scarifier on a level area which is not covered with high grass (if the grass is too high it will block the cutter blade shaft start-up and make starting the scarifier more difficult). When the engine is started, the machine must not be tilted on end, if necessary it must be tilted by pressing the guide bar down so that the cutting tool is pointing in the direction away from the user, but only as far as absolutely necessary. As long as the equipment has not been lowered to the ground again, both your hands must be on the top part of the bar. – To switch on the motor, first press and hold the red button. – With the other hand, pull the lever (31-V EL) or grip (35-V EL) on the upper handlebar section. The lever or grip must be held in this position during operation. – The red button can then be released. IMPORTANT If the motor does not start up within 5 seconds of the device being switched on, then

1. Release the control handle again

2. Remove the mains plug!

3. Check the connection lead

4. Check the voltage supply in the house (fuse)

5. Check device for blockage of the cutter blade shaft

6. Have it checked by an authorised workshop.

11 SWITCHING OFF THE MOTOR (ILLUSTRATION F ) To switch off the motor, release the safety cut-off/lever. The motor will be switched off and the cutters will come to a standstill. Warning! The cutters may take a few seconds to stop!

12 EMERGENCY STOPPING Release the safety grip/lever. – The cutters will stop. – The motor will stop. NOTE Before every scarifying job, make sure that the safety control bar/control lever is working perfectly. – When the control bar/control lever is released, the engine must switch off and the cutting tool must come to a standstill (Note! The cutting tool runs on for a while!). If this is not the case, please consult your nearest authorised workshop.

Safety instruction! See table for explanation of symbols page 27 The scarifying depth must only be adjusted with the motor switched off! The working depth depends on the blade wear, and must also be set taking into account the relevant grass and ground conditions. Always check and adjust the scarifying depth on a level area of lawn. With the blade shaft lowered, the blades should just be in contact with the turf. A working depth of up to 3 mm is recommended. In the case of a well-tended lawn with soft ground, the working depth can be set slightly deeper. In case of a very mossy lawn surface, the initial working depth should be slightly less. Setting (Illustration Z2 + V2 ) On delivery, the blade shaft is in the raised position (1) Z2 . – The scarifying depth is selected with the aid of the grey retaining element (2). Push the retaining element gently downwards and retain again in the required position V2 . This returning element enables you to find the set working position again at any time. – The blade shaft is lowered to the selected working depth by means of the black lever (3) fitted at the left. First press the lever gently downwards, and then pull to the stop against the retaining element (2) V2 . To reduce the lever forces, the machine can be lifted slightly by the upper handlebar until the rear wheels are off the ground. – To raise the blade shaft from the working position, the lever (3) is first pressed gently downwards, and then pushed fully forwards. In Pos. (1), the blade shaft is no longer engaged. This does not change the pre-set working depth Z2 . Scarifying test – In case of a new machine, place the retaining element (2) in the “MIN” position. – Start the motor. – Lower the blade shaft. – Push the machine slowly in the working direction. Check the result. If the result is not satisfactory, raise the blade shaft, switch the motor off and place the retaining element (2) in the next position. – Carry out another test. If the motor stops, or if stone impact noises are heard, switch the machine off immediately, and set a lower working depth. After a few operating hours, the blade shaft may need to be re-adjusted because of wear. The more intensive the use, the greater the wear to the blades. Hard or very dry ground will increase the wear to the blades. Then carry out the working depth adjustment as described above.

Operation with grass collector (accessory) The scarifier can also be operated with a grass collector (Order no. – see Original replacement parts and accessories). WARNING When operating the equipment with a collecting bag, the bag must be completely assembled and in technically perfect condition. Attaching the grass collector to the scarifier (Illustration R1 + S1 ) – First insert the grass bag frame with the clip forward into the grass bag. Align the upper seams of the bag with the clip. – Press the retaining profiles of the collecting sack onto the bars of the collecting sack frame R1 . – Open the ejection flap of the scarifier upwards. – Pick up the collecting sack by the carrying strap and hang it in the scarifier casing with its two side hooks upwards S1 . – Attach ejection flap to collector. When using the machine, ensure that the collector is emptied in good time. The grass collector will only collect grass properly if air can pass through it freely. IMPORTANT Do not clean the grass collector with hot water! Emptying the grass collector (Illustration L ) – Switch of the motor and wait until the cutters come to a stop. – Lift the ejection flap. – Remove the full grass bag from the scarifier by the carrying strap – the ejection flap closes automatically. – Shake out of the grass bag thoroughly, holding it by the carrying strap and bottom.

Operation without grass collector WARNING When scarifying without grass collector the ejection flap on the scarifier housing must always be closed (flap down).

NOTE To protect the cutter, avoid tight curves and raise the cutter before turning. Using the machine on slopes NOTE The device can be used on banks and slopes with a gradient of up to 46% (25° angle). For safety reasons, however, we urgently recommend you do not exploit this theoretical performance potential. Always make sure you have a firm stance. Manually guided scarifiers should never be used for slopes with a gradient in excess of 26% (15° angle of slope). Stability may be lost! Handling the cable during use Position the cable in such a way that the machine can pull it along easily over the lawn surface that has already been worked. When the machine turns the cable grip automatically positions the cable to the other handle side. Ensure that the cable is kept well away from the cutters and that no loops are formed. Check the mains cable regularly for signs of damage and only use it in proper condition. Checking operating safety The scarifier is equipped with a motor stop device. Before every scarifying job, make sure that the motor stop safety control bar/lever is working perfectly. When the control bar/control lever is released the motor must switch off and the cutting tool must come to a standstill (Note! The cutting tool runs on for a while!). If this is not the case, please consult your nearest authorised workshop. After release, the bar/lever must always return to the position shown in the "component description" diagram. If this is not the case, it must be checked immediately by an authorised workshop. Machine safety and protective devices must not be manipulated or disabled. Make sure that all protective devices have been attached properly and are not damaged. Check the upper part of the bar (insulation) for damage. If the casing should be damaged, contact the nearest authorised workshop without delay, since otherwise injuries (electric shock) can occur through touching the live parts. Also check machine screws and nuts for a firm fit every 10 operating hours and tighten if necessary. To avoid danger, check the condition and tight fit of the cutter blades before every scarifying job (refer to the chapter “Cutter blade shaft care” for more details). WARNING Always have a specialist workshop carry out work on the cutter blade shaft, open or remove any covers connected with the device, since an insulation protection test must be always be carried out following repairs or maintenance work on insulated parts (e.g. cutter blade shaft, attachment parts, covers) in line with standard DIN EN 60335. In addition, a wrongly assembled cutter blade shaft can lead to parts becoming loose and causing serious injuries. If the cutter blade shaft becomes blocked e.g. by colliding with an obstacle or through foreign objects, have an authorised workshop check whether any parts of the scarifier are damaged or deformed. Always have any necessary repairs done by an authorised workshop too. If the machine starts to vibrate unusually heavily or to make unusual noises, please have it checked immediately by an authorised workshop. Time restrictions The time at which scarifiers may be used varies from region to region. Please ask the relevant authorities before using your scarifier. Tips on caring for your lawn (Illustration M ) When using the machine, always guide it in straight lines at medium walking speed. Due to the forward direction of rotation of the blade shaft, only a slight pushing force is8 required. Depending on the properties of the surface, it may be necessary to hold the machine back against the working direction. Avoid moving in tight curves. On very mossy and weedy lawns, it is advisable to apply the scarifier a second time, at right-angles to the first working direction. When using the machine without a grass collector, remove the loose grass from the lawn before the second run. Loose grass lying on the lawn will have an adverse effect on the result, put an additional strain on the machine and make the work unnecessarily difficult for the user (stronger pushing forces). Loose materials can best be removed by vacuuming with a TurboStar lawn mower or manual raking.

16 SERVICE INTERVALS IMPORTANT Avoid damage! Under extreme or unusual conditions, shorter servicing intervals than the ones specified below may be necessary. If you establish any problems, please contact an authorised workshop. Carry out routine servicing on the machine in line with the following servicing intervals. Work must be carried out at the following servicing intervals in addition to the maintenance work listed in these operating instructions. Before initial use

• Check all screw connections for a tight fit.

• Check the cutter blade and have an authorised workshop tighten it if necessary.

• Check whether the safety control bar is working properly.

• Check that all protective devices have been attached properly and are not damaged. Before every operation

• Check the lawn area and remove any objects.

• Check the area of the boundary wires (if an automatic mower is being used for lawn care).

• Check the condition and firm fit of the blades and have them replaced or tightened by an authorised workshop if necessary.

• Check whether the safety control bar is working properly.

• Check that all protective devices have been attached properly and are not damaged.

• Check grass collecting equipment for wear or loss of functionality.

• Check the upper part of the bar (insulation) for damage.

• Check the connection cable for damage and ageing. Every 10 operating hours

• Check all screw connections for a tight fit.

• Check the blade shaft for wear and a tight fit. After every operation

• Clean the scarifier.

• Check the blades for damage and wear. During annual servicing

• Have the area under the belt cover cleaned.

Regular care is the best way to guarantee a long service life and problem-free operation. Insufficient equipment maintenance will lead to safety-related faults! Only use original spare parts because only those guarantee safety and quality!

Cleaning (Illustration N3 ) Remove all dirt and grass directly after scarifying. Turn the machine over onto its side and use a brush or cloth to clean it. The air slits for the cooling of the electric motor (1) must be free from dirt and grass cuttings. IMPORTANT Never spray the machine with water since this could damage the electrical system. Storage Always keep the machine in a clean condition in a closed, dry room out of reach of children. Always allow the engine to cool down before you store the machine in a closed room. Folding the guide tube – To save storage space, loosen the two wing nuts such that the top guide tube can be folded down towards the engine. – In doing so, do not kink nor squeeze the cable and throttle cable. CAUTION When folding the bar for transport and storage, the bar may fold over unintentionally when the wing nuts are released. In addition, beware of potential squashing spots between the bottom and top parts of the bar. This may result in risk of injury! IMPORTANT Make sure that the cables are not pinched, squeezed, twisted or overstretched when the handlebars are folded apart or collapsed! Always run the cables along the outside of the bar connection. A damaged cable may result in a technical defect of the equipment. IMPORTANT Make sure the throttle cables are not kinked or jammed when lifting the handlebars. Transporting and securing the equipment (Illustration N ) – If the equipment has to be carried, do not hold the ejection flap. Hold the carrying handle at the front and the cross tube of the bottom guide bar at the back (see Figure N ). Please take the weight of the machine into consideration before lifting it (see Technical Data). Lifting large weights can result in health problems. We recommend that two people should always lift or carry the equipment. – Transport the unit upright on all 4 wheels to avoid damage to the equipment and personal injury. – Park the means of transport on level ground so that the equipment cannot roll away before it is secured. – Remove the collecting bag and secure it separately during transport – Secure the equipment with approved load-securing devices (e.g. tie-down straps with clamping elements) on or inside the vehicle. Tie-down straps are belt bands made of synthetic fibres. Every tie-down strap is marked with a label. The label contains important details for application. The information on this label must be heeded when using the tie-down strap. – For loaded goods that can roll, we recommend using direct strapping with four lashing straps. Secure the wheels of the equipment in such a way that it does not move during transportation. NOTE Do not tighten the belts too firmly. Fixing the equipment too firmly can cause damage. Maintenance of the blade shaft Before using the machine, always check the condition and firm seating of the blades. Worn or damaged blades should be replaced immediately. WARNING Always have replacement of the blade shaft carried out by an authorized workshop, since an insulation protection test to DIN EN 60335 must be carried out after repair and maintenance work to insulation components (e.g. blade shaft, attachment fittings). An incorrectly assembled blade shaft can also cause parts to become detached, possibly leading to serious injury.

– The complete cutter blade set must be replaced if the wear limit (round marking on the blade) has been reached and/or readjustment of scarifying depth is no longer possible. – Only use genuine scarifying cutter blades for replacement. Non-equivalent spare parts can damage the machine and are a safety hazard. – Replacement scarifying cutter blades must be marked permanently with the name and/or company logo of the manufacturer or supplier and the part number.

Changing the drive belt For safety reasons, expressed attention is drawn to the fact that the drive belt must only be replaced by an original replacement part. Always have replacement of the drive belt carried out by an authorized specialist workshop.9 18 TROUBLESHOOTING Fault Possible cause Remedy

Motor does not start up within 5 seconds of the device being switched

No mains voltage. Connect the mains plug C2 . Check the fuse. Connection cable damaged. Have it checked by an authorised workshop. Cutter blade shaft blocked Have scarifying depth checked. Clean the cutter blade shaft (remove the mains plug first!) Tilt the machine during start- up.

Have it checked by an authorised workshop.

Motor stops Grass is too high Mow the lawn first. Blockage by foreign bodies Have machine checked by an authorized specialist workshop. Working depth to deep Re-adjust the working depth V2 .

Unsatisfactory result Grass is too high Mow the lawn first. Blades are worn Adjust the working depth V2 . Have the blade shaft replaced by an authorized specialist workshop Working depth not suitable for grass and ground conditions Re-adjust the working depth V2 .

Have it checked by an authorized dealer

Blade shaft will not turn Drive belt defective Have it checked and replaced if necessary by an authorized specialist workshop.

Repairs to electrical machines must always be performed only by qualified electricians. Please do not repair them yourself. In the case of faults and defects which have not been listed here, please contact the nearest authorized dealer. This applies in particular to appliances with electrical motors, as when these are repaired they must always undergo an insulation protection test. Your authorized dealer will also help you if you do not wish to perform any of the maintenance work described here yourself.

Sound power level Guaranteed sound power level; measured according to 2000/14/EC

Sound pressure level Emission sound pressure level at operator's workplace; measured according to DIN EN 13684 Measuring inaccuracy; according to ISO 4871

Vibrations Vibrations on the handlebar; measured according to DIN EN 13684 Measuring inaccuracy; according EN 12096
