Kompakt 78856 - Slicer UNOLD - Free user manual and instructions

Product type	Electric slicer
Brand	UNOLD
Model	Kompakt 78856
Blade material	Solingen stainless steel
Blade diameter	17 cm
Power cord length	120 cm
Adjustable cutting thickness	0 to 15 mm
Power supply	230 V ~ 50 Hz
Power	150 W
Safety	Double safety switch (on/off + lock)
Included accessories	Pusher, carriage, receiving tray
Carriage type	Sliding carriage with guide
Pusher	Yes, for small foods
Cleaning	Removable blade, hand wash, do not immerse motor block
Maintenance	Grease the gear wheel with petroleum jelly occasionally
Warranty	24 months (domestic use)
Country of manufacture	Germany (design)
Use	Domestic, for cold cuts, cheese, bread, vegetables
Storage	Can be folded and stored in a drawer
Weight	Approx. 2.5 kg
Dimensions (L x W x H)	Approx. 30 x 25 x 20 cm

Frequently Asked Questions - Kompakt 78856 UNOLD

How to adjust the cutting thickness?

Turn the knob located on the side of the appliance to select a thickness from 0 to 15 mm.

Can I cut frozen food?

No, the slicer is designed for fresh food. Do not use for food containing bones or hard parts.

How to clean the blade?

Unplug the appliance, remove the carriage, disassemble the blade by turning the tool clockwise, clean it with warm soapy water and dry it immediately. Caution: the blade is very sharp.

Can the slicer go in the dishwasher?

No, no part should be put in the dishwasher. Hand wash only.

How to use the pusher?

Place the pusher on the food when it becomes too small to be safely pushed with the carriage.

What to do if the blade does not turn?

Check that the appliance is plugged in and the safety lock is pressed. If the problem persists, contact customer service.

How to store the slicer?

You can remove the carriage and fold the appliance to store it in a drawer. Ensure the cutting thickness is set to '0'.

What is the warranty?

The appliance has a 24-month warranty for domestic use from the date of purchase. Keep the receipt.

Can I cut bread with a hard crust?

Yes, but make sure the bread does not contain pits or very hard pieces. Always use the carriage.

How to maintain the blade?

After each use, clean the blade and dry it. Occasionally grease the gear wheel behind the blade with a little petroleum jelly.

USER MANUAL Kompakt 78856 UNOLD

Instructions for use Model 78856

Technical Specifications. 15
Explanation of symbols. 15
Safety Information 15
Before using the appliance 17
Operation 18
Cleaning and care. 18
Guarantee Conditions 19
Waste Disposal / Environmental Protection 19
Service 14

1 Rest holder
2 Carriage
3 Round knife
4 Motor block
5 Food tray

F Page 20

E-Mail [e-mail]

SCHWEIZ

MENAGROS AG

Hauptstr. 23

CH 9517 Mettlen

Telefon [phone]

Telefax [phone]

E-Mail [e-mail]

Internet www.bamix.ch

POLEN

Quadra-Net

Dziadoszanska 10

61-248 Poznan

Internet www.quadra-net.pl

TSCHECHIEN

befree.cz s.r.o.

Škroupova 150

537 01 Chrudim

Telefon [phone]

Knife: Stainless steel from Solingen, diameter 17 cm

Power cord: 120 cm

Dimensions: Approx. 34,0 × 23,5 × 20,5 cm W/D/H

Weight: Approx. 2,1 kg

Continuous operation: 5 minutes

Features: Foldable plastic housing,

Accessories:

c carria plasti ge

Instruction booklet, stainless steel knife, holder for small parts, food tray

Equipment features, technology, colours and design are subject to change without notice. Errors and omissions excepted

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance.

SAFETY INFORMATION

Please read the following instructions and keep them on hand for later reference.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not

be made by children without supervision.

1. Children of less than 3 years should be kept away unless continuously supervised.
2. Children aged from 3 years and less than 8 years shall only swith on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from

3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

1. Children should be supervised in order to ensure that they do not play with the appliance.

2. Keep the appliance out of reach of children.

3. Connect the appliance only to an AC power supply with the voltage indicated on the rating plate.

4. Do not operate this appliance with an external timer or remote control system.

5. Never immerse the appliance or the lead cable in water or other liquids.

6. Do not clean the slicer in a dish-washer.

7. Never touch the appliance or lead cable with wet hands.

8. This appliance is intended for domestic and similar use such as:

9. staff kitchen areas in shops, offices and other working environments;
   agricultural enterprises;

10. by clients in hotels, motels and other accommodation facilities;

11. bed and breakfast accommodations and holiday homes.

12. Do not place the appliance or lead cable near open flames during operation.

13. Always use the slicer on a level and uncluttered surface.

14. Make sure that the lead cable does not hang over the edge of the worktop or table, since this can cause accidents, for example if small children pull on the cable.

15. Route the lead cable so that it is prevented from being pulled or tripped over.
16. Never wrap the lead cable around the appliance, but around the cable storage.
17. Always disconnect the lead cable from the wall socket pulling on the plug, never on the cable.
18. Never carry the slicer by the lead cable.
    19.Use the slicer only indoors.
19. Children are not aware of the risks resulting from electrical appliances and cutting tools. Therefore the slicer must not be used by children.
20. In order to avoid injuries, the rest holder has to be placed on the carriage, as soon as the food is small enough to place the rest holder.
21. Always use the rest holder for slicing of small pieces of food.
22. The appliance must not be used for any other than the provided purpose. Only use it for cutting food, that does not contain bones or any other hard parts.

23. After use of the slicer and before cleaning it, pull the plug out of the socket and adjust the cutting width to 0.

24. Please avoid any contact between the power cord and the knife or any other sharp edges.

25. The knife is very sharp, be very cautious when cleaning it!
26. Inexpert handling and repairs may entail serious risks to the user. Repairs should only be performed by our after sales service.
27. The slicer is provided for domestic use and is not suitable for commercial use. Only use it for slicing household quantities.

28. Do not use the appliance with accessories of other manufacturers or brands, to prevent damage.

29. Disconnect the appliance from the wall socket after use and prior to cleaning. Never leave the appliance unattended when it is connected to the wall socket.

30. Never open the casing of the slicer. There is danger of electric shock.
31. Check the appliance, the wall socket and the lead cable regularly for wear or damage. In case the lead cable or other parts appear damaged, please send the appliance or the base to our after sales service for inspection and repair. Unauthorized repairs can constitute serious risks for the user and void the warranty.

Caution! The knife is very sharp, risk of injuries! Never open the housing of the appliance. This can result in electric shock.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

BEFORE USING THE APPLIANCE

1. Remove packaging materials and check, if all parts are complete.
2. Before using the appliance for the first time, wipe it with a damp cloth (see chapter Cleaning)
3. Place the slicer on a flat, clean, solid, and dry surface.
4. Mount both parts of the carriage.

5. Insert the carriage into the guide. Hold it at a right angle and then tilt it downward.

6. Place the rest holder on the carriage and the food tray from the left side under the carriage.

7. Put the plug into a power socket as per rating label.
8. Adjust the desired cutting thickness from 0-15 mm by turning the wheel.

OPERATION

1. Place the food to be sliced on the carriage and press it slightly against the rebate plate. The food must not contain any bones or other hard components.
2. The appliance disposes of a safety lock. Press simultaneously the unlocking device button and the ON/OFF button. The motor starts and you can start slicing.
3. Push the carriage slowly against the rotating knife.

4. As soon as there is only a small part of food left, you have to use the rest holder to avoid injuries. The appliance must not be used without carriage and rest holder.

5. The knife rotates as long as both buttons are pressed down. Release both switches to stop the machine and wait until the knife has stopped rotating.

6. When you have finished, adjust the thickness to .0".
7. Please clean the appliance and in particular the knife immediately after cutting fat food (e.g. cold meat, cheese etc.)

Caution! The knife is very sharp, risk of injuries!

CLEANING AND CARE

Unplug the machine before cleaning it.

Do not immerse the machine in water or any other liquid nor clean it under running water.

1. Wipe the appliance with a damp cloth. Do not use any scouring agents.
2. The knife is made of stainless steel. Just wipe it with a damp cloth. Please be very careful when cleaning the knife.

Caution: The knife is very sharp.

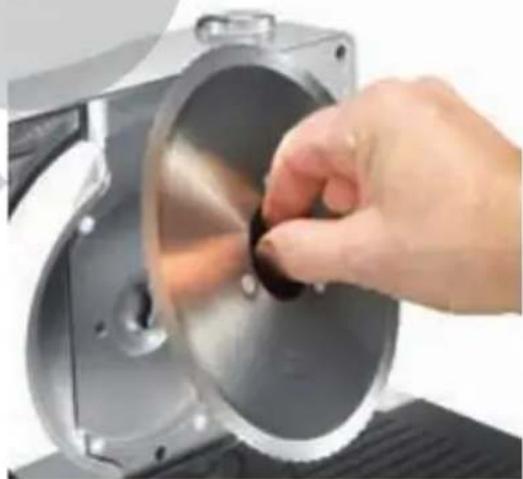

1. From time to time you should also clean the space behind the knife. First remove the carriage by tilting it up and removing it from the guide. Then turn the screw in

the middle of the knife clockwise (see picture).

1. Take out the knife very carefully and clean it by hand in warm water with a drop of a washing-up liquid.

2. Do not leave the knife in the water in order to reduce the risk of injuries. Reinstall it directly after cleaning.

3. We recommend to grease the tooth wheel at the backside of the knife from time to time with some Vaseline

4. Clean the housing behind the knife with a dry cloth or a soft brush.

5. Install the knife in reverse order. The interior must be dry before inserting the knife.

6. Turn the screw counterclockwise until it clicks in

7. Place the carriage on the carriage conduit.
8. For space saving storage (e.g. in a drawer) you can take off the carriage and then fold up the carriage guide.

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs only in Germany and Austria. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

The instruction booklet is also available for download: www.unold.de

NOTICE D'UTILISATION MODELE 78856

SPECIFICATION TECHNIQUE

Capacité: 100 W, 220-240 V~, 50 Hz

Boftier:Plastique

Dimensions: Env. 34,0 x 23,5 x 20,5 cm L/P/H

Poids:Env.2,1 kg

Opération continue: 5 minutes

Caracteristiques: Boitier pliable en plastiqzue, chario

t en plastique

Accessoires:

CONDITIONS DE GARANTIE
