USER MANUAL Curve 78866 UNOLD

Modern kitchen appliance with a steamer and sliced meat on a plate (no text or symbols visible)

Modern kitchen appliance with digital display and bucket, no visible text or symbols

Modern industrial wheat bread machine with a side bowl of grain and small kitchen utensils (no visible text or labels)

UNOLD ^®

Care + Style

Product photo of a red and black electric toothbrush with a curling tool, accompanied by a separate brush (no text or symbols visible)

Illustration of a pair of hairpins with a cord, no text or symbols present

UNOLD®

Fan + Heat

Close-up of a desktop electric fan with visible blades and grille (no text or symbols)

Red electric fan with visible blades and control panel (no text or symbols)

INHALTSVERZEICHNIS

Instructions for use Model 78860/78866

Technical Specifications....16

Explanation of symbols....16

Safety Information....16

Before using the appliance ....18

Operation 19

Cleaning and care....20

Guarantee Conditions....21

Waste Disposal/Environmental Protection ...21

Service 15

Exploded view diagram of a CD or DVD scanner with numbered parts and component labels

EINZELTEILE

DE Ab Seite 8

1 a/b Carriage
2 Rest holder
3 Round knife
4 Guide
5 ON/OFF button
6 Unlocking device button
7 Thickness adjustment

ES Página 40

1 a/b Carro
2 Empujador de alimentos
3 Cuchilla circular
4 Guía corredera
5 Interruptor ON/OFF.
6 Interruptor de desbloqueo
7 Ajuste del grosor del corte

FR Page 22

Hand holding a CD on a slatted machine (no text or symbols visible)

Black rectangular electronic device with heat sink and ventilation slots (no visible text or symbols)

Dimensions: Approx. 28,1 x 33,0 x 20,1 cm W/D/H

Weight: Approx. 1,8 kg

Continuous operation: 5 minutes

Features: Foldable plastic housing, plastic carriage

78860 white, 78866 silver colored, degree of protection II

Accessories: Instruction booklet, stainless steel knife, holder for small parts

Equipment features, technology, colours and design are subject to change without notice. Errors and omissions excepted

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance.

SAFETY INFORMATION

Please read the following instructions and keep them on hand for later reference.

1. This appliance can be used by children 8 years and older, as well as by persons with reduced physical, sensory or mental abilities or with lack of experience and/or knowledge, if they are supervised or if they have been instructed with regard to safe use of the appliance and have understood the dangers that can result from use of the appliance.
2. Children must not play with the appliance.

3. Children are not allowed to perform cleaning and user maintenance, unless they are 8 years of age or older and are supervised.

4. Keep the appliance and the power cord out of the reach of children under 8 years of age.

5. Connect the appliance only to an AC power supply with the voltage indicated on the rating plate.
6. Do not operate this appliance with an external timer or remote control system.
7. Never immerse the appliance or the lead cable in water or other liquids.
8. Do not clean the slicer in a dish-washer.
9. Never touch the appliance or lead cable with wet hands.
10. This appliance is intended for domestic and similar use such as:

■ staff kitchen areas in shops, offices and other working environments;

■ agricultural enterprises;

■ by clients in hotels, motels and other accommodation facilities;
■ bed and breakfast accommodations and holiday homes.

1. Do not place the appliance or lead cable near open flames during operation.
2. Always use the slicer on a level and uncluttered surface.
3. Make sure that the lead cable does not hang over the edge of the worktop or table, since this can cause accidents, for example if small children pull on the cable.
4. Route the lead cable so that it is prevented from being pulled or tripped over.
5. Never wrap the lead cable around the appliance, but around the cable storage.
6. Always disconnect the lead cable from the wall socket pulling on the plug, never on the cable.
7. Never carry the slicer by the lead cable.
8. Use the slicer only indoors.
9. Children are not aware of the risks resulting from electrical appliances and cutting tools. Therefore the slicer must not be used by children.
10. In order to avoid injuries, the rest holder has to be placed on the carriage, as soon as the food is small enough to place the rest holder.

11. Always use the rest holder for slicing of small pieces of food.

12. The appliance must not be used for any other than the provided purpose. Only use it for cutting food, that does not contain bones or any other hard parts.

13. After use of the slicer and before cleaning it, pull the plug out of the socket and adjust the cutting width to 0.
14. Please avoid any contact between the power cord and the knife or any other sharp edges.
15. The knife is very sharp, be very cautious when cleaning it!
16. Inexpert handling and repairs may entail serious risks to the user. Repairs should only be performed by our after sales service.
17. The slicer is provided for domestic use and is not suitable for commercial use. Only use it for slicing household quantities.
18. Do not use the appliance with accessories of other manufacturers or brands, to prevent damage.
19. Disconnect the appliance from the wall socket after use and prior to cleaning. Never leave the appliance unattended when it is connected to the wall socket.
20. Never open the casing of the slicer. There is danger of electric shock.
21. Check the appliance, the wall socket and the lead cable regularly for wear or damage. In case the lead cable or other parts appear damaged, please send the appliance or the base to our after sales service for inspection and repair. Unauthorised repairs can constitute serious risks for the user and void the warranty.

Caution! The knife is very sharp, risk of injuries! Never open the housing of the appliance. This can result in electric shock.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

BEFORE USING THE APPLIANCE

1. Remove all packaging materials and any transport safeguards. Keep packaging materials away from children – danger of suffocation! Dispose of packaging materials in accordance with local regulations.

2. Check the appliance for damage. If the appliance shows visible signs of damage, do not operate it. Contact our customer service organisation instead.

3. Before using the appliance for the first time, wipe it with a damp cloth (see chapter Cleaning)

4. Place the slicer on a flat, clean, solid, and dry surface.
5. Mount both parts of the carriage (1a/b).
6. Insert the carriage into the guide (4). Hold it at a right angle and then tilt it downward.
7. Place the rest holder (2) on the carriage.
8. Put the plug into a power socket as per rating label.
9. Adjust the desired cutting thickness from 0–15 mm by turning the wheel (7).

OPERATION

1. Place the food to be sliced on the carriage and press it slightly against the rebate plate. The food must not contain any bones or other hard components.
2. The appliance disposes of a safety lock. Press simultaneously the unlocking device button (6) and the ON/OFF button (5). The motor starts and you can start slicing.
3. Push the carriage slowly against the rotating knife.
4. As soon as there is only a small part of food left, you have to use the rest holder to avoid injuries. The appliance must not be used without carriage and rest holder.
5. The knife rotates as long as both buttons are pressed down. Release both switches to stop the machine and wait until the knife has stopped rotating.
6. When you have finished, adjust the thickness to „0“. Make sure that you turn the slice thickness adjustment wheel back until you feel a distinct resistance. Only then is the setting “0” reached.
7. Please clean the appliance and in particular the knife immediately after cutting fat food (e.g. cold meat, cheese etc.)

Caution! The knife is very sharp, risk of injuries!

CLEANING AND CARE

Unplug the machine before cleaning it.

Do not immerse the machine in water or any other liquid nor clean it under running water.

1. Wipe the appliance with a damp cloth. Do not use any scouring agents.
2. The knife is made of stainless steel. Just wipe it with a damp cloth. Please be very careful when cleaning the knife.

Caution: The knife is very sharp.

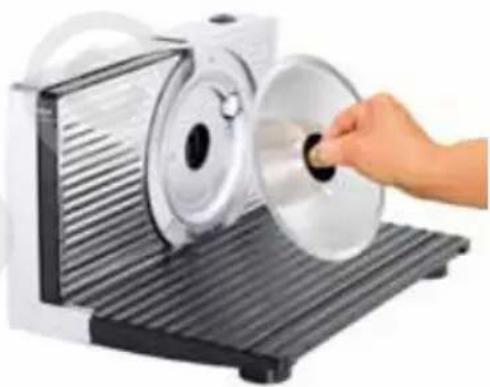

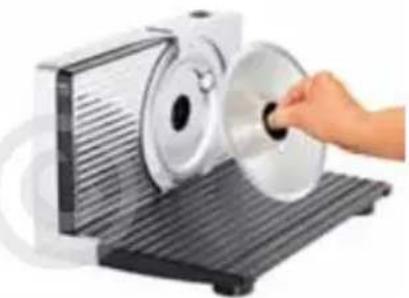

1. From time to time you should also clean the space behind the knife. First remove the carriage by tilting it up and removing it from the guide. Then turn the screw in the middle of the knife clockwise (see picture).

2. Take out the knife very carefully and clean it by hand in warm water with a drop of a washing-up liquid.

3. Do not leave the knife in the water in order to reduce the risk of injuries. Reinstall it directly after cleaning.

4. We recommend to grease the tooth wheel at the backside of the knife from time to time with some Vaseline.

5. Clean the housing behind the knife with a dry cloth or a soft brush.

6. Install the knife in reverse order. The interior must be dry before inserting the knife.

7. Turn the screw counterclockwise until it clicks in.

8. Place the carriage on the carriage conduit.

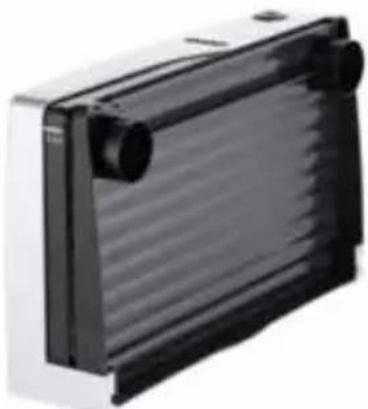

9. For space saving storage (e.g. in a drawer) you can take off the carriage and then fold up the carriage guide.

Hand holding a disc on a flat-screen TV or DVD machine (no visible text or symbols)

Exterior view of a black rectangular electronic device with ventilation slots (no text or symbols visible)

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website www.unold.de/ruecksendung. (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

The instruction booklet is also available for download: www.unold.de

NOTICE D'UTILISATION MODÈLE 78860/78866

SPÉCIFICATION TECHNIQUE

Capacité: 100 W, 220–240 V\~, 50 Hz / 60 Hz

Boîtier: Plastique

Hand holding a CD inside a white microwave oven on a slatted rack (no text or symbols visible)

Exterior view of a black rectangular electronic device with ventilation slots and a cylindrical port (no text or symbols visible)

CONDITIONS DE GARANTIE

Hand holding a CD on a slatted dish, no text or symbols visible

Black rectangular electronic device with ribbed top and side connectors (no visible text or symbols)

GARANTIEVOORWAARDEN

Hand holding a silver CD on a flat-screen microwave oven (no text or symbols visible)

Black rectangular electronic device with ventilation grilles and a cylindrical port (no visible text or symbols)

NORME DIE GARANZIA

Black rectangular electronic device with heat sink and cylindrical ports (no visible text or symbols)

Hand holding a CD on a slatted rack, no visible text or symbols

CONDICIONES DE GARANTIA

Hand holding a silver CD on a flat-screen plate (no text or symbols visible)

Exterior view of a black rectangular electronic device with ventilation slots (no text or symbols visible)

WARUNKI GWARANCJI
