USER MANUAL Primer TRITTON

Contents Adjustable Headrail and Supple Earcup Padding Flexible Microphone WarnIng HeaDset Before using this product, read the manuals for this accessory and the Xbox 360 console (and any other applicable manuals) for important safety and health information. Keep all manuals for future reference. For replacement Xbox manuals, see www.xbox.com/support or call Xbox Customer Service.

PREVENTION OF HEARING LOSS

CAUTION – Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. Rotating Earcups Battery Compartment

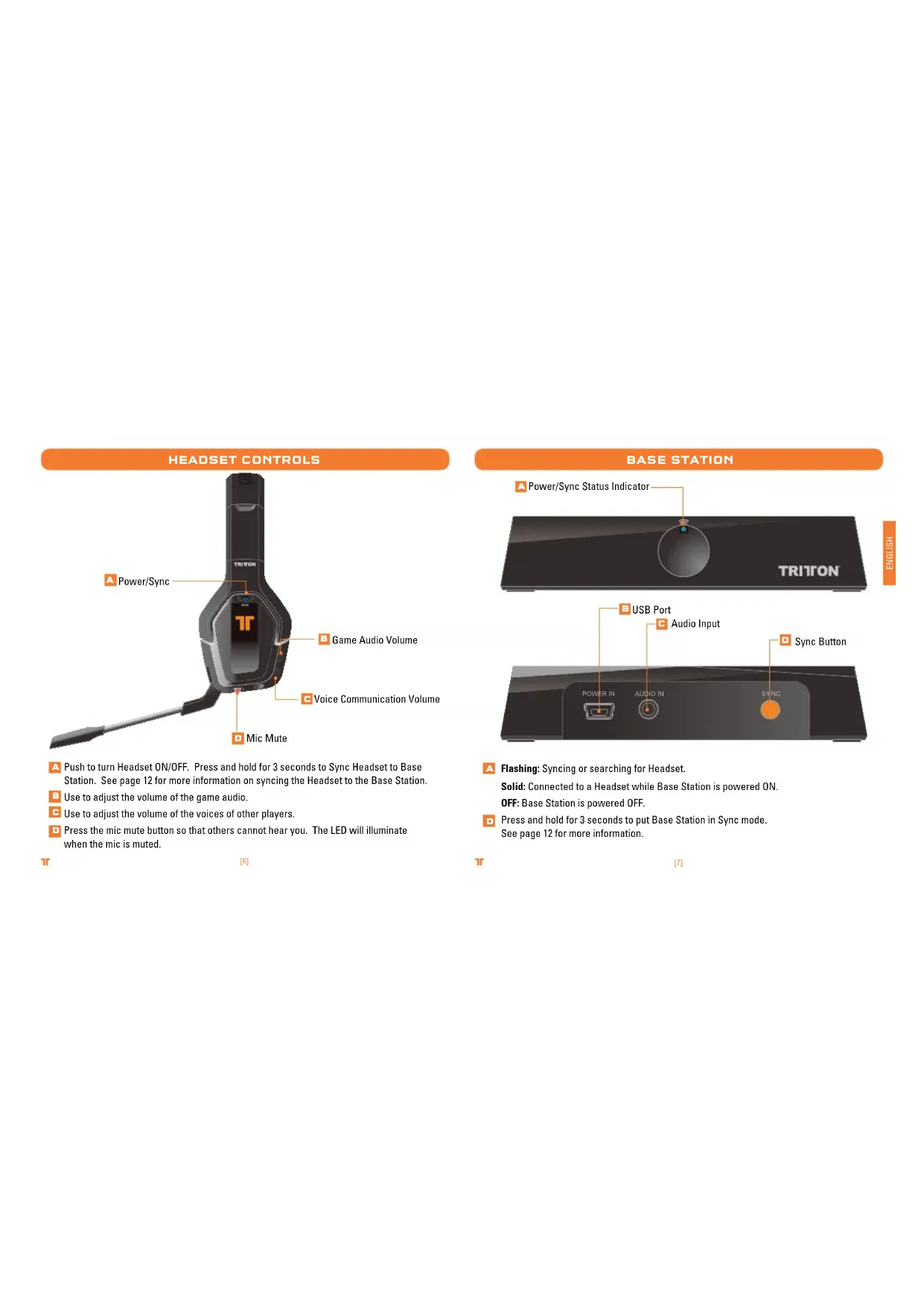

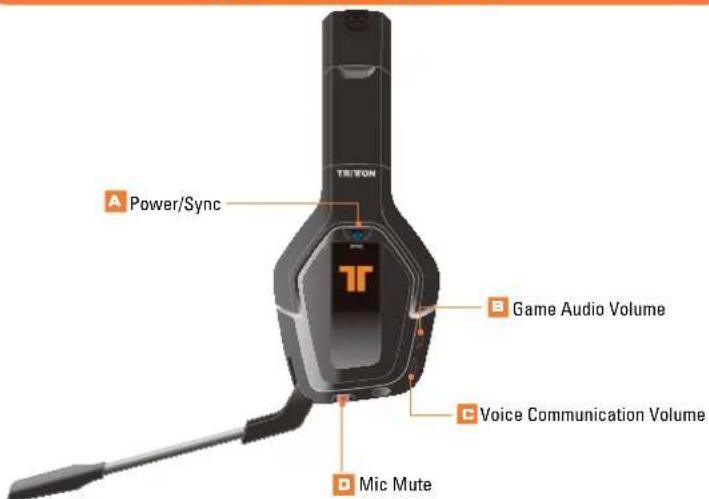

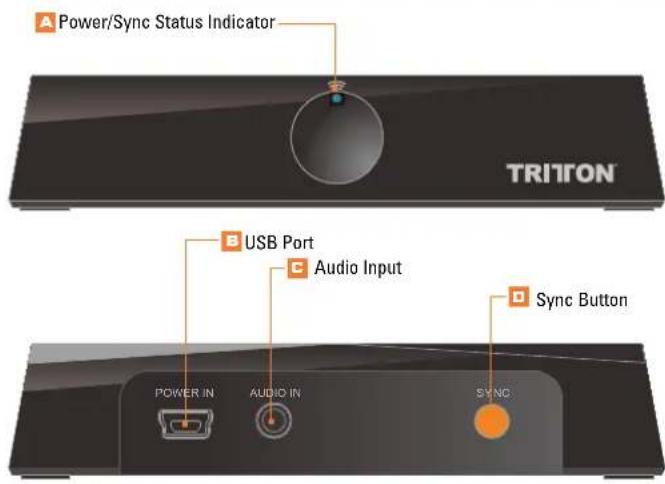

HeaDset Controls Power/Sync Push to turn Headset ON/OFF. Press and hold for 3 seconds to Sync Headset to Base Station. See page 12 for more information on syncing the Headset to the Base Station. Use to adjust the volume of the game audio. Use to adjust the volume of the voices of other players. Press the mic mute button so that others cannot hear you. The LED will illuminate when the mic is muted. Game Audio Volume Voice Communication Volume Mic Mute base statIon AUDIO IN SYNC POWER IN Power/Sync Status Indicator Flashing: Syncing or searching for Headset. Solid: Connected to a Headset while Base Station is powered ON. OFF: Base Station is powered OFF. USB Port Audio Input Sync Button Press and hold for 3 seconds to put Base Station in Sync mode. See page 12 for more information.

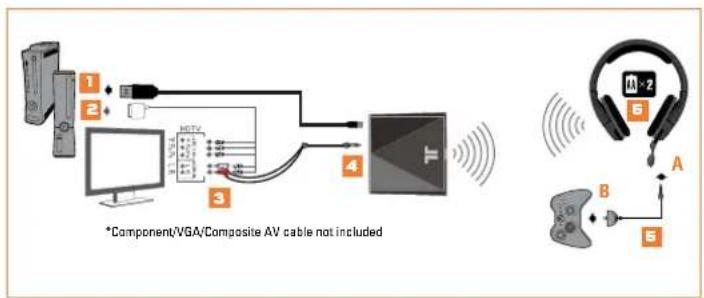

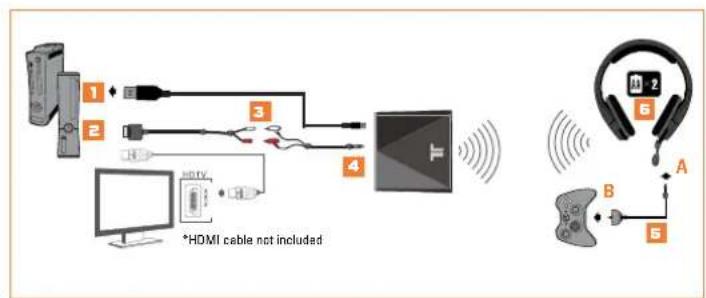

analog auDIo setuP Plug one end of the USB Cable into a USB port on the gaming console. Plug the other end of the USB Cable into the USB Port of the Base Station. Plug Component/VGA/Composite Cable into Xbox 360. Connect RCA Adapter Cable to red/white connectors on the Component/VGA/Composite Cable. Plug RCA Adapter Cable into the Audio Input of the Base Station. Connect the Headset Connector Cable in the proper order: A- Connect Headset Connector Cable to the Headset Connector Port on the Headset. B- Connect puck side of Headset Connector Cable into Xbox 360-compatible controller. Insert the batteries into the Headset. See page 10 for more information. Power ON the Xbox 360 Console and Headset. To confirm Xbox LIVE settings, press the “Xbox Guide Button” when a game is loaded, and go to Personal Settings > Voice. Ensure that “Headset Only” is selected. Plug one end of the USB Cable into a USB port on the gaming console. Plug the other end of the USB Cable into the USB Port of the Base Station. Plug Analog Audio Adapter into Xbox 360 AV Port. Plug Analog Audio Adapter into RCA Adapter Cable. Plug RCA Adapter Cable into the Audio Input of the Base Station. Connect the Headset Connector Cable in the proper order: A- Connect Headset Connector Cable to the Headset Connector Port on the Headset. B- Connect puck side of Headset Connector Cable into Xbox 360-compatible controller. Insert the batteries into the Headset. See page 10 for more information. Power ON the Xbox 360 Console and Headset. To confirm Xbox LIVE settings, press the “Xbox Guide Button” when a game is loaded, and go to Personal Settings > Voice. Ensure that “Headset Only” is selected. HDMI setuP *Component/VGA/Composite AV cable not included *HDMI cable not included

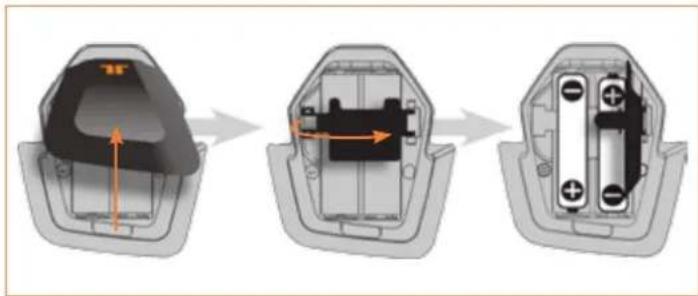

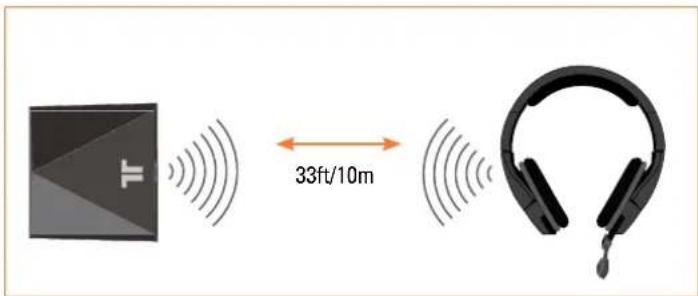

battery InstallatIon Insert 2 AA batteries into the Headset matching the polarity as shown. When the battery level is low, the power LED will flash. PoWer save MoDe If the Headset receives no audio for 15 minutes, the Headset will power down to save battery power and the LED on the Base Station will flash. The Heaset will power back on when audio resumes. WIreless range The Primer Headset transmits audio via digital radio frequency (RF) and has an operating range of 33 feet/10 meters in any direction. Please remain within this range for optimal per- formance. Avoid placing the Base Station on top of a metal surface or behind other devices that use RF. If the Headset is not operating properly within the 33-foot/10-meter range, try moving the Base Station to a different location for improved performance. 33ft/10m[13] ENGLISH .comTRITTONUSA.comTRITTONUSA

synC HeaDset to base statIon Note: Headset is synced to the Base Station at the factory. This step is only necessary when syncing a new Headset to the Base Station. Only one Headset can be paired at a time. A- With the Base Station connected via USB to the Xbox 360 and powered ON, press and hold the Power/Sync button on the Base Station for 3 seconds. The Power/Sync LED on the Base Station will flash. B- On the Headset, press and hold the Power/Sync button for 3 seconds. The Headset and Base Station will sync, and the LEDs on the Base Station and Headset will illuminate solid when the sync is successful. Troubleshooting: Chat isn’t working:

• Make sure your console is connected to Xbox LIVE. For information about Xbox LIVE, visit www.xbox.com/live.

• Try a fresh set of batteries. No Sound:

• Check that the volume is not turned all the way down.

• Check that the Base Station is plugged into a USB port on the Xbox 360 and that the Headset is powered ON and paired to the Base Station.

• Check that the Analog Audio Adapter is connected between the Base Station and the Xbox 360.

• Move the Headset closer to the console.

• Try a fresh set of batteries. Warranty Register your product at TRITTONUSA.COM to receive warranty coverage, news, events and updates. If you have any issues using this product, please try the following before returning this product to the store: If people cannot hear you talk, make sure that the mute switch is not enabled.

• To confirm Xbox LIVE settings, press the Xbox Guide Button when a game is loaded, and go to Personal Settings > Voice. Ensure that “Headset only” is selected.

• For immediate support, visit http://www.trittontechnologies.com to find the latest documentation, Knowledge Base articles, and software for your device. You can also chat live with a support technician or submit a trouble ticket. 2-year limited warranty Mad Catz warrants this product to be free from defects in materials and workmanship for the warranty period. This non-transferable, two- (2) year limited warranty is only to you, the first end-user purchaser. If a defect covered by this warranty occurs AND you have registered your product with Mad Catz AND you provide proof of purchase, Mad Catz, at its option, will repair or replace the product at no charge. The Mad Catz two- (2) year limited warranty is available to North American and European customers. Your sole and exclusive remedy is repair or replacement of your Mad Catz product. In no event shall Mad Catz liability exceed the original purchase price of the product. This warranty does not apply to: (a) normal wear and tear or abusive use; (b) industrial, professional or commercial use; (c) if the product has been tampered with or modified. To receive warranty service you must: - North America: call Mad Catz Technical Support at 1.800.659.2287 or 1.619.683.2815 - Europe: call Mad Catz Technical Support at +44 (0) 8450-508418 - Obtain a Return Authorization Number from Mad Catz Technical Support - Ship the product to Mad Catz at your expense for service - Enclose a copy of the original sales receipt showing a purchase date - Enclose a full return address with daytime and evening phone numbers Online Support and User Guides: www.trittonusa.comNorth American E-mail: techsupport@madcatz.comNorth American telephone: Available 8am - 12pm, 1 to 4pm Pacific Standard Time, Mondaythrough Friday (excluding holidays) at 1.800.659.2287 (US only) or 1.619.683.2815 (outside US).European E-mail: techsupporteurope@madcatz.com European telephone: Available 9 A.M. to 5 P.M. Greenwich Mean Time, Monday through Friday (excluding bank holidays) at +44 (0) 8450-508418 CAUTIONS

Misuse of batteries within this unit may cause batteries to leak and/or explode and lead to personal injury. WARNINGS - Non-rechargeable batteries are not to be recharged. - Do not mix old and new or different types of batteries. - Batteries are to be inserted with the correct polarity. - Remove exhausted batteries from the product. - Supply terminals are not to be short-circuited. - Rechargeable batteries are to be removed from the product before being charged. - Rechargeable batteries are only to be charged under adult supervision. - The packaging must be retained since it contains important information. United States and Canada: As required, certain of these class B digital devices (the headsets) have been tested by Mad Catz, Inc., 7480 Mission Valley Road, Suite 101, San Diego, CA 92108, and found to comply with part 15 of the FCC rules and the Canadian RSS-210 which sets forth limits designed to provide reasonable protection against harmful interference in a residential installation. These device(s) use, generate and can radiate radio frequency energy and, if not assembled, installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in any particular location or use. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15 section 15.105 Warning: Any changes or modifications made on the system not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Exposure to Radio Frequency Radiation: The radiated output power of the headset is well within FCC radio frequency exposure limits for this type of device when unaltered and used as described in our instructions and the controller operates within guidelines found in radio frequency safety standards, which reflect the consensus of the scientific community and therefore, the manufacturer believes the device’s internal wireless radio is safe for use by consumers. The level of energy emitted is far less than the electromagnetic energy emitted by wireless devices such as mobile phones. However, the use of wireless radios may be restricted in some situations (e.g., on airplanes). If you are unsure of restrictions that may apply in any situation, you must ask for authorization before turning on, connecting or using the controller. EU DECLARATION OF CONFORMITY: As required, certain of these products have been tested and conform to the requirements of the European Union Directives 1999/5/EC, 2002/95/EC, 2002/96/EC, and 2004/108/EC. Authorized signatory of the manufacturer is Mad Catz, Inc., 7480 Mission Valley Road, Suite 101, San Diego, CA 92108. CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. 10/11 Serre-tête réglable et écouteurs avec rembourrage souple Microphone flexible Avant d’utiliser ce produit, lisez les manuels de cet accessoire et de la console Xbox 360 (et tout autre manuel pertinent) pour les consignes de sécurité et les informations importantes concernant la santé. Conservez tous les manuels pour référence future. Pour obtenir des manuels Xbox de remplacement, allez sur www.xbox.com/support ou appelez le Service client Xbox. PRÉVENTION CONTRE UNE PERTE DE L’AUDITION Attention – une perte d’audition permanente risque de se produire si les écouteurs Ou le casque sont utilisés à un volume élevé pendant des périodes prolongées. Écouteurs pivotants Compartiment des pilesFRANÇAIS [17] .comTRITTONUSA.comTRITTONUSA
