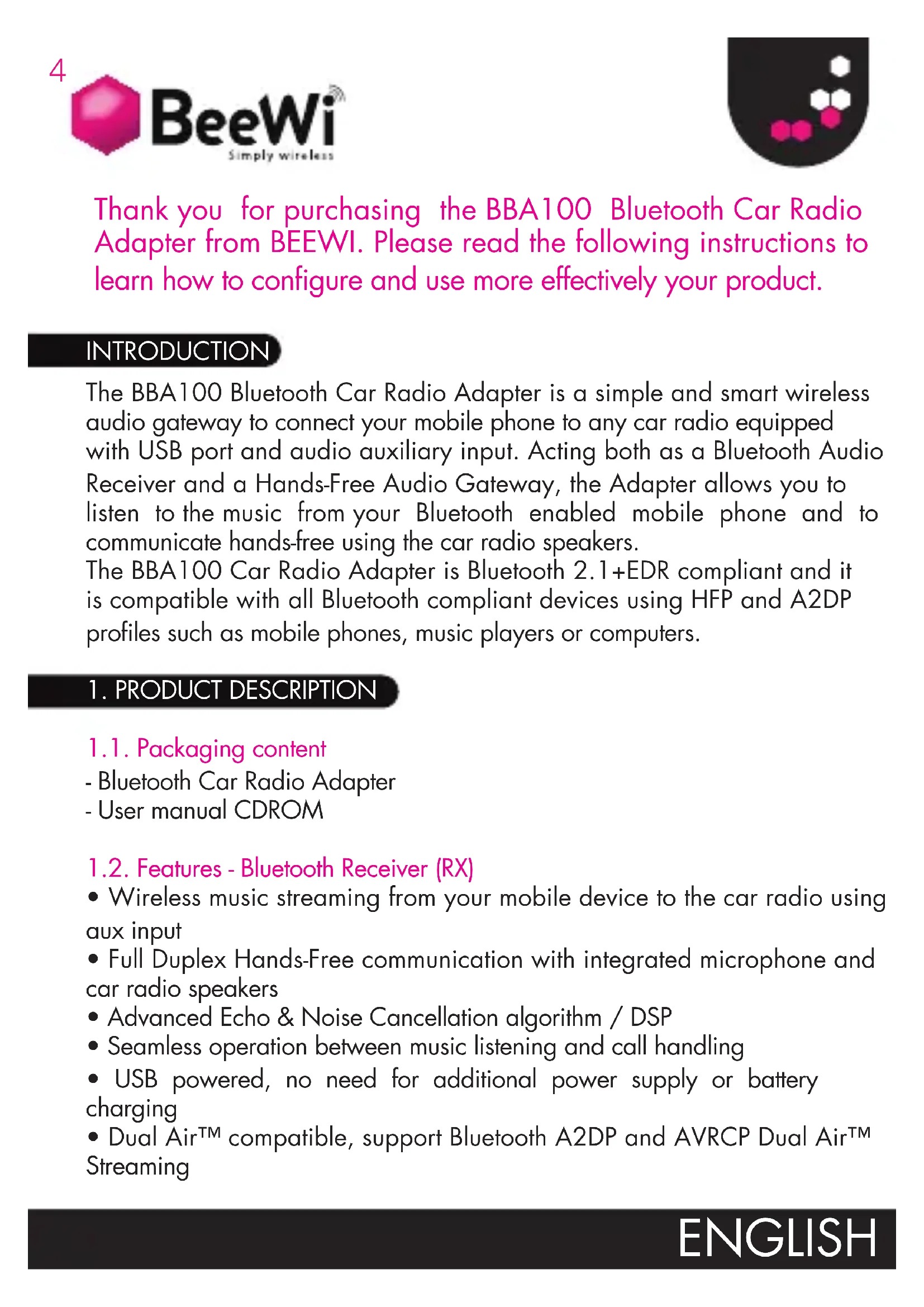

Thank you for purchasing the BBA100 Bluetooth Car Radio Adapter from BEEWI. Please read the following instructions to learn how to configure and use more effectively your product.

INTRODUCTION

The BBA100 Bluetooth Car Radio Adapter is a simple and smart wireless audio gateway to connect your mobile phone to any car radio equipped with USB port and audio auxiliary input. Acting both as a Bluetooth Audio Receiver and a Hands-Free Audio Gateway, the Adapter allows you to listen to the music from your Bluetooth enabled mobile phone and to communicate hands-free using the car radio speakers.

The BBA100 Car Radio Adapter is Bluetooth 2.1+EDR compliant and it is compatible with all Bluetooth compliant devices using HFP and A2DP profiles such as mobile phones, music players or computers.

1. PRODUCT DESCRIPTION

1.1. Packaging content

• Bluetooth Car Radio Adapter
• User manual CDROM

1.2. Features - Bluetooth Receiver (RX)

• Wireless music streaming from your mobile device to the car radio using aux input
  • Full Duplex Hands-Free communication with integrated microphone and car radio speakers
• Advanced Echo & Noise Cancellation algorithm / DSP
• Seamless operation between music listening and call handling
• USB powered, no need for additional power supply or battery charging
• Dual Air™ compatible, support Bluetooth A2DP and AVRCP Dual Air™ Streaming

1.3. Product Outlook

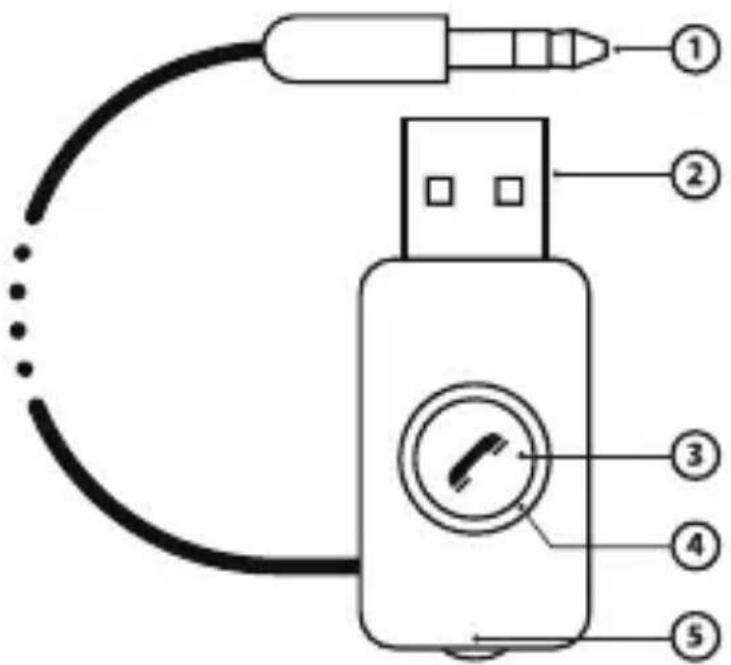

1 - 3.5 mm Audio Jack: connects to the Car Radio Aux Input
2 - USB connector: power from the Car Radio USB port
3 - Multi-Function Button (MFB): music play/pause and telephony functions
4 - LED: blue & red light indicators
5 - Microphone: Hands-Free microphone

Diagram of a USB device with labeled components including a port, cable, and connector pin

1.4. Product Specification

Bluetooth Standard Bluetooth V2.1+EDR
Bluetooth Profiles HSP, HFP1.5, A2DP, AVRCP
Frequency Band 2.4GHz~2.4835GHz	ISM Band
Working Distance Class 2, Up to 10 meters
Number of paired devices Up to 7 devices
Dimensions (ex connector) L 37 mm, l 20 mm, W 8 mm
Weight 10 g

2. USING THE PRODUCT

2.1. Installation

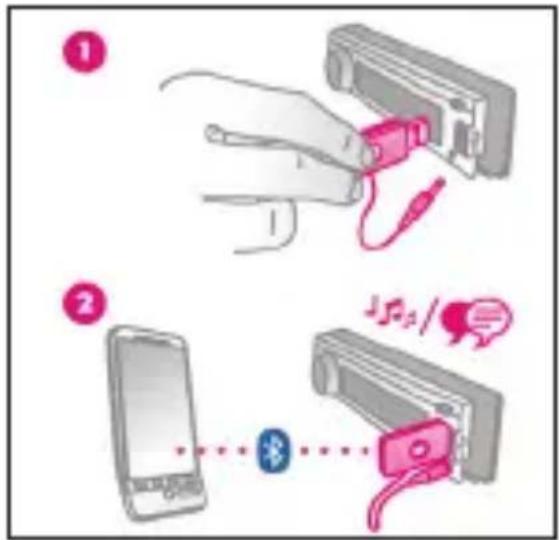

Verify your car radio provides both a USB port and a 3.5 mm jack type auxiliary input located on the front. Plug the adapter into the USB port and connect the audio cable to the auxiliary input.

In the case your car radio provides one of both ports with an extension cable (in glove box or anywhere in the passenger compartment), it is advised to use additional extension USB and/or audio cables to relocate the adapter closer to the car radio with the microphone towards the user.

Diagram illustrating the connection between a smartphone and audio equipment via microphone, with numbered steps and speech bubbles.

2.2. Power On / Power Off

The unit will automatically power on when power is available from the car radio USB connector. If you wish to power it on and off manually, follow the instructions below:

- Power On: Press and hold MFB for 2 seconds until the blue indicator starts blinking.

- Power Off: Press and hold MFB for 6 seconds until the red LED indicator lights on and off.

2.3. Pairing

You can pair up to 7 devices to the BBA100 Car Radio Adapter. To pair the unit with a mobile device, follow the instructions below:

- Refer to the Bluetooth pairing procedures in corresponding mobile phone or music player user manual.

- Make sure the BBA100 is powered off, then long press MFB for 6 seconds when device is off until the blue and red indicators blink alternatively and release the button. The unit is in pairing mode.

- Select the device name "BeeWi BBA100" on the screen of the phone and enter the pass key "0000" if requested to add this device into your phone device list.

- Confirm the connection on the phone to connect the "BeeWi BBA100".

- Check the connection by placing a call or playing the music from your phone.

- To pair another device, turn off the Adapter and repeat the procedure above.

2.4. Connection & use

• The BBA100 Adapter will automatically connect to the last connected device at power on.
• In case the connection has been lost, you can re-establish it manually by pressing MFB.
• You can use MFB to answer and terminate calls, redial the last number, access phone's voice command (if supported by the phone) and to play/pause the music. For more operation details, please refer to the function table below.

Note: when using both Hands-Free and Music profiles, hands-free will always have priority, the music being muted in case of incoming or outgoing calls and resumed afterwards.

2.5. Function Table

Category Feature Conditions MFB Operation
General Power On	Power Off Long press 2		seconds
	Power Off Power On	Long press 6	seconds
	Pairing mode Power	Off Long press 6	seconds
	Play/Pause music Music stopped/ playing	Short press
Telephone Answer a	call Incoming call Short press
	End a call Call active	Short press
	Reject Call* In-Call	Long press 2 seconds
	Voice Dial*	Standby	Long press 2 seconds
	Last Number Redial*	Standby	Double press

* Mobile phone supporting HFP only.

2.6. Status Indicators

Status LED Descriptions
Power On Blue Blinks	once with high tone
Power Off Red Blinks	once with 2 low tones
Idle, not connected Blue Blinks twice every 3 seconds, 3 tones every minute
Pairing Red + Blue Blinks rapidly alternatively with high tone
In-call Blue Blinks once every 13 seconds
Standby Blue Blinks once every 5 seconds
Music playing Blue Blinks once every 5 seconds

European Union Directives Conformance Statement

Hereby, VOXLAND declares that this product is in compliance with:

• The essential requirements and other relevant provisions of Directive 1999/5/EC
• All other relevant EU Directives
  You can view your product's Declaration of Conformity (DoC) to Directive 1999/5/EC (to R&TTE Directive) at www.bee-wi.com.

Caring for the environment by recycling

Do not dispose of electrical devices or accessories with your household waste.

In some countries or regions, collection systems are set up to handle electrical and electronic waste items. Contact your regional authorities for more details.

Copyright and other legal information

BEEWI is a registered trademark. Other trademarks mentioned herewith are owned by their proprietors. All other product or service names are the property of their respective owners.

The use of wireless devices and their accessories may be prohibited or restricted in certain areas. Always obey the laws and regulations on the use of these products.

This product is covered by a 2-year product warranty which is valid from the date of purchase. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by the party responsible for compliance will void the user's warranty. Please visit our website www.bee-wi.com for more information.

Technical support: [e-mail].

© VOXLAND, 2010.
