USER MANUAL Max Power RST36B51 RYOBI

Ryobi 36V lawn mower with attached blade and wheels (no visible text or symbols)

Important!	It is essential that you read the instructions in this manual before assembling, maintaining and operating the product.
Attention!	Il est essentiel que vous lisiez les instructions contenues dans ce manuel avant d'assembler, d'entretenir et d'utiliser le produit.
Achtung!	Es ist wichtig, dass Sie vor Zusammenbau, Wartung und Benutzung des Produktes die Anweisungen in dieser Anleitung lesen.
¡Atención!	Resulta fundamental que lea este manual de instrucciones antes de realizar el montaje, el mantenimiento y de utilizar este producto
Attenzione!	E' importante leggere le istruzioni contenute nel presente manuale prima di montare il prodotto, svolgere le operazioni di manutenzione sullo stesso e metterlo in funzione.
Let op!	Het is van essentieel belang dat u de instructies in deze gebruiksaanwijzing leest voor u het product monteert, onderhoudt en gebruikt.
Atenção!	É fundamental que leia as instruções deste manual antes da montagem, manutenção e operação do aparelho.
OBS!	Det er vigtigt, at man læser instrukserne i denne brugsanvisning, inden man samler, vedligeholder og betjener produktet.
Observera!	Det är viktigt att du läser instruktionerna i manualen före montering, användning och underhåll av produkten.
Huomio!	On tärkeää, että luet tämän käsikirjan ohjeet ennen tuotteen kokoamista, huoltoa ja käyttöä.
Advarsel!	Det er viktig at du leser instruksjonene i denne manualen før sammensetning, vedlikehold og bruk av produktet
Внимание!	Необходимо прочитать инструкции в данном руководстве перед сборкой, обслуживанием и эксплуатацией этого изделия.

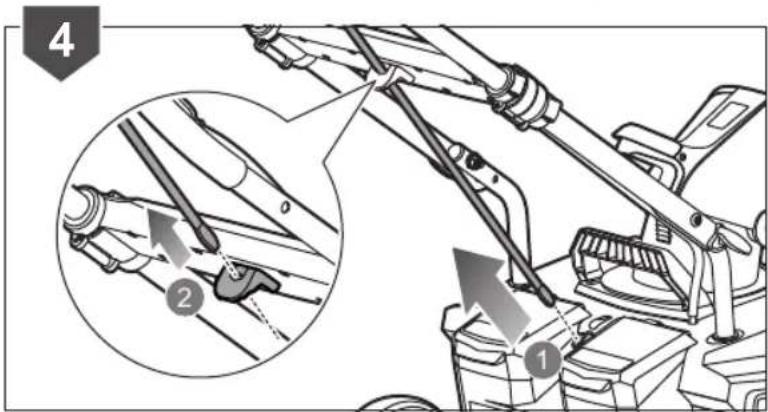

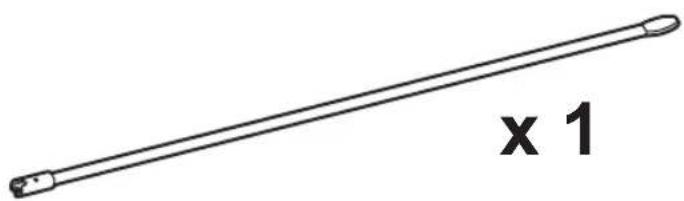

Uwaga!	Koniecznie należy przeczytać instrukcje zawarte w tym podręczniku przed montażem, obsługą oraz konserwacją produktu.
Dûležité upozornění!	Neinstalujte, neprovádějte údržbu ani nepoužívejte tento výrobek dřive, než si přečtete pokyny uvedené v tomto návodu.
Figyelem!	Fontos, hogy a termék összeszerelése, karbantartása és használata előtt elolvassa a kézikönyvben található utasításokat.
Atenție!	Este esențial să citiți instrucțiunile din acest manual înainte de asamblare, efectuarea întreținerii și operarea produsului.
Uzmanību!	Ir svarīgi izlasīt šīs rokasgrāmatas instrukcijas pirms uzstādīšanas, apkopes un preces darbināšanas.
Dèmesio!	Prieš surenkant, prižiūrint ir naudojant gaminį, būtina perskaityti šiame vadove pateiktus nurodymus.
Tähtis!	Enne masina kokkupanekut, hooldamist ja kasutama hakkamist tuleb käesolevas juhendis esitatud juhised kindlasti läbi lugeda.
Upozorenje!	Vrlo je važno da ste prije sklapanja, održavanja i rada s ovim proizvodom pročitali upute u ovom priručniku.
Pomembno!	Pomembno je da pred montažo vzdrževanjem in uporabo tega izdelka preberete navodila v tem priročniku.
Upzornenie!	Je dôležité, aby ste si pred montážou, údržbou a obsluhou produktu prečitali pokyny v tomto návode.
Важно!	Изключително важно е да прочетете инструкциите в настоящото ръководство, преди да преминете към сглобяване, поддръжка или работа с продукта.
Важливо!	Дуже важливо, щоб ви прочитали інструкції в цьому керівництві перед складанням, обслуговуванням та експлуатацією цієї машини.
Önemli!	Ürünü monte etmeden, kullanmadan ve bakımını yapmadan önce bu kılavuzdaki talimatları okumanız önemlidir.

Subject to technical modification | Sous réserve de modifications techniques | Technische Änderungen vorbehalten | Bajo reserva de modificaciones técnicas | Con riserva di eventuali modifiche tecniche | Technische wijzigingen voorbehouden | Com reserva de modificações técnicas | Med forbehold for tekniske ændringer | Med förbehåll för tekniska ändringar | Tekniset muutokset varataan | Med forbehold om tekniske endringer | могут быть внесены технические изменения | Z zastrzeżeniem modyfikacji technicznych | Změny technických údajů vyhrazeny | A můszaki módosítás jogát fenntartjuk | Sub rezerva modificațiilor tehnice | Paturam tiesības mainīt tehniskos raksturlielumus | Pasiliekant teisę daryti techninius pakeitimus | Tehnilised muudatused võimalikud | Podloæno tehniëkim promjenama | Tehnične spremembe dopuščene | Právo na technické zmeny je vyhradené | Подлежи на технически модификации | Є ob’єктом для технічних змін | Teknik değişikliğe tabidir.

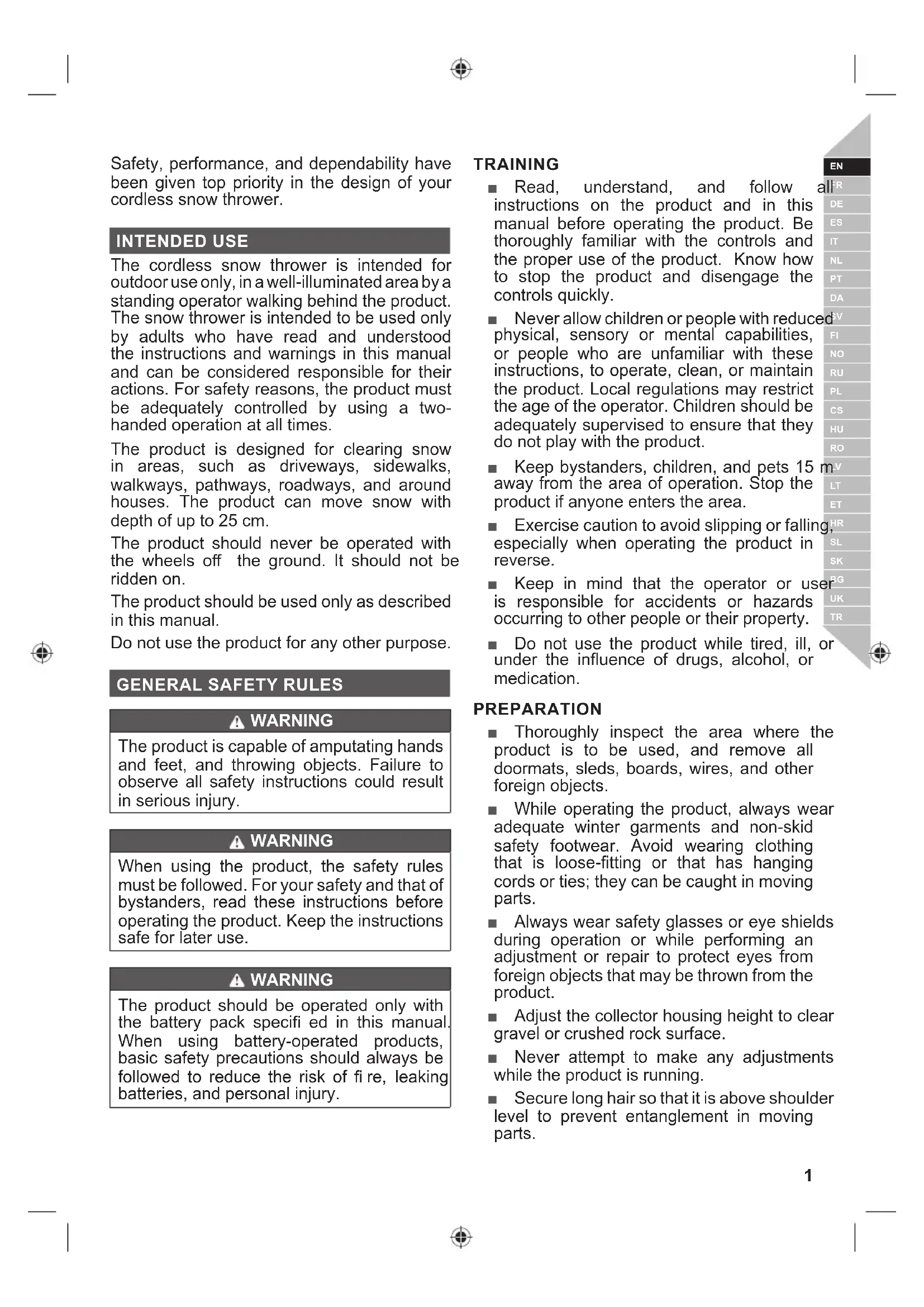

Safety, performance, and dependability have been given top priority in the design of your cordless snow thrower.

INTENDED USE

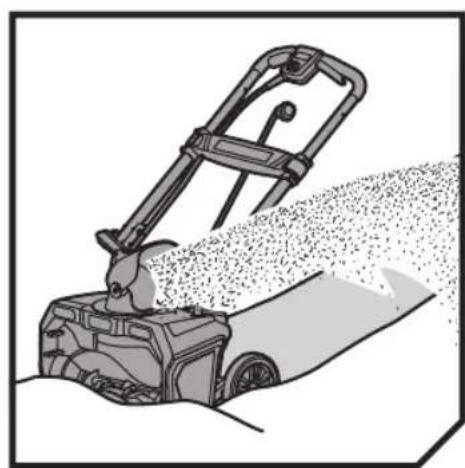

The cordless snow thrower is intended for outdoor use only, in a well-illuminated area by a standing operator walking behind the product. The snow thrower is intended to be used only by adults who have read and understood the instructions and warnings in this manual and can be considered responsible for their actions. For safety reasons, the product must be adequately controlled by using a two-handed operation at all times.

The product is designed for clearing snow in areas, such as driveways, sidewalks, walkways, pathways, roadways, and around houses. The product can move snow with depth of up to 25 cm.

The product should never be operated with the wheels off the ground. It should not be ridden on.

The product should be used only as described in this manual.

Do not use the product for any other purpose.

GENERAL SAFETY RULES

WARNING

The product is capable of amputating hands and feet, and throwing objects. Failure to observe all safety instructions could result in serious injury.

WARNING

When using the product, the safety rules must be followed. For your safety and that of bystanders, read these instructions before operating the product. Keep the instructions safe for later use.

WARNING

The product should be operated only with the battery pack specified in this manual. When using battery-operated products, basic safety precautions should always be followed to reduce the risk of fire, leaking batteries, and personal injury.

TRAINING

• Read, understand, and follow instructions on the product and in this manual before operating the product. Be thoroughly familiar with the controls and the proper use of the product. Know how to stop the product and disengage the controls quickly.
  ■ Never allow children or people with reduc physical, sensory or mental capabilities, or people who are unfamiliar with these instructions, to operate, clean, or maintain the product. Local regulations may restrict the age of the operator. Children should be adequately supervised to ensure that they do not play with the product.
• Keep bystanders, children, and pets 15 away from the area of operation. Stop the product if anyone enters the area.
  ■ Exercise caution to avoid slipping or fallir especially when operating the product in reverse.
• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.
  ■ Do not use the product while tired, ill, or under the influence of drugs, alcohol, or medication.

PREPARATION

■ Thoroughly inspect the area where the product is to be used, and remove all doormats, sleds, boards, wires, and other foreign objects.
■ While operating the product, always wear adequate winter garments and non-skid safety footwear. Avoid wearing clothing that is loose-fitting or that has hanging cords or ties; they can be caught in moving parts.
■ Always wear safety glasses or eye shields during operation or while performing an adjustment or repair to protect eyes from foreign objects that may be thrown from the product.
■ Adjust the collector housing height to clear gravel or crushed rock surface.
■ Never attempt to make any adjustments while the product is running.
- Secure long hair so that it is above shoulder level to prevent entanglement in moving parts.

■Ensure before each use that all controls and safety devices function correctly. Do not use the product if the OFF switch does not stop the product.

■ Before each use, always visually inspect to see that the housing is undamaged and that guards and handles are in place and properly secured.

BATTERY TOOLS USE AND CARE

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

- Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion, or risk of injury.

- Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.

■ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

SNOW THROWER SAFETY RULES

■ Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times. Do not put any objects into openings.

■ Exercise extreme caution when operating on or crossing gravel drives or walks. Stay alert for hidden hazards or operating near public roads.

■ To reduce the risk of injury associated with contacting rotating parts, always turn off the product and remove the battery pack. Make sure that all moving parts have come to a complete stop:

• after striking a foreign object to inspect the product for damage
- if the product starts to vibrate abnormally and check immediately for the cause. Vibration is generally a warning of trouble.
• before cleaning or clearing a blockage
• before leaving the product unattended
- before checking, conducting maintenance, or working on the product

- Do not clear snow across the face of slopes. Exercise extreme caution when changing direction on slopes. Do not attempt to clear steep slopes.

■ Never operate the product without proper guards, plates, or other safety protective devices in place.

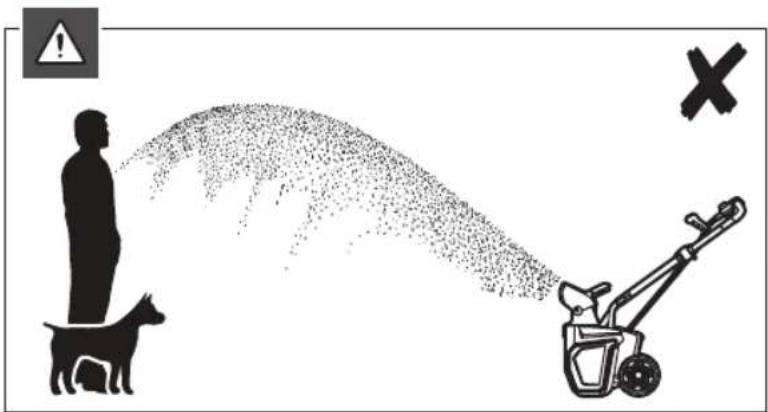

■ Never direct the discharge toward people or areas where property damage can occur. Keep children and others away.

■ Do not overload the product capacity by attempting to clear snow at too fast a rate.

■ Never operate the product at high transport speeds on slippery surfaces. Look behind and use care when operating in reverse.

■ Disengage power to the collector/impeller when the product is transported or not in use.

- Use only original manufacturer's replacement parts, accessories, and attachments.

■ Never operate the product without good visibility or light. Always be sure of your footing, and keep a firm hold on the handles. Walk, never run.

■ Never place the product on any surface, except on a hard and clean surface when motor is running. Gravel, sand, and other debris can be picked up by the air inlet and thrown at the operator or bystanders, causing possible serious injuries.

■ Never operate the product near glass enclosures, automobiles, windows, or doorways without proper adjustment of the snow discharge angle. Keep children and pets away.
■ Do not use the product when there is a risk of lightning.
- Do not operate the product in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
■ Do not overreach. Overreaching can result in loss of balance.
■ Stay alert, watch what you are doing, and use common sense when operating the product. A moment of inattention while operating snow thrower may result in serious personal injury.

WARNING

If the product is dropped, suffers heavy impact, or begins to vibrate abnormally, immediately turn off the product and inspect for damage or identify the cause of the vibration. Any damage should be properly repaired or replaced by an authorised service centre.

ADDITIONAL BATTERY SAFETY WARNINGS

WARNING

To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse the tool, battery pack, or charger in fluid or allow fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.

OPERATION TIPS

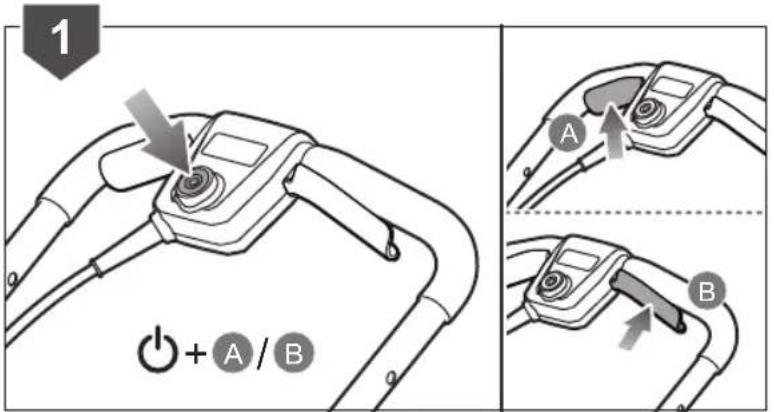

■ The product does not operate if the upper handle is not properly fitted and if the handle lock clip is not securely clipped. There are two safety interlocks to help prevent accidental starting when the product is not correctly assembled.

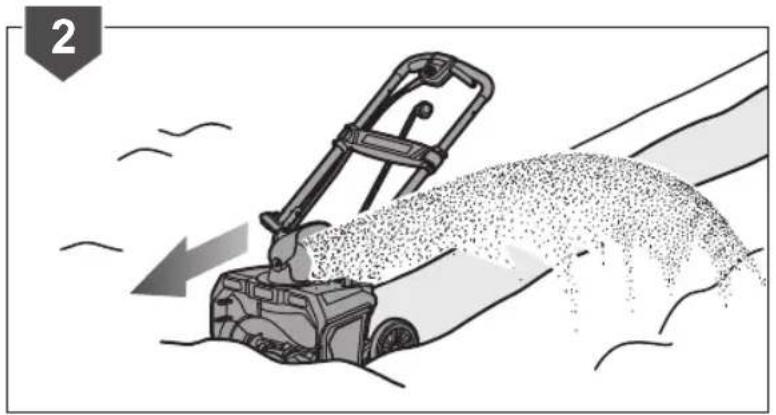

■ Take note of the direction of the wind before operating the product. Discharge snow in the same direction as the wind to prevent snow from being thrown back into your face.

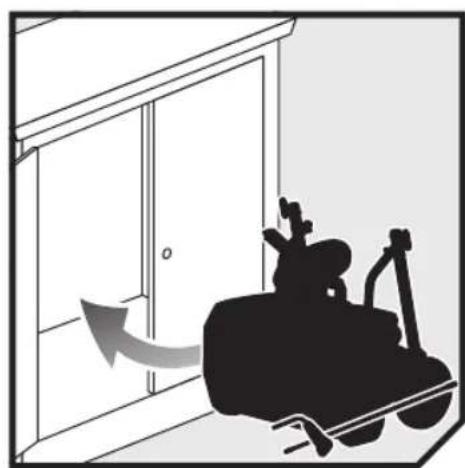

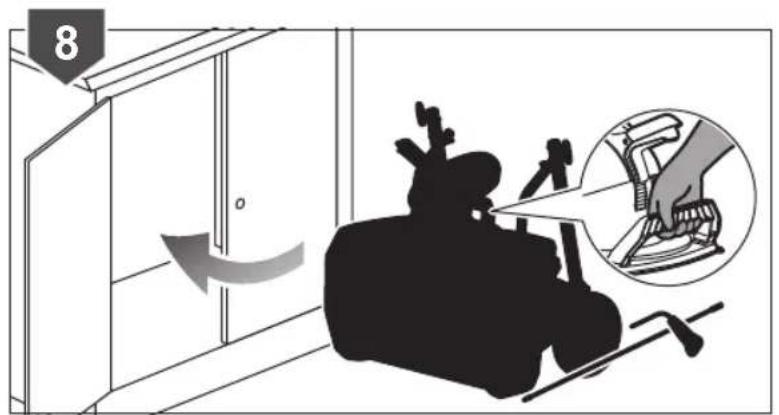

TRANSPORTATION AND STORAGE

■Turn off the product, and remove the battery pack. Allow the product to cool down before storing or transporting.
■ Clean all foreign materials from the product Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents, such as garden chemicals and de-icing salts. Do not store the product outdoors.
■ For transportation, secure the product against movement or falling to prevent injury to persons or damage to the product.

TRANSPORTING LITHIUM BATTERIES

Transport the battery in accordance with local and national provisions and regulations.

Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice.

MAINTENANCE

WARNING

Use only original manufacturer's replacement parts, accessories, and attachments. Failure to do so can cause possible injury, can contribute to poor performance, and may void your warranty.

WARNING

Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For servicing and repairs, have the product serviced by an authorised service centre only. When servicing, use only original replacement parts.

■ You may make adjustments and repairs described in this manual. For other repairs, have the product serviced by an authorised service centre only.

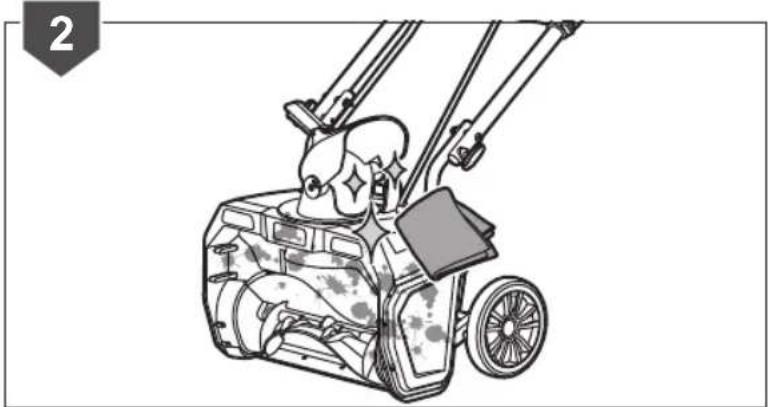

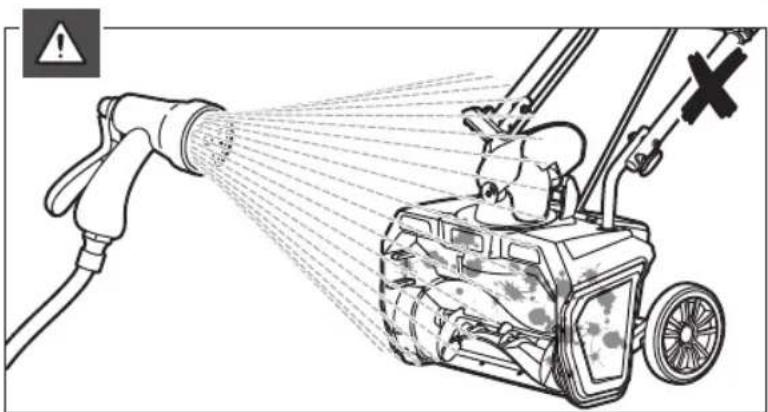

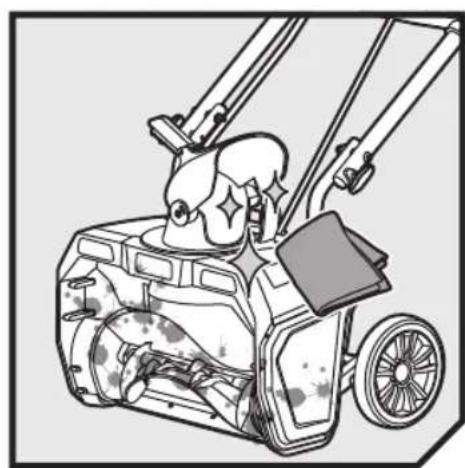

■ After each use, clean the product with soft, dry cloth.
- Check all nuts, bolts, and screws at frequent intervals for proper tightness to ensure that the product is in safe working condition. Any part that is damaged should be properly repaired or replaced by an authorised service centre.
■ Bring the product to an authorised service centre to replace damaged or unreadable labels.
■ Run the product a few times after throwing snow to prevent freeze-up of the impeller.
■ When cleaning, repairing, or inspecting the product, make sure that all moving parts have come to a complete stop. Remove the battery pack to prevent someone from accidentally starting the product.

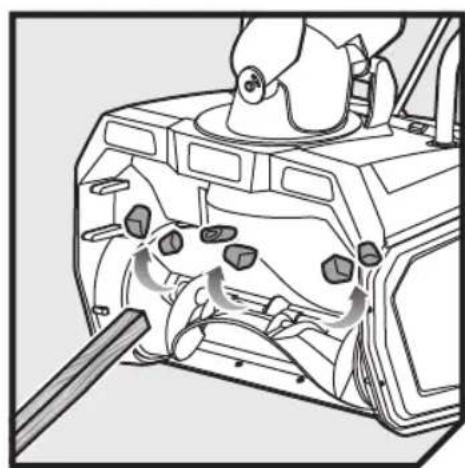

CLEARING A BLOCKAGE

WARNING

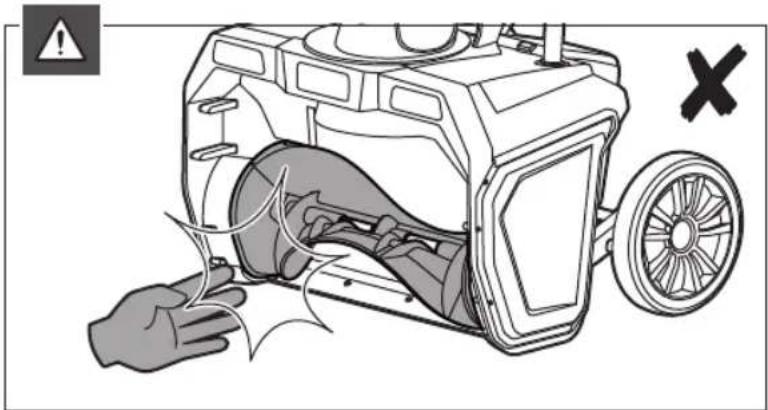

Never put your hands or feet into the front of the product or the discharge chute to avoid serious injuries.

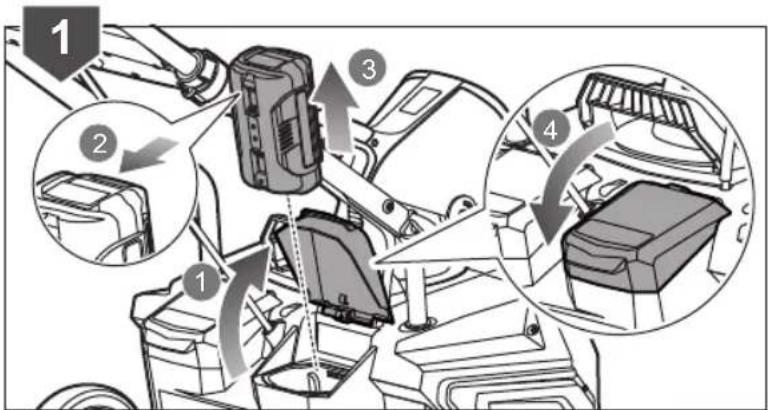

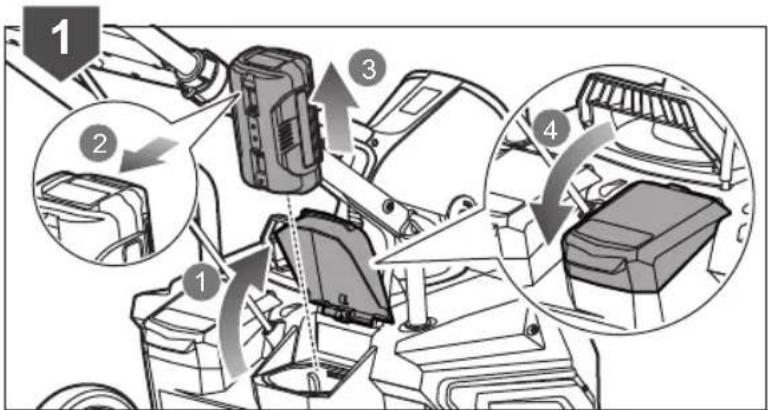

■ Release the trigger, and remove the battery pack.
■ Make sure that all moving parts have come to a complete stop.
■ Use a wooden pole to remove the blockage.

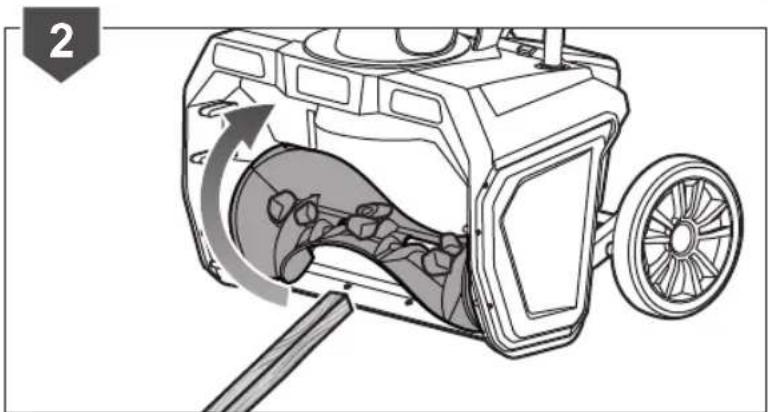

■ Turn the impeller assembly using the wooden pole.
■ Beware, the impeller may move by itself during blockage removal due to stored energy in the mechanism.

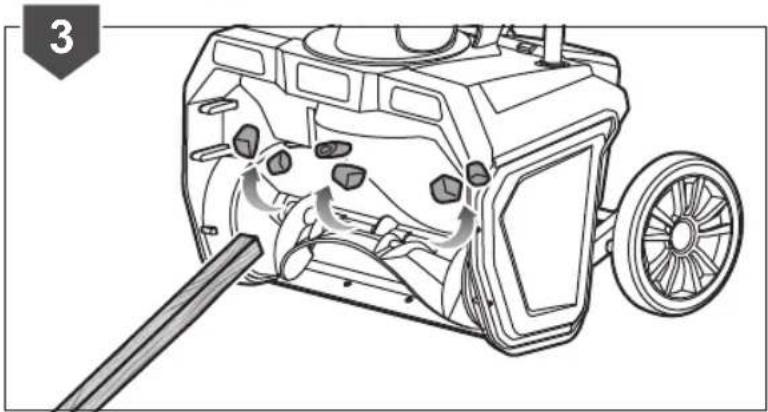

■ Once the impeller can be turned by the wooden pole, move to the rear of the product.

- It is normal for the impeller mechanism to have stepped movement.

■ Make sure that it is safe to continue snow clearing.

■ Install the battery pack. Turn on the product.

RESIDUAL RISKS

Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise during use, and the

aoperator should pay special attention to avoid the following:

■ exposure to noise can cause hearing injury
-Wear hearing protection and limit exposure.
■ injury caused by thrown objects
- Objects thrown by the rotating impeller at the front product or from the snow chute can cause injury. Wear adequate eye protection at all times.

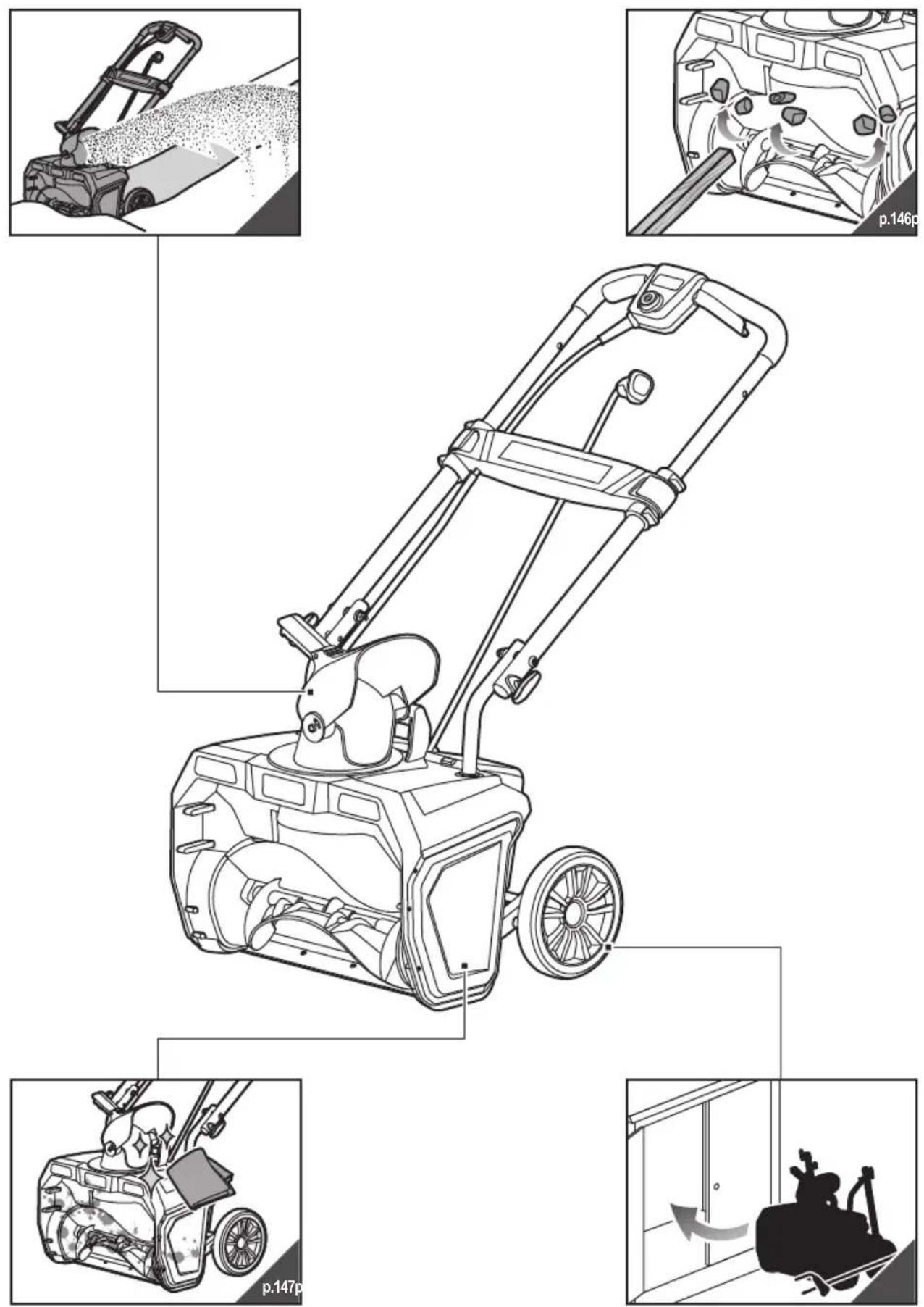

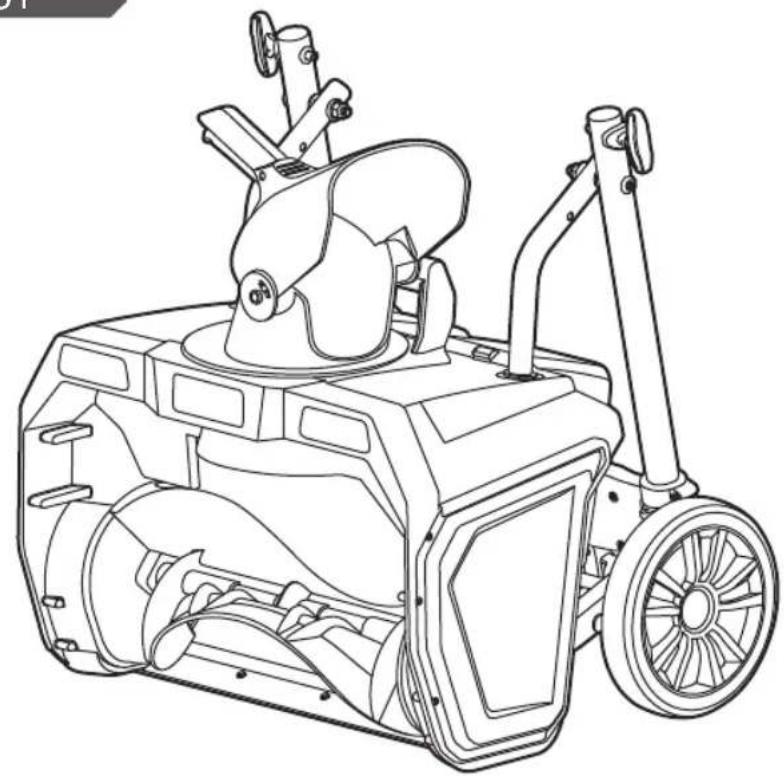

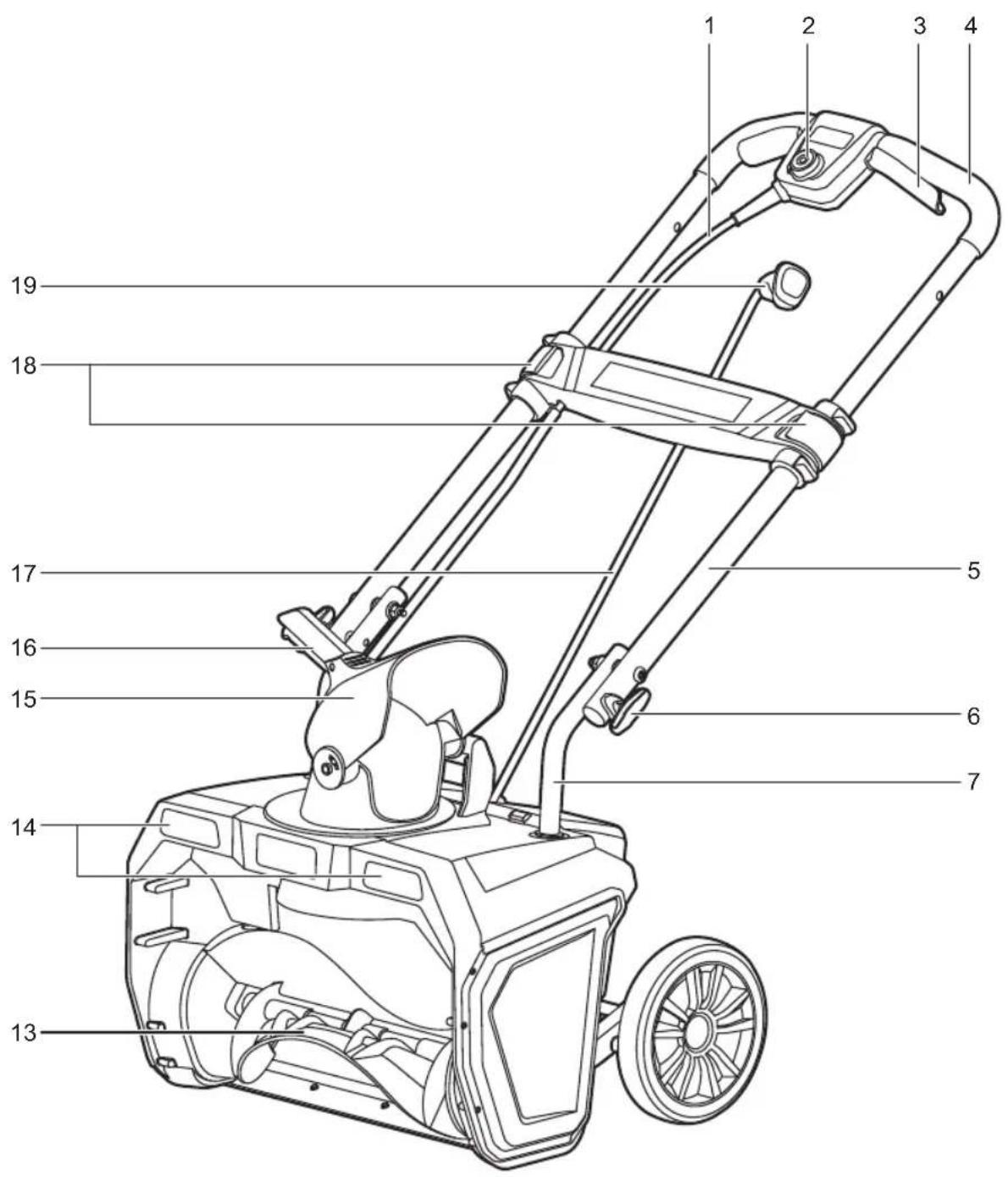

KNOW YOUR PRODUCT

See page 140.

1. Motor control cable
2. Trigger lock off button
3. On/off trigger
4. Upper handle
5. Intermediate handle

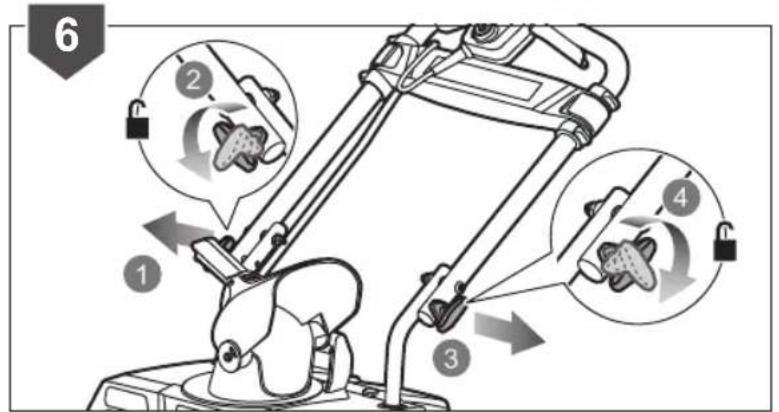

6. Handle adjustment knob
7. Lower handle

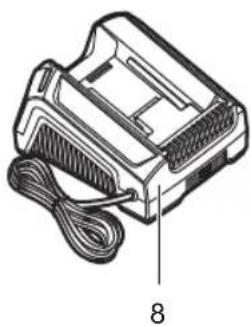

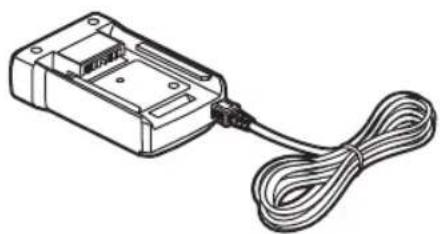

8. Battery charger
9. Battery pack

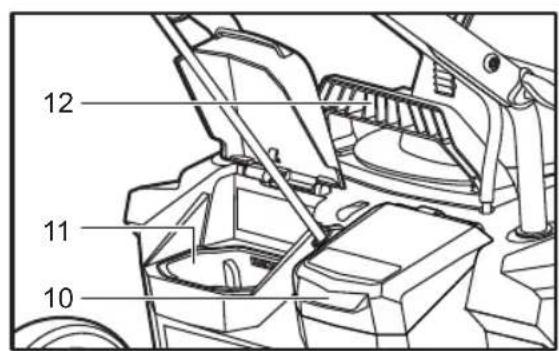

10. In use battery compartment
11. Storage battery compartment
12. Carrying/Lifting handle
13. Impeller
14. LED lights
15. Chute deflector
16. Chute deflector handle
17. Chute rotation shaft
18. Handle lock clip
19. Chute rotation lever

SYMBOLS ON THE PRODUCT

Read and understand all instructions before operating the product. Follow all warnings and safety instructions.

Beware of thrown or fl ying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area

Wear eye protection.

DANGER! Avoid injury from rotating impeller.

Keep hands, feet, and clothing away.

DANGER! Remove the battery and read the instructions in the manual before clearing a blockage. Keep hands and feet well away from the front of the machine and the discharge chute.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

Conforms to all regulatory standards in the country in the EU where the product is purchased.

EurAsian Conformity Mark

Ukrainian mark of conformity

Guaranteed sound power level

Push and hold

Squeeze and hold to operate

Storage battery compartment

In use battery compartment

SYMBOLS IN THIS MANUAL

Parts or accessories sold separately

Note

Warning

Lock

Unlock

The following signal words and meanings are intended to explain the levels of risk associated with the product:

⚠️ DANGER

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

CAUTION

Without safety alert symbol

Indicates a situation that may result in property damage.

SYMBOLES APPLIQUES SUR LE PRODUIT

MACHEN SIE SICH MIT IHREM PRODUKT VERTRAUT

Siehe Seite 140.

SYMBOLE AUF DEM PRODUKT

SYMBOLER PÅ PRODUKTET

TRANSPORT OCH FÖRVARING

SYMBOLER PÅ PRODUKTEN

SYMBOLER I MANUALLEN

KJENN PRODUKTET DITT

Se side 140.

SYMBOLER PÅ PRODUKTET

SYMBOLER I DENNE MANUALLEN

ETTEVALMISTUSTOIMINGUD

OBOZNÁMTE SA S VAŠÍM PRODUKTOM

Pozrite stranu 140.

Technical line drawing of a snowman with visible frame, blade, and wheel assembly (no text or labels)

x 1

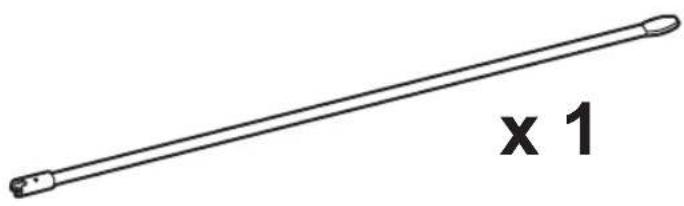

Simple line drawing of a long rod with a flanged end, labeled 'x 1' (no other text or symbols)

Simple line drawing of a tool or device with a curved handle and a protruding rod (no text or symbols)

x 1

x 1

x 1

Line drawing of a rectangular electronic device with a coiled cable extending from its side (no text or symbols)

x 1

Line drawing of a cylindrical electronic device with mounting holes and internal compartments (no text or symbols)

x 1

RST36B51

Technical line drawing of a snowman with visible frame, blade, and wheel (no text or labels)

x 1

Simple line drawing of a rod with a flanged end and a label 'x 1' (no other text or symbols)

x 1

x 1

x 1

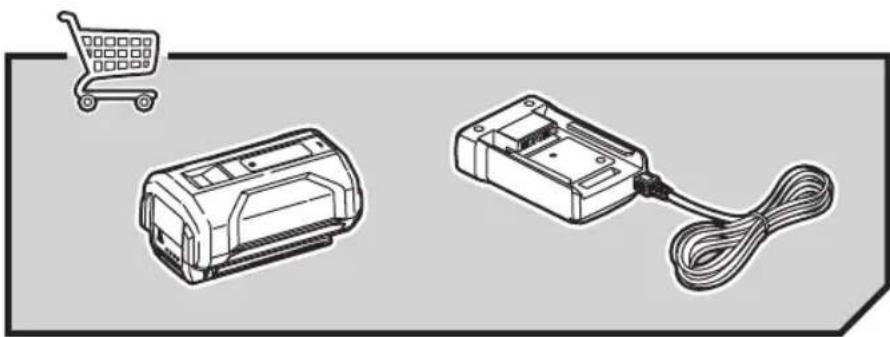

Illustration of a shopping cart and two electronic devices with cables (no text or symbols)

Technical diagram of a lawn mower with numbered parts labeled for identification.

12 11 10

Line drawing of a device with labeled part '9' (no text or symbols on the object itself)

Technical line drawing of a device with a coiled cable and labeled part 8 (no text or symbols beyond label)

1 × ✓

2

Illustration of a person using a lawn mower with a curved arrow indicating rotational motion (no text or symbols)

4

5

6

7

8

Mechanical assembly diagram showing a bucket with a lever and a cart (no text or symbols visible)

10 ① ② ③ ④ ⑤ + A / B

Illustration of a person operating a vehicle with sensors and a head-mounted sensor (no text or symbols visible)

Illustration of a manual lawn saw cutting down soil, no text or symbols present

Safety warning illustration showing a person standing on a dog receiving a water spray from a small utility pole, with warning symbols and an 'X' symbol.

Diagram of a manual lawn mower with gear shift, showing mechanical components and motion direction (no text or symbols)

Diagram of a lawn mower with a magnified inset showing the blade and wheel (no text or symbols)

Diagram illustrating a car steering wheel and its impact on vehicle dispersion, with labeled parts and directional arrows.

1 A B + A / B

Illustration of a lawn mower in operation with motion arrows indicating blade motion (no text or symbols)

Technical line drawing of a mechanical assembly with directional arrows indicating motion or force (no text or symbols)

Diagram illustrating car seatbelt assembly steps with numbered instructions and component illustrations

Diagram illustrating a hand operating a car interior with warning symbols and a cross symbol indicating failure or failure.

Diagram of a vehicle's internal components showing wheel, dashboard, and gear shift (no text or labels)

Technical line drawing of a vehicle chassis with a wheel and gear, showing internal components and motion arrows (no text or symbols)

Line drawing of a lawn mower with visible frame and wheel (no text or symbols)

Diagram illustrating car seatbelt assembly steps with numbered instructions and component illustrations

Illustration of a lawn mower with a person operating it, no text or symbols present

Illustration of a hairless electric shower machine spraying water onto a motor, with no text or symbols present.

Silhouette of a front-end excavator moving through a doorway with an arrow indicating motion (no text or symbols)

Diagram illustrating car seatbelt assembly steps with numbered instructions and component illustrations

Illustration of a lawn mower with a person operating it, no text or symbols present

Diagram showing a bicycle seat assembly with labeled parts and a magnified inset highlighting three different components.

4 ② ①

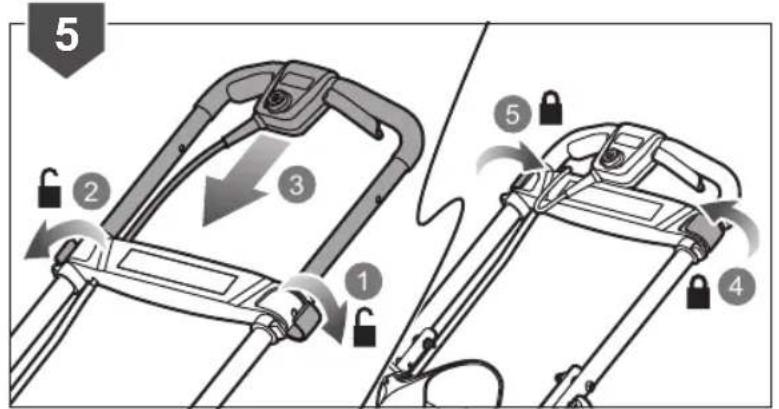

5 2 3 1 5 4

6 1 2 3 4

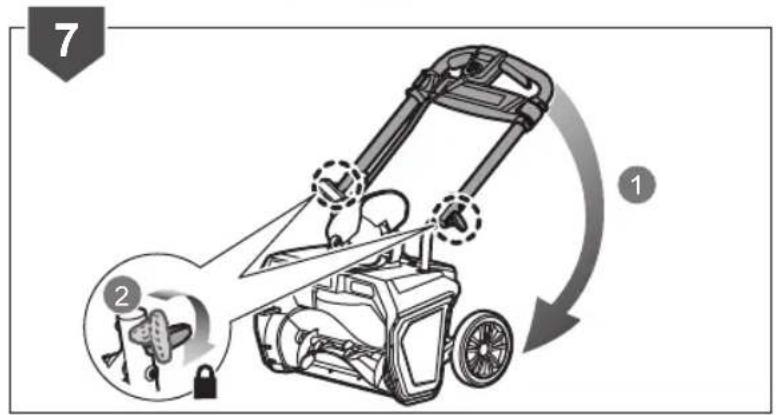

7 1 2

8

English Français Deutsch Español Italiano
Product specifications Caractéristiques produit Produkt	Spezifikationen Características del producto			Caratteristiche del prodotto
Cordless Snow Thrower	Souffleuse à neige sans fil	Akku-Schneefräse	Quitanieves inalámbrico	Spazzaneve a batteria
Model	Modèle	Modell	Modelo	Modello
Rated voltage	Tension nominale	Nennspannung	Tensión nominal	Voltaggio nominale
Clearing width	Largeur de déblayage	Räumbreite	Ancho de la limpieza	Ampiezza di pulizia
Clearing depth	Profondeur de déblayage	Räumtiefe	Profundidad de la limpieza	Profondità di pulizia
Impeller size	Taille de la turbine	Impellergröße	Tamaño del impulsor	Dimensione ventola
Wheel size	Dimension de roue	Radgröße	Tamaño de las ruedas	Dimensione ruota
Throwing distance	Distance d'évacuation	auswurfweite	Distancia de lanzamiento	Distanza di lancio
No-load speed for impeller	Vitesse à vide de la turbine	Geschwindigkeit des Antriebs ohne Last	Velocidad sin carga del impulsor	Velocità della girante senza carico
Weight (without battery)	Poids (sans batterie)	Gewicht (ohne Akku)	Peso (sin la batería)	Peso (senza batterie)
Vibration level	Niveau de vibration	Vibrationsgrad	Nivel de vibración	Livello di vibrazioni
Declared vibration value Valeur déclarée des vibrations		Angegebener Vibrationswert	Valor de vibración declarado	Valore dichiarato vibrazioni
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza delle misurazioni
Noise emission level	Niveau d'émission sonore	Geräuschemission	Nivel de emisión de ruido	Livello di emissione rumori
A-Weighted sound pressure level at operator's position	Niveau de pression sonore pondéré A au niveau de l'opérateur	A-bewerteter Schalldruckpegel an der Position des Anwenders	Nivel de presión sonora ponderado A en la posición del operario	Livello di pressione sonora ponderata A alla posizione dell'operatore
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza delle misurazioni
A-Weighted sound power level	Niveau de puissance sonore pondéré-A	A-bewerteter Schallleistungspegel	Nivel de potencia acústica ponderada en A	Livello di potenza sonora pesato A
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza delle misurazioni
L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA

English Français Deutsch Español Italiano
Battery and charger	Batterie et chargeur	Akku und Ladegerät	Batería y cargador	Batteria e caricatore
Model	Modèle	Modell	Modelo	Modello
Battery pack	Bloc de batterie	Akku	Batería	Batteria
Weight	Poids	Gewicht	Peso	Peso
Charger	Chargeur	Ladegerät	Cargador	Caricatore
Compatible battery packs	Packs batterie compatibles	Kompatible Akkus	Paquetes de batería compatibles	Gruppo batterie compatibili
Compatible charger	Chargeur compatible	Kompatibles Ladegerät	Cargador compatible	Caricatore compatibile

Nederlands Português Dansk Svenska
Productgegevens Características do aparelho		Produktspecifikationer Produktspecifikationer
Snoerloze sneeuwruimer Atirador de neve sem fios Battericrevet snekaster Sladdlös snöslunga
Model	Modelo	Model	Modell	RST36X5140/RST36B51
Toegekende spanning	Tensão nominal	Mærkespænding	Spänning	36 V d.c.
Ruimbreedte	Comprimento da limpeza	Rydningsbredde	Rensningsbredd	51 cm
Ruimdiepte	Profundidade da limpeza	Rydningsdybde	Rensningsdjup	250 mm
Schoepafmetingen	Tamanho do impulsor	Skovlhjulsstørrelse	Bladstorlek	400 mm
Wielafmetingen	Tamanho das rodas	Hjulstørrelse	Hjulstorlek	206 mm
Goolafstand	Distância de lançamento	Udslyngningsafstand	Utkastlängd	≤ 7,62 m
Snelheid zonder lading voor waaier	Velocidade sem carga para a hélice	Ubelastet hastighed for skovlhjul	Ingen lasthastighet för impeller	2400 min^3
Gewicht (zonder batterij)	Peso (sem a bateria)	Vægt (uden batteri)	Vikt (utan batteri)	16,9 kg
Trillingsniveau	Nível de vibração	Vibrationsniveau	Vibrationsnivå
Aangegeven trillingswaarde	Valor de vibração declarado	Deklareret vibrationsværdi	Deklarerat vibrationsvärde	0,3 m/s^2
Onzekerheid bij meting	Incerteza de medições	Målingsusikkerhed	Osäkerhet för mätt	1,5 m/s^2
Niveau geluidsemissie	Nível de emissão de ruído	Støjemissionsniveau	Bullernivå
A-gewogen geluidsdrukniveau bij positie van gebruiker	Nível de pressão sonora ponderada A na posição do operador	A-vægtet lydtryksniveau ved operatørens position	A-viktad ljudtrycksnivå vid operatörens plats	70 dB(A)
Onzekerheid bij meting	Incerteza de medições	Målingsusikkerhed	Osäkerhet för mätt	3,0 dB
A-gewogen geluidsniveau Nivel de potência sonora ponderada A		A-vægtet lydeffektniveau	A-vägd ljudeffektsnivå 84 dB(A)
Onzekerheid bij meting	Incerteza de medições	Målingsusikkerhed	Osäkerhet för mätt	2,2 dB
L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	86 dB (A)

Nederlands Português Dansk Svenska
Accu en oplader	Bateria e carregador	Batteri og oplader	Batteri och batteriladdare
Model	Modelo	Model	Modell	RST36X5140	RST36B51
Accu	Bateria	Batteri	Batteri	BPL3640D	-
Peso	Peso	Vikt	Vægt	1,4 kg	-
Lader	Carregador	Oplader	Batteriladdare	RY36C17A	-
Compatibele accupacks	Baterias compatíveis	Kompatible batterier	Kompatibla batteripaket	BPL3615, BPL3626, BPL3640, BPL3640D, BPL3650D, BPL3626D2, BPL3640D2, BPL3650D2
Compatibele oplader	Carregador compatível	Kompatibel oplader	Kompatibel laddare	RY36C17A, BCL3620S, BCL3620

Suomi Norsk Русский Polski Čeština
Tuotteen tekniset tiedot Produktspesifikasjoner Характеристики изделия Parametry techniczne Technické údaje produktu
Akkukäyttöinen lumilinko Trädlos snøfreser Беспроводной		снегоуборщик	Odśnieżarka bezprzewodowa	Akumulátorová sněhová fréza
Malli	Modell	Модель	Model	Model
Nimellisjännite	Nominell spenning	Номинальное напряжение	Napięcie znamionowe	Jmenovité napětí
Poistoleveys	Ryddebredde:	Ширина очистки	Szerokość czyszczenia	Šířka záběru
Poistosyvyys	Ryddedybde:	Глубина очистки	Głębokość czyszczenia	Hloubka záběru
Slipipyörän koko	Skovlehjuldimensjon	Размер лопастного механизма	Rozmiar wirnika	Velikost oběžného kola
Pyörän koko	Hjulstørrelse:	Размер колеса	Rozmiar koła	Velikost kola
Heittoetäisyys	Utkastavstand	Расстояние выброса	Odległość odrzutu	Vzdálenost odhozu
Roottorin joutokäyntinopeus	Tomgangshastighet for løpehjul	Скорость вращения винта без нагрузки	Prędkość wimika bez obciążenia	Volnoběžné otáčky
Paino (ilman akkua)	Vekt (uten batteri)	Вес (без батарей)	Masa (bez akumulatora)	Hmotnost (bez baterie)
Tärinätaso	Vibrasjonsnivå	Уровень вибрации	Poziom drgań	Úroveň vibrací
Ilmoitettu tärinäarvo	Erklært vibrasjonsverdi	Заявленное значение вибрации	Deklarowana wartość wibracji	Deklarovaná hodnota vibrací
Mittausten epätarkkuus	Usikkerhet ved måling	Погрешность измерения	Niepewność pomiaru	Nejistota měření
Melutaso	Støyemisjonsnivå	Уровень шума	Poziom emisji hałasu	Hladina emise hluku
A-painotettu käyttäjään kohdistuva äänenpainetaso	Støynivávekting ved operatørens posisjon	Амплитудно-взвешенный уровень звукового давления в рабочем месте оператора	Poziom ciśnienia akustycznego w pozycji operatora	Hladina akustického tlaku vážená funkcí A v poloze obsluhy
Mittausten epätarkkuus	Usikkerhet ved måling	Погрешность измерения	Niepewność pomiaru	Nejistota měření
A-painotettu äänenteho	A-vektet lydeffektnivå	Уровень А-взвешенной звуковой мощности	A-ważony poziom mocy akustycznej	Hladina akustického výkonu vážená funkcí A
Mittausten epätarkkuus	Usikkerhet ved måling	Погрешность измерения	Niepewność pomiaru	Nejistota měření
L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA

Suomi	Norsk	Русский	Polski	Čeština
Akku ja laturi	Batteri og lader	Аккумуляторная батарея и зарядное устройство	Akumulator i ładowarka	Nabiječka a baterie
Malli	Modell	Модель	Model	Model
Akku	Batteri	Аккумулятор	Akumulator	Baterie
Vekt	Paino	Вес	Greutate	Waga
Laturi	Lader	Зарядное устройство	Ładowarka	Nabiječka
Yhteensopivat akut	Kompatible batteripakker Совместимая аккумуляторная батарея		Pasujące akumulatory	Kompatibilní akumulátory
Yhteensopiva laturi	Kompatibel lader	Совместимое зарядное устройство	Odpowiednia ładowarka Kompatibilní nabiječka
Magyar Română Latviski Lietuviškai
Termék müszaki adatai Specificațiile produsului Produkta specifikacijas Gaminio techninės savybės
Vezetėk nélküli hokotró	Freză de zāpadă fārā cablu	Akumulatoru sniega pūtējs	Akumuliatorinis sniego valytuvas
Típus	Model	Modelis	Modelis	RST36X5140/RST36B51
Névleges feszültség	Tensiunea nominală	Nominălais spriegums	Nominali įtampa	36 V d.c.
Eltakarítási szélesség	Lāțime curățare	Tīrīšanas platums	Valymo plotis	51 cm
Eltakarítási mélység	Adâncime curățare	Tīrīšanas dzilums	Valymo gylis	250 mm
Propeller mérete	Mărime rotor	Rata izmērs	Sparnuotės dydis	400 mm
Kerékméret	Mărime roată	Riteņa izmērs	Ratta mõõt	206 mm
Kidobási távolság	Distanță de aruncare	Pūšanas attālums	Sviedimo atstumas	≤ 7,62 m
Járókerék üresjáratisebessége	Viteza rotorului la mersulin īn gol	Gliemeža ātrums bezslodzes	Rotoriaus sukimosi greitisbe apkrovos	2400 min^1
Tömeg (akkumulátor nélkül)	Greutate (fārā acumulator)	Svars (bez baterijas)	Svoris (be akumuliatorinėsbaterijos)	16,9 kg
Vibrácioszint	Nivelul vibrațiilor	Vibrácijas līmenis	Vibracijos lygis
Deklarált vibráció érték	Valoare declaratā avibrației	Deklarētā vibrācijasvērtība	Deklaruojama vibracijosvertė	0,3 m/s^2
Mérės bizonytalansága	Nesiguranța māsurătorii	Mērījuma nenoteiklība	Matavimo paklaida	1,5 m/s^2
Zajkibocsátási szint	Nivel emisie zgomot	Trokšņa emisijas līmenis	Triukšmo emisiju norma
A-súlyozotthangnyomásszint a kezelőhelyén	Nivel presiune sunetgreulate A la poziljaoperatorului	Lietotāja pozīcijā ir ar Anovērtēts skaņas spiedienalīmenis	A svorinis triukšmo slėgloygis operatoriaus padėtyje	70 dB(A)
Mérės bizonytalansága	Nesiguranța māsurătorii	Mērījuma nenoteiktība	Matavimo paklaida	3,0 dB
A-súlyozotthangteljesítményszint	Nivel de putere acusticăponderatā A	A-līmeņa skaņas jaudaslīmenis	A-svertinis akustinis lygis	84 dB(A)
Mérės bizonytalansága	Nesiguranța māsurătorii	Mērījuma nenoteiktība	Matavimo paklaida	2,2 dB
L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	86 dB (A)

Magyar Română Latviski Lietuviškai
Akkumulátor és töltö	Bateria și încărcătorul	Akumulators un lădëtãjs	Akumuliatorius ir jkroviklis
Típus	Model	Modelis	Modelis	RST36X5140	RST36B51
Akkumulátor	Acumulator	Akumulators	Baterija	BPL3640D	-
Bec	Tömeg	Teža	Težina	1,4 kg	-
Töltö	Încărcător	Lădëtãjs	Įkroviklis	RY36C17A	-
Kompatibilis akkumulátorok	Acumulatori compatibili Savietojami akumulatoru komplekti		Suderinami baterijos paketai	BPL3615, BPL3626, BPL3640, BPL3640D, BPL3650D, BPL3626D2, BPL3640D2, BPL3650D2
Kompatibilis töltö	Încărcător compatibil	Saderīgs lădëtãjs	Tinkamas įkroviklis	RY36C17A, BCL3620S, BCL3620

The declared vibration value has been measured with a standard test method and may be used to compare one tool with another.

The declared vibration value may be used in a preliminary assessment of exposure.

The vibration emission during actual use of power tool can differ from the declared total value depending on the ways in which the tool is used.

Identify safety measures to protect yourself based on an estimation of exposure in the actual conditions of use, taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date when the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.

2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.

3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:

–any damage to the product that is the result of improper or lack of maintenance

—any product that has been altered or modified

– any product where original identification (trade mark, serial number) markings have been defaced, altered or removed

—any damage caused by non-observance of the instruction manual

—any product not displaying the CE approval mark on the rating plate

–any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries

– any product connected to improper power supply (amps, voltage, frequency)

– any product used with inappropriate fuel mixture (fuel, oil, ratio of oil/ fuel mixture)

– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances

—normal wear and tear spare parts

-inappropriate use, overloading of the tool

-use of non-approved accessories or parts

—Accessories provided with the tool or purchased separately including but not limited to blades, saw chains, cutting lines, etc.

—Any periodic adjustments to or maintenance cleaning of carburettors

- Components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive belts, clutch, blades of hedge trimmers or lawnmowers, harness, cable throttle, carbon brushes, power cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.

1. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.

2. A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.

3. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey and Russia. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

To find an authorised service centre near you, visit http://uk.ryobitools.eu/header/service-and-support/service-agents.

FR RYOBI® CONDITIONS D'APPLICATION DE LA GARANTIE

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Herewith we declare that the product

Cordless Snow Thrower

Brand: RYOBI

Model number: RST36X5140/RST36B51

Serial number range:

RST36X5140 47549701000001-47549701999999

RST36B51 47549701000001 - 47549701999999

is in conformity with the following European Directives and harmonised standards 2006/42/EC, 2014/30/EU, 2000/14/EC, 2005/88/EC, 2011/65/EU,

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019,

ISO 8437:1989+A1:1997, EN 55014-1:2017, EN 55014-2:015,

EN IEC 63000:2018

Measured sound power level: 84 dB(A)

Guaranteed sound power level: 86 dB(A)

Conformity assessment method to Annex V Directive 2000/14/EC amended by 2005/88/EC.

C€

Todd Chipner

Sr. Director, CPT Quality and Asia Regulatory & Safety

Winnenden, July 31, 2020

Authorised to compile the technical file:

Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DÉCLARATION DE CONFORMITÉ

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

CONFORMITEITSVERKLARING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

OVERENSSTEMMELSESERKLÆRING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Vi erklærer hermed, at produktet

Batteridrevet snekaster

Brand: RYOBI

Modelnummer: RST36X5140/RST36B51

Serienummeromráde:

RST36X5140 47549701000001 - 47549701999999

RST36B51 47549701000001 - 47549701999999

Hr. Direktor, CPT Quality and Asia Regulatory & Safety

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

KONFORMITETSDEKLARATION

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SAMSVARSERKLÆRING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SÄÄNNÖSTEN NOUDATTAMINEN

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DEKLARACJA ZGODNOŚCI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

MEGFELELŐSÉGI NYILATKOZAT

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

PROHLÁŠENÍ O SHODĚ

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATIE DE CONFORMITATE

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, July 31, 2020

Alexander Krug, Director General

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

ATBILSTĪBAS DEKLARĀCIJA

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Modela numurs: RST36X5140/RST36B51

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

VASTAVUSDEKLARATSIOON

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Kinnitame, et see toode

Juhtmeta lumepuhur

Mark: RYOBI

Mudeli number: RST36X5140/RST36B51

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

ATITIKTIES DEKLARACIJA

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

IZJAVA O USKLAĐENOSTI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

IZJAVA O SKLADNOSTI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

PREHLÁSENIE O ZHODE

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

UYGUNLUK BEYANI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, July 31, 2020

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EN RYOBI is a trade mark of Ryobi Limited, and is used under license.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

HR RYOBI je žig tvrtke Ryobi Limited i koristi se po licenci.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

© 2018-20 Techtronic Cordless GP.

RYOBI®

Techtronic Industries GmbH

Max-Eyth-Straße 10,

71364 Winnenden, Germany
