USER MANUAL One+ RY18ST25A RYOBI

Close-up of a textured surface with diagonal striped patterns and a vertical white line on the left (no text or symbols)

Close-up of a RYOB1 electric shaver with a 25cm diameter indicator (no text or symbols on the device itself)

Close-up of a black mechanical component with a hexagonal cutout and bolt holes, against a white textured background (no visible text or symbols)

EN FR DE ES IT NL PT DA SV FI NO RU PL CS HU RO LV LT ET HR SL SK BG UK TR EL

RY18ST25A

Important!	It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product.
Attention!	Il est essentiel que vous lisiez les instructions contenues dans ce manuel avant d'assembler, d'entretenir et d'utiliser le produit.
Achtung!	Es ist wichtig, dass Sie vor Zusammenbau, Wartung und Benutzung des Produktes die Anweisungen in dieser Anleitung lesen.
¡Atención!	Resulta fundamental que lea este manual de instrucciones antes de realizar el montaje, el mantenimiento y de utilizar este producto
Attenzione!	E’ importante leggere le istruzioni contenute nel presente manuale prima di montare il prodotto, svolgere le operazioni di manutenzione sullo stesso e metterlo in funzione.
Let op!	Het is van essentieel belang dat u de instructies in deze gebruiksaanwijzing leest voor u het product monteert, onderhoudt en gebruikt.
Atenção!	É fundamental que leia as instruções deste manual antes da montagem, manutenção e operação do aparelho.
OBS!	Det er vigtigt, at man læser instrukserne i denne brugsanvisning, inden man samler, vedligeholder og betjener produktet.
Observera!	Det är viktigt att du läser instruktionerna i manualen före montering, användning och underhåll av produkten.
Huomio!	On tärkeää, että luet tämän käsikirjan ohjeet ennen tuotteen kokoamista, huoltoa ja käyttöä.
Advarsel!	Det er viktig at du leser instruksjonene i denne manualen før sammensetning, vedlikehold og bruk av produktet
Внимание!	Необходимо прочитать инструкции в данном руководстве перед сборкой, обслуживанием и эксплуатацией этого изделия.
Uwaga!	Koniecznie należy przeczytać instrukcje zawarte w tym podręczniku przed montażem, obsługą oraz konserwacją produktu.
Dûležité upozornění!	Neinstalujte, neprovádějte údržbu ani nepoužívejte tento výrobek dříve, než si přečtete pokyny uvedené v tomto návodu.
Figyelem!	Fontos, hogy a termék összeszerelése, karbantartása és használata előtt elolvassa a kézikönyvben található utasításokat.
Atenție!	Este esențial să citiți instrucțiunile din acest manual înainte de asamblare, efectuarea întreținerii și operaarea produsului.
Uzmanību!	Ir svarīgi izlasīt šīs rokasgrāmatas instrukcijas pirms uzstādīšanas, apkopes un preces darbināšanas.
Dèmesio!	Prieš surenkant, prižiūrint ir naudojant gaminj, būtina perskaityti šiame vadove pateiktus nurodymus.
Tähtis!	Enne masina kokkupanekut, hooldamist ja kasutama hakkamist tuleb käesolevas juhendis esitatud juhised kindlasti läbi lugeda.
Upozorenje!	Vrlo je važno da ste prije sklapanja, održavanja i rada s ovim proizvodom pročitali upute u ovom priručniku.
Pomembno!	Pomembno je da pred montažo vzdrževanjem in uporabo tega izdelka preberete navodila v tem priročniku.
Upzornenie!	Je dôležité, aby ste si pred montážou, údržbou a obsluhou produktu prečitali pokyny v tomto návode.
Важно!	Изключително важно е да прочетете инструкциите в настоящото ръководство, преди да преминете към сглобяване, поддръжка или работа с продукта.
Важливо!	Дуже важливо, щоб ви прочитали інструкції в цьому керівництві перед складанням, обслуговуванням та експлуатацією цієї машини.
Önemli!	Ürünü monte etmeden, kullanmadan ve bakımlı yapmadan önce bu kılavuzdaki talimatları okumanız önemlidir.
Прогохή!	Еівαι полú σημαντικό να διαβάσετε τις οδηγίες στο παρόν εγχειρίδιο πριν συναρμολογήσετε, συντηρήσετε ή λειτουργήσετε το προϊόν.

Subject to technical modification | Sous réserve de modifications techniques | Technische Änderungen vorbehalten | Bajo reserva de modificaciones técnicas | Con riserva di eventuali modifiche tecniche | Technische wijzigingen voorbehouden | Com reserva de modificações técnicas | Med forbehold for tekniske ændringer | Med förbehåll för tekniska ändringar | Tekniset muutokset varataan | Med forbehold om tekniske endringer | могут быть внесены технические изменения | Z zastrzeżeniem modyfikacji technicznych | Změny technických údajů vyhrazeny | A můszaki módosítás jogát fenntartjuk | Sub rezerva modificațiilor tehnice | Paturam tiesības mainīt tehniskos raksturlielumus | Pasiliekant teisę daryti techninius pakeitimus | Tehnilised muudatused võimalikud | Podloæno tehniëkim promjenama | Tehnične spremembe dopuščene | Právo na technické zmeny je vyhradené | Подлежи на технически модификации | Є ob’єктом для технічних змін | Teknik değişikliğe tabidir | техvíków тротпотоїнσεων.

EN ORIGINAL INSTRUCTIONS

Safety, performance, and dependability have been given top priority in the design of your cordless snow shovel.

INTENDED USE

The cordless snow shovel is intended only for outdoor use, in a well-illuminated area by a standing operator walking behind the product. The product is intended to be used only by adults who have read and understood the instructions and warnings in this manual and can be considered responsible for their actions. For safety reasons, the product must be adequately controlled by a two-handed operation at all times. The product is designed for home or domestic use.

The product is designed for clearing snow in areas, such as driveways, sidewalks, walkways, pathways, and around houses. Use the product in areas only with solid and level ground, such as concrete, granite, or asphalt paving. The product can move snow with a depth of up to 15 cm.

The product should be used only as described in this manual.

Do not use the product for any other purpose.

GENERAL PRODUCT SAFETY WARNINGS

⚠ WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re, and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) product or battery-operated (cordless) product.

WORK AREA SAFETY

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

■ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

- Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

■ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

PERSONAL SAFETY

■ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

■ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

■ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

- Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

■ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

- Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with switch is dangerous and must be repaired.
  ■ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

■ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
■ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
- Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
- Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
- Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
■ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

SERVICE

■ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

■ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SNOW SHOVEL SAFETY WARNINGS

TRAINING

• Read, understand, and follow all instructions on the product and in this manual before operating the product. Be thoroughly familiar with the controls and the proper use of the product. Know how to turn off the product and quickly disengage the controls.
  ■ Never allow children or people with reduced physical, sensory, or mental capabilities, or people who are unfamiliar with these instructions, to operate, clean, or maintain the product. Local regulations may restrict the age of the operator. Children should be adequately supervised to ensure that they do not play with the product.
• Keep bystanders, children, and pets 15 m away from the area of operation. Turn off the product if anyone enters the area.
  ■ Exercise caution to avoid slipping or falling, especially when operating the product in reverse.
  ■ Never attempt to make any adjustments while the product is running.
  ■ The product is capable of amputating hands and feet, and throwing objects. Failure to observe all safety instructions could result in serious injury.
• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

PREPARATION

■ Thoroughly inspect the area where the product is to be used, and remove all doormats, sleds, boards, wires, and other foreign objects.
■ While operating the product, always wear adequate winter garments and non-skid safety footwear. Avoid wearing clothing that is loose-fitting or that has hanging cords or ties; they can be caught in moving parts.
- Secure long hair so that it is above shoulder level to prevent entanglement in moving parts.
■ Always wear safety glasses or eye shields during operation or while performing an adjustment or repair to protect eyes from foreign objects that may be thrown from the product.
■ Before each use, ensure that all controls and safety devices function correctly. Do not use the product if the off switch does not turn off the product.
■ Before each use, always check that the housing is undamaged and that guards and handles are in place and properly secured.

OPERATION

■ Do not use the product when there is a risk of lightning.
- Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times. Do not put any objects into openings.

■ Exercise extreme caution when operating on or crossing gravel drives or walks. Stay alert for hidden hazards or when operating near public roads.

■ To reduce the risk of injury associated with contacting moving parts, always turn off the product and remove the battery pack. Make sure that all moving parts have come to a complete stop:

• after striking a foreign object to inspect the product for damage

• before cleaning or clearing a blockage

• before leaving the product unattended

- before checking, conducting maintenance, or working on the product

- if the product starts to vibrate abnormally (check immediately). Vibration is generally a warning of trouble.

■ Use the product across the face of slopes, never up and down. Exercise extreme caution when changing direction on slopes. Do not attempt to clear steep slopes.

■ Never operate the product without proper guards, plates, or other safety protective devices in place.

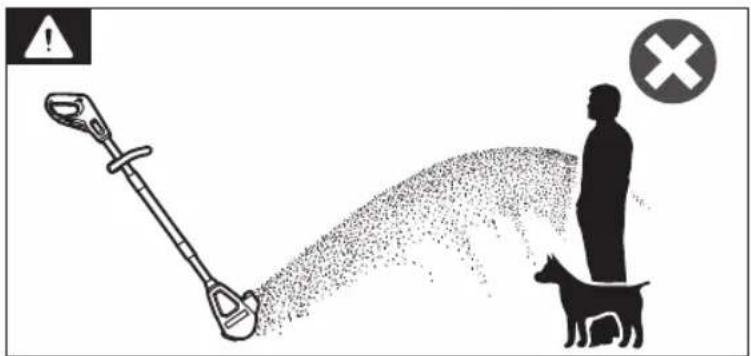

■ Never direct the discharge towards people or areas where property damage can occur. Keep children and pets away.

■ Do not overload the product capacity by attempting to clear snow at too fast a rate.

■ Never operate the product at high transport speeds on slippery surfaces. Look behind and use care when operating the product in reverse.

■ Disengage power to the collector or impeller when the product is transported or not in use.

■ Never operate the product without good visibility or light. Always be sure of your footing, and keep a firm hold on the handles. Walk; never run.

■ Never place the product on any surface, except on a hard and clean surface, when the motor is running. Gravel, sand, and other debris can be picked up by the air inlet and thrown at the operator or bystanders, causing possible serious injuries.

■ Never operate the product near glass enclosures, automobiles, windows, or doorways without proper adjustment of the snow discharge angle.

If the product is dropped, suffers heavy impact, or begins to vibrate abnormally, immediately turn off the product and inspect for damage or identify the cause of the vibration. Any damage should be properly repaired or replaced by an authorised service centre.

The product can be operated and stored at temperatures between -20 °C and 20 °C, as long as the battery pack temperature is kept above 0 °C. Do not store the battery pack below 0 °C. Below freezing temperatures can reduce the performance and capacity of the battery pack. If the battery pack is stored just above 0 °C, run the product for at least 2 minutes in order to warm up the battery pack before starting normal work. After the job is done or the battery pack is drained, remove the battery pack from the product and store it in a location where the ambient temperature is between 0 °C to 20 °C.

■ Store the product in a location where the ambient temperature is between 0°C and 40°C.

■ Some parts of the product can freeze under extreme weather conditions. Do not operate the product with frozen parts.

■ Before storing, allow the product to run for several minutes after operation to remove snow from the auger.

ADDITIONAL BATTERY SAFETY WARNINGS

■ To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse the product, battery pack, or charger in fluid or allow fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.

- Charge the battery pack in a location where the ambient temperature is between 10 °C and 38 °C.

■ Store the battery pack in a location where the ambient temperature is between 0 °C and 20 °C.

OPERATION TIPS

■ The product does not operate if the safety trigger is not released. There is 1 safety trigger to help prevent accidental starting.

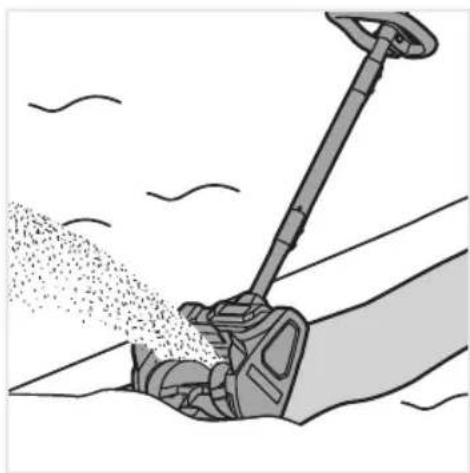

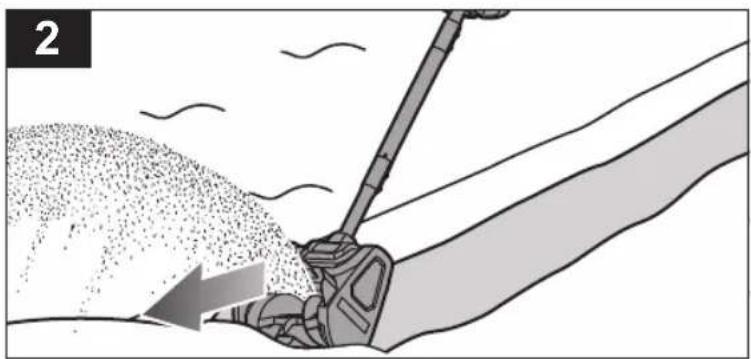

Take note of the direction of the wind before operating the product. Discharge snow in the same direction as the wind to prevent snow from being thrown back to the operator.

There is a resettable fuse in the motor that protects the product from overloading. When there is an overload, the product turns off. Wait for 3 minutes to let the product recover. Avoid overloading the product.

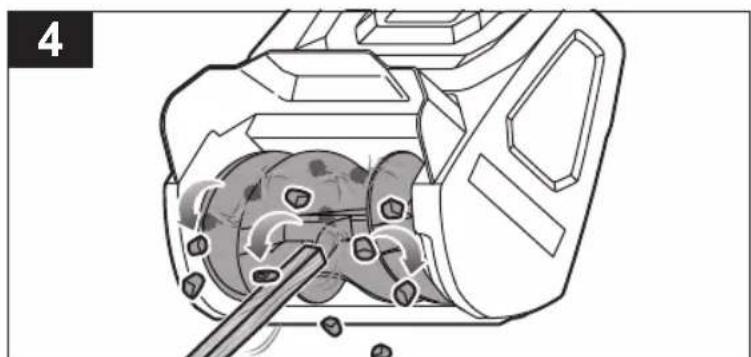

CLEARING A BLOCKAGE

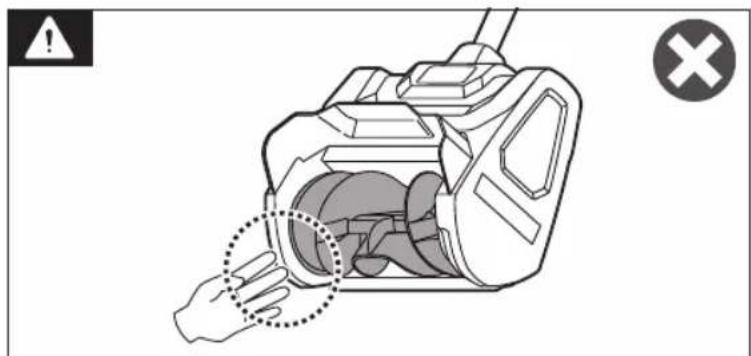

Never put hands or feet into the front of the product or the discharge chute to avoid serious injuries. Do not use hands to clean the discharge chute.

1. Turn off the product, and remove the battery pack. Make sure that all moving parts have come to a complete stop.

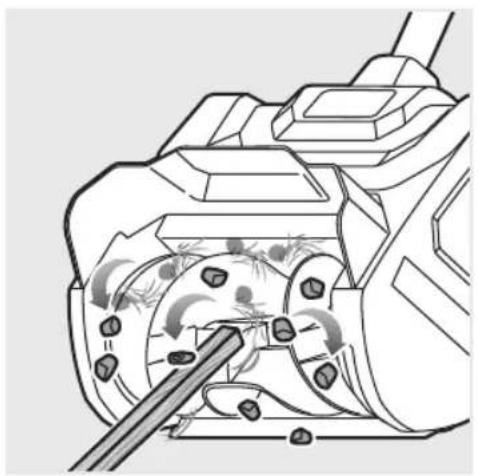

2. Remove the blockage using a wooden pole. Beware, the impeller may move by itself during blockage removal due to stored energy in the mechanism.

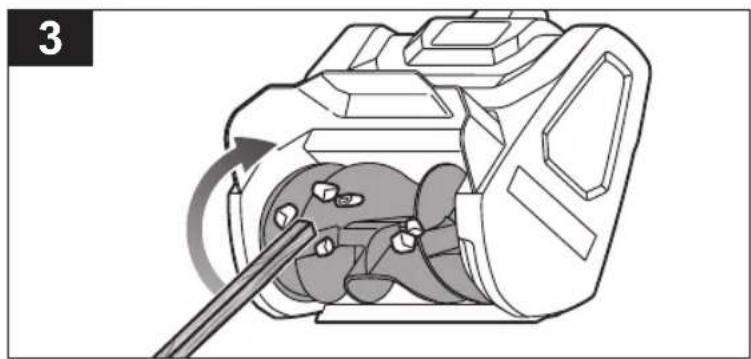

3. Turn the impeller assembly using the wooden pole.

4. Once the impeller can be turned by the wooden pole, move to the rear of the product. It is normal for the impeller mechanism to have stepped movement. Make sure that it is safe to continue snow clearing.

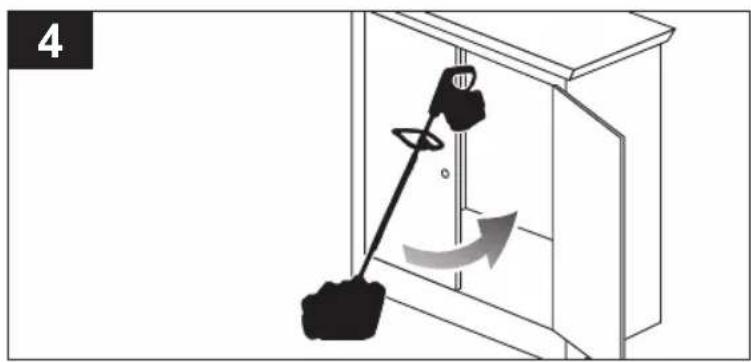

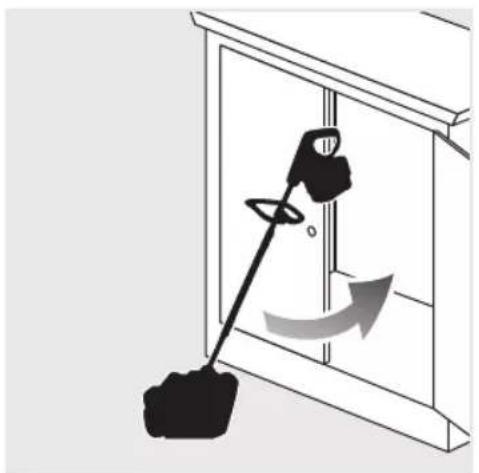

TRANSPORTATION AND STORAGE

■ Turn off the product, remove the battery pack, and allow the product to cool down before storing or transporting.

■ Always refer to the operator's manual for important details if the product is to be stored for an extended period.

■ Remove all foreign materials from the product. Store the product in a cool, dry, and well-ventilated area that is inaccessible to children. Keep the product away from corrosive agents, such as garden chemicals and deicing salts. Do not store the product outdoors.

■ For transportation, secure the product against movement or falling to prevent injury to persons or damage to the product.

TRANSPORTING LITHIUM BATTERIES

Transport the battery in accordance with local and national provisions and regulations.

Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice.

MAINTENANCE

• Use only original manufacturer's replacement parts, accessories, and attachments. Failure to do so can cause possible injury, can contribute to poor performance, and may void your warranty.
  ■ Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. Have the product serviced by an authorised service centre only.
  ■ Turn off the product, and remove the battery pack. Make sure that all moving parts have come to a complete stop before any cleaning or maintenance task.
• Check all nuts, bolts, and screws at frequent intervals for proper tightness to ensure that the product is in safe working condition. Any part that is damaged should be properly repaired or replaced by an authorised service centre.

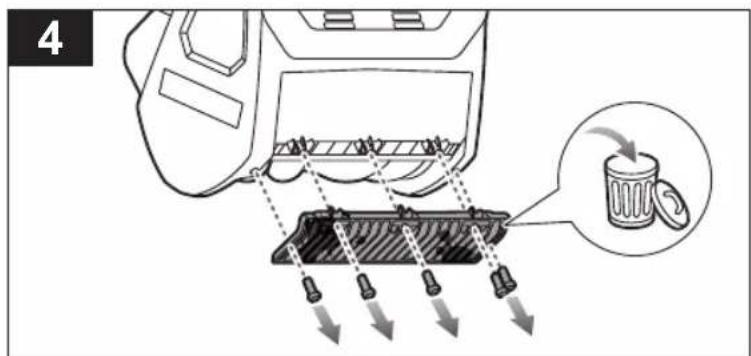

  ■ Bring the product to an authorised service centre to replace damaged or unreadable labels.
  ■ Run the product a few times after throwing snow to prevent freeze-up of the impeller.
  ■ You may make adjustments and repairs described in this manual. For other repairs, have the product serviced by an authorised service centre only.

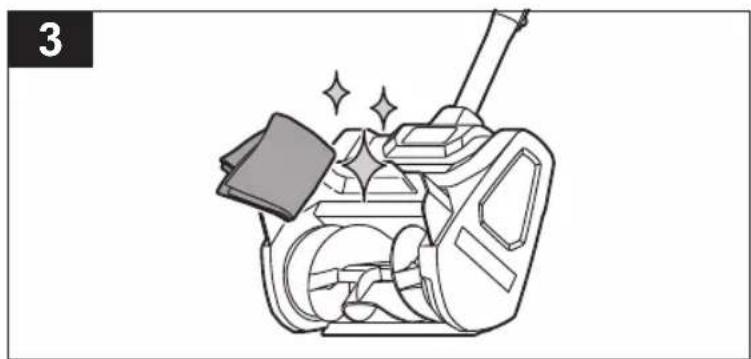

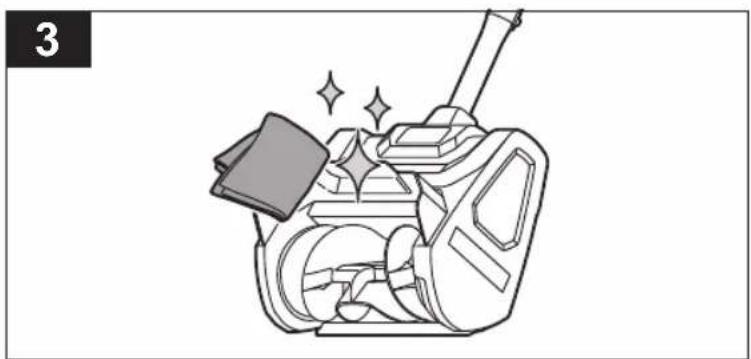

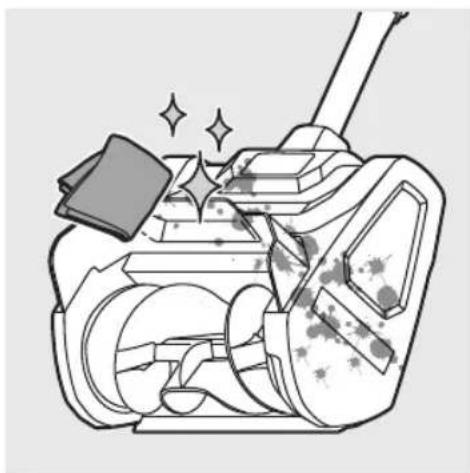

  ■ After each use, clean the plastic parts with a soft, dry cloth.

KNOW YOUR PRODUCT

See page 115.

1. Upper shaft
2. Battery compartment
3. Lock-out trigger
4. Rear handle
5. Trigger
6. Battery port
7. Front handle
8. Wing nut
9. Middle shaft
10. Operator's manual
11. Lower shaft
12. Discharge chute

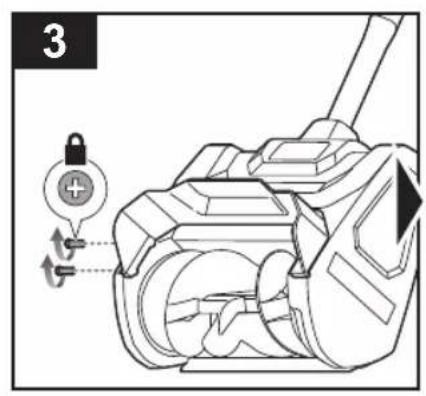

13. Screw
14. M5 screw
15. Impeller

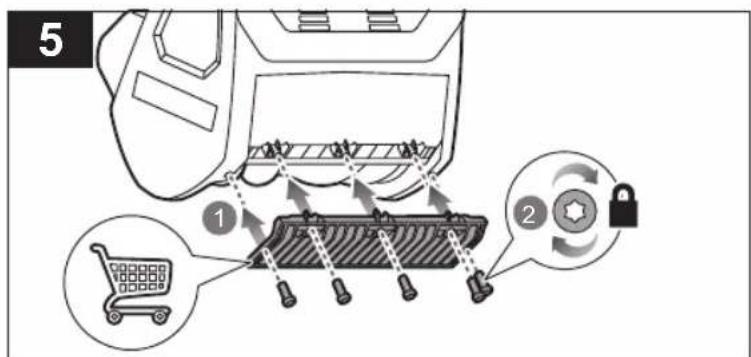

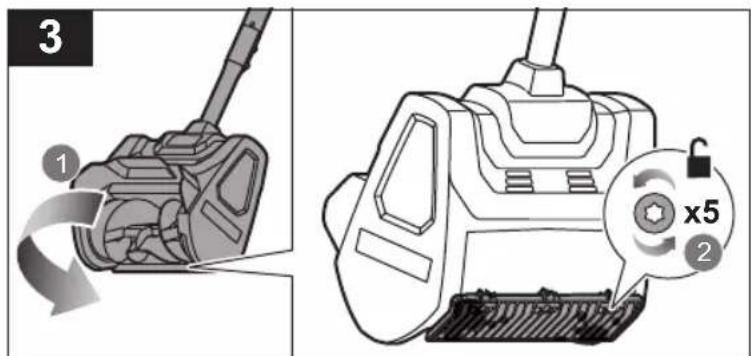

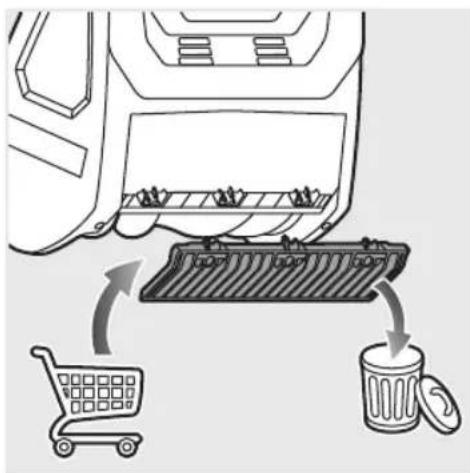

16. Scraper

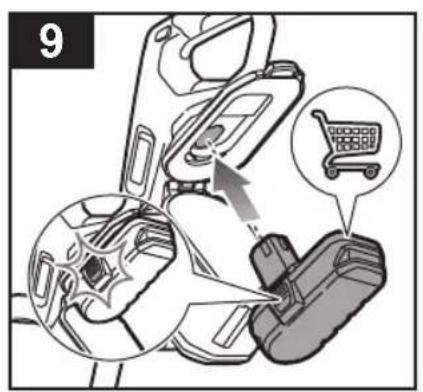

17. Battery pack
18. Charger

SYMBOLS

Safety alert

Read and understand all instructions before operating the product. Follow all warnings and safety instructions.

Wear eye protection.

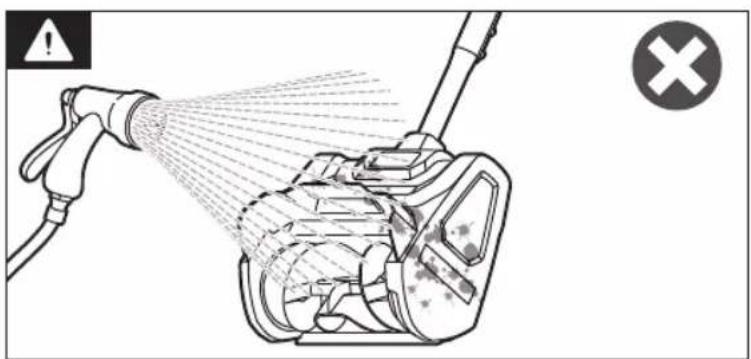

Do not expose the product to rain or damp conditions.

Avoid injury from the rotating impeller. Keep hands, feet, and clothing away.

Remove the battery pack before maintenance.

Keep hands and feet away from the front of the machine and the discharge chute of the product.

Beware of thrown or flying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area.

Do not dispose of waste batteries, waste electrical and electronic equipment as unsorted municipal waste. Waste batteries and waste electrical and electronic equipment must be collected separately. Waste batteries, waste accumulators, and light sources have to be removed from the equipment. Check with your local authority or retailer for recycling advice and collection point. According to local regulations, retailers may have an obligation to take back waste batteries and waste electrical and electronic equipment free of charge. Your contribution to the reuse and recycling of waste batteries and waste electrical and electronic equipment helps to reduce the demand of raw materials. Waste batteries, in particular containing lithium, and waste electrical and electronic equipment contain valuable and recyclable materials, which can adversely impact the environment and the human health if not disposed of in an environmentally compatible manner. Delete personal data from waste equipment, if any.

FR TRADUCTION DE LA NOTICE ORIGINALE

MACHEN SIE SICH MIT IHREM PRODUKT VERTRAUT

Siehe Seite 115.

ALGEMENE PRODUCTVEILIGHEIDSWAARSCHUWINGEN

EXTRA VEILIGHEIDSWAARSCHUWINGEN ACCU

Warning symbols and pictograms for occupational hazards, including warning signs, hand protection, and safety measures

Waarschuwing

TRANSPORT OCH FÖRVARING

KJENN PRODUKTET DITT

Se side 115.

SEADME ÜLDISED OHUTUSJUHISED

ETTEVALMISTUSTOIMINGUD

OBOZNÁMTE SA S VAŠÍM PRODUKTOM

Pozrite stranu 115.

Diagram of a hand inserting a device into a device with warning symbols and an 'X' symbol indicating absence or error.

2 ① ②

5 ① ②

6

9

10 ① ② ③

3

4 1 2 5

7 1 2

8 1 2 3 9

11 1 2

p.119 p.121 p.122 p.120

Diagram of a person hanging from a window with a rope, showing motion direction (no text or symbols)

Illustration of a hand using a handheld tool to lift water, creating particles from the surface (no text or symbols)

Illustration showing a person using a metal detector to measure detection, with check and cross icons indicating inspection or rejection.

Safety warning illustration showing a metal detector emitting particles to a dog, with warning symbols and a cross symbol.

1 1 2

Illustration of a hand sweeping debris with a tool, no text or symbols present

Line drawing of a person wearing a safety helmet with a downward arrow, next to an open octagonal hand symbol (no text or labels)

Diagram showing a car interior with a gridded air drain and a trash bin, accompanied by an icon of a shopping cart (no text or symbols)

Diagram illustrating three steps of car seatbelting: opening, adjusting, and locking a seatbelt.

2 1 2

3 1 x5 2

4

5 ① ②

Mechanical assembly diagram showing a motor with rotating components and a tool inserted (no text or labels)

Diagram illustrating three-step car seatbelting process with labeled steps 1, 2, and 3

2 1 2

Diagram showing a hand inserting a device into a container with a warning symbol and an 'X' mark indicating absence or error.

Diagram of a camera body with a tool inserted, showing internal components and motion arrows (no text or symbols)

Diagram of a mechanical device with internal components and a tool inserted, no visible text or symbols

Illustration of a mechanical device with internal components and sparkles, no text or symbols present

Diagram illustrating three-step car seatbelting process with labeled steps 1, 2, and 3

2 1 2

Line drawing of a mechanical device with sparkles and internal components (no text or symbols)

Diagram of a hair dryer emitting mist from a hose, with warning symbols and a cross symbol (no text or labels)

Diagram showing a lever lifting a wall-mounted object with an arrow indicating rotational motion (no text or symbols)

Diagram illustrating three steps of car seat locking mechanism, showing lock and switch states with numbered instructions.

2 1 2

Technical line drawing of a mechanical device with sparkles and internal components (no text or symbols)

Diagram showing a hand holding a tool inside a cabinet with an arrow indicating rotation (no text or symbols)

English Français Deutsch Español Italiano Nederlands Português

Product specifications	Caractéristiques produit	Produkt-Spezifikationen	Características del producto	Caratteristiche del prodotto	Productgegevens Características do aparelho
Cordless snow shovel Pelle à neige sans fil Akku-Schneofräse Pala quitanieves sin cableSpazzaneve a batteria Draadloze sneeuwruimerPá para neve elétrica sem fios	Modelle	Modell	Modelo	Modello	Model	Modelo
Rated voltage	Tension nominale	Nennspannung	Tensión nominal	Voltaggio nominale	Toegekende spanning	Tensão nominal
Clearing width Largeur de dégagement	Räumungsbreite	Anchura de limpieza	Larghezza di compensazione	Klaringsbreedte	Largura da distância
Clearing depth Profondeur de dégagement	Räumungstiefe	Profundidad de limpieza	Profondità di compensazione	Klaringsdiepte Profundidade da distância
Impeller size Taille de turbine Laufradgröde Tamaño del impulsor Dimensioni gruppoventoleAfmetingen van de schoepenTamanho da hélice	Distance de projection	Wurfweite	Distancia de proyección	Distanza di lancio	Werpfstand	Distância de lançamento
No-load speed	Vitesse à vide	Leerlaufdrehzahl	Velocidad sin carga	Velocità senza carico	Snelheid zonder lading	Velocidade sem carga
Weight (without battery pack)	Poids (sans batterie) Gewicht (ohne Akkupack)	Peso (sin la batería)	Peso (senza batterie)	Gewicht (zonder batterij)	Peso (sem a bateria)
Ingress protection of the product	Indice de protection du produit	Schutzart des Produkts Protección de entrada en el producto	Protección de entrada en la caja de la batería	Protezione contro l'accesso al prodotto	IP-beschermingsgraad van het product	Proteção contra entrada do produto
Ingress protection of the battery enclosure	Indice de protection du boîtier de batterie	Schutzart des Batteriegehäuses	Protección de entrada en la caja de la batería	Protezione contro l'accesso all'involucro della batteria	IP-beschermingsgraad van de accubehuizing	Proteção contra entrada do compartimento da bateria
Vibration level (in accordance with EN 62841-1)	Niveau de vibration (selon EN 62841-1)	Vibrationsgrad (gemäß EN 62841-1)	Nivel de vibración (de acuerdo con EN 62841-1)	Livello vibrazioni (in accordo con la direttiva EN 62841-1)	Trillingsniveau (in overeenstemming met EN 62841-1)	Nivel de vibração (em conformidade com EN 62841-1)
Vibration total value	Valeur totale des vibrations	Gesamtwert der Vibration	Valor total de vibración	Valore totale vibrazioni	Totale waarde trilling	Valor total da vibração
Front handle	Poignée avant	Vorderer Handgriff	Mango delantero	Manico anteriore	Voorste handvat	Pega frontal
Rear handle	Poignée arrière	Hinterer Handgriff	Mango trasero	Manico posteriore	Achterste handvat	Pega traseira
Uncertainty	Incertitude	Unsicherheit	Incertidumbre	Incertezza	Onzekerheid	Incerteza
Noise emission level (in accordance with EN 62841-1)	Niveau d'émission sonore (selon EN 62841-1)	Schallenergiepegel (gemäß EN 62841-1)	Nivel de emisión de ruido (de acuerdo con EN 62841-1)	Livello di emissione rumore (in accordo con la direttiva EN 62841-1)	Geluidsemissieniveau (in overeenstemming met EN 62841-1)	Nivel de emissão de ruido (em conformidade com EN 62841-1)
A-weighted sound pressure level at the operator's position	Niveau de pression sonore pondéré A au niveau de l'opérateur	A-bewerteter Schalldruckpegel an der Position des Anwenders	Nivel de presión sonora ponderado A en la posición del operario	Livello di pressione sonora pesato A alla posizione dell'operatore	A-gewogen geluidsdrukniveau op de plaats van de bediener	Nivel de pressão sonora ponderado A na posição do operador
A-weighted sound power level	Niveau de puissance sonore pondéré A	A-bewerteter Schalleistungspegel	Nivel de potencia acústica ponderada en A	Livello di potenza sonora pesato A	A-gewogen geluidsniveau	Nivel de potência sonora ponderada A
Uncertainty	Incertitude	Unsicherheit	Incertidumbre	Incertezza	Onzekerheid	Incerteza
Dansk Svenska Suomi Norsk Русский Polski
Produktspecifikationer	Produktspecifikationer	Tuotteen tekniset tiedot	Produktspesifikasjoner	Характеристики изделия	Parametry techniczne
Batteridrevet sneslynge	Sladdlös snöslunga Akukäyttöinen lumilinko	Trådløs snøfreser	Аккумуляторный снегоуборщик	Ręczna odśnieżarka akumulatorowa
Model	Modell	Malli	Modell	Модель	Model	RY18ST25A
Mærkespænding	Spänning	Nimellisjännite	Nominell spenning	Номинальное напряжение	Napięcie znamionowe	18 V d.c.
Rydningsbredde	Rensningsbredd	Raivausleveys	Klaringsbredde	Ширина захвата	Szerokość odśnieżania	25 cm
Rydningsdybde	Rensningsdjup	Raivaussyvyys	Klaringsdybde	Глубина захвата	Głębokość odśnieżania	15 cm
Skovlhjulsstørrelse	Impellerns storlek	Siipipyörän koko	Løpehjulstørrelse	Размер крыльчатки	Średnica wirnika	233 mm
Udkastningsafstand	Kastavständ	Heittoetäisyys	Kasteavstand	Дальность сброса	Odległość wyrzutu	≤ 6 m
Tomgangshastighed Hastighet utan belastning		Nopeus ilman kuormaa	Tomgangshastighet	Холостая скорость	Prędkość obrotowa bez obciążenia	2500/min
Vægt (uden batteri)	Vikt (utan batteri)	Paino (ilman akkua)	Vekt (uten batteri)	Вес (без батарей)	Masa (bez akumulatora)	7 kg
Indtrægningsbeskyttelse til produktet	Produktens inträngningsskydd	Tuotteen aukon suoja	Inntrengningsbeskyttelse for produktet	Степень пылевлагозащиты изделия	Stopień ochrony przed wnikaniem produktu	IPX1
Indtrægningsbeskyttelse til batteriet	Inträngningsskydd för batterihöljet	Akun kotelon aukon suoja	Inntrengningsbeskyttelse for batterihuset	Степень пылевлагозащиты отсека для аккумулятора	Stopień ochrony przed wnikaniem komory akumulatora	IPX4/5
Vibrationsniveau (iht. EN 62841-1)	Vibrationsnivá (enligt EN 62841-1)	Tärinätaso (standardin EN 62841-1 mukaisesti)	Vibrasjonsnivá (iht. EN 62841-1)	Уровень вибрации (в соответствии с EN 62841-1)	Poziom wibracji (zgodnie z normą EN 62841-1)
Total vibrationsværdi	Totalvärde för vibration	Tärinän kokonaisarvo	Vibrasjon totalverdi	Урмарное значение вибрации	Łączna wartość wibracji
Forhändtag	Främre handtag	Etukädensija	Fremre håndtak	Передняя ручка	Przedni uchwyt	a_1 = 1,1 m/s ^2
Baghändtag Bakre handtag Takakädensija		Bakre håndtak		Задняя ручка	Tylny uchwyt	a_1 = 0,6 m/s ^2
Usikkerhed	Osäkerhet	Epätarkkuus	Usikkerhet	Погрешность	Niepewność pomiaru	K = 1,5 m/s ^2
Stojemissionsniveau (iht. EN 62841-1)	Bullerutsläppsnivá (enligt EN 62841-1)	Melutaso (standardin EN 62841-1 mukaisesti)	Støyutslipsnivá (iht. EN 62841-1)	Уровень шума (в соответствии с EN 62841-1)	Poziom emisji hałasu (zgodnie z normą EN 62841-1)
A-vægtet lydtryksniveau ved operatørens position	A-viktad ljudtrycksnivá vid operatörsplats	A-painotettu käyttäjään kohdistuva äänenpainetaso	A-vektet lydtrykk ved operatörposisjon	Амплитудно-взвешенный уровень звукового давления на рабочем месте оператора	Poziom ważonego ciśnienia akustycznego w pozycji operatora	L_PA = 66,6 dB (A)
A-vægtet lydeffektniveau	A-vägd ljudeffektsnivá	A-painotettu äänenteho	A-vektet lydeffektnivá	Уровень А-взвешенной звуковой мощности	A-ważony poziom mocy akustycznej	L_WA = 83,9 dB (A)
Usikkerhed	Osäkerhet	Epätarkkuus	Usikkerhet	Погрешность	Niepewność pomiaru	K_WA = 3,0 dB
Čeština	Magyar	Română	Latviski	Lietuviškai	Eesti	Hrvatski
Technické údaje produktu	Termék muszaki adatai	Specificatiile produsului	Produkta specifikacijas	Gaminio technines savybes	Toote tehnilised andmed	Specifikacije proizvoda
Akumulátorové hrablo na odklizení snéhu	Akkumulátoros hómaró	Preză de zâpadă cu acumulator	Bezvadu sniega lâpsta	Belaidis sniego valytuvas	Juhtmevaba lumelabidas	Bežični čistač snijega
Model Típus Model Modelis	Modelis Mudel Model
Jmenovité napěti	Névleges feszültség	Tensiunea nominală	Nominălais spriegums	Nominali įtampa	Nimipinge	Nazivni napon
Světlá šířka	Tisztítási szélesség	Látime de curățare	Tīrīšanas platums	Valymo plotis	Puhastamislaius	Širina čišćenja
Světlá hloubka	Tisztítási mélység	Adâncime de curățare	Tīrămă slāņa dzilums	Valymo gylis	Puhastamissūgavus	Dubina čišćenja
Velikost oběžného kola	Propeller mérete	Dimensiunea rotorului	Gliemežvārpstas izmërs	Rotoriaus dydis Tiiviku suurus	Veličina propelera
Vzdálenost výhozu	Dobási távolság	Distanță de aruncare	Mešanas attălums	Metimo atstumas	Eemalepaiskumise kaugus	Daljina izbacivanja
Rychlost naprázdno	Üresjárati fordulatszám	Viteză fără sarcină	Tukšgaitas âtrums	Greitis be apkrovimo	Tühikäigukiirus	Brzina bez opterećenja
Hmotnost (bez baterie)	Súly (akkumulátor nélkül)	Greutate (fără acumulator)	Svars (bez baterijas)	Svoris (be akumuliatorinės baterijos)	Kaal (ilma akuta)	Težina (bez baterije)
Stupeň kryti přístroje	A termék behatás elleni védelme	Protectie produs împotriva pătrunderii accidentale	Produkta aizsardzība pret ūdens ieklūšanu	Gaminio apsaugos klasė	Toote kaitseaste	Zaštita pristupa proizvoda
Ochrana proti vniknutí nečistot dovnitř krytu baterie	Az akkumulátorburkolat behatolás elleni védelme	Protectie carcasă baterie împotriva pătrunderii accidentale	Akumulatora korpusa aizsardzība pret ūdens ieklūšanu	Akumuliatoriaus gaubto apsaugos klasė	Aku korpuse kaitseaste	Zaštita pristupa kučišta baterije
Úroveň vibrací (v souladu s EN 62841-1)	Vibrációs szint (az EN 62841-1 szerint)	Nivel de vibratie (în conformitate cu EN 62841-1)	Vibrácijas līmenis (saskaņa ar EN 62841-1)	Vibracijos lygis (pagal EN 62841-1 standartą)	Vibratsioonitase (vastavalt standardile EN 62841-1)	Razina vibracija (u skladu s EN 62841-1)
Hodnota celkových vibraci	Vibráció teljes értéke	Valoare totală vibrație	Vibrácijas kopējais apjoms	Bendra vibracijos vertė	Vibratsiooni koguväärtus	Ukupna vrijednost vibracija
Prední rukojet	Elülso fogantyú	Måner anterior	Priekšejais rokturis	Priekine rankena	Eesmine käepide	Prednja rucka
Zadní rukojet	Hátsó fogantyú	Månerul principal	Aizmugurejais rokturis	Galine rankena	Tagumine käepide	Stražnja rucica
Nejistota	Bizonytalanság	Incertitudine	Nenoteiktība	Nepastovumas	Määramatus	Neodređenost
Hladina emise hluku (v souladu s EN 62841-1)	Hangkibocsátási szint (az EN 62841-1 szerint)	Nivel emisie zgomot (în conformitate cu EN 62841-1)	Trokšņu emisijas līmenis (saskaņa ar EN 62841-1)	Skleidžiamo triukšmo lygis (pagal EN 62841-1 standartą)	Helivõimsuse tase (vastavalt standardile EN 62841-1)	Razina emisija buke (u skladu s EN 62841-1)
Hladina akustického tlaku vážená funkcí A v poloze obsluhy	A-súlyozott hangnyomásszint a kezelő helyén	Valoare A nivel presiune zgomot la pozitja operatorului	A–nověrtějuma skaņas spiediena līmenis operatora darba vietă	A dažninės charakteristikos garso slėgio lygis operatoriaus vietoje	A-kaalutud helirôhu tase operaatori töökohal	A-ponderirana razina zvučnog tlaka u položaju operatera
Hladina akustického výkonu vážená funkcí A	A-súlyozott hangteljesitményszint	Nivel de putere acustică ponderată A	A-līmeņa skaņas jaudas līmenis	A-svertinis akustinis lygis	A-kaalutud helivõimsuse tase	Ponderirana razina zvučne snage
Nejistota	Bizonytalanság	Incertitudine	Nenoteiktība	Nepastovumas	Määramatus	Neodređenost
Slovenščina Slovenčina България українська Türkçe Еллінікá
Specifikacije izdelka Špecifikácie produktu Tex	нически характеристики	Технічні характеристики пристрою	Ürün teknik özellikleri	Пробиаграфёс Проївтов
Akumulatorska snežna freza	Akumulátorová snehová fréza	Акумулаторен снегорин	Акумуляторний снігоочисник	Kablosuz kar küreme aleti	Екхювистико мтатаріас
Model	Modelis	Модел	Модель	Model	Мовтёло	RY18ST25A
Nazivna napetost	Menovité napätie	Номинален волтаж	Номінальна напруга	Nominal voltaj	Овомостикі таєп	18 V d.c.
Širina čiščenja	Širka čistenia Ширина на почистване	Ширина очищення	Mesafe genişliği	Плátос каварісмою	25 cm
Globina čiščenja	Híbka čistenia Дълбочина на почистване	Глибина очищення	Mesafe derinliği	Вáвос каварісмою	15 cm
Velikost rotorja	Rozmer lopatkového kolesa	Размер на ротора	Розмір робочого колеса	Pervane ebadi	Мёяввос летідшв птерштіς	233 mm
Razdalja izmeta	Vzdialenost' odhadzovania	Разстояние на хвърляне	Відстань відкидання	Firlatma mesafesi	Ато́дтааєн ектőєушог	≤6 m
Hitrost neobremenjenega motorja	Rýchlost' naprázdno	Скорост в ненатоварен режим	Швидкість без навантаження	Yüksüz hiz	Тахúтта хуріс фортіо	2500/min
Teža (brez baterije)	Hmotnost' (bez akumulátora)	Тегло (без батерията)	Бага (без акумулятора)	Ağırlık (batarya hariç)	Вáрос (хуріс тн аустоихід мтатаріас)	7 kg
Zaščita pred vdomor tekočine v izdelek	Ochrana produktu pred vniknutím	Защита срещу проникване на продукта	Захист виробу від вологи та пилу	Ürünün hava girişi koruması	Проостаєіа топроївтоє ато́ еідроň	IPX1
Zaščita pred vdomor tekočine v ohišje baterije	Ochrana krytu batérie pred vniknutím	Защита срещу проникване на отделението за батерията	Захист акумуляторного відсіку від вологи та пилу	Batarya muhafazasinin hava girişi koruması	Проостаєіа топтерівліматоє мтатаріас ато́ еідроň	IPX4/5
Nivo vibracij (v skladu s standardom EN 62841-1)	Úroveň vibrácií (podľa normy EN 62841-1)	Ниво на вибрациите (в съответствие с EN 62841-1)	Рівень вібрації (відповідно до EN 62841-1)	Titreşim seviyesi (EN 62841-1 уyarınca)	Етіптеда крадаємów (су́мувна ма то EN 62841-1)
Skupna vrednost vibracij	Celková hodnota vibrácií	Обща стойност на вибрациите	Загальне значення вібрації	Toplam titreşim değeri.	Συνολική тиµї крадаємów
Sprednji rocaj	Predná rukovát	Предна ръкохватка	Передня ручка	Ön kulp	Емпрós лаßн	a_n = 1,1 m/s^2
Zadnji rocaj	Zadná rukovát	Задна ръкохватка	Задня ручка	Arka kulp	Пісш лаßн	a_n = 0,6 m/s^2
Negotovost	Neurčitosť	Променливост	Похибка	Belirsiz	Абебайотта	K = 1,5 m/s^2
Raven emisij hrupa (v skladu s standardom EN 62841-1)	Úroveň emisii hluku (podľa normy EN 62841-1)	Ниво на шумовите емисии (в съответствие с EN 62841-1)	Рівень шуму (відповідно до EN 62841-1)	Gürültü Emisyonu (EN 62841-1 уyarınca)	Етіптедо ектоємпігіз борůбз (су́мувна ма то EN 62841-1)
A-vrednotena raven zvočnega tlaka na položaju upravljavca	Vážená A hladina akustického tlaku na pozícií operátora	Ниво на шумово налягане с равнище А на мястото на оператора	Рівень звукового тиску за шкалою А для оператора пристрою	Kullanıcı pozisyonundaki A адійлікі ses basinci seviyesi	Стáθμη технікігіз пієюс ме стáθміац А стні вісян тов черистін	L_RA = 66,6 dB (A)
A-izmerjena raven zvočne moči	Vážená A hladina akustického výkonu	Ниво на силата на шума с равнище А	А-зважений рівень звукової потужності	А адійлікі ses gücü seviyesi	Етіптедо технікігіз іохуоє ме стáθміац А	L_RA = 83,9 dB (A)
Negotovost	Neurčitosť	Променливост	Похибка	Belirsiz	Абебайотта	K_RA = 3,0 dB

English Français Deutsch Español Italiano Nederlands Português
Battery and charger	Batterie et chargeur	Akku und Ladegerät	Batería y cargador	Batteria e caricatore	Accu en oplader	Bateria e carregador
Model Modèle Modell Modelo	Modelo Modello	Model Modelo
Battery pack	Bloc de batterie	Akkupack	Bateria	Batteria	Accu	Bateria
Charger	Chargeur	Ladegerät	Cargador	Caricatore	Oplader	Carregador
Compatible battery packs	Blocs des batterie compatibles	Kompatible Akkupacks	Paquetes de batería compatibles	Gruppo batterie compatibili	Compatibele accupacks	Baterias compatíveis
Compatible chargers	Chargeurs compatibles	Kompatible Ladegeräte	Cargador compatible	Caricatore compatibile	Compatibele oplader	Carregador compatível

Battery and charger	Batterie et chargeur	Akku und Ladegerät	Batería y cargador	Battería e caricatore	Accu en oplader	Bateria e carregador
Model Modèle Modell Modelo	Modelo Modello	Model Modelo
Battery pack	Bloc de batterie	Akkupack	Bateria	Batteria	Accu	Bateria
Charger	Chargeur	Ladegerät	Cargador	Caricatore	Oplader	Carregador
Compatible battery packs	Blocs des batterie compatibles	Kompatible Akkupacks	Paquetes de batería compatibles	Gruppo batterie compatibili	Compatibele accupacks	Baterias compatíveis
Compatible chargers	Chargeurs compatibles	Kompatible Ladegeräte	Cargador compatible	Caricatore compatibile	Compatibele oplader	Carregador compatível

Čeština	Magyar	Română	Latviski	Lietuviškai	Eesti	Hrvatski
Nabiječka a baterle	Akkumulátor és töltő	Bateria şi încărcătorul	Akumulators un lădëtãjs	Akumuliatorius ir ikroviklis	Aku ja laadija Baterija I	punjač
Model	Tipus	Model	Modelis	Modelis	Mudel	Model
Baterie	Akkumulátor	Acumulator	Akumulators	Baterija	Aku paketiga	Baterija
Nabljecka	Tölto	Încarcator	Ladetajs	Ikroviklis	Laadija	Punjac
Kompatibilni akumulátory	Kompatibilis akkumulátorok	Acumulatori compatibili	Savietojami akumulatoru komplekti	Suderinami baterijos paketai	Ühilduvad akupaketid Kompatibilna pakiranja baterija
Kompatibilni nabiječka	Kompatibilis töltő	Încărcător compatibil	Saderlgs lădëtãjs	Suderinamas ikroviklis	Ühilduv laadija	Kompatibilni punjači

Nabiječka a baterie	Akkumulátor és töltö	Bateria și încărcătorul	Akumulators un lădëtãjs	Akumuliatorius ir ikroviklis	Aku ja laadija Baterija i	punjač
Model	Típus	Model	Modelis	Modelis	Mudel	Model
Baterie	Akkumulátor	Acumulator	Akumulators	Baterija	Aku paketiga	Baterija
Nabijecka	Tölto	Încarcator	Ladetajs	Ikroviklis	Laadija	Punjac
Kompatibilni akumulátory	Kompatibilis akkumulátorok	Acumulatori compatibili	Savietojami akumulatoru komplekti	Suderinami baterijos paketai	Ühilduvad akupaketid Kompatibilna pakiranja baterija
Kompatibilni nabiječka	Kompatibilis töltö	Încărcător compatibil	Saderîgs lădëtãjs	Suderinamas ikroviklis	Ühilduv laadija	Kompatibilni punjači

Dansk Svenska Suomi Norsk Русский Polski
Batteri og oplader Batteri och batteriladdare	Akku ja laturi	Batteri og lader	Аккумуляторная батарея и зарядное устройство	Akumulator i ładowarka
Model	Modell	Malli	Modell	Модель	Model	RY18ST25A-140	RY18ST25A-150
Batteri	Batteri	Akku	Batteri	Аккумулятор	Akumulator	4,0 Ah	5,0 Ah
Oplader	Batteriladdare	Laturi	Lader	Зарядное устройство	Ladowarka	RC18120 RC18115
Kompatible batterier	Kompatibla batteripaket	Yhteensopivat akut	Kompatible batteripakker	Совместимая аккумуляторная батарея	Pasujace akumulatory	RB18..
Kompatibel oplader	Kompatibel laddare	Yhteensopiva laturi	Kompatibel lader	Совместимое зарядное устройство	Zgodna ładowarka	RC18..

Batteri og oplader Batteri och batteriladdare	Akku ja laturi	Batteri og lader	Аккумуляторная батарея и зарядное устройство	Akumulator i ładowarka
Model	Modell	Malli	Modell	Модель	Model
Batteri	Batteri	Akku	Batteri	Аккумулятор	Akumulator
Oplader	Batteriladdare	Laturi	Lader	Зарядное устройство	Ladowarka
Kompatible batterier	Kompatibla batteripaket	Yhteensopivat akut	Kompatible batteripakker	Совместимая аккумуляторная батарея	Pasujace akumulatory
Kompatibel oplader	Kompatibel laddare	Yhteensopiva laturi	Kompatibel lader	Совместимое зарядное устройство	Zgodna ładowarka

The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment of exposure.

The declared vibration and noise emission values represent the main applications of the tool. However, if the tool is used for different applications, used with different accessories, or poorly maintained, the vibration and noise emission may differ. These conditions may significantly increase the exposure levels over the total working period. An estimation of the level of exposure to vibration and noise should take into account the times when the tool is turned off or when it is running idle. These conditions may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration and noise, such as maintaining the tool and the accessories, keeping the hands warm (in case of vibration), and organising work patterns.

FR

AVERTISSEMENT

EN RYOBI WARRANTY APPLICATION CONDITIONS

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date when the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.
2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.
3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:

– any damage to the product that is the result of improper or lack of maintenance
– any product that has been altered or modified
– any product where original identification (trade mark, serial number) markings have been defaced, altered or removed
– any damage caused by non-observance of the instruction manual
– any product not displaying the CE approval mark on the rating plate
– any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries
– any product connected to improper power supply (amps, voltage, frequency)
– any product used with inappropriate fuel mixture (fuel, oil, ratio of oil/ fuel mixture)
– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances
– normal wear and tear spare parts
– inappropriate use, overloading of the tool
– use of non-approved accessories or parts
- Accessories provided with the tool or purchased separately including but not limited to blades, saw chains, cutting lines, etc.
– Any periodic adjustments to or maintenance cleaning of carburettors
- Components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.

1. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.
2. A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.
3. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey, Russia, and the United Kingdom. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

Any request or issue with the product can be addressed to your local authorised service centres (visit www.ryobitools.eu) or directly to: Techtronic Industries GmbH, Max Eyth Straße 10, 71364 Winnenden, Germany. Please state the serial number and product type printed on the label.

FR RYOBI CONDITIONS D'APPLICATION DE LA GARANTIE

EN EC DECLARATION OF CONFORMITY

Cordless snow shovel

Brand: RYOBI | Manufacturer ^1 | Model number ^2 | Serial number range ^3

We declare as the manufacturer under our sole responsibility that the product mentioned below fulfills all the relevant provisions of the following European Directives, European Regulations and harmonised standards ^4

Authorised to compile the technical file: ^5

FR DÉCLARATION CE DE CONFORMITÉ

HMax-Eyth-Straße 10, 71364 Winnenden, Germany

^2 RY18ST25A

3 48675601000001 - 48675601999999

4 2006/42/EC, 2014/30/EU, 2011/65/EU, EN ISO 12100:2010, EN 62841-1:2015, EN ISO 8437-1:2021, EN ISO 8437-2:2021, EN ISO 8437-4:2021, EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC 63000:2018

Todd Chipner

Senior Vice President, Quality – Asia

Winnenden, July 10, 2023

^5 Alexander Krug, Managing Director Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

GB-DECLARATION OF CONFORMITY

Manufacturer: Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We declare as the manufacturer under our sole responsibility that the product mentioned below

Cordless snow shovel

Brand: RYOBI

Model number: RY18ST25A

Serial number range: 48675601000001 - 48675601999999

fulfills all the relevant provisions of the following Regulations: S.I. 2008/1597

(as amended), S.I. 2016/1091 (as amended), S.I. 2012/3032 (as amended) and that the following designated standards have been used:

BS EN ISO 12100:2010, BS EN 62841-1:2015, BS EN ISO 8437-1:2021, BS EN ISO 8437-2:2021, BS EN ISO 8437-4:2021, BS EN IEC 55014-1:2021, BS EN IEC 55014-2:2021, BS EN IEC 63000:2018

Todd Chipner

Senior Vice President, Quality – Asia

Winnenden, July 10, 2023

Authorised to compile the technical file:

Techtronic Industries (UK) Ltd

Parkway

Marlow Bucks SL7 1YL

UK

EN RYOBI is a trade mark of Ryobi Limited, and is used under license.

Three vertical panels with diagonal striped patterns, no text or symbols present

Techtronic Industries GmbH

Max-Eyth-Straße 10,

71364 Winnenden, Germany

Techtronic Industries (UK) Ltd

Parkway

Marlow Bucks SL7 1YL

UK

961479096-01
