USER MANUAL SGA 7126P BEKO

SGA7126P SGA7124B Steam Station User Manual 01M-8834133200-5017-06 01M-8834593200-5017-06 EN DE FR TR ES PL HR RO IT THPlease read this manual first! Dear Customer, Thank you for preferring this Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the- art technology. Therefore, please read this user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual. Meanings of the symbols Following symbols are used in the various sections of this manual:

Important nformaton and useful hnts about usage.

Warnngs aganst dangerous stuatons concernng the securty of lfe and property. The wool cycle of ths ron has been approved by The Woolmark Company for the ronng of pure wool products provded that the products are roned accordng to the nstructons on the garment label and those ssued by the manufacturer of ths ron. R0000 The Woolmark symbol s a Certfcaton mark n many countres. This product has been manufactured in environmental friendly modern plants without giving any harm to the nature. It does not contan PCB. Made n : P.R.C.Steam Station / User Manual 3 / EN CONTENTS ENGLISH 5-13 DEUTSCH 14-27

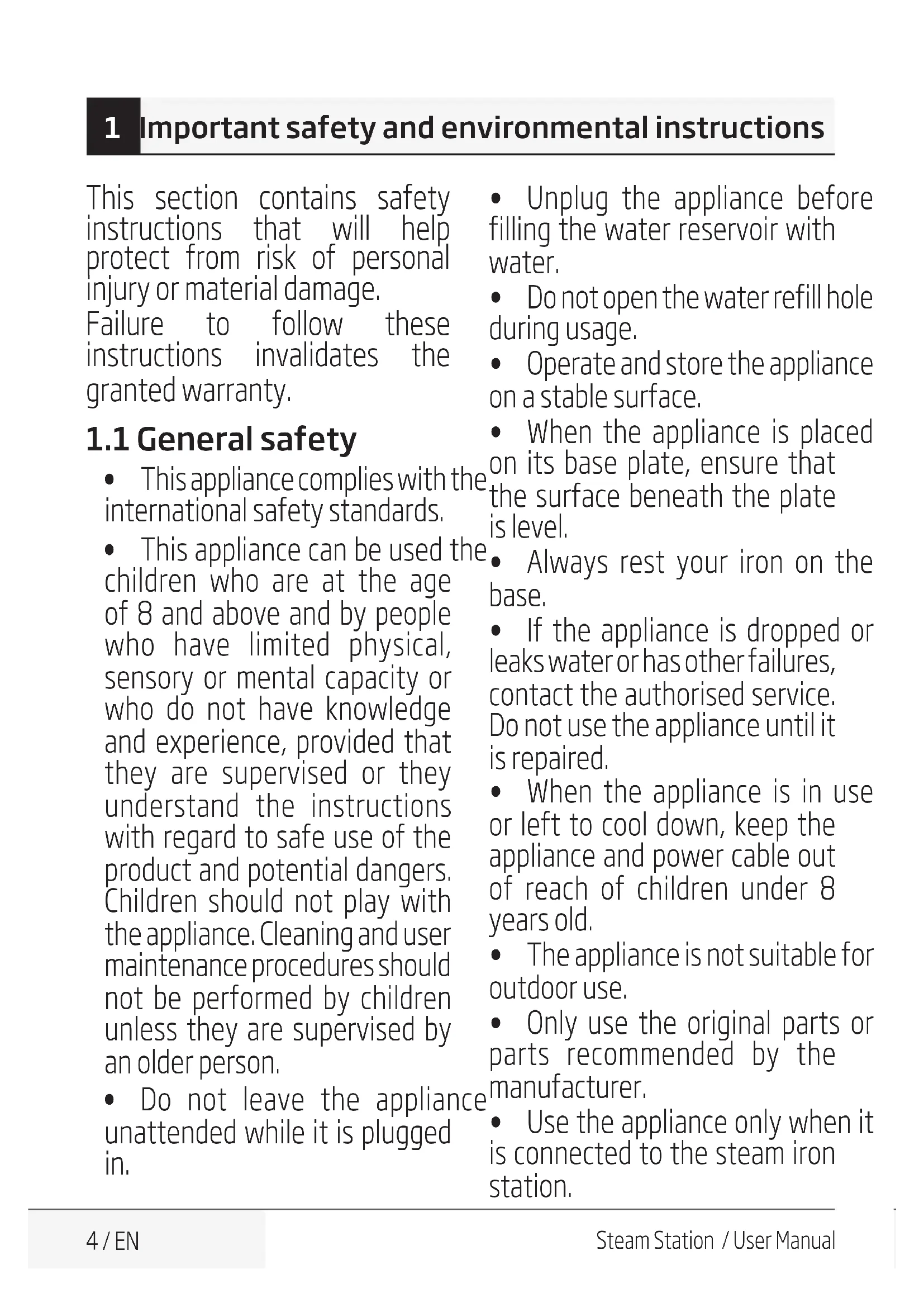

ITALIANO 108-121 ไทย 122-1334 / EN Steam Station / User Manual This section contains safety instructions that will help protect from risk of personal injury or material damage. Failure to follow these instructions invalidates the granted warranty.

• This appliance complies with the international safety standards.

• This appliance can be used the children who are at the age of 8 and above and by people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, provided that they are supervised or they understand the instructions with regard to safe use of the product and potential dangers. Children should not play with the appliance. Cleaning and user maintenance procedures should not be performed by children unless they are supervised by an older person.

• Do not leave the appliance unattended while it is plugged in.

• Unplug the appliance before filling the water reservoir with water.

• Do not open the water refill hole during usage.

• Operate and store the appliance on a stable surface.

• When the appliance is placed on its base plate, ensure that the surface beneath the plate is level.

• Always rest your iron on the base.

• If the appliance is dropped or leaks water or has other failures, contact the authorised service. Do not use the appliance until it is repaired.

• When the appliance is in use or left to cool down, keep the appliance and power cable out of reach of children under 8 years old.

• The appliance is not suitable for outdoor use.

• Only use the original parts or parts recommended by the manufacturer.

• Use the appliance only when it is connected to the steam iron station. 1 Important safety and environmental instructionsSteam Station / User Manual 5 / EN

• Do not dismantle the appliance.

• Your mains power supply should comply with the information supplied on the rating plate of the appliance.

• The mains supply of the appliance should be secured with a 16 A fuse minimum.

• Use the appliance with a grounded outlet.

• Do not use the appliance with an extension cable.

• Do not pull the power cable when unplugging the appliance.

• If the power cable is damaged, it should be repaired or replaced by the dealer, service center, or a specialised and authorised service with similar qualifications.

• Unplug the appliance before cleaning.

• Do not wrap the cable around the appliance.

• Do not touch the appliance or its plug with damp or wet hands when the appliance is plugged in.

• The soleplate and the steam station surface may get overheated. Contact with hot surfaces may cause burns. 1 Important safety and environmental instructions

• Do not use the appliance in or near the areas where combustible or inflammable places and materials exist.

• If you keep the packaging materials, store them out of the reach of children.

1.2 Compliance with WEEE

Directive and Disposing of the Waste Product This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.3 Compliance with RoHS

Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.6 / EN Steam Station / User Manual

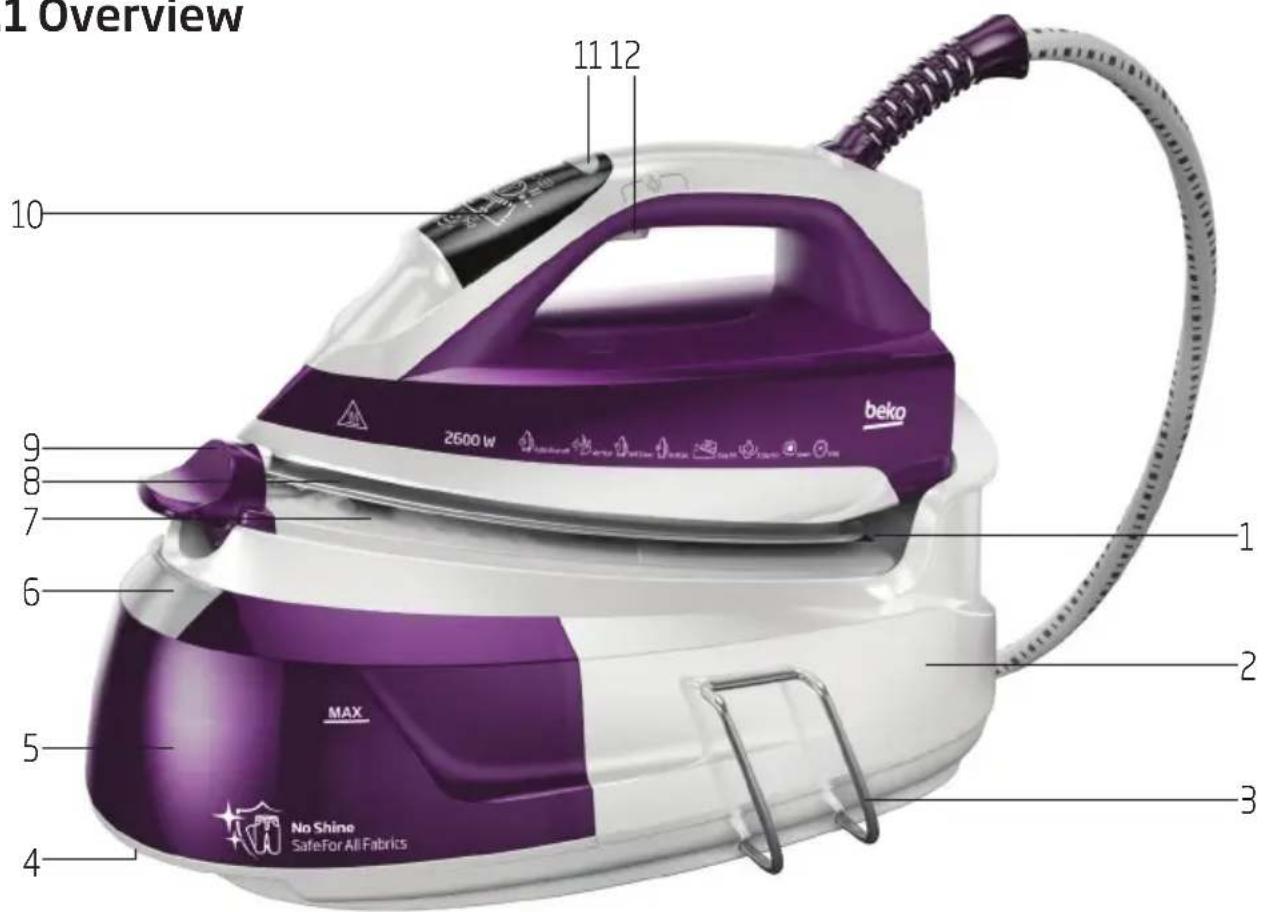

4. Water reservor removal latch

5. Removable water reservor

11. On/off and control button

Power supply : 220-240V~, 50-60 Hz Power consumption : 2190-2600 W Pump pressure : 6 bar Flash steam amount : Up to 110 g/min. Techncal and desgn modfcaton rghts are reserved. The values whch are declared n the markngs affxed on your product or the other prnted documents suppled wth t represent the values whch have been obtaned n the laboratores pursuant to the pertnent standards. These values may vary accordng to the usage of the applance and ambent condtons.

11 12Steam Station / User Manual 7 / EN 2 Your steam station Control panel Symbols Descriptions Water reservoir is empty Steam level Lime collecting cartridge should be replaced Temperature settings Automatic shutdown Self-cleaning Smart - ECO mode8 / EN Steam Station / User Manual 3 Operation

Ths applance s ntended only for household use and ronng; t s not sutable for professonal use.

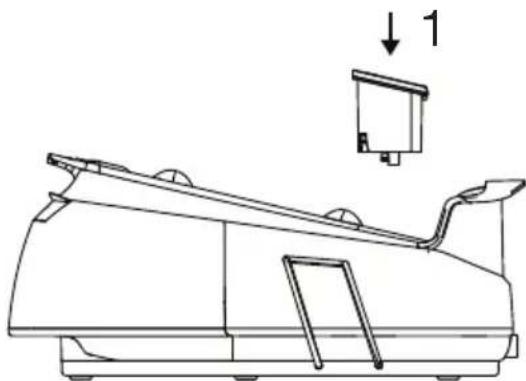

1. Remove the package on the lme collectng cartrdge (1) whch s placed separately n the box.2. Soak the lme collectng cartrdge (1) n the water for 1 mnute n order to enhance ts performance.1 min.3. Then push the cartrdge (1) n ts slot. 4. Pror to ntal use, fll the water reservor (5) wth water (see 3.6) and evaporate the water twce n order to remove the manufacturng resdues. A lght odour may arse durng the ntal use. Ths condton wll return to normal after several uses.

• The applance gets heated n a short tme; ron fabrcs such as synthetc, slk etc. usng low temperature settngs. • Iron fabrcs that may luster (slk etc.) by turnng them nsde out or usng the applance n Smart-ECO mode. • Use very lttle pressure when ronng fabrcs such as velvet and ron them towards one sngle drecton. • Steam usage may cause stans on coloured slk fabrcs. Do not use steam. • 100% pure woolen clothes can be roned by usng steam. • Ironng woolen clothes may cause luster. Iron by turnng them nsde out. WARNING: Do not allow the ron to contact wth metal parts such as zppers and rvets. Ths may damage the soleplate of the ron.

3.4 Temperature setting

Set the approprate temperature for the fabrc to be roned by usng the control button (11).Fabric Type Tempe-rature SettingSteam SettingSynthetic Without steamSilk-Wool With Steam Cotton With Steam Linen - Jean MaxWith SteamSteam Station / User Manual 9 / EN

Smart-ECO mode of your appliance is suitable for all types of fabrics that can be ironed. You can iron securely. You can do steam ironing by using the steam trigger (12) in this mode.

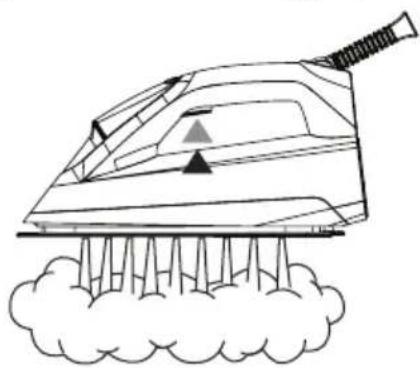

You can do steam ironing at all temperature levels except for “•” Press the steam trigger (12) for steam ironing.

WARNING: Take the ironing instructions specified on the label of the fabric into consideration for ironing.

Your appliance will not raise steam as long as you do not press the steam trigger (12). In order to use dry ironing, do not press the steam trigger (12).

3.6 Filling the water reservoir

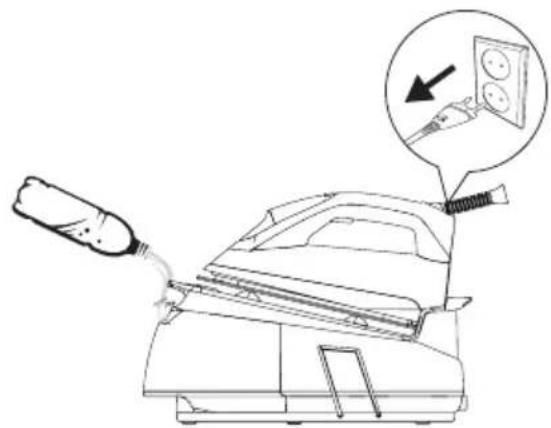

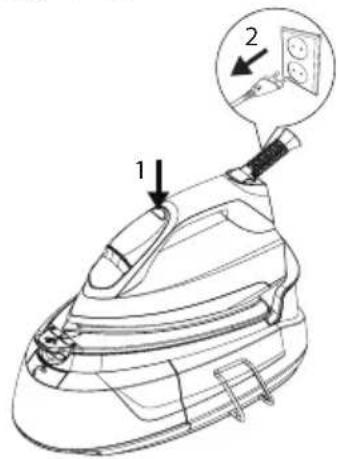

WARNING: When filling the water reservoir with water without removing the iron from the steam station, ensure that the appliance is unplugged. If you press the steam trigger (12) when the water tank is empty, “ ” symbol will appear on the screen in about 30-40 seconds.1. Press the on/off button (11), switch off and unplug the appliance.

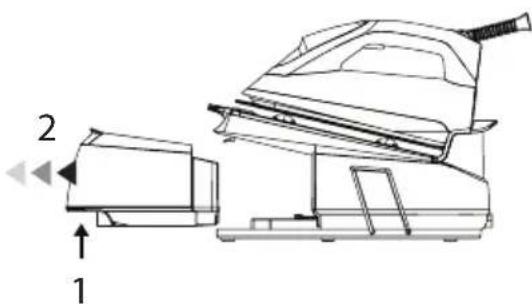

2. Remove the water reservoir (5) by pressing the water reservoir removal latch placed under the water reservoir.

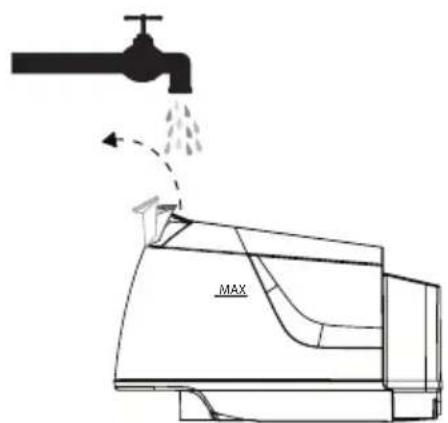

3. Open the water refill lid (6) and fill water up to the MAX level.

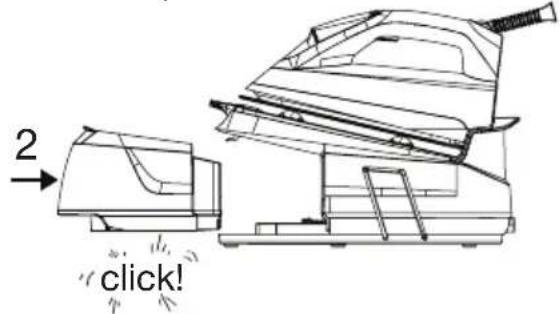

Your appliance is suitable for using with tap water. If your tap water is excessively hard, we recommend you to use a mixture of tap water and potable water. 3 Operation10 / EN Steam Station / User Manual4. Place the water reservoir (5) in its place.– You will hear a click when the water reservoir fits into its place. click!

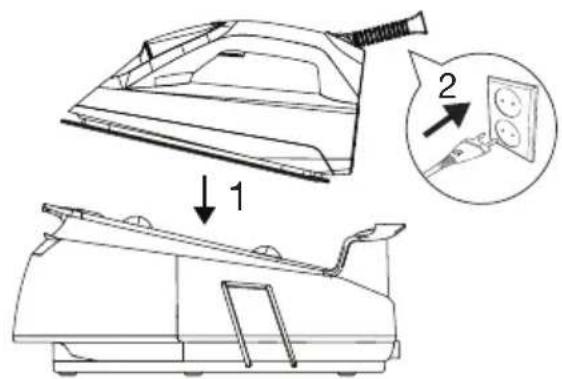

1. Fill the water reservoir (5) with water (see 3.6).2. Place the appliance on the steam station surface (7).3. Plug in the appliance.

– You will hear a beeping sound when the appliance starts to operate. – Control panel (10) flashes once and then goes off. 4. Press the on/off button (11). Operation of the pump may make some noise during the water drawing process; this is normal. The appliance starts in Smart-ECO mode in the initial use. This level offers safe temperature and steam amount for all the fabrics that can be ironed.5. You can set temperature levels other than the Smart - ECO mode by using the control button (11) (see 3.4). WARNING: Your selection should be suited for the fabric to be ironed.6. When the symbol of the selected setting flashes consistently on the display, your appliance is ready to iron. WARNING: If the symbol on the display blinks, this means that the soleplate temperature setting is not at the desired level. You can do steam ironing by using the steam trigger (12) at all temperature levels except for “•”. 7. When the appliance is ready for steam ironing, move the iron horizontally on the fabric to be ironed and press the steam trigger (12). Your iron will raise steam from its soleplate (8) as long as you hold the steam trigger pressed.8. When the ironing process is over, press the on/off button (11) for a few seconds. – The lights on the control panel will go off.9. Unplug the appliance and leave it to cool. 3 OperationSteam Station / User Manual 11 / EN 3 Operation

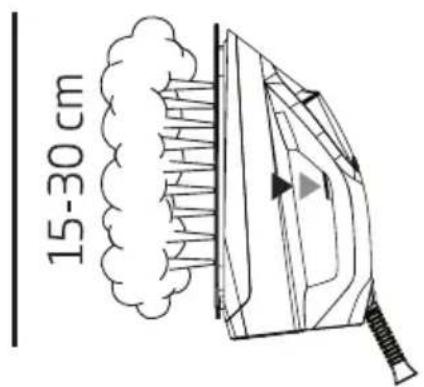

You can also use the steam in upright position (see 3.7). You can iron your curtains and hanged garments thanks to the vertical steam feature. Keep the appliance 15-30 cm away from the garment and curtains.WARNING: Never direct the steam to people or pets.

3.9 Automatic Shutdown

(Auto-Off) If you do not move the appliance or press any of its buttons for 10 minutes, it will be shut down automatically. • If you move the appliance horizontally or press any of its buttons, it will start to operate. It may take 60 seconds for the soleplate (8) to reach the previous temperature level. 4 Cleaning and care

WARNING: Do not soak the steam station (2) in water or other liquids. Never put vinegar, descaling agent, laundry starch, perfume or other auxiliary products that help ironing into the appliance.

WARNING: Do not use gasoline, solvent and abrasive cleaning agents or hard brush to clean the appliance.

WARNING: Do not wash your appliance under running water or do not soak it in water or other liquids.

WARNING: Do not use abrasive cleaning agents to clean the soleplate (8).1. Switch off and unplug the appliance before cleaning.2. Wait for the appliance to cool completely. 3. Use a slightly damp cloth to clean the exterior of the appliance. Then wait for it to dry completely.4. Wipe the sediments and residues on the soleplate (8) with a slightly damp cloth or with a soft, nonabrasive liquid cleaner if necessary.

212 / EN Steam Station / User Manual 4 Cleaning and care

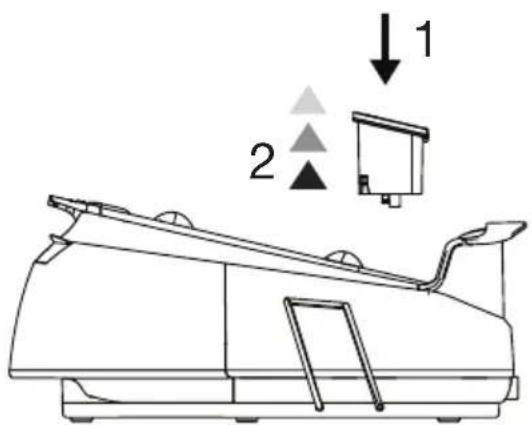

4.2 Replacing the lime

collecting cartridge

WARNING: Do not use any descaling agents! They may damage the appliance.

WARNING: Do not purchase cartridge from places other than the dealers and service centers. If you do this, the cartridge will not fit into the cartridge slot and will not operate. This causes a breakdown in your appliance. Faults arising from using wrong cartridge are not covered under warranty.1. “ ” symbol will flash on the control panel (10) when the cartridge needs to be replaced. The cartridge must be replaced after consuming about 30 liters of water.2. Soak the new cartridge in water for 1 minute in order to enhance its performance.3. Before removing the old cartridge from its slot, make sure that the sections surrounding the cartridge is cold. 4. Slightly press and release to replace the cartridge.

5. Remove the new cartridge from its package, soak it in the water for 1 minute and push it in its slot.

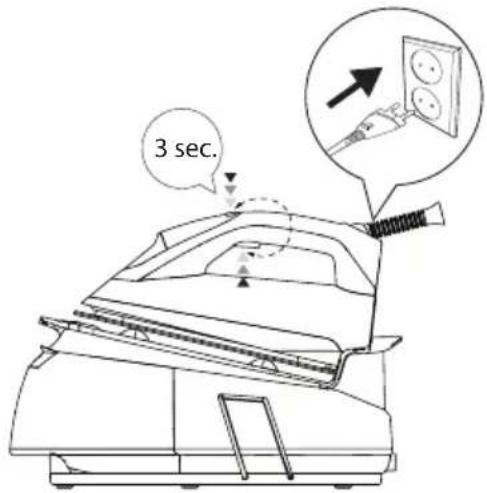

4.3 Lime removing feature

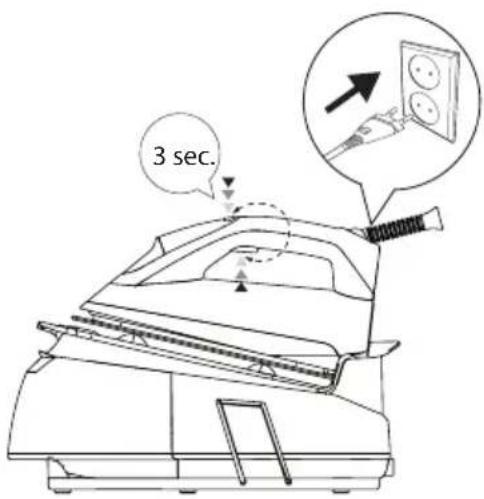

(Self-Clean) 1. When the “ ” lime removing (self-clean) symbol flashes on the control panel, (10) this means that it is time for lime removing. 2. Fill the water reservoir (5) (see 3.6). 3. Plug in the appliance.4. Hold and press the control button (11) and steam trigger (12) together for 3 seconds. 3 sec. The “ ” symbol will constantly blink on the control panel (10) when the appliance switches to lime removing (self-clean) mode.5. Then press the control button (11) once. – “ ” symbol will flash on the control panel (10) permanently.6. Keep the appliance over the sink horizontally and shake it while pressing and holding the steam trigger (12). 7. When the lime removing (self-clean) is over, the appliance automatically returns to the mode before the lime removing process.Steam Station / User Manual 13 / EN 4 Cleaning and care

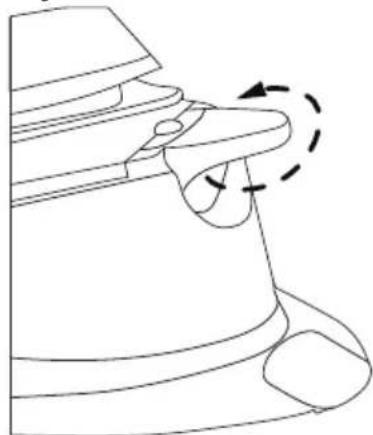

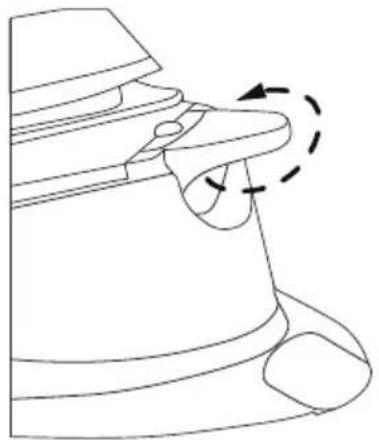

1. Turn the transport lock (9) in order to be able to

move/transport your appliance easily and store it securely.

2. Turn the lock again to unlock the transport lock.

• If you do not intend to use the appliance for a long time, store it carefully.

• Unplug the appliance and wait for it to cool completely before storing it.

• Discharge the water in the water reservoir (5).

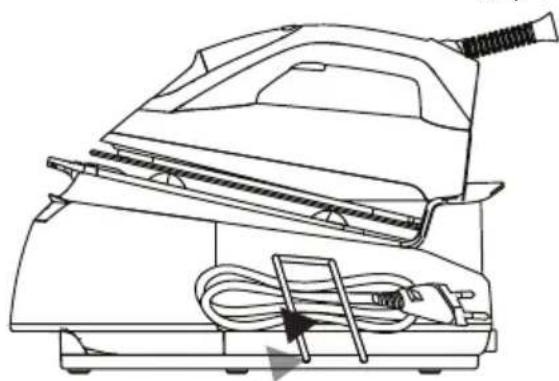

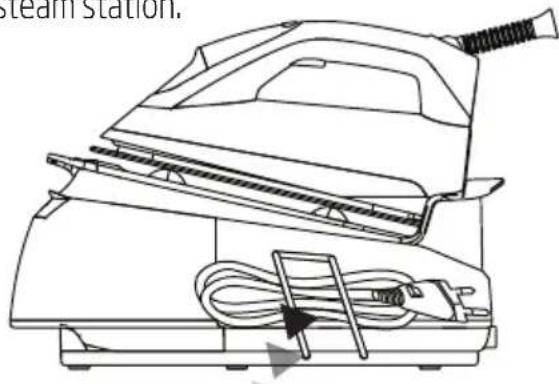

• Wrap the cable around the cable winding slot with bracket (3) and fix it in order to store the steam station.

• Store it in a cool and dry place.

• Keep the appliance out of the reach of children.

4.6 Moving and transportation

• Carry the appliance in its original packaging during moving and transportation. The packaging of the appliance protects it against physical damages.

• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
