Type of product	Household steam iron
Brand	Beko
Model	BKK 2133
Power supply	220-240 V ~ 50/60 Hz
Power consumption	1850 - 2200 W
Soleplate material	Steel
Isolation class	I
Water tank capacity	Maximum fill level marked on tank
Steam functions	Spray, burst of steam, vertical steam, variable steam control
Anti-drip system	Yes, prevents water leakage at low temperatures
Anti-scale system	Built-in anti-scale cartridge
Self-cleaning function	Yes, recommended at least once a month
Auto shut-off	Yes, after 8 minutes horizontal or vertical
Cord storage	Adjustable length, pull out to desired length
Temperature control	Adjustable dial with settings for different fabrics (1 dot, 2 dots, 3 dots, Max)
Pilot light	Indicates when iron is heating or reached temperature
Spray nozzle	Yes, for dampening fabrics
Burst of steam button	Yes, for stubborn wrinkles
Vertical steam capability	Yes, for hanging garments and curtains
Filling beaker included	Yes
Maintenance	Clean soleplate with damp cloth, drain water after use, use self-cleaning regularly
Safety features	Auto shut-off, cool-touch surfaces, overheat protection, non-slip heel rest

Frequently Asked Questions - BKK 2133 BEKO

How do I fill the water tank?

Disconnect the iron from the power supply. Move the steam control knob to the 'off' position. Release the water inlet cover and fill water through the hole up to the 'Max' level marked on the tank. Use only clean tap water; do not add perfumes, vinegar, or chemicals.

What do the temperature dial settings mean?

The dial has settings: 'Min', '•' (1 dot - low temperature for synthetics), '••' (2 dots - medium for silk/wool), '•••' (3 dots - high for cotton/linen), and 'Max' for highest temperature. Always check the garment label for recommended setting.

How does the auto shut-off work?

The iron automatically turns off if left unattended for 8 minutes in either horizontal (ironing) or vertical (heel rest) position. The auto shut-off indicator blinks. Simply move the iron to reactivate it. It takes about 60 seconds to reheat to the previous temperature.

Can I use the steam function on delicate fabrics?

Yes, but use the vertical steam function for hanging delicate items like silk or wool. Hold the iron 15-30 cm away and press the burst of steam button. For direct ironing, use a low temperature setting and an ironing cloth to prevent shine.

How do I use the self-cleaning function?

Fill the water tank halfway. Set the iron to 'Max' temperature and let it heat until the pilot light goes off and on again. Then unplug, hold the iron horizontally over a sink, and pull the steam control knob to the descaling position. Steam and hot water will flush out scale. Move the iron gently until empty, then release the knob and let it cool. Wipe the soleplate.

Why does the iron make a clicking sound?

The clicking sound is normal, especially during heating or cooling. It comes from the anti-drip system, which automatically prevents water from leaking when the iron is too cold.

How do I clean the soleplate?

Unplug the iron and let it cool. Wipe the soleplate with a damp cloth. For stubborn deposits, use a non-abrasive cleaner. Never use sharp objects, vinegar, or descaling agents on the soleplate.

What is the burst of steam function and how do I use it?

The burst of steam delivers an extra strong shot of steam to remove stubborn wrinkles. First, set the temperature to '•••' or 'Max'. When the pilot light goes off, press the burst of steam button. You can also use it vertically for hanging clothes. Wait a few seconds between presses, and do not use more than three times in a row.

Can I use perfumed water or vinegar in the tank?

No. Only use clean tap water. Adding perfumes, vinegar, or other chemicals can damage the iron and void the warranty. The built-in anti-scale system helps reduce limescale buildup.

How should I store the iron?

After use, unplug the iron and let it cool completely. Empty any remaining water by holding it upside down and shaking gently. Set the steam control to the 'off' position. Store it upright on its heel rest in a safe, dry place. Keep the cord away from children.

USER MANUAL BKK 2133 BEKO

Household Steam Iron

User Manual

Read this manual prior to initial operation of the product!

Dear Customer,

We hope that your product, which has been manufactured in modern facilities and passed through a strict quality control procedure, will give you very good results.

We advise you to read through this manual carefully before using your product and keep it for future reference.

The User Manual will help you use your machine in a fast and safe way.

• Read the User Manual before installing and starting your product.
• In particular, follow the instructions related to safety.
• Keep this User Manual within easy reach for future reference.
• Also read all additional documents supplied with this product.

Remember that this User Manual is also applicable for several other models. Differences between models will be identified in the manual.

This product has been produced in environmentally friendly, modern facilities

CONTENTS

1 Safety Warnings	2-3
2 Technical Aspects Of Your Machine		4
3 Hints For Ironing	5-9
4 Maintenance And Cleaning		10

1 Safety Warnings

For safety purpose you should read these instructions carefully before using the iron for the first time.

DO'S

1. Check the mains voltage stated on the iron.
2. Unwind and straighten the power cord before use.
3. Switch on the iron by turning the Temperature Dial in clockwise direction; pilot light glows.
4. Turn the Temperature Dial to the middle point of 1 dot, 2 dots, 3 dots or maximum setting.
5. Switch off the iron by turning the Temperature Dial in anti-clockwise direction when it is not in use, even for a short period of time. Turn the Temperature Dial to°•Min° position.
6. Disconnect the iron from mains supply outlet when filling or emptying water.
7. Remove the water remained in the water tank.
8. Use the Self-Cleaning function at least once a month.
9. Switch off the steam function by moving the steam control knob to position when it is not in use, even for a short period of time.
10. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid a hazard.

11. The iron must be used and rested on a stable surface

12. When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.

13. The plug of the supply cord must be removed from the socket-outlet before the water reservoir is filled with water

DO NOT'S

1. Do not allow children touch the iron or the power cord when ironing.
2. Do not leave the iron unattended when it is connected to a mains supply outlet.
3. Do not use an extension power cord set unless competent authority has approved it.
4. Do not add perfumed, vinegar or other chemical liquids into the water tank; they can damage the iron seriously.
5. Do not immerse the iron in water or any other liquid.
6. Do not use the iron when it is damaged or it works improperly.
7. Do not roll the power cord around the iron for storage until it has cooled down completely.
8. Do not attempt to open the cabinets or dismantle any parts from the iron; there is no serviceable part inside.
9. The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.

10. Keep electrical appliances out of reach from Children or infirm persons. Do not let them use the appliances without supervision.

11. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Chil dren shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

12. Children should be supervised to ensure that they do not play with the appliance
13. Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
14. Do not allow children to perform cleaning and user maintenance when they are without supervision.
15. Do not touch the surfaces marked with symbol during or just after ironing. It is hot (Please refer to the following figure 1 and figure 2).

Line drawing of a steam iron with a handle and spout (no text or symbols)

CAUTION:

HOT SURFACE.

Line drawing of a steam iron with a handle and base, no text or symbols present

CAUTION:

HOT SURFACE.

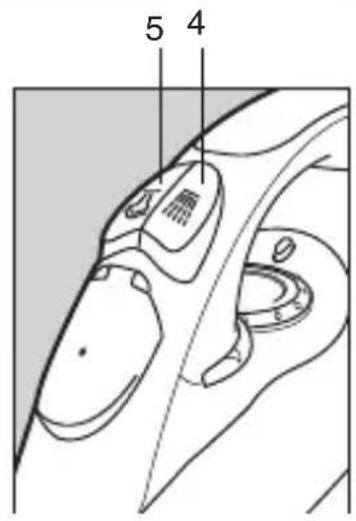

1- Spray Nozzle
2- Steam Control/Self-Cleaning Knob
3- Water Inlet Cover
4- Spray Button
5- Burst Of Steam Button
6- Auto-shut off indicator
7- Pilot Light
8- Temperature Dial Pointer
9- Temperature Dial
10- Filling Beaker

Voltage/Frequency: : 220 - 240 V \~ 50/60 Hz

Power : 1850 - 2200 W

Soleplate : Steel

Isolation class : |

All declared values on the product and on the printed leaflets are picked up after laboratory measurements performed according to related standards. These values may differ upon usage and ambient conditions.

3 Hints For Ironing

1. Sort out the articles to be ironed according to the type of fabric. This will minimize the frequency of temperature adjustment for different garments.
2. Test ironing a small area on the backside or inside the garment if you are unsure about the type of fabric. Start with a low temperature and increase gradually.
3. Wait for about three minutes before ironing heat sensitive fabrics. Temperature adjustment needs certain time to reach the required level no matter it is higher or lower.
4. Delicate fabrics such as silk, wool, velour, etc. are best ironed with an ironing cloth to prevent shine marks.
5. You may need a few times of press to activate the spray, burst and vertically burst function.

Read The Garment Labels and follow the manufacturer's ironing instructions that are often shown by symbols similar to the follows:

Temperature Control Setting

. Acetate
. Elastsne
. Polyamide
. Polypropylene

. Cupro
. Polyester
. Protein
. Silk
. Triacetate
. Viscose
.Wool

. Cotton
. Linen

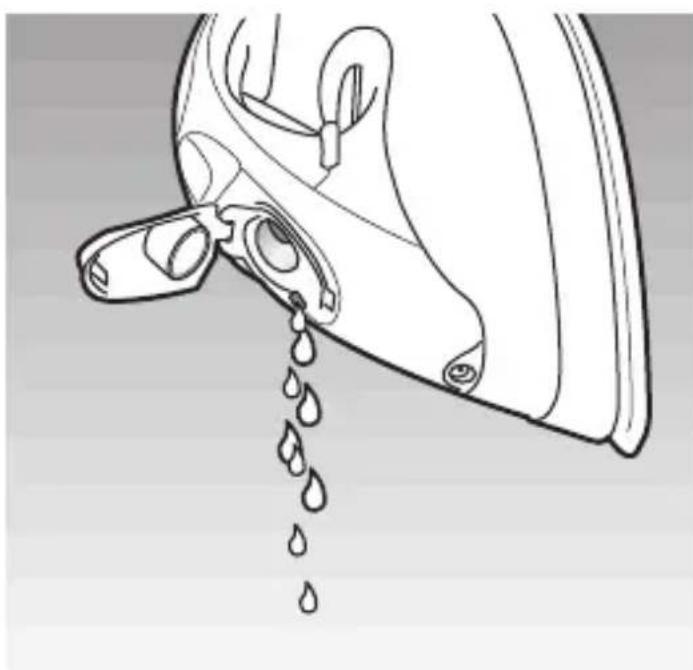

How To Fill Water

1. Disconnect the iron from mains supply outlet.

2. Move the Steam Control/Self-Cleaning Knob to position.

3. Release the Water Inlet Cover
4. Fill water through the water inlet hole.
5. Fill up to the 'Max' level marked on the side of water tank.

Note:

Do not use chemically descaled water or any other liquids.

Line drawing of a car interior with a bottle pouring liquid from a bottle onto the seat (no text or symbols)

First Time Ironing

1. Remove any protective films or stickers from the sole plate and the cabinet.
2. Grasp the cord and slowly pull out to the length you desired (See How to use the Cord storage features)
3. Fill the water tank. (See How To Fill Water)
4. Connect the iron to a suitable mains supply outlet.
5. Turn the Temperature Dial in clockwise direction to maximum position; pilot light glows.
6. Pilot light goes off when the required temperature is reached.

7. Move the Steam Control/Self-Cleaning
   Knob to position; steam starts coming out from the holes in the sole plate.

8. Begin first time ironing with an old towel.

9. When the water tank is empty and there is no more steam produced; the preparation work is completed. The iron is now ready for proper use.

Spraying

Line drawing of a steam iron with a handle and spout, showing steam emission (no text or symbols)

1. This function can be used any time and is not affect any setting.
2. Fill the water tank as described in How To Fill Water.
3. Aim the nozzle to the garment.
4. Press the Spray Button.

Note: It may be necessary to press the spray button a few times to start this function.

Dry Ironing

1. Connect the iron to a suitable mains supply outlet.
2. Turn the Temperature Dial in clockwise direction; select ‘•’ (1 dot), ‘••’ (2 dots) or ‘•••’ (3 dots) according to the recommendation of garment label.
3. Pilot light glows indicating the iron is switched on.
4. When the required temperature is reached; pilot light goes off. The iron is ready for use.
5. Move the Temperature Dial in anti-clockwise direction to 'Min'; the iron is switched off.

6. Disconnect the iron from mains supply outlet.

7. When the iron gets cool completely, store it vertically in a safe place

Steam ironing

1. Fill the iron as described in How To Fill Water.
2. Connect the iron to a suitable mains supply outlet.
3. Turn the Temperature Dial in clockwise direction to ‘●●●’ (3 dots) setting. (For optimum steam quality, do not use 1 dot or 2 dots setting for steam ironing)
4. Pilot light glows indicating the iron is switched on.
5. Pilot light goes off when the required temperature is reached.
6. The iron is ready for use.
7. Move the Variable Steam Control/Self-Cleaning Knob to give the desired amount of steam.

Diagram of a car interior with steering wheel and dashboard (no text or symbols)

1. Turn the Temperature Dial in anti-clockwise direction to 'Min'; the iron is switched off.

2. Disconnect the iron from mains supply outlet.

3. When the iron gets cool completely, store it vertically in a safe place.

Note: Set the Steam

Control Knob to position after use.

Burst of Steam

Simple line drawing of a steam iron emitting smoke or dust (no text or symbols)

This function provides extra amount of steam to remove stubborn wrinkles.

1. Fill the iron as described in the section of How To Fill Water.
2. Turn the Temperature Dial to ‘●●●’ (3 dots) setting.
3. Pilot light glows indicating the iron is switched on.
4. Pilot light goes off when the required temperature is reached.
5. The iron is ready for use.
6. Press the Burst Of Steam Button.
7. Steam will shoot from the holes of the soleplate into the fabric being ironed and removing the wrinkles.
8. For stubborn wrinkles, wait a few seconds before pressing the Burst of Steam Button again. Most wrinkles can be removed within three presses.

Note: It may be necessary to press the burst of steam button a few times to start this function.

For optimum steam quality, do not operate the Burst Of Steam more than three times in succession.

Burst of Steam in Vertical Position

Line drawing of an iron iron with radiating smoke or vapor discharge (no text or symbols)

Warning: Do not apply steam on any clothes or fabrics that are being worn by human or pets. Temperature of steam is very high. This function provides extra amount of steam to remove wrinkles on delicate garments in hanging position, hanging curtains, or other hanging fabrics.

1. Fill the iron as described in the section of How To Fill Water.
2. Turn the Temperature Dial to 'Max' setting.
3. Pilot light glows indicating the iron is switch on.
4. Pilot light goes off when the required temperature is reached. The iron is now ready for use.
5. Hold the iron between 15 and 30 centimeters away from the garment.
6. Press the Burst of Steam Button once.
7. Steam will penetrate into the garment removing the wrinkles.
8. For Stubborn wrinkles, wait a few seconds before pressing the Burst Of Steam Button again.
9. Most wrinkles can be removed within three presses.

Note: It may be necessary to press the burst of steam button a few times to start this function.

For optimum steam quality, do not operate the Burst Of Steam more than three times in succession.

Build-in Anti-scale System

The build-in anti-scale cartridge is designed to reduce the build-up of limescale which occurs during steam ironing. This will prolonge the working life of your iron.

Note: The anti-scale cartridge will not completely stop the natural process of limescale build-up.

Self-Cleaning

This function removes the scales and minerals built up in the Steam Chamber. The iron will remain in the best condition if this function is performed at least once a month or more regularly depending on the hardness of the water used.

1. Fill the iron as described in How To Fill Water; fill the water tank up to half.
2. Place the iron on a surface in upright standing position.

3. Connect to a mains supply outlet.

4. Turn the Temperature Dial in clockwise direction to 'Max' setting.

5. Pilot light glows indicating the iron is switched on.
6. Pilot light goes off when the required temperature is reached.
7. Wait for one more cycle; pilot light glows and goes off.
8. Turn the Temperature Dial in anti-clockwise direction to 'Min'.
9. Disconnect the iron from mains supply outlet.
10. Hold the iron horizontally over a sink.
11. Pull and hold the Steam Control/Self-Cleaning Knob to (Descaling) position.
12. Steam and boiling hot water will drain from the holes on the soleplate washing away the scales and minerals that have built up inside the Steam Chamber.
13. Gently move the iron back and forth until the water tank is empty.
14. When Self-Cleaning is complete, release the Steam Control/Self-Cleaning Knob.
15. Rest your steam iron back on its heel rest and allow to fully cool down.
16. Wipe the soleplate with a cold damp cloth.

Caution: Keep skin/body away from the hot water.

Anti-Drip

Line drawing of a steam iron with chain and roller rack (no text or symbols)

1. Anti-drip system, which is designed to prevent water escaping from the soleplate when the iron is too cold automatically.
2. During use, the anti drip system may emit a loud clicking sound, particularly during heat-up or whilst cooling down. This is perfectly normal and indicates that the system is functioning correctly.

Auto Shut-off Features:

The Auto shut-off feature will operate automatically when the iron is unattended and it is connected to a mains supply outlet.

Auto shut-off in horizontal

1. The iron will switch off automatically at 8 minutes if the iron is immobile in the ironing position (horizontal).
2. Auto shut-off indicator light blinks, indicating the iron is Auto-Off mode
3. Simply moving the iron, the iron will back on.

Auto-shut off in vertical

1. The iron will switch off automatically between 8 minutes if the iron is left on its heel rest position (vertically).
2. Auto shut-off indicator light blinks, indicating the iron is Auto-Off mode
3. Simply moving the iron, the iron will back on.

Note: The iron will take about 60 seconds to reach its previous soleplate temperature.

4 Maintenance And Cleaning

Draining The Water

Line drawing of a showerhead emitting water droplets (no text or symbols)

1. Move the Steam Control/Self-Cleaning Knob to ✿position.
2. Disconnect the iron from the mains supply outlet.
3. Hold the iron upside down and gently shake it to remove any remaining water out of filling hole.
4. When the iron get cool completely, store it vertically in a safe place.

Note: Set the Steam Control Knob to &position before storing the iron.

Cleaning The Iron

1. Disconnect the iron from the mains supply outlet.
2. Use a damped cloth or non-scratching cleaner to remove any deposits on the sole plate or the cabinets.

Note:

Never use sharp or rough objects to remove the deposits on the sole plate.

Never use any abrasive, vinegar or descaling agents to clean the iron.

Line drawing of a steam iron with a handle and spout, no text or symbols present

Line drawing of a steam iron with a handle and spout (no text or symbols)

Diagram of a mechanical component with labeled parts (no readable text or symbols)

Line drawing of a car interior showing steering wheel, dashboard, and seat (no text or symbols)

Line drawing of a steam iron with exhaust plume (no text or symbols)

Разбрызгивание

Diagram of a kitchen utensil with a handle and kitchen pan, showing no text or symbols

погаснет.

Line drawing of a steam iron emitting vapor or smoke (no text or symbols)

Line drawing of an iron (£) with radiating smoke or vapor, no text or symbols present

Line drawing of a steam iron with cooling fins and a handle (no text or symbols)

Line drawing of a showerhead emitting water droplets (no text or symbols)
