USER MANUAL A 233 OLYMPIA

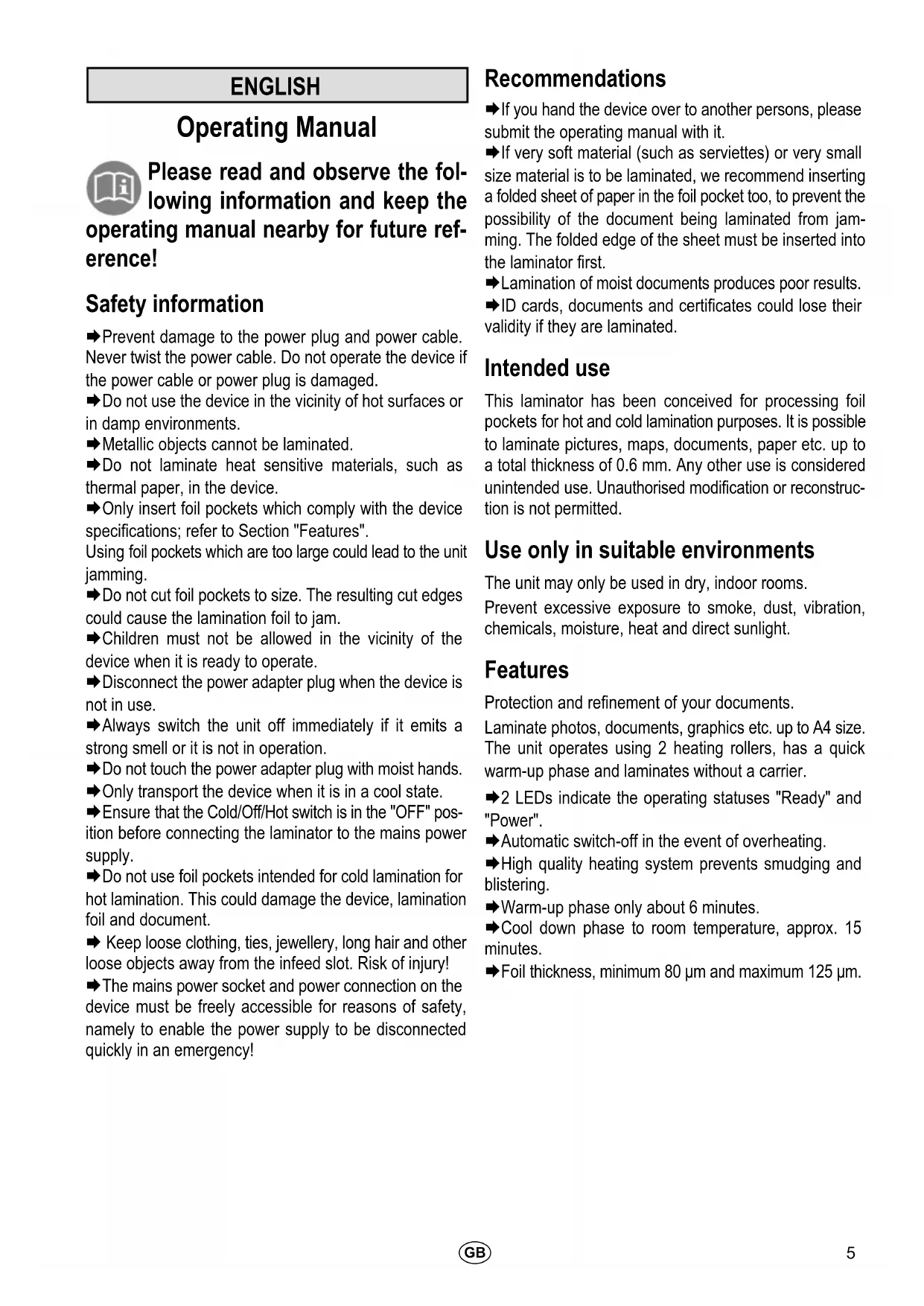

ENGLISH Operating Manual Please read and observe the fol lowing information and keep the operating manual nearby for future ref erence! Safety information Æ Prevent damage to the power plug and power cable. Never twist the power cable. Do not operate the device if the power cable or power plug is damaged. Æ Do not use the device in the vicinity of hot surfaces or in damp environments. Æ Metallic objects cannot be laminated. Æ Do not laminate heat sensitive materials, such as thermal paper, in the device. Æ Only insert foil pockets which comply with the device specifications; refer to Section "Features". Using foil pockets which are too large could lead to the unit jamming. Æ Do not cut foil pockets to size. The resulting cut edges could cause the lamination foil to jam. Æ Children must not be allowed in the vicinity of the device when it is ready to operate. Æ Disconnect the power adapter plug when the device is not in use. Æ Always switch the unit off immediately if it emits a strong smell or it is not in operation. Æ Do not touch the power adapter plug with moist hands. Æ Only transport the device when it is in a cool state. Æ Ensure that the Cold/Off/Hot switch is in the "OFF" pos ition before connecting the laminator to the mains power supply. Æ Do not use foil pockets intended for cold lamination for hot lamination. This could damage the device, lamination foil and document. Æ Keep loose clothing, ties, jewellery, long hair and other loose objects away from the infeed slot. Risk of injury! Æ The mains power socket and power connection on the device must be freely accessible for reasons of safety, namely to enable the power supply to be disconnected quickly in an emergency! Recommendations Æ If you hand the device over to another persons, please submit the operating manual with it. Æ If very soft material (such as serviettes) or very small size material is to be laminated, we recommend inserting a folded sheet of paper in the foil pocket too, to prevent the possibility of the document being laminated from jam ming. The folded edge of the sheet must be inserted into the laminator first. Æ Lamination of moist documents produces poor results. Æ ID cards, documents and certificates could lose their validity if they are laminated. Intended use This laminator has been conceived for processing foil pockets for hot and cold lamination purposes. It is possible to laminate pictures, maps, documents, paper etc. up to a total thickness of 0.6 mm. Any other use is considered unintended use. Unauthorised modification or reconstruc tion is not permitted. Use only in suitable environments The unit may only be used in dry, indoor rooms. Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight. Features Protection and refinement of your documents. Laminate photos, documents, graphics etc. up to A4 size. The unit operates using 2 heating rollers, has a quick warm-up phase and laminates without a carrier. Æ 2 LEDs indicate the operating statuses "Ready" and "Power". Æ Automatic switch-off in the event of overheating. Æ High quality heating system prevents smudging and blistering. Æ Warm-up phase only about 6 minutes. Æ Cool down phase to room temperature, approx. 15 minutes. Æ Foil thickness, minimum 80 μm and maximum 125 μm.6

1. Connect the power plug to a properly installed power

2. Set the Cold/Off/Hot switch on the right-hand side of

the device, to "Hot". The red Power LED lights up. Æ The drive motor for the transport rollers starts up. The correct operating temperature is reached after about 6-10 minutes and the green Ready LED lights up.

3. Insert the document to be laminated in the foil pocket

so that there is a margin of approx. 3 - 5 mm to the edge of the foil on all sides.

4. Insert the foil pocket containing the document in the

infeed slot at the front of the laminator. Feed in the closed side of the foil pocket first. The laminating pro cess occurs automatically.

5. When the lamination process has been completed,

set the Cold/Off/Hot switch on the right-hand side of the device, to "Off". Disconnect the power plug from the power socket, if necessary. Cold lamination

1. Connect the power plug to a properly installed power

2. Set the Cold/Off/Hot switch on the right-hand side of

the device, to "Cold". The red Power LED lights up. Æ The drive motor for the transport rollers starts up and the green Ready LED lights up. If you have just finished using the laminator for hot laminating, you must let the laminator cool down. The cool down phase takes about 15 minutes.

3. Insert the document to be laminated in the foil pocket

so that there is a margin of approx. 3 - 5 mm to the edge of the foil on all sides.

4. Insert the foil pocket containing the document in the

infeed slot at the front of the laminator. Feed in the closed side of the foil pocket first. The laminating pro cess occurs automatically.

5. When the lamination process has been completed,

set the Cold/Off/Hot switch on the right-hand side of the device, to "Off". Disconnect the power plug from the power socket, if necessary. Clearing foil jams The laminator is provided with the "ABS Jam Release" function in order to clear foil jams quickly. - In the event of a foil pocket jam, switch the laminator off and press the "ABS" button on the left-hand side of the device. - Hold the laminator firmly and pull the foil pocket, to gether with the document to be laminated, out of the lam inator's infeed slot. - It may then be necessary to clean the unit several times as described in the Section "Cleaning and Servicing". Cleaning and servicing Deposits and residual adhesive on the transport rollers can influence the results of the laminating process. There fore, the transport rollers must be cleaned periodically after use: To do this, insert a folded piece of paper in the infeed slot. Residual adhesive is removed and taken up by the paper when ejected. Repeat the process several times. Always disconnect the power plug before starting to clean the housing. If necessary, the housing can be cleaned us ing a cloth moistened with clean water with a little mild soap applied. Never use any solvents or aggressive cleaning agents. Troubleshooting

• Foil jam Æ To clear the fault, follow the instructions in the Section "Clearing foil jams". Æ Only use foil pockets of the size specified. Æ Ensure that the foil pocket has been inserted correctly in the unit. Æ Check the foil pockets being used are the correct size.

• Laminated foil pocket is not completely transparent Æ Laminate the same foil pocket again to improve the lamination result. Æ If you want to laminate thicker foil pockets (100 μm, 125 μm), please allow a longer warm-up phase.7

Technical properties Laminating system Hot roller technology Power supply 220 - 240 V ~ 50 Hz Current consumption 1 A Laminating speed 250 mm/min. Max. lamination width 233 mm (A4) Max. lamination thickness 0.6 mm Foil thickness 80, 100, 125 μm Warm-up phase 6 - 10 min. Cool down phase Approx. 15 min Dimensions (LxWxH) 380 x 106 x 48 [mm] Weight 950 g Disposal In order to dispose of your device, take it to a col lection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and elec trical devices in a separate waste container. The adja cent symbol indicates that the device must not be dis posed of in normal domestic waste! You are legally obliged to dispose of power packs and batteries at the point of sale or in the corres ponding containers provided at collection points by local waste authorities. Disposal is free of charge. The symbols indicate that the batteries must not be disposed of in normal domestic waste and that they must be brought to collection points provided by local public waste authorities. Packaging materials must be disposed of according to local regulations. Guarantee Dear Customer, we are pleased that you have chosen this equipment. In the case of a defect, please return the device together with the receipt and original packing material to the point- of-sale. Declaration of Conformity This device fulfils the requirements stipulated in the EU directives: 2004/108/EC on the approximation of the laws of the Member States relating to electromagnetic compatibility and repealing Directive 89/336/EEC. 2006/95/EC on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits. 2011/65/EC on the restriction of the use of certain hazard ous substances in electrical and electronic equipment. Conformity to the above directives is confirmed by the CE mark on the device. To view the complete Declaration of Conformity, please refer to the free download available on our website www.olympia-vertrieb.de
