KWK176 - Kettle Koenic - Free user manual and instructions

Product type	Electric kettle
Brand	Koenic
Model	KWK176
Capacity	1.7 L (max), 0.6 L (min)
Power	2200 W
Power supply	220-240 V ~ 50/60 Hz
Dimensions (approx.)	H 25 cm × W 22 cm × D 15 cm
Weight (approx.)	1.0 kg
Material	Plastic body, stainless steel heating element
Main functions	Rapid heating, automatic shut-off at boiling, overheat protection, 360° base
Care and cleaning	Clean the exterior with a damp cloth, rinse the removable filter with hot water, descale with vinegar
Safety	Overheat protection, automatic shut-off when boiling, do not immerse
Spare parts and repairability	Removable filter, power cord replaceable by a professional
General information	Household use only, suitable for drinking water, electrical class I

Frequently Asked Questions - KWK176 Koenic

What is the maximum capacity of the KWK176 kettle?

The maximum capacity is 1.7 liters (MAX mark), with a minimum of 0.6 liters (MIN mark).

How to clean and descale the kettle?

For descaling, fill with 0.5 L of water and add two tablespoons of vinegar essence. Boil, let it sit, then rinse thoroughly. For cleaning, use a non-abrasive damp cloth and rinse the removable filter with hot water.

Can you heat something other than water?

No, this kettle is designed only to heat and boil water. Any other liquid or food may damage the appliance or cause dangerous situations.

What to do if the kettle does not turn on?

Check that the kettle is properly placed on the base, that the lid is closed, and that the power outlet works. If the problem persists, let the appliance cool down for 15 minutes after a possible dry boil (overheat protection).

Can you use the kettle without the filter?

It is recommended to use the kettle with the provided filter to retain impurities and prevent splashes. The appliance must only be used with the original base and filter.

How to open the lid?

Press the lid button located on the handle to open it safely.

Is the appliance suitable for people with reduced mobility?

This appliance is not intended for persons (including children) with reduced physical, mental or sensory capabilities without supervision from a responsible person. Children should be supervised.

What is the required supply voltage?

The appliance operates on a voltage of 220-240 V ~ 50/60 Hz. Ensure that the power outlet matches and is grounded.

Can you immerse the kettle in water?

No, never immerse the kettle, its base, or the cord in water. This poses an electric shock hazard. Clean the exterior with a damp cloth.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its after-sales service, or a similarly qualified person to avoid any danger. Do not use the appliance in this state.

USER MANUAL KWK176 Koenic

Water Kettle Professional Aluminium Edition

KWK176

DE Gebrauchsanweisung
EL OdyieCxphangs
EN User Manual
ES Manual de instrucciones
FR Mode d'emploi
HU Kezelési leirás
IT Manuale dell'utente
NC Gebruiksaanwijzing
PL Instrukcja obslugi
PT Instruções de utilização
RU PykoBOAcTBO nOa3oBaTeA
SV Bruksanvisning
TR Kullanim Kilavuzu
ZH 用户手册

Deutsch	4-7
Ελληνικά	8-11
English	12-15
Espanol	16-19
Français	20-23
Magyar	24-27
Italiano	28-31
Nederlands	32-35
Polski	36-39
Portugues	40-43
Pyccký	44-47
Svenska	48-51
Türkce	52-55
汉语	56-59

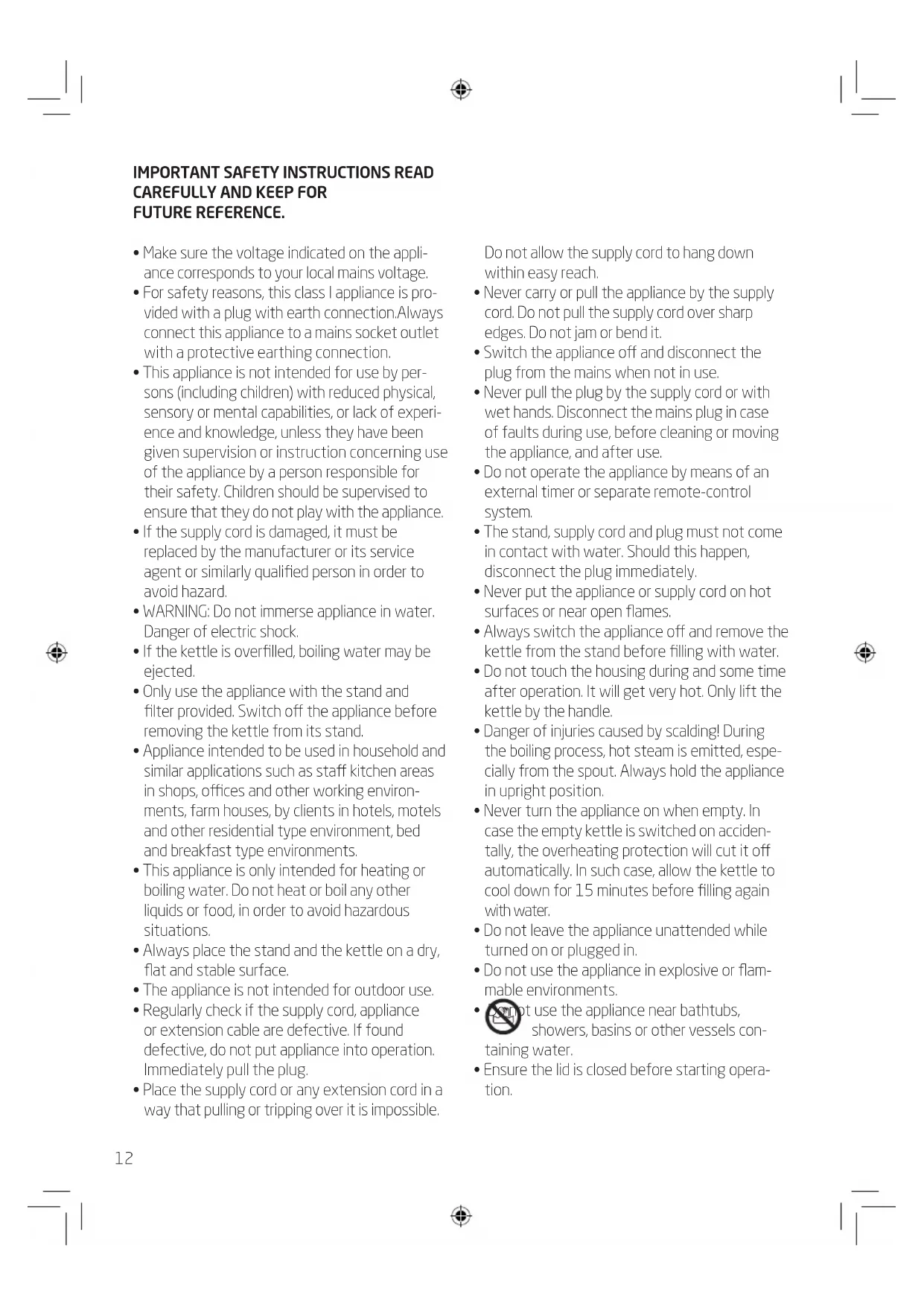

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Make sure the voltage indicated on the appliance corresponds to your local mains voltage.
- For safety reasons, this class I appliance is provided with a plug with earth connection. Always connect this appliance to a mains socket outlet with a protective earthing connection.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid hazard.
WARNING: Do not immerse appliance in water. Danger of electric shock.
If the kettle is overfilled, boiling water may be ejected.
- Only use the appliance with the stand and filter provided. Switch off the appliance before removing the kettle from its stand.
- Appliance intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments, farm houses, by clients in hotels, motels and other residential type environment, bed and breakfast type environments.
- This appliance is only intended for heating or boiling water. Do not heat or boil any other liquids or food, in order to avoid hazardous situations.
Always place the stand and the kettle on a dry, flat and stable surface.
The appliance is not intended for outdoor use.
- Regularly check if the supply cord, appliance or extension cable are defective. If found defective, do not put appliance into operation. Immediately pull the plug.
- Place the supply cord or any extension cord in a way that pulling or tripping over it is impossible.

Do not allow the supply cord to hang down within easy reach.

• Never carry or pull the appliance by the supply cord. Do not pull the supply cord over sharp edges. Do not jam or bend it.
• Switch the appliance off and disconnect the plug from the mains when not in use.
• Never pull the plug by the supply cord or with wet hands. Disconnect the mains plug in case of faults during use, before cleaning or moving the appliance, and after use.
• Do not operate the appliance by means of an external timer or separate remote-control system.
• The stand, supply cord and plug must not come in contact with water. Should this happen, disconnect the plug immediately.
• Never put the appliance or supply cord on hot surfaces or near open flames.
  Always switch the appliance off and remove the kettle from the stand before filling with water.
• Do not touch the housing during and some time after operation. It will get very hot. Only lift the kettle by the handle.
• Danger of injuries caused by scalding! During the boiling process, hot steam is emitted, especially from the spout. Always hold the appliance in upright position.
• Never turn the appliance on when empty. In case the empty kettle is switched on accidentally, the overheating protection will cut it off automatically. In such case, allow the kettle to cool down for 15 minutes before filling again with water.
• Do not leave the appliance unattended while turned on or plugged in.
• Do not use the appliance in explosive or flammable environments.
• can't use the appliance near bathtubs, showers, basins or other vessels containing water.
• Ensure the lid is closed before starting operation.

Intended use

This appliance is only intended for heating or boiling water. Only use according to these instructions. Improper use is dangerous and will void any warranty claim. Observe the safety instructions.

Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment

(WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

English

Congratulations

Thanks for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Before first time use

Fill the kettle with water to the MAX level and operate it. Repeat this process 2-3 times. This will remove any residues remaining from the manufacturing process.

Before use, plug in the kettle.

After use unplug the kettle.

Using the kettle

1. Open the lid by pressing the lid button.
2. Fill the kettle with water to the desired level (MIN 0.6 / MAX 1.7 L)
3. Close the lid and place kettle on stand.
4. Use the power switch to switch kettle on. The indicator light goes on.
5. The kettle will switch off automatically, once the water has boiled. The indicator light goes out and a beep signal is heard. Wait 15-20 seconds before operating again.

Fill the kettle with water and close the lid.

Do not exceed the MAX level.

Cleaning and care

1. Unplug the kettle from the mains supply and allow it to cool down.
2. Clean the base unit with a slightly damp, lint-free cloth. Do not immerse in water.
3. Empty the kettle, open the lid, lift out the filter and rinse it under warm water.
4. Do not use any abrasive cleaning agents.
5. Refit in reverse order.

Place kettle on stand.

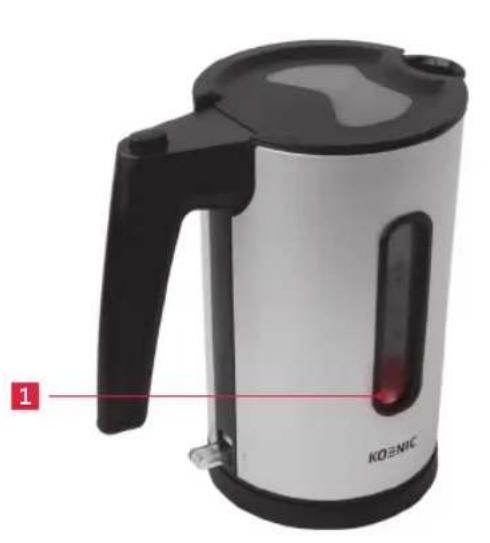

Switch kettle on (1).

Dscaling

1. Fill the kettle with 0.5 litres of water.
2. Add two table spoons of vinegar essence.
3. Boil the mixture, allow it to stand for a short period, then empty and rinse the kettle thoroughly with clean water.

The kettle switches off automatically.

After cleaning, clip the filter in place.

Note

• You can stop the boiling process at any time by lifting the power switch.
• When kettle is not in use, store excess cord in or around the stand.

Caution

Do not open the lid when steam is emitted from the spout and during pouring.

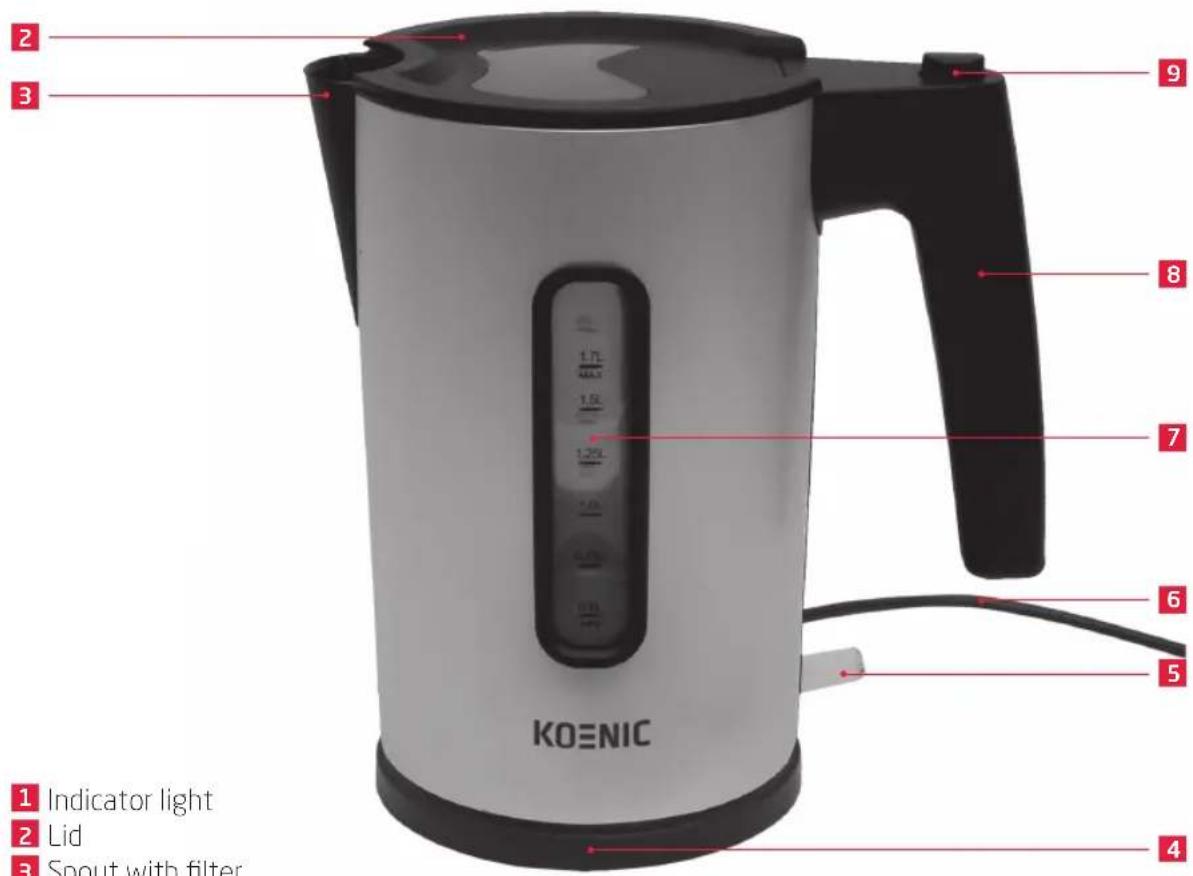

Indicator light
2 Lid
Spout with filter
4 Stand
5 Power switch
6 Power cord
Water level indication
8 Handle
9 Lid button

Technical Data

Rated voltage: 220-240 V

Rated power input: 2200 W

Rated frequency: 50 Hz
