Product type	Electric kettle
Brand	Koenic
Model	KWK 170
Capacity	1.7 L
Rated voltage	220-240 V
Rated power	1850-2200 W
Frequency	50/60 Hz
Dimensions (approx.)	Height: 25 cm, Width: 20 cm, Depth: 15 cm
Weight (approx.)	1 kg
Material	Plastic
Color	White / Black (depending on version)
Main functions	Automatic shut-off, overheat protection, water level indicator, integrated thermometer, removable filter
Maintenance and cleaning	Descaling with lemon juice; do not use abrasive detergent
Safety	Automatic shut-off, overheat protection, do not immerse in water
Spare parts and repairability	Removable filter, base
General information	Household use only; do not heat liquids other than water

Frequently Asked Questions - KWK 170 Koenic

How to descale my Koenic KWK 170 kettle?

Fill the kettle with water, add the juice of a lemon, boil the mixture, let it sit for 15 minutes, then empty and rinse. Repeat if necessary. Do not use abrasive products or concentrated vinegar.

What is the capacity of the kettle?

The maximum capacity is 1.7 liters. The minimum water level is 0.75 liters for proper operation.

What to do if the kettle does not turn on?

Check that the kettle is properly placed on its base and that the switch is in the on position. Make sure the power outlet is working. If the kettle has been heated empty, the overheat protection has activated: let it cool for 15 minutes before using again.

Can I heat something other than water?

No, this appliance is designed only to heat and boil water. Never heat other liquids or food to avoid hazardous situations.

How to clean the filter?

Open the lid, remove the removable filter and rinse it with hot water. Do not use abrasive detergent. Put it back in place after drying.

Why does the kettle stop before the water boils?

This may be due to necessary descaling. Limescale can affect the boiling sensor. Perform descaling as indicated in the manual.

Is it normal for the kettle to smoke during first use?

Yes, during the first cycles, manufacturing residues may produce smoke or an odor. Boil 2 to 3 times of water and discard it before using the kettle normally.

Can I open the lid while the water is heating?

No, never open the lid when steam is escaping from the spout. This could cause burns. Wait until heating stops.

What is the power of the kettle?

The rated power is 1850 to 2200 watts depending on the mains voltage (220-240 V). This allows rapid boiling.

Where can I find spare parts?

Contact Koenic after-sales service or the retailer. Available parts include the removable filter and the base.

USER MANUAL KWK 170 Koenic

TeToBpaotnpa
eAeioupyiaI

Metá ToV kaθapiμo,
kouμπωte To φιλ-tpo atη θεοι Tou.

Σημειωση

Mnpelte va oataaete Tn diaikada 3paouoioaonote otiyun,tpaewvtaTo diakottnpog ta naw.
Mnpoeite va deite TnTv Tpexouoa EepkoKpaia vepou oTo eepmuEtpo.
'Otav dev xpnaiooieite to bpaatnpa, mtopeite va tuaiiEte to kaawio eoa n yupw ano Tn baon.

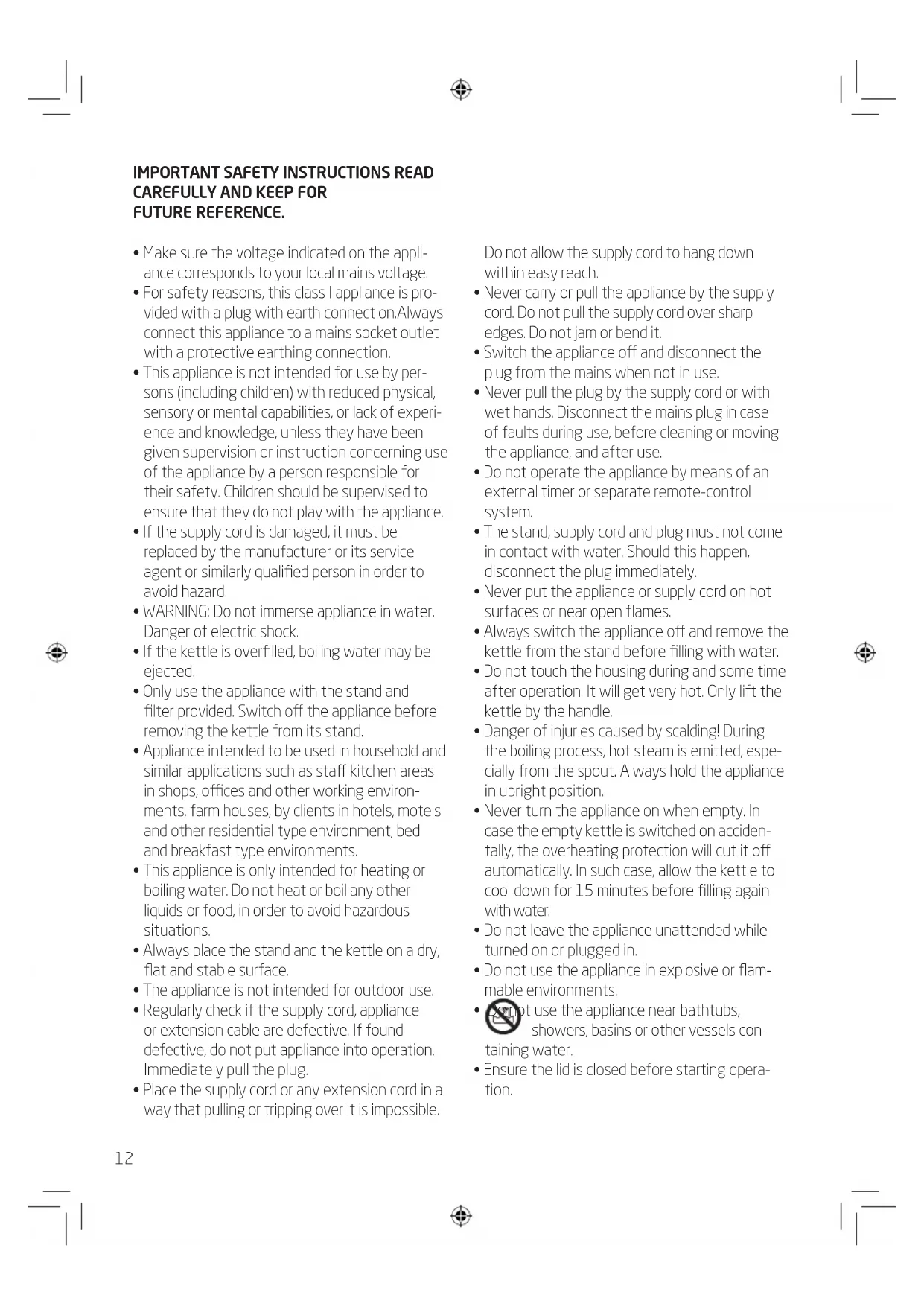

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Make sure the voltage indicated on the appliance corresponds to your local mains voltage.
- For safety reasons, this class I appliance is provided with a plug with earth connection. Always connect this appliance to a mains socket outlet with a protective earthing connection.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid hazard.
WARNING: Do not immerse appliance in water. Danger of electric shock.
- If the kettle is overfilled, boiling water may be ejected.
- Only use the appliance with the stand and filter provided. Switch off the appliance before removing the kettle from its stand.
- Appliance intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments, farm houses, by clients in hotels, motels and other residential type environment, bed and breakfast type environments.
- This appliance is only intended for heating or boiling water. Do not heat or boil any other liquids or food, in order to avoid hazardous situations.
Always place the stand and the kettle on a dry, flat and stable surface.
The appliance is not intended for outdoor use.
- Regularly check if the supply cord, appliance or extension cable are defective. If found defective, do not put appliance into operation. Immediately pull the plug.
- Place the supply cord or any extension cord in a way that pulling or tripping over it is impossible.

Do not allow the supply cord to hang down within easy reach.

• Never carry or pull the appliance by the supply cord. Do not pull the supply cord over sharp edges. Do not jam or bend it.
• Switch the appliance off and disconnect the plug from the mains when not in use.
• Never pull the plug by the supply cord or with wet hands. Disconnect the mains plug in case of faults during use, before cleaning or moving the appliance, and after use.
• Do not operate the appliance by means of an external timer or separate remote-control system.
• The stand, supply cord and plug must not come in contact with water. Should this happen, disconnect the plug immediately.
• Never put the appliance or supply cord on hot surfaces or near open flames.
  Always switch the appliance off and remove the kettle from the stand before filling with water.
• Do not touch the housing during and some time after operation. It will get very hot. Only lift the kettle by the handle.
• Danger of injuries caused by scalding! During the boiling process, hot steam is emitted, especially from the spout. Always hold the appliance in upright position.
• Never turn the appliance on when empty. In case the empty kettle is switched on accidentally, the overheating protection will cut it off automatically. In such case, allow the kettle to cool down for 15 minutes before filling again with water.
• Do not leave the appliance unattended while turned on or plugged in.
• Do not use the appliance in explosive or flammable environments.
• Can't use the appliance near bathtubs, showers, basins or other vessels containing water.
• Ensure the lid is closed before starting operation.

Intended use

This appliance is only intended for heating or boiling water. Only use according to these instructions. Improper use is dangerous and will void any warranty claim. Observe the safety instructions.

Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment

(WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Technical Data

Rated voltage: 220-240 V

Rated input power: 1850-2200 W

Rated frequency: 50/60 Hz

English

Congratulations

Thanks for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Before first time use

Fill the kettle with water to the MAX level and operate it. Repeat this process 2-3 times. This will remove any residues remaining from the manufacturing process.

Before use, plug in the kettle.

After use unplug the kettle.

Using the kettle

1. Open the lid by pressing the lid button.
2. Fill the kettle with water to the desired level (MIN 0.75 / MAX 1.7 L)
3. Close the lid and place kettle on stand.
4. Use the power switch to switch kettle on.
5. The kettle will switch off automatically, once the water has boiled. Wait 15-20 seconds before operating again.

Cleaning and care

1. Unplug the kettle from the mains supply and allow it to cool down.
2. Empty the kettle, open the lid, lift out the filter and rinse it under warm water.
3. Do not use any abrasive cleaning agents.
4. Refit in reverse order.

Dscaling

1. Fill the kettle with water.
2. Add the juice of one lemon.
3. Boil the mixture, reboil it and allow it to stand for 15 minutes. Reboil a third time, then empty and rinse the kettle.

Fill the kettle with water and close the lid.

Do not exceed the MAX level.

Place kettle on stand.

Switch kettle on (I).

The kettle switches off automatically.

After cleaning, clip the filter in place.

Note

• You can stop the boiling process at any time by lifting the power switch.
• The current water temperature can be read on the thermometer.
• When kettle not in use, store excess cord in or around the stand.

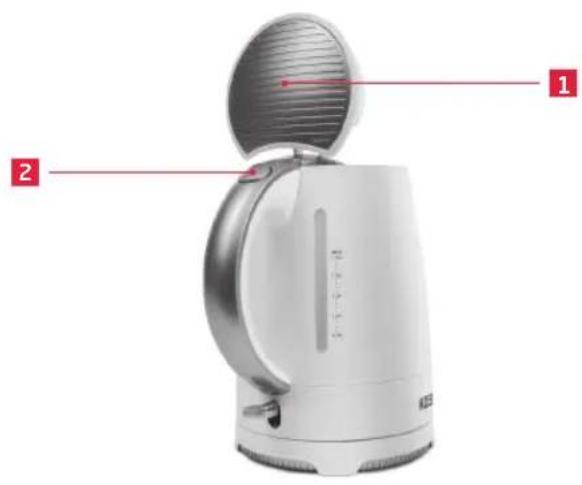

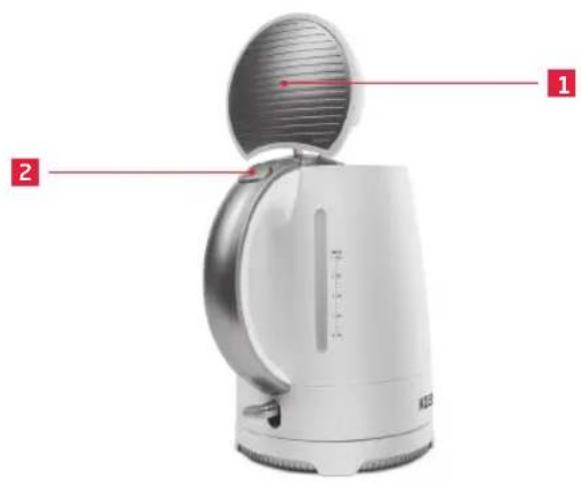

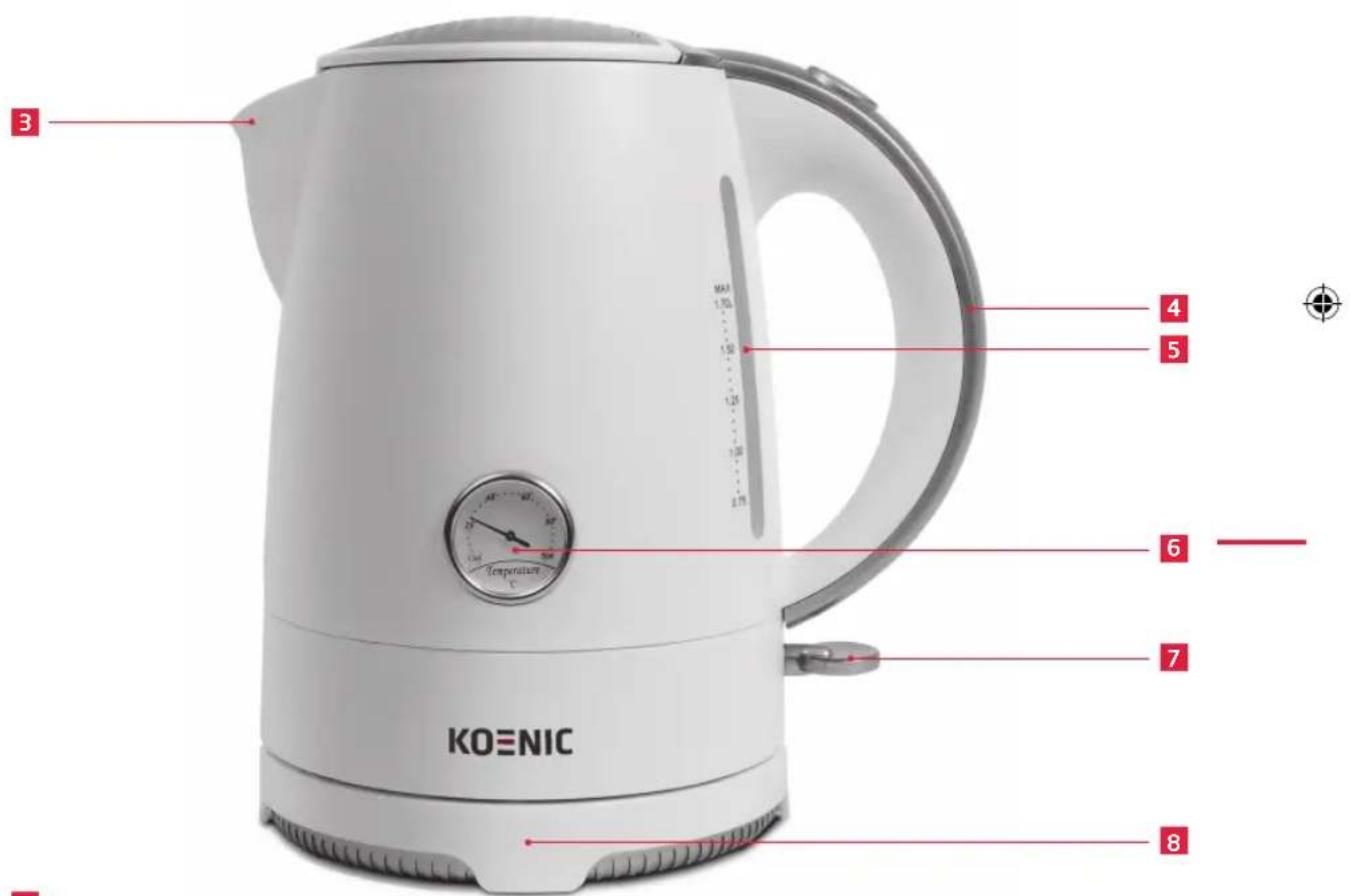

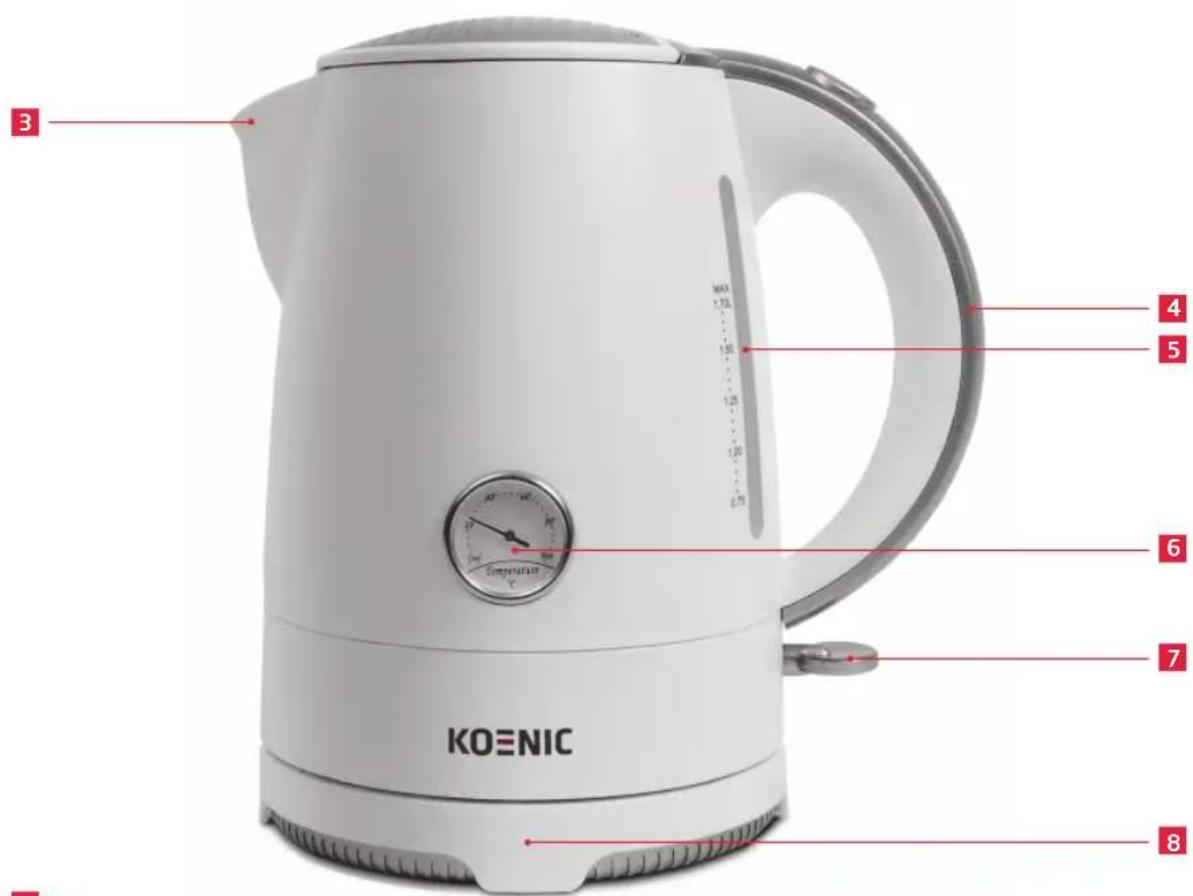

1 Lid
2 Lid button
Spout with filter
4 Handle
5 Water level indication
6 Thermometer
Power switch
8 Stand

Caution

• Do not open the lid when steam is emitted from the spout.

EN

1. OTKLHOUHTe BUNKy yaHnKa OT cETN N daTe eMy OCTbITb.

1. Ocbo6oAnTe yauHnK,OTKpoTKe KpbIuKy, nBLeKInTe QnAaTp u CnoAoCHNe erO TeNao BDOoN.
   3.He nCnoB3yIte a6pa3nBbIX YnCTaXxCpeACTB.
2. Cobepnte B o6paTHOM npraKe.

YdaneHne haknn

1.HanoHnTe YauHnK BoDoI.
2. △o6aBbTe COK OT OaHOrO AUMOHa.
3.ДоВeДиTe CmecbdoKnIeHnI,NOBTOpHO BCKNЯrTiTe ee n DaIte Cmecn HAcTcRbC B TeUeHn15 MInHyT.NOBTOpHO BCKnIte TpeTn pa3,3aTeM onOpOxHnTe n CnOAnC-HnTe YaHnK.

IpeaNCNoB3OBaHNEm NOKHOHTeBNAky YauHnKa BCEt b.

3aNoHnTe YauHnK BODo, N BaKpoIte KpbIuKy.

MecTo yHnKa-Ha NOCTaBKe.

Nocae uCNOA60BbHnO TKAHOHTeBnkyaHnKaOTcETn.

He npebbiwa Te ypoBeHb MAX (MAKC).

BkHouHTe yHnK (I).

YaHnK BbIKAnOuaeTcraBtOMaTNueCKn.

Iocae uNCTKIN BCTaBbTe Ha 3aueA KnΦnabTpHa MeTo.

PnmeaHne

Moxho octaHOBntb npouecc KnneHn B AHO6oe BpemBaIKAIOyateTeEM NITAHn.
- TekyuTo TemnepaTy PObIMoXHO CHTaTb Ha TepMometpe.
- Ecam yahHnK He nCNOb3yETc, XpaHnte N36bIOTHyBm WHyp B yAHnKe mN B O6MOTaHHOM BOKpyr NOCTaBKn BnDe.

1 Kpbioka
2 Khonka KpbiiKn
3 HocnkΦnAbTpom
4 Puyka
5 INHAnKaTOp yPoBn BOdbI
6 TepMometp
7 BbIKHouateAb nHTAHN
B NDoCTaBka

PpeDocTepeXeHne

He oTkpBbAaTe KpbIuKy,ecAn np BblXoAnT nHocnKa.
