Adria 1800 inox - Iron TAURUS - Free user manual and instructions

Brand	Taurus
Model	Adria 1800 inox
Product type	Steam iron
Soleplate	Stainless steel
Power	1800 W
Power supply	220-240 V ~ 50/60 Hz
Water tank capacity	300 ml (estimate)
Weight	Approximately 1.5 kg
Dimensions (L x W x H)	Approximately 30 x 13 x 15 cm
Spray function	Yes, for dry or steam ironing
Steam shot function	Yes, extra steam for stubborn creases
Vertical steam	Yes, for curtains and hanging garments
Steam flow adjustment	Continuous control (position 0 for dry ironing)
Adjustable thermostat	Yes, with settings for synthetics, silk/wool, cotton, linen
Heating indicator light	Yes, lights up when temperature is reached
Self-cleaning function	Yes, to be done at least once a month
Recommended water	Distilled water preferably
Maintenance	Clean with a damp cloth after cooling; do not immerse
Safety	Do not touch hot parts; keep away from water; unplug before filling
Spare parts	Contact an approved service center for any repairs
Usage	Household use only
Cable length	Approximately 2 m (estimate)

Frequently Asked Questions - Adria 1800 inox TAURUS

How to fill the water tank?

Unplug the appliance, open the filling cover, pour water (preferably distilled) up to the MAX level, then close.

How to use the steam function?

Make sure the tank is full and the selected temperature is sufficient (≥ steam position). Adjust the steam flow using the control.

How to use the steam shot?

Press the steam shot button. Wait a few seconds before pressing again. For optimal steam, do not press more than three times in a row.

Can I iron vertically?

Yes, select the maximum temperature, hold the iron vertically and press the steam button while moving from top to bottom on the fabric.

How to clean the iron (self-cleaning)?

Fill the tank to the maximum, plug in the iron, set it to maximum temperature. Once hot, hold down the self-cleaning button so that water flows through the soleplate. Shake gently and empty the tank. Let it cool.

What temperature to choose for each fabric?

Follow the symbols: synthetics (low), silk/wool (medium), cotton (high), linen (max). For mixed fabrics, set to the lowest temperature.

Can I use tap water?

Use of distilled water is especially recommended to avoid limescale buildup. Tap water can be used but reduces lifespan.

Does the iron turn off automatically?

This function is not mentioned in the manual. Be sure to unplug the iron after use and never leave it unattended.

What to do if the iron does not heat up?

Check that the cord is properly plugged in and the outlet works. If the indicator does not light up, contact an approved technical service. Do not attempt to repair it yourself.

How to maintain the stainless steel soleplate?

Once the iron has cooled, clean the soleplate with a damp cloth. Do not use abrasive products or solvents. The self-cleaning function also helps remove residues.

USER MANUAL Adria 1800 inox TAURUS

yTIOr C IIAPOyBJaXHeHHeM

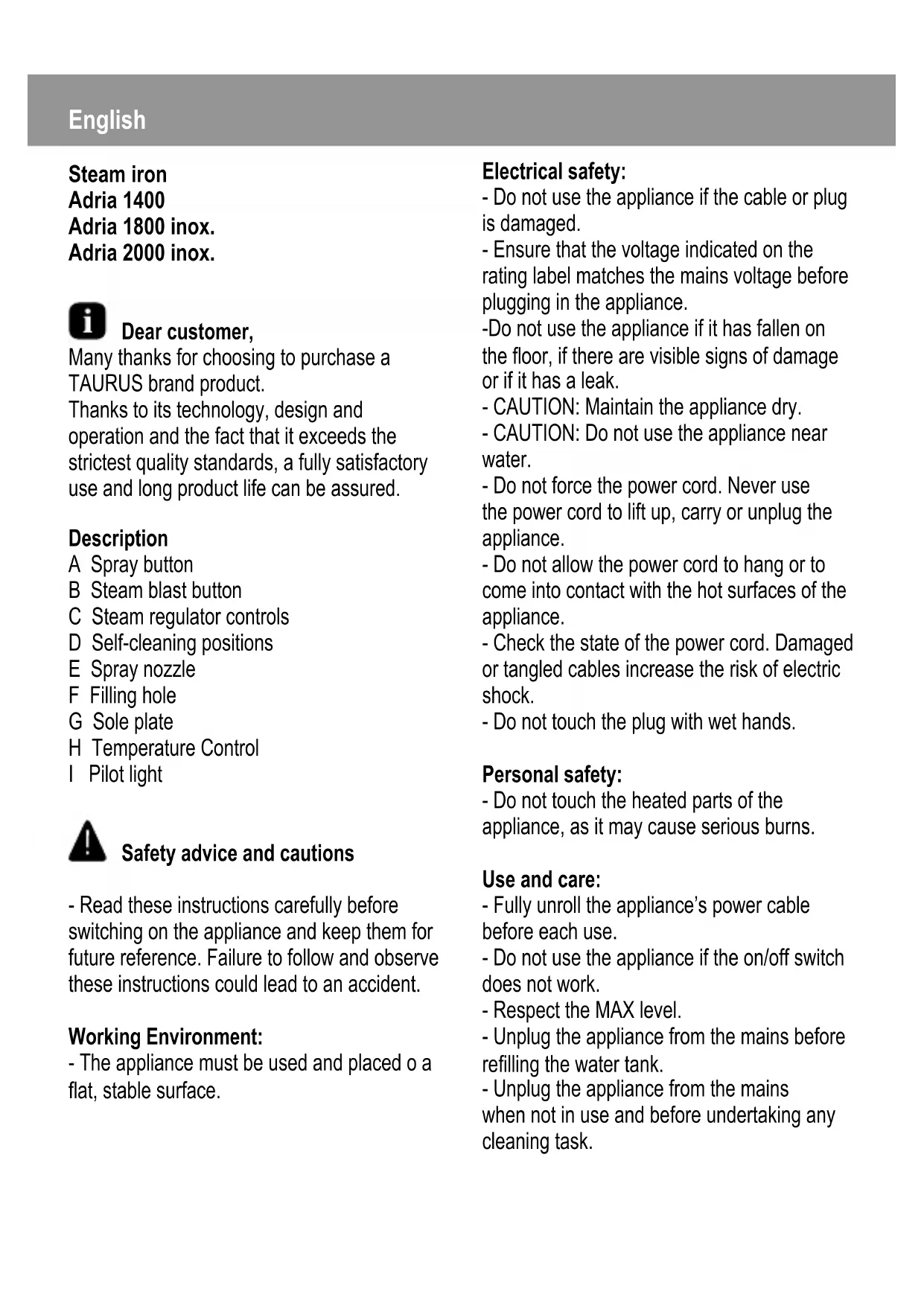

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Description

A Spray button
B Steam blast button
C Steam regulator controls
D Self-cleaning positions
E Spray nozzle
F Filling hole
G Sole plate
H Temperature Control

I Pilot light

Safety advice and cautions

• Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

Working Environment:

• The appliance must be used and placed o a flat, stable surface.

Electrical safety:

• Do not use the appliance if the cable or plug is damaged.
• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
  -Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• CAUTION: Maintain the appliance dry.
• CAUTION: Do not use the appliance near water.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Do not allow the power cord to hang or to come into contact with the hot surfaces of the appliance.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• Do not touch the plug with wet hands.

Personal safety:

• Do not touch the heated parts of the appliance, as it may cause serious burns.

Use and care:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if the on/off switch does not work.
• Respect the MAX level.
• Unplug the appliance from the mains before refilling the water tank.

• Unplug the appliance from the mains when not in use and before undertaking any cleaning task.

• This appliance is for household use only, not professional or industrial use.

• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
• This appliance is intended for adult use. Ensure that this product is not used by the disabled, children or people unused to its handling.
• This appliance should be stored out of reach of children and/or the disabled.
• Do not store or transport the appliance if it is still hot.
• Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.
• The use of distilled water is recommended.
• Never leave the appliance unattended while in use.
• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
• Turn the thermostat control to the minimum (MIN) setting. This does not mean that the iron is switched off permanently.

Instructions for use

• Ensure that the selected tension on the voltage selector coincides with the tension of the mains.

Filling with water:

• You must fill the water compartment before turning on the appliance.

• It is essential to have filled the deposit with water to be able to work with steam.

• Fill the water deposit through the filling hole (fig.1)
• Close water inlet lid.

Use:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.
• Turn the appliance on, by using the selection knob.
• The pilot light comes on.
• Select the desired temperature.
• Turn the thermostat control to the desired temperature position.
• Do not use temperatures higher than those indicated on the garments to be treated.
• Temperature for synthetic fibres (Polyester, Nylon...).
• Temperature for silk and wool.
  Temperature for cotton.

(Minimum temperature for steam ironing)

Max Temperature for linen.

• If garment has various kinds of fibres, select the temperature for the fibre that requires the lowest temperature. (For example, select the temperature for polyester for an article made out of 60% polyester and 40% cotton).

Dry ironing:

• The appliance has a steam flow regulator that permits dry ironing (without steam) when placed in the position.

Steam Ironing:

• It is possible to iron with steam whenever the deposit is filled with water and the

adequate temperature is selected.

Spray:

• The spray can be used in both steam and dry ironing.
• Press the spray button to use this operation.
• The spray button has to be pressed repeatedly to release the first spray.

Steam blast:

• This function proportions extra steam for eliminating wrinkles.
• Press the steam blast button. Wait a few seconds until vapour penetrates the fibres of the garment before pushing the button again. For optimum steam quality, do not apply more than three successive blasts.
• The steam blast button has to be pressed repeatedly to release the first shot.

Vertical steaming:

It is possible to iron hanging curtains, items of clothing on his hanger, etc. To do so, follow the instructions:

• Select the maximum temperature of the iron, while turning the temperature regulator of the iron in a clockwise direction.
• Move the iron in a top to bottom direction while pressing the steam control. Important: for cotton and linen, its recommended to put the iron base in contact with the material. For other more delicated fibres, it's recommended to keep the iron base at some centimetres of distance.

Once you have finished using the appliance:

• Select the minimum position (MIN) using the thermostat control.

• Remove the water from the water tank.

Cleaning

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.

• Clean the electrical equipment and the mains connection with a damp cloth and dry. DO NOT IMMERSE IN WATER OR ANY OTHER LIQUID.

• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

• Never submerge the appliance in water or any other liquid or place it under running water.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.

Self-cleaning function:

• It is important to self-clean the appliance at least once a month to remove calcium and any other built-up minerals inside the iron.
• Fill the depository to its maximum level, as indicated on "water fill" section
• Place the iron in the vertical position, plug into the mains and select the maximum temperature.
• Leave the appliance to heat up until the pilot light indicates that it has reached its consigned temperature.
• Press the self-clean button, and keep it pressed down.
• Let the water flow out through the steam

vents in the base, while lightly shaking the appliance.

• Release the button after a minute or when the tank becomes empty.
• Leave the iron in the vertical position until it has cooled.

Anomalies and repair

• Take the appliance to an authorised technical support service if problems arise.
  Do not try to dismantle or repair without assistance, as this may be dangerous.
• If the connection to the mains has been damaged, it must be replaced and you should proceed as you would in the case of damage.

Ecology and recyclability of the product

• This symbol means that; should you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of Waste from

Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2006/95/EC on Low Voltage and Directive 2004/108/EC on Electromagnetic Compatibility.
