Product type	Multi-function food processor
Brand	TEAM
Model	TKG RB 3
Power supply	230 V ~ 50/60 Hz, 800 W
Dimensions (approx.)	35 x 25 x 30 cm
Weight (approx.)	5 kg
Blender capacity	1.75 L max
Processor bowl capacity	Not specified (small household quantities)
Speeds	4 speeds + Pulse function (P)
Main functions	Chopping, slicing, grating, mixing, blending (blender)
Included accessories	Processor bowl, lid with feed tube, pusher, slicing/chopping blade, mixer, blade support with grating/slicing blades, blender jar with lid and cap, storage drawer
Safety	Safety lid on processor bowl, motor stop if bowl or lid incorrectly assembled, blender lock
Care and cleaning	Processor bowl and accessories washable under water; motor unit cleaned with a slightly damp cloth; do not immerse motor unit; do not put in dishwasher
Spare parts and repairability	Stainless steel blades, bowls, lids, pusher. Repair by a qualified competent service. Contact the manufacturer's after-sales service
Usage intervals	Pause of at least 1 minute (or 2 minutes for the mixer) between each operation; maximum continuous duration according to rating plate (e.g., 1 min)
General information	Household use only; do not use for commercial preparations; store without locking the lid

Frequently Asked Questions - TKG RB 3 TEAM

How to use the blender of the TKG RB 3?

First place the processor bowl on its base with the lid closed. Remove the safety lid (1) by unscrewing it. Open the blender lid, add ingredients and liquid (do not exceed the max level). Place the blender jar on its shaft, turn it counterclockwise until the symbols align. Insert the cap into the lid, screw everything together. Plug in and select the desired speed or pulse function (P). Never use the blender and the processor simultaneously.

What safety precautions should be observed?

Always unplug the appliance before assembly, disassembly or cleaning. Never immerse the motor unit in water. Keep hands out of the bowl while operating. The blades are very sharp, handle with care. The appliance must not be used by persons with reduced capacities without supervision. Only use accessories recommended by the manufacturer.

How to clean the TKG RB 3 food processor?

Unplug the appliance. For the blender: add a little warm soapy water, use pulse function or speed 4, then rinse. For the processor bowl and accessories: wash them under running water with a sponge if necessary. Do not put in dishwasher. The motor unit is cleaned with a slightly damp cloth. Dry all parts thoroughly before storage.

Can I put the processor parts in the dishwasher?

No, no accessory should be washed in the dishwasher. Wash them by hand with warm soapy water. The motor unit must never be immersed or put in the dishwasher.

What is the maximum capacity of the blender?

The blender can hold up to 1.75 L. Do not exceed the maximum level indicated on the jar to avoid overflow or splashing.

How to change the processor blades?

For the grating/slicing blades: attach the selected blade to the support by inserting the rear tab into the slot, then press the front to snap it in. For the chopping knife, it is placed directly on the central shaft. Always use the provided plastic guard to store the chopping knife blade safely.

Can I chop very hard foods like ice or coffee beans?

No, it is strictly not recommended to chop very hard foods (ice, sugar, coffee beans) as this could damage the appliance. Use the processor only for common culinary preparations.

How to use the pulse function of the TKG RB 3?

The pulse function (P) allows intermittent operation. Turn the selector to 'P' for one or two seconds, then release; the selector automatically returns to '0'. Use it to chop or blend briefly. Do not hold the 'P' position continuously.

What are the recommended usage intervals?

For intensive use, observe pauses of at least 1 minute between each operation (or 2 minutes with the mixer). The maximum continuous duration is indicated on the rating plate (e.g., 1 minute). Do not exceed these limits to avoid motor overheating.

Where can I find spare parts for the TKG RB 3?

Spare parts (blades, bowls, lids, pusher) are available from the manufacturer's after-sales service or an authorized dealer. For any repair, contact a qualified competent service. Only use original accessories recommended by TEAM.

USER MANUAL TKG RB 3 TEAM

D. Hsir for diKlingSn

1. Safety cover

2. On/off & speed switch

3. Motor unit

4.Blender gear

5.Shaft

B.Jug

1. Cap of the blender's lid

2. Lid of the blender

3. Handle of the jug

9.Blender jug

Z. Bowl

1. qusher

2. Lid with feeding tube

3. processor bowl

D. BldS support

1. Blades

2. Blade support

E. Plstle silelng blsdS

F. Mstl ehopping blds

G. Plstie whisking blsdS

F

A. BssS

B. Bol du blSnd

D. Support d\$s lsms

E. LsmS a trsnehSr sn plstlquS

1. Lames
2. Support des lames
   F. Zout'su hsehoir Sn metsl
   G. MelngSur Sn plstiquS

NL

A. Bissis

B. Ksn

Z.Msngkom

F. Zuehills plesdords mStsI

G. Misturśdor d's plásteo

P

A. BssS

D. Support pSrl Isms

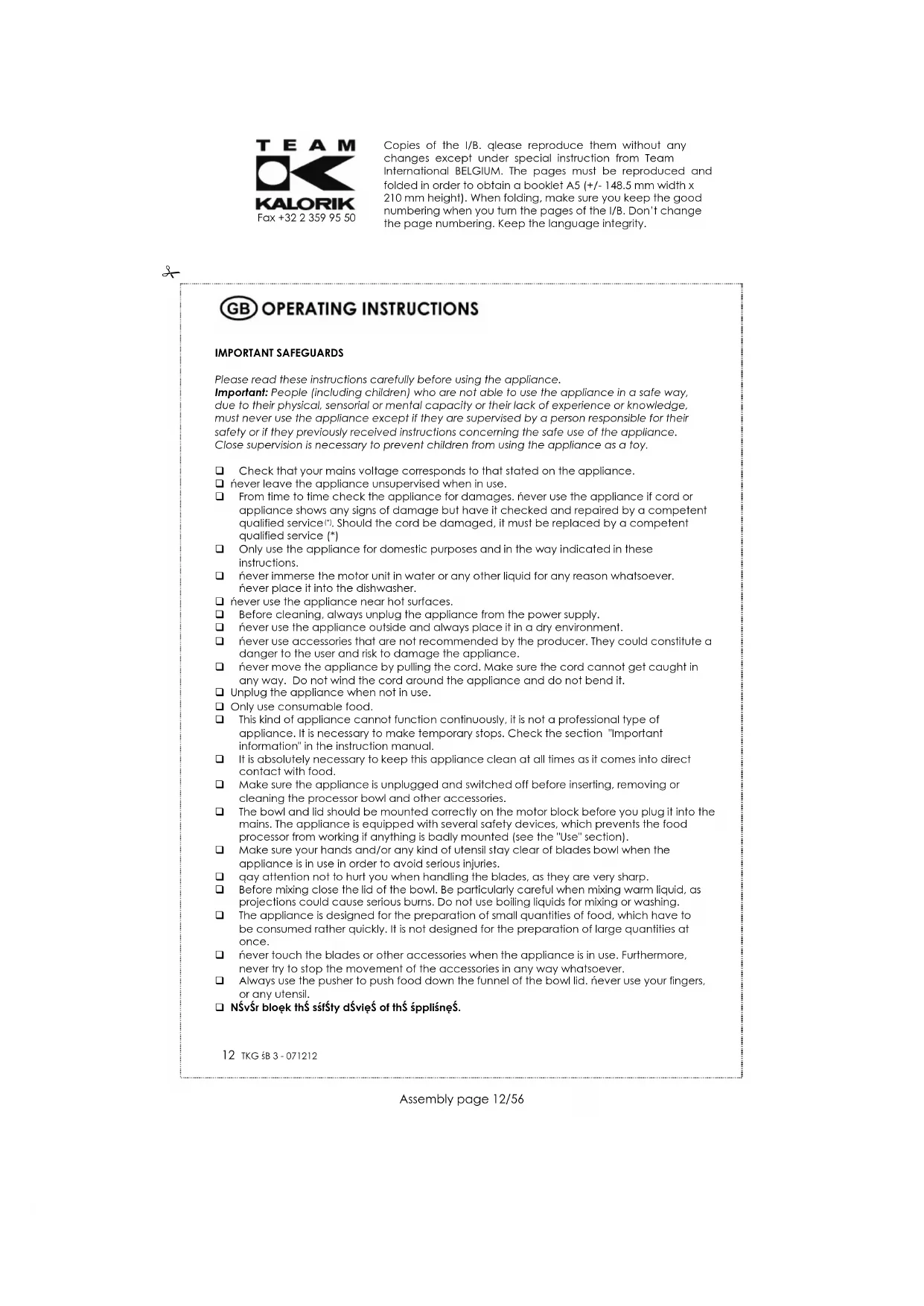

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

Check that your mains voltage corresponds to that stated on the appliance.
never leave the appliance unsupervised when in use.
From time to time check the appliance for damages. never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service* Should the cord be damaged, it must be replaced by a competent qualified service (^*)
Only use the appliance for domestic purposes and in the way indicated in these instructions.
never immerse the motor unit in water or any other liquid for any reason whatsoever. never place it into the dishwasher.
never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply.
never use the appliance outside and always place it in a dry environment.
never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Unplug the appliance when not in use.
Only use consumable food.
This kind of appliance cannot function continuously, it is not a professional type of appliance. It is necessary to make temporary stops. Check the section "Important information" in the instruction manual.
It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.
Make sure the appliance is unplugged and switched off before inserting, removing or cleaning the processor bowl and other accessories.
The bowl and lid should be mounted correctly on the motor block before you plug it into the mains. The appliance is equipped with several safety devices, which prevents the food processor from working if anything is badly mounted (see the "Use" section).
Make sure your hands and/or any kind of utensil stay clear of blades bowl when the appliance is in use in order to avoid serious injuries.
gay allention not to hurt you when handling the blades, as they are very sharp.
Before mixing close the lid of the bowl. Be particularly careful when mixing warm liquid, as projections could cause serious burns. Do not use boiling liquids for mixing or washing.
The appliance is designed for the preparation of small quantities of food, which have to be consumed rather quickly. It is not designed for the preparation of large quantities at once.
never touch the blades or other accessories when the appliance is in use. Furthermore, never try to stop the movement of the accessories in any way whatsoever.
Always use the pusher to push food down the funnel of the bowl lid, never use your fingers, or any utensil.
Nsvr bloek h'ssftsy dsvie of th'spplns.

12 TKG SB 3-071212

The processor bowl can simply be washed under running water.
B$esrful not to hurt you whSn hndling, Smoving, eSsning or Smpting thS bowl.

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

IMPORTANT INFORMATION

This appliance is not designed for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage time (KB xx min in which xx is the maximum usage time). The breaks should last at least 10 minutes. Any wrong use will invalidate the guarantee.

USE

To use the processor bowl (12) the safety lid (1) must be locked into place (Fig. A, page 2). Make sure the appliance is unplugged and the ON/OFF & speed switch (2) is on "0" position.

• Place the processor bowl (12) onto the shaft (5), making sure that the 3 small tabs on the bottom of the bowl fit into the small slots on the base, and turn it anticlockwise until it clicks into place (fig. b/c/d, page 5).
  Make sure the bowl is well fitted, if not, the appliance will not work.
  DSpSnding on thdssird prsrtion, you will hsv to uss vious seessoriSs. For mords dStils, plesse ehsek thS Instruetions bSlow.
• Place the lid with feeding tube (11) on the bowl and turn it anticlockwise until the tabs of the lid are locked in place in the slots on top of the bowl and base and until the symbol ● on the lid ends up right above the symbol ● on the bowl. Zsution: as long as the lid is not locked properly, the appliance will not work.
• Plug in the appliance.
• Turn the ON/OFF & speed switch (2) up to a speed between 1 and 4 depending on preparations. Use speed 1 or 2 for smooth preparations such as mixing drinks, blending soups and sauces and mashing cooked vegetables. Use speed 3 or 4 for heavier preparations, e.g. beating eggs, chopping fresh fruits...
  If you wish to use the appliance punctually, you can use the pulse function. To do so, turn the ON/OFF & speed switch (2) to "P" for one or two seconds. Do not use it for a longer time. When you let the switch go, it will switch back to "0" automatically. The pulse function is perfect for making milkshakes.

FUNZTIONS

Make sure the appliance is unplugged, that the ON/OFF & speed switch (2) is in "0" position and that the safety lid (1) is closed.
- Place the processor bowl (12) onto the shaft and turn it anticlockwise until it locks into place and the handle is on the right hand side (fig. c, page 5).
Then put the slicing blade (E) or the chopping blade (F) on the shaft in the middle of the bowl.
- Then put the ingredients into the bowl. We advise you to cut ingredients like meat or vegetables into pieces beforehand in order to get a homogeneous preparation.
- Place the lid with feeding tube onto the processor bowl making sure the metal shaft of the blade gets into the hole in the middle of the lid.

13TKGB3-071212

• plug in the appliance.
• For chopping or slicing, select a speed between 2 and 4 or use the pulse function. For chopping, the pulse function gives the best results: turn the On/OFF & speed switch (2) to "q" for one or two seconds and repeat this until the foodstuffs have the right consistency. CAUTION: Do not try to chop very hard food (such as ice, sugar or coffee grains...).
  If you want to add liquids or other ingredients during the preparation, do so through the funnel of the bowl lid and use the pusher (10) to push food down the funnel. NvSr us your fingSr or sny othSr utSnsll.
  If foodstuffs gel stuck to the bowl and the bowl needs to be scraped during the preparation, the appliance must be switched off. Wait for a short while until the blade stops spinning before removing the lid.
• When you use your appliance in an intensive way, it is necessary to make breaks of at least 1 minute between every operation to let the motor cool down.
  If you chop flour or yeast dough, the maximum quantity to put into the bowl is 500g and the maximum operation time is 45 seconds. Let the appliance cool down for 1 minute after each use.
  The metal chipping blade is very sharp. You can use the plastic blade cover to store the chopping blade in a safe way when you have cleaned it after use.

b) Whiskling

Do not usth whisking bisd$ (G) to knsd hsvy dough sueh ss tsr pstry or pizzs dough.

Make sure the appliance is unplugged, that the On/OFF & speed switch (2) is in "0" position and that the safety lid (1) is closed.
- place the processor bowl (12) onto the shaft and turn it anticlockwise until it locks into place and the handle is on the right hand side (fig. d, page 5).
Then put the whisking blade (G) on the shaft in the middle of the bowl.
- quit the ingredients into the bowl.
- glace the lid with feeding tube onto the processor bowl making sure the metal shaft of the blade gets into the hole in the middle of the lid.
This accessory can be used to whisk the egg whites and prepare sauces like mayonnaise or custard. The appliance can whisk 0.5 l of cream at a time. never use the whisking blade to knead or mix dough.
- plug in the appliance and turn the On/OFF & speed switch to speed 1.
It is possible to add ingredients during the process through the funnel of the lid.
- When you use your appliance in an intensive way, the maximum operating time for whisking is 1 minute and it is necessary to make breaks of at least 2 minutes between every operation to let the motor cool down.

e) Grisling / Slieng

Make sure the appliance is unplugged, that the On/OFF & speed switch (2) is in "0" position and that the safety lid (1) is closed.
- place the processor bowl (12) onto the shaft and turn it anticlockwise until it locks into place and the handle is on the right hand side (fig. b, page 5).
Fix a blade (13) to the blade support (14). To do so, put the tab on the back side of the blade in the slot of the blade support (fig. 1, page 5). Qress on the back side of the blade (fig. 2, page 5) and then press on the front side of the blade so that it clicks into place (fig. 3, page 5). Check that the tab of the blade is well in place (fig. 4, page 5).
- glace the support (14) on the shaft (5) (fig. b, page 5)
- glace the lid with feeding tube onto the processor bowl as indicated in paragraph "Use" making sure the metal shaft of the blade support gets into the hole in the middle of the lid.

14TKG5B3-071212

Cut the potatoes, carrots, cucumbers etc... into pieces and place the ingredients into the funnel of the bowl lid.
Use the pusher (10) to push food down the funnel. Nsvsr uss your flingSr or sny othSr utnsll.
Plug in the appliance and turn the ON/OFF & speed switch to "1" to start. Adjust the speed if necessary.
Always turn the ON/OFF & speed switch to "0" and unplug the appliance before emplying the bowl and be careful when handling the blades, as they are very sharp.
- When you use your appliance in an intensive way, it is necessary to make breaks of at least 1 minute between every operation to let the motor cool down.

d) Mixing with thS blSndSr

Before using the blender, the processor bowl (12) has to be fitted into the base and the lid has to be properly locked. Do not put any accessory or food into the bowl.

• Unscrew the safety lid (1) to remove it.
• Open the lid of the blender, put the ingredients for mixing into it and add the liquid. IT IS VERY IMPORTANT that the mixture does not go above the maximum level indicated on the blender jug.
• Place the blender jug (9) on the blender gear (4) (fig. a, page 5) and turn it anticlockwise until the handle is oriented to the left and the jug is properly fixed to the motor unit (the symbol on the bottom of the jug has to be right above the symbol on the base).
• Shut the lid with its cap (6) (put the cap in the hole of the lid and turn it clockwise to lock it into place) and screw the lid onto the blender. Make sure the tabs of the lid fit into the slots of the jug and its handle. Make sure the assembly has been done properly (the lid and the jug have to be locked).
  Depending on the type of food, you can prepare up to 1.75 l with the blender.
  Plug in the appliance and turn the ON/OFF & speed switch to the desired speed or use the pulse function ("P") depending on the preparation.
• Never use the processor and the blender simultaneously. When the blender is used, the shaft of the processor bowl is also running. Therefore, do not leave any accessory (blade, blade support) in the bowl while using the blender. Always keep the pusher (10) in the funnel of the bowl lid when using the blender function.
  Once mixing is done, turn the ON/OFF & speed switch to "0" and unplug the appliance. Wait until the blender has come to a complete stop before removing the jug.
• When you use your appliance in an intensive way, it is necessary to make breaks of at least 1 minute between every operation to let the motor cool down.

ZLEANING AND STORAGE

Cleaning the blender

• Place the blender jug onto the motor unit as indicated in the paragraph "mixing with the blender".
  Leave the processor bowl and its lid in place. Do not put any accessory or food into the bowl.
  Pour a little bit of hot soapy water into the blender jug. Then use the pulse function for a few seconds or turn the switch to speed 4.
• Unplug the appliance, remove the blender jug and rinse it out.
  Use a sponge if necessary. Be careful not to hurt yourself with the blades.
  Rinse the blender jug out once more and let it dry.
• Rinse the accessories out and let them dry.
  The motor unit can only be cleaned with a slightly damp cloth.

15TKG RB 3-071212

Cleaning the processor bowl and accessories

• Unplug the appliance.
• Turn the lid with feeding tube clockwise to take it off.
  remove the accessories and the bowl. Be careful not to hurt yourself with the blades.
• sinse the processor bowl and the accessories out and let them dry.
  Use a sponge if necessary. Be careful not to hurt yourself with the blades.
  The motor unit can only be cleaned with a slightly damp cloth.

IMPORTANT:

! Nsvs put th motor unit und running wsl or into th dishwssb, but elsn it with s slightly dsmp eloth.
! Do not usstrong dStrg$nts or seouring powdSr.
! Nsvsr put ths seesssoriS into ths dishwshSr. ZIssn thSm in hot sospy wstr.
! Hndls th bisds s eSrfully whSn elSsInng.ThSy sr SxtrSmSly shrp.

Storage

• never store the appliance with the lid locked since this gives continuous pressure on the safety mechanism. This also avoids unpleasant smells which may linger in the bowl.
• Your appliance is equipped with a drawer which can be used to store the stainless steel blades (13) (fig. e, page 5). To attach the drawer, slide it into the slots at the bottom of the base (fig. b/c/d, page 5).

REZIPES

DOUGznUT PASTRY

For 250g of pastry:

125 g flour, 1 egg, 100 ml of milk, 1 table spoon of oil, a pinch of salt

• qour all ingredients into the proeesssor bowl filled with the mStsl echopping blds. Lock the lid on.
• Sel the variable power control lo position 2. sun the appliance until you obtain an even, well-mixed pastry.
• For a lighter pastry, replace the milk with beer.

MAYOnaSE

1 egg yolk, 1 table spoon mustard, 112 table spoon vinegar, oil, salt, pepper
- All ingredients must be at the same temperature (but not too cold).
gour all ingredients, except oil, into the proesssor bowl fitted with the "whisking blsd\$".
Lock the lid on.
- Set the variable power control to position 2.
Liquidize for a few seconds. Then, without stopping the mixer, pour the oil in slowly through the funnel opening of the lid.

16 TKG SB 3-071212

PROTEZION OF THE ENVIRONMENT-DIREZTIVE 2002/96/Ez

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
