MC 1 - Food Processor TEAM - Free user manual and instructions

Brand	Team
Model	MC 1
Product type	Mini-chopper / food processor
Power supply	220-240 V, 50/60 Hz (estimated)
Rated power	250 W (estimated)
Bowl capacity	Small quantity (not specified, household use)
Main functions	Chop, mix, beat egg whites
Included accessories	Stainless steel blade, mixer, guide, bowl, lid, rubber ring
Maximum continuous use time	1 minute
Recommended rest time	2 minutes after 1 minute of use; 10 minutes between extended cycles
Safety	Anti-restart device, lid and motor block locking
Cleaning the motor block	Damp cloth only, do not immerse
Cleaning the bowl and accessories	Hand wash with non-abrasive detergent, rinse and dry; blade is very sharp
Available spare parts	Blade, mixer, guide, bowl, lid, rubber ring
Repairability	By approved after-sales service; damaged cable must be replaced by a professional
Dishwasher compatibility	No (bowl and accessories not)
Microwave compatibility	No
Professional use	No, household use only
Environmental standard	Directive 2002/96/EC (WEEE)

Frequently Asked Questions - MC 1 TEAM

How to assemble the mini-chopper before use?

Place the rubber ring on a stable surface, insert the bowl into the ring. Mount the blade or mixer on the guide until it clicks. Insert the assembly into the bowl by aligning the guide with the recess at the bottom. Add the ingredients, then place the lid respecting the notches. Finally, put the unplugged motor block on the container. Plug in and press the motor block to start.

What is the maximum continuous use time?

The appliance must not run for more than 1 minute continuously. After that, let it cool for at least 2 minutes. For extended use, respect breaks of 10 minutes between cycles.

Can I chop meat with this appliance?

Yes, cut the meat into cubes of about 1 to 1.5 cm before chopping. Use pulses for even chopping.

How to clean the blade without injuring myself?

Always unplug the appliance. Handle the blade with caution, it is very sharp. Wash it with warm water and non-abrasive detergent, rinse thoroughly. Use a brush if necessary. Dry immediately.

Can I wash the bowl and accessories in the dishwasher?

No, the bowl, blade, mixer, lid, and rubber ring are not dishwasher safe. Wash them by hand with a mild detergent.

Can I blend hot liquids?

No, do not pour hot liquid into the bowl. Wait until it cools to room temperature to avoid damaging the appliance.

What to do if the appliance does not start?

Check that the motor block is correctly positioned on the lid and that the notches are aligned. Make sure the lid is properly locked. The appliance is equipped with a safety device that prevents starting if these parts are not correctly assembled.

How to change the accessories (blade and mixer)?

Unplug the appliance. Remove the motor block, lid, and bowl. To remove the accessory, unclip it from the guide by pulling gently. To reinstall, insert the guide shaft into the hole of the chosen accessory until it clicks.

Can I use the appliance to knead dough?

No, the supplied mixer is designed to mix liquids or non-solid foods (like egg whites). It cannot knead thick doughs.

How to avoid injuries when cleaning the blades?

Pay special attention: the blades are very sharp. After removing the guide, place the blade on a stable surface. Use a sponge or a long-handled brush to clean, avoid grasping the blade directly.

USER MANUAL MC 1 TEAM

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

2 TEAM MC 1-060328

D

Please read these instructions carefully before using the appliance.
Check that your mains voltage corresponds to that stated on the rating plate of the appliance before using it.
Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. All repairs should be made by a competent qualified electrician. Should the cord be damaged, it must be replaced by a competent qualified electrician.
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the electric part of your appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
Never use the appliance near hot surfaces.
Never use the appliance outside and always place it in a dry environment.
Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way.
Make sure to stand the appliance on a flat surface.
Always unplug the appliance from the power supply, when not in use and especially when you clean it, remove accessories or when you empty the jug.
Only use this appliance for cooking purposes.
It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.
Make sure the motor block is correctly placed on the jug before starting the appliance.
Pay attention not to get injured, as the blade is very sharp.
The appliance is designed for the preparation of small quantities of food, which have to be consumed rather quickly. It is not designed for the preparation of large quantities at once.
Caution: your appliance has a security device that avoids excessive starting. Do not try to overrule this device, as it could be very dangerous for you.

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

IMPORTANT INFORMATION

This appliance is not for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage time (KB xx min where xx is the allowed maximum usage time). The breaks should last at least 10 minutes.

MOUNTING AND USE OF THE MINI-CHOPPER (SEE PAGE 4)

Attention: for your own safety and a good functioning it is absolutely necessary to respect the mounting described hereunder.

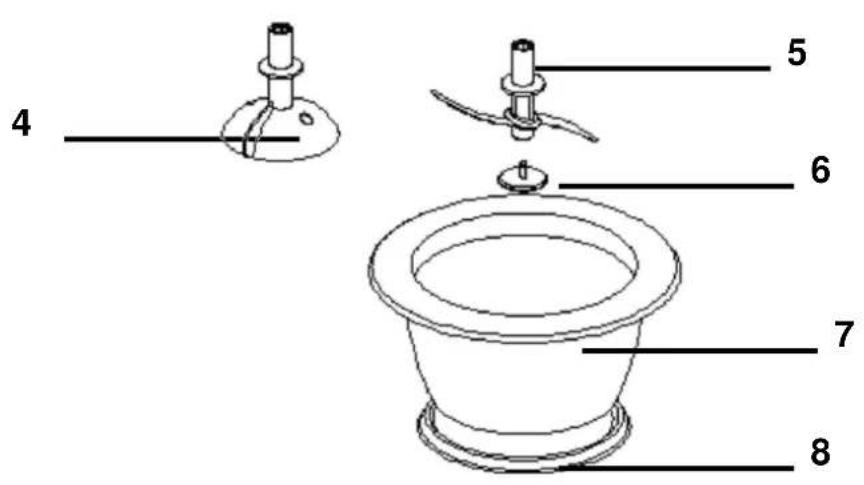

• Place the rubber ring on a flat surface, then insert the container in the ring (1).
• Mount the desired accessory (blade or mixer fitting) on the guide (2a or 2b). Therefore you only have to push the axle of the guide in the hole of the desired accessory until it clicks. To remove the guide, proceed inversely. By this handling pay attention not to cut yourself and not to lose the guide, as it is useful for both accessories.
• Then place the all in the container paying attention that the guide is correctly placed in the hole at the bottom of the container (3).
• Place ingredients in the container.
• Place the lid on the container respecting the positioning of its openings-out (4). If necessary, turn the lid until it is correctly placed on the container.

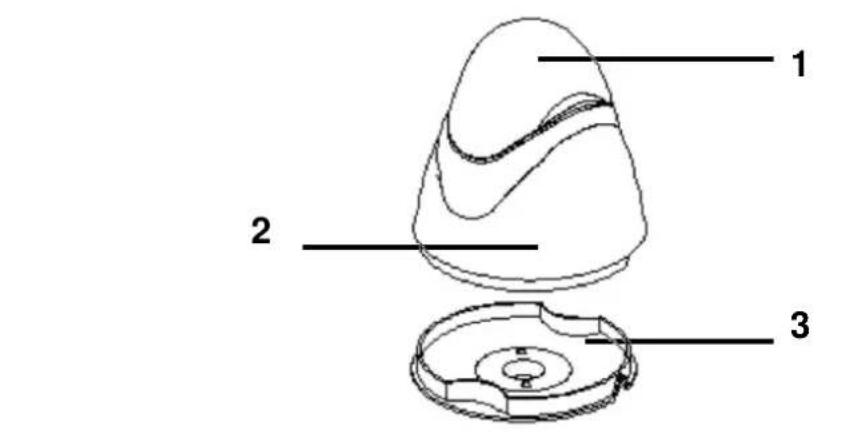

• Place the unplugged motor block on the container (5) respecting the positioning of the openings-out. If the motor block is not mounted correctly, it will be impossible to start the appliance.
• Plug in.
  To start press the motor block with your hand holding the container with the other hand.
  To remove food, unplug and proceed the other way round, but pay attention not to hurt you, as the blade is very sharp.
• Caution: do not put the bowl in the dishwasher and do not pour too hot liquids in it. Never put the bowl in the microwave oven.

USE ADVICES

• Your appliance is not intended to work for long periods. So if your preparation requires more than 1 minute continuously, it is absolutely necessary to follow breaks. The breaks should last at least 2 minutes to allow the motor cool down.
  We advise you to chop the food by fits and starts and if necessary to mix them with a spatula between two chopping sessions following the safety instructions.
  If you chop pieces of meat, cheese, we advise you to cut them into small pieces of 1 to 1.5 cm in order to obtain a homogeneous and fine chopping. Otherwise, you should obtain pieces in your preparation.
  The mixer fitting has to be used only to mix liquids or non-solid food. Do not use it to knead pastas but for example it is very useful to beat eggs white.

CLEANING

• Unplug from outlet before cleaning.
• You can wipe the motor block with a lightly damp cloth. Never immerse it in water or any other liquid. If this happens, do not plug it in, let it dry for at least 24 hours before using it again. If this is not enough, bring your appliance back to a competent qualified electrician.
  To clean the blade, the container and the lid, use soapy water, rinse with clear water and dry. Pay attention not to hurt you, as the blade is very sharp.
  To make the cleaning easier, you can disassemble the parts that are in contact with the food, and the rubber ring around the container (if necessary you can soak it).

PROTECTION OF THE ENVIRONMENT-DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

FR MODE D'EMPLOI

POUR VOTRE SECURITE

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fox [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fox+3223599550

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

bedragen.

16 TEAM MC 1-060328

MONTAGE VAN DE MINI-HAKMOLEN EN GEBRUIK (ZIE PAGINA 4)

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fox+3223599550

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fox [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fox [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

30 TEAM MC 1-060328

TEAM MC 1

Deutsch	5
English	8
François	11
Nederlands	14
Espanol	17
Portugues	20
Italiano	23
