Product Type	Electric Peeler
Brand	TEAM
Model	KSM 1
Potato Capacity	1 kg maximum
Continuous Operation Time	4 minutes maximum
Required Pause Between Uses	10 minutes minimum
Safety	Safety lid prevents operation if improperly positioned
Peeling Disc	Removable and very sharp
Lid	Transparent, with locking clips
Cleaning	Removable parts washable by hand or dishwasher; motor unit wipe with a damp cloth
Included Accessories	Motor unit, bowl, peeling disc, lid
Stability	Anti-slip suction cups and rubber feet
Usage	Domestic use only

Frequently Asked Questions - KSM 1 TEAM

How to use the KSM 1 peeler?

Place potatoes (1 kg max) on the disc, add 2-3 glasses of water, close the lid with the clips, plug in and turn on (position 1). Let it run for 2-3 minutes, then check the condition. Rinse the potatoes after peeling.

What to do if the appliance does not start?

Check that the lid is correctly positioned and the clips are properly closed. The appliance is equipped with a safety system that prevents starting if the lid is not in place.

Can you peel other vegetables besides potatoes?

The appliance is designed mainly for potatoes. For irregularly shaped vegetables, peeling may be incomplete.

What is the maximum continuous operation time?

Do not exceed 4 minutes of continuous operation. After each cycle, let the appliance cool down for at least 10 minutes before using it again.

How to clean the peeler?

Always unplug the appliance before cleaning. Removable parts (bowl, disc, lid) can be washed by hand or in the dishwasher. The motor unit should be cleaned with a slightly damp cloth, never immersing it in water.

Can I leave the appliance unattended?

No, never leave the appliance unattended when it is plugged in or operating, especially in the presence of children.

What to do if the power cord is damaged?

The cord must be replaced by a qualified competent service (manufacturer or importer after-sales service). Do not use the appliance with a damaged cord.

Can the motor unit be immersed in water?

No, never immerse the motor unit in water or any other liquid. Clean it only with a damp cloth.

How many potatoes can be peeled at once?

Maximum 1 kg of potatoes. It is essential to cover the disc for proper operation.

Is the appliance suitable for professional use?

No, this appliance is designed for domestic use only. Professional use could damage the motor.

USER MANUAL KSM 1 TEAM

Electrical Potato Peeler

Front cover page (first page)

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

D

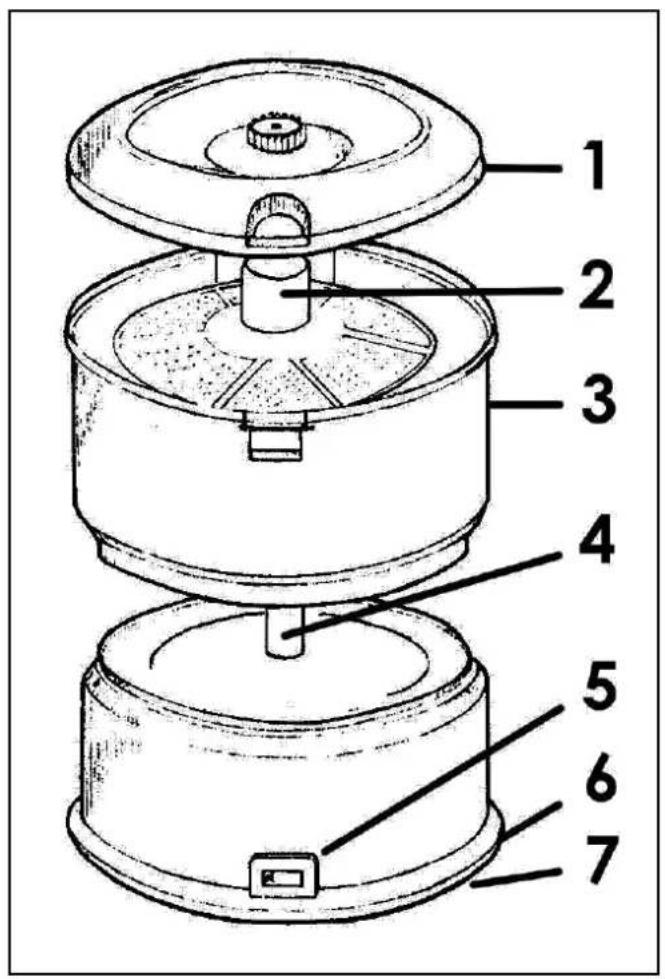

1. Transparent lid
2. Cutter dish
3. Bowl
4. Motor block
5. On/Off switch
6. Rubber feet
7. Power cord storage

F

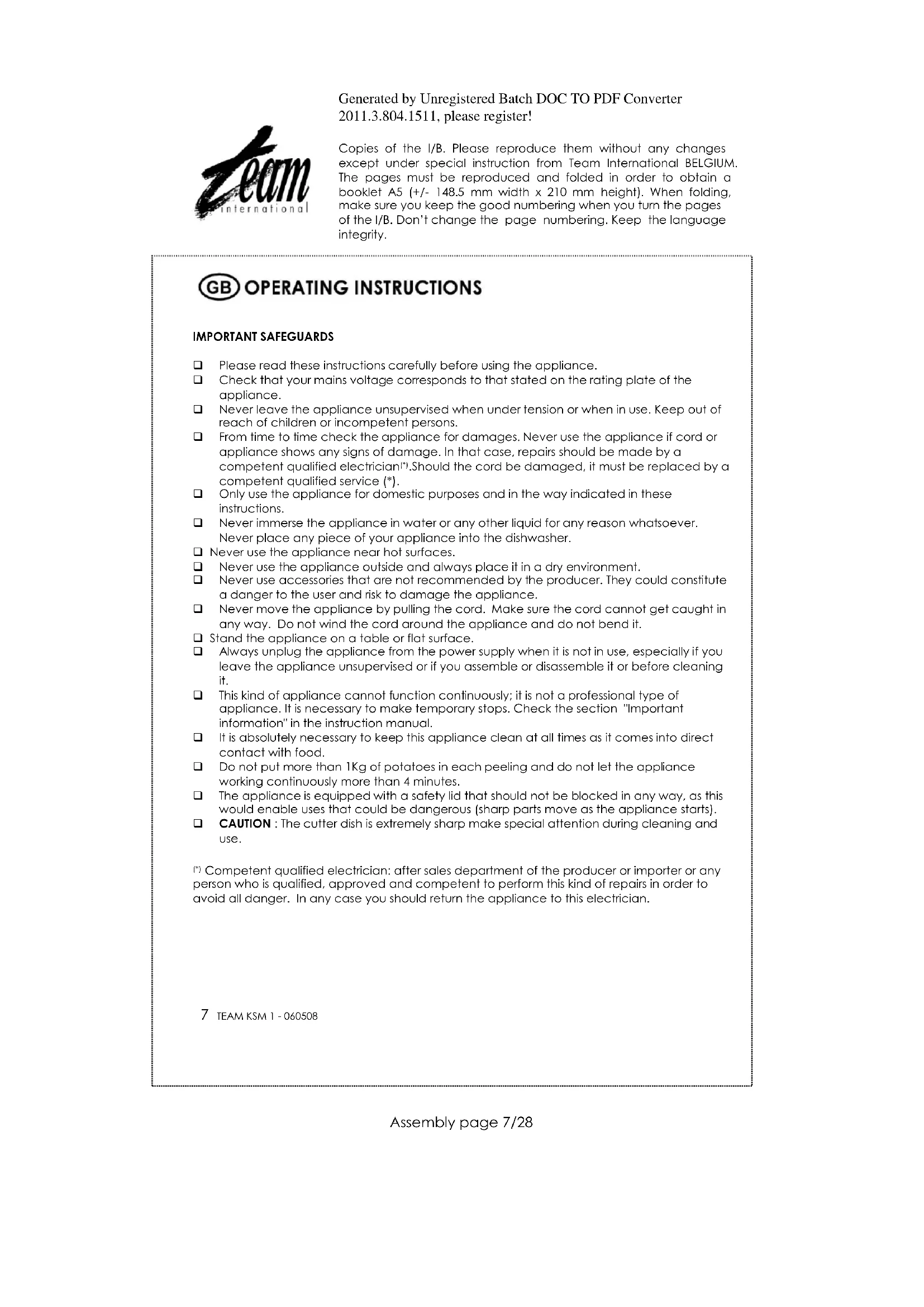

Please read these instructions carefully before using the appliance.
Check that your mains voltage corresponds to that stated on the rating plate of the appliance.
Never leave the appliance unsupervised when under tension or when in use. Keep out of reach of children or incompetent persons.
From time to time check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, repairs should be made by a competent qualified electrician! Should the cord be damaged, it must be replaced by a competent qualified service (^*)
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place any piece of your appliance into the dishwasher.
Never use the appliance near hot surfaces.
Never use the appliance outside and always place it in a dry environment.
Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Stand the appliance on a table or flat surface.
Always unplug the appliance from the power supply when it is not in use, especially if you leave the appliance unsupervised or if you assemble or disassemble it or before cleaning it.
This kind of appliance cannot function continuously; it is not a professional type of appliance. It is necessary to make temporary stops. Check the section "Important information" in the instruction manual.
It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.
Do not put more than 1Kg of potatoes in each peeling and do not let the appliance working continuously more than 4 minutes.
The appliance is equipped with a safety lid that should not be blocked in any way, as this would enable uses that could be dangerous (sharp parts move as the appliance starts).
CAUTION : The cutter dish is extremely sharp make special attention during cleaning and use.

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

7 TEAM KSM 1-060508

IMPORTANT INFORMATION

This appliance is not for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage time (KB/MAX xx min or xx is the maximum usage time). The breaks should last at least 10 minutes.

CONNECTION

Before using the appliance for the first time, clean the bowl and the cutter in warm water. Then open the lid that is under the motor block, and bring out the cord. Close the lid (the cord comes out from the opening in the lid).
The place where the appliance will be located must be cleaned carefully. Fix the appliance on the surface with the help of the non-slip feet. In this way the appliance will not move during use. If it is not fixed enough, moisten the non-slip feet first.
Before plugging the appliance, make sure the power switch is in OFF position.
Now place the bowl on the motor block and the cutter on the shaft. Make sure all the parts all in correct position, otherwise the appliance will not work.

CAUTION

To obtain better results, make sure to use only regular new potatoes.

If you want to peel irregular potatoes, some parts may be peeled improperly.
- Put the potatoes in the bowl covering the cutter dish completely (absolutely necessary). Add 2 or 3 cups of water and close the top lid carefully with the help of the 2 clips. The appliance is equipped with a safety lid that will prevent it from working if the lid is badly mounted.
- Switch on the appliance (position 1). If it does not start, check the position of the lid. The appliance will vibrate but the non-slip feet will keep it from moving.
- Unplug the appliance after 2 or 3 minutes, open the lid and check if the potatoes are peeled properly. The water that has been put initially will probably be absorbed by the pieces of potatoes. It is recommended to add 1 or 2 additional cups if peeling is not completed.
- When peeling is completed, put the switch in OFF position, unplug the appliance and open the lid. Wash the potatoes with fresh water, to remove the peelings completely. Potatoes will be now ready for cooking.

IMPORTANT

The appliance is equipped with a safely lid that will prevent it from working if the lid is badly mounted.
- Do not try to block the safety lid, as in this case the appliance would work without lid and that could be dangerous (sharp parts move as the appliance starts).

CARE AND CLEANING

8 TEAM KSM 1-060508

After finishing each peeling, the bowl and the cutter have to wash by fresh water.
Always unplug the power and switch OFF the appliance before cleaning.
- All the removable parts can be placed into the dishwasher.
- Do not clean with any abrasive scouring pad or steel wool as this will damage the finish.
- Do not immerse the cord, plug and the peeler base in water or other liquid. After cleaning use a soft cloth to dry all the parts before storage.

PROTECTION OF THE ENVIRONMENT- DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
