Brand	Team
Model	KA VT 7
Product type	Pedestal fan
Power supply	230 V, 50 Hz
Estimated power	40-60 W
Number of speeds	3 (low, medium, high)
Oscillation	Yes, with push button
Height adjustment	Yes, by sliding the upper tube
Vertical orientation	Manually adjustable
Fan blade diameter	Approximately 40 cm (estimate)
Minimum height	Approximately 100 cm (estimate)
Maximum height	Approximately 130 cm (estimate)
Base diameter	Approximately 35 cm (estimate)
Main material	Plastic and metal
Estimated weight	Approximately 5 kg
Protection	Protective grille with locking bolt
Maintenance	Damp cloth and vacuum cleaner for the grille
Main spare parts	Blade, front and rear grilles, cap, rings, tubes
Repairability	Assembly with screws and clips, easy access to components
Environment	Do not dispose of with household waste, recycle at a waste collection point

Frequently Asked Questions - KA VT 7 TEAM

How to assemble the fan?

Follow the steps: assemble the base cross with bars A and B, attach the lower tube, insert the upper tube with the connection ring, fix the motor, then install the rear grille, the blade (with the cap) and the front grille. Use the clips and the safety bolt.

How to clean the fan?

Unplug the device. Use a damp cloth for the exterior surfaces and a vacuum cleaner for dust between the grilles without disassembling them. Never immerse in water.

Oscillation does not work, what to do?

Check that the oscillation button is pressed (on) or pulled (off). If the problem persists, the internal mechanism may be blocked; contact a qualified service.

The fan spins but does not blow air, why?

Make sure the blade is correctly fixed on the motor shaft and that the grilles are not obstructed. Also check that the selected speed is sufficient.

The fan is noisy or vibrates, how to fix?

Check that the device is on a flat surface, that the screws of the base and tubes are tight, and that the blade is balanced. An abnormal noise may indicate a motor problem.

Can I use the fan outdoors?

No, this device is designed for indoor domestic use. Do not expose it to moisture or inclement weather. Store it in a dry place.

How to adjust the fan height?

Loosen the connection ring of the tubes (14), slide the upper tube (13) to the desired height, then retighten firmly.

What to do if the power cord is damaged?

Do not use the device. The cord must be replaced by a qualified service to avoid any danger.

How to recycle the fan at end of life?

Do not dispose of it with household waste. Take it to a selective collection point or waste disposal center in accordance with directive 2002/96/EC.

Can I get spare parts?

Spare parts (blade, grilles, rings, etc.) are available from the manufacturer or an authorized after-sales service. Only use recommended accessories.

USER MANUAL KA VT 7 TEAM

Technical diagram of a mechanical assembly with numbered components for identification

D

1. Guard ornament
2. Front guard
3. Position fixer
4. Cap
5. Fan blade
6. Guard mounting ring
7. Rear guard
8. Motor shaft
9. Motor housing
10. Oscillation knob
11. Motor
12. Speed regulator
13. Upper pipe
14. Pipe connector
15. Lower pipe
16. Plastic base cover
17. Pipe support
18. Stand A
19. Stand B

F

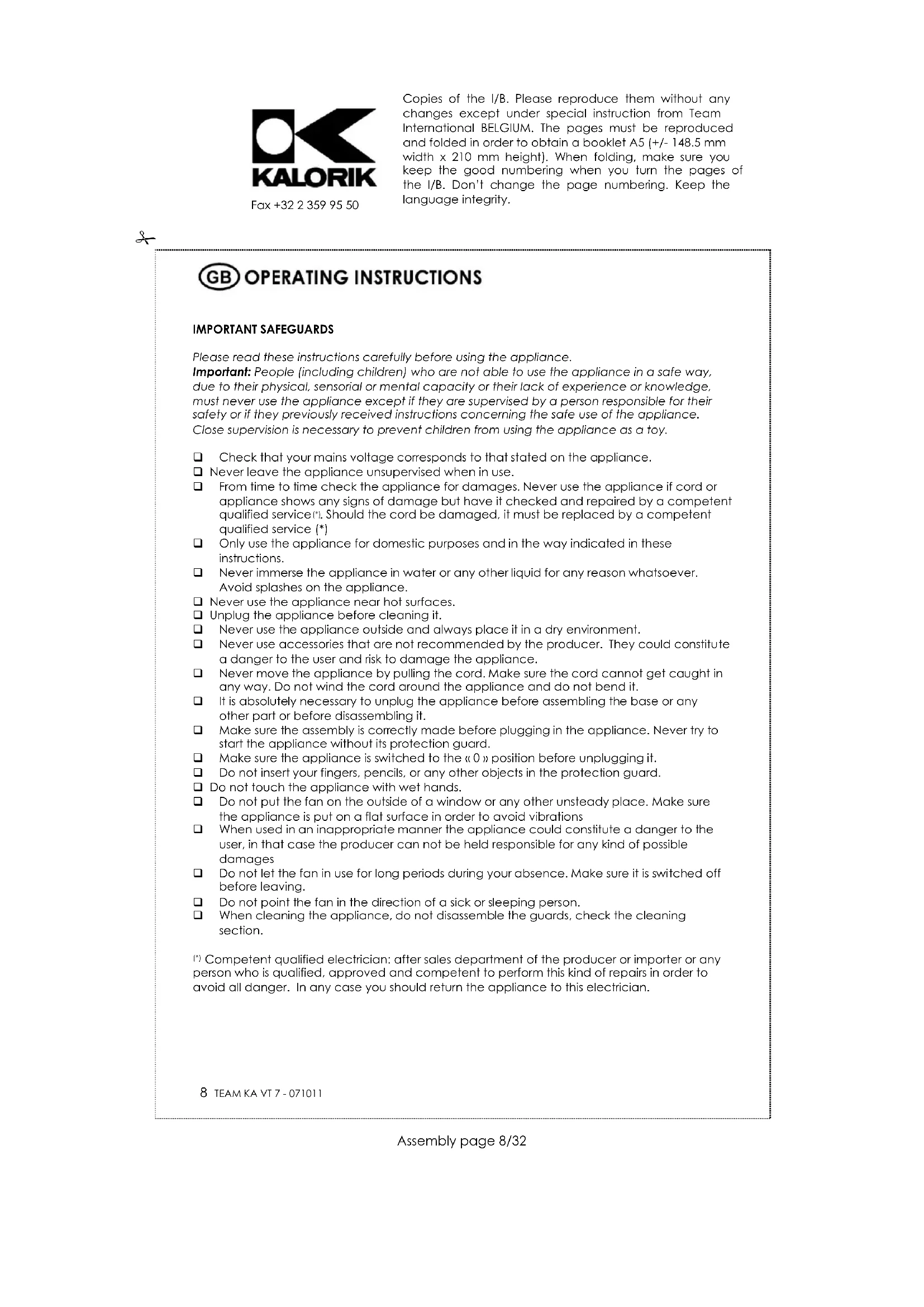

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance.

Close supervision is necessary to prevent children from using the appliance as a toy.

☐ Check that your mains voltage corresponds to that stated on the appliance.
□ Never leave the appliance unsupervised when in use.
From time to time check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified servicem. Should the cord be damaged, it must be replaced by a competent qualified service (*)
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Avoid splashes on the appliance.
☐ Never use the appliance near hot surfaces.
☐ Unplug the appliance before cleaning it.
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
☐ It is absolutely necessary to unplug the appliance before assembling the base or any other part or before disassembling it.
☐ Make sure the assembly is correctly made before plugging in the appliance. Never try to start the appliance without its protection guard.
☐ Make sure the appliance is switched to the « 0 » position before unplugging it.
☐ Do not insert your fingers, pencils, or any other objects in the protection guard.
☐ Do not touch the appliance with wet hands.
☐ Do not put the fan on the outside of a window or any other unsteady place. Make sure the appliance is put on a flat surface in order to avoid vibrations
☐ When used in an inappropriate manner the appliance could constitute a danger to the user, in that case the producer can not be held responsible for any kind of possible damages
☐ Do not let the fan in use for long periods during your absence. Make sure it is switched off before leaving.
☐ Do not point the fan in the direction of a sick or sleeping person.
☐ When cleaning the appliance, do not disassemble the guards, check the cleaning section.

ASSEMBLY

1. Place stand A (18) on stand B (19) to form an X-base.
2. Place the lower pipe (15) with pipe support (17) on the X-base and fix it with four screws provided.
3. Loosen and remove the pipe connector (14) from the lower pipe (15). Slide the plastic base cover (16) over the lower pipe on the base. Extend the upper (inner) pipe (13) and slide the pipe connector (14) over the upper pipe onto the lower pipe and tighten.
4. Attach the motor (11) with speed regulator (12) onto the upper pipe (13). Ensure the speed regulator is pushed fully onto the upper pipe and secured with the screws provided.
5. Loosen the guard mounting ring (6) from the motor housing (9).
6. Position the rear guard (7) firmly against the motor housing (9) and fasten by turning the guard mounting ring (6) clockwise tightly.
7. Push the blade (5) along the motor shaft (8). Fasten it firmly with the cap (4) by turning counter clockwise.
8. Hang the front guard (2) to the rear guard (7) with the position fixer (3) provided at the front guard rim, and then clamp together with the clips provided.
9. To ensure that it is impossible to have access to the fan blade without using a tool, a screw is provided with this appliance in order to attach both parts of the mesh guard together. This screw must be tightened on the lower part of the guards. We will not be responsible for any injuries in case this screw had not been tightened before using the appliance.
10. To change the height, loosen the pipe connector (13) and slide the upper pipe to a suitable height. Then tighten the pipe connector (14) again.

OPERATION

- This appliance is equipped with 3 ventilation speeds. To switch on the appliance, press one of the speed knobs. To switch it off, press "0".

Speed settings:

0 = OFF

1 = Low

2 = Medium

3 = High

• This appliance also has an oscillation function:

- Push the oscillation knob (10) to switch on the oscillation.

– Pull the oscillation knob (10) to stop.

- It is also possible to tilt the upper part of the appliance in order to adjust the airflow direction vertically.

CLEANING AND CARE

• Always disconnect the power supply cable from the power supply before carrying out any cleaning operation.
• To remove dirt from the plastic surfaces, use a soft damp cloth. Use a vacuum cleaner to remove the dust from the guards without having to disassemble them.
• Never immerse the fan in water or any other liquid.

9 TEAM KA VT 7-071011

PROTECTION OF THE ENVIRONMENT- DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol ■ the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
