DG 6 - Rice cooker TEAM - Free user manual and instructions

Product type	Steamer / rice cooker
Brand	TEAM
Model	DG 6
Power	800 W (estimated)
Supply voltage	220-240 V ~ 50/60 Hz
Body material	Heat-resistant plastic
Basket material	Transparent plastic
Number of baskets	3 steamer baskets + 1 rice bowl + 1 drip tray
Water tank capacity	Approximately 1.5 L (MIN and MAX levels)
Main functions	Steaming, rice cooking, adjustable timer, automatic shut-off with bell
Safety	Automatic shut-off when cooking is finished, overheating protection (shuts off if tank empty), do not immerse base
Included accessories	3 steamer baskets, adapter ring, rice bowl, drip tray, lid
Cleaning	Baskets, tray and lid washable with soapy water (not dishwasher); base cleaned with damp cloth
Maintenance	Regular descaling recommended; do not use abrasive products
Spare parts	Not specified; contact authorized after-sales service
Repairability	Repair exclusively by qualified competent service
General information	Household use only; do not use without lid; respect MIN and MAX water levels

Frequently Asked Questions - DG 6 TEAM

How to use the DG 6 steamer?

Fill the tank with cold water to the desired level (between MIN and MAX). Place the food in the baskets, stack them with the large basket on top, and close the lid. Plug in the appliance, set the timer. The appliance turns off automatically with a bell when cooking is finished.

How much water should I put in the tank?

The water must be between the indicated MIN and MAX levels. The maximum amount provides about 25 minutes of steam. For longer cooking, you will need to refill during use.

Can I cook rice in this appliance?

Yes, use the provided rice bowl. Place the rice in the bowl, add a little water to speed up cooking, then place it in a steamer basket. Cooking times are given in the manual (white rice: 34-41 min, brown rice: 40-57 min).

How to clean the baskets?

Wash the baskets, drip tray and lid with soapy water and a soft sponge. Do not use abrasive products or pads that could scratch the surfaces. Never put these parts in the dishwasher. For the base, wipe it with a damp cloth without ever immersing it.

What to do if steam does not come out?

Check that the appliance is plugged in and the timer is set. Make sure there is enough water in the tank. If the problem persists, check that the drip tray and baskets are correctly positioned and that the lid is properly closed.

Can I cook frozen food?

Yes, it is not necessary to thaw food before cooking, but the cooking time will be longer. Refer to the instructions in the manual to adjust the time.

How to stack the baskets correctly?

The large basket (3 points) must always be on top. To stack an additional basket above the medium basket (2 points), first place the adapter ring on the edge of the medium basket. Always use the handles to carry the baskets.

Does the appliance turn off automatically?

Yes, when the programmed cooking time is over, a bell sounds and the power supply cuts off automatically. The appliance should not be used with an external timer.

Can I add spices to the water in the tank?

No, never pour herbs, spices, wine or broth into the tank water. This could damage the appliance. Add seasonings only after cooking, directly onto the food.

How to detach the bottom of the baskets for cleaning?

To detach the bottom, press it inward into the basket until it releases. To put it back, place it and press until it clicks. This makes it easier to clean hard-to-reach areas.

USER MANUAL DG 6 TEAM

team International

Exterior view of a modern multi-tiered steamer with cooling unit (no text or symbols visible)

Dampftopf

Food Steamer

Cuiseur Vapeur

Stoomkoker

Cocina a Vapor

Panela a vapor

Cuocivapore

CE

I/B Version

090414

TEAM DG 6

230V\~50Hz 700W

1 2 3 4 4 5 4 6 7 8 9 10 11 12

2 TEAM DG 6-090414

D

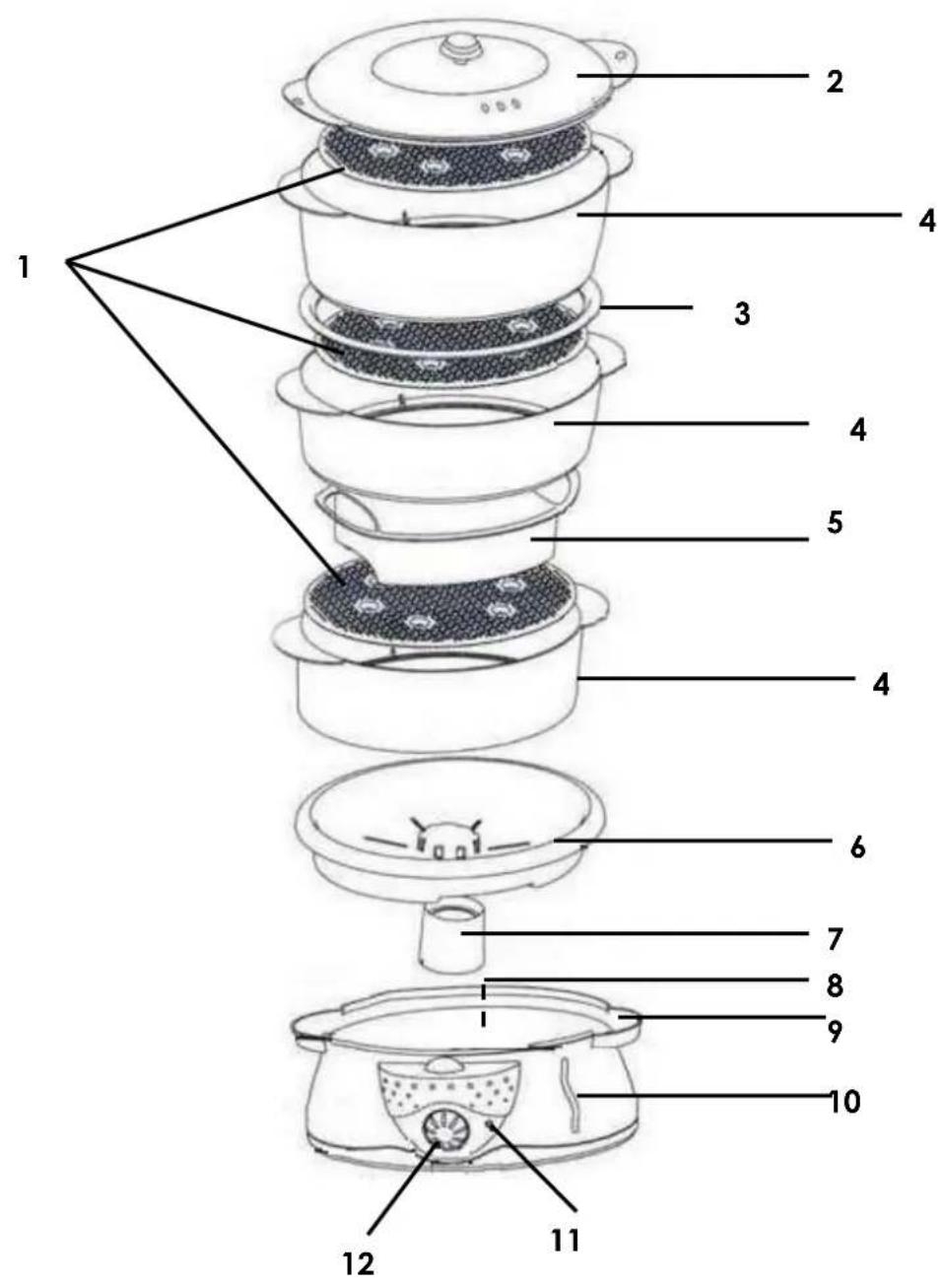

1. Bottom of the baskets
2. Lid
3. Plastic ring for piling up
4. Baskets
5. Rice basket
6. Drip tray
7. Heating element protection
8. Heating element
9. Filling opening
10. Water level indicator
11. Power light
12. Timer

F

Illustration of a multi-tiered steamer with a cup pouring liquid from its side (no text or symbols visible)

KOCHEN MIT IHREM DAMPFTOPF

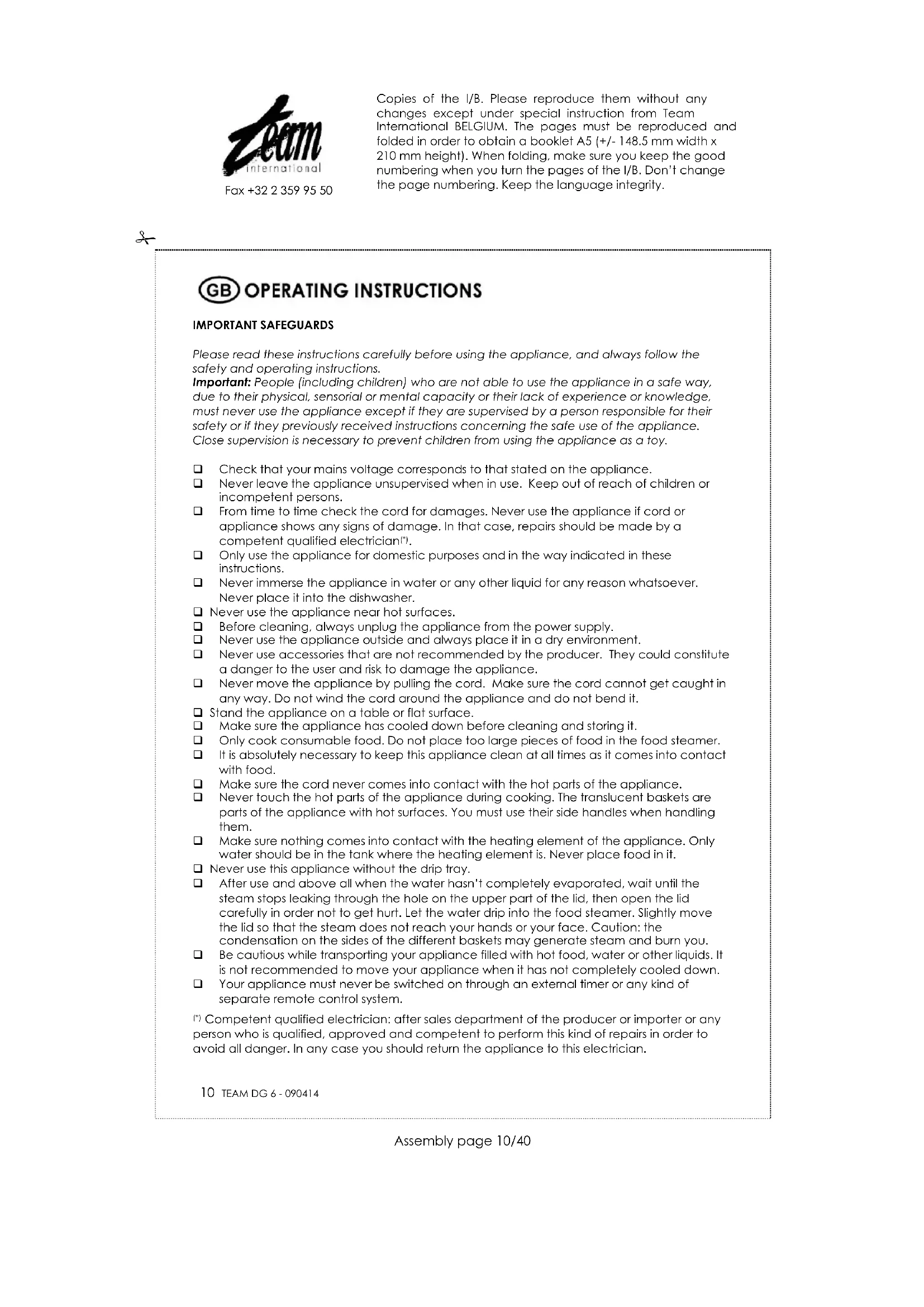

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, repairs should be made by a competent qualified electrician".
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
□ Never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply.
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
□ Stand the appliance on a table or flat surface.
☐ Make sure the appliance has cooled down before cleaning and storing it.
☐ Only cook consumable food. Do not place too large pieces of food in the food steamer.
☐ It is absolutely necessary to keep this appliance clean at all times as it comes into contact with food.
☐ Make sure the cord never comes into contact with the hot parts of the appliance.
☐ Never touch the hot parts of the appliance during cooking. The translucent baskets are parts of the appliance with hot surfaces. You must use their side handles when handling them.
☐ Make sure nothing comes into contact with the heating element of the appliance. Only water should be in the tank where the heating element is. Never place food in it.
☐ Never use this appliance without the drip tray.
After use and above all when the water hasn't completely evaporated, wait until the steam stops leaking through the hole on the upper part of the lid, then open the lid carefully in order not to get hurt. Let the water drip into the food steamer. Slightly move the lid so that the steam does not reach your hands or your face. Caution: the condensation on the sides of the different baskets may generate steam and burn you.
☐ Be cautious while transporting your appliance filled with hot food, water or other liquids. It is not recommended to move your appliance when it has not completely cooled down.
☐ Your appliance must never be switched on through an external timer or any kind of separate remote control system.

1) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

10 TEAM DG 6-090414

FIELD OF APPLICATION/OF OPERATION

• Use the appliance for domestic purposes only and in the way indicated in these instructions.
• This appliance is intended to be used for domestic applications and similar applications such as:

Kitchen corners reserved for personnel in shops, offices and other professional environments.

Farms.

The use by clients of hotels, motels and other environments with a residential character.

Environments of the "bed and breakfast" type.

- Make sure the appliance is unplugged. Fill water tank with cold water. To do so, pour the water through the filling opening at the handles (see page 4). The amount of water depends on the required cooking time. However, it is very important to respect the minimum and maximum level. Non-observance of this instruction could damage your appliance. Do not add any herbs, spices or other liquid such as wine or broth to the water in the water tank.

- Make sure the bottom of the baskets is properly attached, and place the food in the different steaming baskets. Do not add seasoning, herbs etc. until cooking has been completed.

• Make sure the heating element protection is fixed properly around the heating element.

- Then place the drip tray onto the water tank and pile up the steaming baskets, paying attention to always put the biggest basket on the highest level. The size of the baskets is indicated by dots on one of the handles of each basket. The smallest basket has one dot, the biggest basket has three dots. If you want to put a basket on top of the medium basket (with two dots), you should put the plastic ring on the edge of this basket first, otherwise it will be impossible to pile up the baskets correctly. Caution: always use the side handles to move the baskets. Never press on the bottom of the baskets, as you might detach it. Pay attention during the positioning of the accessories because if they are not placed correctly, steam may escape through the side of your appliance and may burn you.

- Place the lid on the last basket. DO NOT OPERATE THIS APPLIANCE UNCOVERED -STEAM IS GENERATED DURING USE.

- Plug in the appliance.

- Set the timer by turning the timer knob clockwise to the desired time setting. The pilot light will come on to indicate that the appliance is switched on.

- When the preset cooking time has elapsed, a bell will ring and the power will be cut off. The maximum quantity of water in the tank of the heating base may generate steam for approximately 25 minutes. When the preset cooking time is longer than 25 minutes, you will have to refill the water tank during use. In order to know if the tank is empty, you will have to check if no more steam is escaping or you can look at the water level indicator on the base. To fill the tank, add cold water as described on page 4. At the beginning, steam will be produced (its quantity depends on the time the heating base has been switched off). Pay attention not to burn yourself.

- To check the food, wait until the steam has stopped escaping through the holes on the lid and then open the cover slowly, taking care to avoid the escaping steam and condensation. CAUTION: DO NOT TOUCH THE STEAMING BASKET OR THE STEAMING UNIT. Using a long-handled utensil, check the food. If the food is not cooked, reset the timer and

11 TEAM DG 6-090414

steam production will start again. However, if the steaming unit requires more water, proceed as described on page 4.

• When the food is cooked, unplug and allow the appliance to cool slightly in order to eliminate all the steam. Carefully remove the steaming baskets using oven gloves or another thermal hand protection. DO NOT TOUCH THE STEAMING BASKET OR THE STEAMING UNIT UNTIL THEY HAVE COOLED. Remove the food and add seasonings, if desired.
• Allow any water to cool before emptying and cleaning.
• Your appliance is provided with a suitable container for rice and other small foodstuffs (e.g. semolina) that should not be placed in the translucent baskets because those are pierced.
• On the bottom of the translucent baskets there are hollow round housings especially conceived to place eggs for cooking.

Hints:

• When cooking rice, we advise you to cover it with hot water in order to accelerate the cooking process.
• It is possible to cook foodstuffs with very different cooking times but this needs frequent operations to take away the food that will be ready. To avoid this, it is recommended to prepare foodstuffs with similar cooking times.
• Frozen food does not need to be defrosted beforehand, but its cooking time will be longer.

CARE AND CLEANING

• The baskets, the drip tray and the lid may be washed with soapy water. Never use abrasive cleaners to clean your appliance: it could damage the surfaces.
• To simplify the cleaning of the baskets, it is possible to release their bottom. To do so, press on the bottom towards the inside of the basket. To reassemble them, proceed inversely, pressing the bottom down until you hear a click.
• The body of the appliance should be washed with a smooth cloth or with a slightly damp towelling.
• Never immerse the body in water or any other liquid.

FRESH VEGETABLES	AMOUNT	APPROX. TIME (MIN)
Artichoke (whole)	4 medium	37-40
Asparagus (spears)	12 - 1 lb. +/ - 12"	13-15
Beans, green / wax (cut or whole)	1 lb.	25-28
Broccoli (spears)	1 lb.	12-14
Cabbage	1 lb.	17-19
Carrots	1 lb.	15-17
Cauliflower (whole head)	2 12 lbs. (medium)	14-16
Corn on cob	Max. 8	17-19
Mushrooms (whole)	12 lb. (medium)	10-11
Onions (whole), before grilling	1 lb. (medium) +/- 4"	7-9
Peas, green	1 12 lbs. (in pod)	14-16
Peppers (whole), before grilling	Max. 4 medium	9-11
Potatoes (whole)	1 lb. or +/- 8 small	17-19

12 TEAM DG 6-090414

Spinach	12 lb.	10-12
Squash, summer yellow and zucchini	1 lb. (medium)	11-13
Turnips	1 lb. or +/- 5 small	12-14

SEAFOOD	AMOUNT	APPROX. TIME (MINUTES)
Clams	12 - 1 lb. (in shell)	10-12
Crab	1 lb. (+/- 6 pcs)	15-18
Lobster (tails)	1 or 2 (7/8 ozs. each)	18-20
Mussels (fresh)	1 lb. (in shell)	12-14
Oysters (fresh)	+/- 12 dozen	11-13
Scallops (fresh)	12 lb. (shucked)	10-12
Shrimp	1 lb. (in shell)	11-12

FISH	AMOUNT	APPROX. TIME (MINUTES)
Filets: Sole, ...	12 lb.	8-10
Steaks: Halibut Salmon Tuna	12 - 1 lb. +/- 1" thick +/- 1" thick	13-14 18-21 14-19

CHICKEN	AMOUNT	APPROX. TIME (MINUTES)
Breast, boneless fillets	12 lb. pcs	14-16
Breast, split with bone	1 - 1 14 lb.	37-41
Drumsticks, with bone	1 lb.	32-36
Thighs, with bone	1 lb.	34-37
Poached chicken (breast), split-boneless or with bone	1 lb.	45-47

SAUSAGES	AMOUNT	APPROX. TIME (MINUTES)
Frankfurters	Max. 1 lb. (8-10 pcs)	12-14
Bratwurst	Max. 1 lb.	17-19

TYPE OF RICE	COMBINED IN RICE BASKET		APPROX. TIME(MINUTES)
	Rice	Cold water
Brown	12 cup1 cup	2/3 cup1 14 cups	40-4154-57
White	12 cup1 cup	3/4 cup1 14 cups	34-3637-41

OTHER FOODS	NUMBER OF PIECES	APPROX. TIME (MINUTES)
Hard-boiled eggs	1-12 (large size)	30

PROTECTION OF THE ENVIRONMENT – DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol — the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

FR MODE D'EMPLOI
