USER MANUAL DG 5 TEAM

1. Lid
2. Rice basket
3. Large basket
4. Small basket
5. Drip tray
6. Base
7. Heating element
8. Water level indicator
9. Timer
10. Power light
11. Heating element protection

F

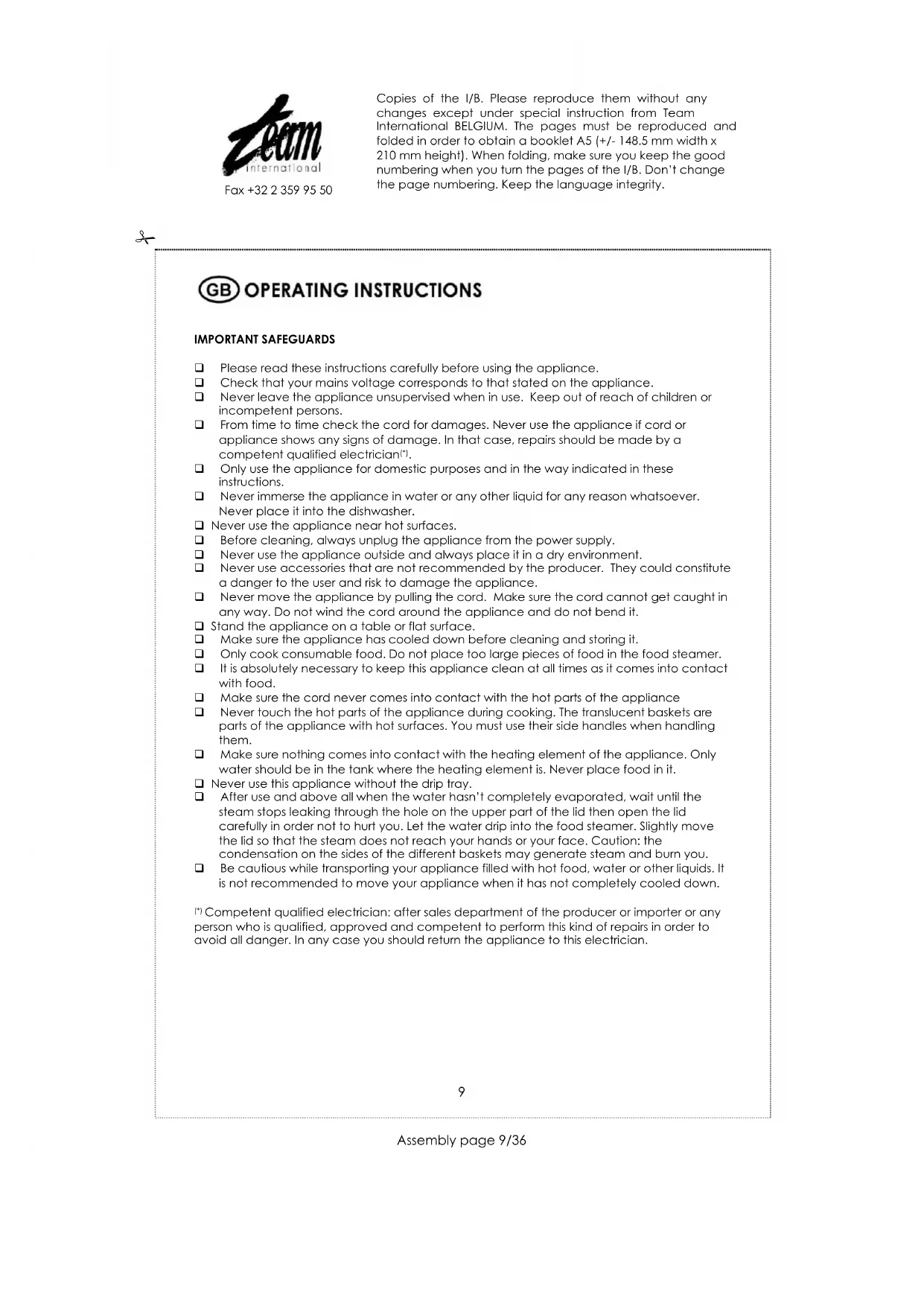

Please read these instructions carefully before using the appliance.

Check that your mains voltage corresponds to that stated on the appliance.

Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.

From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, repairs should be made by a competent qualified electrician ^(*) .

Only use the appliance for domestic purposes and in the way indicated in these instructions.

Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.

Never use the appliance near hot surfaces.

Before cleaning, always unplug the appliance from the power supply.

Never use the appliance outside and always place it in a dry environment.

Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.

Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.

Stand the appliance on a table or flat surface.

Make sure the appliance has cooled down before cleaning and storing it.

Only cook consumable food. Do not place too large pieces of food in the food steamer.

It is absolutely necessary to keep this appliance clean at all times as it comes into contact with food.

Make sure the cord never comes into contact with the hot parts of the appliance

Never touch the hot parts of the appliance during cooking. The translucent baskets are parts of the appliance with hot surfaces. You must use their side handles when handling them.

Make sure nothing comes into contact with the heating element of the appliance. Only water should be in the tank where the heating element is. Never place food in it.

Never use this appliance without the drip tray.

After use and above all when the water hasn't completely evaporated, wait until the steam stops leaking through the hole on the upper part of the lid then open the lid carefully in order not to hurt you. Let the water drip into the food steamer. Slightly move the lid so that the steam does not reach your hands or your face. Caution: the condensation on the sides of the different baskets may generate steam and burn you.

Be cautious while transporting your appliance filled with hot food, water or other liquids. It is not recommended to move your appliance when it has not completely cooled down.

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded:

blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

• Make sure the appliance is unplugged. Fill water tank with cold water, the amount of water depends on the required cooking time. However, it is very important to respect the minimum and maximum level. Non-observation of this instruction could damage your appliance. Do not add any herbs, spices or other liquid such as wine or broth to the water in the water tank.
• Make sure the bottom of the baskets is properly attached, and place the food in the different steaming baskets. Do not add seasoning, herbs etc. until cooking has been completed.
  Make sure the heating element protection is fixed properly around the heating element.
• Then place the drip tray onto the water tank and pile up the steaming baskets, paying attention always to put the biggest basket on the highest level. Caution: always use the side handles to move the baskets. Never press on the bottom of the baskets, as you might detach it. Pay attention during the positioning of the accessories because if they are not placed correctly, steam may escape through the side of your appliance and may burn you.
• Place the lid on the last basket. DO NOT OPERATE THIS APPLIANCE UNCOVERED-STEAM IS GENERATED DURING USE.
• Plug in the appliance.
• Set the timer by turning the timer knob clockwise to the desired time setting. The pilot light will come on to indicate that the appliance is switched on.
• When the preset cooking time is elapsed, a bell will ring and the power will be cut off. The maximum quantity of water in the tank of the heating base may generate steam for approximately 25 minutes. When the preset cooking time is longer than 25 minutes, you will have to refill the water tank during use. In order to know if the tank is empty, you will have to check if no more steam is escaping or you can look at the water level indicator on the base. To fill the tank, add cold water as described on page 4. At the beginning, steam will be produced (its quantity depends on the time the heating base has been switched off). Pay attention not to burn yourself.
  To check the food, wait until the steam has stopped escaping through the holes on the lid and then open the cover slowly, taking care to avoid escaping steam and the condensation. CAUTION: DO NOT TOUCH THE STEAMING BASKET OR THE STEAMING UNIT. Using a long handled utensil, check the food. If the food is not cooked reset the timer and steam production will start again. However if the steaming unit requires more water, proceed as described on page 4.
• When the food is cooked, unplug and allow the appliance to cool slightly in order to eliminate all the steam. Carefully remove the steaming baskets using oven gloves or another thermal hand protection. DO NOT TOUCH THE STEAMING BASKET OR THE STEAMING UNIT UNTIL THEY HAVE COOLED. Remove the food and add seasonings, if desired.

• Allow any water to cool before emptying and cleaning

• Your appliance is provided with a suitable container for rice and other small food pieces (e.g. semolina) that should not be placed in the translucent baskets because they are pierced.

• On the bottom of the translucent baskets there are hollow round housings especially conceived to place eggs during cooking.

Hints:

• When cooking rice, we advise you to cover it with hot water in order to accelerate the cooking process.
  It is possible to cook food with very different cooking times but this needs frequent operations to take away the food that will be ready. To avoid this, it is recommended to prepare food with similar cooking time.
• Frozen food does not need to be defrosted, but its cooking time will be longer.

CARE AND CLEANING

The baskets, the drip tray and the lid may be washed with soapy water. Never use abrasive cleaners to clean your appliance: it could damage the surfaces.
To simplify the cleaning of the baskets, it is possible to release their bottom. To do so, press on the bottom towards the inside of the basket. To reassemble them, proceed inversely, pressing the bottom down until you hear a click.
The body of the appliance should be washed with a smooth cloth or with a slightly damp towelling.
- Never immerse the body in water or any other liquid.

FRESH VEGETABLES	AMOUNT	APPROX. TIME (MIN)
Artichoke (whole)	4 medium	37-40
Asparagus (spears)	½ - 1 lb. +/- ½" ∅	13-15
Beans, green / wax(cut or whole)	1 lb.	25-28
Broccoli (spears)	1 lb.	12-14
Cabbage	1 lb.	17-19
Carrots	1 lb.	15-17
Cauliflower (whole head)	2½ lbs. (medium)	14-16
Corn on cob	Max. 8	17-19
Mushrooms (whole)	½ lb. (medium)	10-11
Onions (whole), before grilling	1 lb. (medium) +/- 4" ∅	7-9
Peas, green	1½ lbs. (in pod)	14-16
Peppers (whole), before grilling	Max. 4 medium	9-11
Potatoes (whole)	1 lb. Or +/- 8 small	17-19
Spinach	½ lb.	10-12
Squash, summer yellow and zucchini	1 lb. (medium)	11-13
Turnips	1 lb. Or +/- 5 small	12-14
SEAFOOD	AMOUNT	APPROX. TIME (MINUTES)
Clams	1/2 - 1 lb. (in shell)	10-12
Crab	1 lb. (+/- 6 pcs)	15-18
Lobster (tails)	1 or 2 (7/8 ozs. each)	18-20
Mussels (fresh)	1 lb. (in shell)	12-14
Oysters (fresh)	+/- 1/2 dozen	11-13
Scallops (fresh)	1/2 lb. (shucked)	10-12
Shrimp	1 lb. (in shell)	11-12

FISH	AMOUNT	APPROX. TIME (MINUTES)
Filets: Sole, ...	½ lb.	8-10
Steaks: Halibut Salmon Tuna	½ - 1 lb. +/- 1" thick +/- 1" thick	13-1418-2114-19

CHICKEN	AMOUNT	APPROX. TIME (MINUTES)
Breast, boneless fillets	1/2 lb. pcs	14-16
Breast, split with bone	1 - 1 1/4 lb.	37-41
Drumsticks, with bone	1 lb.	32-36
Thighs, with bone	1 lb.	34-37
Poached chicken (breast), split-boneless or with bone	1 lb.	45-47

SAUSAGES	AMOUNT	APPROX. TIME(MINUTES)
Frankfurters	Max. 1 lb. (8-10 pcs)	12-14
Bratwurst	Max. 1 lb.	17-19

TYPE OF RICE	COMBINED IN RICE BOWL		APPROX. TIME(MINUTES)
	Rice	Cold water
Brown	1/2 cup	2/3 cup	40-41
	1 cup	1 1/4 cups	54-57
White	1/2 cup	3/4 cup	34-36
	1 cup	1 1/4 cups	37-41

OTHER FOODS	NUMBER OF PIECES	APPROX. TIME (MINUTES)
Hard-boiled eggs	1-12 (large size)	30
