USER MANUAL GR 8 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Barbecue Grill

Barbecue Grill

Gril Barbecue

Barbecue Grill

Barbacoa / Asador

Grelhador

Bistecchiera / Barbecue

Gratar electric

bap6ekio ckapa

I/B Version 090904

TEAM GR 8

230V~50Hz 2000W

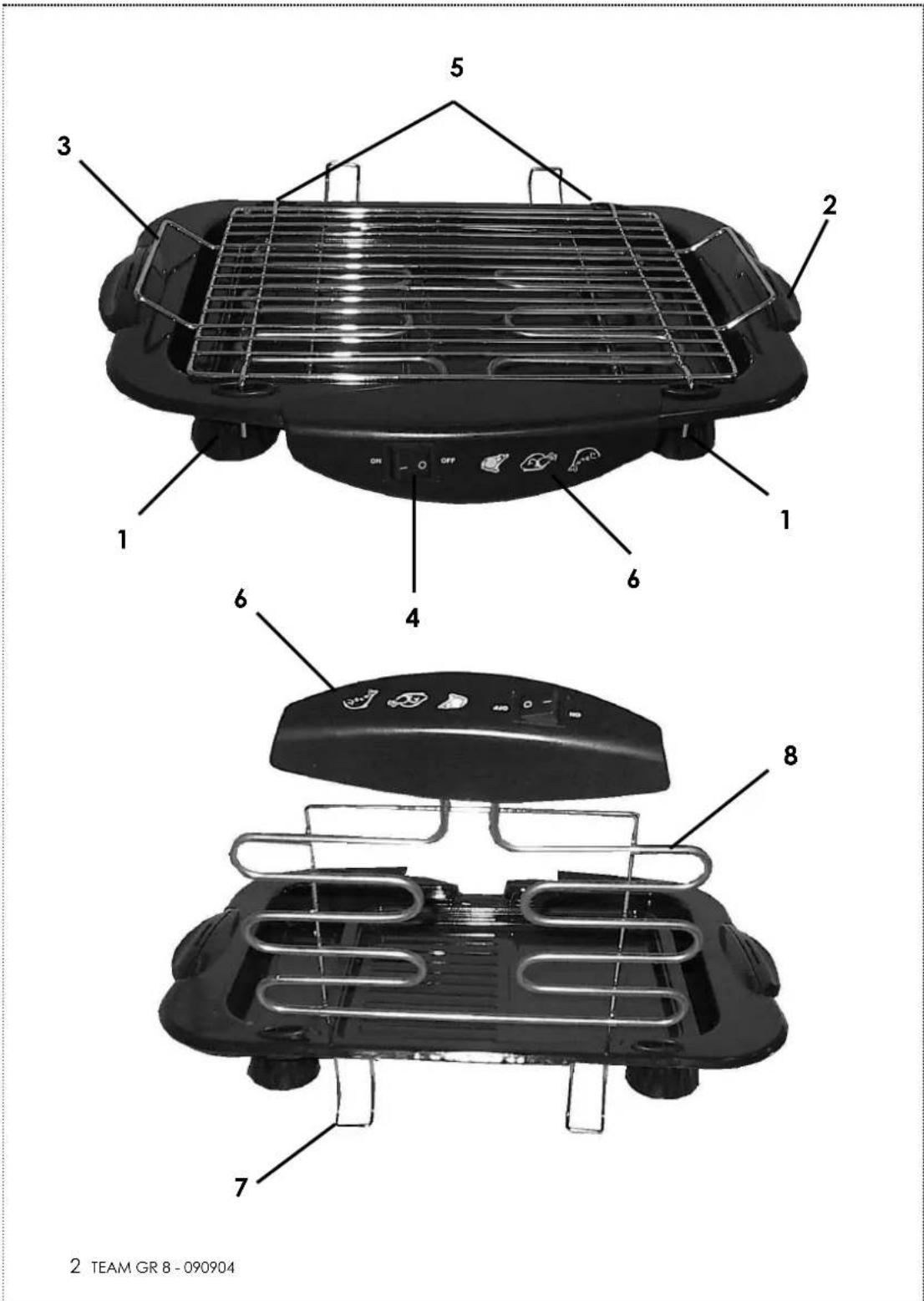

D

1. Feet
2. Handles of the appliance
3. Handles of the grid
4. Adjustable thermostat
5. Height adjuster
6. Control panel
7. Bracket of the heating element
8. Heating element

F

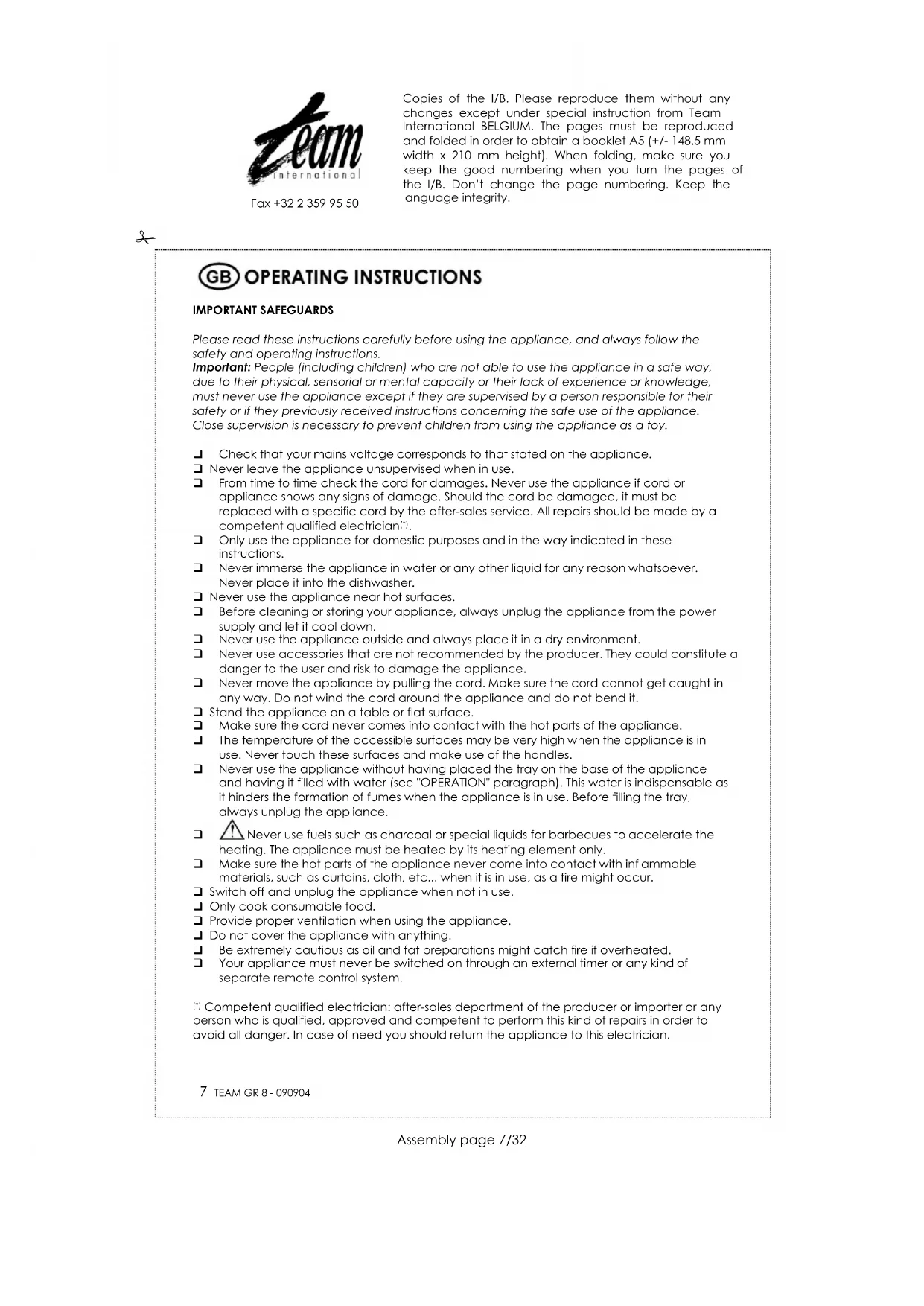

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

Check that your mains voltage corresponds to that stated on the appliance.

Never leave the appliance unsupervised when in use.

From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. Should the cord be damaged, it must be replaced with a specific cord by the after-sales service. All repairs should be made by a competent qualified electrician ^(*) .

Only use the appliance for domestic purposes and in the way indicated in these instructions.

Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.

Never use the appliance near hot surfaces.

Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.

Never use the appliance outside and always place it in a dry environment.

Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.

Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.

Stand the appliance on a table or flat surface.

Make sure the cord never comes into contact with the hot parts of the appliance.

The temperature of the accessible surfaces may be very high when the appliance is in use. Never touch these surfaces and make use of the handles.

Never use the appliance without having placed the tray on the base of the appliance and having it filled with water (see "OPERATION" paragraph). This water is indispensable as it hinders the formation of fumes when the appliance is in use. Before filling the tray, always unplug the appliance.

Never use fuels such as charcoal or special liquids for barbecues to accelerate the heating. The appliance must be heated by its heating element only.

Make sure the hot parts of the appliance never come into contact with inflammable materials, such as curtains, cloth, etc... when it is in use, as a fire might occur.

Switch off and unplug the appliance when not in use.

Only cook consumable food.

Provide proper ventilation when using the appliance.

Do not cover the appliance with anything.

Be extremely cautious as oil and fat preparations might catch fire if overheated.

• Your appliance must never be switched on through an external timer or any kind of separate remote control system.

Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician.

MOUNTING

• Your appliance is delivered with 4 feet that have to be mounted before each use (once in place they cannot be removed). Insert the metallic reflector and screw the feet in the places foreseen to that end. This reflector allows the heat to be reflected towards the appliance and prevents the support (table) from overheating.
• You can adjust the height of the grid at three different levels. Therefore, place the four feet of the grid in the openings corresponding to the desired height (see picture on page 2). Attention, place the feet in the 4 openings corresponding to the same height.

BEFORE THE FIRST USE

• Clean the grill and the accessories (cf. CLEANING AND CARE). It is recommended to heat up the grill for about 10 minutes without any foodstuff in order to eliminate the grease that may have adhered during manufacture and the (new) smell.
• Ventilate the room during this period.

OPERATION

This barbecue is foreseen only for domestic use.
- Pour half a litre of water directly into the bottom of the appliance (do not go over the maximum level indicated on the appliance).
- CAUTION: Take care that there's enough water during the whole cooking process, because water will tend to evaporate. Avoid pouring water on the heating element when refilling during use.
- Then place the heating element on the base of the appliance as indicated in the picture. Pay attention to its position because a safety device is activated while doing so. A wrong position will prevent the appliance from working (the pilot light will not light when you plug in your appliance).
- Then place the cooking grid on the base of the appliance.
- Caution: always use oven gloves when you want to remove the grid.
- Now plug in the appliance. Adjust the thermostat to the desired temperature. The pilot light will illuminate, which means that the appliance is working. If the pilot light does not illuminate, check the position of the heating element.
During cooking, the pilot light will switch off when the desired temperature is reached.
Now place the food on the grid. Use only plastic or wooden utensils to put food on the grid or to take food from the grid after cooking.
There are three different cooking heights, depending on the intensity of the desired cooking.
The cooking time depends on the nature of the food and on your personal taste.
After use, turn the thermostat knob to "0", unplug the appliance and let it cool down completely before handling it.

PRACTICAL HINTS

• Frozen food should always be thawed before it is grilled.
• When grilling big quantities, it is recommended to occasionally remove the accumulated fat from the tray carefully. Therefore:
• Place the thermostat knob on the position 0 and remove the plug from the power supply.
• Remove the grill rack with the foodstuffs.
• Remove the heating element and the control panel. Caution: the heating element is very hot. Do not place it on an inflammable surface. CAUTION: DO NOT GET BURNED AND HOLD THE CABLE SO THAT IT DOES NOT COME INTO CONTACT WITH THE HEATING ELEMENT.
• Remove the accumulated fat from the tray.
• Replace everything. Therefore proceed inversely.

CLEANING AND CARE

Before cleaning your appliance, always make sure that the plug has been removed from the mains supply socket.
- Allow the appliance to cool down thoroughly before cleaning, remove the grill rack and tray, and empty the remaining water.
Clean the bottom of the appliance, the tray and the grill rack with warm soapy water and rinse and dry afterwards. CAUTION:DO NOT WET THE RESISTANCE OR THE CONTROL PANEL.
- Wipe the outer surfaces of the grill with a damp cloth and dry afterwards.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
