Product type	Electric barbecue
Brand	TEAM
Model	BG 4
Usage	Indoor and outdoor, on table or on legs
Cooking type	By electric heating element
Thermostat	Adjustable with red indicator light
Grid heights	3 positions for fast or slow cooking
Legs	Removable, for tabletop or floor use
Drip tray	Included, can hold water to limit smoke
Water tank capacity (on table)	Min 0.5 L, max 1 L
Safety device	Protection by 30 mA RCD, do not immerse the heating element
Cleaning	Damp cloth, mild detergent; do not put in dishwasher
Included accessories	Cooking grid, heating element, grid support, drip tray, legs, screws
Power supply	Mains 220-240 V ~ (typical)
Manual available	French, 36 pages

Frequently Asked Questions - BG 4 TEAM

How to assemble the barbecue?

Place the grid support upside down, fix the 4 legs into the rubber ends respecting the angle. Fix the central tray with the provided screws, wing nuts facing outward. Turn over to check stability.

Can I use the barbecue without the legs?

Yes, you can place it directly on a stable table. It then rests on its non-slip rubber feet. You must use the drip tray with water (0.5 to 1 L) to protect the table.

Which grid height to choose?

Three heights are available: the lower position for searing food, the middle and upper positions for slower cooking. Adjust according to desired cooking intensity.

Do I need to put water in the appliance?

For tabletop use, fill the drip tray with water (min 0.5 L, max 1 L) to limit temperature and smoke. On legs, you can add water to the grid support if you do not want to collect the juices.

How to clean the barbecue?

Unplug and let cool. Never immerse the heating element, thermostat, or plug. Clean the grid, support and tray with hot water and mild detergent. Other surfaces with a slightly damp cloth.

What if the indicator light does not turn on?

Check that the appliance is plugged in and the thermostat is not on the minimum setting. If the problem persists, consult a qualified service professional.

Can the barbecue be used indoors?

Yes, with caution. Use on a stable surface, away from flammable materials. For tabletop use, the drip tray with water is mandatory to limit heat under the appliance.

What is the power of the barbecue?

The power is not specified in the manual. Refer to the appliance's rating plate.

How to adjust the temperature?

Turn the thermostat to the desired position. The red indicator light turns on when heating and off when temperature is reached. Preheat for 5 minutes at maximum power before cooking.

What to do in case of overheating?

Immediately set the thermostat to the minimum position and unplug the appliance. Let it cool completely before checking its condition. Never cover the appliance while operating.

USER MANUAL BG 4 TEAM

Black outdoor grill with metal legs and a flat top (no text or symbols visible)

team international

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

1

②

TEAM BG 4 - 070228

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

3

D

1. Protection
2. Handle
3. Grill rack
4. Heating element
5. Pilot light
6. Thermostat
7. Collecting tray
8. Grill casing
9. Handle
10. Foot
11. Middle plate

F

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

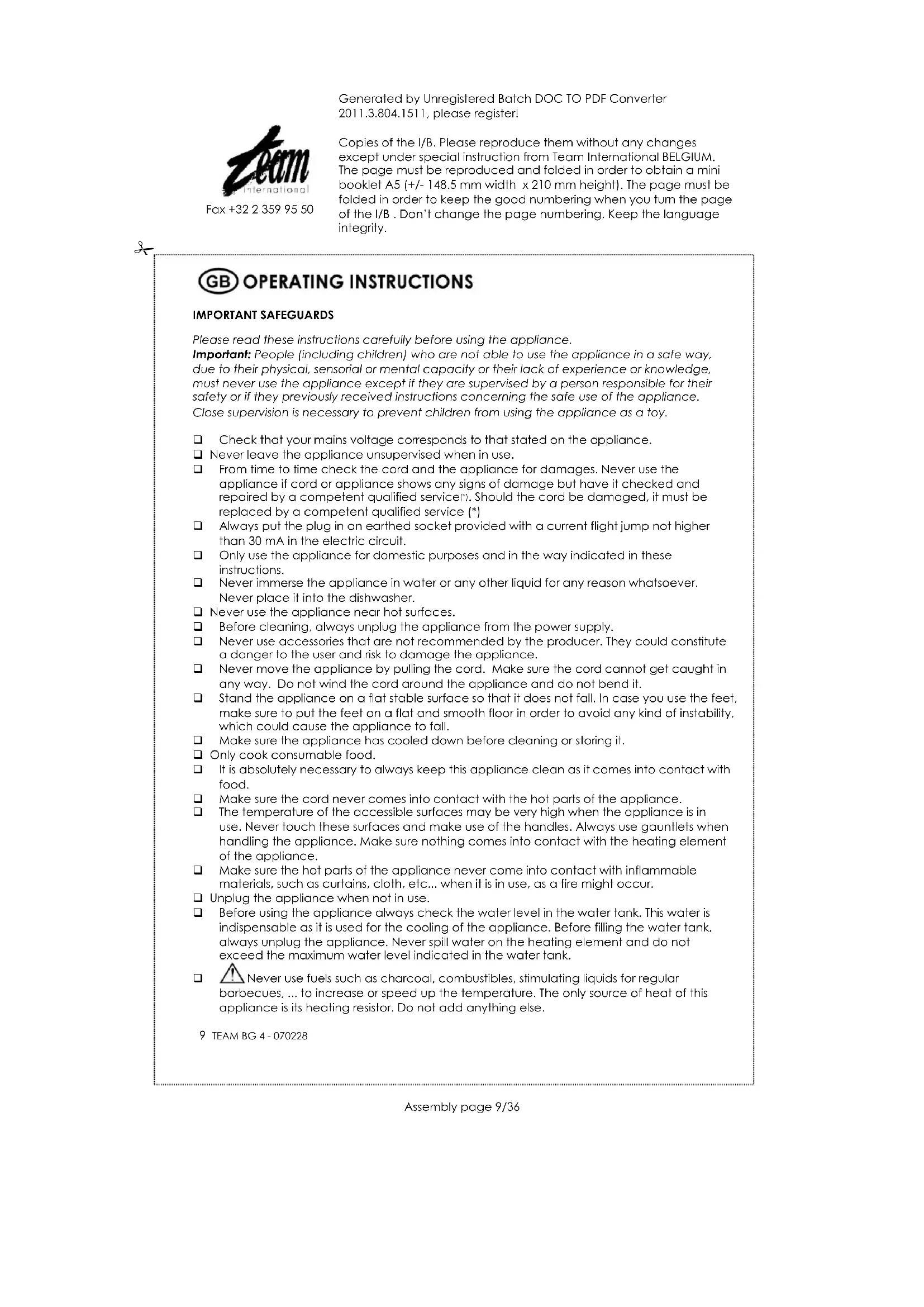

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance.

Close supervision is necessary to prevent children from using the appliance as a toy.

☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use.
From time to time check the cord and the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service ^1 . Should the cord be damaged, it must be replaced by a competent qualified service (*)
□ Always put the plug in an earthed socket provided with a current flight jump not higher than 30 mA in the electric circuit.
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
□ Never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply.
☐ Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
☐ Stand the appliance on a flat stable surface so that it does not fall. In case you use the feet, make sure to put the feet on a flat and smooth floor in order to avoid any kind of instability, which could cause the appliance to fall.
☐ Make sure the appliance has cooled down before cleaning or storing it.
□ Only cook consumable food.
It is absolutely necessary to always keep this appliance clean as it comes into contact with food.
☐ Make sure the cord never comes into contact with the hot parts of the appliance.
☐ The temperature of the accessible surfaces may be very high when the appliance is in use. Never touch these surfaces and make use of the handles. Always use gauntlets when handling the appliance. Make sure nothing comes into contact with the heating element of the appliance.
☐ Make sure the hot parts of the appliance never come into contact with inflammable materials, such as curtains, cloth, etc... when it is in use, as a fire might occur.
☐ Unplug the appliance when not in use.
Before using the appliance always check the water level in the water tank. This water is indispensable as it is used for the cooling of the appliance. Before filling the water tank, always unplug the appliance. Never spill water on the heating element and do not exceed the maximum water level indicated in the water tank.
☐ ▲ Never use fuels such as charcoal, combustibles, stimulating liquids for regular barbecues, ... to increase or speed up the temperature. The only source of heat of this appliance is its heating resistor. Do not add anything else.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

☐ Do not cover the appliance with anything.
☐ Be extremely cautious as oil and fat preparations might catch fire if overheated.
☐ Your appliance must never be switched on through an external timer or any kind of separate remote control system.

(1) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

MOUNTING (SEE PAGE 2, PICTURE ①)

1. Turn the grill casing upside down and install the 4 feet into the rubber tips. The feet have to be directed as described on picture ①.
2. Install the middle plate using the screws supplied. Pay attention to position the nuts on the external part of the feet.
3. Turn the appliance on its feet to check its stability.

You can also use the appliance without its feet. In this case, place it directly on a stable surface sot that it does not fall. It will thus just be on its non-slip rubber feet.

The grill features three possible heights for slow or fast cooking. When the grill is on the lowest level, your food will cook fast. On medium high or high level, the food will cook more slowly. To adapt the height, just insert the feet of the grill in the appropriate holes (see page 2, picture ②)

BEFORE FIRST USE

Clean the grill and the accessories (Cf. Cleaning and care). It is recommended to heat up the barbecue grill for about 10 minutes without any foodstuff in order to eliminate the grease that may have adhered during manufacture and the «new» smell.

OPERATION (see page 3, picture ③)

THIS APPLIANCE CAN BE USED WITH OUR WITHOUT ITS STAND (parts 10 and 11).

Use on its stand (parts 10 and 11 assembled)

This type of use is especially suitable for outdoor use but of course the appliance can also be used on its stand inside the house.

When using the appliance with its stand, you have two possibilities:

Either you want to collect the gravy and you put the collecting tray in the grill casing without adding water in any both containers.
- Or you do not want to collect the gravy but you want to reduce the emission of smoke and the temperature underneath the appliance by adding water directly into the grill casing, making sure to respect the min and max level indicated.

Note: it is also possible to use the appliance without water and without collecting tray, but for practical reasons, we advise you not to do so, as the emission of smoke will be important and cleaning the grill casing is not very easy (disassembling etc...) .

Use on a table (parts 10 and 11 disassembled)

In this case, the appliance is positioned on the table (indoors or outdoors) and is just standing on its small rubber feet.

10 TEAM BG 4 - 070228

When using the appliance this way, it is absolutely necessary to put the collecting tray in the grill casing, and to fill it with water (minimum 0.5 l, maximum 1 l) and to make sure that this water level is maintained during use. This is necessary to limit the temperature underneath the appliance and to protect the table. In this case it is not necessary to pour water in the grill casing.

However, if you want to collect the gravy, it is also possible to use the appliance without water, but the collecting tray must stay in the grill casing during the whole grilling process in order to limit the temperature underneath the appliance.

USE

Once you have chosen the desired way of installing the appliance, follow the instructions below:

• Insert the heating element into the grill casing as described on the picture ③, and finally set the grill over it.
• Connect the appliance and switch it on using the thermostat knob. The red pilot light will come to indicate that the appliance has been switched on.
• Then preheat the grill for about 5 minutes and select the cooking temperature using the thermostat knob.
• During cooking, the red pilot light will go off when the cooking temperature is reached. It will come on when the appliance is heating.
• Now put the foodstuffs onto the grill rack.
• There are 3 grill positions (see page 2, picture ②), according to the desired cooking intensity.
  • The grilling times vary according to the nature of the foodstuffs and to your personal taste.
• When grilling is finished switch off the thermostat and disconnect the appliance.

PRACTICAL HINTS

• Frozen food should always be thawed before it is grilled.
• When grilling big quantities, it is recommended to occasionally carefully remove the accumulated fat from the tray.

CLEANING AND CARE

• Before cleaning any domestic electrical appliance, always make sure that the plug has been removed from the mains supply socket.
• Allow the grill to cool down thoroughly before cleaning.
• Dismount all the accessories.
• Never immerse the heating element, the thermostat and the plug in water or liquid! Wipe them with a damp cloth and dry afterwards.
  • Clean the grill casing, the tray and the grill rack in warm soapy water and dry afterwards.
• Wipe the other surfaces of the grill with a damp cloth and dry afterwards.
• Do not use harsh abrasive cleaners.

PROTECTION OF THE ENVIRONMENT- DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol on the

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

12 TEAM BG 4 - 070228
