BG 2 - Barbecue TEAM - Free user manual and instructions

Brand	Team
Model	BG 2
Product type	Electric barbecue
Intended use	Outdoor only
Power supply	Electric, earthed plug, residual current device recommended (30 mA max)
Water tank capacity	1.5 litres maximum (do not exceed)
Grid heights	3 adjustable positions
Thermostat	Adjustable with indicator light
Indicator light	Red, indicates power on and temperature reached
Heating element	Integrated, do not immerse
Drip tray	Removable, aluminium
Feet	4 removable feet (never use without feet)
Included accessories	Cooking grid, drip tray, heating element, grid support, central tray
Cleaning	Grid and tray washable with hot water and mild detergent; heating element and thermostat wiped with damp cloth; do not immerse or put in dishwasher
Safety	Do not use without feet, do not cover, do not add fuel, keep out of reach of children, unplug after use
Usage precautions	Check water level before each use; do not pour water on heating element; use on smooth, hard surface

Frequently Asked Questions - BG 2 TEAM

How to assemble the BG 2 barbecue?

Place the support table upside down, attach the 4 feet into the rubber ends respecting the angle. Fix the central tray with the provided screws, wing nuts facing outward. Turn the table over and check stability.

What amount of water should I put in the tank?

Fill the tank with approximately 1.5 litres of water, without exceeding the Max level. The water is used for cooling and evaporates during cooking; check the level regularly.

How to use the thermostat?

Set the thermostat to the desired temperature. The red indicator light turns on to indicate power on. It turns off when the temperature is reached. The light turns back on during cooking if the temperature drops.

What are the available grid heights?

There are 3 heights for the cooking grid (see page 2, drawing ②). Choose according to the desired cooking intensity: the higher the grid, the gentler the cooking.

Can I use charcoal or wood in this barbecue?

No, this appliance is electric. Do not use any fuel such as charcoal, combustion blocks, or lighting liquids. The only heat source is the heating element.

How to clean the barbecue?

Unplug and let cool completely. Disassemble the accessories. Clean the grid and drip tray in hot water with mild detergent. Never immerse the heating element, thermostat, or plug; wipe them with a slightly damp cloth and dry.

What to do if the power cord is damaged?

Do not use it. Have the cord replaced by a qualified competent service (manufacturer's or importer's after-sales service) to avoid any danger.

Can I use an extension cord?

If necessary, use an extension cord suitable for the appliance's power and with an earth plug. Avoid running the cord near hot surfaces.

Why does the indicator light flash?

The red indicator light turns on when the appliance heats up and turns off when the desired temperature is reached. It turns back on if the temperature drops. This behaviour is normal.

How to store the barbecue after use?

Let cool, clean and dry all elements thoroughly. Store in a dry place, away from dust. Do not leave the cord wrapped around the appliance.

USER MANUAL BG 2 TEAM

Black outdoor picnic table with metal legs and a flat top (no text or symbols visible)

team international

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

1

②

TEAM BG 2 - 050412

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

3

D

1. Protection
2. Handle
3. Grill rack
4. Heating element
5. Pilot light
6. Thermostat
7. Collecting tray
8. Grill casing
9. Handle
10. Foot
11. Middle plate

F

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

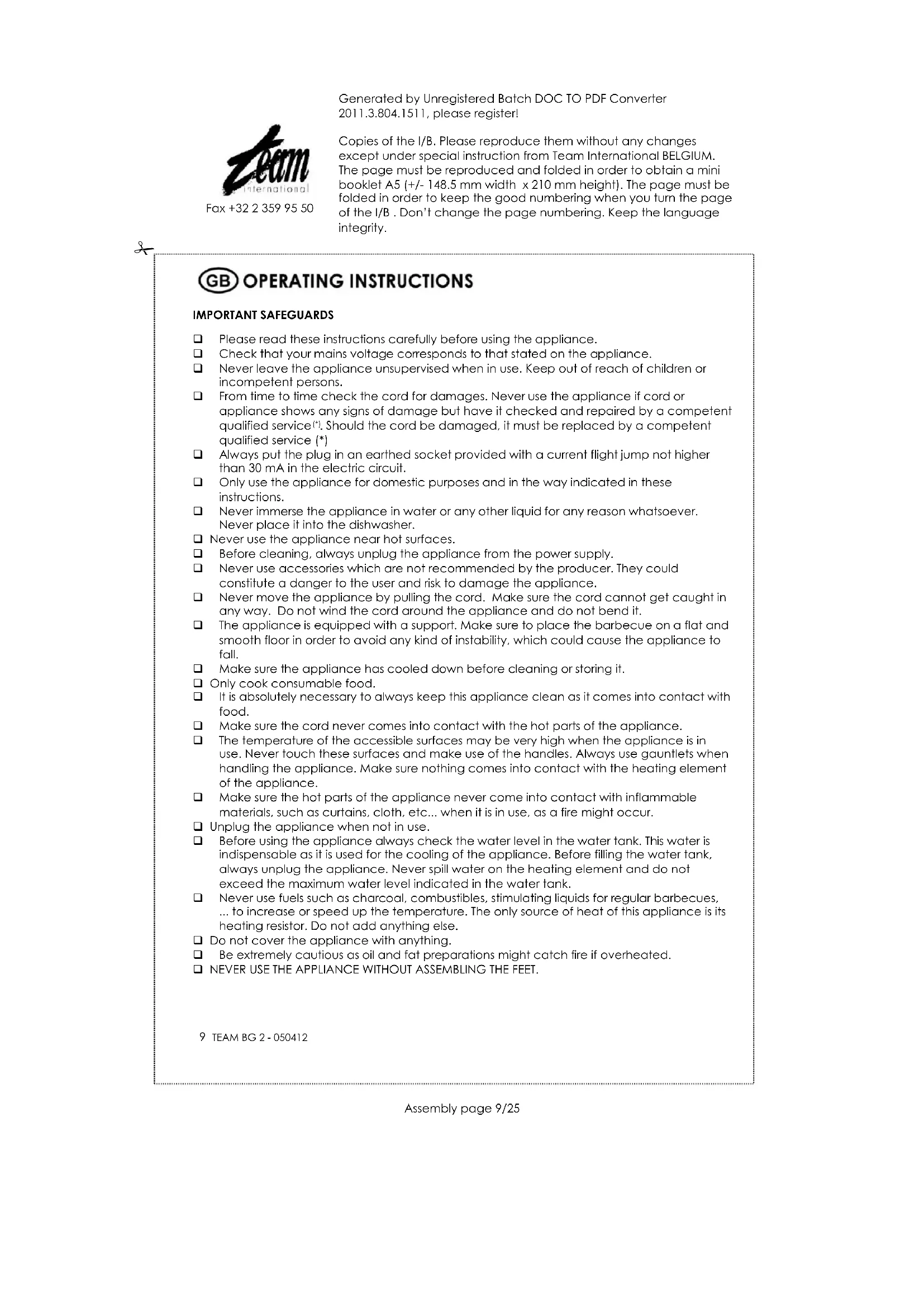

☐ Please read these instructions carefully before using the appliance.
☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service ^[1] . Should the cord be damaged, it must be replaced by a competent qualified service (*)
□ Always put the plug in an earthed socket provided with a current flight jump not higher than 30 mA in the electric circuit.
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
□ Never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply.
☐ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
☐ The appliance is equipped with a support. Make sure to place the barbecue on a flat and smooth floor in order to avoid any kind of instability, which could cause the appliance to fall.
☐ Make sure the appliance has cooled down before cleaning or storing it.
□ Only cook consumable food.
☐ It is absolutely necessary to always keep this appliance clean as it comes into contact with food.
☐ Make sure the cord never comes into contact with the hot parts of the appliance.
☐ The temperature of the accessible surfaces may be very high when the appliance is in use. Never touch these surfaces and make use of the handles. Always use gauntlets when handling the appliance. Make sure nothing comes into contact with the heating element of the appliance.
☐ Make sure the hot parts of the appliance never come into contact with inflammable materials, such as curtains, cloth, etc... when it is in use, as a fire might occur.
□ Unplug the appliance when not in use.
Before using the appliance always check the water level in the water tank. This water is indispensable as it is used for the cooling of the appliance. Before filling the water tank, always unplug the appliance. Never spill water on the heating element and do not exceed the maximum water level indicated in the water tank.
☐ Never use fuels such as charcoal, combustibles, stimulating liquids for regular barbecues, ... to increase or speed up the temperature. The only source of heat of this appliance is its heating resistor. Do not add anything else.
☐ Do not cover the appliance with anything.
☐ Be extremely cautious as oil and fat preparations might catch fire if overheated.
☐ NEVER USE THE APPLIANCE WITHOUT ASSEMBLING THE FEET.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

^1 Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

10 TEAM BG 2-050412

MOUNTING (SEE PAGE 2, PICTURE ①)

1. Turn the grill casing upside down and install the 4 feet into the rubber tips. The feet have to be directed as described on picture ①.
2. Install the middle plate using the screws supplied. Pay attention to position the nuts on the external part of the feet.
3. Turn the appliance on its feet to check its stability.

BEFORE FIRST USE

Clean the grill and the accessories (Cf. Cleaning and care). It is recommended to heat up the barbecue grill for about 10 minutes without any foodstuff in order to eliminate the grease that may have adhered during manufacture and the «new» smell.

OPERATION (see page 3, picture ③)

CAUTION : NEVER USE THE APPLIANCE WITHOUT ASSEMBLING THE FEET.

• THIS BARBECUE GRILL IS DESIGNED FOR EXTERNAL USE ONLY. WHEN ASSEMBLED WITH THE FEET, STAND IT ON A FLAT AND SMOOTH FLOOR.
• Place the collecting tray into the grill casing.
  • Fill the tray with 1.5 litre of water.
• The water in the tray will evaporate during use. It is therefore necessary to refill water from time to time. Do not spill water on the heating element, as this could be dangerous.
• Then insert the heating element into the grill casing as described on the picture ③, and finally set the grill over it.
• Connect the appliance and switch it on using the thermostat knob. The red pilot light will come to indicate that the appliance has been switched on.
• Then preheat the grill for about 5 minutes and select the cooking temperature using the thermostat knob.
  • During cooking, the red pilot light will go off when the cooking temperature is reached.
• Now put the foodstuffs onto the grill rack.
• There are 3 grill positions (see page 2, picture ②), according to the desired cooking intensity.
  • The grilling times vary according to the nature of the foodstuffs and to your personal taste.
• When grilling is finished switch off the thermostat and disconnect the appliance.

PRACTICAL HINTS

• Frozen food should always be thawed before it is grilled.
• When grilling big quantities, it is recommended to occasionally carefully remove the accumulated fat from the tray.

CLEANING AND CARE

• Before cleaning any domestic electrical appliance, always make sure that the plug has been removed from the mains supply socket.
• Allow the grill to cool down thoroughly before cleaning.
• Dismount all the accessories.
• Never immerse the heating element, the thermostat and the plug in water or liquid! Wipe them with a damp cloth and dry afterwards.
• Clean the grill casing, the tray and the grill rack in warm soapy water and dry afterwards.

11 TEAM BG 2-050412

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

• Wipe the other surfaces of the grill with a damp cloth and dry afterwards.
• Do not use harsh abrasive cleaners.

12 TEAM BG 2-050412

MODE D'EMPLOI

POUR VOTRE SECURITE

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

CONSEILS PRATIQUES

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

18 TEAM BG 2 - 050412

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

REINIGING EN ONDERHOUD

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

CONSELHOS ÚTEIS

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

24 TEAM BG 2-050412

TEAM BG 2

Deutsch	5
English	8
Français	10
Nederlands	13
Português	16

team international
