USER MANUAL TKG SWM 5 KALORIK

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Front cover page (first page) Assembly page 1/40

Sandwich/Grill-Kombi Combi sandwich /Grill Combi Croque-Grill Combi sandwichtoaster en grill Sandwichera/Grill Sanduicheira/Grelhador Tostiera/Bistecchiera Opiekacz/Grill Combi sandwich/ gratar TKG SWM 5 230V~ 700W Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

1. Power light (red)

8. Grease collecting tray

apertura Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

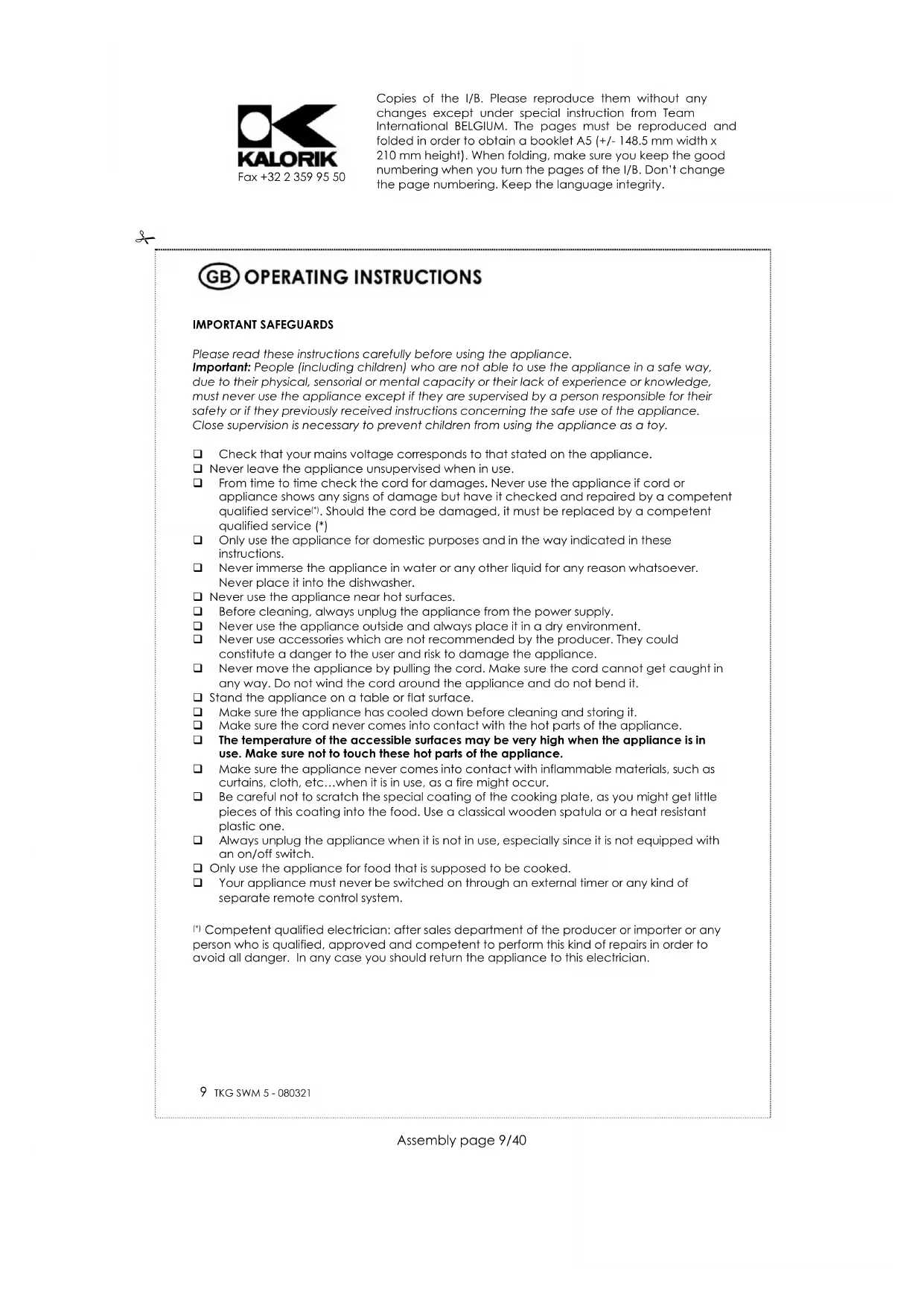

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance. Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy. Check that your mains voltage corresponds to that stated on the appliance. Never leave the appliance unsupervised when in use. From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service

. Should the cord be damaged, it must be replaced by a competent qualified service (*) Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. Never use the appliance near hot surfaces. Before cleaning, always unplug the appliance from the power supply. Never use the appliance outside and always place it in a dry environment. Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Stand the appliance on a table or flat surface. Make sure the appliance has cooled down before cleaning and storing it. Make sure the cord never comes into contact with the hot parts of the appliance. The temperature of the accessible surfaces may be very high when the appliance is in use. Make sure not to touch these hot parts of the appliance. Make sure the appliance never comes into contact with inflammable materials, such as curtains, cloth, etc…when it is in use, as a fire might occur. Be careful not to scratch the special coating of the cooking plate, as you might get little pieces of this coating into the food. Use a classical wooden spatula or a heat resistant plastic one. Always unplug the appliance when it is not in use, especially since it is not equipped with an on/off switch. Only use the appliance for food that is supposed to be cooked. Your appliance must never be switched on through an external timer or any kind of separate remote control system.

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax +32 2 359 95 50 BEFORE USE The opening speed of the product may need to be adjusted to ensure it opens smoothly at a controlled speed. The knob (11) on the outside end of the right hand side hinge should be turned clockwise to reduce the speed or anticlockwise to increase the speed at which the product opens. The printed symbols are a reminder for the direction to turn it when adjusting the knob. USE Before plugging in the appliance, put the thermostat knob in "MIN" position. To open the appliance, press the opening button (4). When using for the first time, wipe the surface of the plates with a damp cloth, then dry. To remove the baking plates, slide the release buttons (5) towards the plates and take out the baking plates. Place the desired plates in the appliance by inserting the plate locking lugs (6) in the plate locking openings and press on the plates till you hear a click. Close the appliance and plug it in. The red power light will come on, indicating that the appliance is live. In off position, the ready light will be out, but as soon as you choose the desired setting, it will come on, until the desired temperature is reached. The appliance is fitted with a thermostat knob, which allows you to select the ideal temperature for each plate set. The following settings can be selected: MIN OFF position 150° Keep warm function 170° Preheating 190° Sandwich MAX Grill Turn the thermostat knob (3) to the desired position. You may season the plates with butter, margarine or cooking fat. Since the appliance has a non-stick coated surface, the use of butter or oil is optional. Protective coating burn off will cause smoking on first use. This is NOT harmful. The ready light will go out when the cooking temperature is reached. During use, this ready light will come on and off regularly. This simply means that the thermostat is regulating the appliance's temperature.

WARNING: WHEN THE APPLIANCE IS IN USE, THE BAKING PLATES AS WELL AS THE METAL PARTS

OF THE TOP COVER WARM UP AND CAN REACH A HIGH TEMPERATURE. DO NOT TOUCH THEM! !! TO AVOID BURNS, WAIT UNTIL THE APPLIANCE HAS TOTALLY COOLED DOWN BEFORE CHANGING THE PLATES. Keep warm function This function can be used to keep the food warm after the cooking time has elapsed, for example, if your second sandwich is ready while you are still eating the first one. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax +32 2 359 95 50 Sandwich function Insert the sandwich plates (7) in the appliance and close the lid. Turn the thermostat knob (3) to the 190° setting. Prepare your sandwich while the unit is heating. When the temperature light goes out, fully open the appliance. Place a slice of bread in the bottom half with the buttered side against the plate. Fill the sandwich. Add the top slice with the buttered side up and carefully close the appliance. Do not force shut. Steam will be ejected from between the plates; make sure that fingers do not come into contact with it. Lock the two halves by pressing the lid down till it clicks. Your sandwich will be toasted in 3 to 5 min or longer to suit your taste. Open the appliance and remove sandwich using a plastic or wooden spatula. Never use a metal knife as this may damage the non-stick coating. Close the lid to preserve the heat until you are ready to toast the next sandwiches. Prepare additional sandwiches if desired while the others are cooking. Put the heat selector knob in “MIN” position and unplug the appliance when finished. Leave it open to allow it to cool down. Grill function Insert the grill plates (9) in the appliance. Make sure you put the grill plate with the grease draining hole on the bottom of the appliance. Slide the grease collecting tray (8) between the front feet of the appliance so that it ends up below the grease draining hole. A small tab located underneath the appliance will block it in position. The tray is not fitted together with the appliance, so make sure you do not lift the appliance while cooking. Turn the thermostat knob to the MAX position. Lightly brush grids with butter, margarine or cooking oil to avoid that the foods stick to the plates. When the appliance has reached the desired temperature, it is, when the ready light goes out, open it and put the ingredients on the grill plate. Make sure the foods are not too thick, so that you can close the appliance. The cooking time depends on the type of food you are grilling. To avoid burning the ingredients, check regularly during the cooking process. When grilling is finished, put the thermostat knob in “MIN” position, unplug the appliance and leave it open to allow it to cool down. CLEANING Before cleaning, unplug and wait for the appliance and the plates to cool down. Wipe the outside with only a slightly moistened cloth ensuring that no moisture, oil or grease enters the cooling slots. To clean the plates we advise you to take them out of the appliance. To do so, slide the release buttons towards the plates and take out the baking plates. If you remove them from the appliance, you can wash them under running water. However, if you let them in the appliance, wipe the plates with a damp cloth or towel. Dry them afterwards. Never place the plates into the dishwasher. Do not clean the inside or outside with any abrasive scouring pad or steel wool as this will damage the non-stick coating. Do not immerse in water or any other liquid. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.
