USER MANUAL TKG SWP 1 KALORIK

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. Front cover page (first page) Assembly page 1/32

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

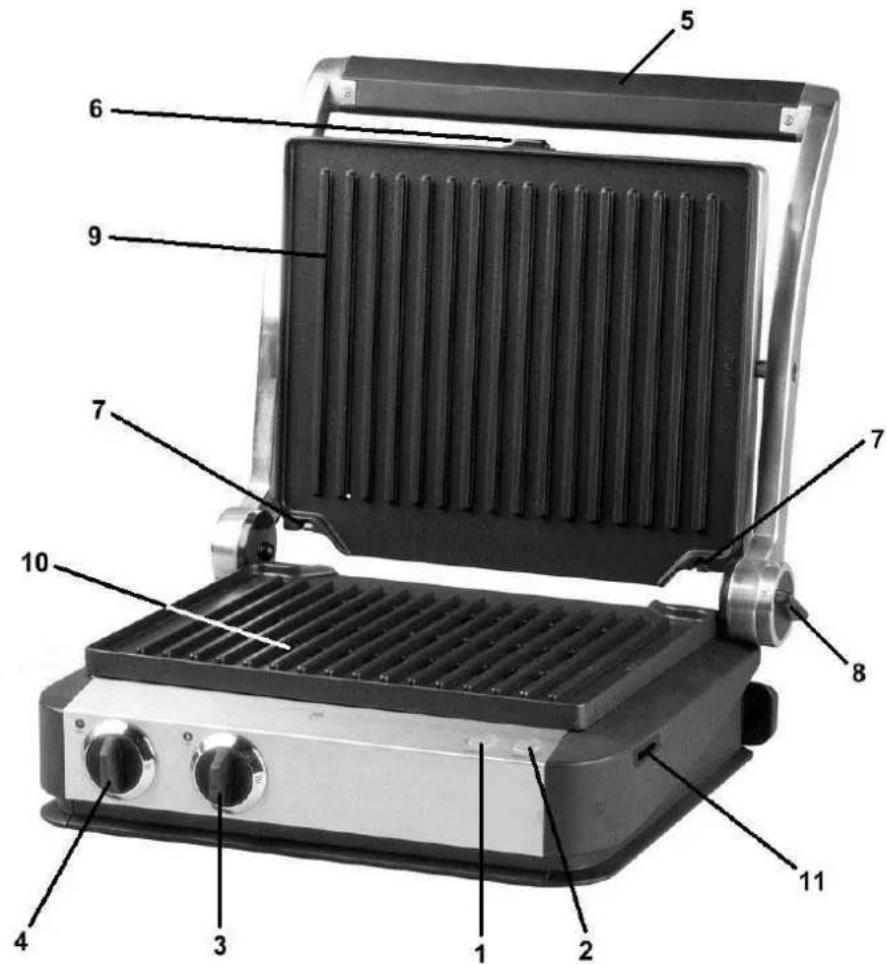

1. (Red) pilot light

6. Release button of the upper plate

10. Hole for fat outflow

11. Release button of the lower plate

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

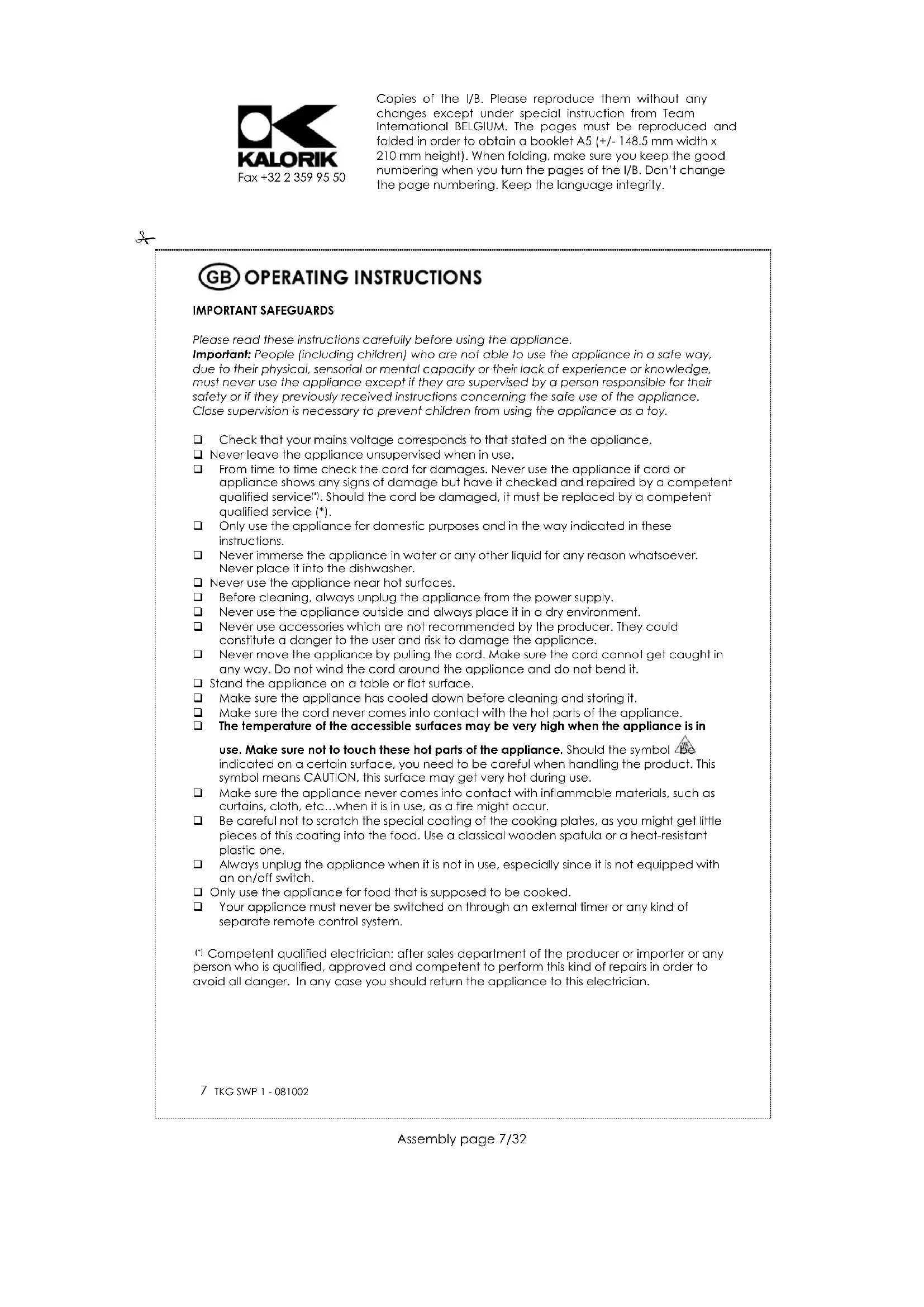

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance. Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy. Check that your mains voltage corresponds to that stated on the appliance. Never leave the appliance unsupervised when in use. From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service

. Should the cord be damaged, it must be replaced by a competent qualified service (*). Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. Never use the appliance near hot surfaces. Before cleaning, always unplug the appliance from the power supply. Never use the appliance outside and always place it in a dry environment. Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Stand the appliance on a table or flat surface. Make sure the appliance has cooled down before cleaning and storing it. Make sure the cord never comes into contact with the hot parts of the appliance. The temperature of the accessible surfaces may be very high when the appliance is in use. Make sure not to touch these hot parts of the appliance. Should the symbol be indicated on a certain surface, you need to be careful when handling the product. This symbol means CAUTION, this surface may get very hot during use. Make sure the appliance never comes into contact with inflammable materials, such as curtains, cloth, etc…when it is in use, as a fire might occur. Be careful not to scratch the special coating of the cooking plates, as you might get little pieces of this coating into the food. Use a classical wooden spatula or a heat-resistant plastic one. Always unplug the appliance when it is not in use, especially since it is not equipped with an on/off switch. Only use the appliance for food that is supposed to be cooked. Your appliance must never be switched on through an external timer or any kind of separate remote control system.

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax +32 2 359 95 50 USE Before plugging in the appliance, put the thermostat knob in "MIN" position. To open the appliance, you just have to raise the handle (5). When using for the first time, wipe the surface of the plates with a damp cloth, then dry. To remove or replace the lower plate, press the release button (11). You may replace this plate with another one that you can find at the back side of the appliance. These plates can easily be attached to the appliance by sliding the clip on the bottom of the plate correctly in the foreseen notch. Close the appliance and plug it in. Both control lamps light up. The appliance is fitted with a thermostat knob, which allows you to select the ideal temperature for each plate set. The following settings can be selected: MIN OFF position 140° Keep warm function 185° Preheating 230° Grill Turn the thermostat knob (3) to the desired position. You may season the plates with butter, margarine or cooking fat. Since the appliance has a non-stick coated surface, the use of butter or oil is optional. Protective coating burn off will cause smoke on first use. This is NOT harmful. The temperature indicator light will go out when the cooking temperature is reached. During use, this ready light will come on and off regularly. This simply means that the thermostat is regulating the appliance's temperature.

WARNING: WHEN THE APPLIANCE IS IN USE, THE BAKING PLATES AS WELL AS THE METAL PARTS

OF THE TOP COVER AND ALSO THE REAR SIDE OF THE APPLIANCE INCLUDING THE DRIP TRAY WARM UP AND CAN REACH A HIGH TEMPERATURE. DO NOT TOUCH THEM! !! TO AVOID BURNS, WAIT UNTIL THE APPLIANCE HAS TOTALLY COOLED DOWN BEFORE CHANGING THE PLATES. Cooking modes You can choose between several cooking modes. You have 3 options : « panini », « griddle », « raclette ». To make a choice, you have to put the handle and the upper plate vertically and then turn the cooking mode regulator (8) to the desired position. Raclette or keep warm function This function allows you to cook food by letting air circulate between the presses. This function can also be used to keep the food warm after the cooking time has elapsed, for example if your second sandwich is ready while you are still eating the first one. Griddle function This function allows you to cook food – especially meat – on the grill. By keeping the two plates in horizontal position and next to each other, you can increase the grill surface. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax +32 2 359 95 50 Panini function This function allows you to cook food and in particular sandwiches (croque monsieur or paninis) on both sides by pressing the foodstuffs between the two plates. CLEANING Before cleaning, unplug and wait for the appliance and the plates to cool down. Wipe the outside with only a slightly moistened cloth ensuring that no moisture, oil or grease enters the cooling slots. To remove the upper plate, press the release button (6) and pull the plate towards you. This plate can be put back by placing the locking lugs and pressing until the release button clicks into place. To remove the lower plate, press the release button (11). If you remove them from the appliance, you can wash them under running water. However, if you let them in the appliance, wipe the plates with a damp cloth or towel. Dry them afterwards. Never place the plates into the dishwasher. You can also remove the drip tray which is situated at the back of the appliance. Hold it upright while you pull it out and clean it with soapy water. Do not clean the inside or outside with any abrasive scouring pad or steel wool as this will damage the non-stick coating. Do not use sharp or metallic utensils as they might damage the non-stick coating. Do not immerse the appliance in water or any other liquid.

PROTECTION OF THE ENVIRONMENT– DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.
