BrandVelleman
ModelVL0612
Product typeBattery charger for lead-acid batteries
Output voltage6 V
Output current1.25 A
Dimensions (L × W × H)93 × 82 × 105 mm
Weight1 kg
Output cable length190 cm
Power supply230 V AC
Positive cable colorRed
Negative cable colorBlack
Main functionsAutomatic charging, float charge, 72-hour safety timer, anti-spark protection
LED indicatorsRed LED (charging), green LED (full charge), flashing for faults
SafetyIndoor use only, do not expose to rain or snow
Maintenance and cleaningDisconnect before cleaning, dry cloth
RepairabilityNo user-serviceable parts; replace if damaged

Frequently Asked Questions - VL0612 VELLEMAN

What to do if the battery is completely dead (less than 3 V)?
Temporarily connect the dead battery to a working battery to start the charging process. The charger does not start below 3 V.
How to interpret the LED indicators?
Flashing red: initial check. Solid red: charging. Solid red + flashing green: 80% charged. Solid green: full charge. Red and green flashing simultaneously: battery voltage < 3 V.
What type of battery can I charge with the VL0612?
This charger is designed only for 6 V rechargeable lead-acid batteries. Do not use for other types of batteries (e.g., alkaline, Li-ion).
How long does it take to charge a typical car battery (15 Ah)?
Approximately 12 hours with a current of 1.25 A (15 Ah / 1.25 A = 12 h). Time may vary depending on battery condition.
Can I leave the charger connected permanently?
Yes, the charger automatically switches to float charge mode once the battery is fully charged, preventing overcharging.
How to connect the charger to a battery installed in a vehicle?
First connect the red (+) clamp to the positive terminal of the battery, then the black (-) clamp to the chassis (negative ground), away from the battery and fuel lines.
What does the solid green light mean at the start of charging?
This indicates that the battery is either already fully charged or defective. Check the battery condition.
What to do if the red light stays on and the green flashes at the start of charging?
This can happen if the AC power was interrupted or if the charger was disconnected and reconnected quickly. Wait a few minutes and try again.
Can the charger be used outdoors?
No, the charger is intended for indoor use only. Do not expose to rain, snow, or moisture.
What safety precautions should be taken during charging?
Wear safety goggles, work in a ventilated area, avoid flames and sparks, and do not smoke near the battery.

User questions about VL0612 VELLEMAN

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Battery charger in PDF format for free! Find your manual VL0612 - VELLEMAN and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VL0612 by VELLEMAN.

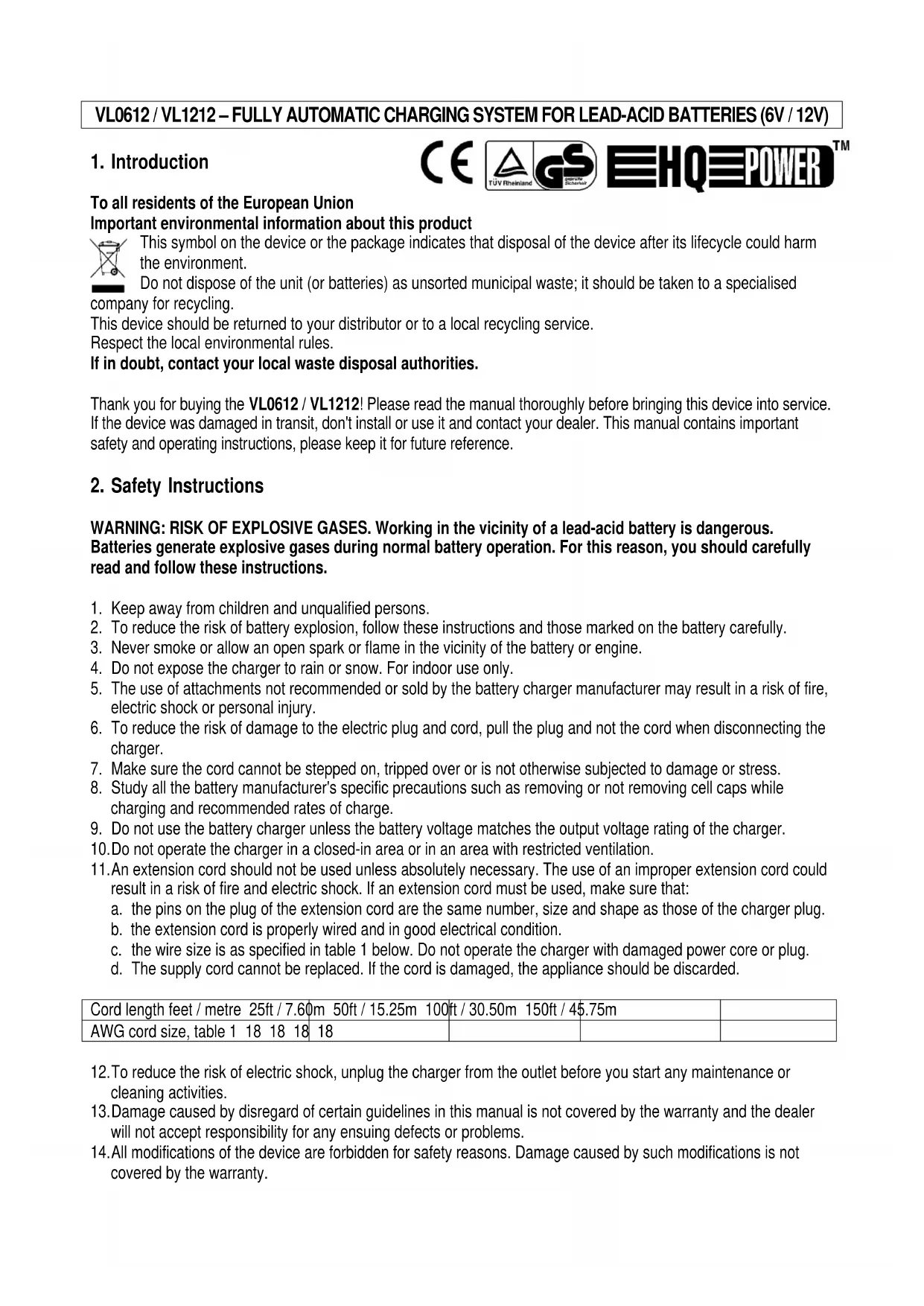

USER MANUAL VL0612 VELLEMAN
