Product Type Stabilized DC Power Supply
Brand Velleman
Model LABPS3005N
Input Voltage 220-240 V~, 50/60 Hz
Output Voltage 0-30 VDC
Output Current 0-5 A
Max Power 150 W
Fuse 3.15 A, 250 V
Ripple Voltage ≤ 1.0 mV rms
Ripple Current 3 mA rms
Protection Index IP20
Dimensions (W x H x D) 117 x 190 x 270 mm
Weight 4.8 kg
Color Gray
Protections Short circuit, current limitation
Operating Modes Constant voltage (C.V.) and constant current (C.C.)
Display LED for voltage and current
Adjustments Adjustable voltage and current
Operating Temperature 0 to +40 °C, <90% RH
Cleaning Lint-free damp cloth, no alcohol or solvents
User Serviceable Parts Fuse only
Warranty 24 months (domestic use), 6 months (professional use)

Frequently Asked Questions - LABPS3005N VELLEMAN

How to adjust the output voltage?
Turn the voltage adjustment knob (7) to select the desired voltage. Fine adjustment is also available. The C.V. indicator lights up when the device is in constant voltage mode.
How to adjust the current limit?
Short-circuit the output terminals using an appropriate cable, then turn the current adjustment knob (2) to set the limit point. The C.C. indicator lights up in constant current mode.
What to do in case of a short circuit?
The device automatically protects itself by cutting the output to prevent power loss. Repair the short circuit as soon as possible to avoid wear and unnecessary power consumption. Normal operation will resume automatically.
Can I use the device to charge batteries?
Yes, but with caution. First set the appropriate voltage and current limit for the battery. Monitor the charge and respect the battery specifications to avoid damage.
Does the device normally heat up?
Yes, when operating at full power, the heat sink may become hot. Ensure adequate ventilation (at least 2.5 cm of space around) and place the device on a heat-resistant surface.
How to clean the device?
Disconnect the device before any cleaning. Use a lint-free damp cloth. Avoid alcohol and solvents. Never clean the interior.
What to do if the fuse blows?
The fuse is the only user-serviceable part. Replace it with an identical fuse: 3.15 A, 250 V. If the problem persists, contact your dealer.
Is the device protected against overloads?
Yes, the device has a short circuit protection and current limitation (max ±12 A in limitation mode). If exceeded, it automatically switches to current limit mode.
Can I use the device outdoors?
No, this device is designed for indoor use only. Protect it from dust, extreme temperatures, and humidity. IP20 rating.
What is the meaning of the C.V. and C.C. indicators?
The C.V. indicator shows constant voltage mode (voltage is regulated). The C.C. indicator shows constant current mode (current is limited). They light up according to the active operating mode.

User questions about LABPS3005N VELLEMAN

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Battery charger in PDF format for free! Find your manual LABPS3005N - VELLEMAN and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LABPS3005N by VELLEMAN.

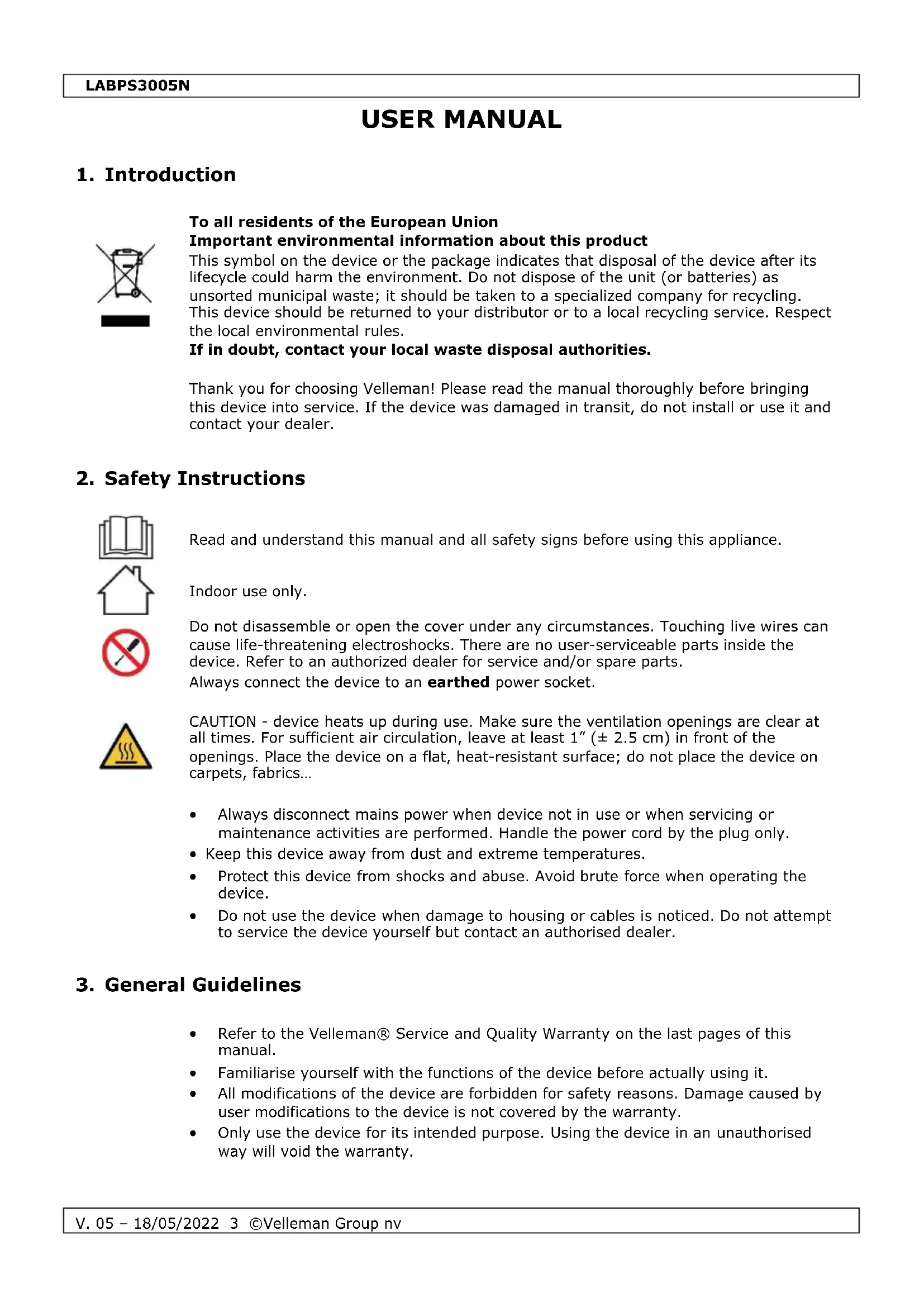

USER MANUAL LABPS3005N VELLEMAN
